Week 8 - Challenge 3 - Coin Holder Design

TooLing axis:-

Create a point on the Extracted Surface. It would be placed on the center of the surface. And take the line as point and directoin. direction of the line must should be perpendicular to the surface. That reasulent line is our Tooling Axis

Draft Analysis:-

for raft analysis go into Insert->analysis->feture draft analysis.

pick the campass on to the tooling axis and select the mode and choose the direction of draft and if you want highliting reprasentation. finally if you feel every thing fine then lock the draft analysis and click ok

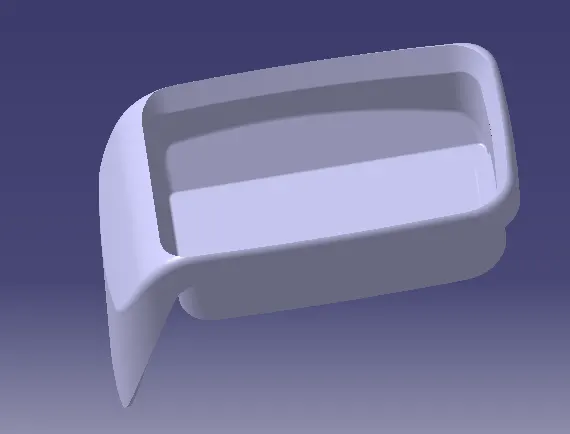

isomatric view

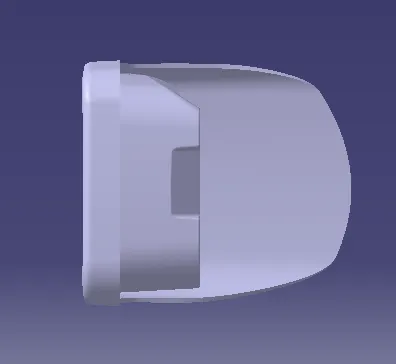

front view

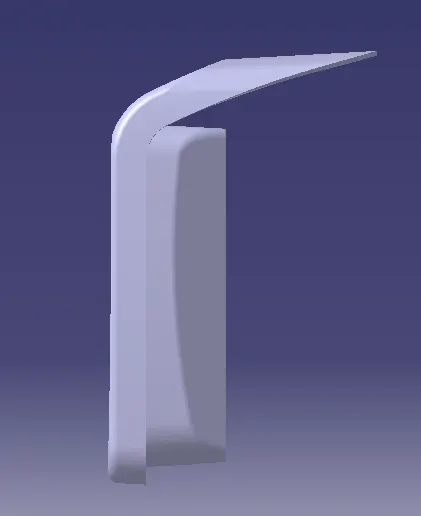

side view

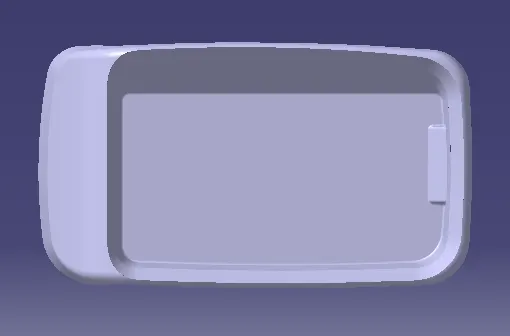

top view

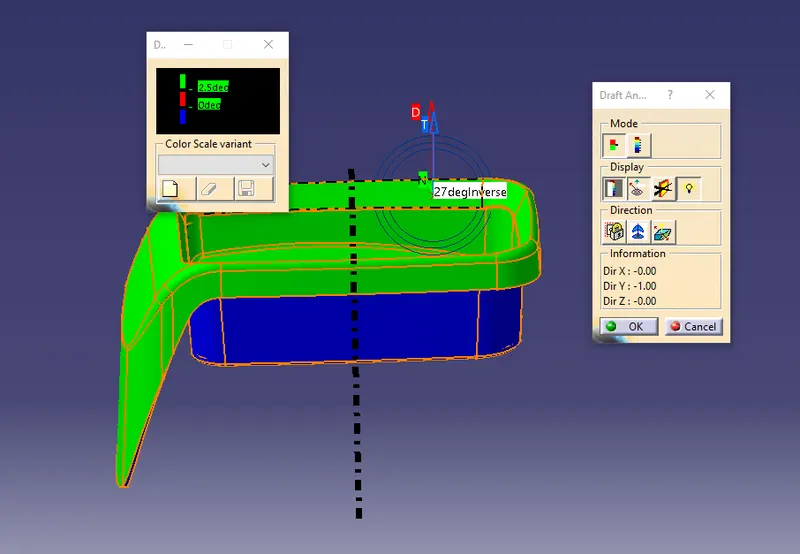

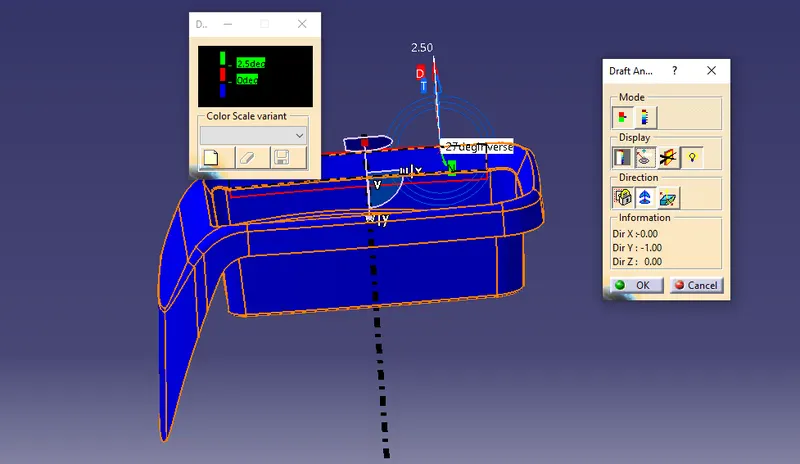

Draft analysis

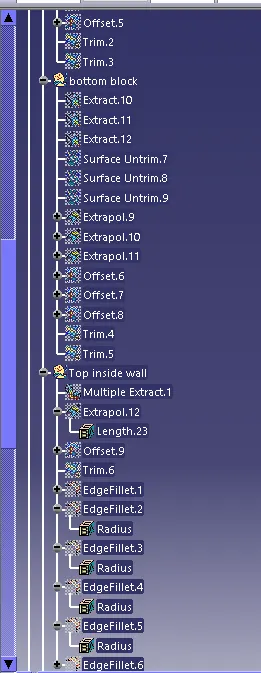

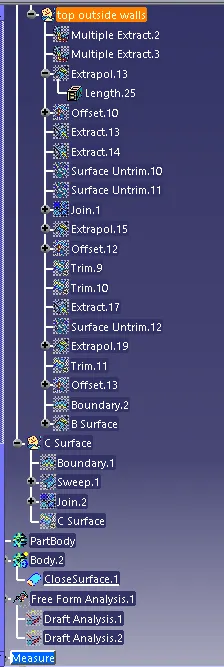

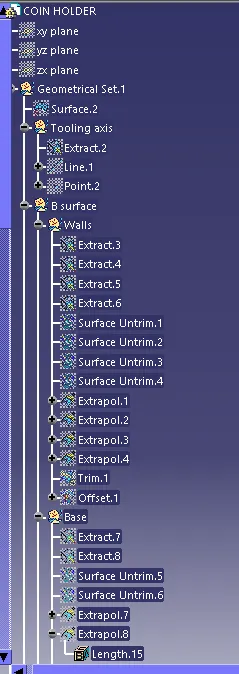

tree structure
