Week 8 - Challenge 3 - Coin Holder Design

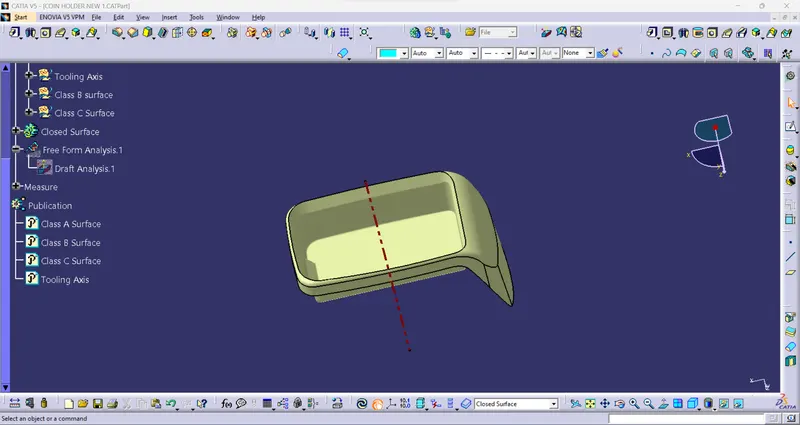

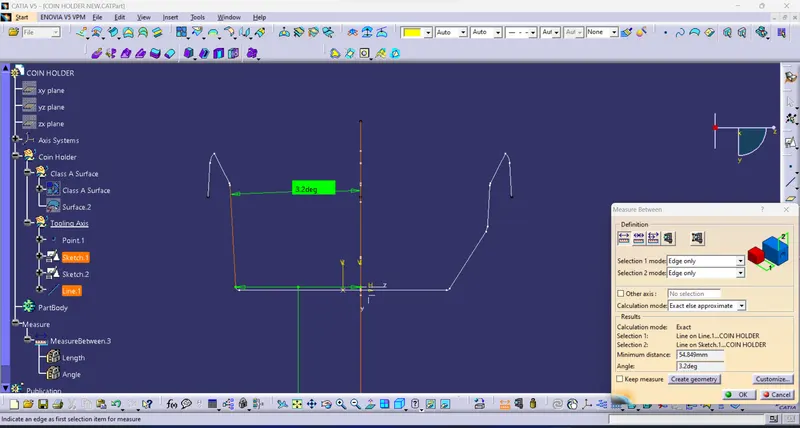

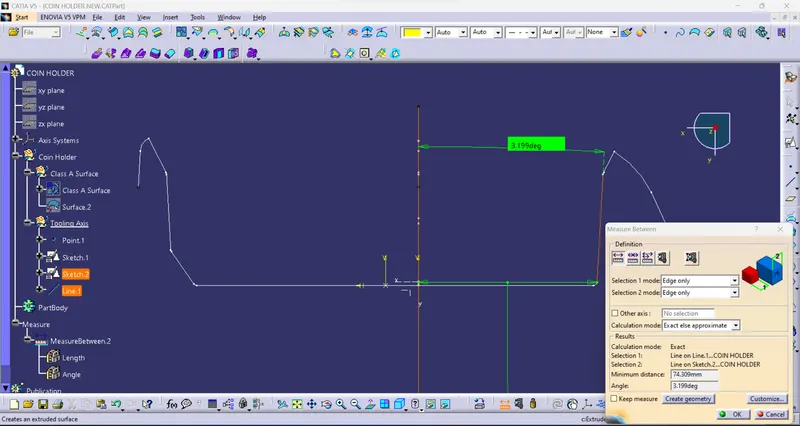

Tooling Axis:

• Tooling Axis is a line in which the core & cavity is open.
• create an intersection on both sides to check the center of the axis
• To create a point using the surface to generate the line to the center of the tooling axis.
• To change the name to Tooling axis.

Surface Modeling:

Class A Surface:

• class a is an input to get stylish.
• check the class A surface to fully closed surface or not.
• the use to create class B surface.

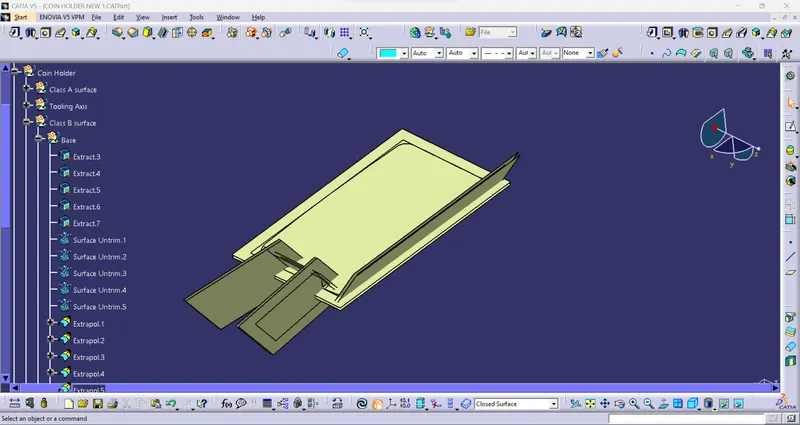

Class B Surface:

• Class B surface has Extracted the surface from the class A surface.
• Use the Extract the surface and untrim the surface.
• Then Extrapolate the untrimmed surface.
• then offset the surface for a given thickness of 2.5mm distance.
• All the surface for the Wall, surface, and base.

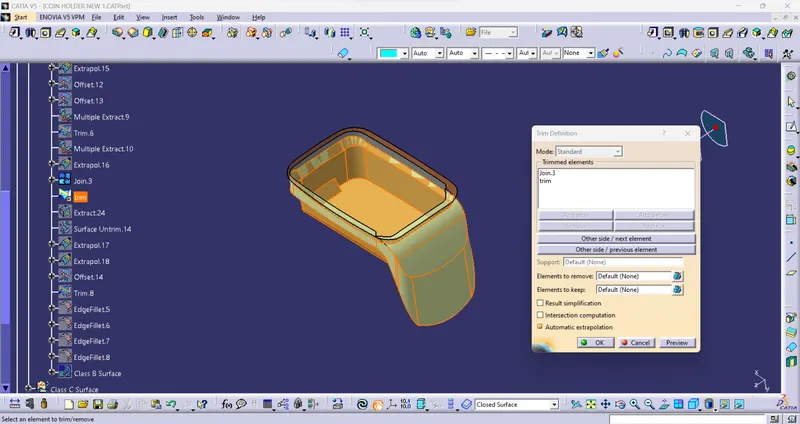

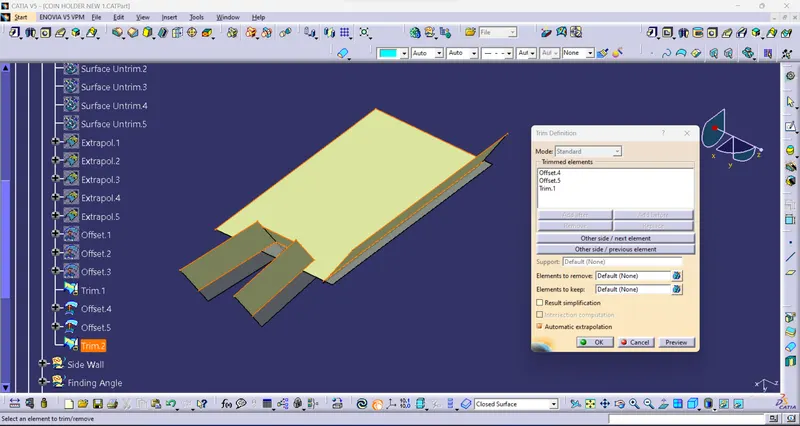

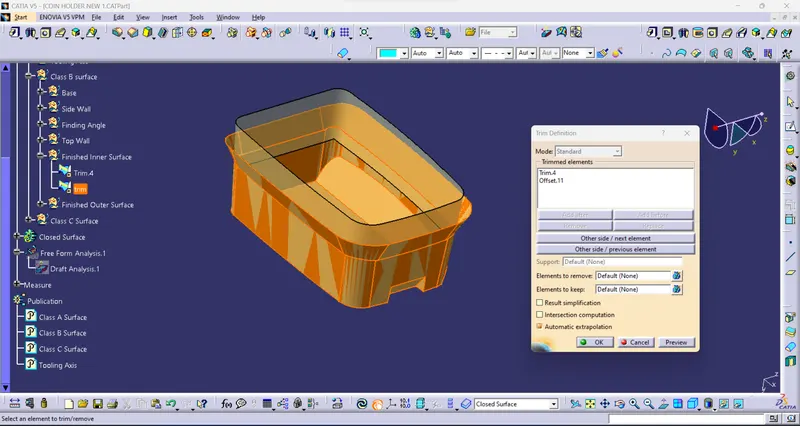

• Then trim the surface.

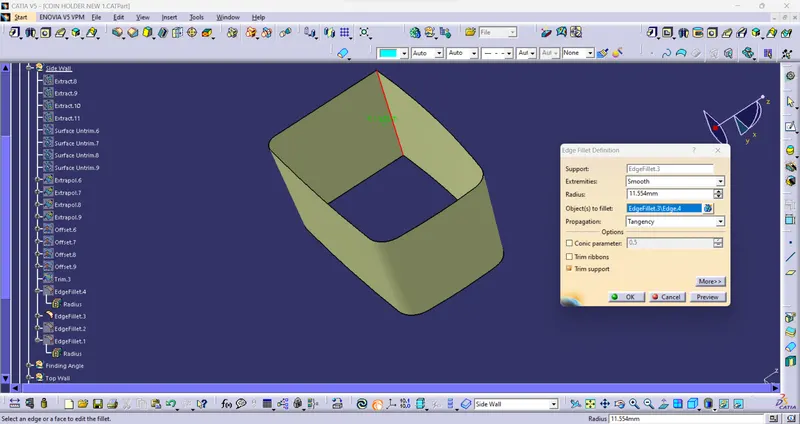

• Next fillet the surface.
• Finally, generate the Class B surface.

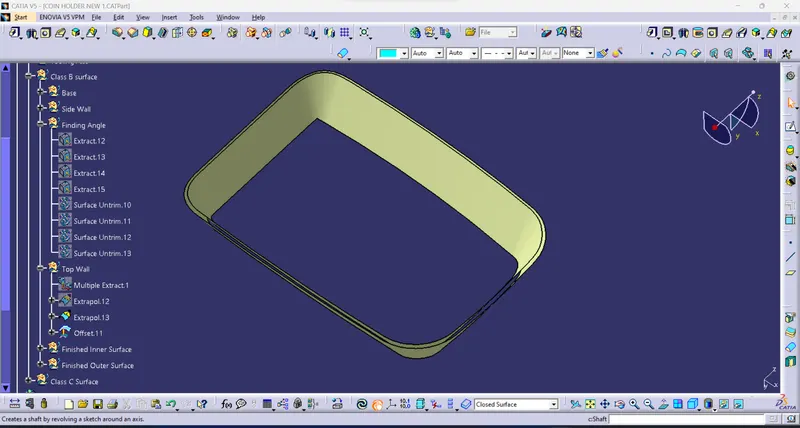

Inner Wall creation:

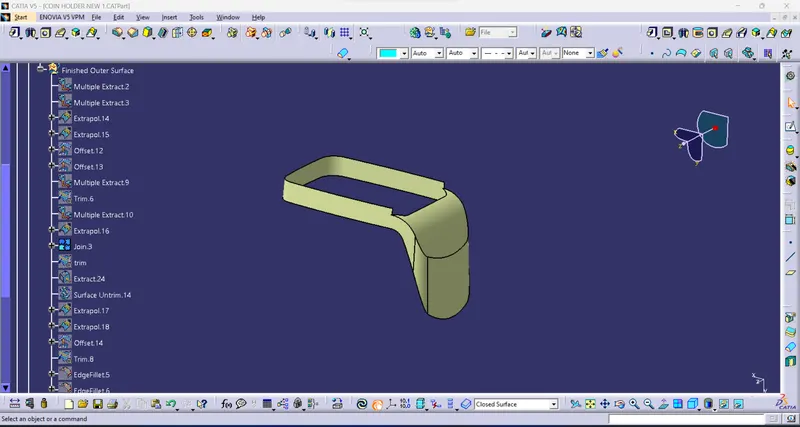

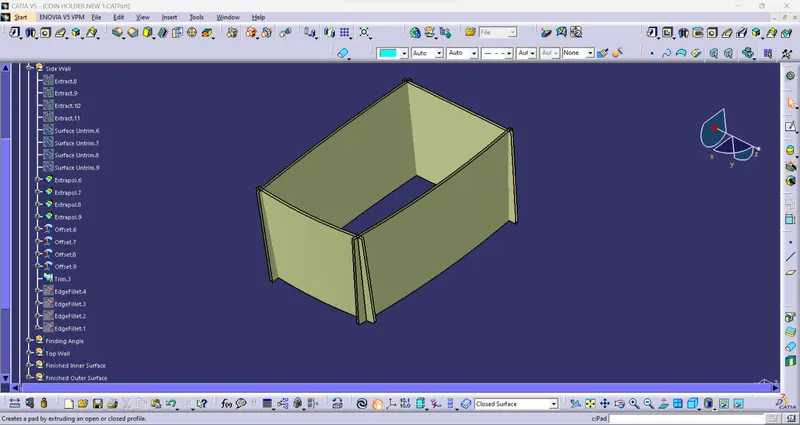

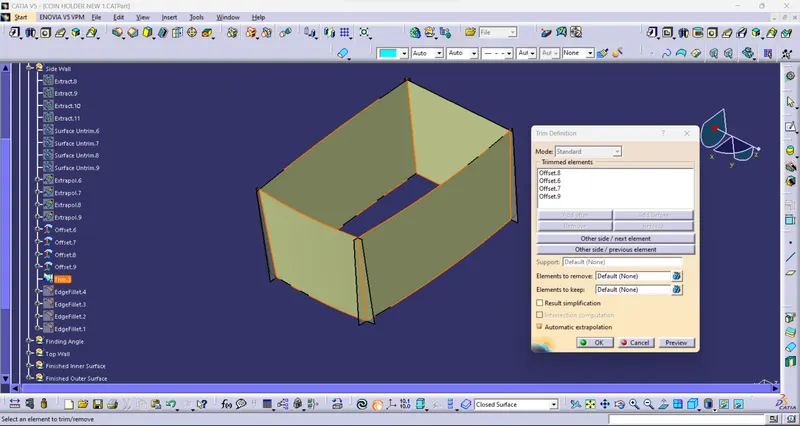

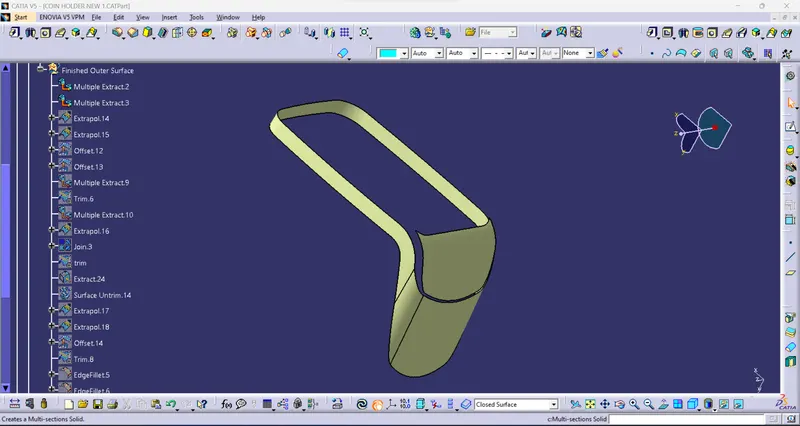

Outer wall creation:

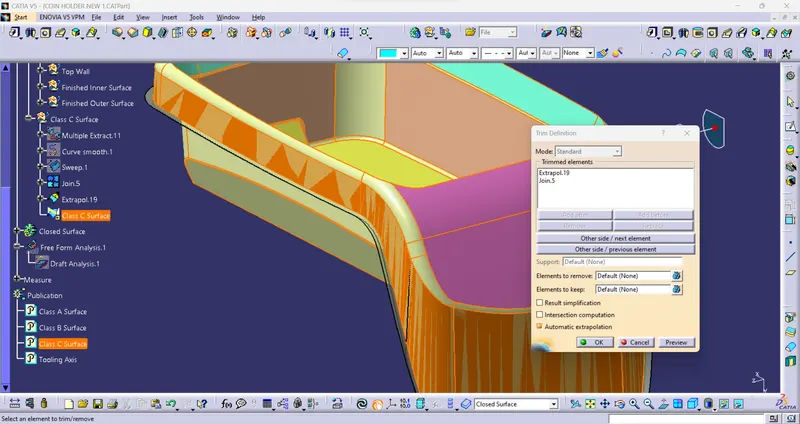

Class C surface:

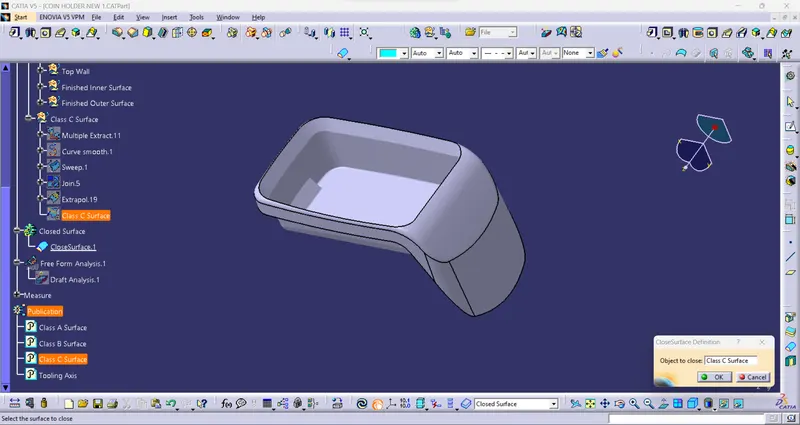

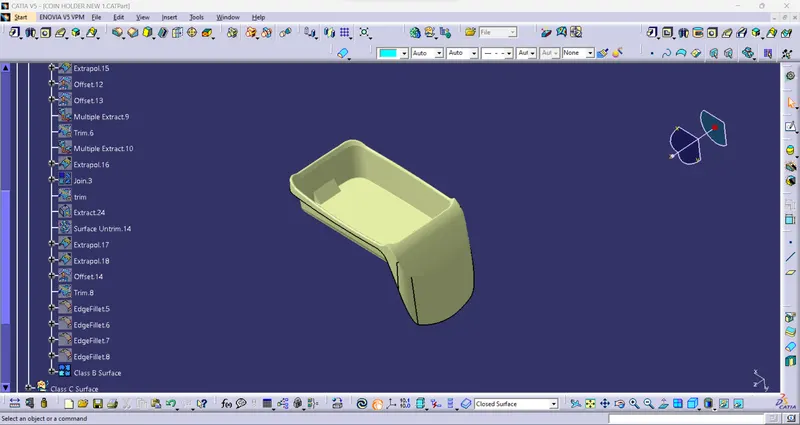

closed surface:

• Create a closed surface for the given Class C surface.
• using Closed surface commend In part workbench.
• finally, generate the solid model.

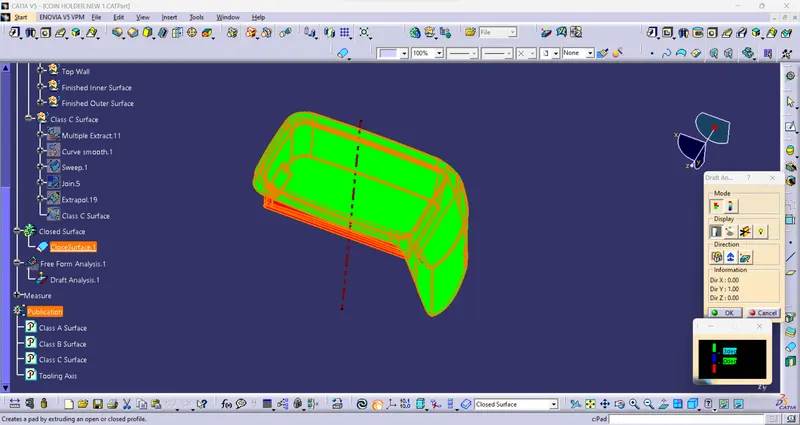

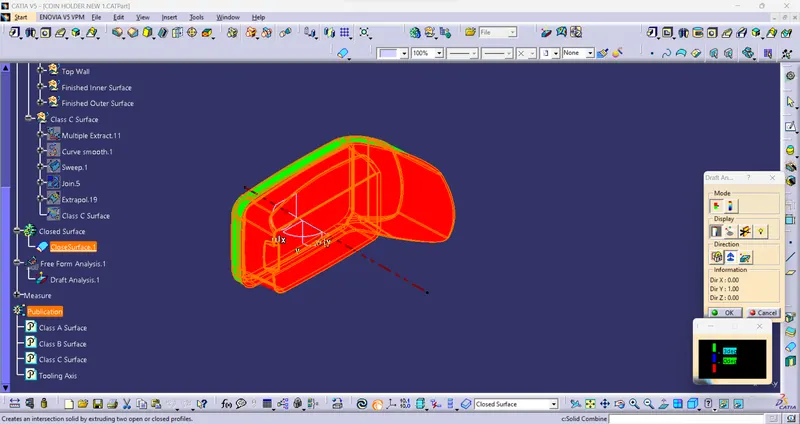

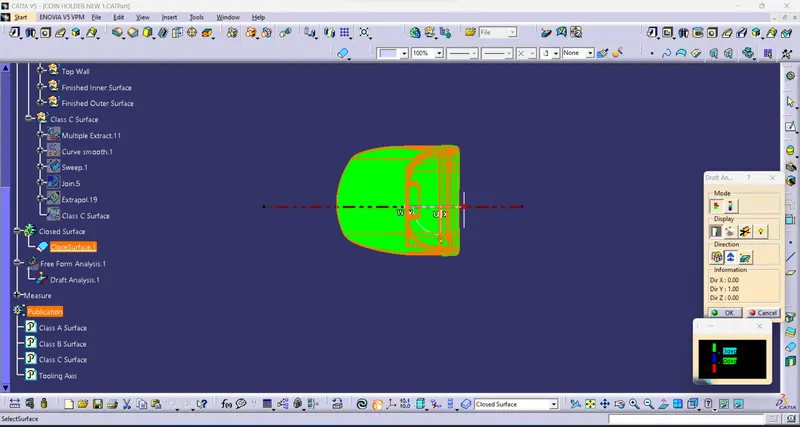

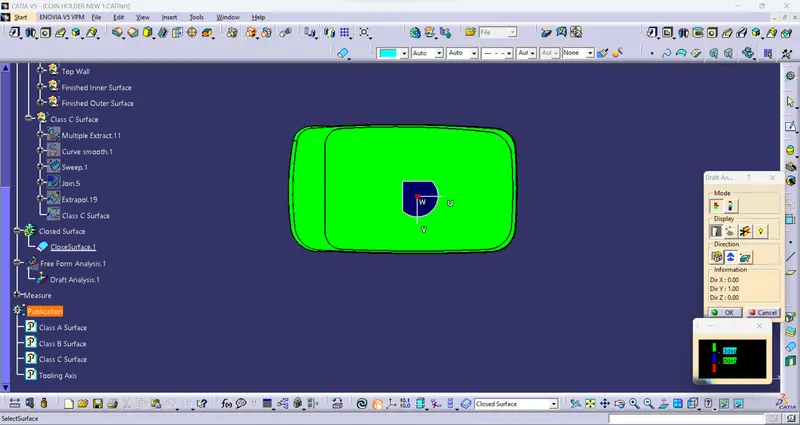

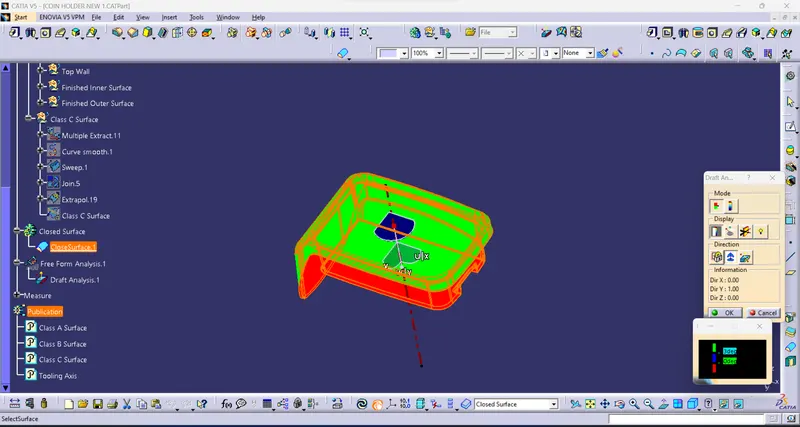

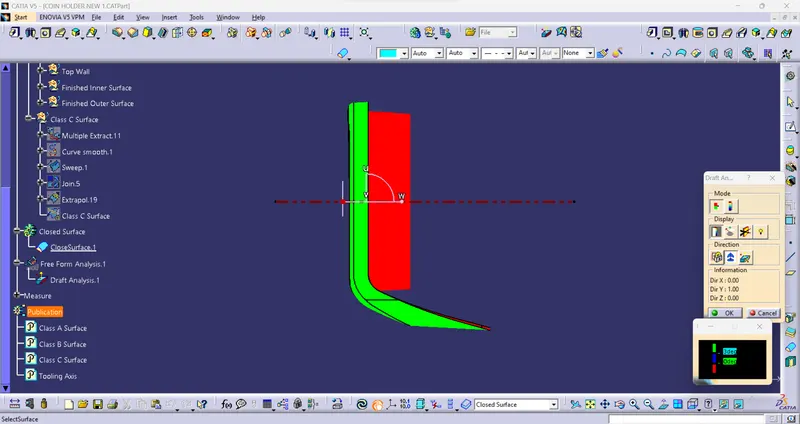

Draft analysis:

• Analysis of the draft angle of the completed solid model.
• Using this command to check the possibility of the draft angle for tooling direction.
• The green color in the correct body or possible side.
• Blue is between the 0 to 3° angle.
• Red is a negative angle not possible.
• This draft analysis uses the tooling direction to analyze all the angles of the solid surface.

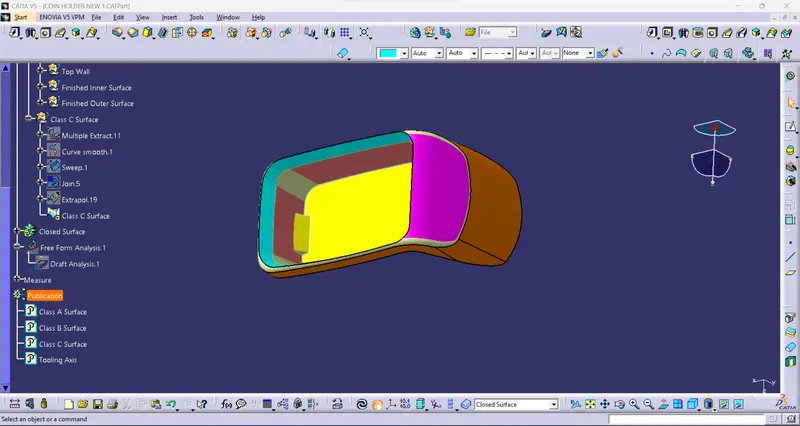

Views:

Isometric view:

Front View:

Side View:

Top View:

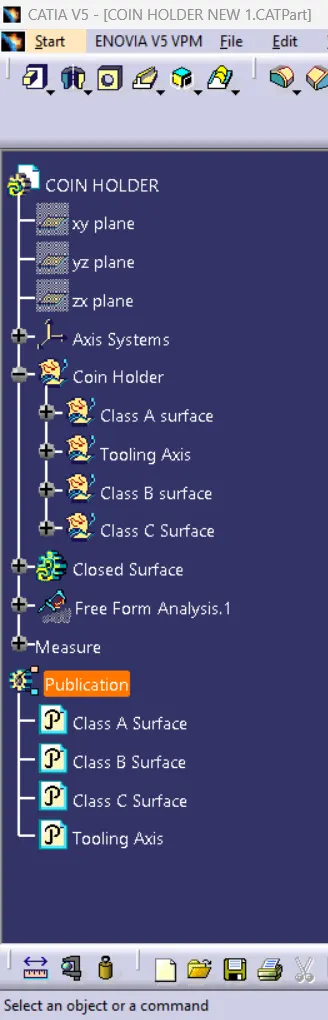

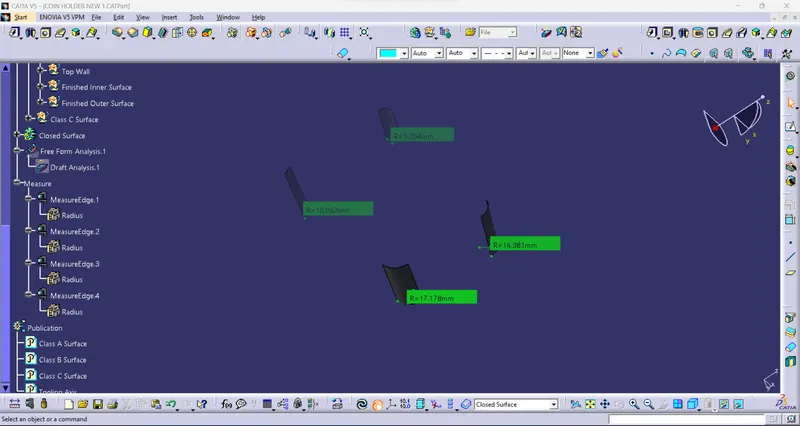

Tree Management:

• Maintain proper tree structure.
• The yellow icon is surface modeling.
• The green icon is a solid part.
• The publication highlights the shortcut.
