Week 8 - Challenge 3 - Coin Holder Design
AIM: Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
FIRST STEP
CREATING A TOOLING AXIS:
first we need to create a tooling axis and we need to make the intersection of the Class A
By creating the tooling axis we find the intersection of the component easily
CREATING FROM CLASS A TO CLASS C
PROCEDURE:
CLASS A:
- First we need to take the given cart part or step file
- From the file we got the CLASS A
- From the class A first we need to create the Boundary to check how many components we have and we can start
- Now we need to create a Tooling Axis through the help of Axis

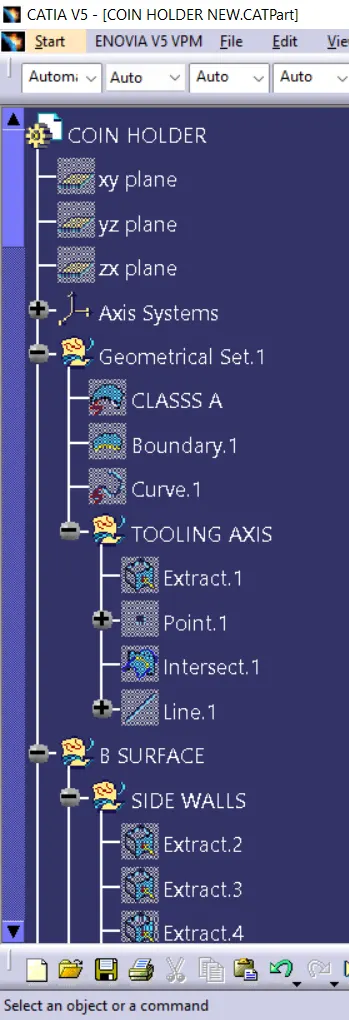

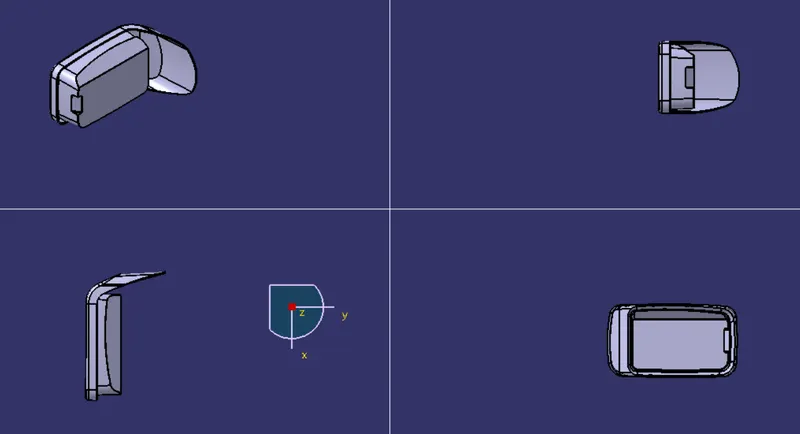

- The above fig shows the tooling axis and intersection

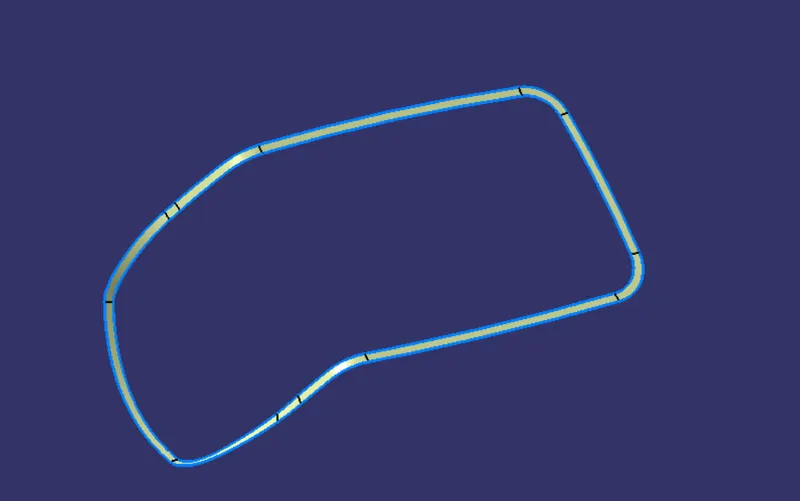

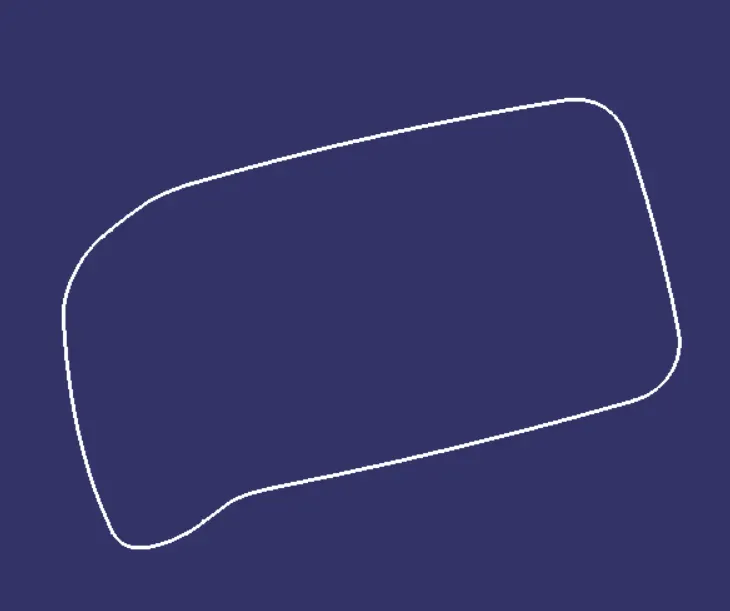

BOUNDARY

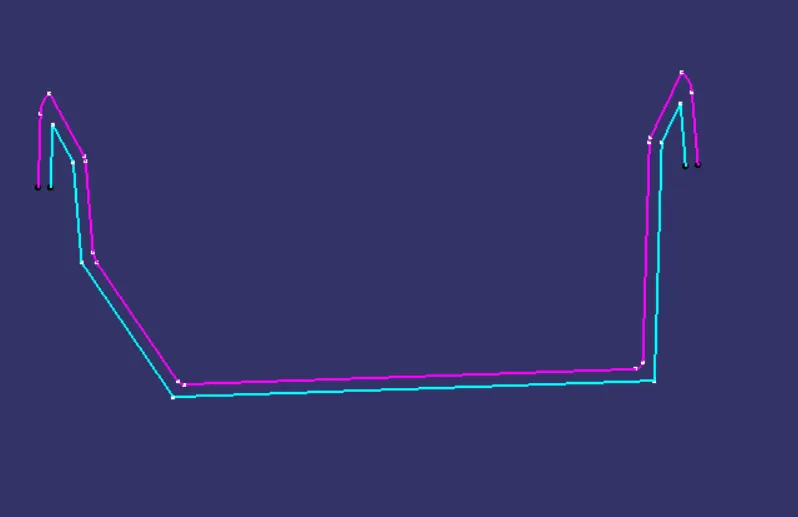

INTERSECTION:
TOOLING AXIS
This is the step 1 in the process
CLASS B
Now we need to perform the Class B

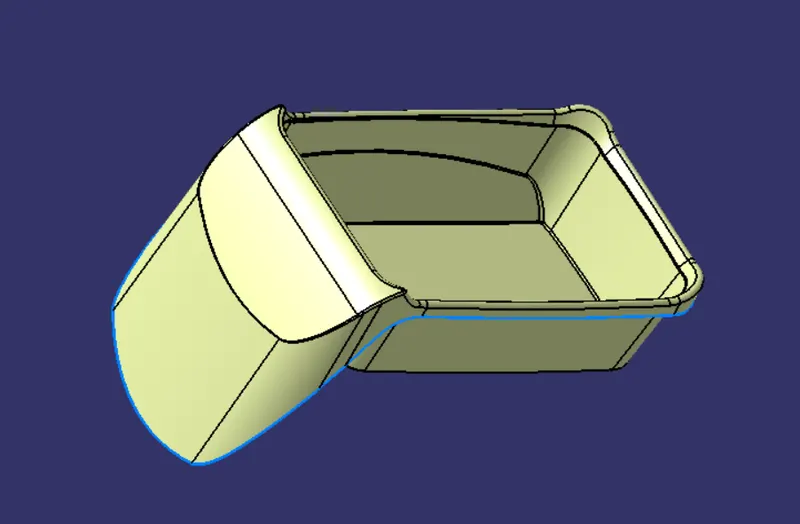

- In the class we need to extract the parts fro the class A

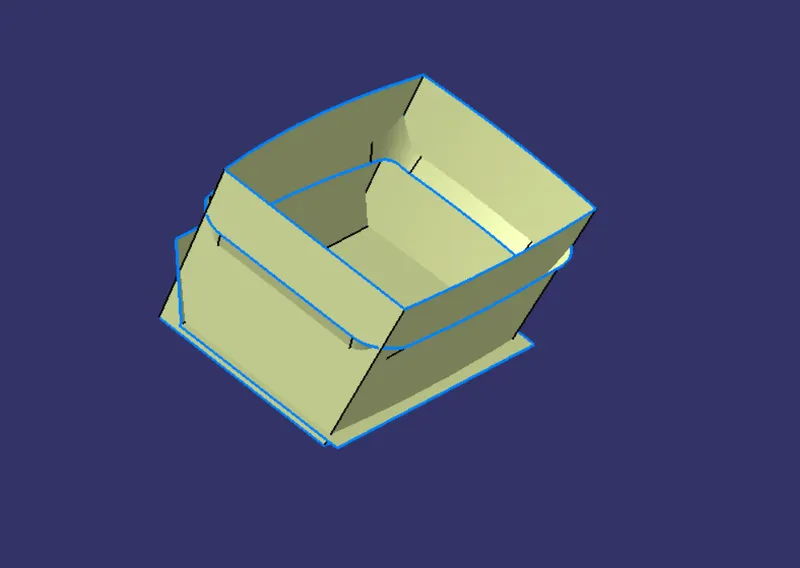

- First we wannt to take the each component and extract that and untrim the component and finally we want to extrapolate the part.
- This is the process how we can extract the parts or component from the class A

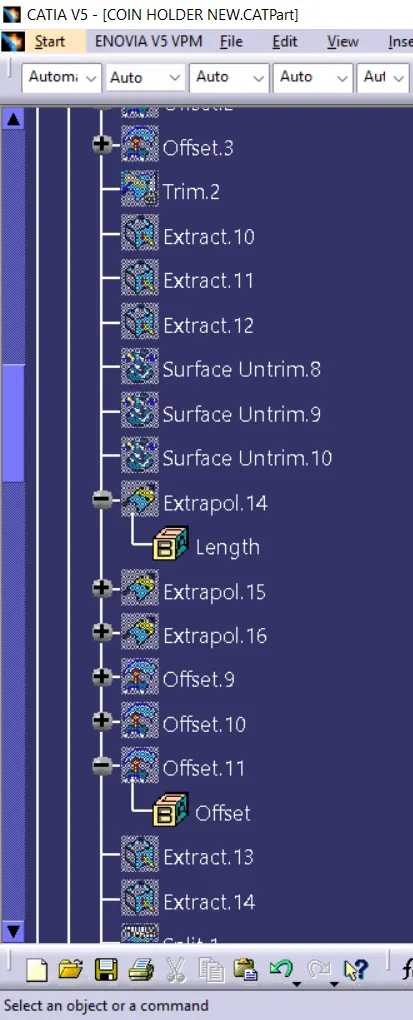

- The above fig shows the how we can ectract each part
- Now we need to trim the each component to create a class B
- Now we need to give the edge fillet to the part

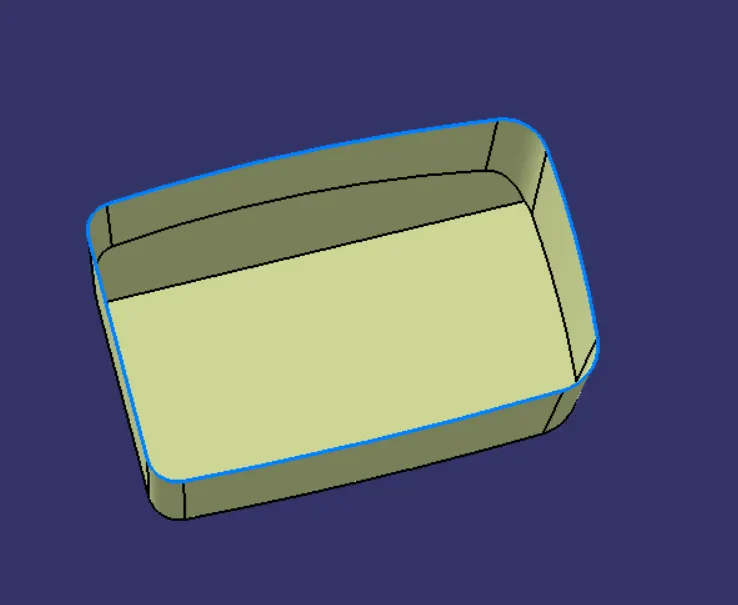

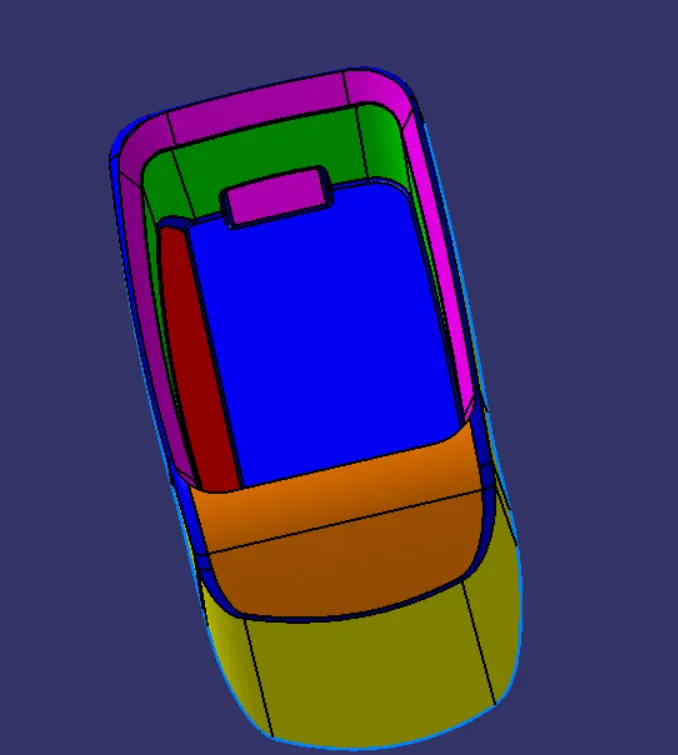

- Finally we created an CLASS B
CLASS C
PROCEDURE FOR CLASS C

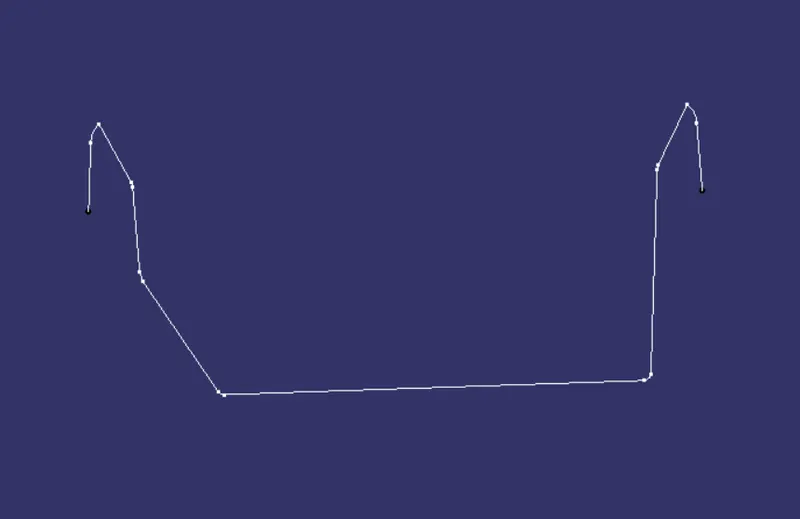

- Create sweep surfaces from the boundary of class A with required draft with tooling direction.

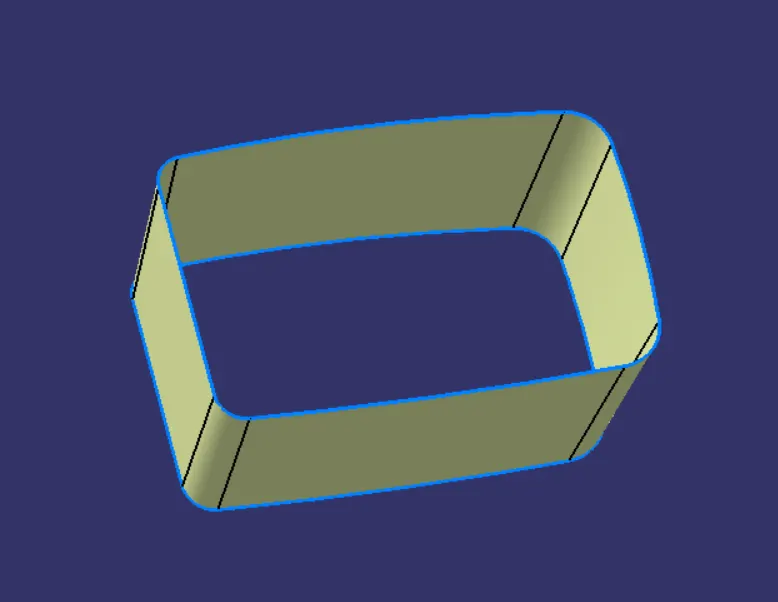

This is the sweep surface of the class C
CLASS A & C INTERSECTION

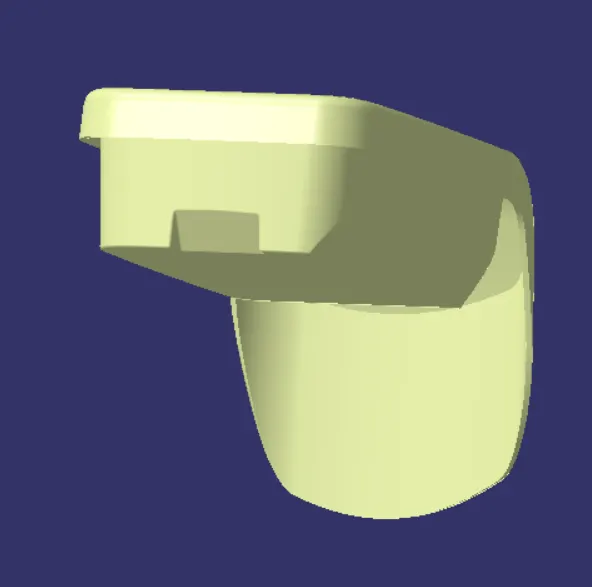

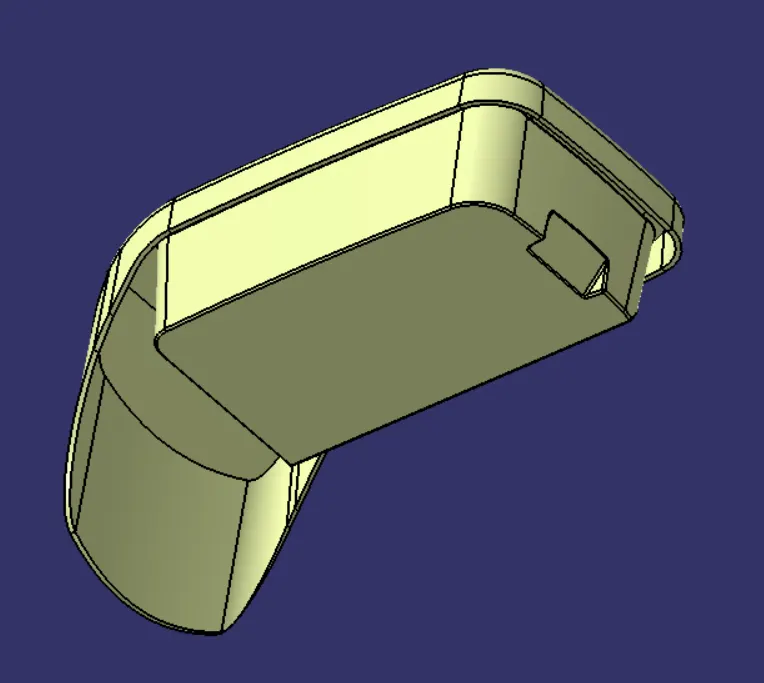

Class A and C combined body
CLOSED BODY

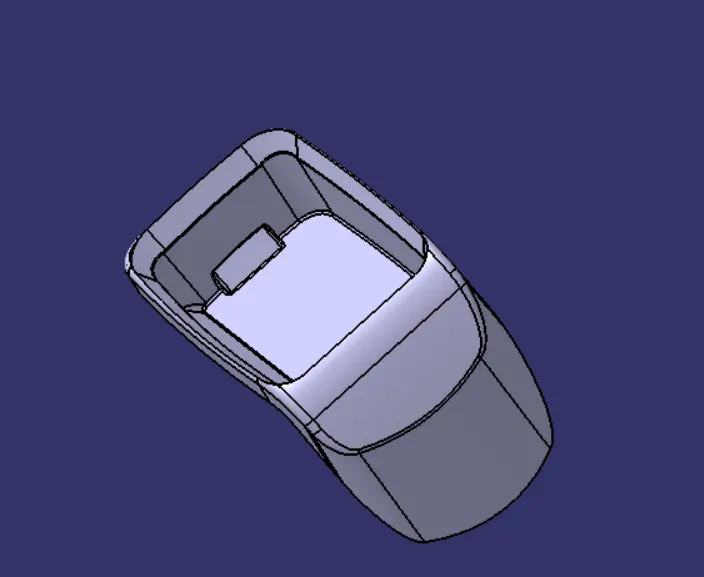

VIEWS OF BODY

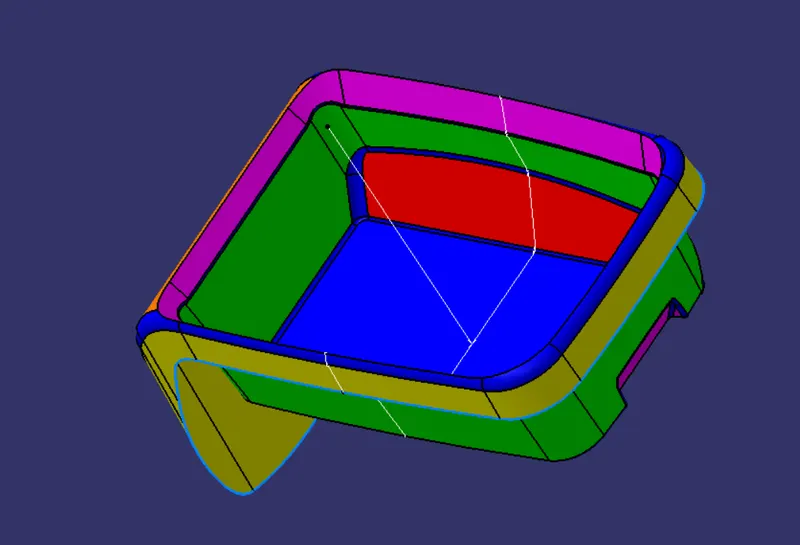

DRAFT ANALYSIS OF BODY

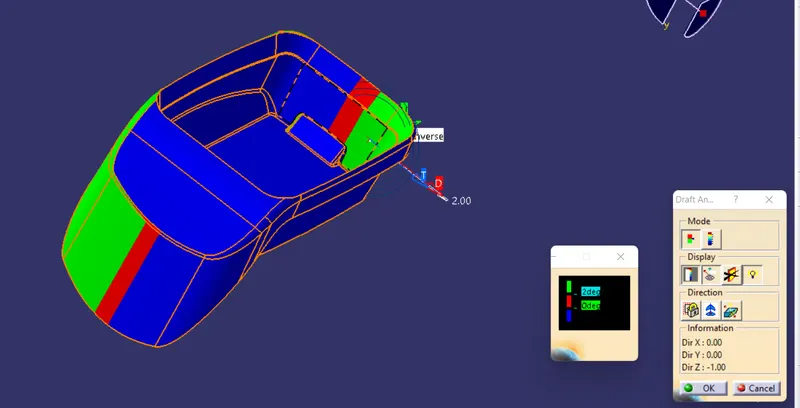

CLASS A Draft Analysis:

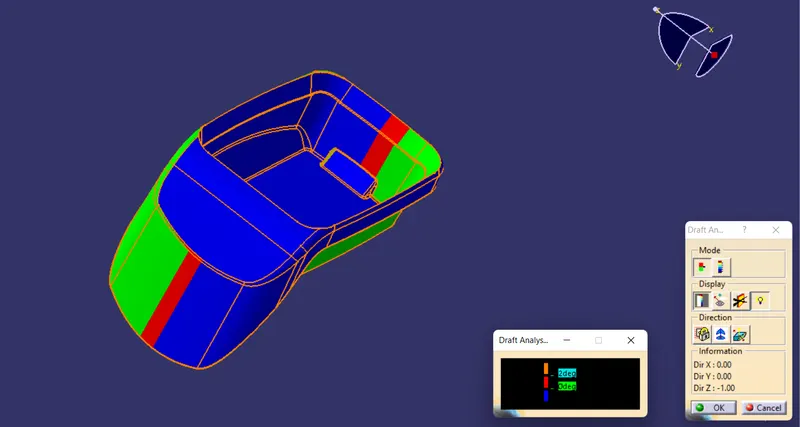

FINAL DRAFT ANALYSIS

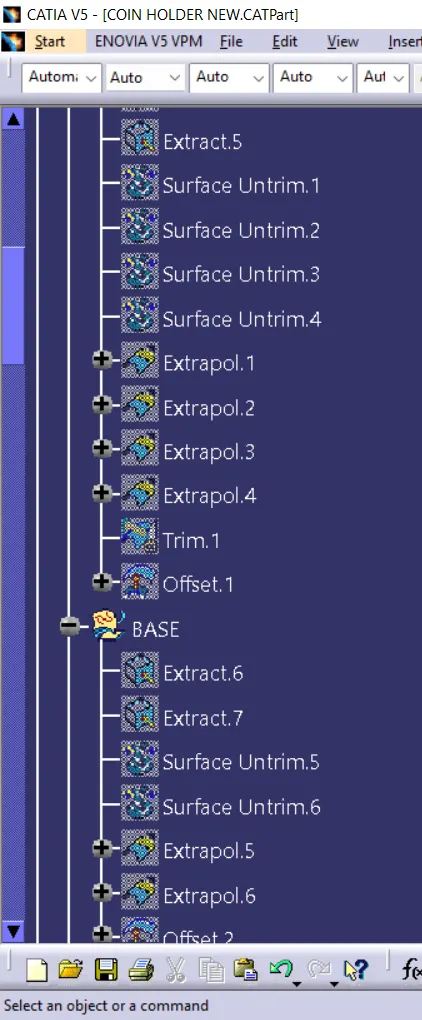

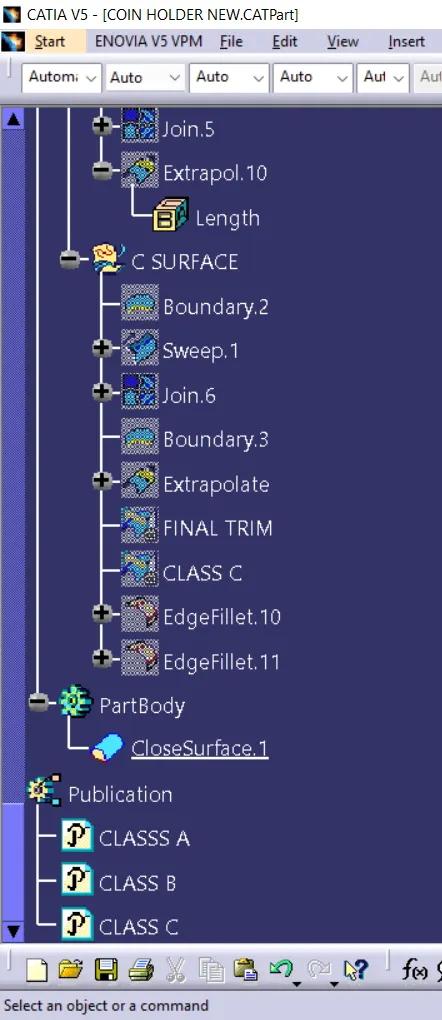

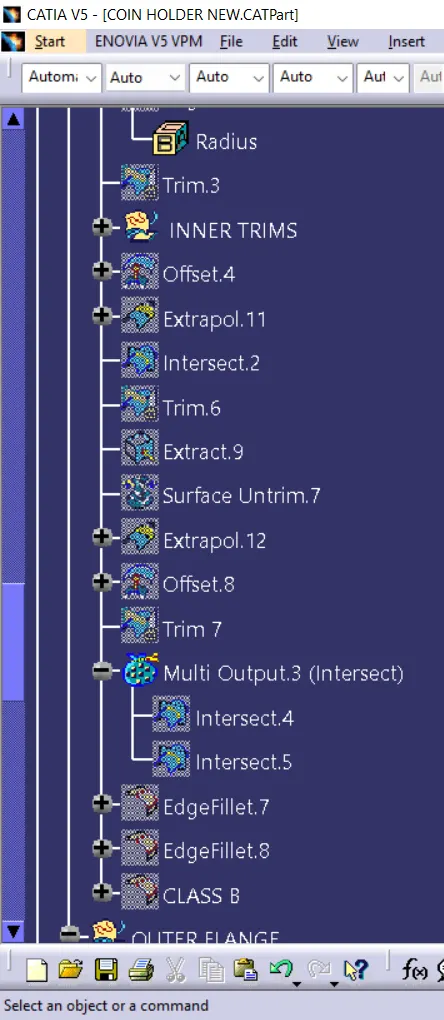

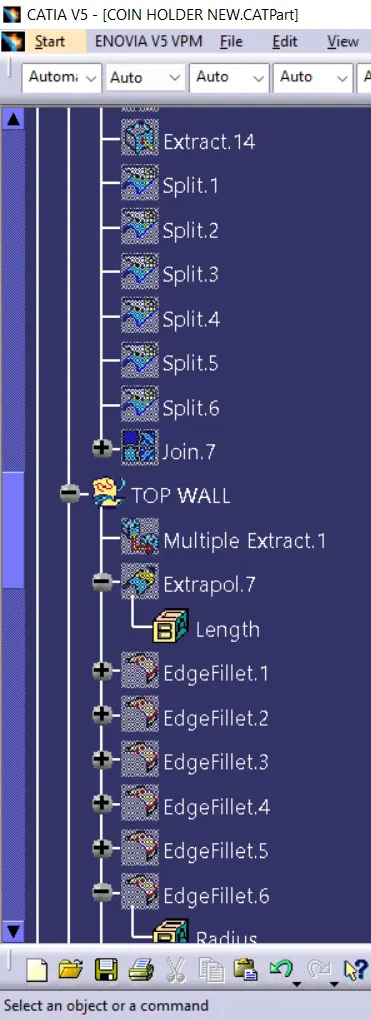

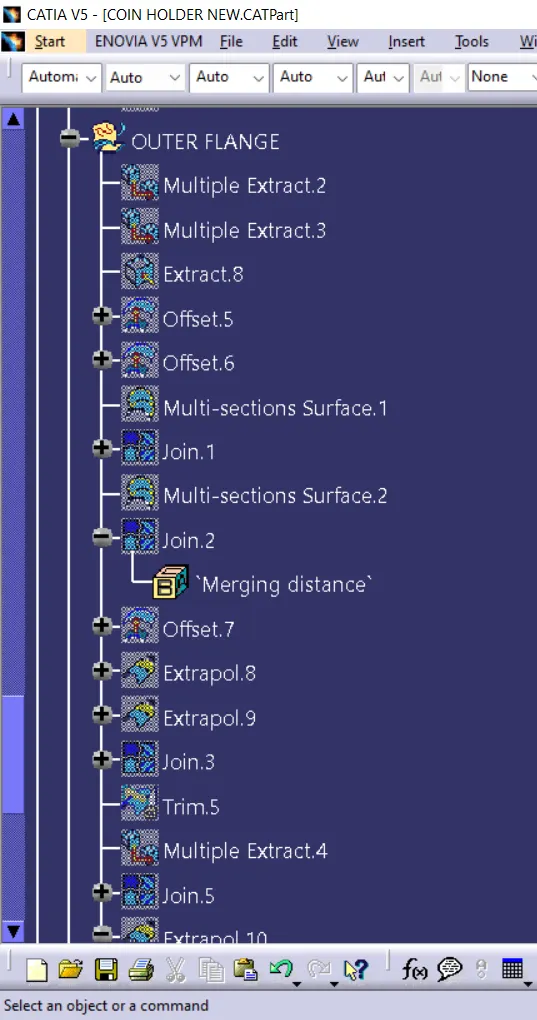

GEOMETRICAL TREE:
