Week 8 - Challenge 3 - Coin Holder Design

SSandeep M14 Mar 2023

AIM

To Create the Coin Holder Plastic component through the given Class-A surface.

THEORY

Tooling Axis

Tooling Axis is the direction in which the mold or core and cavity opens and closes. While designing a component first thing is to define the tooling axis.

Procedure

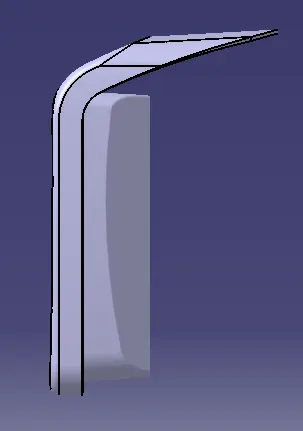

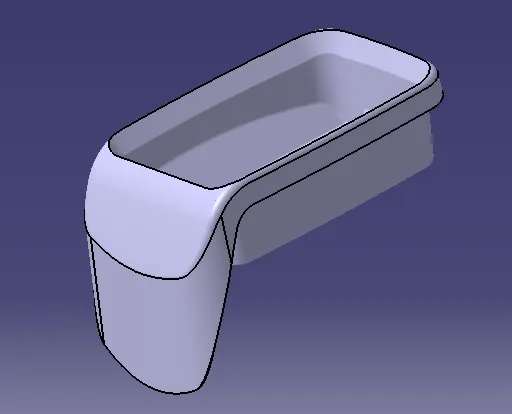

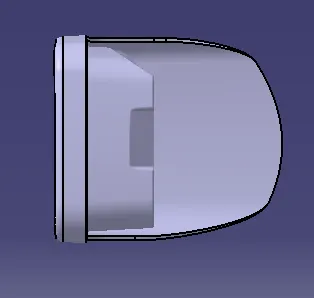

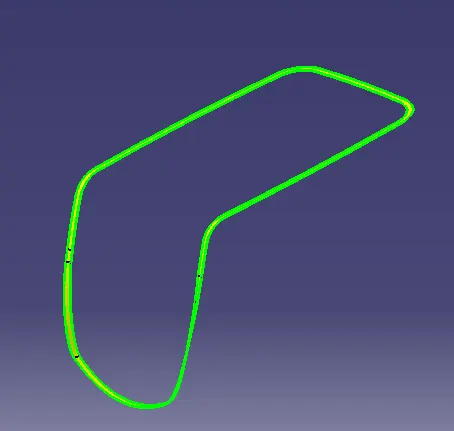

Check the connectivity of given Class A Surface i.e no gaps between the surfaces.
Analyse the component along x,y,z direction and check which is the best possible tooling direction (Here Y)
Create a point at base surface by extracting it.
Create an axis system with that point as origin.

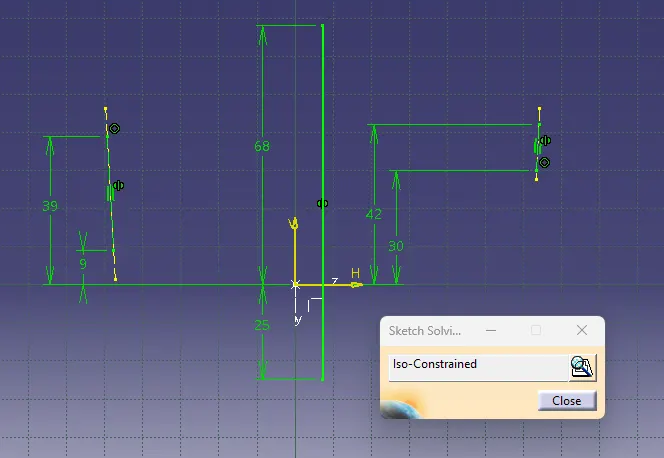

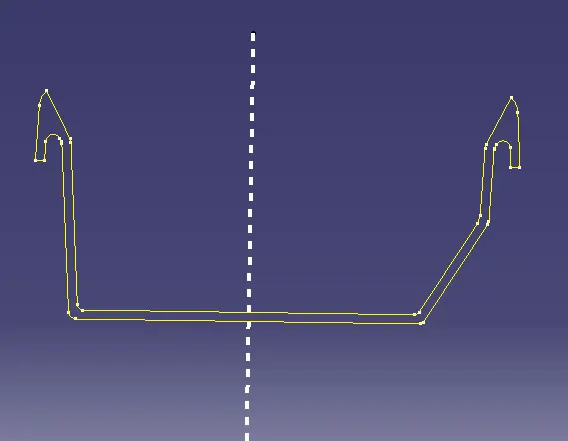

Create an intersection of class A in yz axis and create two lines with reference of faces which we think will create problems.

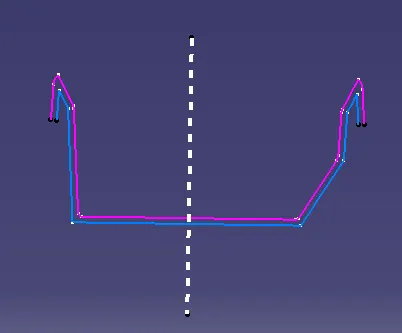

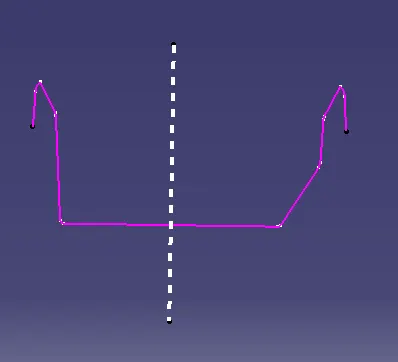

Create a bisecting line with the lines drawn.
Create an intersection of class A in xy axis and create two lines with reference of faces which we think will create problems.
Create a bisecting line with the lines drawn.

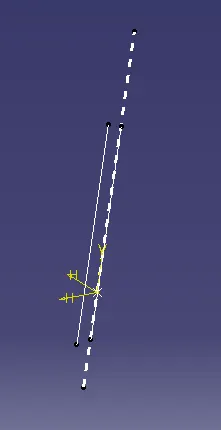

Now we have bisecting lines along xy axis and yz axis. create a bisecting line along these two bisected lines which will gives us the tooling axis.

Draft Analysis

Draft analysis is used to analyze whether the part model created in CAD id manufacturable based on the draft condition applied.

Draft is required on all parts in the direction of mold movement in order to allow parts to release or eject from the mold properly. Most part or application require minimum `0.5^o −1^o` as draft angle, however `3^o` is widely accepted as the norm.

Procedure

First change the view to " Customize View Parameters" and select Material option.
Select Feature Draft Analysis from the tool bar.
Click on the direction, drag and drop the compass to the component such that it should coincide with the tooling axis.
Lock the draft direction and click on the component.

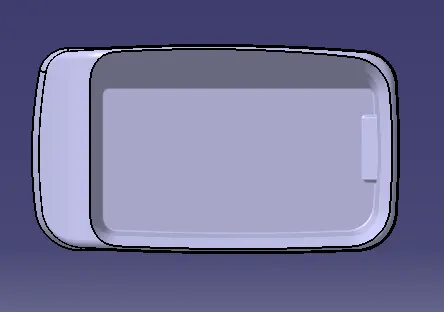

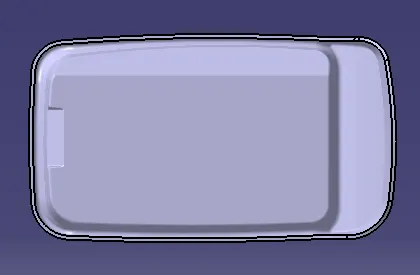

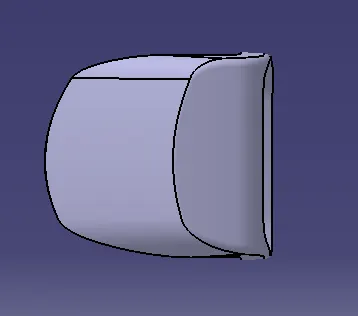

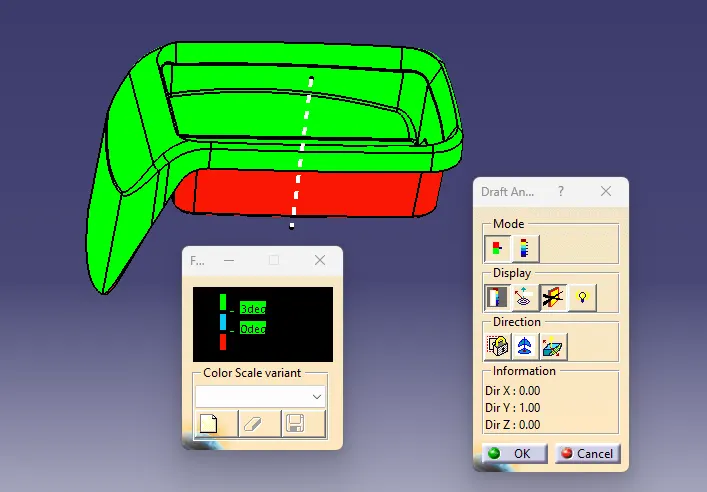

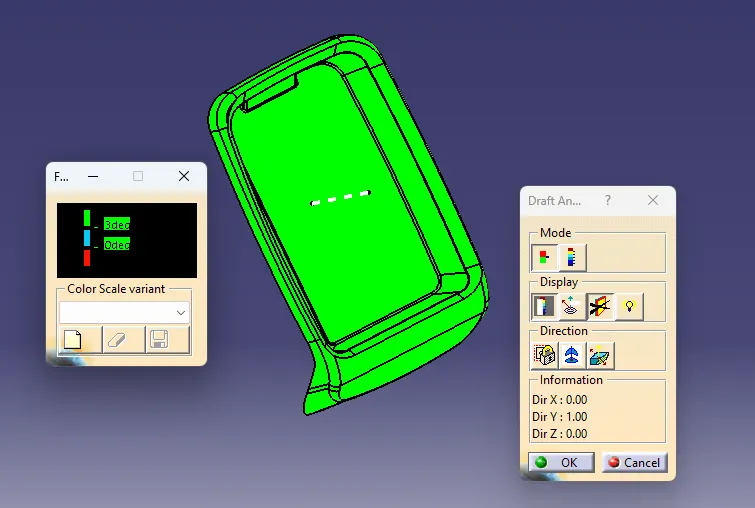

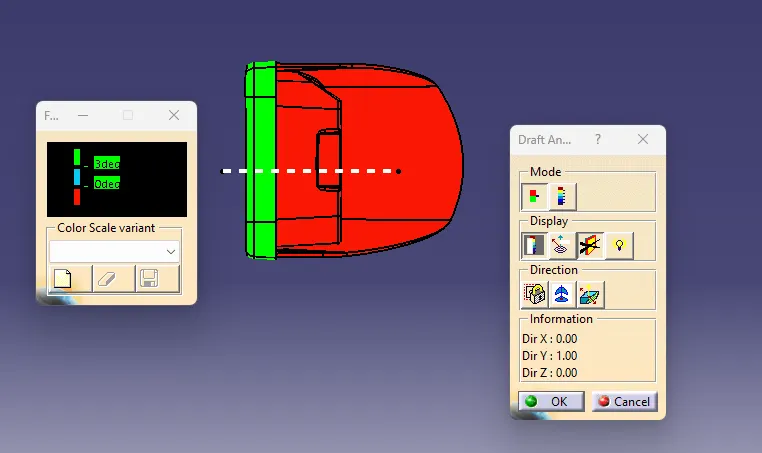

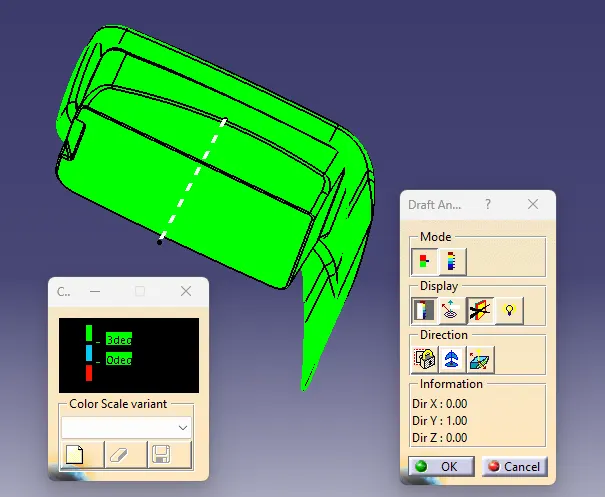

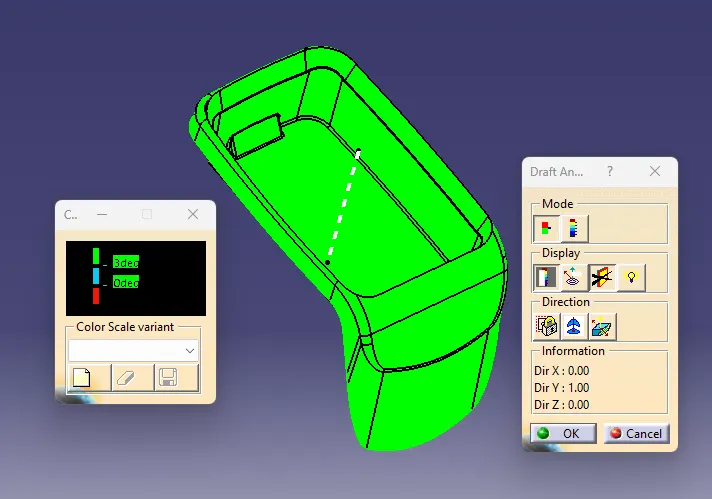

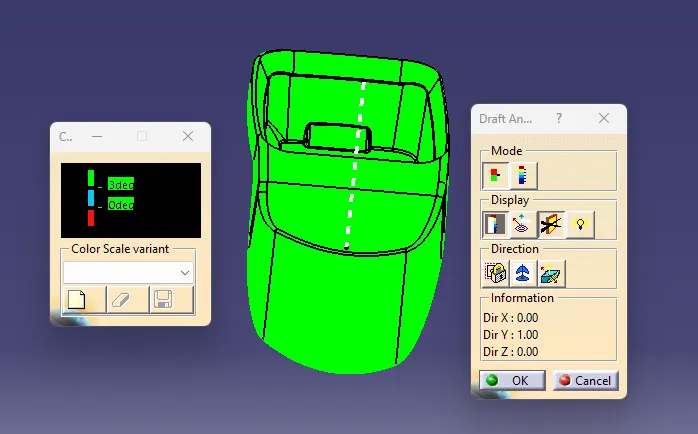

Green colour shows the positive draft, cyan as zero degree and red as negative draft

Class A Surface: Class A surface is any of a set of freeform surfaces of high efficiency and quality. In other words, Class A surface is the aesthetic surface.

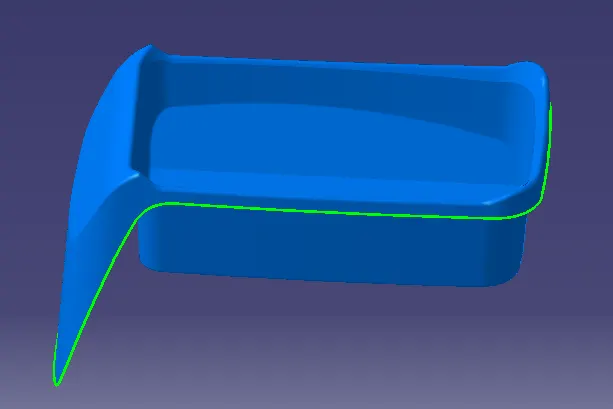

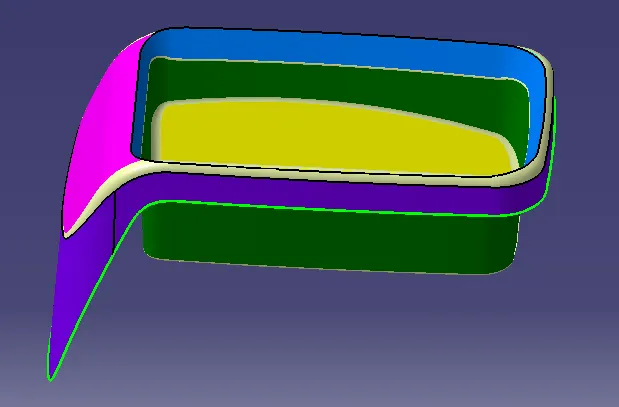

Class B Surface: Class B surface is the thickened suface or engineering surface where all ribs etc will come.

Class C Surface: It is the Surface which joins Class A and Class B surfaces.

SOFTWARE USED

Catia V5

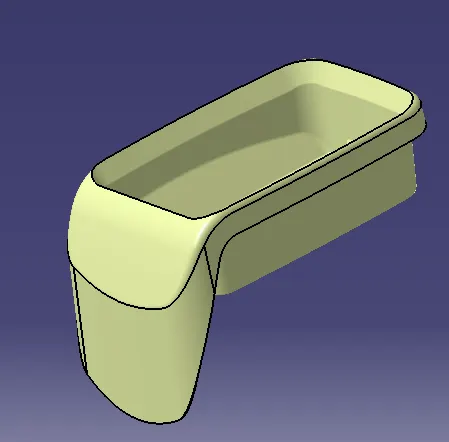

DESIGN

Thickness Given: 2.5mm

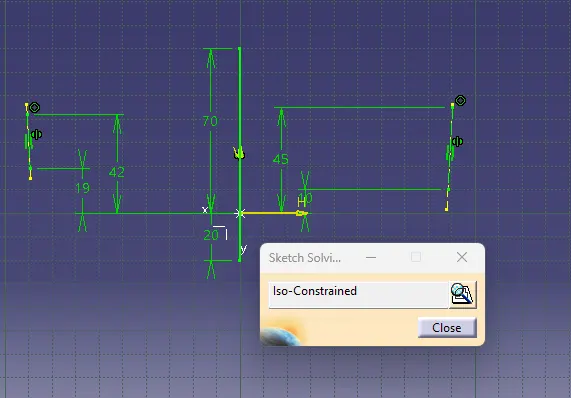

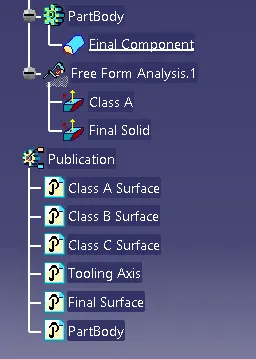

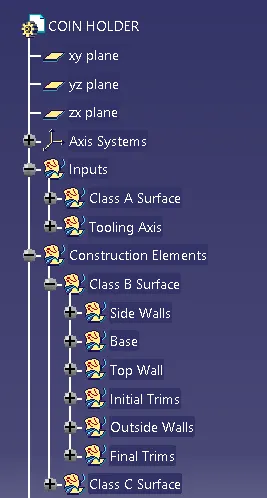

Tree Structure
