Week 8 Challenge

Simulink model

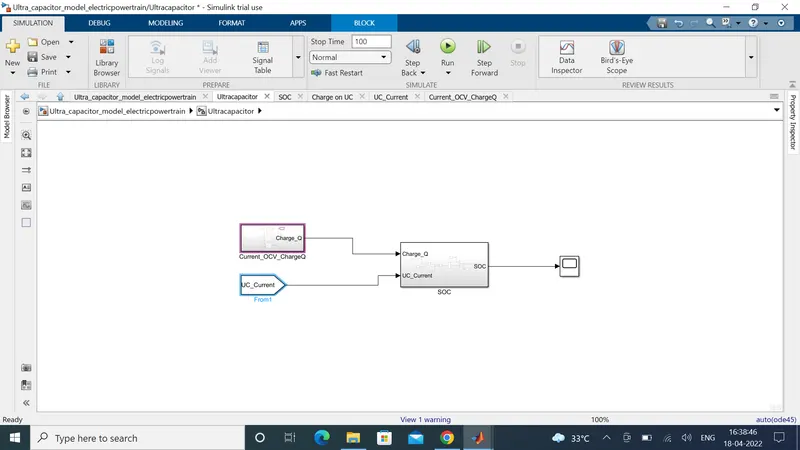

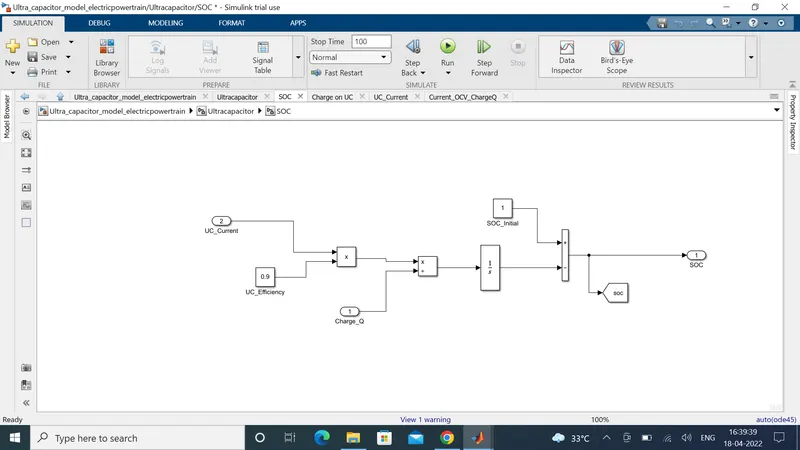

The SOC subsystem is created as shown below

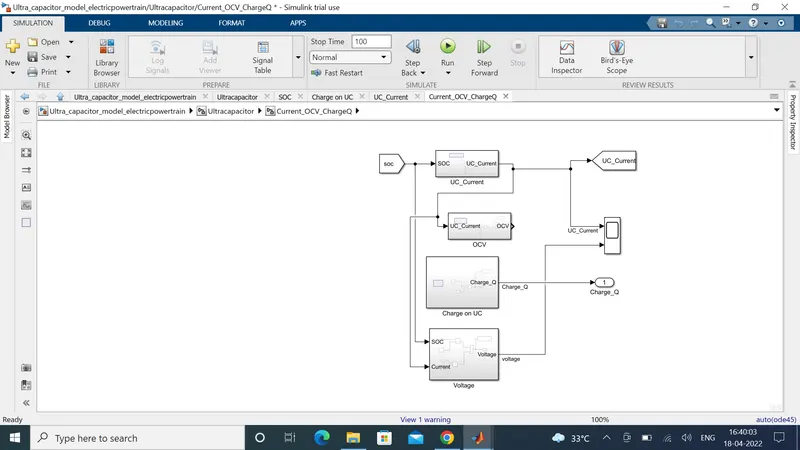

Subsystem has been created for

1. Current

2. Open circuit voltage

3. Charge

4. Voltage

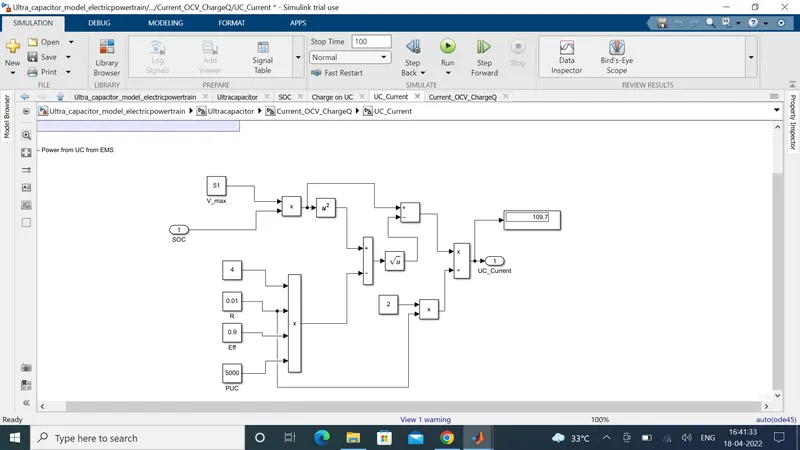

Subsystem of Current

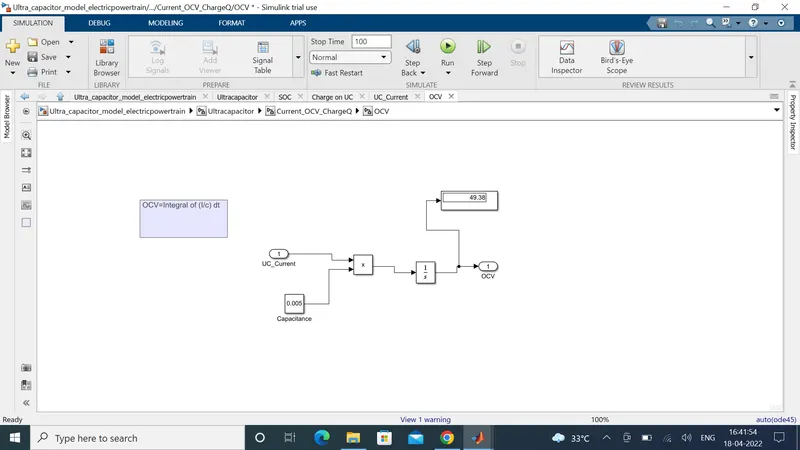

Subsystem of Open circuit voltage

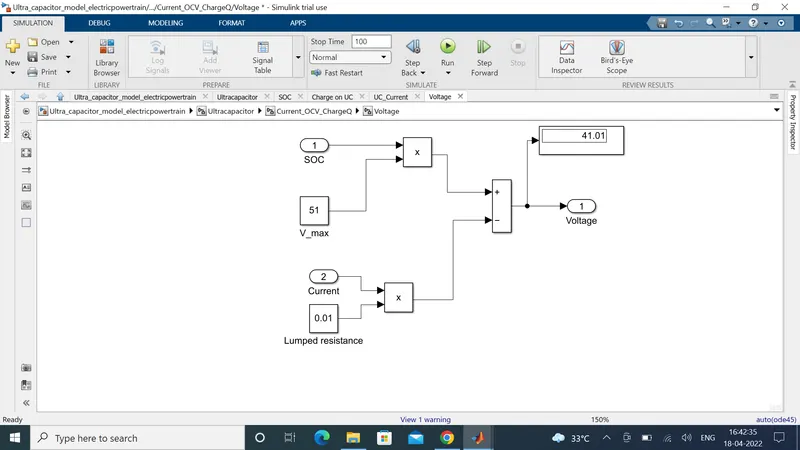

Subsystem of voltage

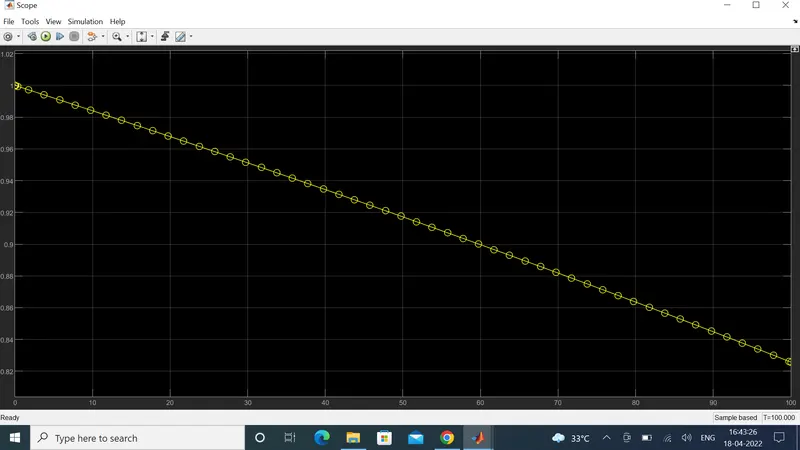

The plots obtained for SOC is given below

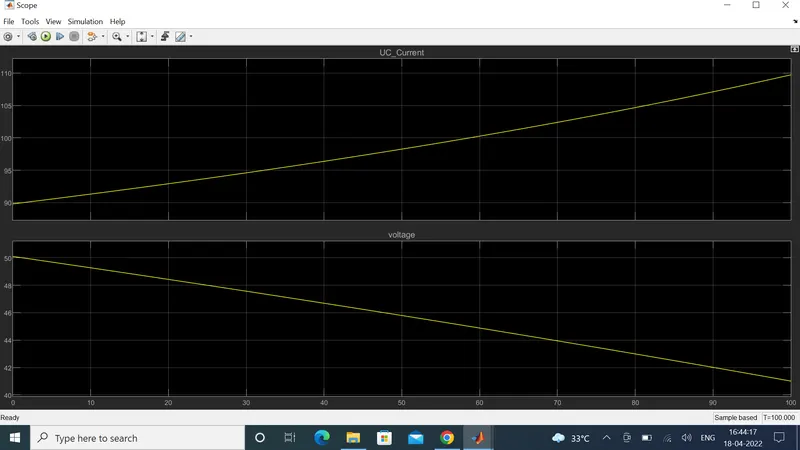

The plots obtained for voltage and current are given below
