Week 8 - Challenge 2 - Switch Bezel Design
DRAFT ANALYSIS REPORT
DRAFT ANGLE
A draft angle is a taper applied to the vertical walls of the injection molded component to assist with releasing the part from the mold
IMPORTANCE:
Draft angle is a required feature. A functional part for injection molding has to have drafts facing both cavity and core sides to reduce the risk of damage to the parts and ensure ejection. As the molten plastic flows into the closed die and fills the cavity, the material shrinks inside the mold upon cooling and as a result grips the core.
Without any taper, the part would come out scratched while increasing wear and tear on the mold and shortening the tool life. Even worse - if the part does not eject, it requires a production halt to manually peel it off.
Adding an adequate draft angle ensures that warpage upon ejection is prevented while maintaining a decent cosmetic finish.
ADVANTAGES
- Minimizes the warping to your geometry
- Increases the tool life of the mold
- Improves the surface finish on your plastic parts
- Cuts down cost by reducing the cooling time
BISECTING METHOD:
To create tooling direction we used bisecting method here. So first we took a point where we wanted our tooling direction to be and for that we created a point on the middle of the base of the class A surface of the switch bezel. So here there are three angular wall surfaces which are surrounding the base. Two in one direction and other one is in another direction. So the idea is to create a mean line of these three surfaces which will be used as a tooling direction. This mean line actually represents the direction and the angle at which the tool will travel in the mould.
So to create this mean line we first took an axis system at the mid point. Then we took the intersection of class A surface at one direction which will divide the two surrounding surfaces and we got two lines at each sides. After that we created a centre line using bisecting line feature between those two lines and this will be used as a mean line for one direction. To create mean line for other direction we took intersection of the other surface. Here there was only one surface so we cant use bisecting line feature to create a centre line. So for that we took a sketch on that plane and created a vertical line on the centre point and gave it some angle from the intersecting line. That line is used as second mean line for other direction.
After getting both the mean lines for both directions we created main tooling line using bisecting line feature which is the centre line for both these mean lines. This tooling line is used as a tooling direction. At last we took a normal view to our tooling axis to check whether the line created is acceptable. After viewing we were able to see all the angular walls clearly so we can say that our tooling axis is correct.
DRAFT ANALYSIS:

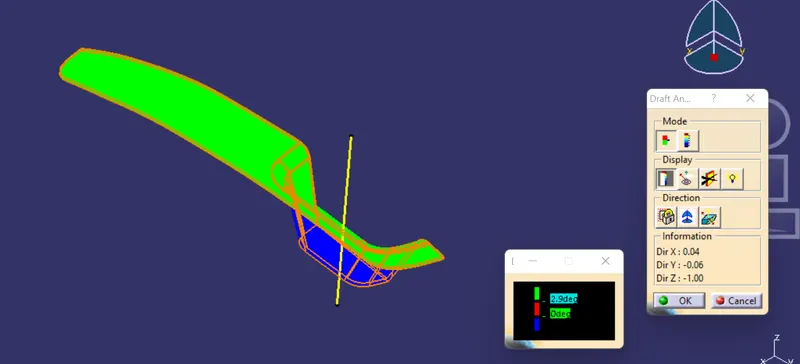

Draft analysis is a tool in the CAD modelling software using which we can analyse draft angle provided to any component. Draft is indicated through a colour scale varient. There are multiple colours on the scale which we can use to indicate the safe angles and unacceptable angles. Here in the analysis of a Fan cover we have used green colour for safe angle and red clour for unacceptable angle. The provided draft angle for the analysis is 3 degrees.
For this we carried out the draft analysis. First we coincided the axis system to the tooling direction. Then we provided the surface as an input for analysis also mentioned the angle for analysis. Here the draft angle we took is 3 degrees. After analysis we got all green surfaces which meant that our component is in acceptable draft angles which can be used for production.

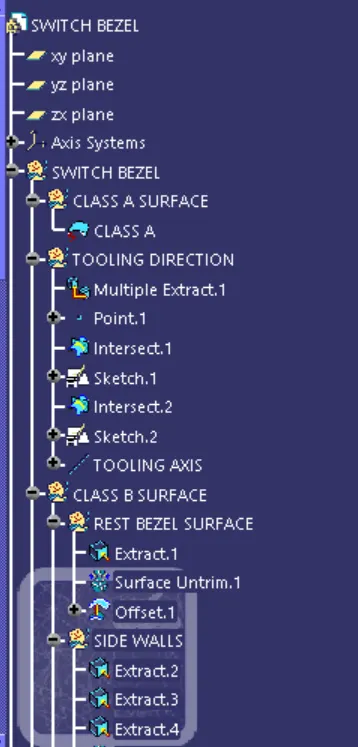

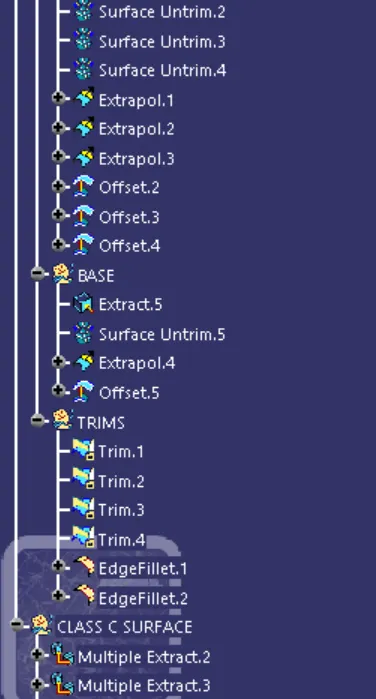

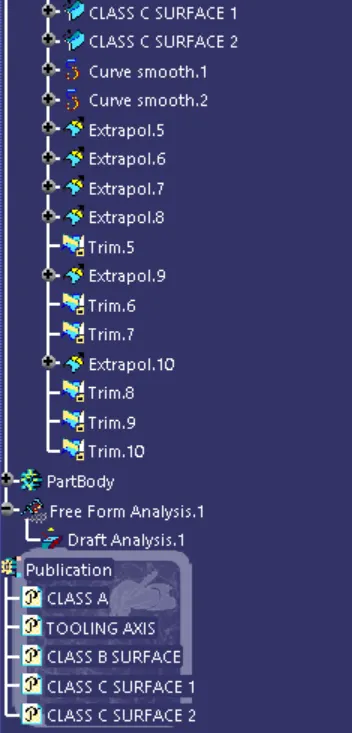

Fully Exapnded feature tree

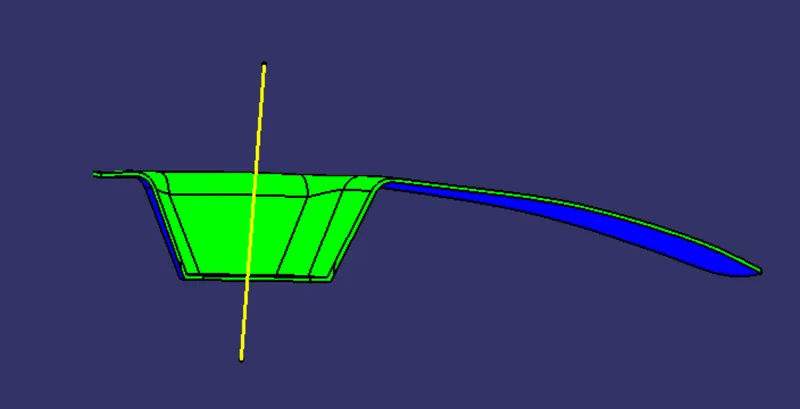

Draft analysis of Class-A surface

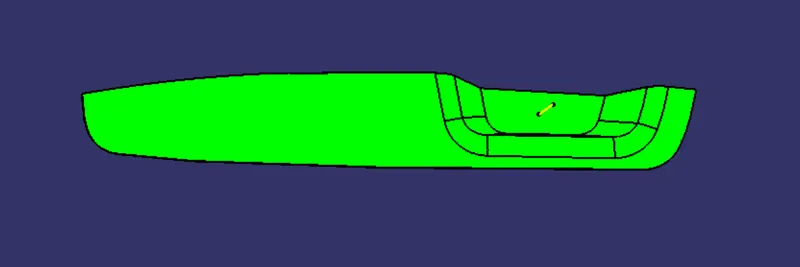

Front view

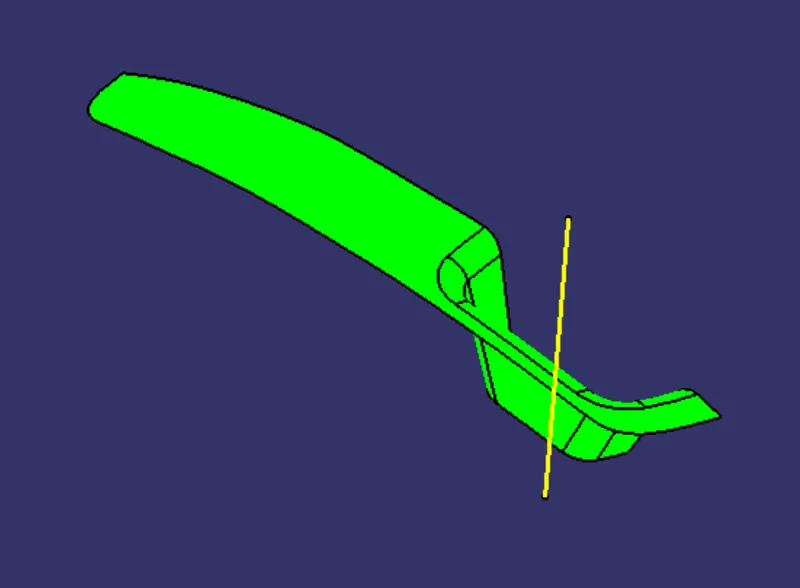

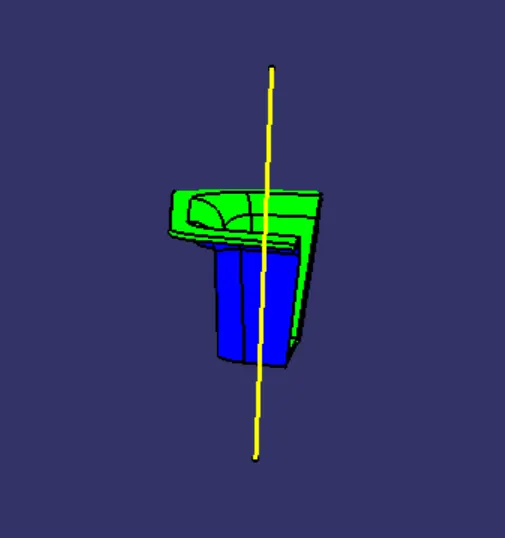

Side View

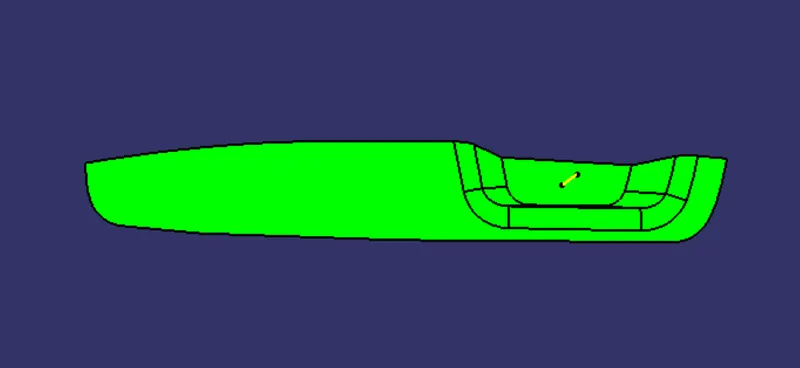

Top View

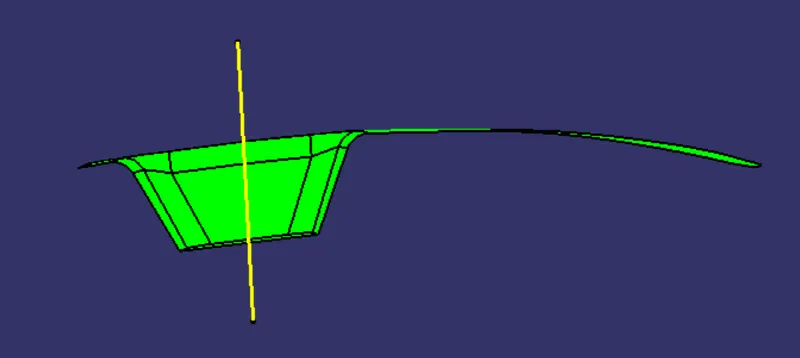

Isometric View
Draft analysis of Solid model
Front view

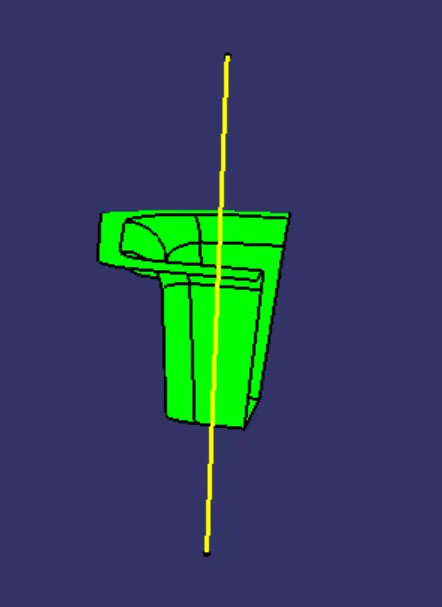

Side View
Top View
Isometric View
