Week 8 - Challenge 2 - Switch Bezel Design

AIM:-

To create the Switch Bezel Plastic component through the given Class-A surface.

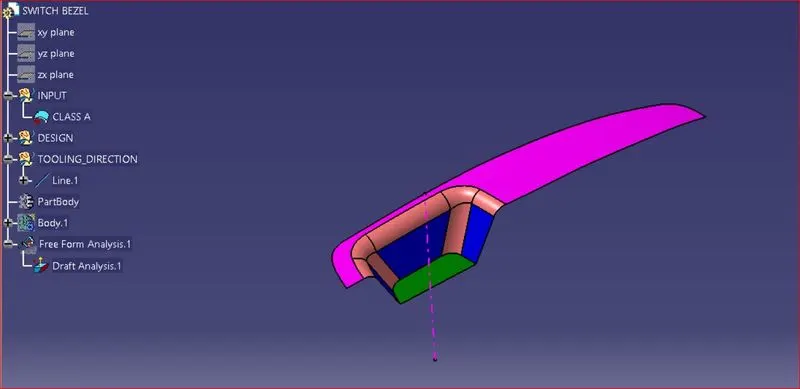

TOOLING AXIS:-

It is nothing but the direction in which the mold opens and closes the draft angle needed to be provided by considering this tooling axis we can create a tooling axis by using the bisecting method. In this method, we select the surfaces which can create problems and take intersections in the x and y-direction. By using these curves we draw two lines and then draw a bisecting line from these two lines in the x-direction and y-direction. If it is done in x-direction then it is called a tooling axis clearing x-direction and if in y then tooling axis clearing y-direction. After completing this we need to draw a final line bisecting this two tooling axis in the X and Y directions to get our final output.

DRAFT ANALYSIS :-

CLASS-A:-

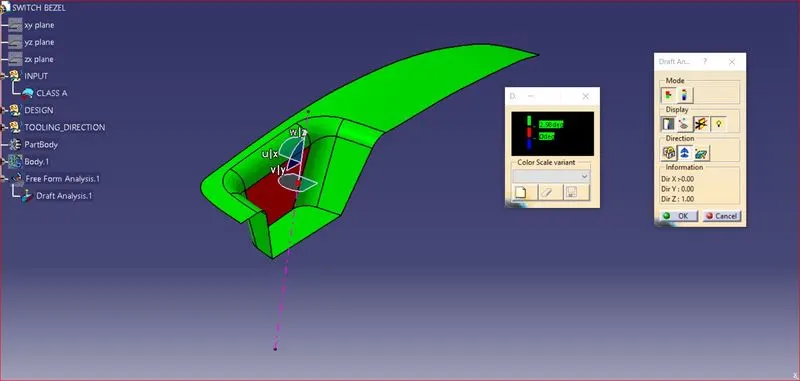

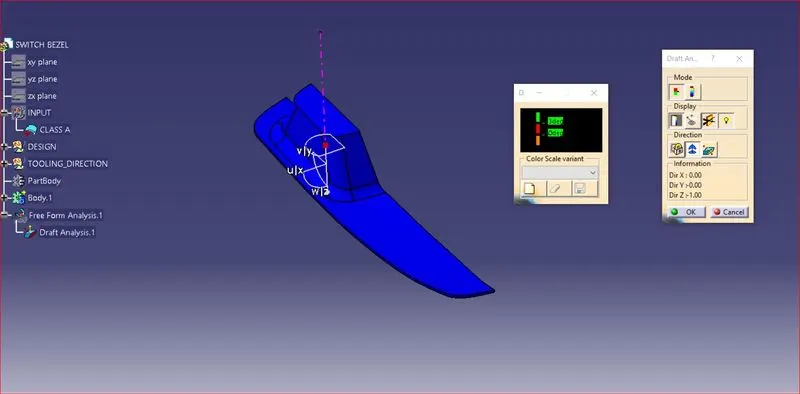

This shows the draft analysis in which green color surfaces shows that they are having an angle of more than 3 degrees but the surface in red color shows it is less than 3 degree that is having an angle of 1.32 degree inverse. These are the results of the draft analysis which are very crucial for determining the feasibility of the product.

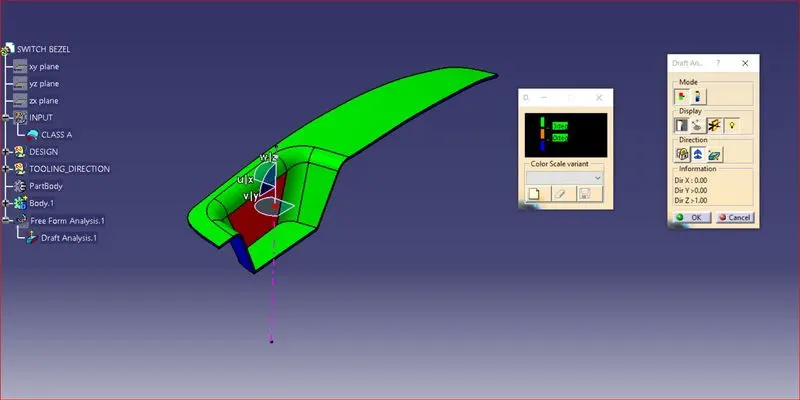

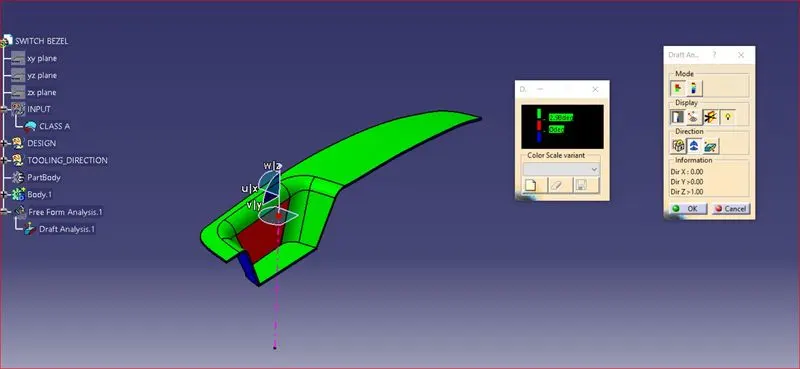

SOLID COMPONENT DRAFT ANALYSIS :-
