Week 8 - Challenge 2 - Switch Bezel Design

SWITCH BEZEL DESIGN

Aim:

To create the Switch Bezel Plastic component through the given Class-A surface.

Objectives:

• To design switch bezel from given Class A surface
• Create a tooling axis,Class B and Class C.
• Converting closed surface into solid and perform draft analysis on the final component.

Software used:

Catia V5

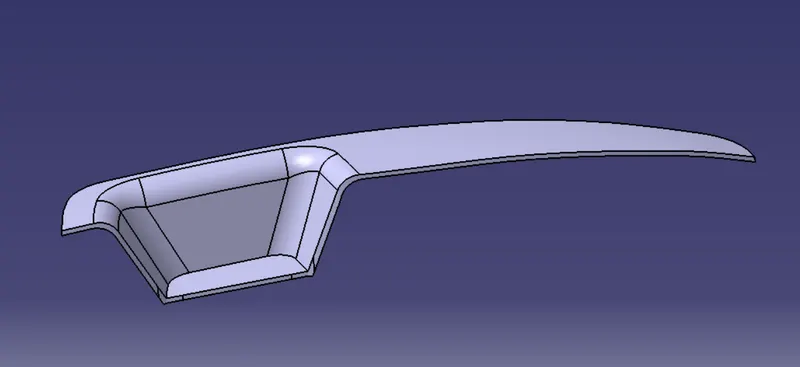

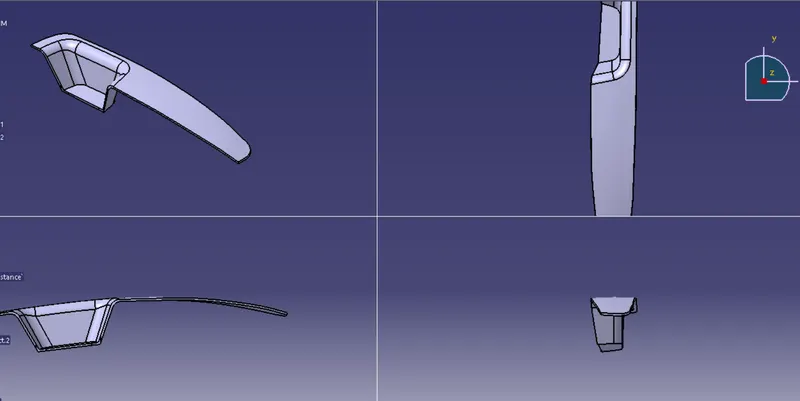

Given Class A

Creation Of Tooling Axis

To continue the designing process we need create the tooling axis first for the surface.

The tooling direction is created by bisecting method.

• The base surface of the class-A was extracted and a point is made at the center and an axis system is inserted.
• Then using project intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.
• Then the bisecting lines with the two inclined lines were drawn.

Now the same is done along the xz plane but on one side we don't have inclined lines so the center point is used to extrude a line along the z-direction.

With the two lines from sketches 1 and 2,the bisecting line is created and published as tooling axis.

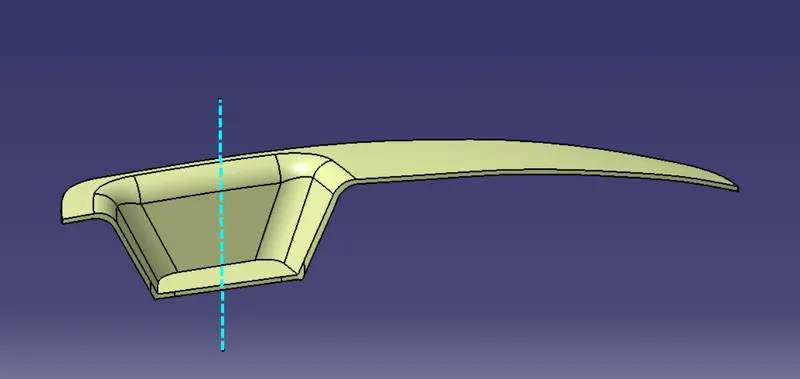

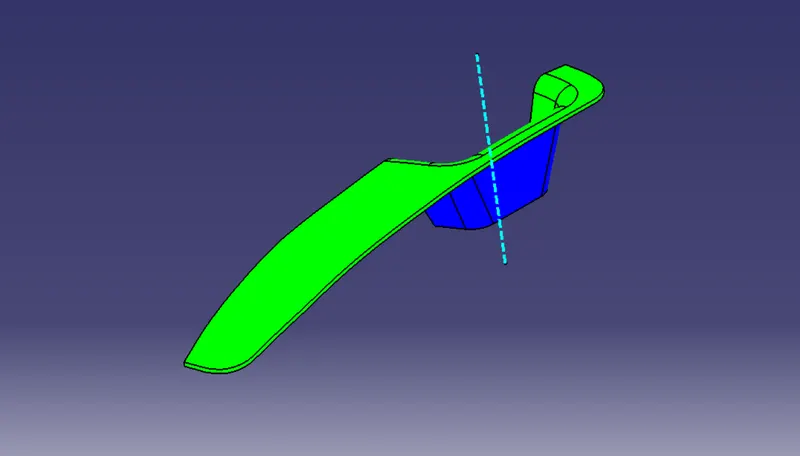

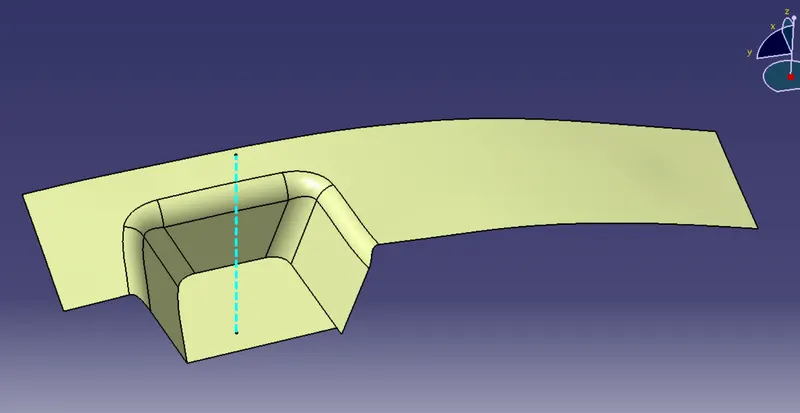

Here the blue dotted line is tooling axis.

Creation of Class B

For creating the class-B surface the required surface except the offset surface have been extraced and then untrimmed all the surface.

Then all the surface have been extrapolated to get intersections between them.

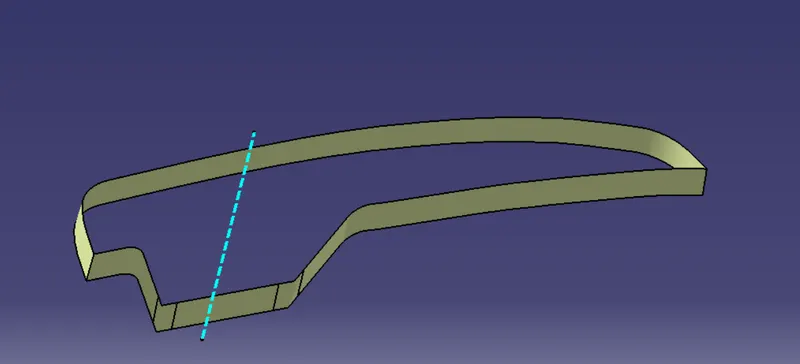

Creation Of Class C

The required outer edges of the A-surface were extracted using Multiple Extract.Then for avoiding the patches the curve is smoothened using the curve smooth option.Then by using the sweep command the surface was created.

Class A+Class C

By Using Join Command the class A and Class B surface are joined to create a single body

Class A+Class B+Class C

By Trimming the joined Class A & C surface with class B the Class A+Class B+Class C is created.

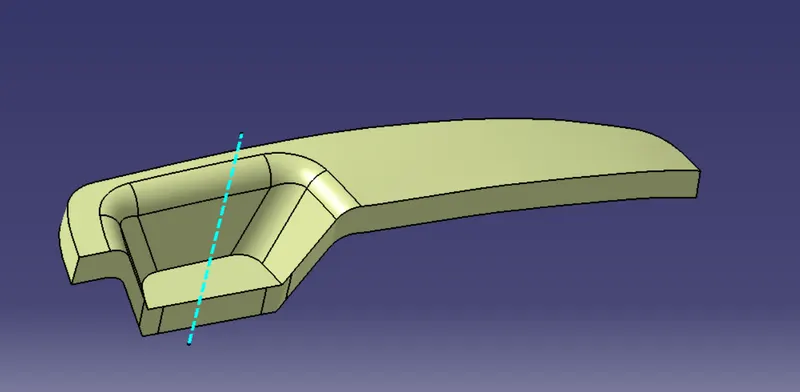

Final Solid

Using Closed surface command in part design the final solid is created.

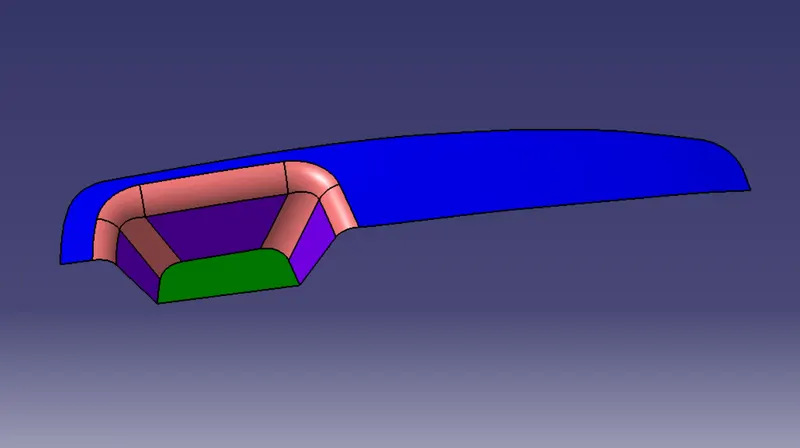

Draft Analysis on the Final Component

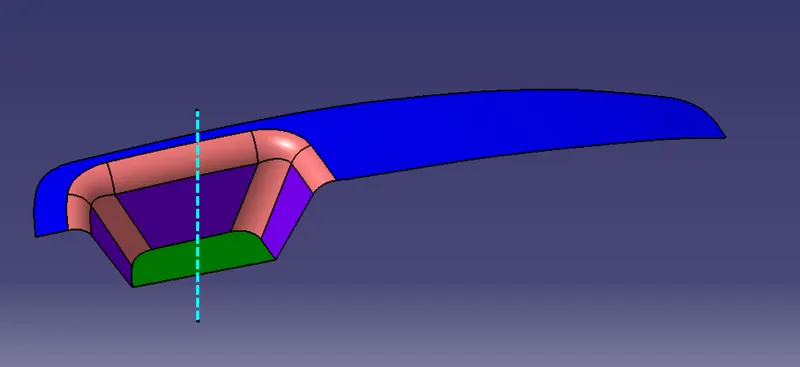

Taking tooling axis as reference draft analysis is carried out:

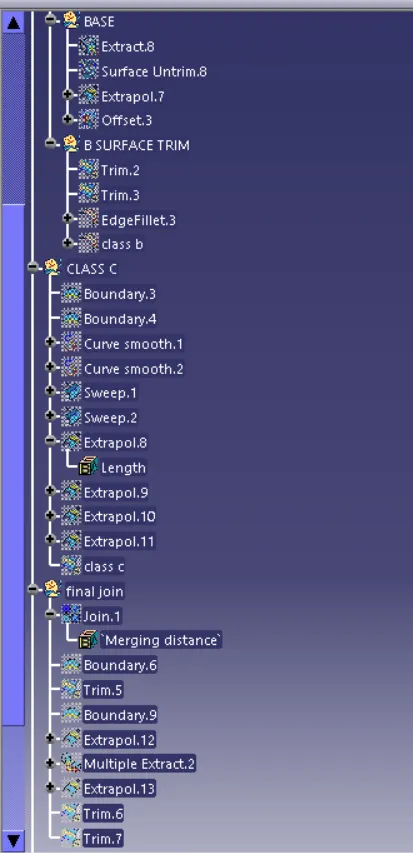

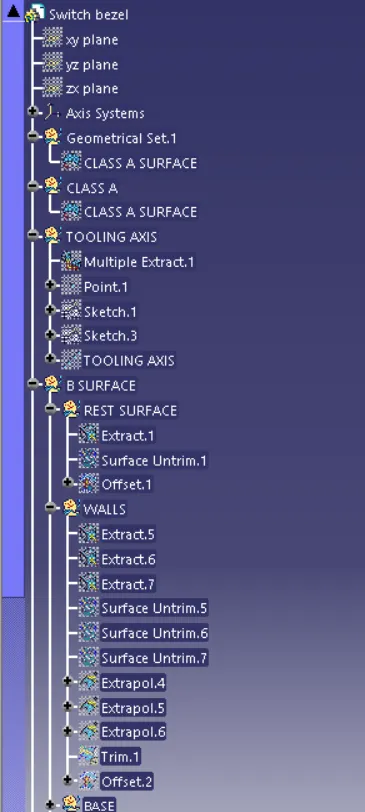

Tree Structure:

CONCLUSION

The Switch Bezel component is designed from given Class-A surface and performed Draft Analysis on the final plastic component.

*********************************************************************************************************************
