Week 8 - Challenge 2 - Base Bracket Design

WHAT IS DRAFT ??

it is defined as a modled part to make throw easier to removefrom molds. ther are two of determining the objects to draft either by explicitily selecting the natural elements, which makes the application detect the approximate forces to use

THE MAJORE INDUSTRIES ARE GOING TO BE USED IN 3DEGREE DRAFT ANGLE ONLY

PROCESS:

first we have to check the continity of the given first class A surface

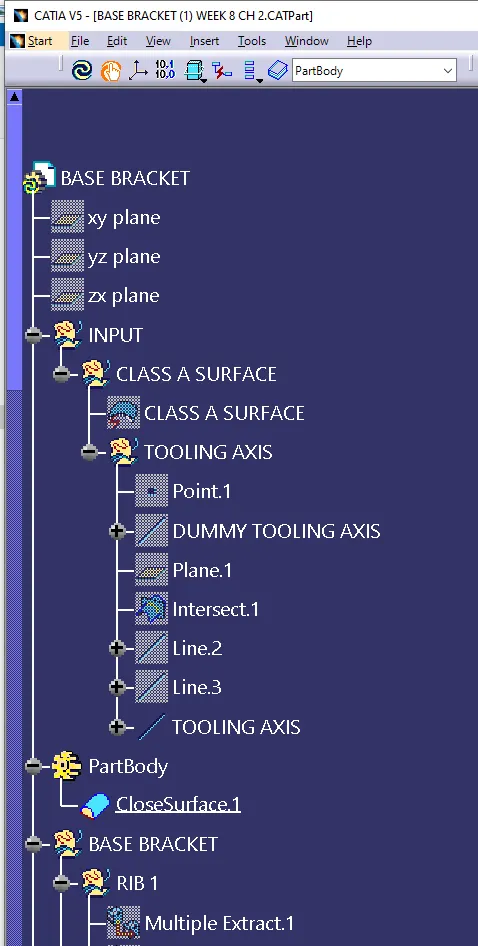

check the directions of xyz axis and finally we decoded which is the best possible direction to produce a mold that direction of axis is called dummy tooling axis

in some directions the faces are either be -ve or +ve draft so the the axis we have taken the dummy tooling axis we need to creat to a perfect tooling axis

Process

pulling direction : the reference from which draft faces are defined

draft angle : this isthe angle that draftf faces makes with the pulling direction

part element : plane faces surfaces cuts the part and each portion is drafted accordingly to its before directions

natural elements : defines a natutal curve on which the drafted faces will lie, this elements will remain same during the draft, tje natural elements and parting elements may bhe the same element

STEPS

• HAVE TO CHECK GAPS BETWEEN THE SHAPE DESIGN
• USE JOIN AND BOUNDARY OPTIONS
•
