Week 8 - Challenge 2 - Base Bracket Design
Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling
axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at
the end perform the Draft analysis on the model.
INTRODUCTION:
1. Class A surface: A surface that is given to the plastic modeler which is of aesthetic and outermost
surface. The surface made by the designer is known as a Class A surface.
2. Class B surface: A surface that is below the Class A surface, at a certain thickness, which contains
engineering aspects on it is known as Class B surface.
3. Class C surface: A surface that joins the Class A and Class B surface is known as a Class C surface.
PROCEDURE:
1. Creating a tooling axis
2. Performing draft analysis
3. Creating a Class B surface
4. Creating a Class C surface
5. Creating a solid model
Step1: Creating a tooling axis:
Initially observe the class A surface and check whether the model contains any discontinuity and check
joined properly or not. Check
the model in all directions. Since there is only one possibility, we can go with the top plane and create an
axis

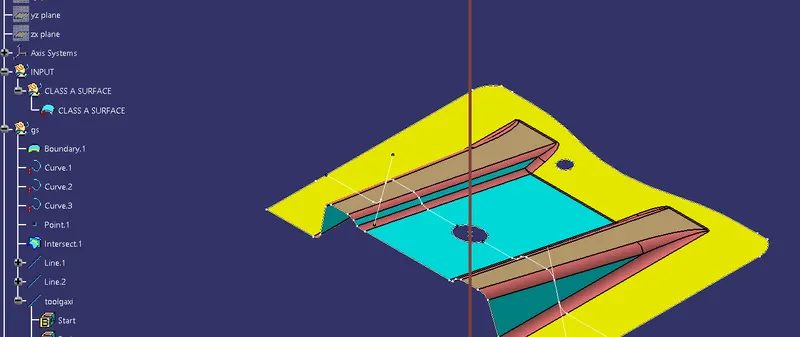

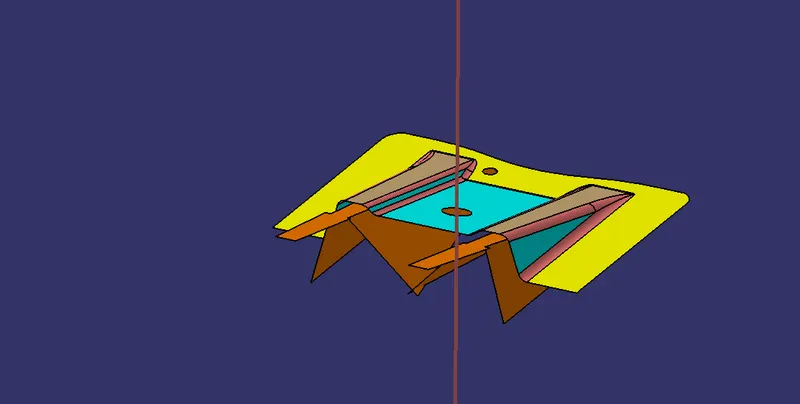

Creating an intersection at the required position. Creating a dummy tooling axis. Create two lines at the
required intersection and
bisect a new line with the previous two lines. Therefore we get a

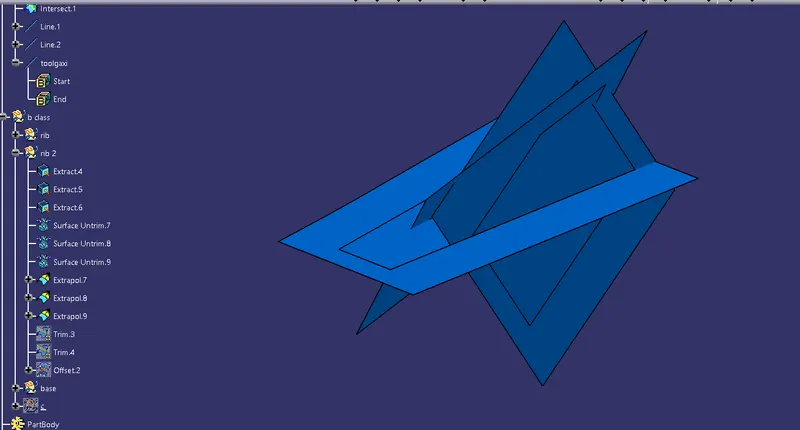

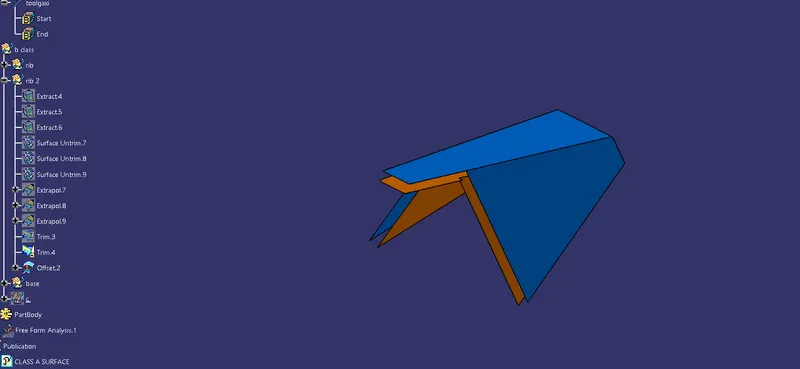

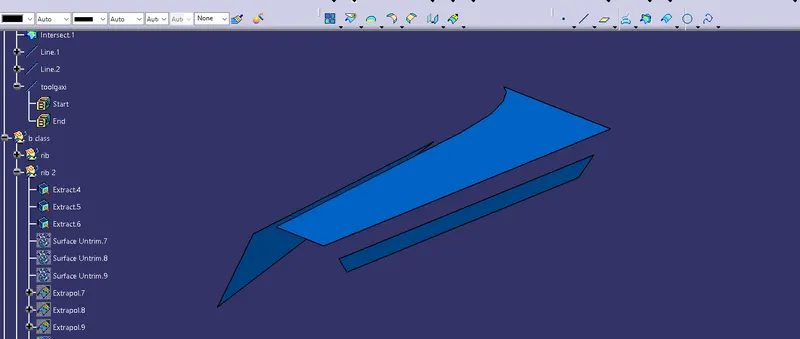

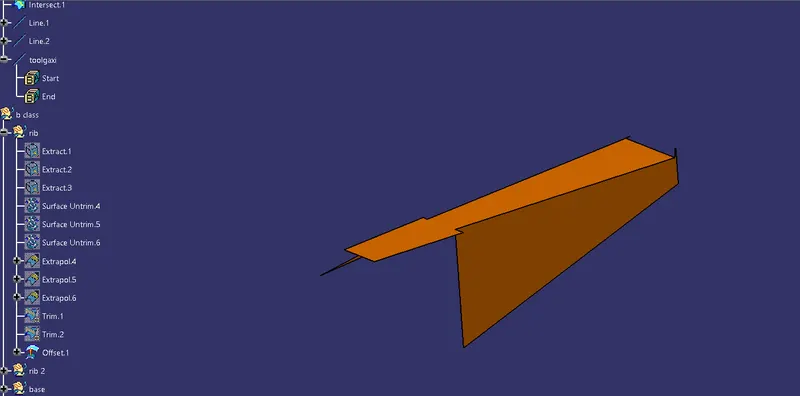

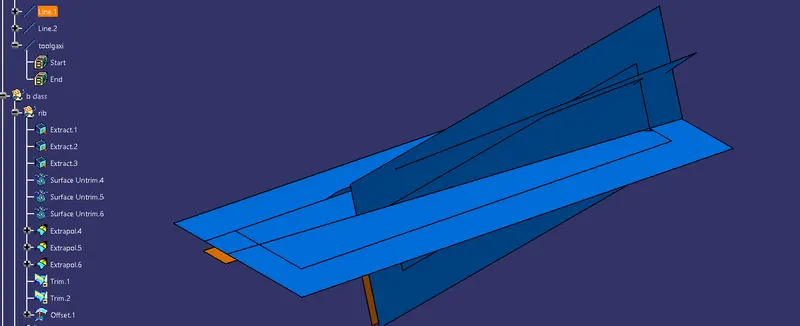

Extracting the surfaces due to fillets are present and offsetting them for a 2.5mm

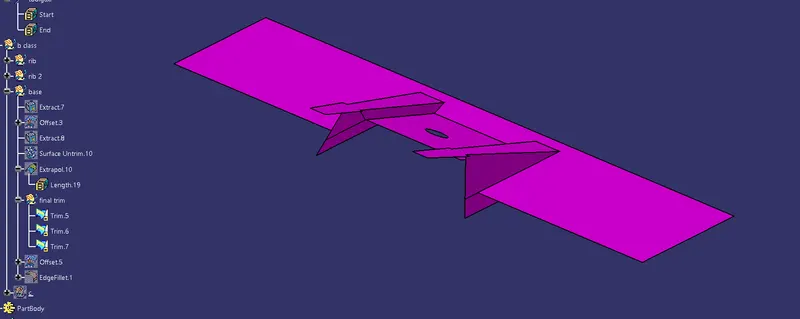

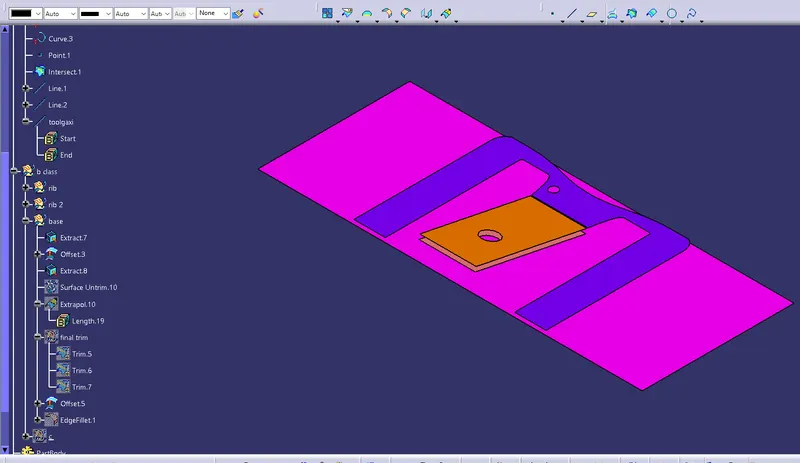

OFSETTING THE BASE SURFACE
After all the offsets, trimming and applying fillets are done for the required shape. Hence the class B
surface is done

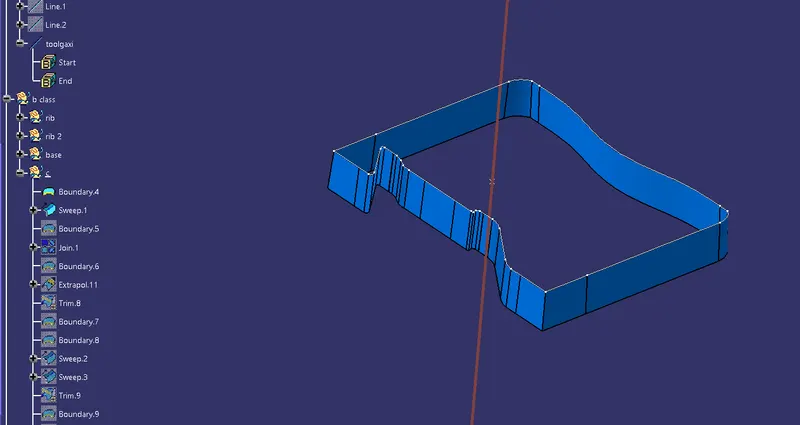

Extracting the outer boundary and joining with the class B surface. Therefore the Class C surface is
formed.

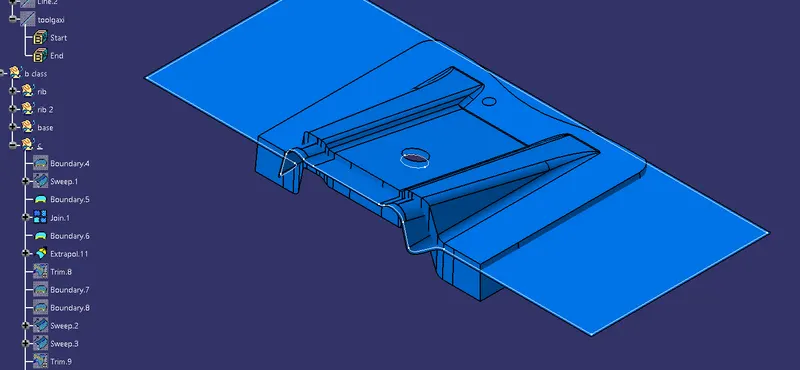

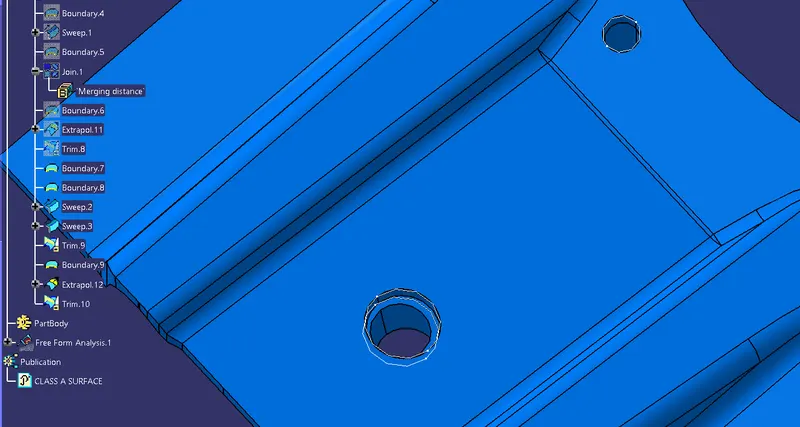

Trimming all the unwanted surfaces and maintain the model without any gaps
the soli body is created using the close surefe method

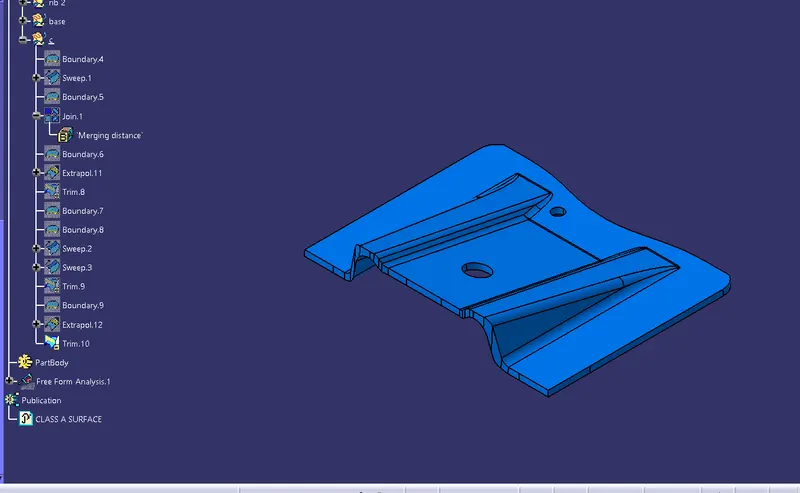

all views of the solid body
DRAFT ANALYSIS:
draft analysis for a class -A surface

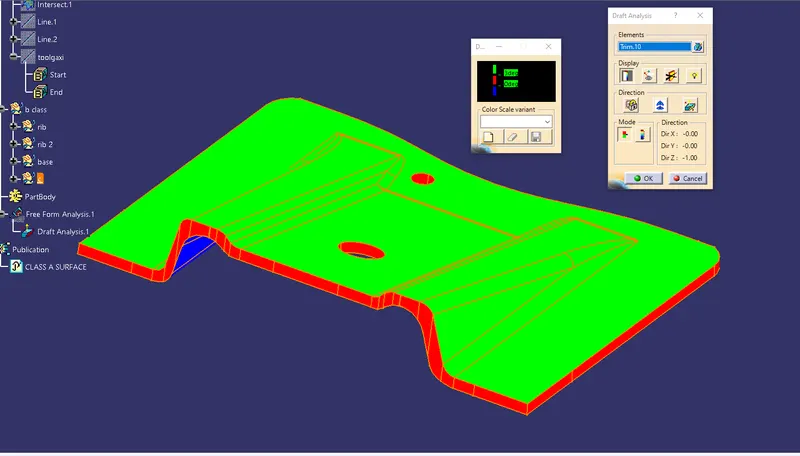

draft analysis for a solid model created using the class B and class C
the draft angle of 2.6 is positive for the class c surface

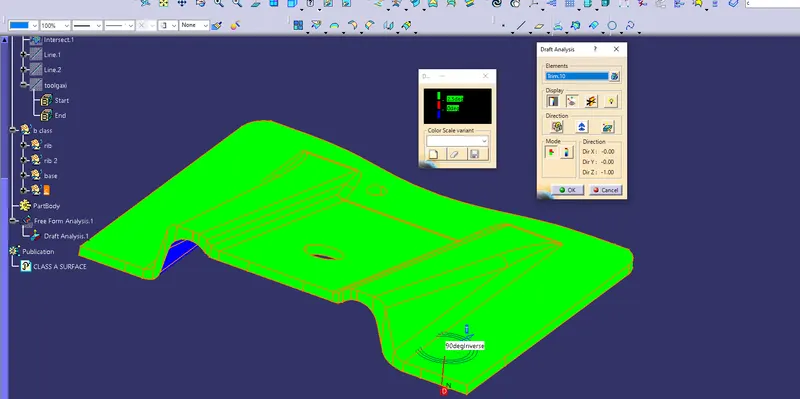

the blue colour indiactes the holes are in reverse direction
the draft angle of 2.7 degree is showing the negitive error
THE SOLID MODEL OF THE BASE BRACET IS CREATED BY USING THE CLASS A AND
DEVELOPED CLASS B AND CLASS C WITH THE THICKNESS OF 2.5.and draft analsis is done
