Project 1 - Parsing NASA thermodynamic data
Parsing NASA thermodynamic data
Objective :
1. To extracts the 14 coefficients and calculates the enthalpy,
entropy and specific heats for all the species in the NASA thermodynamic data file
The NASA polynomials have the form as shown below:
Where R = universal gas constant and T = Temperature
2. To calculate the molecular weight of each species and display it in the command
window.
3. To plot the Cp, Enthalpy and Entropy for the local temperature range (low
temperature : high temperature) specific for each species.
4. To save the plots as images with appropriate names and dump them in separate
folders for each species with suitable name automatically.
File parsing :
File parsing refers to the conversion of data from the external file to a soft data
format that can be used in a computer program.
NASA thermodynamic file :
The given THERMO.dat file contains 14 coefficients for 53 different elements.
coefficients are used to calculate the specific heat, enthalpy and entropy for each
element.
lets know what are entropy and
enthalpy, specific heats of various species.
The NASA polynomials have the form :
In this, there are total 14 coefficients are present, first 7 are high-temperature
coefficients (>1000) and second 7 are low-temperature coefficients (<1000).
1. Specific heat :
The amount of energy that must be added in the form of heat to the one unit of mass
of the substance in order increase the temperature is called specific heat.
2. Enthalpy :
It is a property of a thermodynamic system, is equal to the sum of internal energy
and the product of its pressure and volume. The heat absorbed or released is equal
to the change in internal energy.
3. Entropy :
It is defined as the amount the energy that would be release per unit temperature
which is unavailable for the useful work.
4. Molecular weight :
The mass of molecule of the substance is called as molecular mass.
1.specific function code
% ========================= Specific Heat function file
function Cp =specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,Temp,R,global_medium_temp)
% comparing with global temperature %
% If less than global temp, min coefficents are taken %
% otherwise max coefficients are taken %
if Temp <= global_medium_temp
Cp = R*(a8+(a9*Temp)+(a10*(Temp).^2)+(a11*(Temp).^3)+(a12*(Temp).^4));
else
Cp = R*(a1+(a2*Temp)+(a3*(Temp).^2)+(a4*(Temp).^3)+(a5*(Temp).^4));
end
2. enthalpy function code
% ======================================= Enthalpy function file
function H =enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,Temp,R,global_medium_temp)
% comparing with global temperature %
% If less than global temp, min coefficents are taken %
% otherwise max coefficients are taken %
if Temp <= global_medium_temp
H =R*Temp.*(a8+((a9*Temp)/2)+(a10*((Temp).^2)/3)+(a11*((Temp).^3)/4)+(a12*((Temp).^4)/5)+(a13./Temp));
else
H =R*Temp.*(a1+((a2.*Temp)/2)+(a3*((Temp).^2)/3)+(a4*((Temp).^3)/4)+(a5*((Temp).^4)/5)+(a6./Temp));
end
3.entropy function code
% ================================== Entropy function file
function S =entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,Temp,R,global_medium_temp)
% comparing with global temperature %
% If less than global temp, min coefficents are taken %
% otherwise max coefficients are taken %
if Temp <= global_medium_temp
S =R*(a8.*log(Temp)+(a9*Temp)+(a10*((Temp).^2)/2)+(a11*((Temp).^3)/3)+(a12*((Temp).^4)/4)+a14);
else
S =R*(a1.*log(Temp)+(a2.*Temp)+(a3*((Temp).^2)/2)+(a4*((Temp).^3)/3)+(a5*((Temp).^4)/4)+a7);
end4.molecular weight function code
% Molecular weight function file %
function molecularweight = molecular_weight(Species_SP);
% standard atomic names - hydrogen,carbon,oxygen,nitrogen,argon
atomic_name = ['H','C','O','N','A'];
% standard atomic numbers
atomic_weight = [1.008 12.011 15.999 14.007 39.948];
% starting range
molecularweight = 0;
% adding atomic number to get particular value
for i = 1:length(Species_SP);
for j = 1:length(atomic_name);
if strcmpi(Species_SP(i),atomic_name(j));
molecularweight = molecularweight + atomic_weight(j);
position = j;
end
end
n = str2num(Species_SP(i));
if n>1
molecularweight = molecularweight + atomic_weight(position)*(n-1);
end
end
fprintf('molecular weight of %s = %d',Species_SP,molecularweight);
disp(' ');
end
main code
clear all
close all
clc
% reading given thermo.dat file %
f1 = fopen('THERMO.dat','r');
gt = fgetl(f1);
% reading header information %
global_temp = fgetl(f1);
% splitting the temperature data %
t = strsplit(global_temp);
% converting strings to numbers %
global_low_temp = str2num(t{2});
global_medium_temp = str2num(t{3});
global_high_temp = str2num(t{4});
% temperature range is created b/w low and high temperatures %
Temp = linspace(global_low_temp,global_high_temp,1000);
% universal gas constant
R = 8.314;
% skipping first three lines in the given file which contain comments %
for i = 1:3
gt = fgetl(f1);
end
% reading the 53 species %
for i = 1:53
gt = fgetl(f1);
A = strsplit(gt,' ');
Species_SP = (A{1});
fprintf('%s ', '>>> Element name :','"',Species_SP,'"')
line_1 = fgetl(f1);
a = strfind(line_1,'E');
% extracting first 7 high temperature coefficents %
a1 = line_1(1:a(1)+3);
a1 = str2num(a1);
a2 = line_1(a(1)+4:a(2)+3);
a2 = str2num(a2);
a3 = line_1(a(2)+4:a(3)+3);
a3 = str2num(a3);
a4 = line_1(a(3)+4:a(4)+3);
a4 = str2num(a4);
a5 = line_1(a(4)+4:a(5)+3);
a5 = str2num(a5);
line_2 = fgetl(f1);
b = strfind(line_1,'E');
a6 = line_2(1:b(1)+3);
a6 = str2num(a6);
a7 = line_2(a(1)+4:b(2)+3);
a7 = str2num(a7);
% extracting second 7 low temperature coefficents %
a8 = line_2(b(2)+4:b(3)+3);
a8 = str2num(a8);
a9 = line_2(b(3)+4:b(4)+3);
a9 = str2num(a9);
a10 = line_2(b(4)+4:b(5)+3);
a10 = str2num(a10);
line_3 = fgetl(f1);
c = strfind(line_1,'E');
a11 = line_3(1:c(1)+3);
a11 = str2num(a11);
a12 = line_3(c(1)+4:c(2)+3);
a12 = str2num(a12);
a13 = line_3(c(2)+4:c(3)+3);
a13 = str2num(a13);
a14 = line_3(c(3)+4:c(4)+3);
a14 = str2num(a14);
% Specific heat %
Cp = specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,Temp,R,global_medium_temp);
% Enthalpy %
H =enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,Temp,R,global_medium_temp);
% Entropy %
S =entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,Temp,R,global_medium_temp);
% Molecular weight
molecularweight = molecular_weight(Species_SP);
% read & write molecular weights %
molecular_list = fopen('molecular weight.txt','a+');
fprintf(molecular_list,'molecular weight of %s is %d',Species_SP,molecularweight);
fclose(molecular_list);
% plotting (Cp,H,S,Temp,Species_SP) and saving as folder %
cur_dir = pwd;
mkdir(Species_SP);
cd(Species_SP);

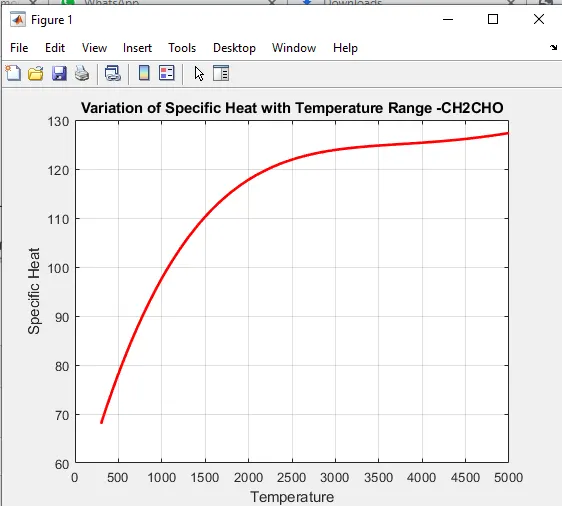

% plot 1 - Cp vs Temp %
figure(1)
plot(Temp,Cp,'linewidth',2,'color','r');
xlabel('Temperature');
ylabel('Specific Heat');
title(sprintf('Variation of Specific Heat with Temperature Range -%s',Species_SP));
grid on
saveas(figure(1),'specific heat.jpg');

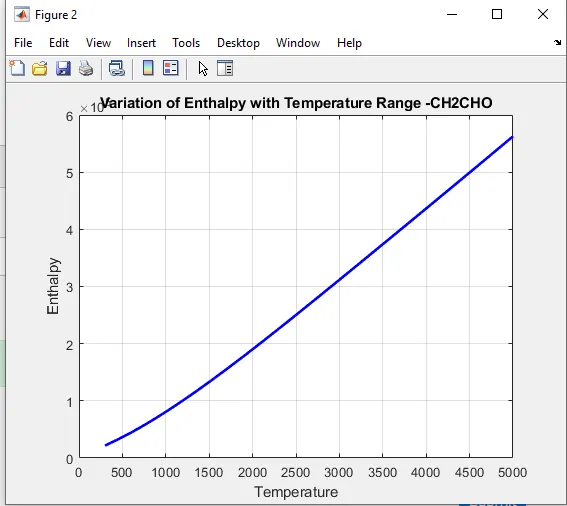

% plot 2 - E vs Temp %
figure(2)
plot(Temp,H,'linewidth',2,'color','b');
xlabel('Temperature')
ylabel('Enthalpy')
title(sprintf('Variation of Enthalpy with Temperature Range -%s',Species_SP));
grid on
saveas(figure(2),'enthalpy.jpg')

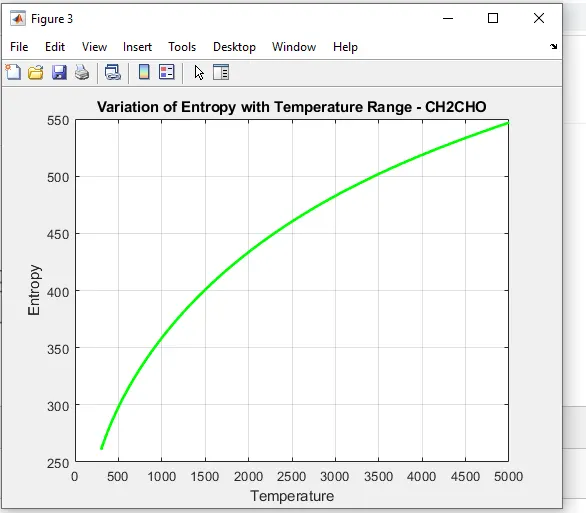

% plot 3 - S vs Temp %
figure(3)
plot(Temp,S,'linewidth',2,'color','g');
xlabel('Temperature')
ylabel('Entropy')
title(sprintf('Variation of Entropy with Temperature Range - %s',Species_SP));
grid on
saveas(figure(3),'entropy.jpg')
cd(cur_dir);
% molecuar weight %
M = molecular_weight(Species_SP);
f2 = fopen('molecular mass','w');
fprintf('%s of %s is %f ',' - Molecular Weight',Species_SP,M)
fclose(f2)
end
CODE explanation :
As we know basic commands clear all, close all and clc.
are used in the begining of the script
make sure that the given thermo.data file is in the same path of the script.
Open the given THERMO.dat file using the 'fopen' command and use 'r' to
read the file.
'fgetl' command is used to read the line in the text file.
the global temperature can be made into separate strings using the 'strsplit'
command to split the temperature into a particular string.
these strings cell are converted into the numbers using 'str2num' command.
A temperature range cell is created between the global low-temperature and
global high-temperature using 'linspace' command.
Given Universal gas constant (R) value input given as 8.314.
sinces the next three lines are cooments we can skip them using 'for loop'.
now comes the main code where we will write the script for entire 53 elements using 'for loop'.
To find the strings, 'strfind' command is used.
All the 14 coefficients are found using the 'strfind' and they are converted into
the numbers using 'str2num'.
THE logic to find the coefficients goes like this since we have the exponential as a key word we will make
use of that key word to separate the coefficients .
'E' as the postion of in multiples of 12. now we will see that after 3 positions of the 'E' we have the next coefficient.
now we will write th code for coefficient
a = strfind(line_1,'E');
% extracting first 7 high temperature coefficents %
a1 = line_1(1:a(1)+3);
a1 = str2num(a1);
this process we be continued for the remaning coefficients just by replacing a(1) values by next erms.
now 14 coefficients are drawn from the data of 53 elements
next Saved function files of Specific heat, Enthalpy, Entropy and Molecular weight
are called to find them.

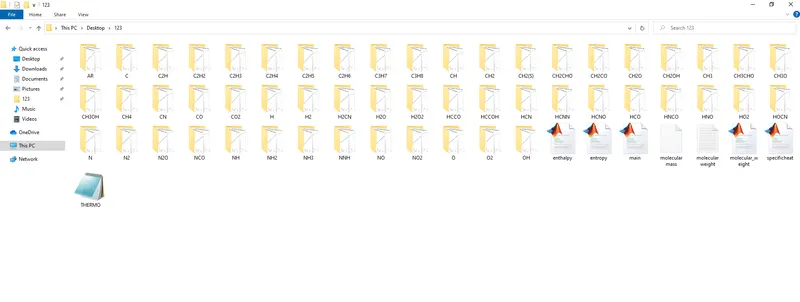

Creating directory using 'mkdir' command.
Plots are created between temperature and specific heat, enthalpy and
entropy, and they are saved in the folder with their species name in jpg
format.
Molecular weight is displayed on the command window along with species
name using 'fprintf' command.
OUTPUTS :
Molecular weights :
The below is the copy of output obtained from the command window
>>> Element name : " O " - Molecular Weight of O is 15.999000
ans =
0
>>> Element name : " O2 " - Molecular Weight of O2 is 31.998000
ans =
0
>>> Element name : " H " - Molecular Weight of H is 1.008000
ans =
0
>>> Element name : " H2 " - Molecular Weight of H2 is 2.016000
ans =
0
>>> Element name : " OH " - Molecular Weight of OH is 17.007000
ans =
0
>>> Element name : " H2O " - Molecular Weight of H2O is 18.015000
ans =
0
>>> Element name : " HO2 " - Molecular Weight of HO2 is 33.006000
ans =
0
>>> Element name : " H2O2 " - Molecular Weight of H2O2 is 34.014000
ans =
0
>>> Element name : " C " - Molecular Weight of C is 12.011000
ans =
0
>>> Element name : " CH " - Molecular Weight of CH is 13.019000
ans =
0
>>> Element name : " CH2 " - Molecular Weight of CH2 is 14.027000
ans =
0
>>> Element name : " CH2(S) " - Molecular Weight of CH2(S) is 14.027000
ans =
0
>>> Element name : " CH3 " - Molecular Weight of CH3 is 15.035000
ans =
0
>>> Element name : " CH4 " - Molecular Weight of CH4 is 16.043000
ans =
0
>>> Element name : " CO " - Molecular Weight of CO is 28.010000
ans =
0
>>> Element name : " CO2 " - Molecular Weight of CO2 is 44.009000
ans =
0
>>> Element name : " HCO " - Molecular Weight of HCO is 29.018000
ans =
0
>>> Element name : " CH2O " - Molecular Weight of CH2O is 30.026000
ans =
0
>>> Element name : " CH2OH " - Molecular Weight of CH2OH is 31.034000
ans =
0
>>> Element name : " CH3O " - Molecular Weight of CH3O is 31.034000
ans =
0
>>> Element name : " CH3OH " - Molecular Weight of CH3OH is 32.042000
ans =
0
>>> Element name : " C2H " - Molecular Weight of C2H is 25.030000
ans =
0
>>> Element name : " C2H2 " - Molecular Weight of C2H2 is 26.038000
ans =
0
>>> Element name : " C2H3 " - Molecular Weight of C2H3 is 27.046000
ans =
0
>>> Element name : " C2H4 " - Molecular Weight of C2H4 is 28.054000
ans =
0
>>> Element name : " C2H5 " - Molecular Weight of C2H5 is 29.062000
ans =
0
>>> Element name : " C2H6 " - Molecular Weight of C2H6 is 30.070000
ans =
0
>>> Element name : " CH2CO " - Molecular Weight of CH2CO is 42.037000
ans =
0
>>> Element name : " HCCO " - Molecular Weight of HCCO is 41.029000
ans =
0
>>> Element name : " HCCOH " - Molecular Weight of HCCOH is 42.037000
ans =
0
>>> Element name : " H2CN " - Molecular Weight of H2CN is 28.034000
ans =
0
>>> Element name : " HCN " - Molecular Weight of HCN is 27.026000
ans =
0
>>> Element name : " HNO " - Molecular Weight of HNO is 31.014000
ans =
0
>>> Element name : " N " - Molecular Weight of N is 14.007000
ans =
0
>>> Element name : " NNH " - Molecular Weight of NNH is 29.022000
ans =
0
>>> Element name : " N2O " - Molecular Weight of N2O is 44.013000
ans =
0
>>> Element name : " NH " - Molecular Weight of NH is 15.015000
ans =
0
>>> Element name : " NH2 " - Molecular Weight of NH2 is 16.023000
ans =
0
>>> Element name : " NH3 " - Molecular Weight of NH3 is 17.031000
ans =
0
>>> Element name : " NO " - Molecular Weight of NO is 30.006000
ans =
0
>>> Element name : " NO2 " - Molecular Weight of NO2 is 46.005000
ans =
0
>>> Element name : " HCNO " - Molecular Weight of HCNO is 43.025000
ans =
0
>>> Element name : " HOCN " - Molecular Weight of HOCN is 43.025000
ans =
0
>>> Element name : " HNCO " - Molecular Weight of HNCO is 43.025000
ans =
0
>>> Element name : " NCO " - Molecular Weight of NCO is 42.017000
ans =
0
>>> Element name : " CN " - Molecular Weight of CN is 26.018000
ans =
0
>>> Element name : " HCNN " - Molecular Weight of HCNN is 41.033000
ans =
0
>>> Element name : " N2 " - Molecular Weight of N2 is 28.014000
ans =
0
>>> Element name : " AR " - Molecular Weight of AR is 39.948000
ans =
0
>>> Element name : " C3H8 " - Molecular Weight of C3H8 is 44.097000
ans =
0
>>> Element name : " C3H7 " - Molecular Weight of C3H7 is 43.089000
ans =
0
>>> Element name : " CH3CHO " - Molecular Weight of CH3CHO is 44.053000
ans =
0
>>> Element name : " CH2CHO " - Molecular Weight of CH2CHO is 43.045000
ans =
0
>>
CONCLUSION :
From the given NASA thermodynamic data, all the coefficients are found and
molecular weights of each element is calculated using MATLAB. Also, plots are
created for temperature and specific heat, enthalpy and entropy. All this data is
saved in individual folders.
LINK TO ACCESS ALL PLOTS
https://drive.google.com/drive/folders/1_9lgFzRHW-8klPXJCvQDoE53vyf4GUke?usp=sharing
