Week 8 - Challenge 2 - Base Bracket Design

AIM:

Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

PROCEDURE:

• make the tooling axis

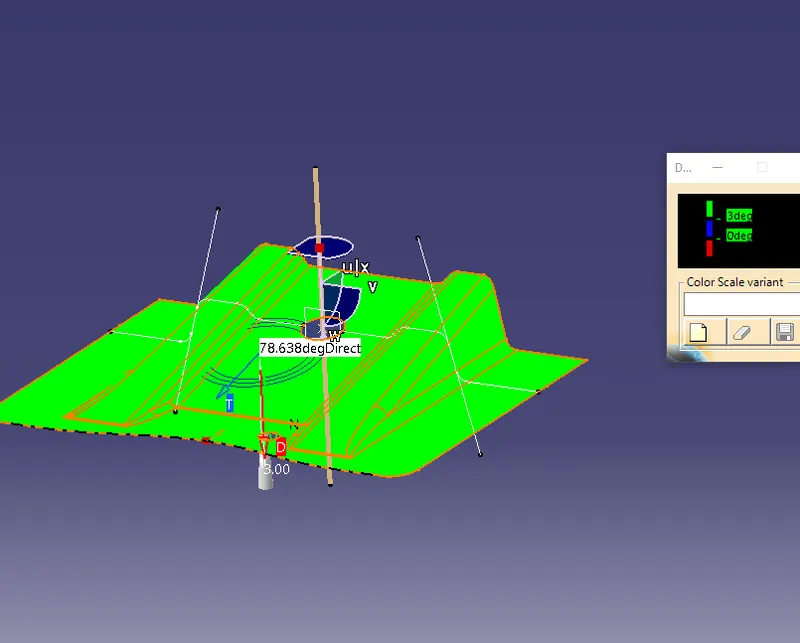

• then do draft analysis (detailed explanation on last chalange)

• we want to create class B from class A SURFACE

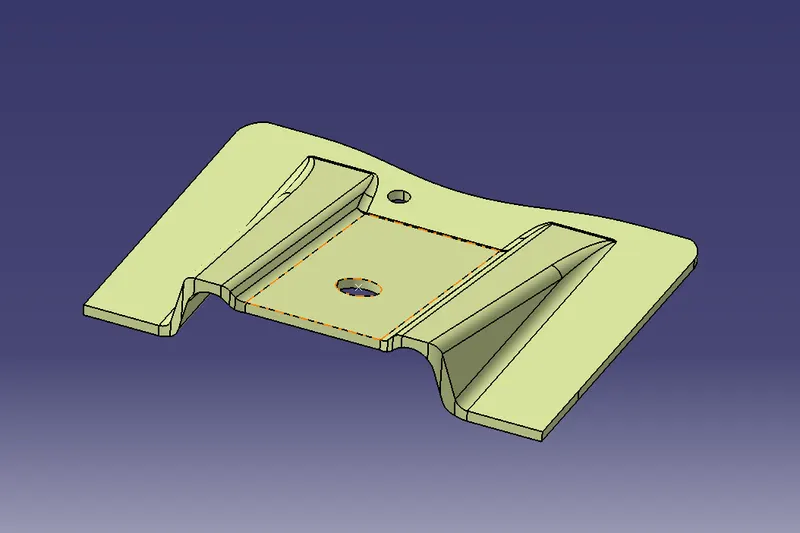

• extract the parts from class A
• make a geomatrcial set RIB1

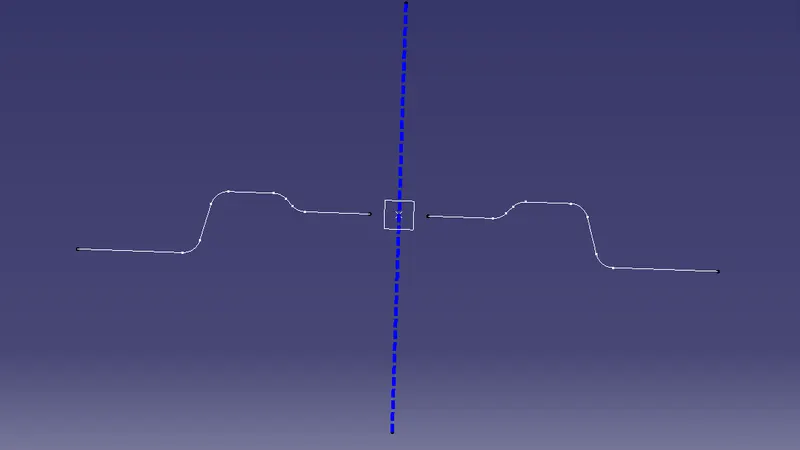

• untrim the exrtacted parts from rib structure
• extrapolite it
• trim it
• offset to 2.5mm
• same procedure for RIB2

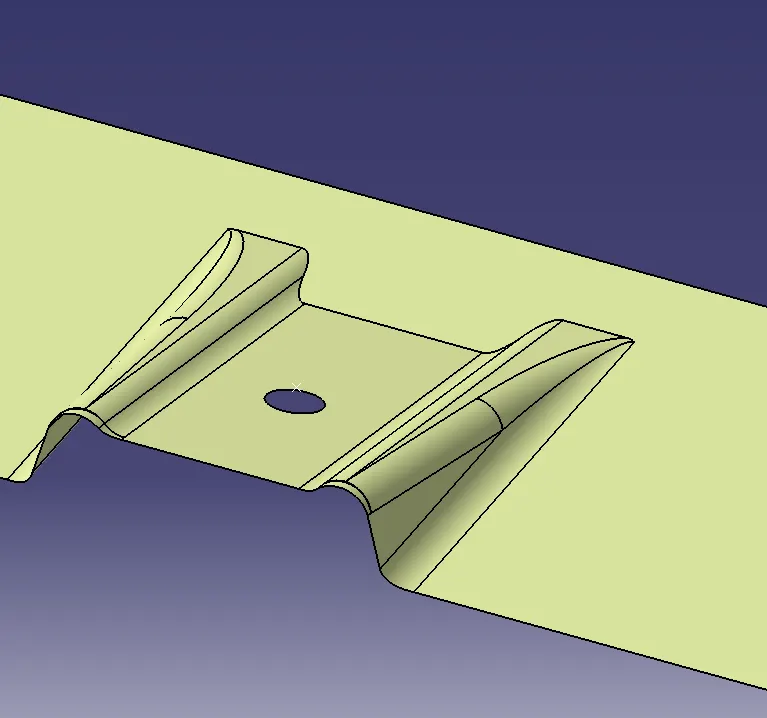

• extract base

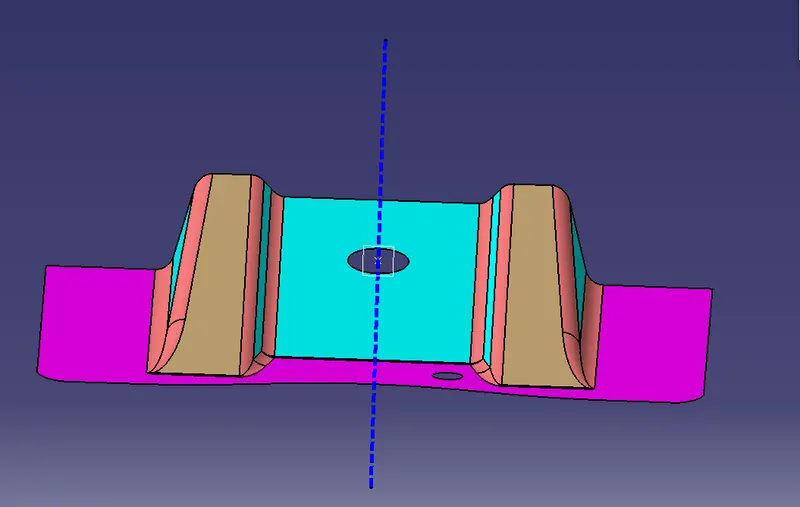

• extract middle part
• trim by proper
• give fillet to edges by measuring class A
• by this procedure we created class B

• FROM THIS we want to create class C
• class C is connection between class A& B
• for that make boundary to class A

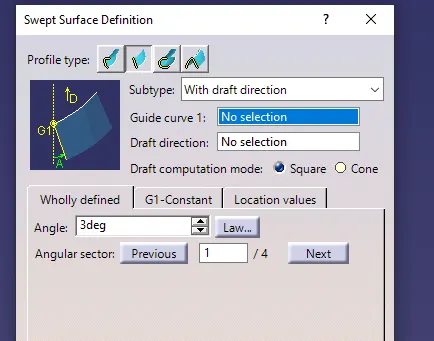

• GO TO SWEEP option

• make class C by sweep option
• make sweep in holes also
• then trim it properly

• join all body and check for boundary

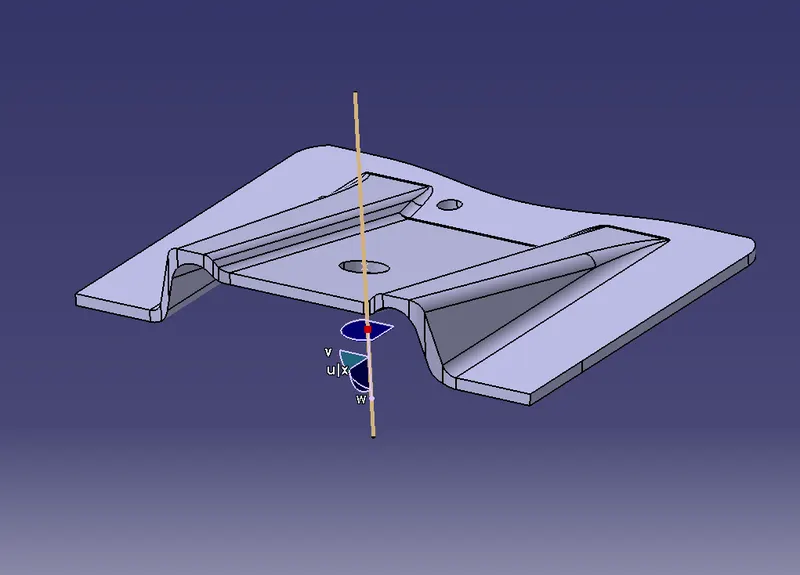

• go to part workbench and solidfy the body

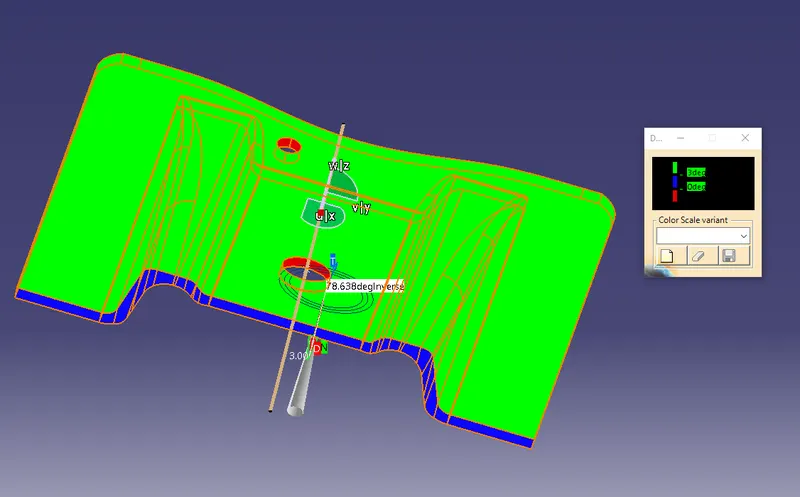

• do draft analysis
