Week 8 - Challenge 2 - Base Bracket Design
Report Work:
Class A surface: It provides information about the aesthetic features of a component. The product designer starts development of design models from class A surface
Class B surface: It provides information about the engineering features of a component. This surface is created by offsetting it from class A surface.
Class C surface: It is a surface that connects surface A and surface B along tooling direction.
Tooling Axis: It is direction along which the core and cavity open and close. Draft is also given along the tooling axis.
DRAFT ANALYSIS ON CLASS A SURFACE
Views:

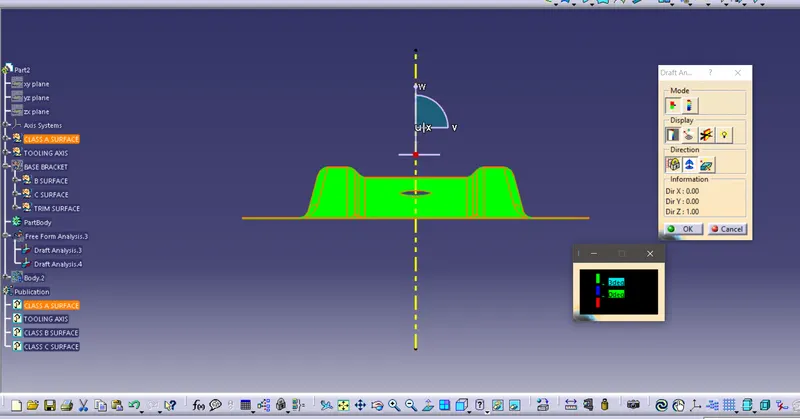

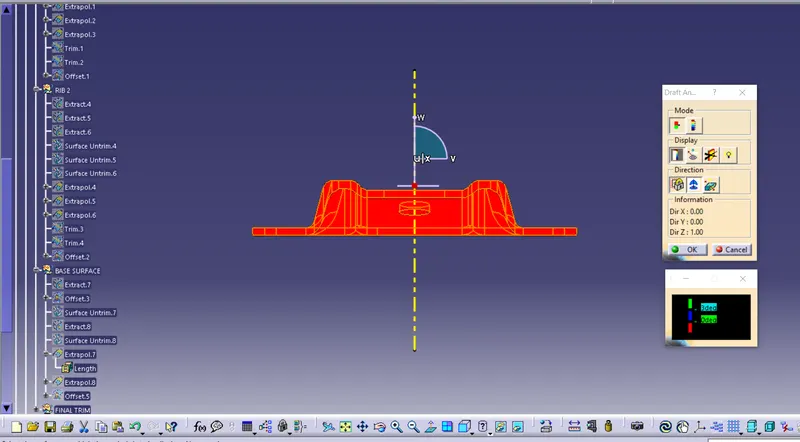

1) Front View

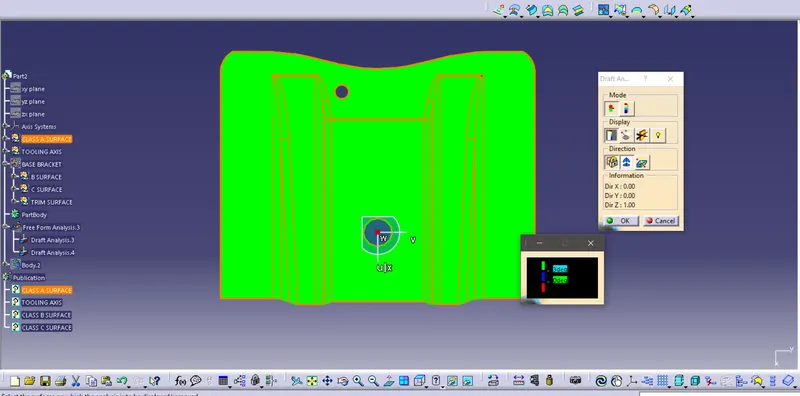

2) Top View

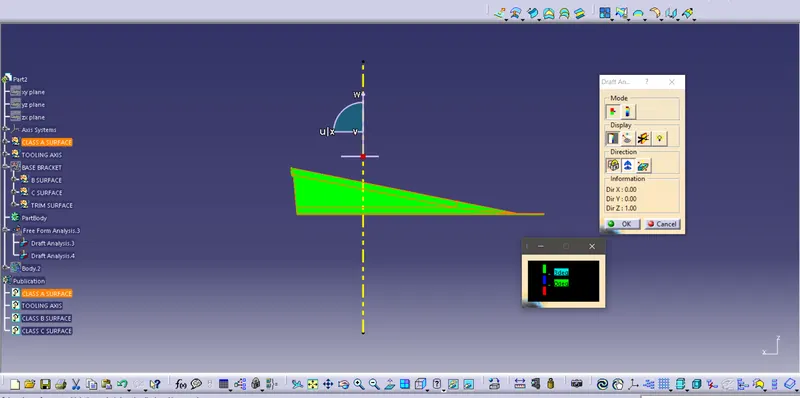

3) Side View

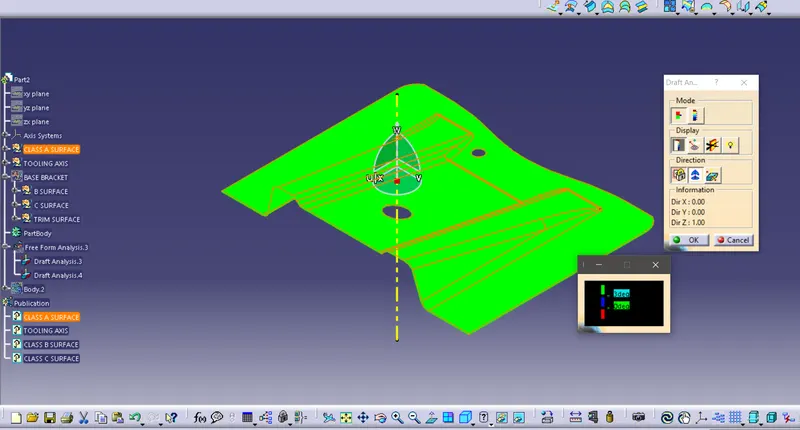

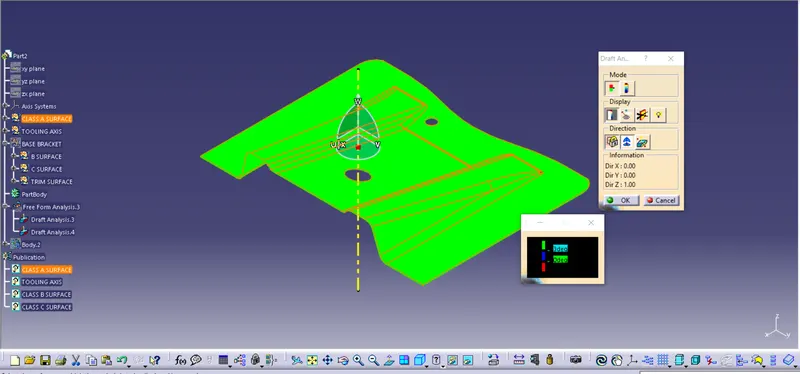

4) Isometric View

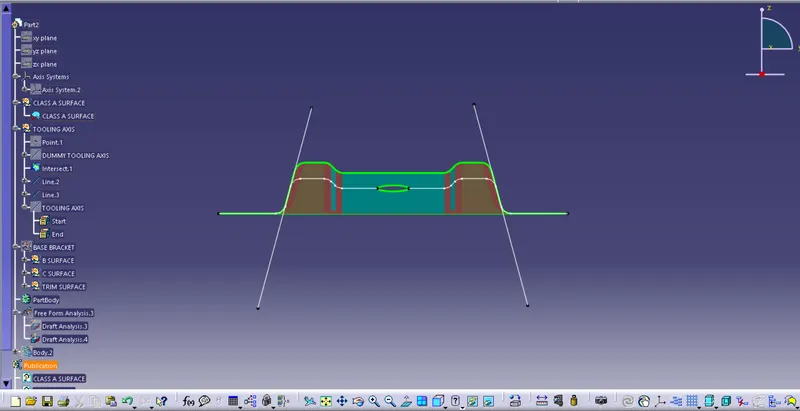

Creating tooling axis:
1. Creating tooling lines.

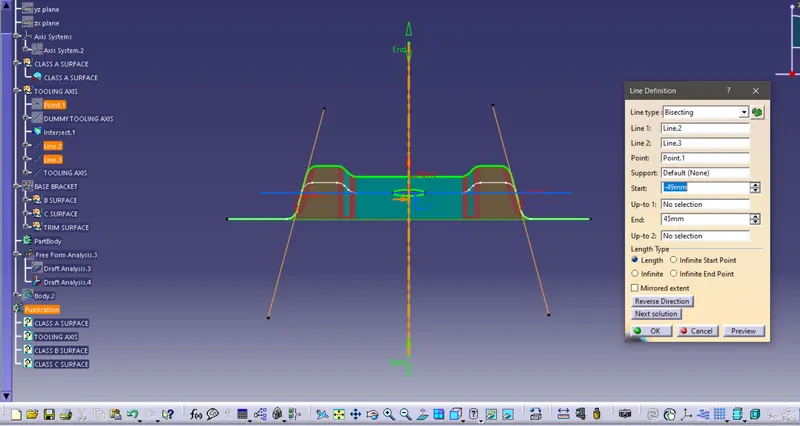

2. Creating a line with the help of 'bisecting' in line toolbar.
DRAFT ANALYSIS ON FINAL COMPONENT
Views
1) Front View
2) Top View

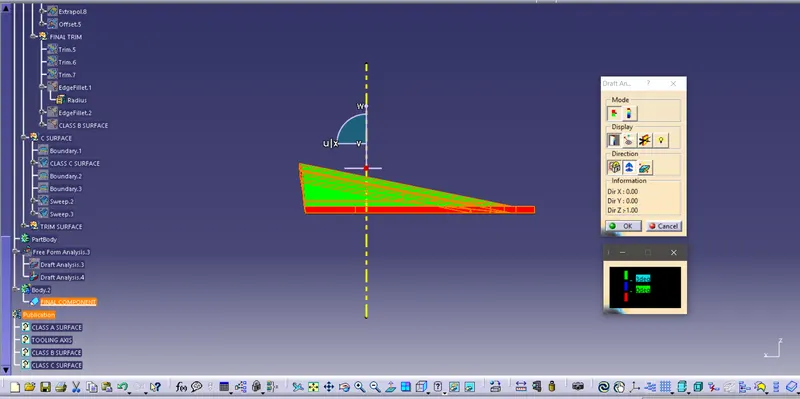

3) Side View

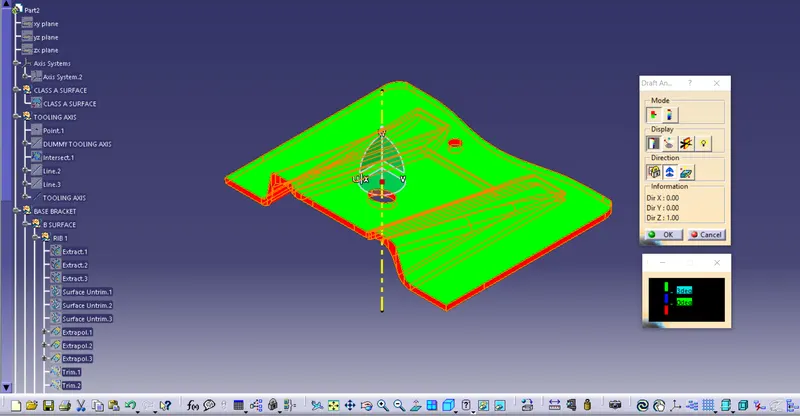

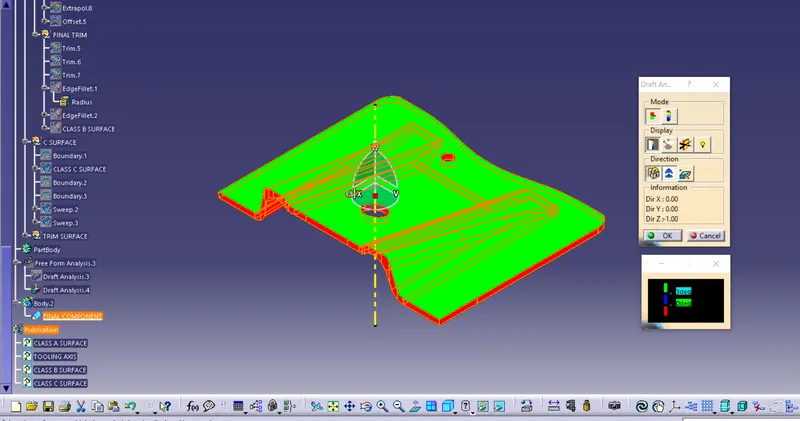

4) Isometric View
