Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

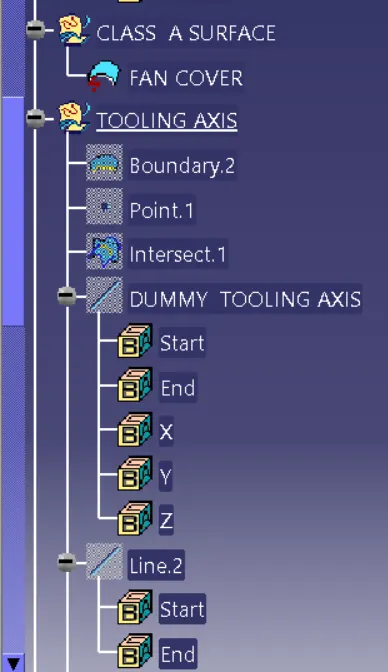

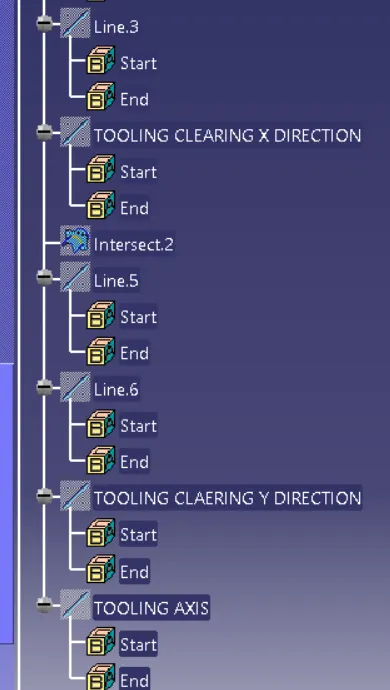

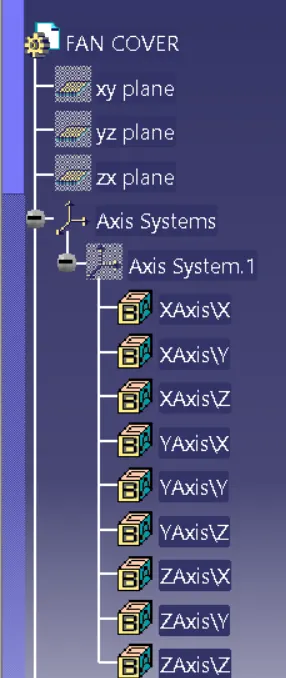

1.THE TREE STRUCTURE AND THE GEOMETRICAL SETS
2. THE ORIENTATION VIEW OF THE DRAFT ANALYISIS

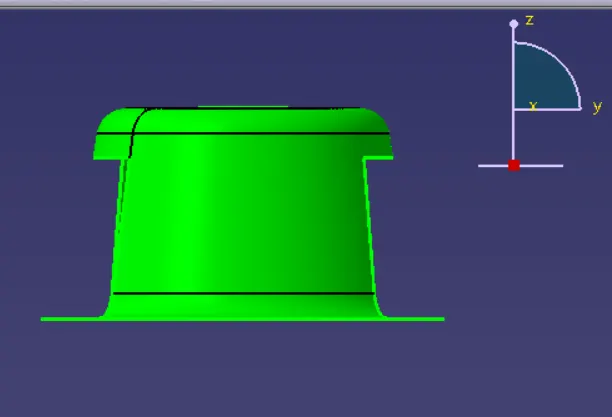

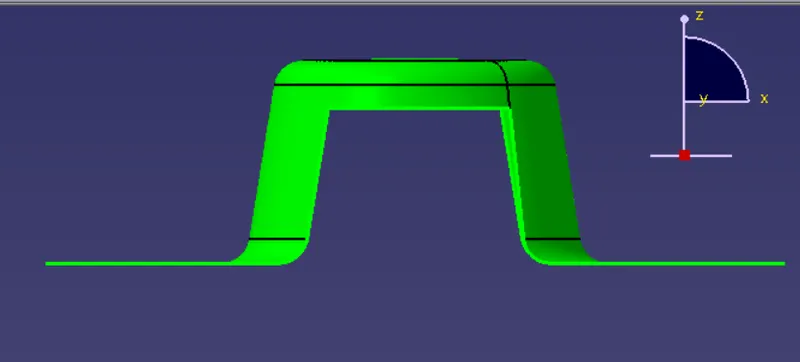

- FRONT VIEW
- SIDE VIEW

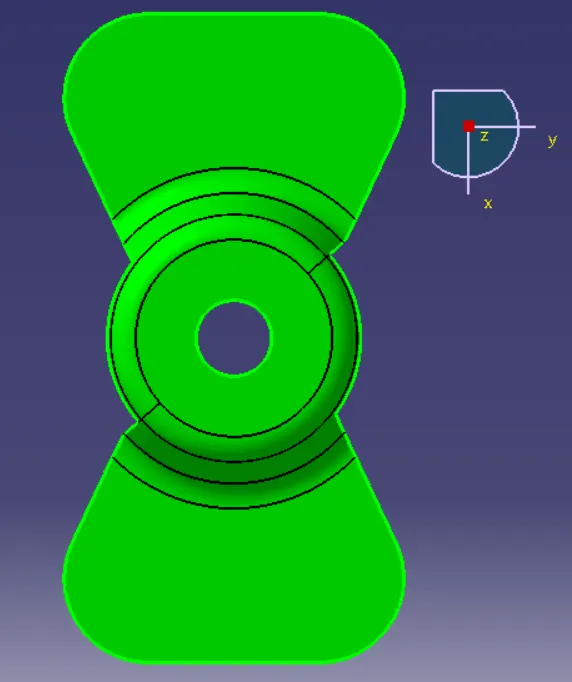

- TOP VIEW

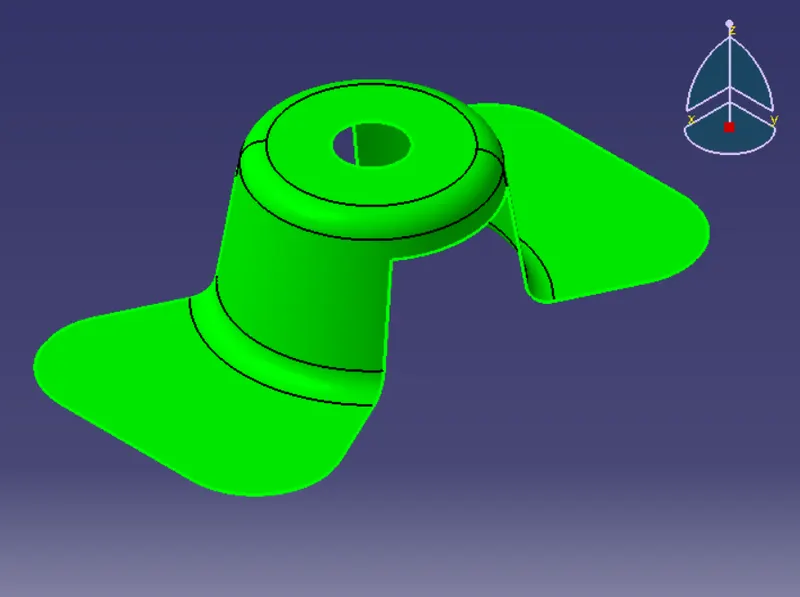

- ISOMETRIC VIEW
THE DETAIL REPORT FOR THE FAN COVER :
- First thing we should have consider which direction is correct for the tooling axis.
- And create the point on the fan cover, than create a Axis system on the point make sure its not current.

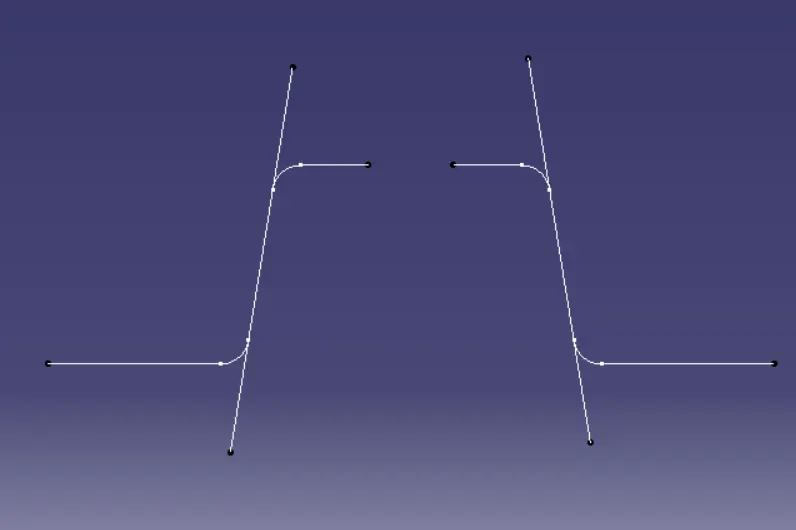

- After that create an intersect between the XZ direction and the Class A surface of Fan Cover.

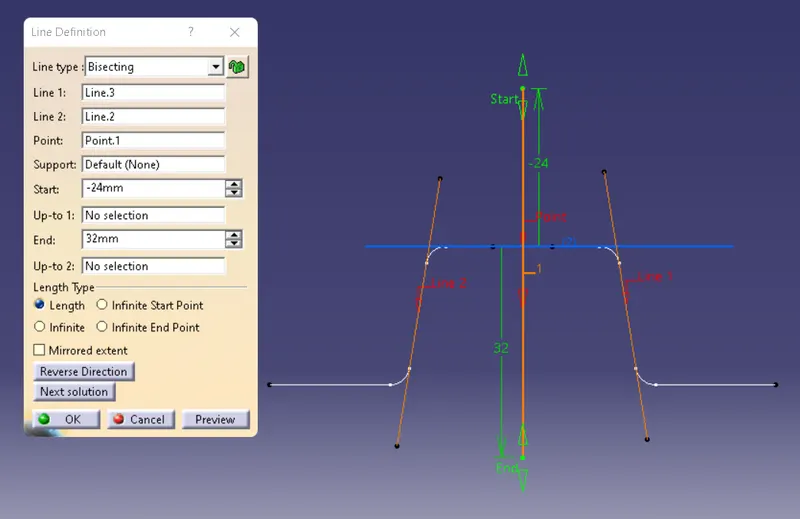

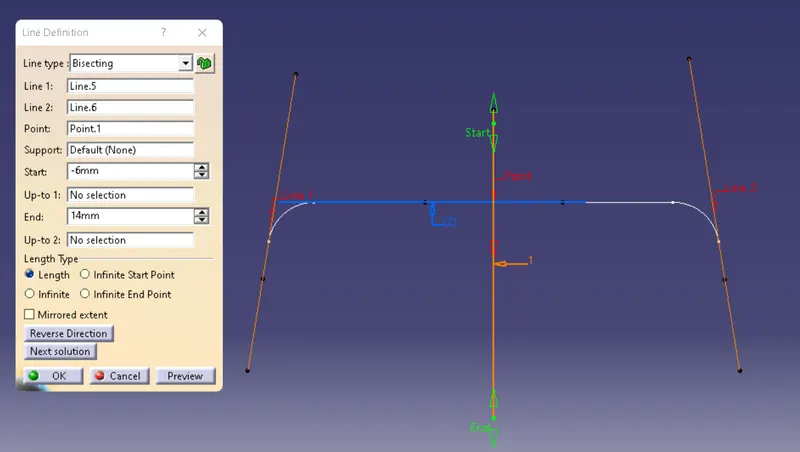

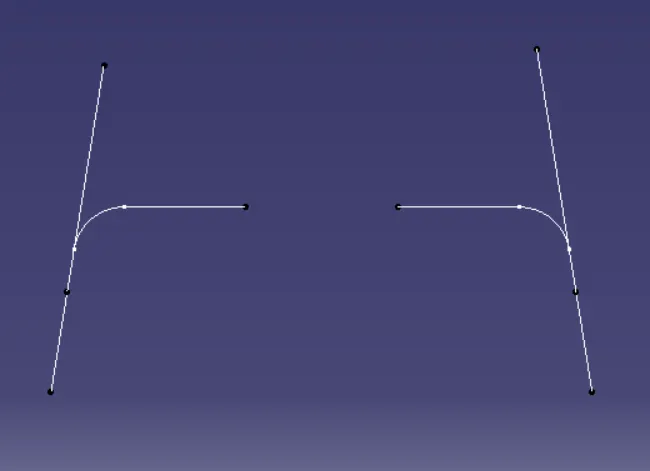

- Draw two lines on the intersect curve and bisect the two line the Bisecting line in z direction name it as Tooling Axis for X Direction.
- After that create another intersect between YZ directiion and the Class A surface of Fan Cover.
- Draw the two line the intersect curve Bisect the two line make it z direction it is tooling aixs for Y direction.

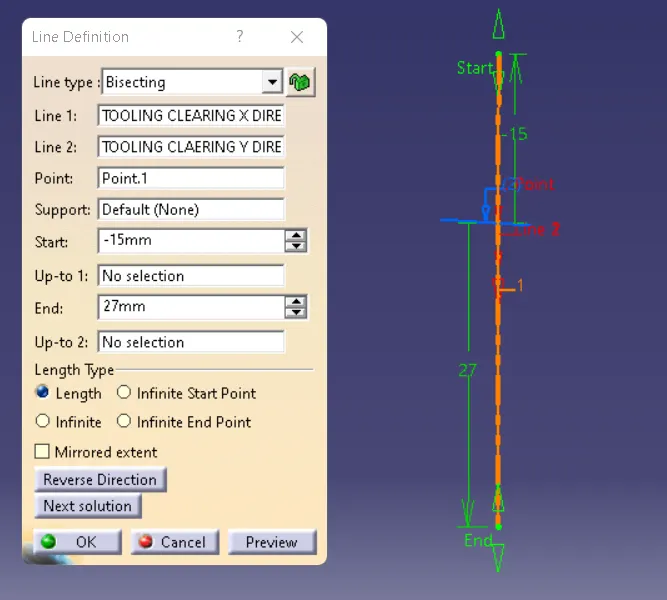

- After create the X and Y direction axis line than Bisecting the both line we got the Main Tooling Axis.
- After Completing the creation of the tooling axis we should do the draft analysis for the Fan Cover
Insert - Analysis - Feature draft analysis
Change material mode Customize View for the Draft Analysis

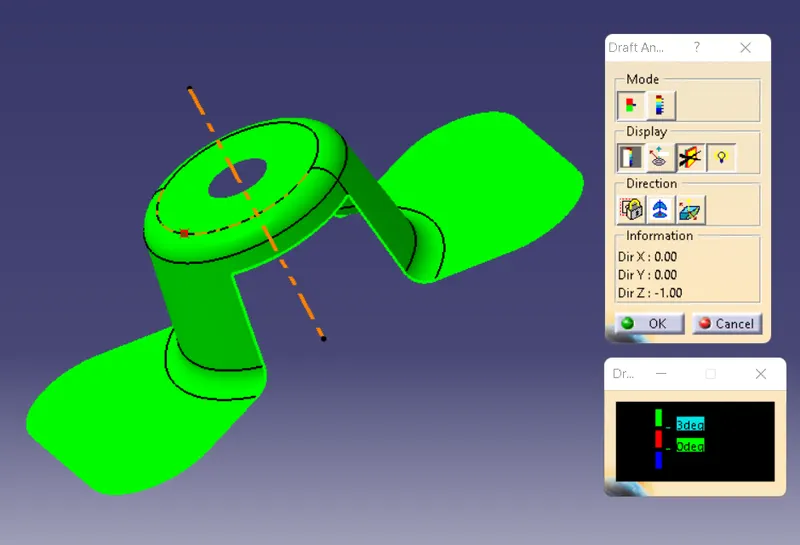

Click the direction symbol the pull the axis and place it on the main tooling axis than click the fan it should change to the analysis mode, it not change mean you can flip the direction.
DRAFT ANALYSIS FOR THE FAN COVER THE MINIMUM DRAFT ANGLE 3 DEGREE
