Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

Draft analysis of a fan cover

Objective:

To perform draft analysis on the Class A surface of a fan cover

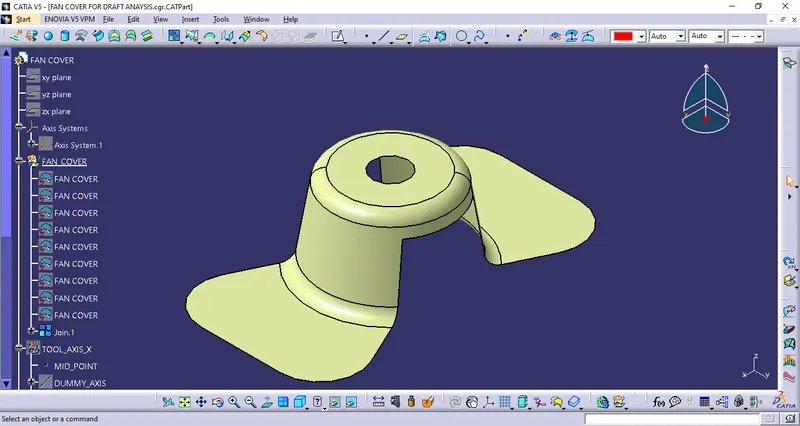

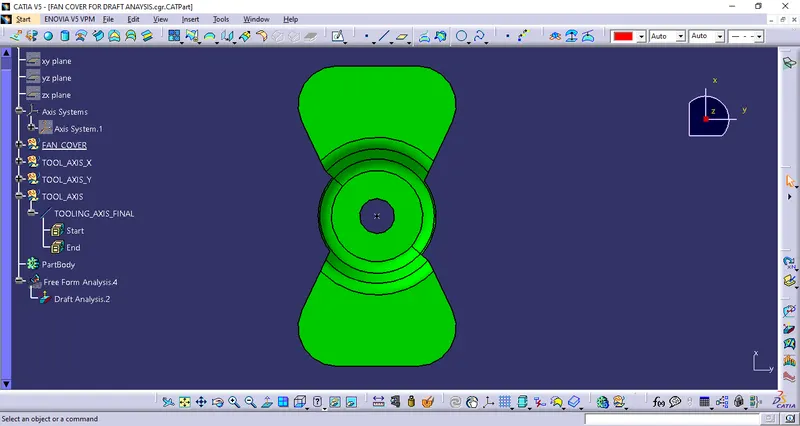

Class - A surface:

Draft analysis steps:

Creating tooling axis:

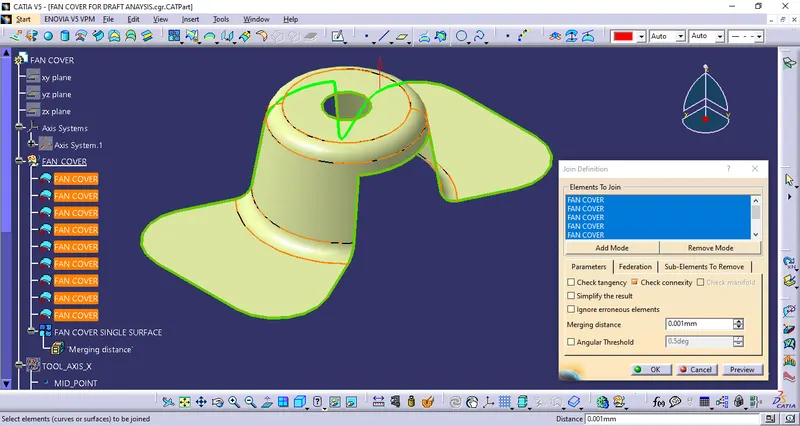

1. The first step is to Perform join operation and make the given surface in one surface:

2. Make sure there are no open boundries in the surface

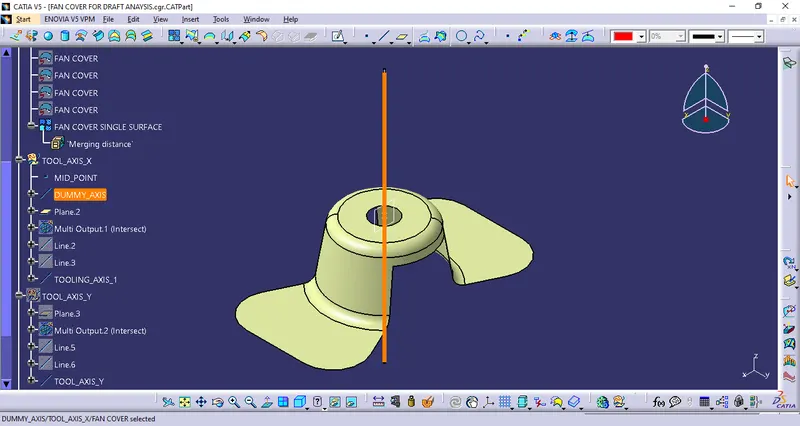

3. Create a dummy tooling axis:

X-direction tooling axis:

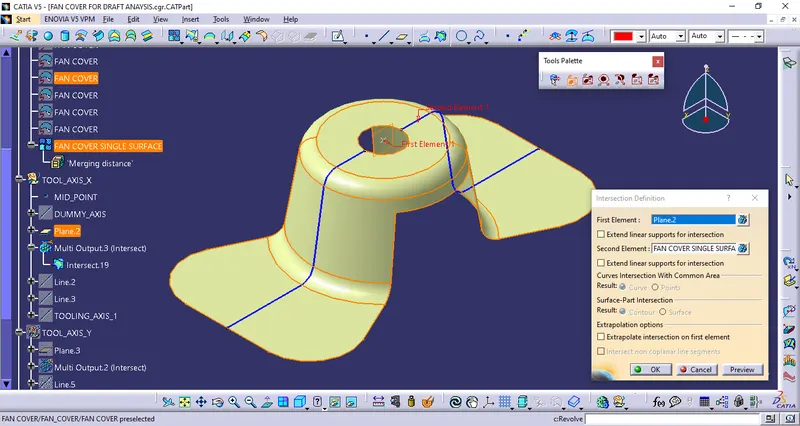

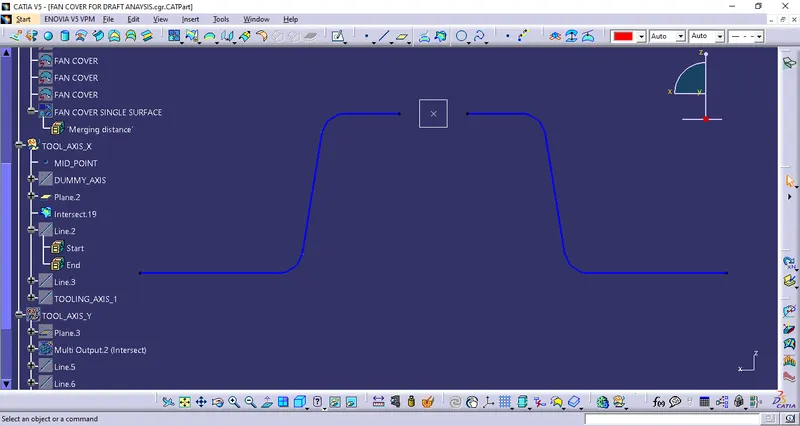

1. Create a plane in the center of the hole, and use intersect to to create an profile which intersects the surface and the plane:

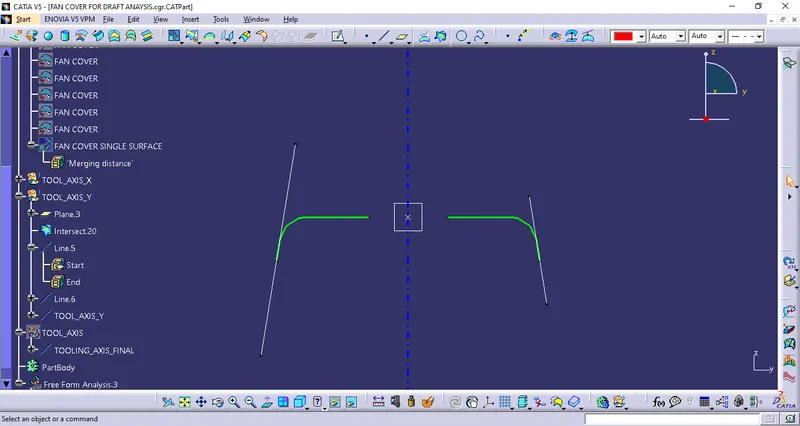

2. Create two lines using point-point option, on the two inclined edges:

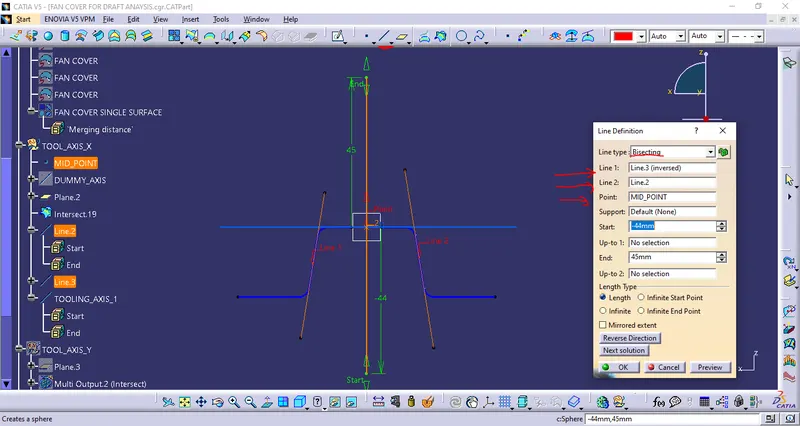

3. In the line option select bisecting, and select the necessary lines and the mid point. Select the verticle line as highlighted in orange:

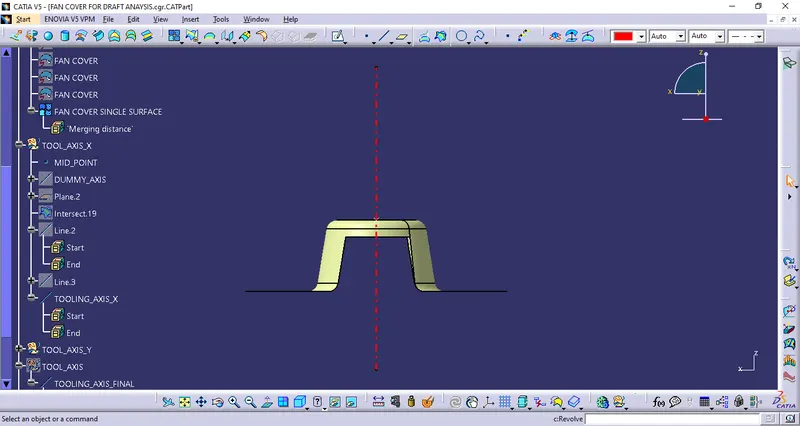

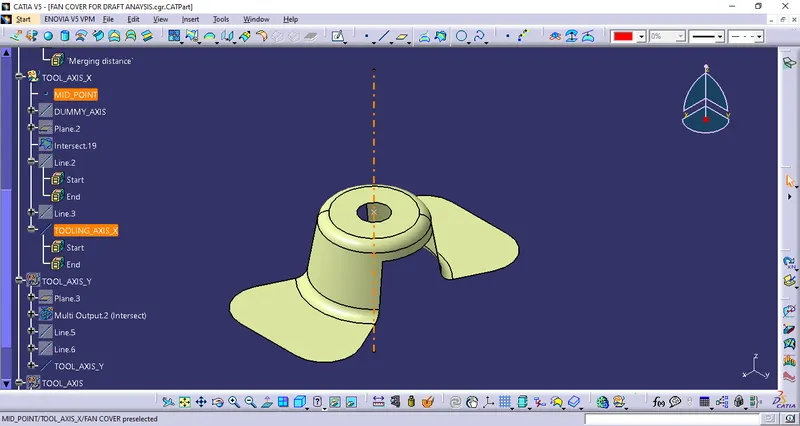

Final X - Tooling axis:

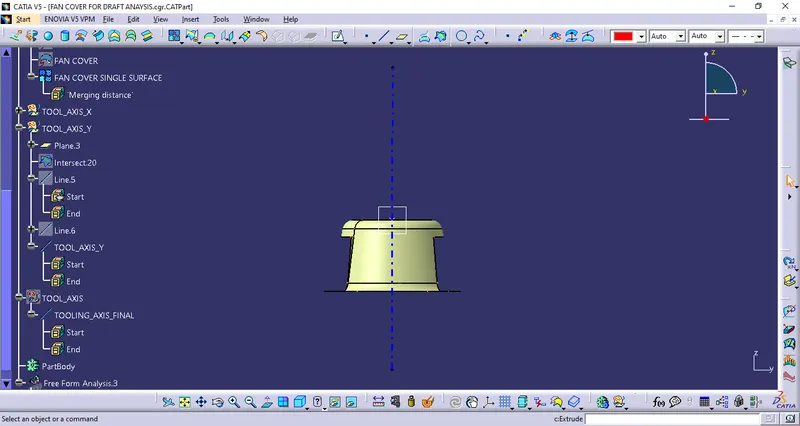

Y-Axis tooling axis:

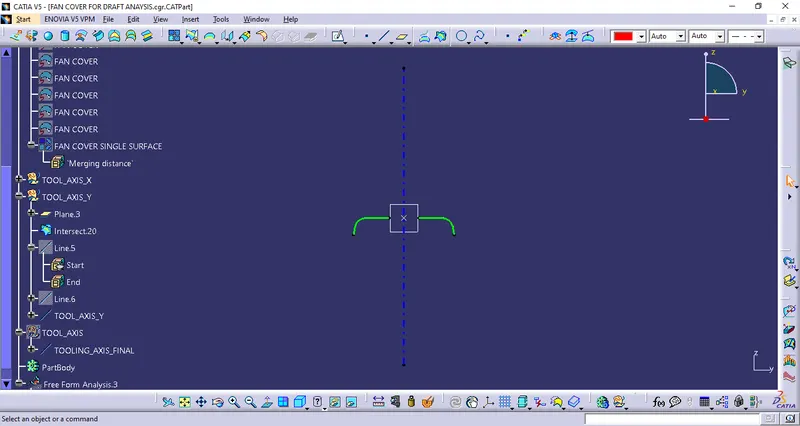

Perform the same steps as the x tooling, in Y direction:

Making actual tooling axis:

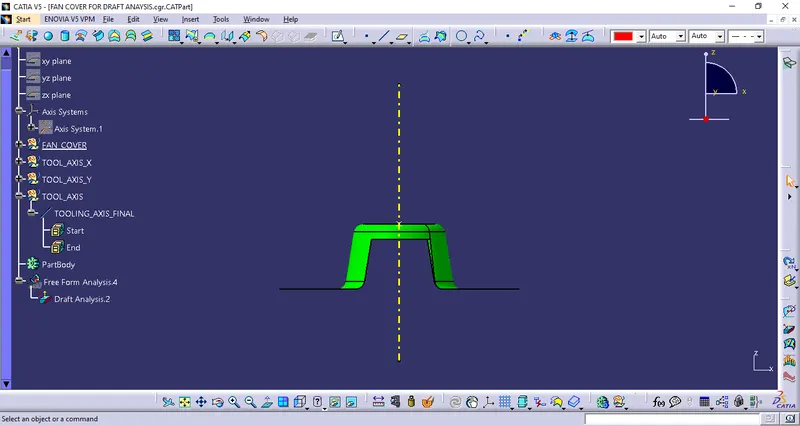

1. Choose the line and select bisecting option and then select X and Y axis create, choose the verticle line:

Draft Analysis:

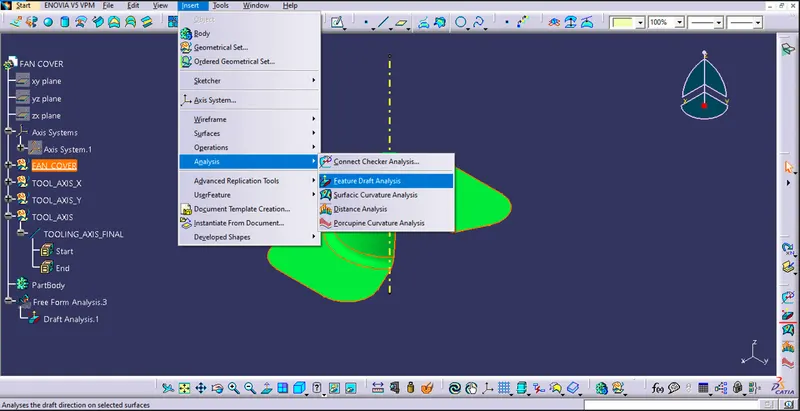

Go to insert --> analysis --> Feature Draft analysis:

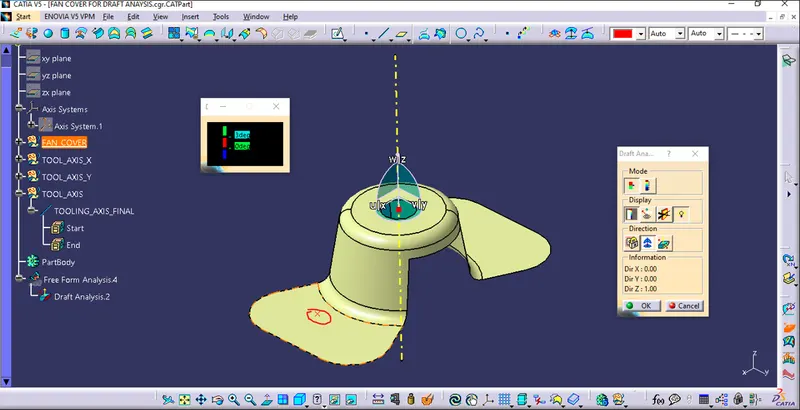

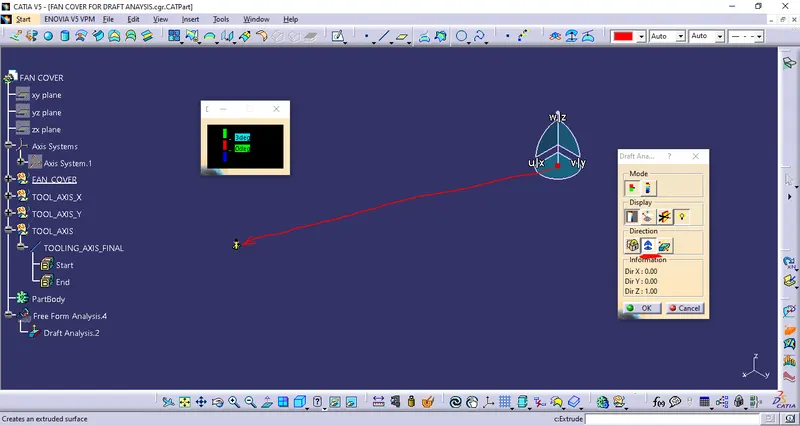

Select the compass in draft analysis under the direction section, and move it to the part:

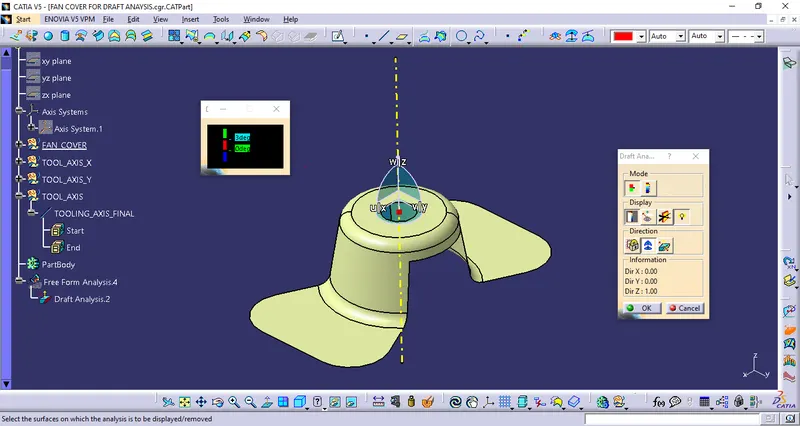

3. Place the compass on the tooling axis:

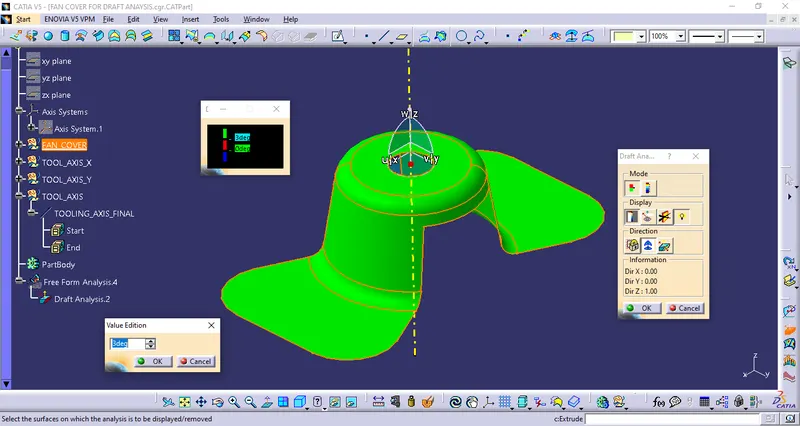

selct the part:

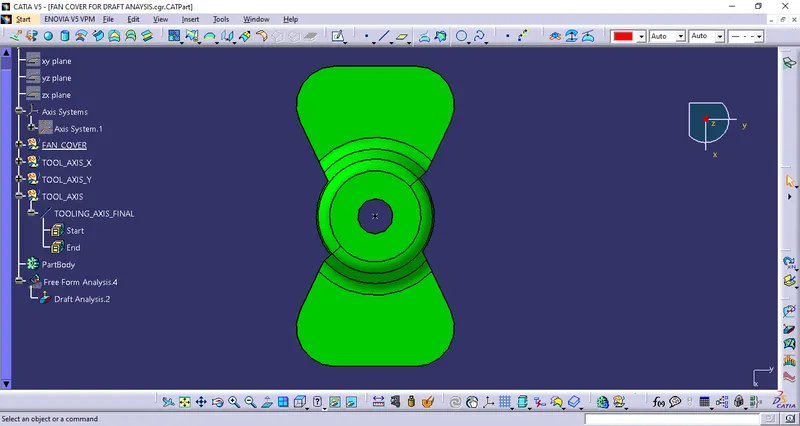

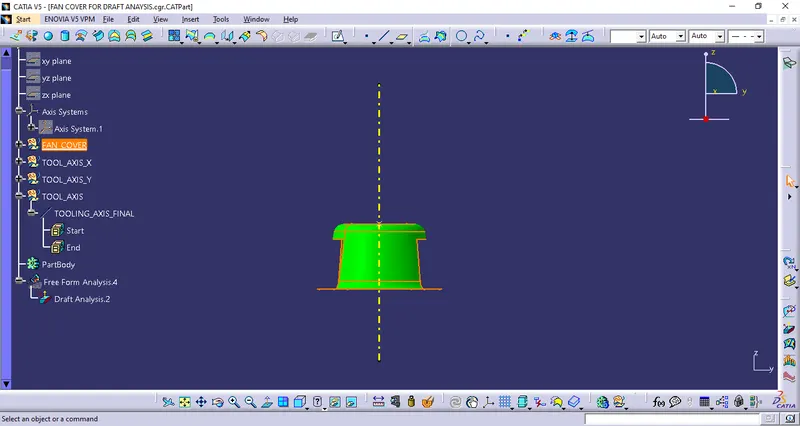

The draftr analysis will be shown. The minimum draft is taken as 3mm.

Conclusion:

The draft analysis was performed on the given fan cover and the part was found to have positive draft.
