Week 8 - Challenge 1 - Draft Analysis on a Fan Cover
Ex-01:
Aim:
To Create a draft analysis on the class A surface of fan cover and publising it.
Features used:
- Line
- Point
- Axis system
- Draft analysis
- Intersecting
- publication
Draft Analysis:
In molding process the molded parts have to eject from the die so there is some issues while removing the molded parts it may get sticky with the die,or while removing chances to get damage,so what we need to setup is the draft angle this draft angle helps the molded parts to eject from the die easily, for the plastic components the draft angle should be in 3deg and if it is sheet metal component 7 deg should be the draft angle,This draft is get analyised and ensuring the part is with proper draft angles.

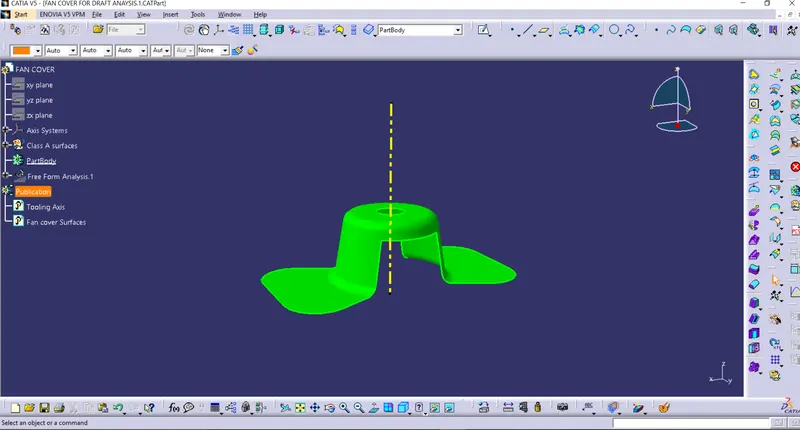

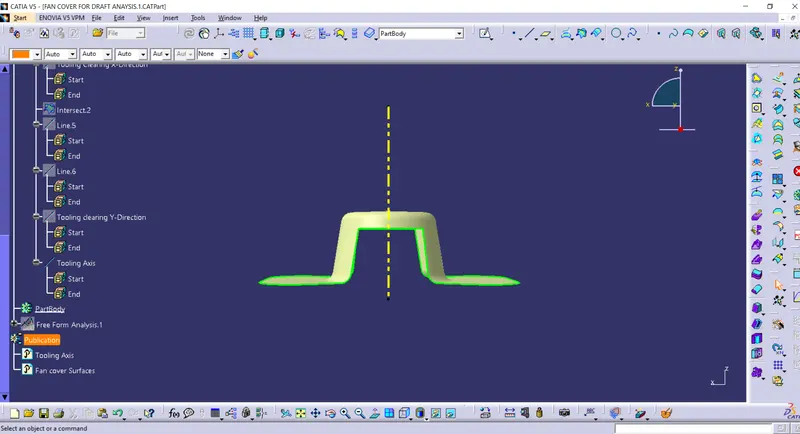

Tooling Axis creation:

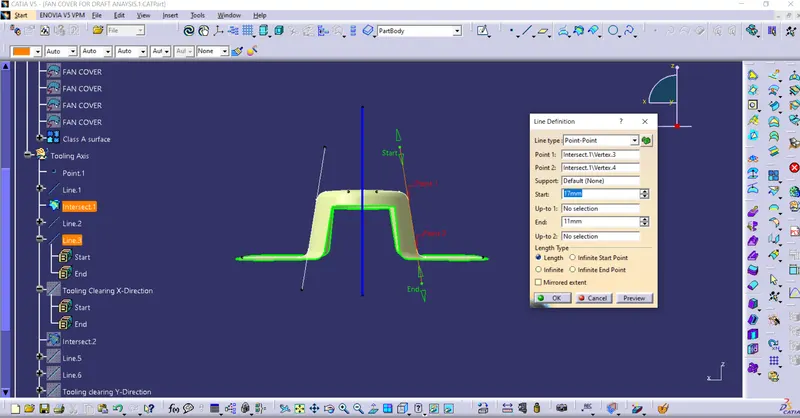

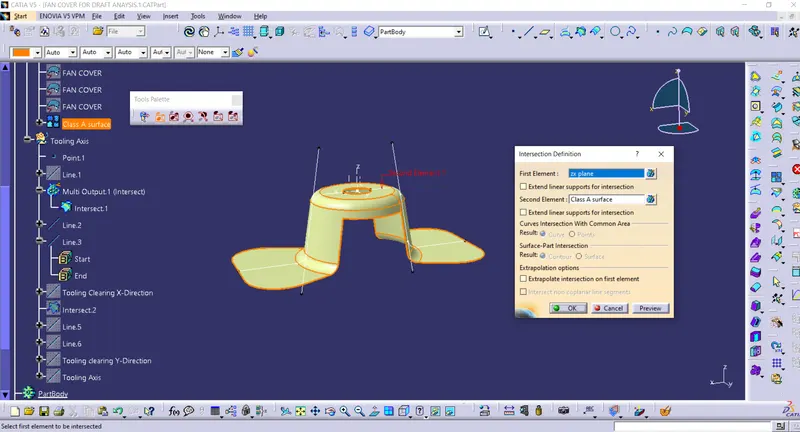

This will create an axis which represent the direction where the part as to be molded and creating this tool axis we need to create a reference line which intersect with the surface model with that axis the draft angle is calculated,lets see these tool axis creation step by step.

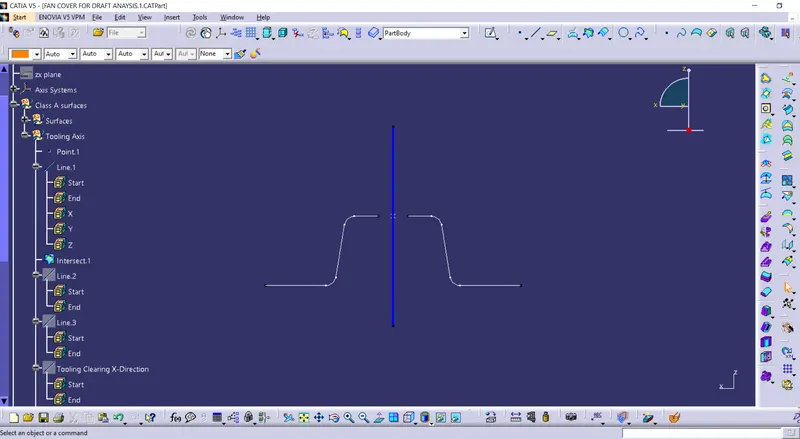

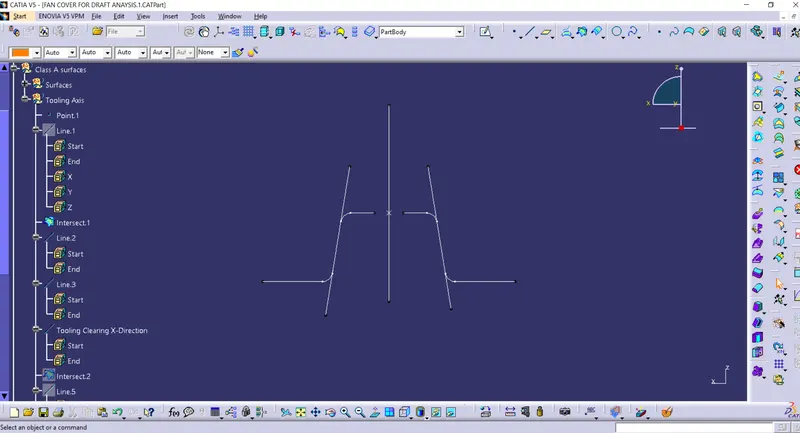

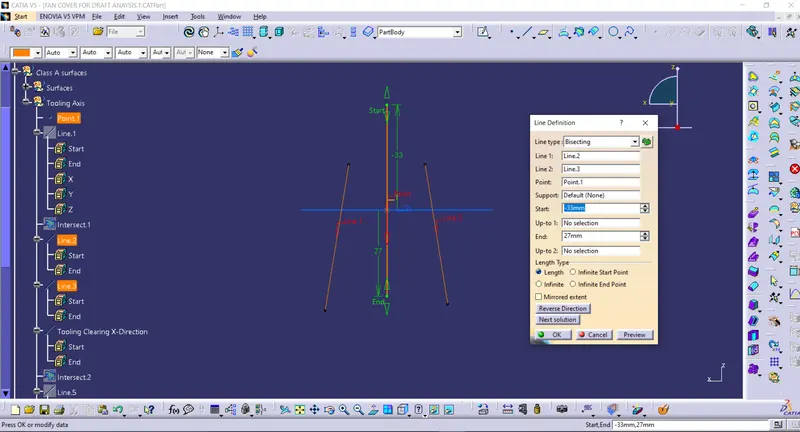

This above fig shows that the line is bisected using the bisecting option which requires two points on the surface and a centre point to get bisected.choose the specific direction to intersect the surface.

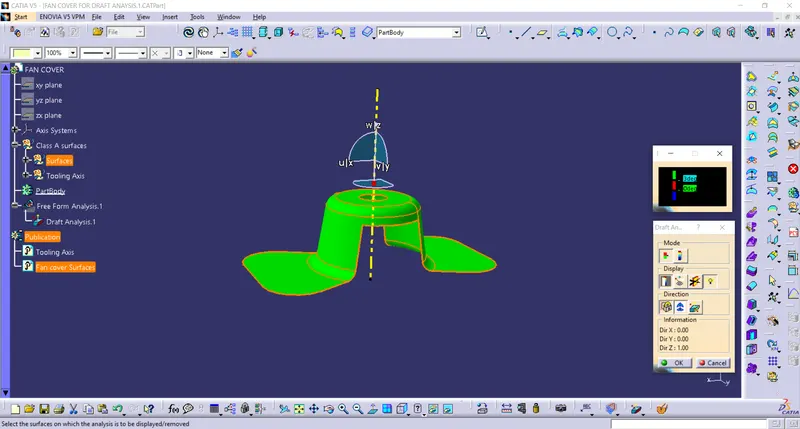

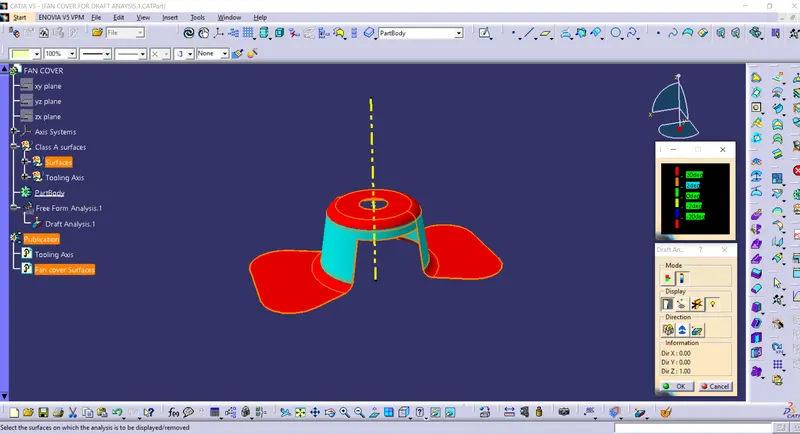

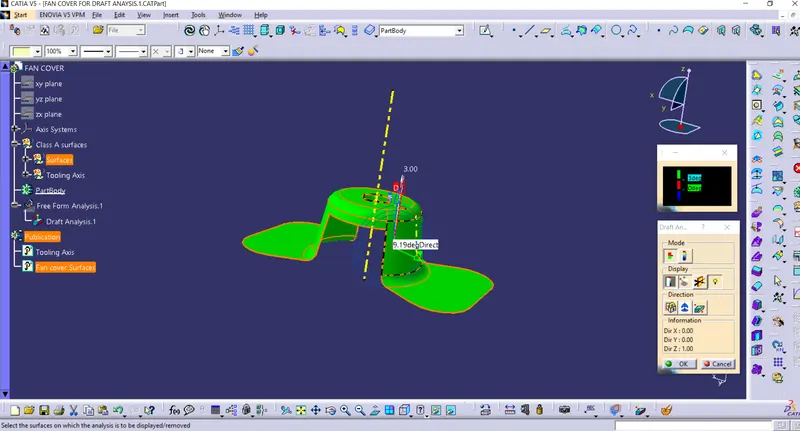

Draft Analysis:

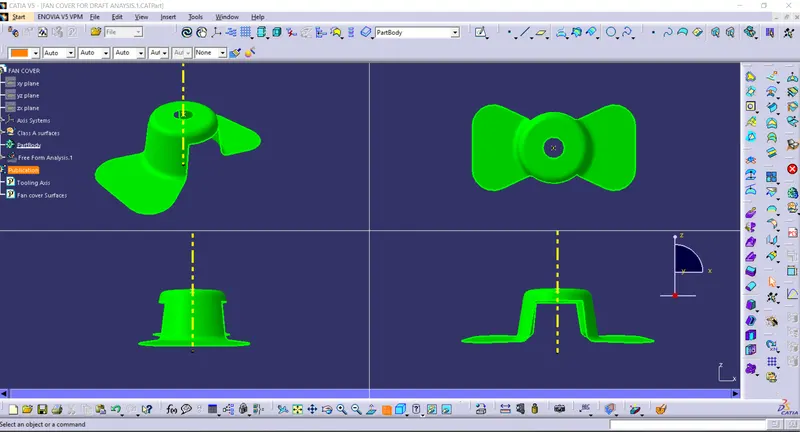

Views:(Isometric,Top,Front,Side)

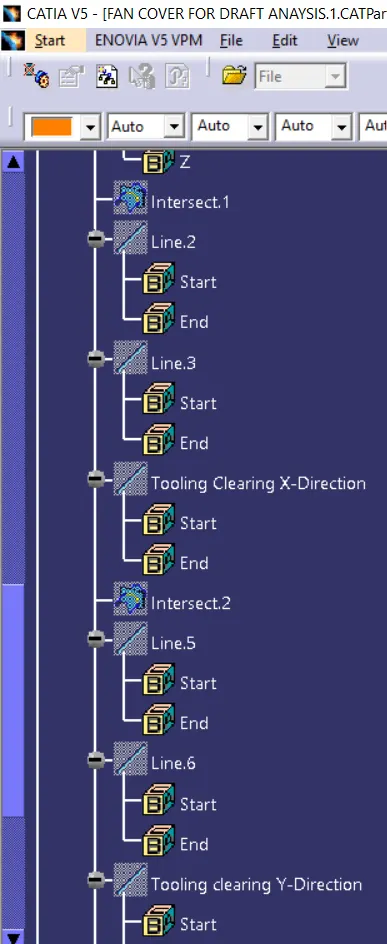

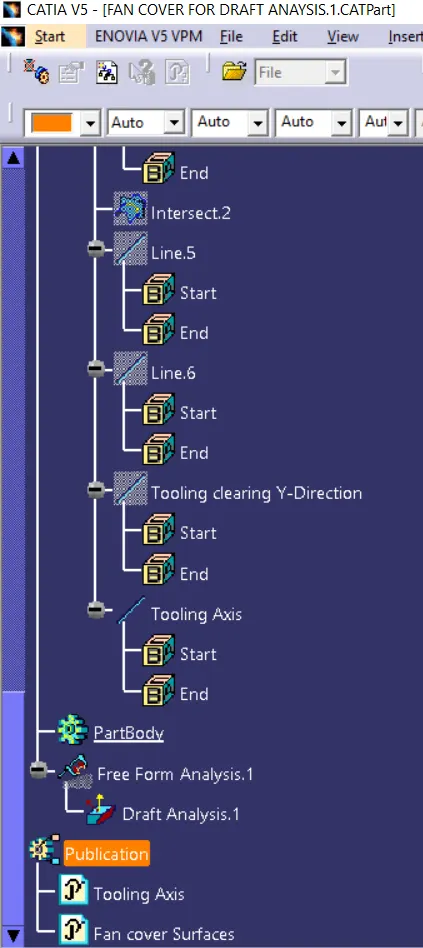

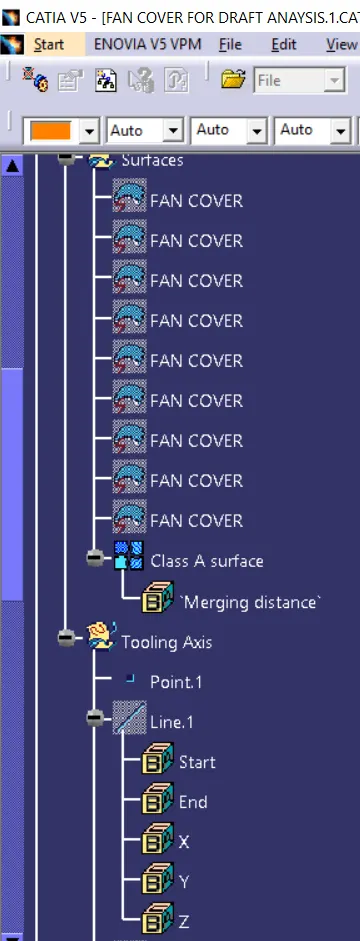

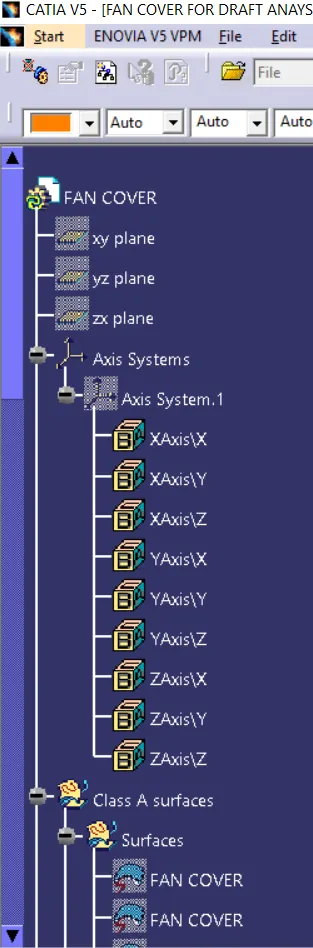

Feature Tree Manager:
