Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

#Automotive Plastic Design using CATIA V5

Week 8 - Draft Analysis on a Fan Cover - Challenge 1

AIM: Creating the tooling axis for the Fan cover model with suitable draft angle and performing the Draft analysis on the model.

PROCEDURE:

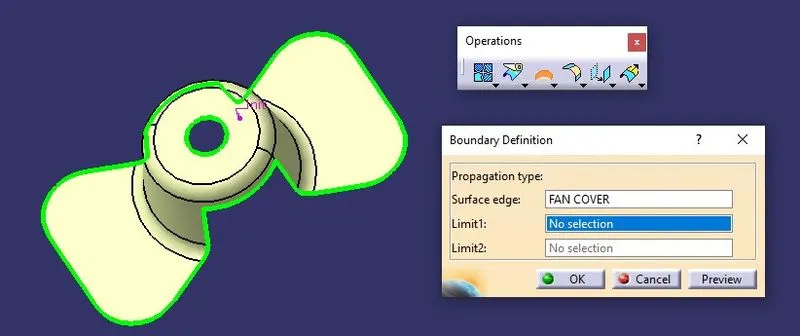

STEP 1: Ensure there is no gap between the two neighbouring surfaces.

Operations>Boundary>definition>select component

STEP 2:

Tooling Axis : Tooling axis is the direction in which mold or core and cavity is opened.

We have to check all possible tooling directions in all the three axes. When we are deciding the tooling axis.

we have to make sure that all the faces should be visible to that tooling axis, no face should be hidden.

For this component Z axis will be the best tooling axis as we can see all the faces of the component and can be cleared in x and y axis direction.

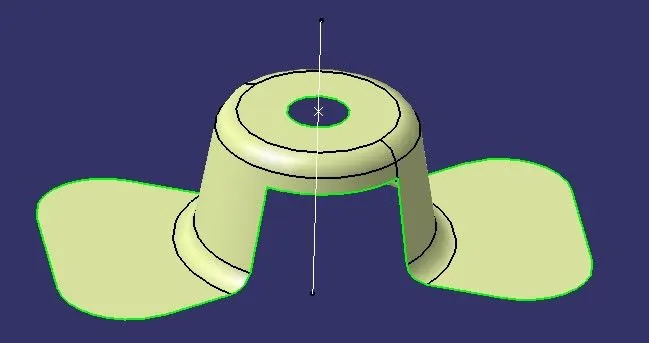

STEP 3: Create a point and extrude a line from it so that we have clarity that we are working in the right direction that is z axis direction.

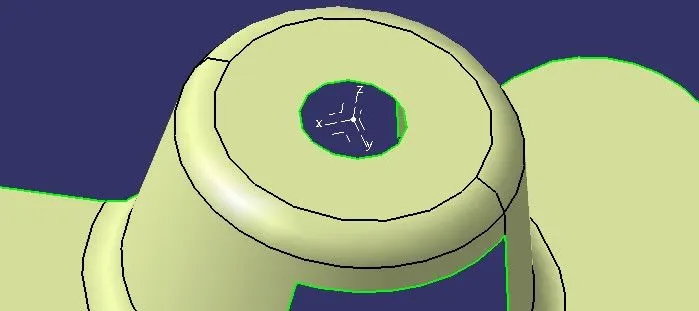

STEP 4: Inserting Axis System to the point to see the X-Y-Z plane.

Toolbar>Insert>Axis System

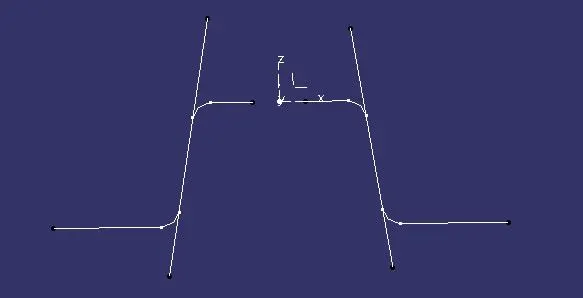

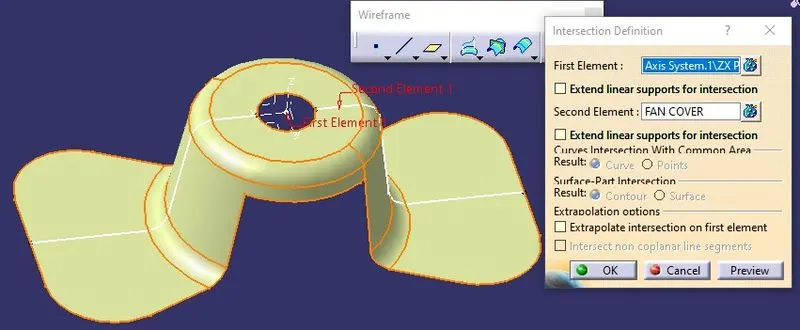

STEP 5: Intersection line along the XZ plane of the component

Wireframe>Intersection>select xz plane>select component

STEP 6: Creating point to point extended line on both sides of fan cover.

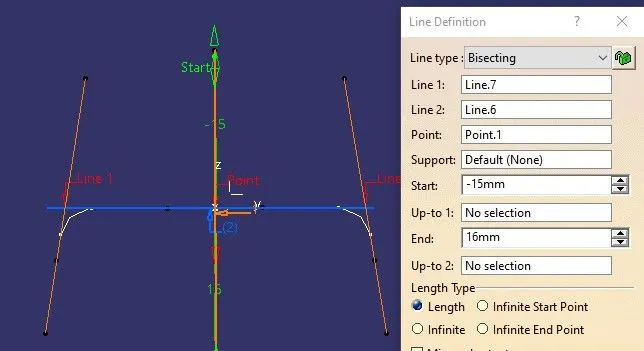

STEP 7: Creating Tool clearing line to X direction by Bisecting line type. Selecting two extended lines and point

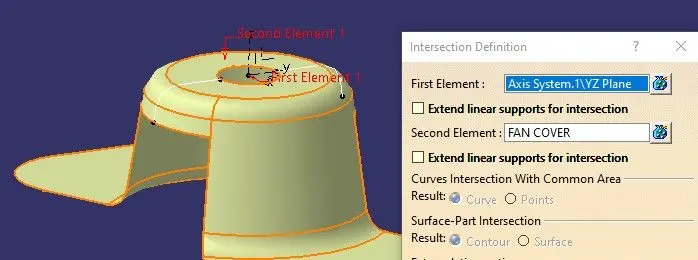

STEP 8: Intersection line along the YZ plane of the component

Wireframe>Intersection>select yz plane>select component

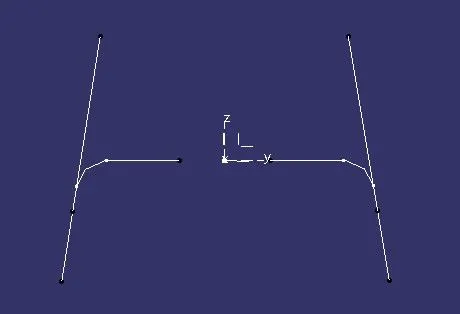

STEP 9: Creating point to point extended line on both sides of fan cover.

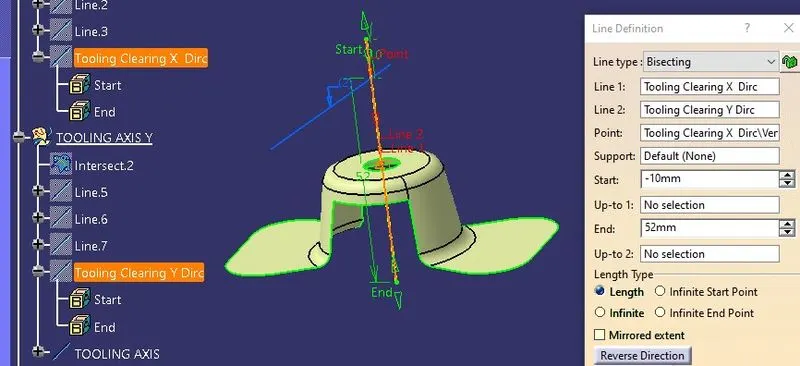

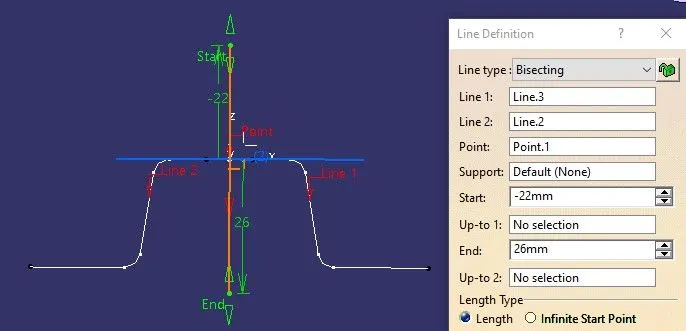

STEP 10: Creating Tool clearing line to X direction by Bisecting line type. Selecting two extended lines and point

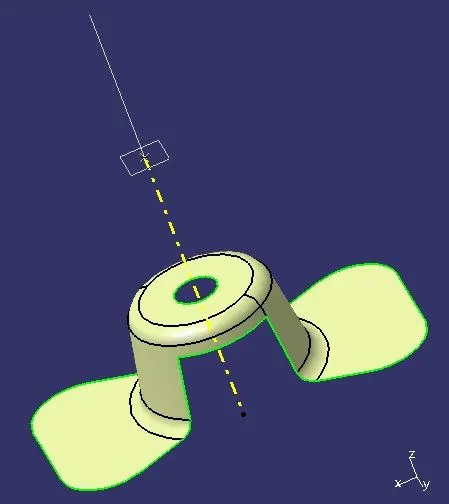

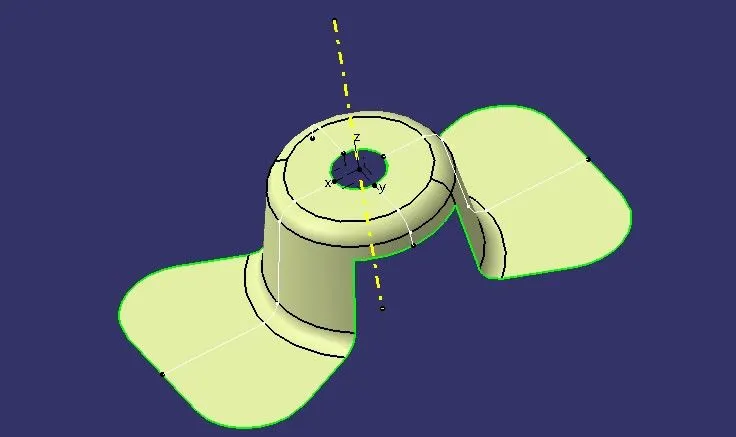

STEP 11: Creating tooling axis by Bisecting two lines that is tooling clearing X direction and tooling clearing Y direction.

STEP 12: Rename, change color and give thickness to the tooling axis so that it can be easily identified.

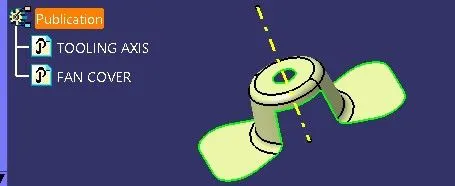

STEP 13: Publish Tooling Axis and Fan Cover Component.

Select this two in model tree>Toolbar>tools>publication>ok

STEP 14: Changing view mode to material.

View mode>view mode customisation>tick material>ok

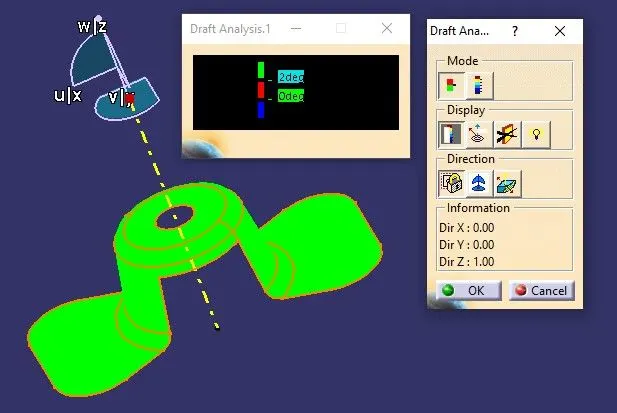

STEP 15: Giving or Checking Draft Analysis.

Toolbar>Insert>Analysis>Feature Draft Analysis

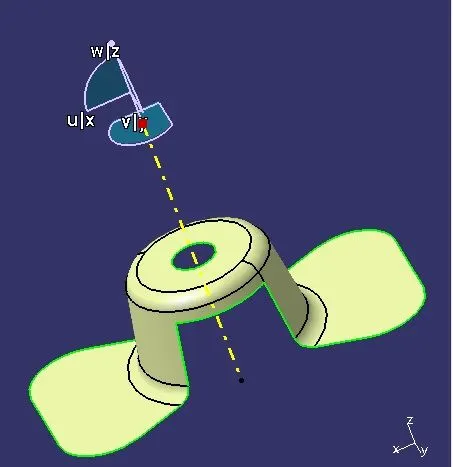

STEP 16: Drag the compass from the draft analysis box on the tooling axis and place it properly and click on locks so compass will get locked to tooling axis.

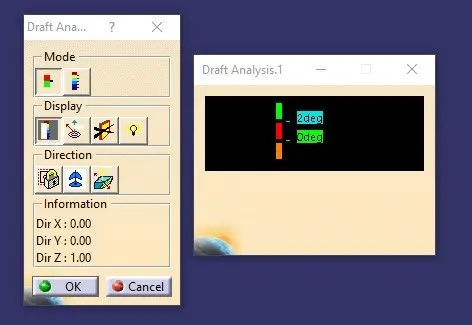

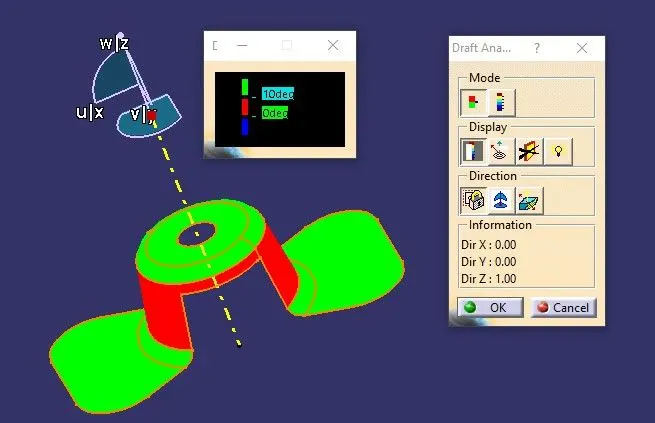

STEP 17: Checking draft angles to suitable degrees, exceeded degrees and negative degrees.

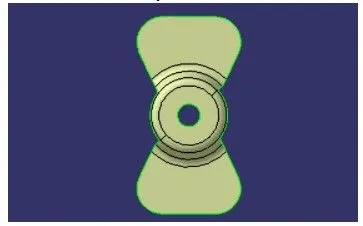

• A fan cover degree from 1 to 9 is suitable and it will show green color on the component.

• If the fan cover degree exceeded from 9 will show red color on the component.

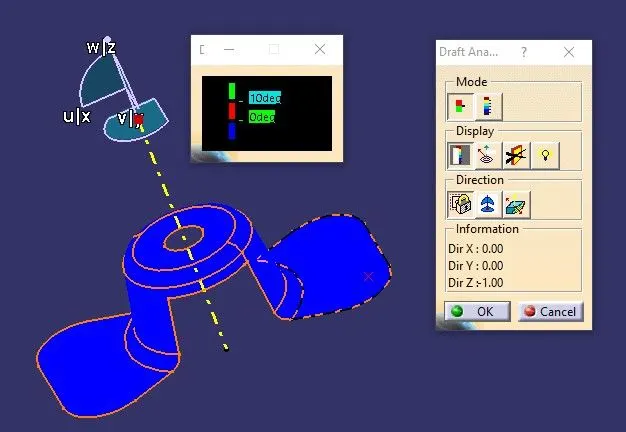

• If we reverse the direction of the compass from the draft analysis dialog box the values of degrees becomes negative and it will show us blue color on the component.

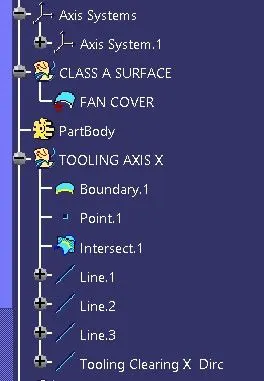

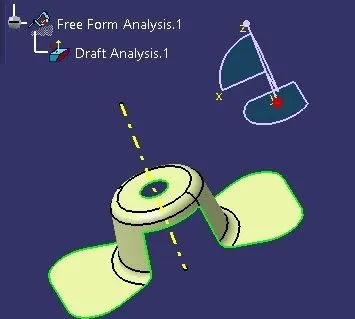

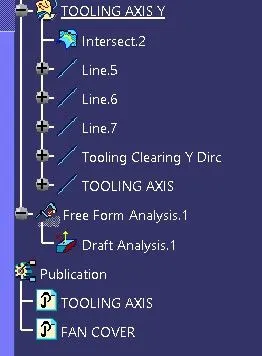

MODEL TREE :

CONCLUSION: If the whole component is showing Green color then our component is ready for manufacturing.
