Week 8 - Challenge 1 - Base Bracket Design

AIM - Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses BACK DOOR - The back door, also known as a "tailgate," serves as an entry and exit point for a vehicle, providing access to the luggage compartment.…

Aim - For the Given Roof styling, create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements. As per two calculation methods make calculations to check whether the roof and reinforcement's placements are correct or not. Given master section -    What is a roof?…

Aim - Follow the given master section to create a drip area in Fender And for the sill, Bumper, Baffle, and A pillar mount create your own design according to the engineering standards.   Fender Drip Area Section     What is Fender - The car fender is a crucial component of the vehicle's body that is typically…

Aim  To calculate the section modulus of the previously designed hood for analyzing its strength and also optimizing the design to see the difference in the bending strength of the hood. The higher the section modulus of a structure, the more resistant it becomes to bending. Section modulus Section modulus is a geometric…

Aim -  Design the Hood Outer Panel, Inner Panel, and the necessary reinforcements by following the Master Section mentioned with the Design parameters explained in the videos.   Submit an assembly of Hood's Inner Panel, Outer Panel, Latch, Hinge, and Reinforcements.A detailed report about the Hood…

AIM - Development of a Door Trim panel. Creation of CAD model considering the following inputs as like in OEM and tier1 companies a) Class A surface b) Nominal thickness: Refer to master sections c) Attachment strategy :  Find an attachment strategy for the door panel complete work. Use Push pin with Dog house for Lower…

AIM - Make a part using the given class A surface and master section. Class A surface -  Class A surface is given in this question which is -  We have to work on it as Class B And C surface and made it a completely close part. Master section - The master section is given in this as we have to work on it to complete…

AIM -  Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Create the Heat Stakes and the locators…

AIM -  Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm. "C" is where the doghouse contacts the backside of the surface  Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or…

AIM -  Create the rib for the Drill Handle considering the design rules mentioned in the picture.  AIM -  Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.  General Guidelines for Bosses:   Draft  - 0.5 degrees on the walls of boss   Thickness…

AIM -  Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 3 mm…

Aim -  Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 2.5…

Aim -  Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 2.5…

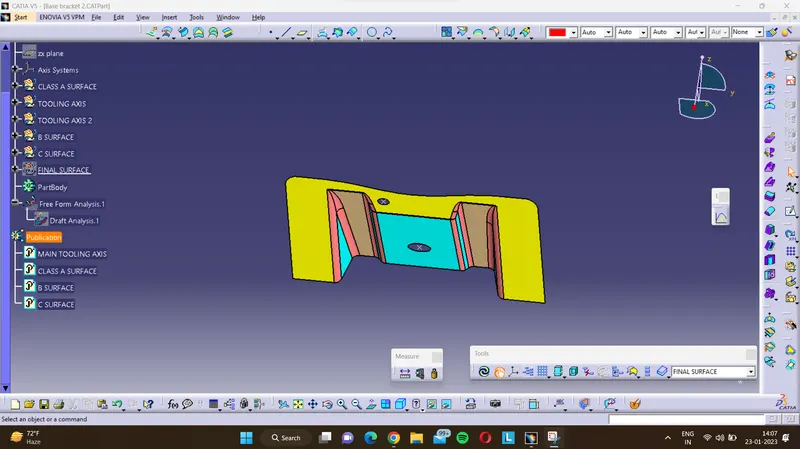

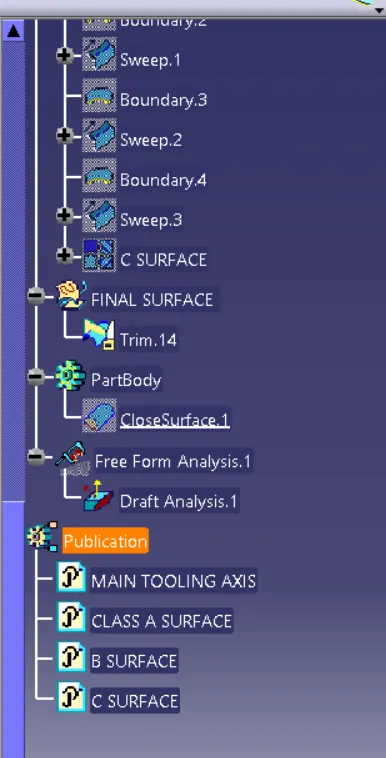

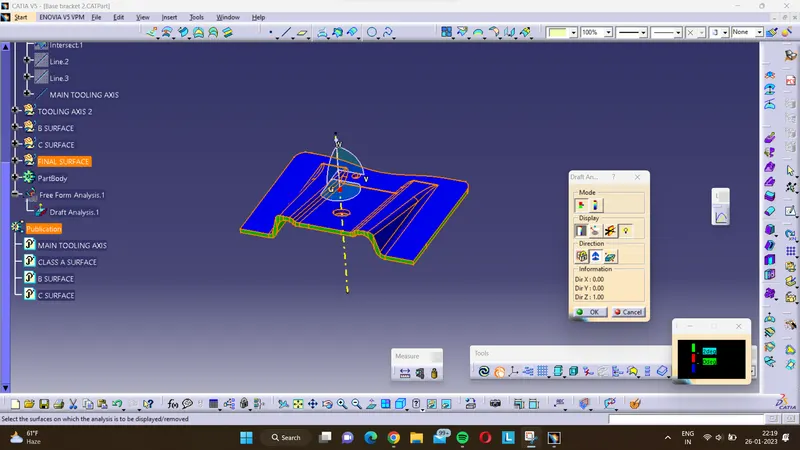

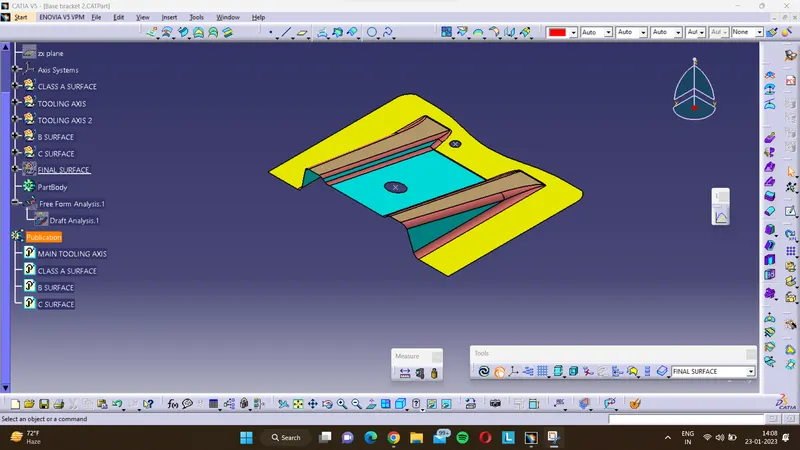

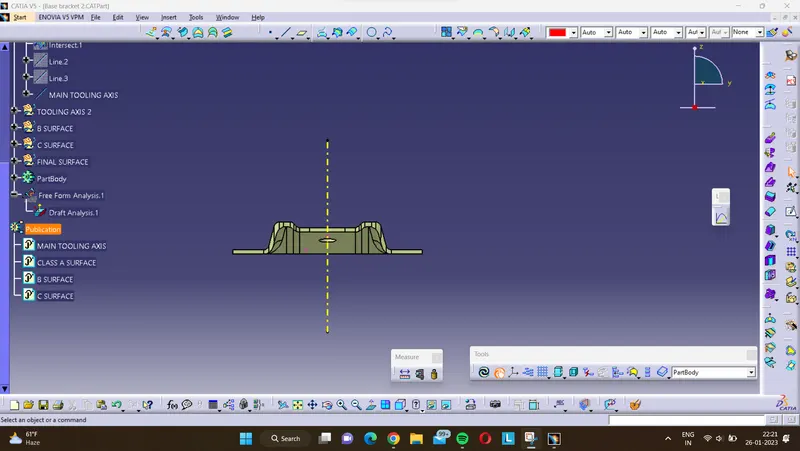

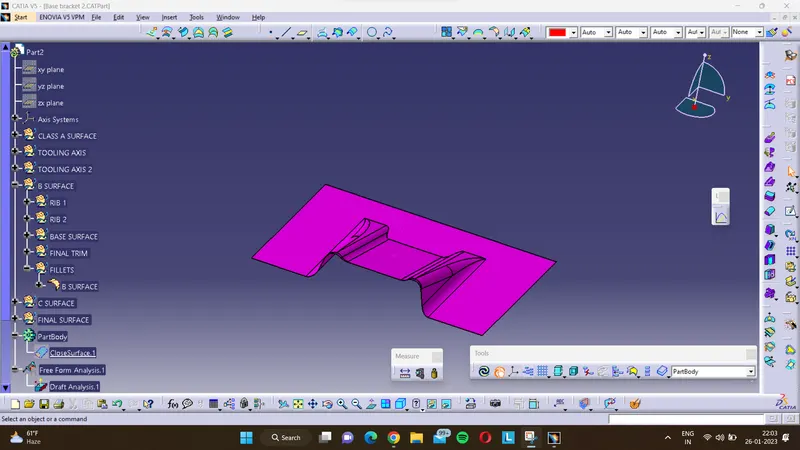

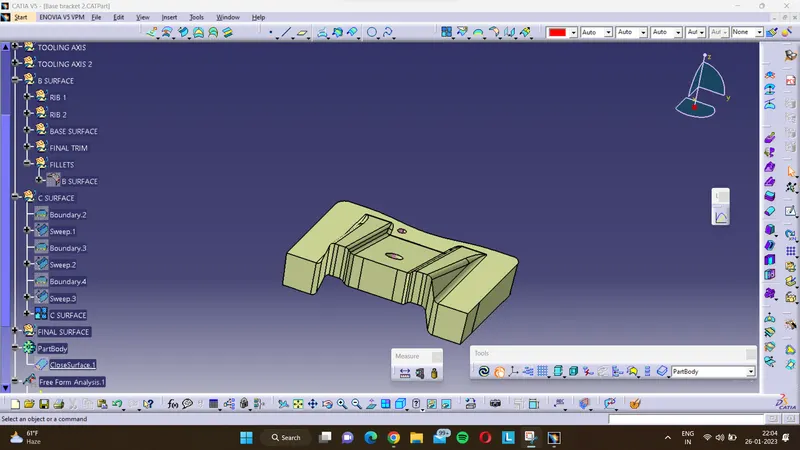

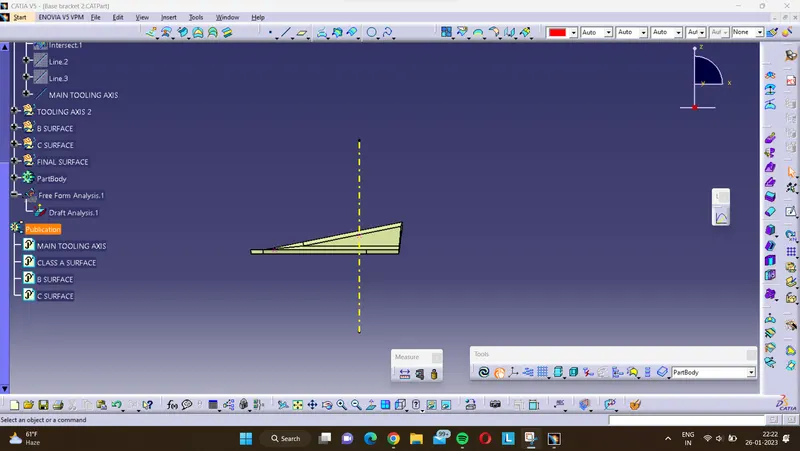

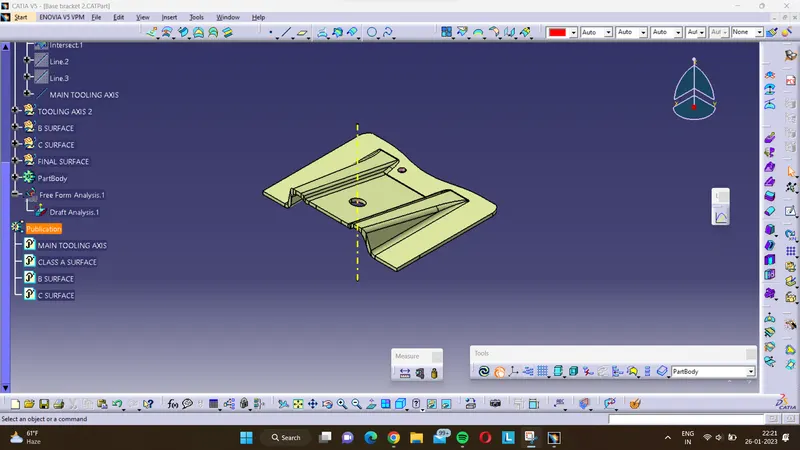

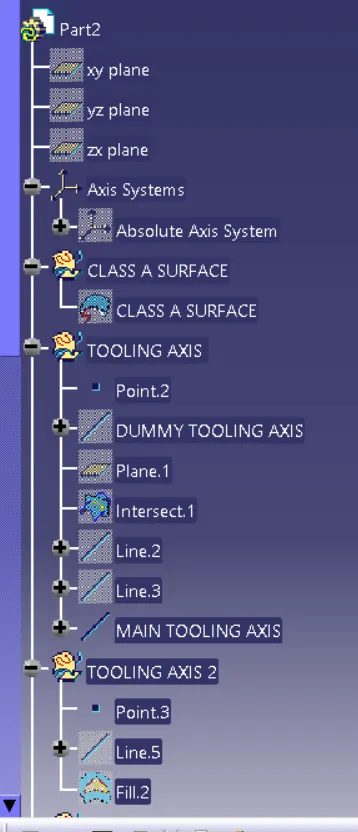

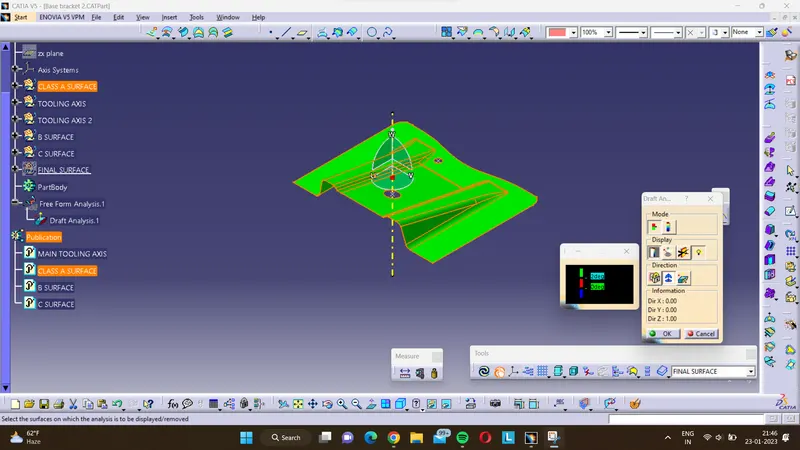

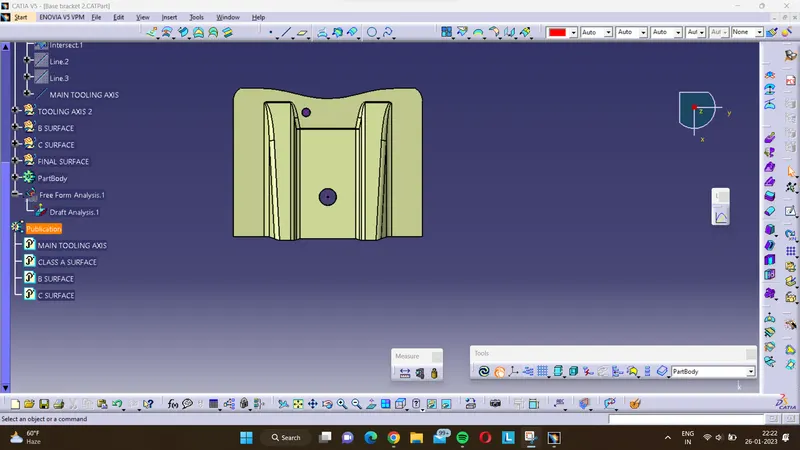

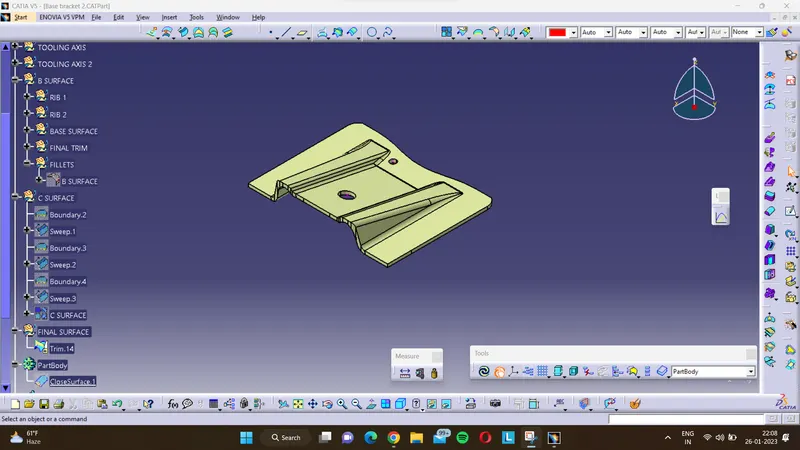

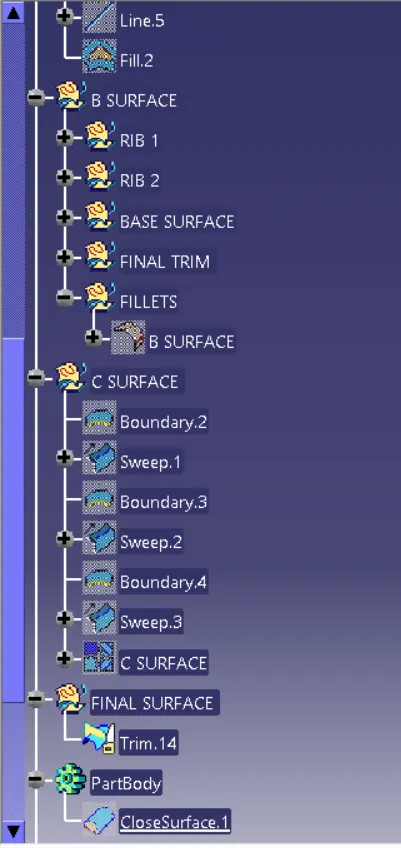

AIM -  Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  The thickness of Plastic Part - 2.5 mm GIVEN…

Aim:- Create a Rankine Cycle Simulator using MATLAB.   Objective:- Calculate the state points of the Rankine Cycle (any type of your choice) based on user inputs.  Plot the corresponding T-s and h-s plots for the given set of inputs. To get output in Command Window for all state points.   Theory:- Rankine…

  Aim: To write a code in Matlab to parse the NASA thermodynamic data file and then calculate the thermodynamic properties of various gas species. Objective : 1. To write a function that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the NASA thermodynamic…

Aim - Write a code in MATLAB to optimize the stalagmite function and find the global maxima of the function. Governing equations used in the program - The objective of this program -  Write a code in MATLAB to optimize the stalagmite function and find the global maxima of the function. Clearly…

Aim -  Writing a program in Matlab\Octave that will simulate the pendulum motion. Writing a program that solves the following ODE. This ODE represents the equation of motion of a simple pendulum with damping. Governing equation -  g = gravity in m/s2, L = length of the pendulum in m, m = mass of the ball in kg,…

1. Aim - Program in Matlab to simulate the forward kinematics of a 2R - The main goal is to make an animated simulation video of link operation from different angles  2. Governing equations  - The main governing equations used in the program are the values of coordinates of links. i.e x0 = 0 y0 = 0 x1 = l1*cosd(THETA1)…
