Week 8 - Challenge 1 - Base Bracket Design
Aim:
To create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Report on Draft Analysis:
Draft Analysis:
It is used to verify draft angles, examine angle changes within a face, as well as locate parting lines, injection, and ejection surfaces in parts.

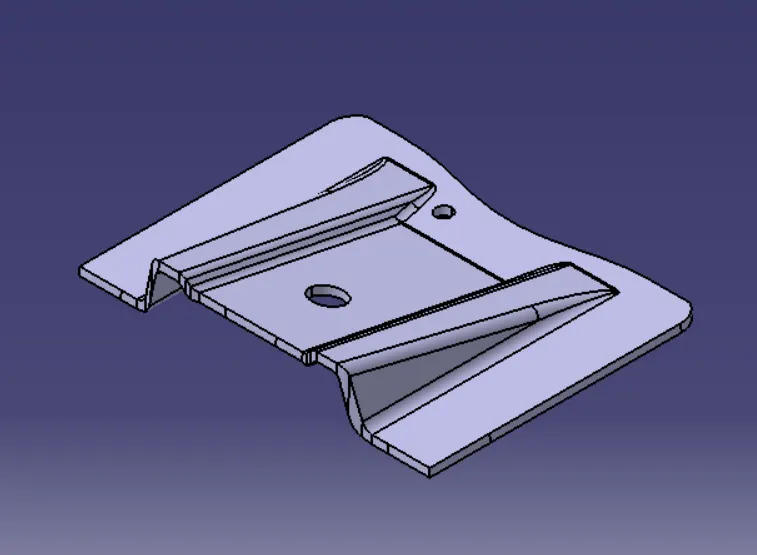

Given Class A Model:
STEP 1: Check the connectivity of the Class A Surface Ensure that there is no gap between the component, using join command. We can visually check it or by clicking boundary command. It has 3 boundaries one outer and two inner circle boundaries. Therefore first check completed.
STEP 2: Find the tooling axis of the component. The tooling axis is nothing but the mould opens or cavity opens. Check visaully which is the best possible tooling axis. Check all three axis. Along x it possible but expensive and y is not possible. z is the best possible tooling axis.

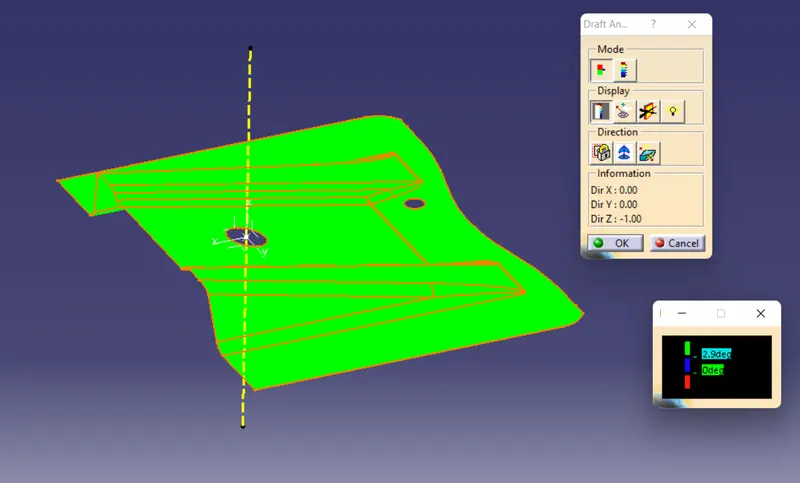

Creating a Tooling axis along z: Therefore the main tooling axis is along z axis. Now perform the Draft analysis using the Featured Draft Analysis tool in the tools. Then after opening the draft analysis tool box go for the compass and place the compass alinged to tooling axis and click on the lock symbol after alinging and further click on the surface.
Creating Class B &C Surfaces:
Intially extracting the base,left and right sides using extract option from Class A surface untim the surface.
Then perform Extrapolate inorder to increase the length
Now trim the surfaces to required surfaces
Then Offset the surface inorder to get the required thickness
Now to create the class C surface.
Create the boundary and use the sweep option along the tooling axis.

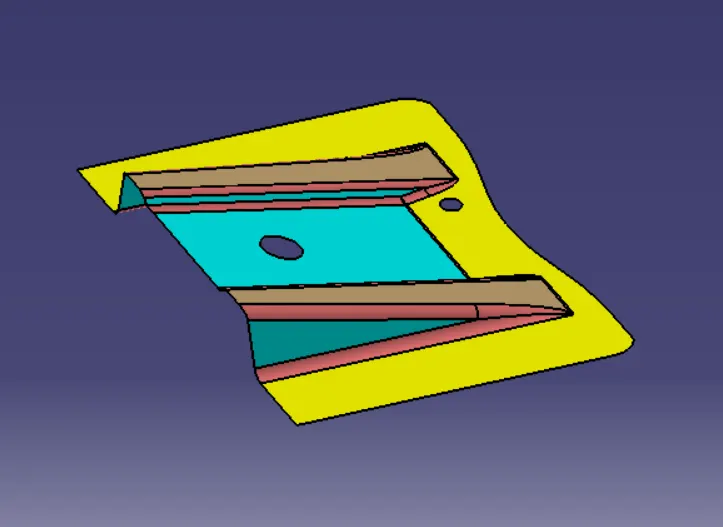

Now trim the class b with class c to get the final surface.
Now fillet the surface to required amount.

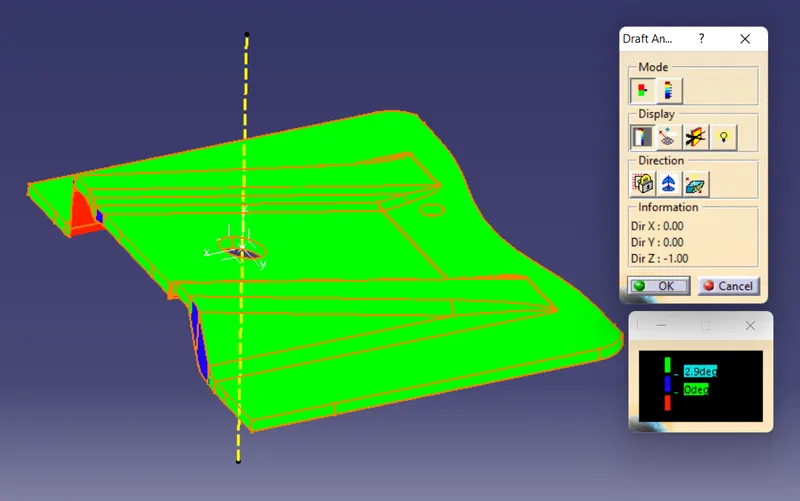

Use draft analysis for the final component.
By using the given CAT part file the required draft analysis is obtained.

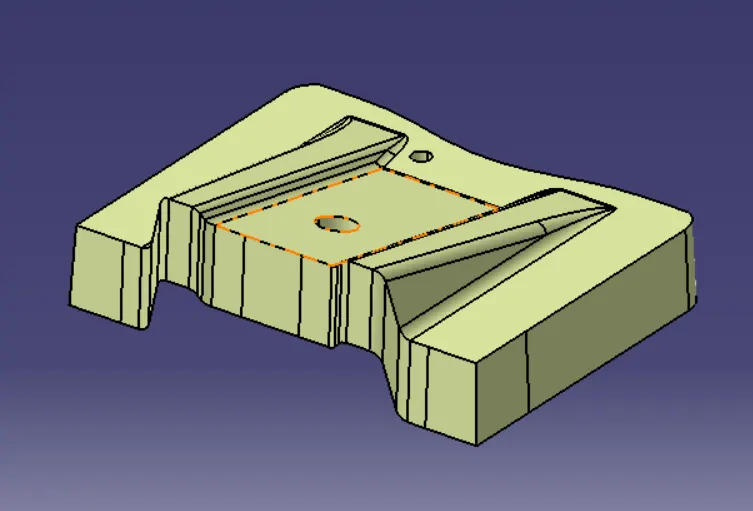

Now using the closed surface we can generate the solid model by using thw closed surface option.

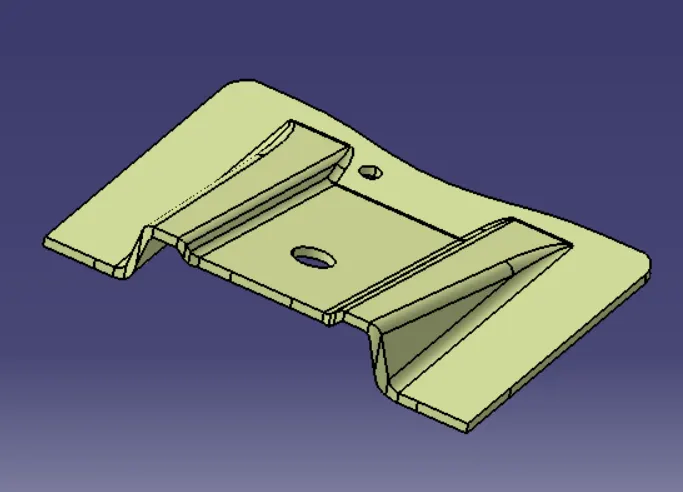

Isometric View:
Front View:

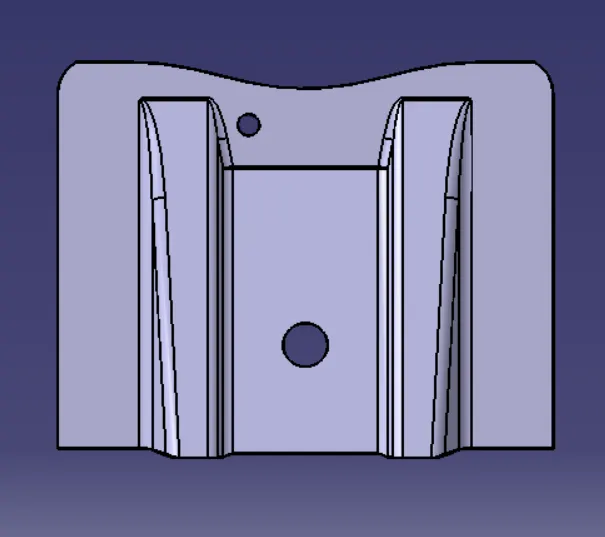

Top View:

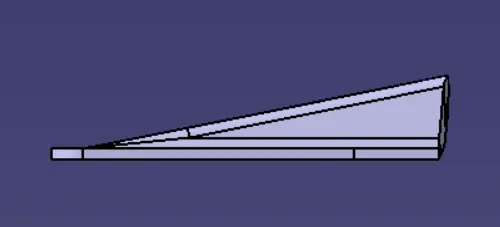

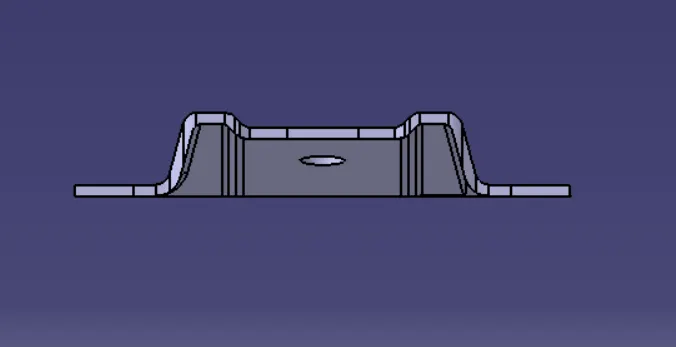

Side View:
