Week 8 - Challenge 1 - Base Bracket Design

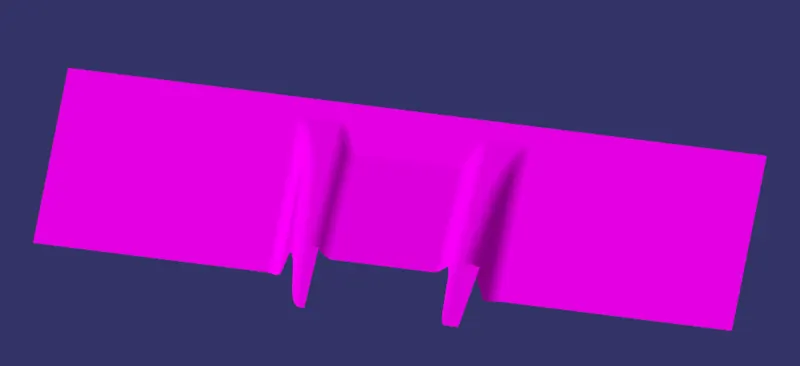

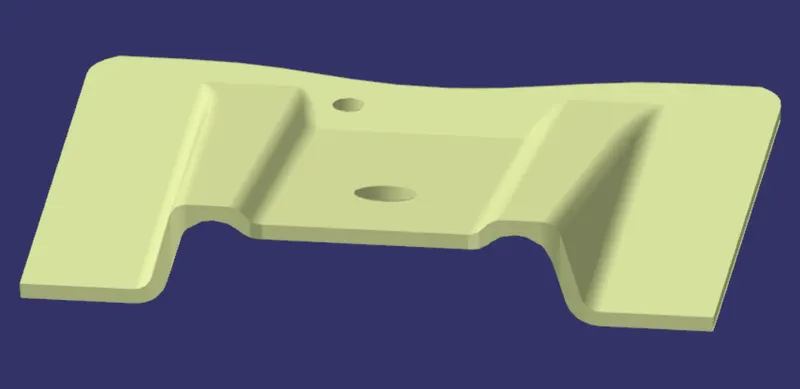

CLASS-A SURFACE IS GIVEN:

A point was created at the centre of the large circle,using the axis system is inserted.

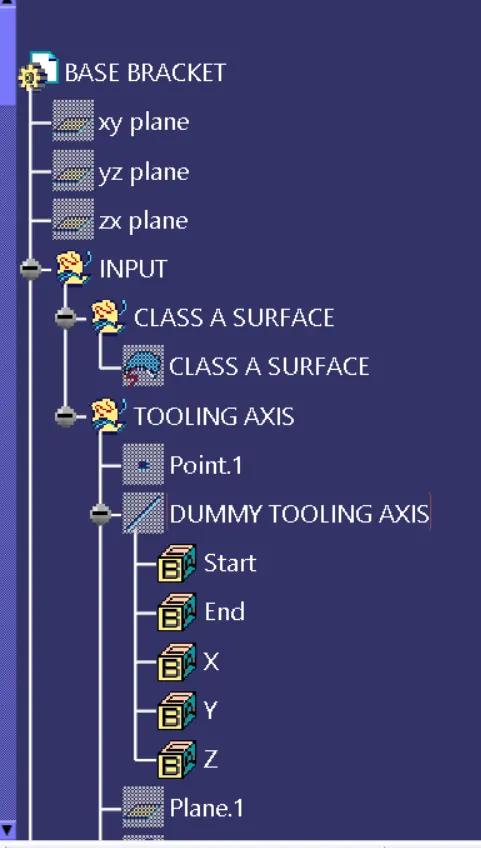

TOOLING AXIS:

The tooling axis is the tool movement axis (core/cavity).

This axis will decide the draft direction:

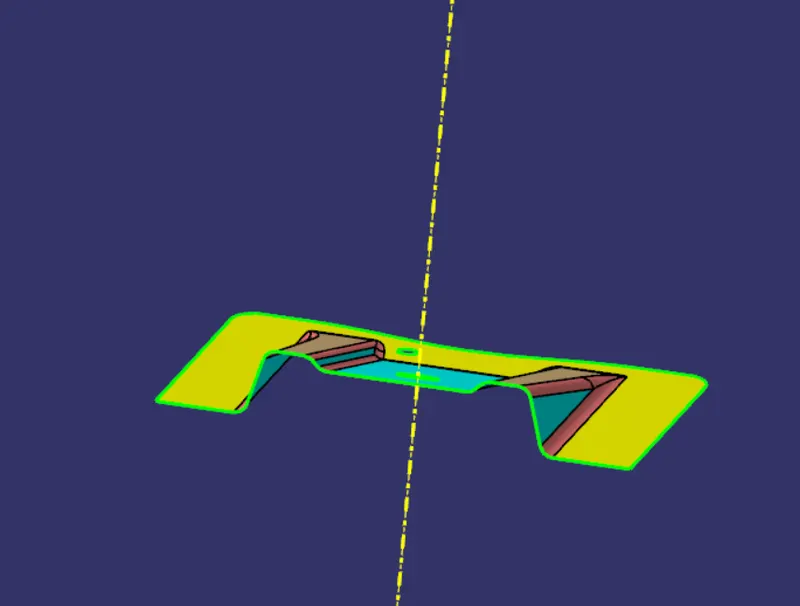

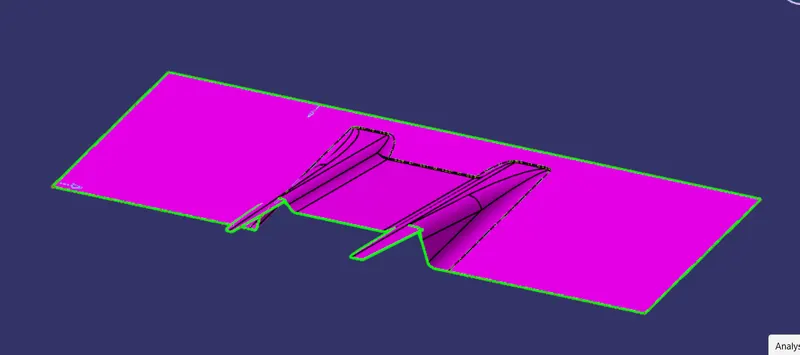

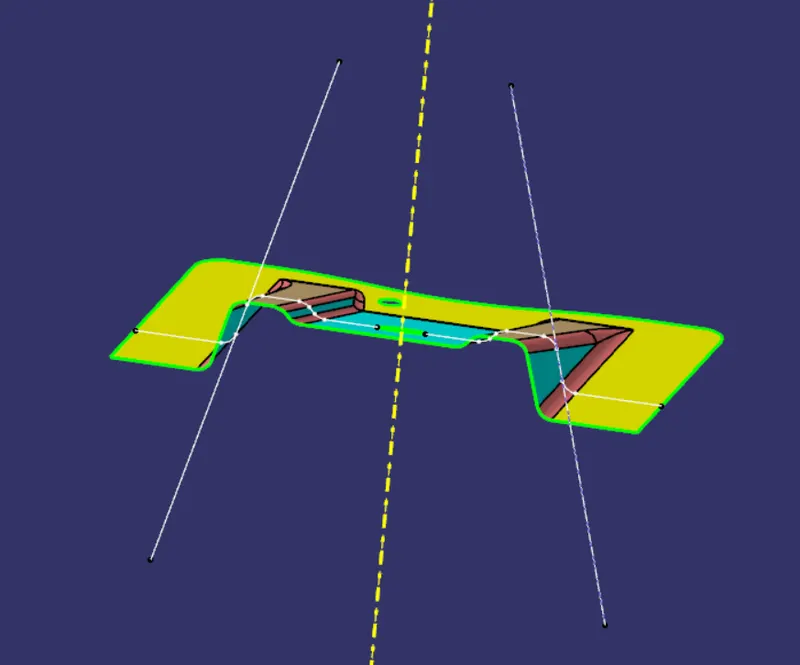

The above picture is the result of the draft analysis. The draft is considered as 3 degrees.

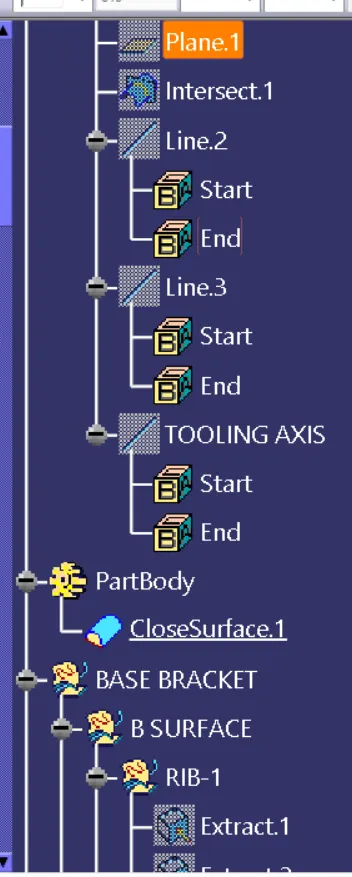

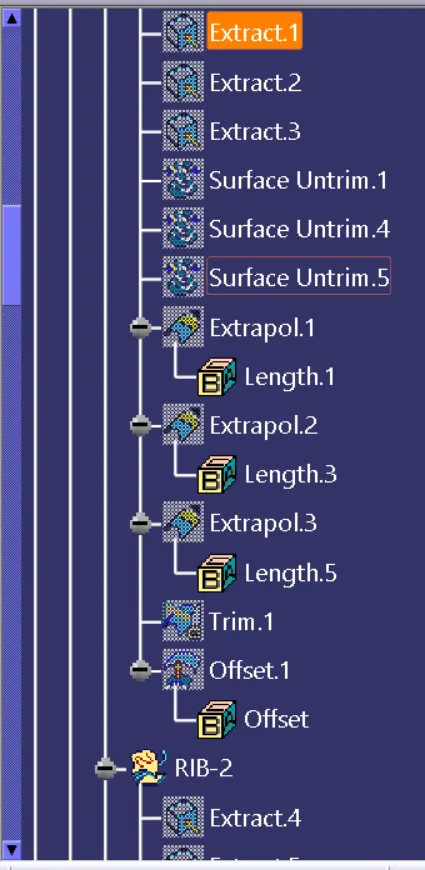

CLASS-B SURFACE:

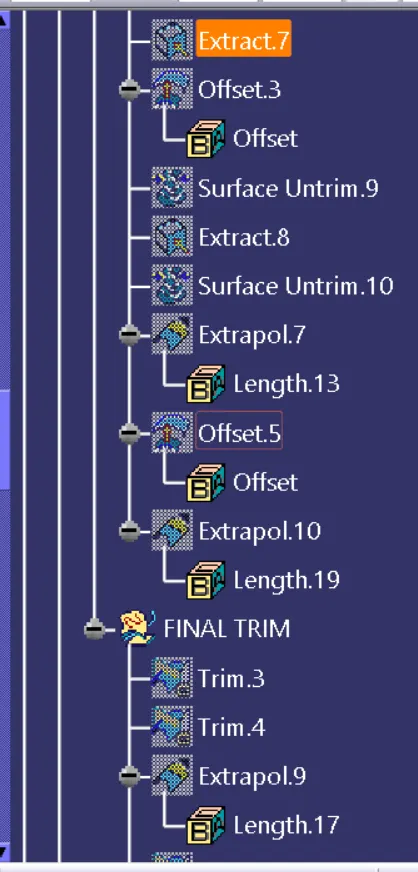

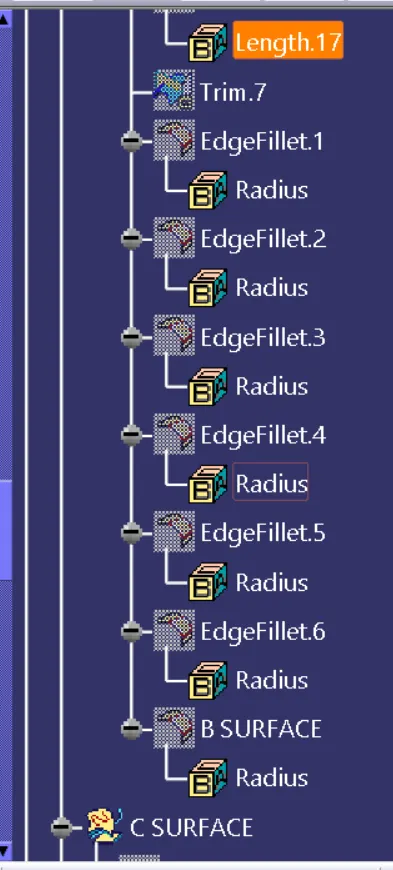

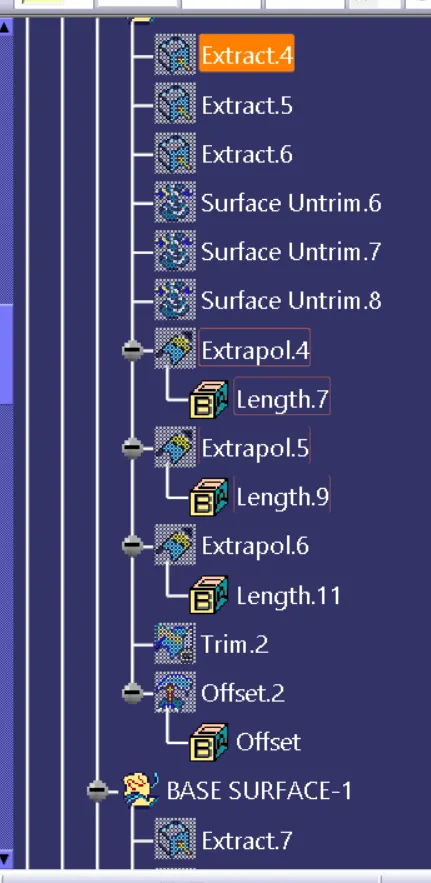

by extracting the surfaces from class A and then offsetting the extracted surface we got a Class B surface that is 2mm below class A.

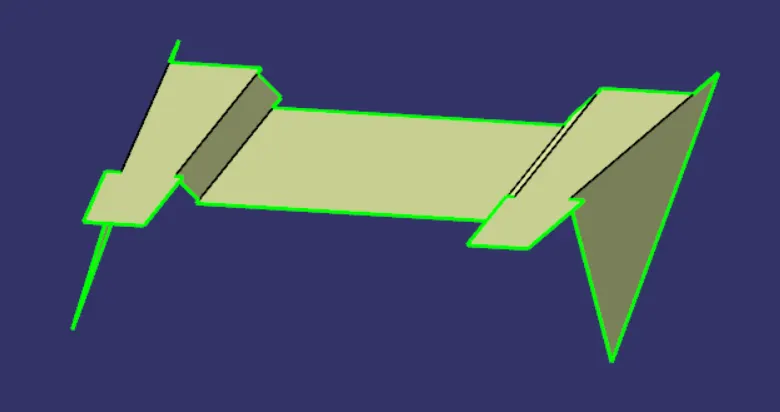

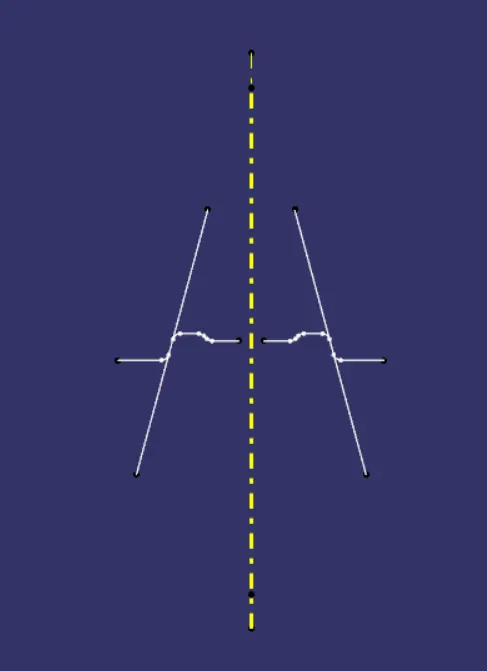

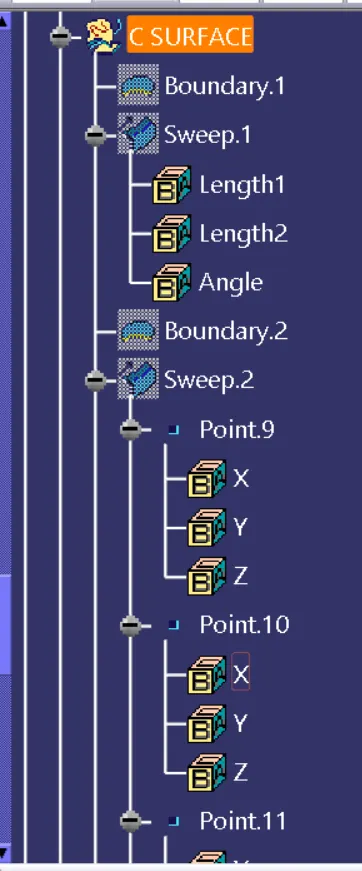

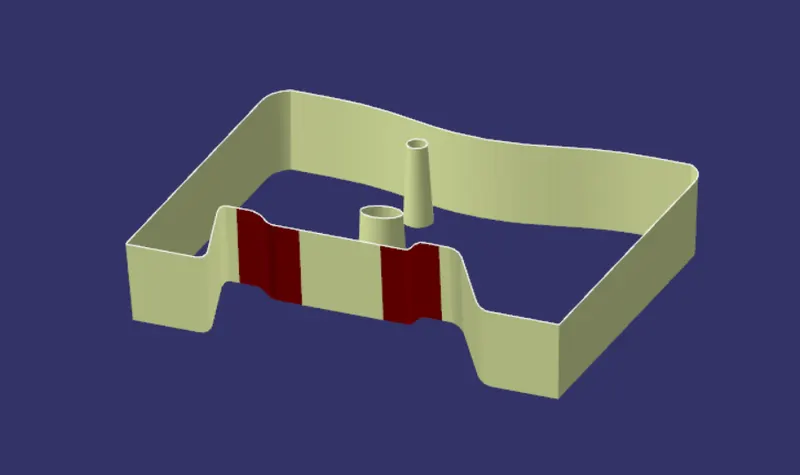

CLASS-C SURFACE:-

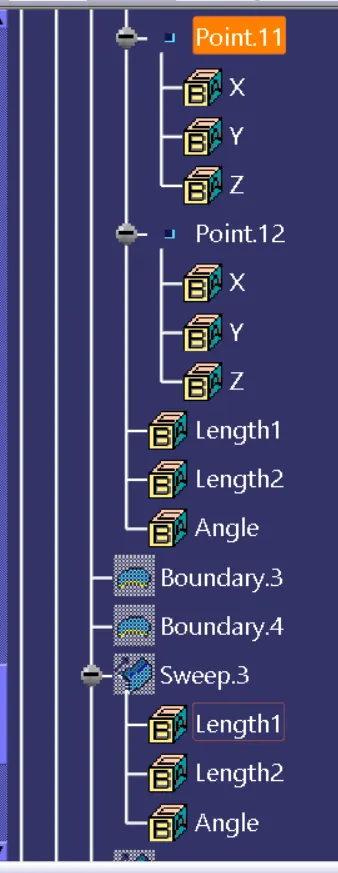

By using the boundary Sweep is created and the angle of draft given in Sweep is 3 Degrees.

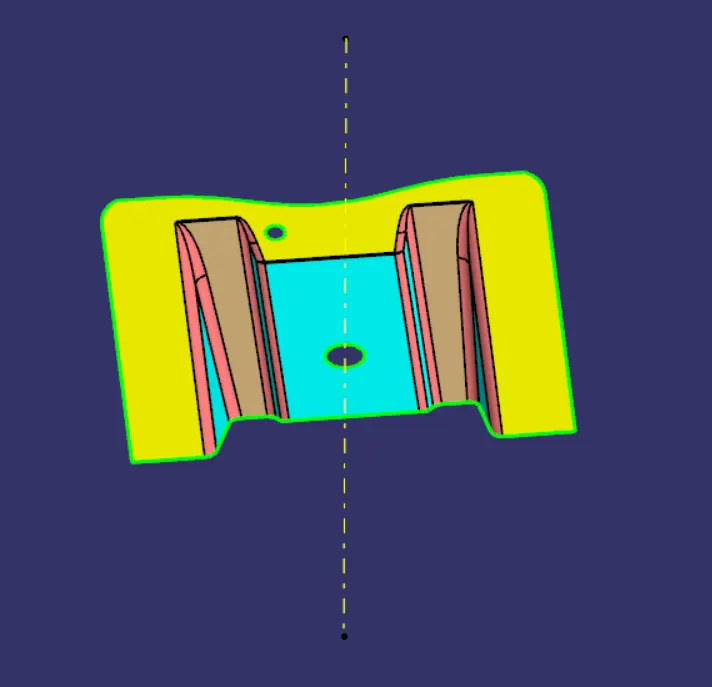

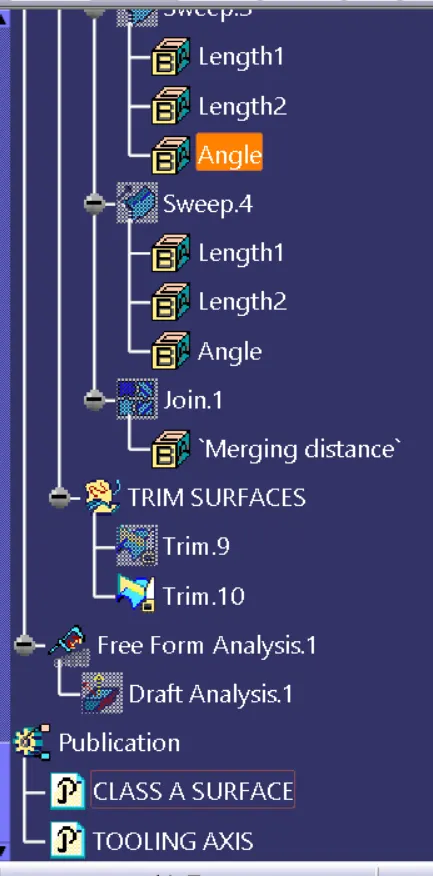

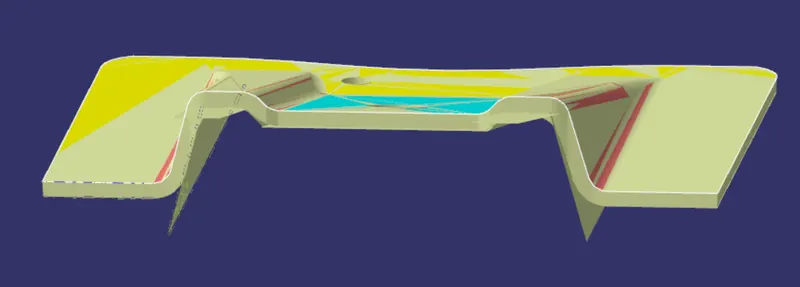

DRAFT ANALSIS:

CLOSED SURFACE:-

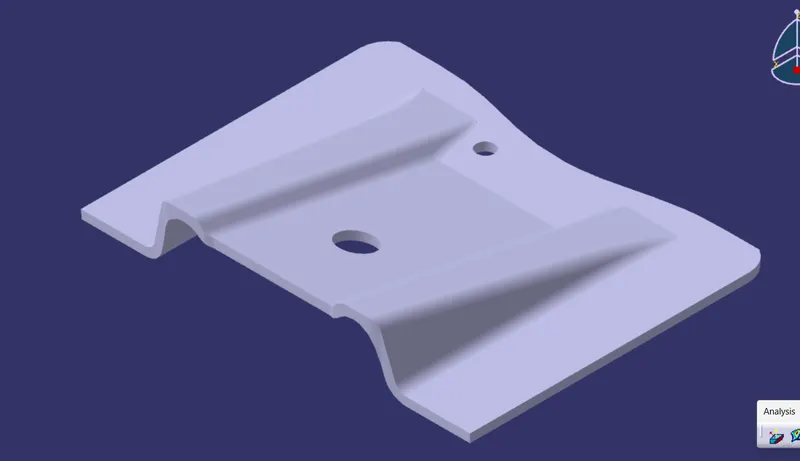

The Solid is made by using the Close surface tool.

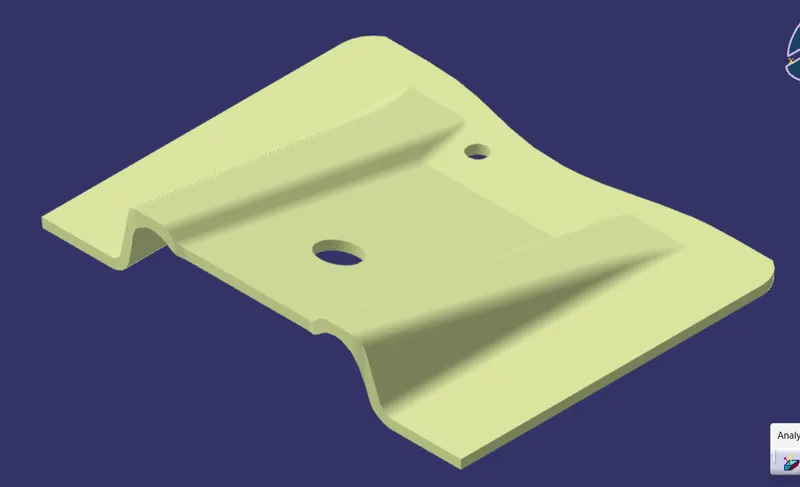

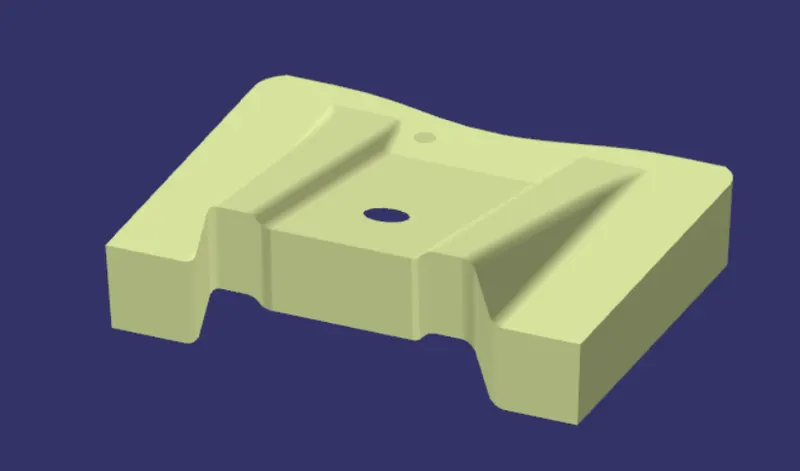

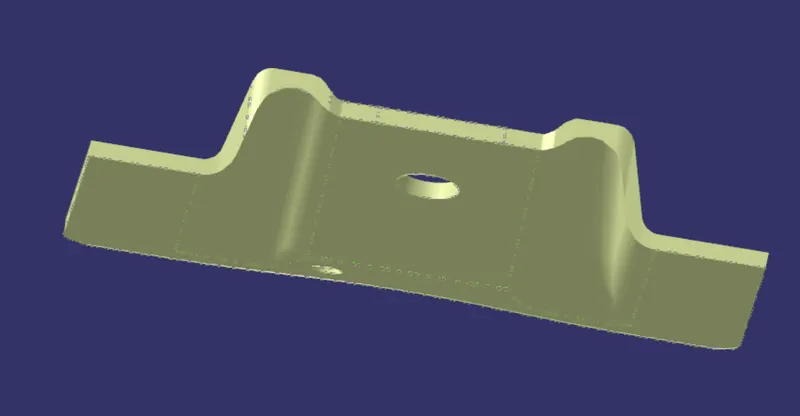

ISOMETRIC VIEW:-

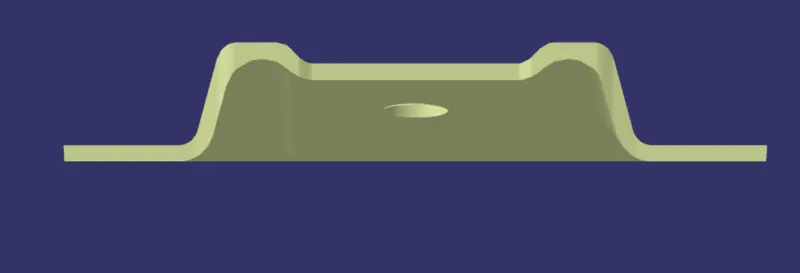

FRONT VIEW:

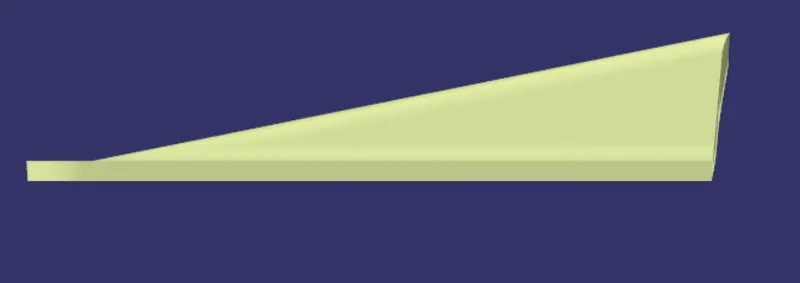

SIDE VIEW:

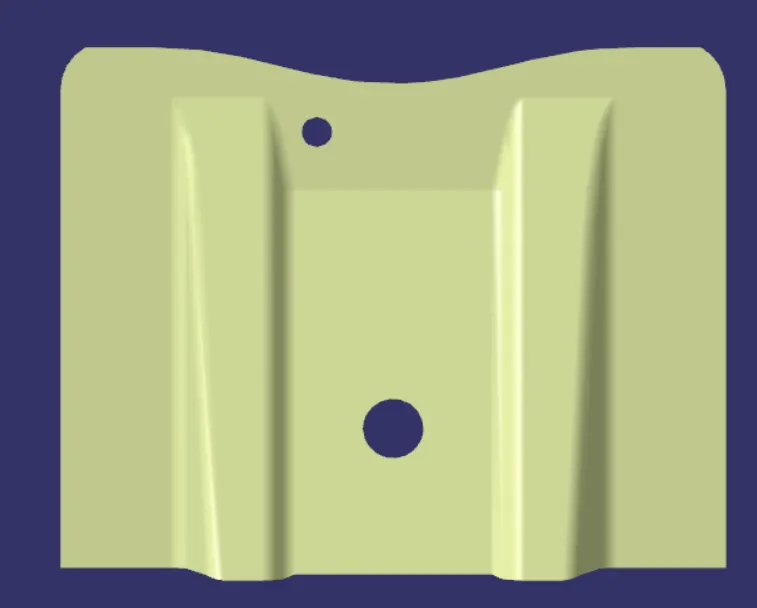

TOP VIEW:
