Week 8 - Challenge 1 - Base Bracket Design

OBJECTIVE : -

Create a BASE BRACKET plastic component using A surface,with the help of tooling axis and from bisecting method, and create B surface and then C surface finally get the final plactic component.

TOOLING AXIS : -

• The direction in which the mold or core and cavity opens is the tooling axis.

CREATION OF TOOLING AXIS : -

• First of all create point on the A surface where the maximum visually for the best tooling axis.
• Next is create a dummy tooling axis along the z direction.
• Next the intersect the surface A.
• Next take line command choose the surface line for bisecting line and get main tooling axis from the bisecting line method.

CONDITIONS FOR DRAFT ANALYSIS : -

• Connectivity of Class-A surface: Checking the connectivity of the surface, this can be done by creating boundaries or by simply using the join option such that any openings can be easily visualized.

DRAFT ANALYSIS : -

The Draft Analysis command enables you to detect if the part you drafted will be easily removed.

SCREEN SHOT OF DRAFT ANALYSIS : -

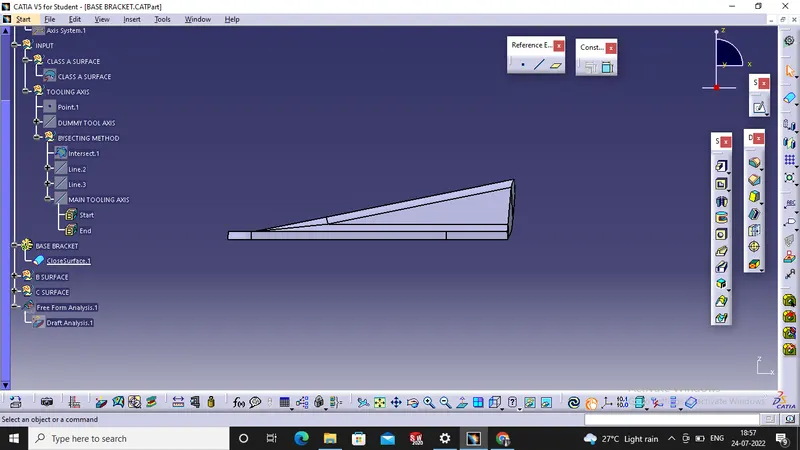

SHOT 1 :-(SURFACE A)

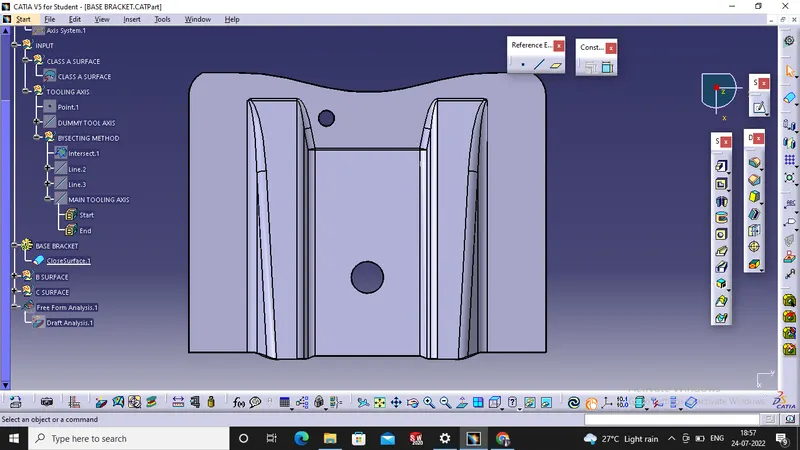

SHOT 2 :-

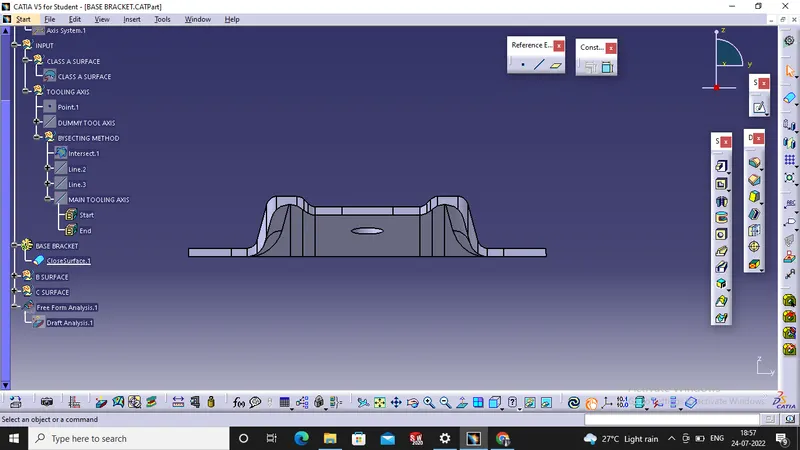

SHOT 3 : - (SURFACE C)

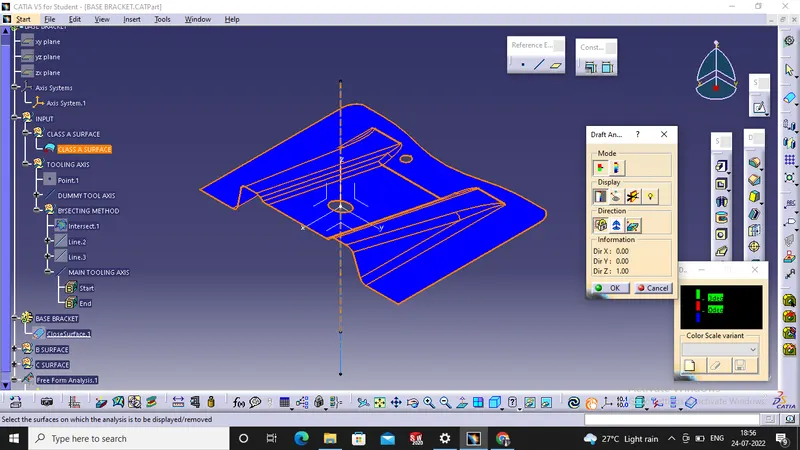

SHOT 4 : -

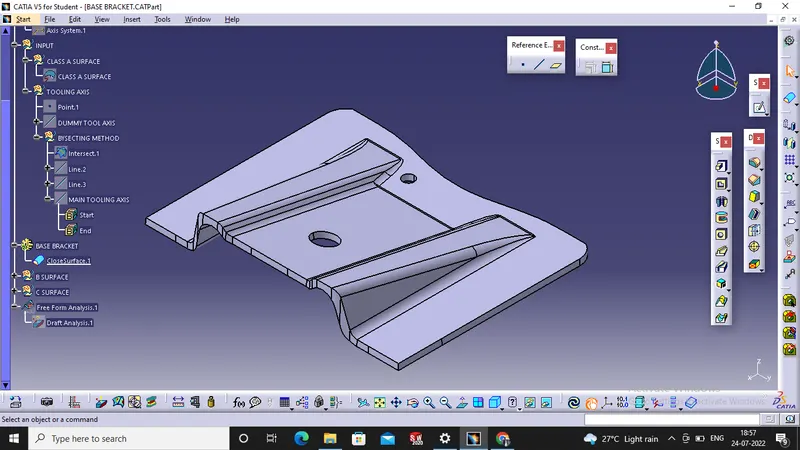

SHOT 5 : -

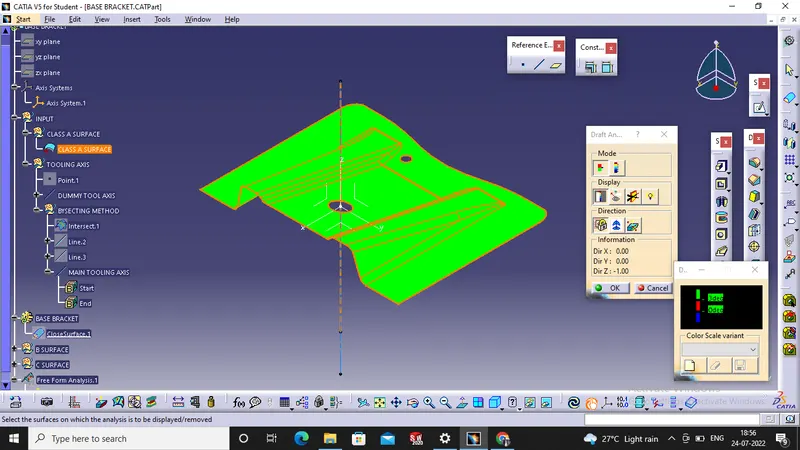

SHOT 6 : -
