Week 8 - Challenge 1 - Base Bracket Design

Aim - Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

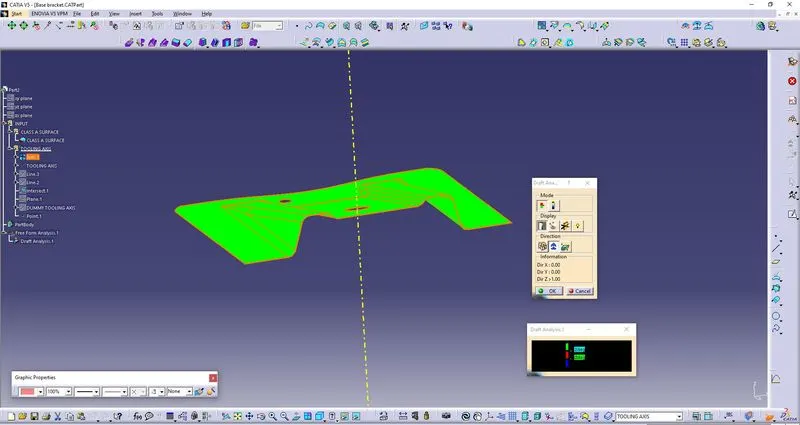

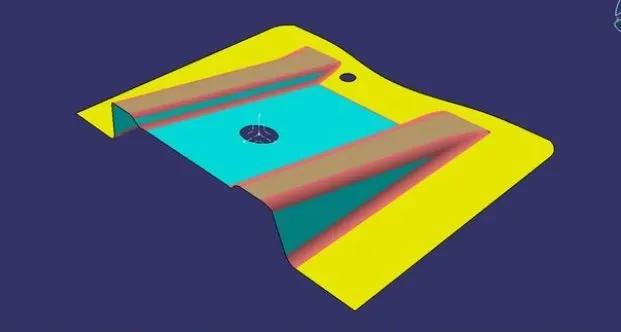

Given CLASS A SURFACE-

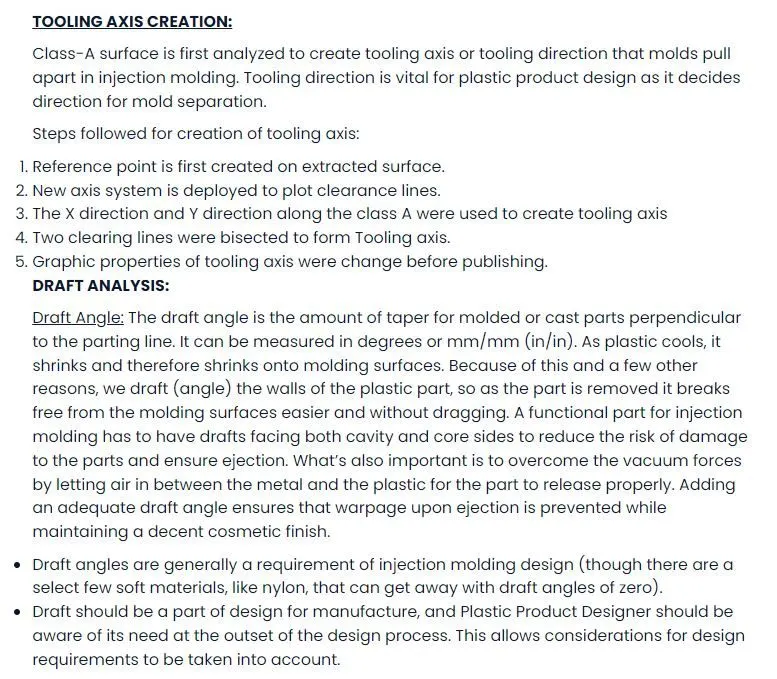

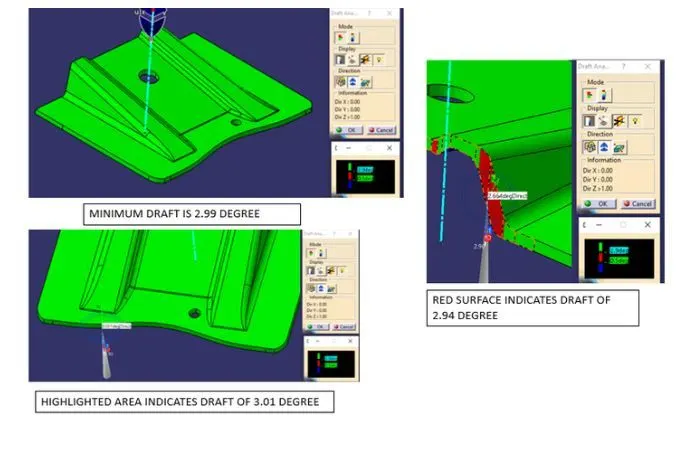

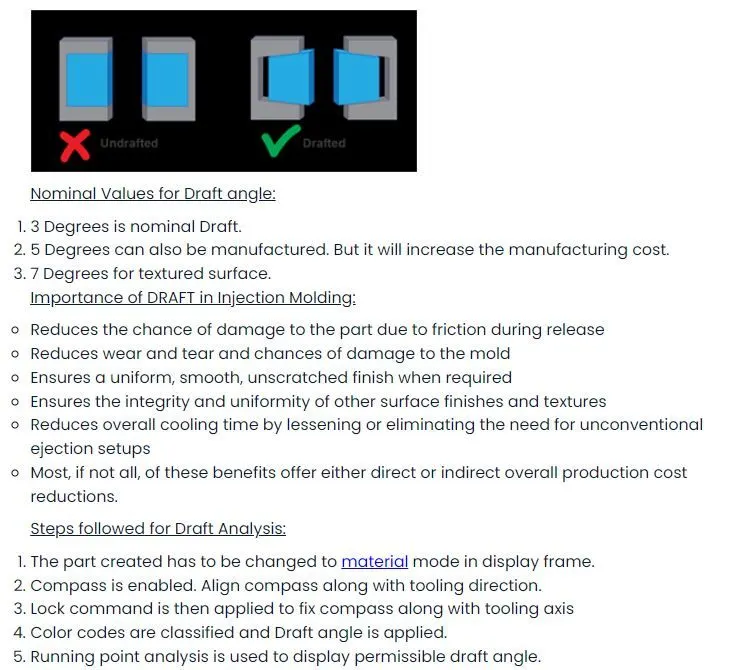

Report on draft analysis-

Explanation on Bisecting method-

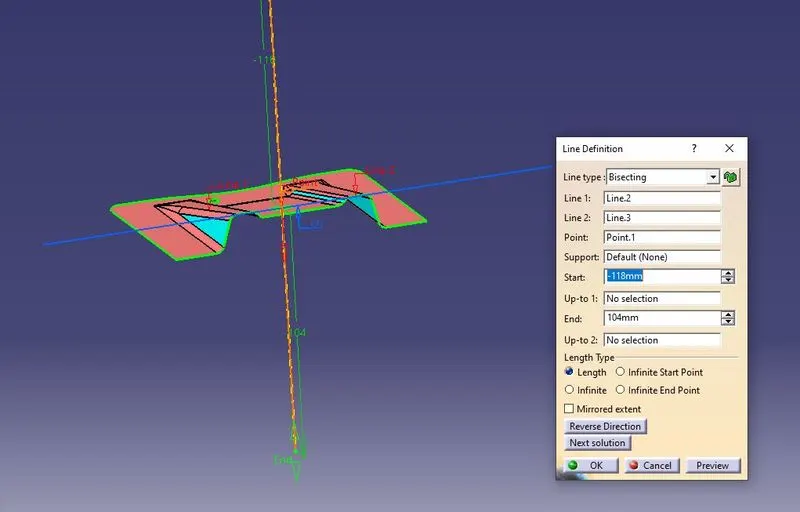

Bisecting method is basically used to  find the proper tooling axis using the dummy tooling axis. In Bisecting method bisecting line is used in which either bisect the two line or it will show error  which means two lines are parallel to each other. We create tooling clearing axis for x and y which will be used to create the main tooling axis using the bisecting line option in the line command.

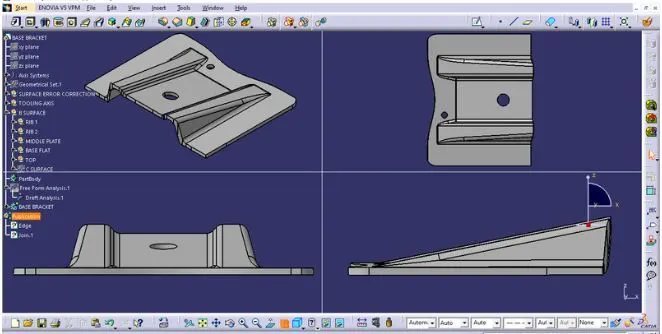

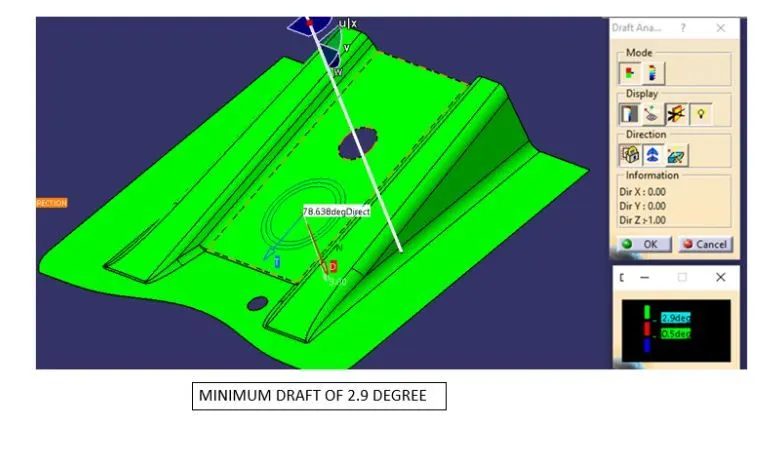

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)-

Conclusion- All the objectives have been achieved and CATpart file is also uploaded as a zip file.
