Week 8 - Challenge 1 - Base Bracket Design

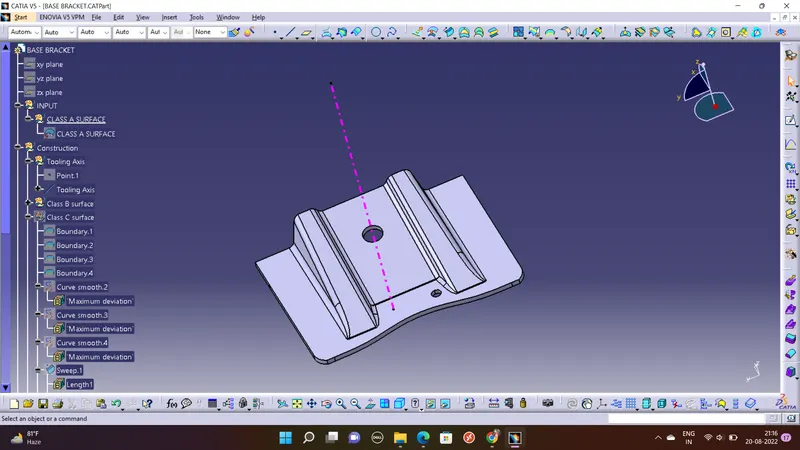

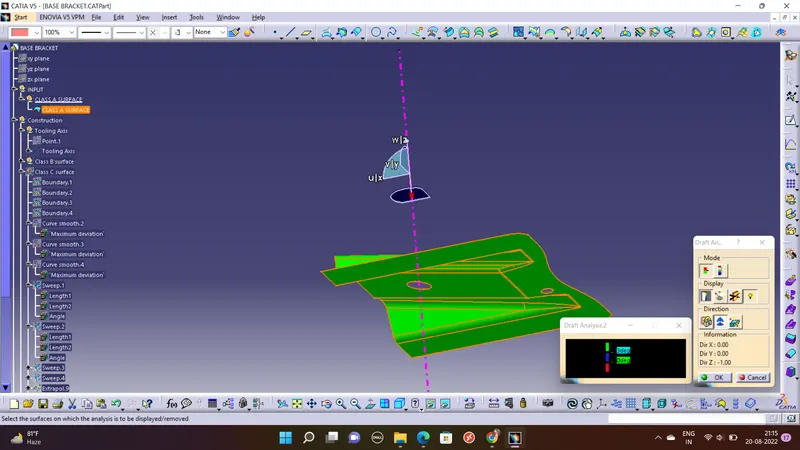

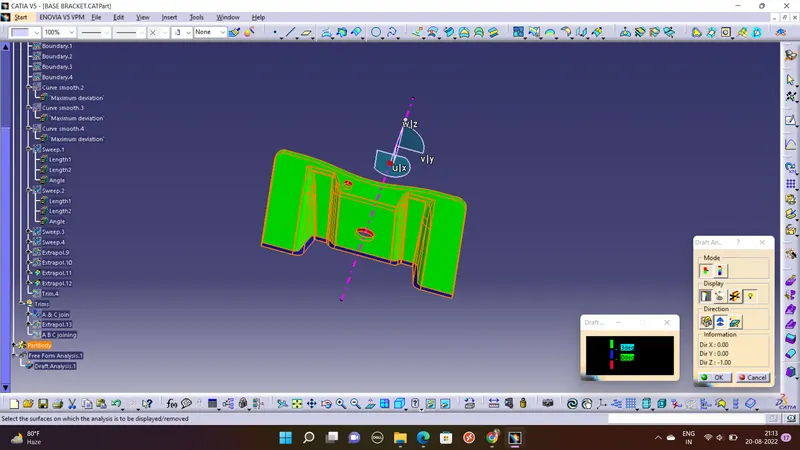

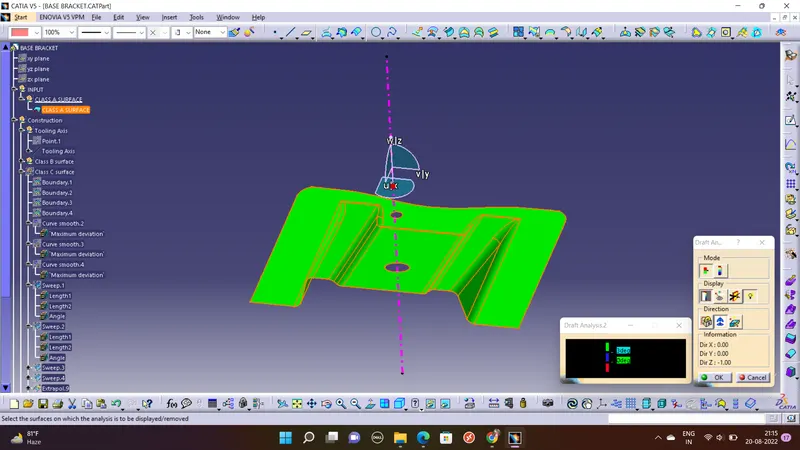

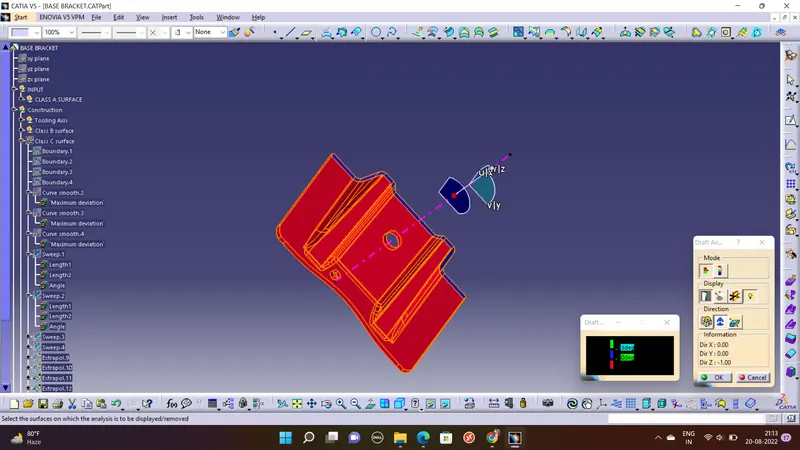

Firstly I have created a tool axis and checked whether given class A surface is with proper draft of 3 degree angle or not.

Then I have created class B surface by applying offset command.

After that I created class C surface by sweep command and joined class A and class C surface.

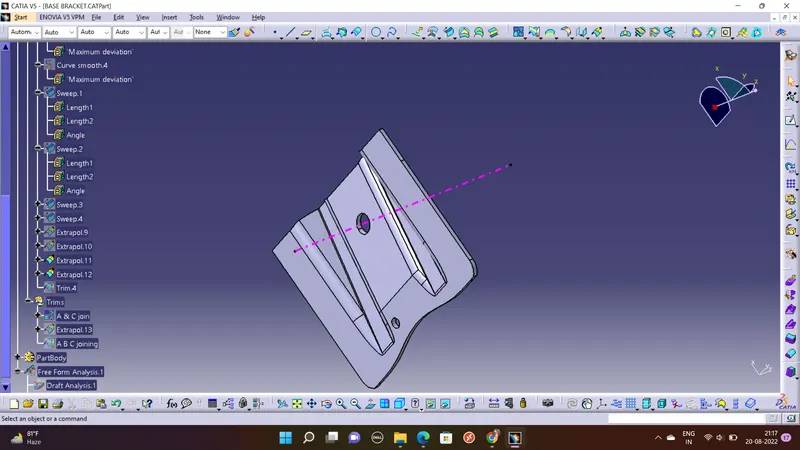

and Finally added all surface by using Trim command.

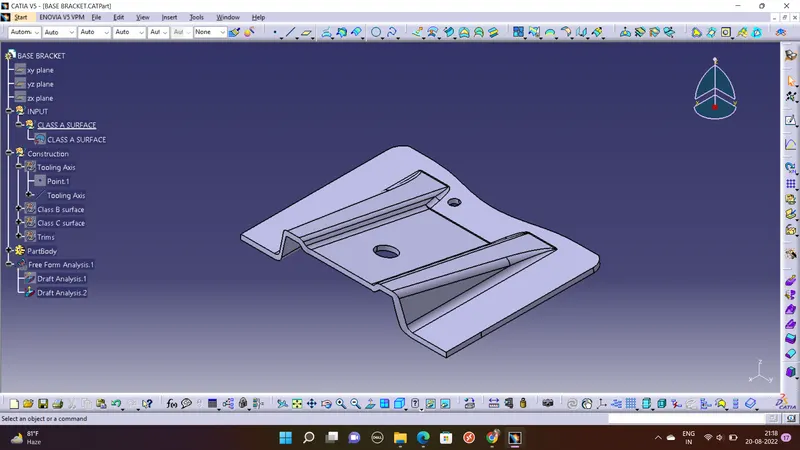

and then I convered it into closed part body.
