Week 8 - Challenge 1 - Base Bracket Design

RRoshan Singh1 Sept 2022

OBJECTIVE Create the Base Bracket Plastic component through the given Class-A surface.

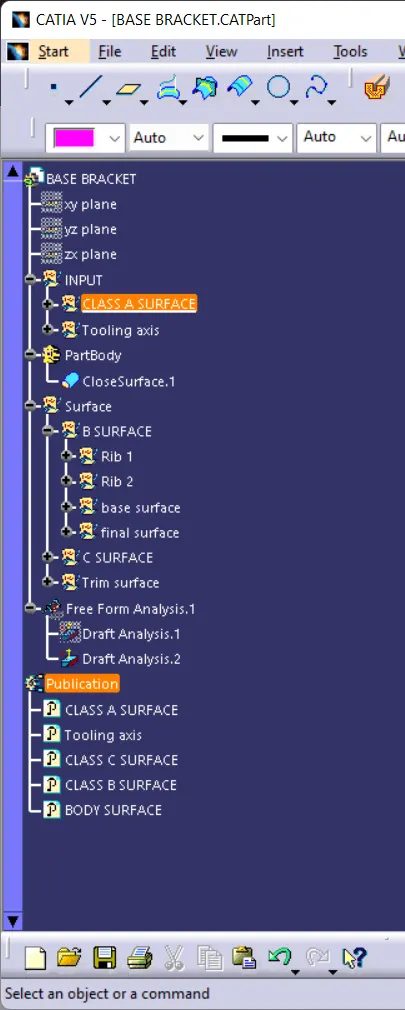

Create tooling axis
Creating Class B and C surface of base bracket
Perform draft analysis on Class A surface and final component.

Tooling axis: Tooling axis is the direction at which core and cavity opens.

Procedure to creating tooling axis

First check the connectivity of the given Class A surface by using the Boundary or Join feature to visualized and repaired the open edges of the surface.
And then, analyse visually the best suitable plane or surface for tooling axis.

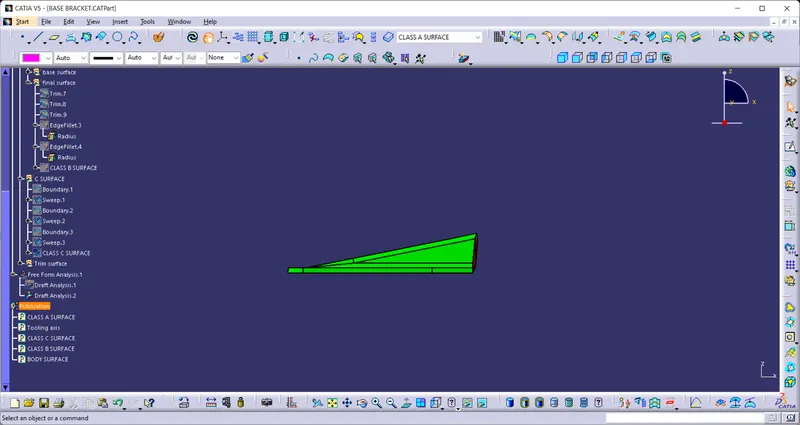

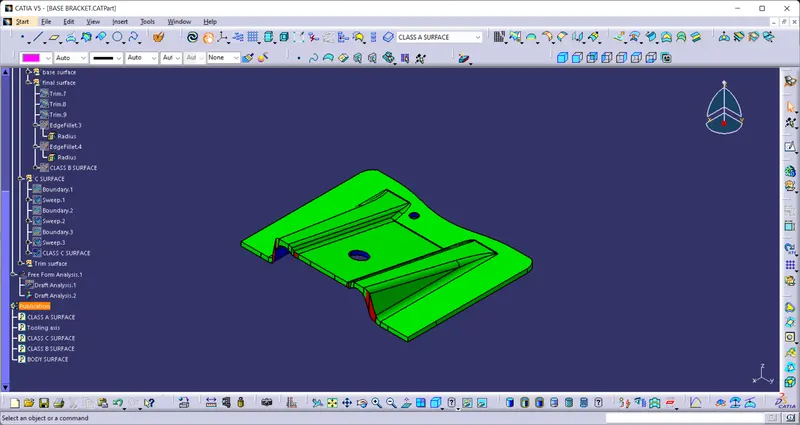

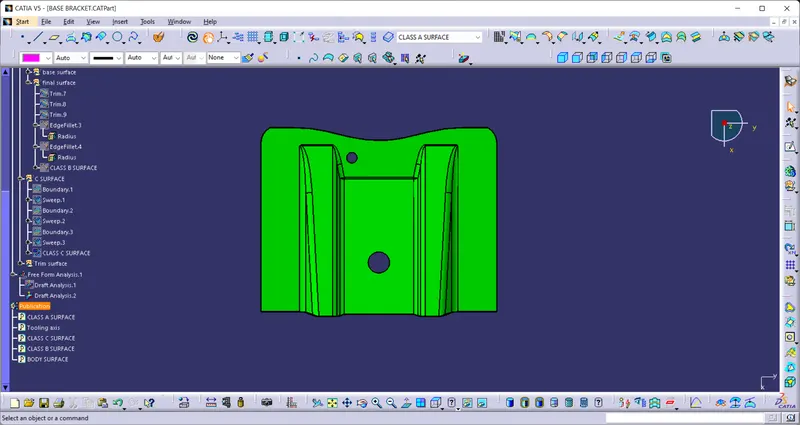

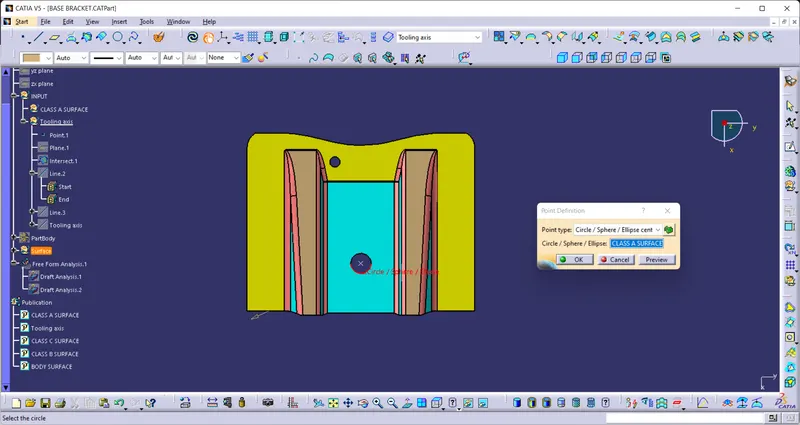

After that creating a point on surafce for creating the axis on the point.

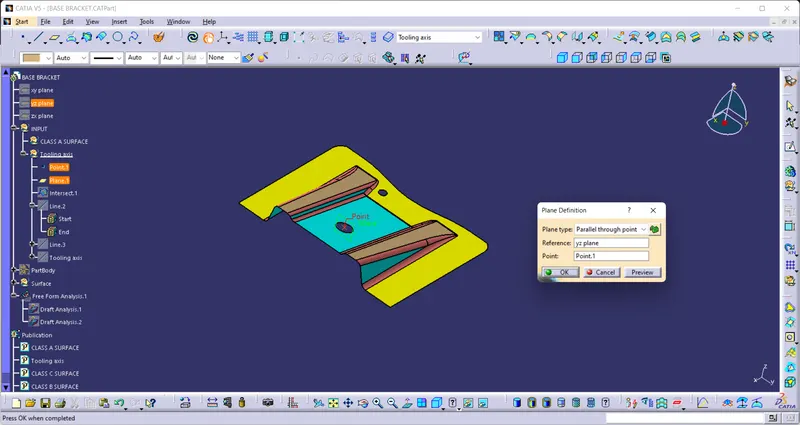

Create a YZ plane on the same point

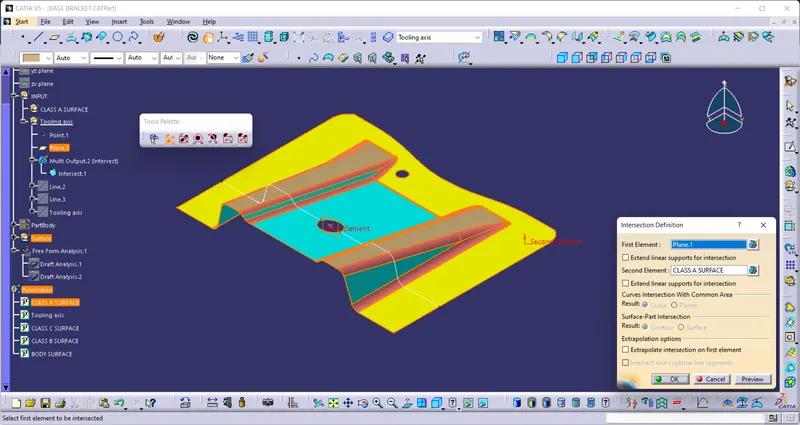

and then intersect with the given Class A surafce to get intersection curve of the Class A surface at the plane.

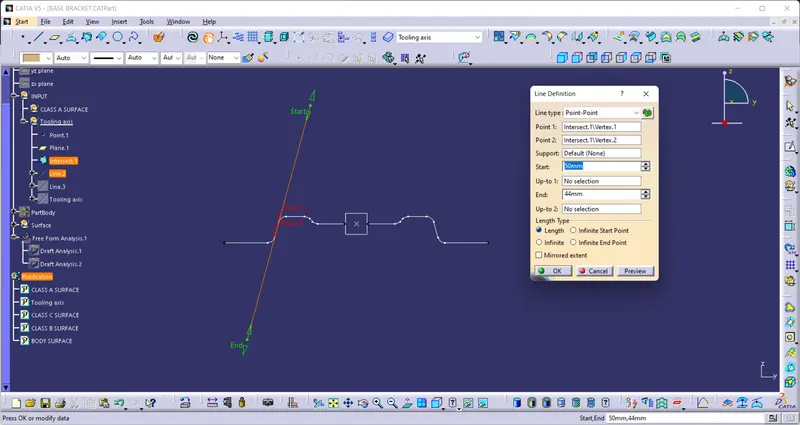

Extended the side line of the intersetion curve by using point to point line

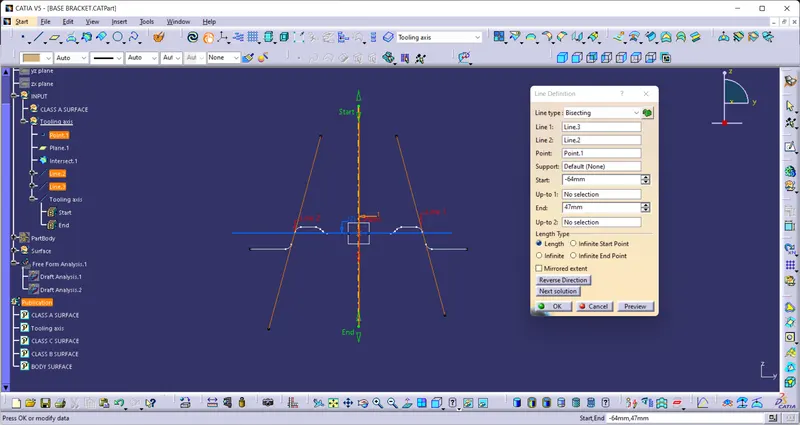

Lastly create a tooling axis by using bisecting line with the help of the two extended lines.

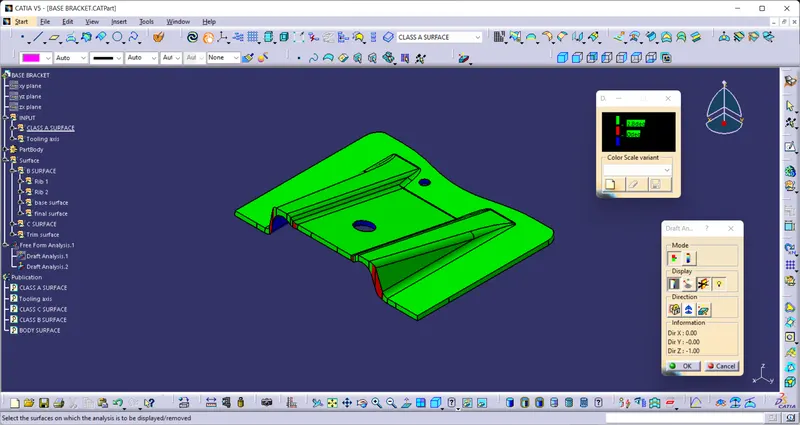

Draft Analysis Darft analysis is a tool perform to check the product easliy removed from the core and cavity. In other word in draft analysis we check the product easily clear the minumum draft (3 degree). draft andle is calculating betweeen the product differents surfaces and the tool axis.

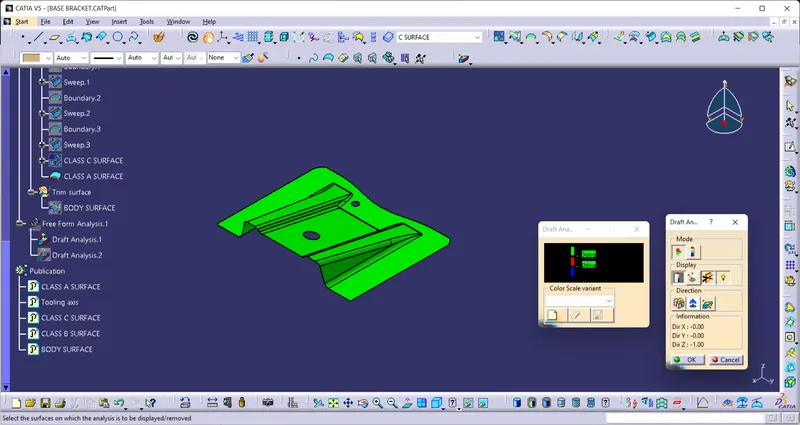

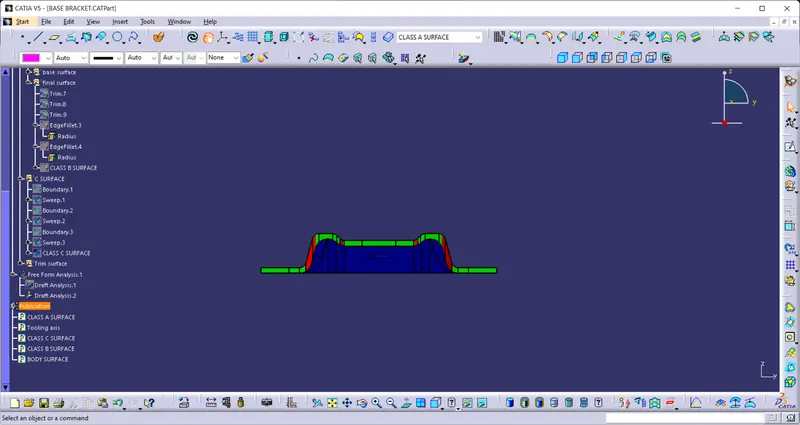

Screenshots of the Draft analysis report for the given Class-A surface
