Week 8:- 3D Finishing Challenge 2
*Designing Rough Locators for the given BIW Panel.

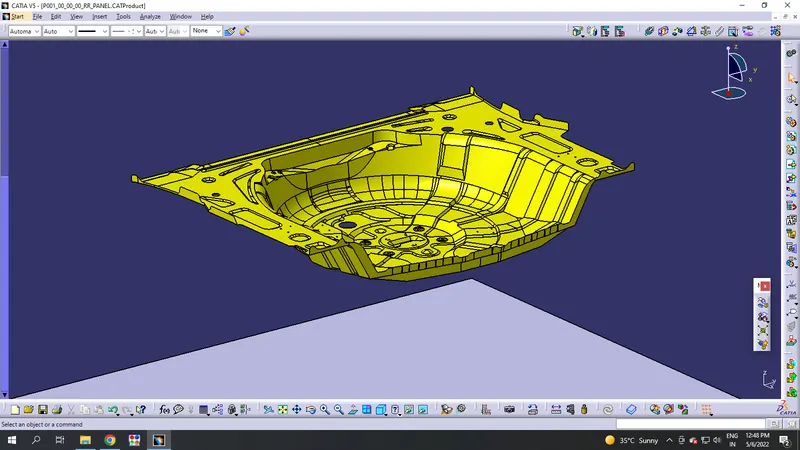

Given Panel:
3D finish is the process where design is being completely finish & to be ready for final simulation & 2D detailing
Following points are taken into consideration while finishing the design:-

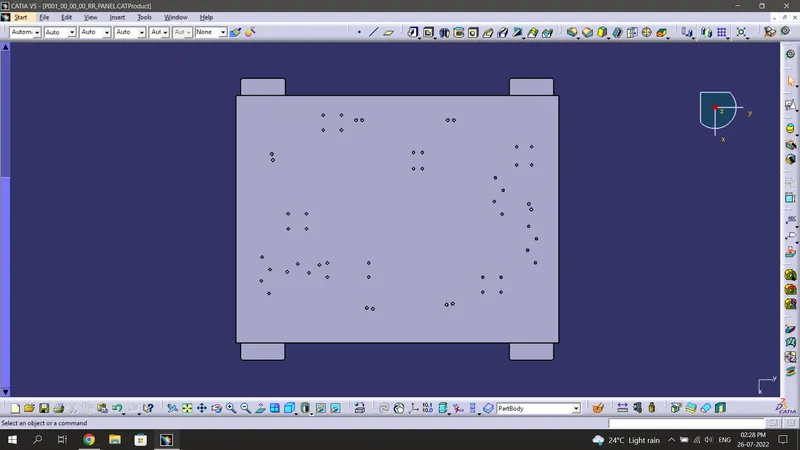

- Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
- Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange color.
- Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
- Holes colouring standard- Color Code standard used in the 3D finishing
- Cyan - Simple Hole
- Yellow - Threaded Hole
- Orange - Machined area
- Blue - Dowel pin Hole
- Fasteners implementation- Fasteners are implimented in all unit as per the requirement & load on the part.
- Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
- Mylar splitting as per panel profile- Mylar splitting are confirmed while finishing the design.
- Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design hence we can identify each & every part easily with unique identification.

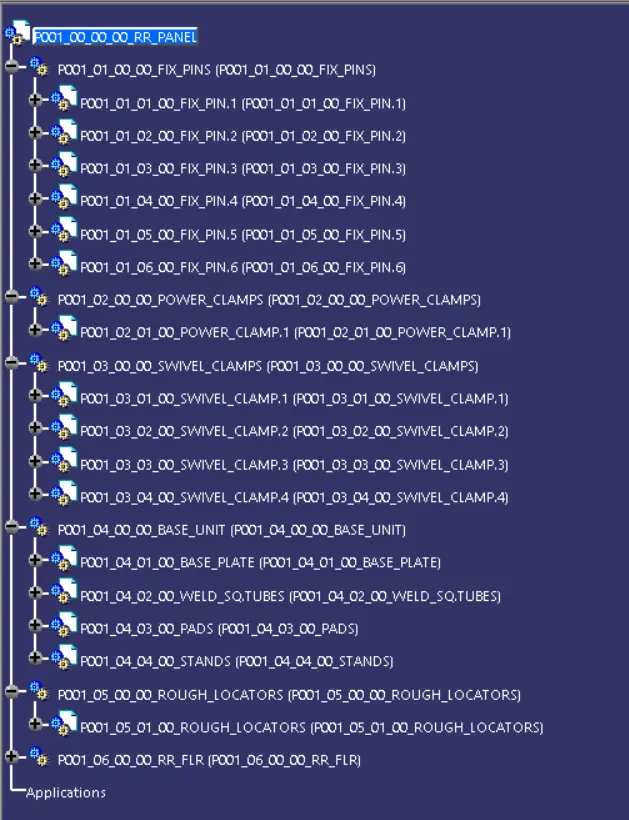

Design Tree Structure:

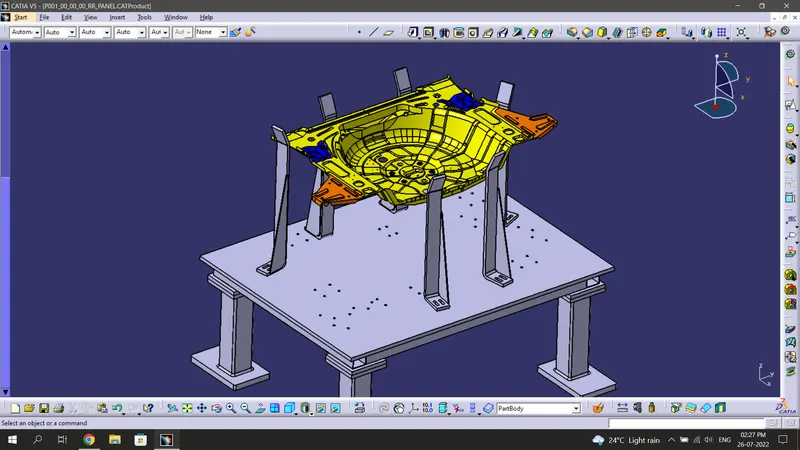

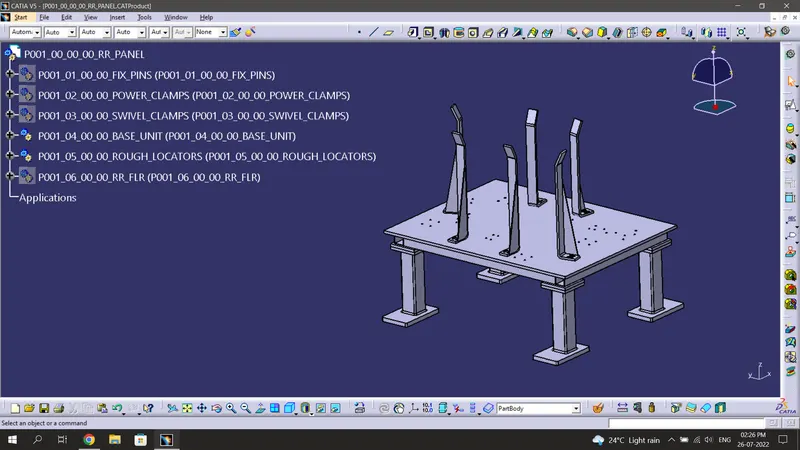

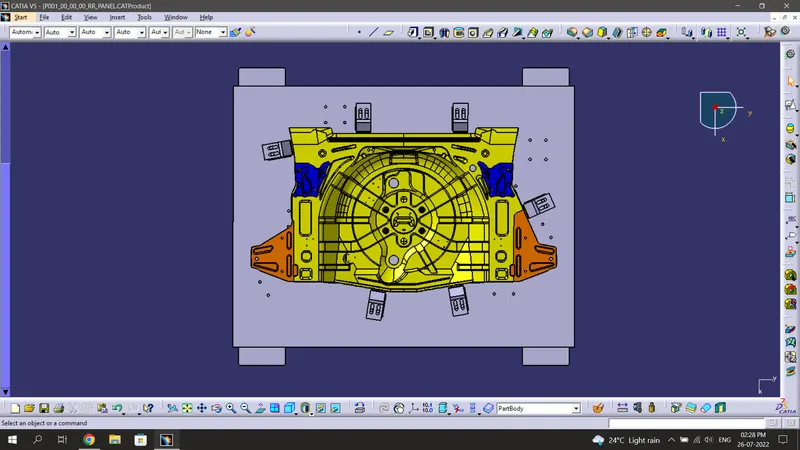

Rough Locators:

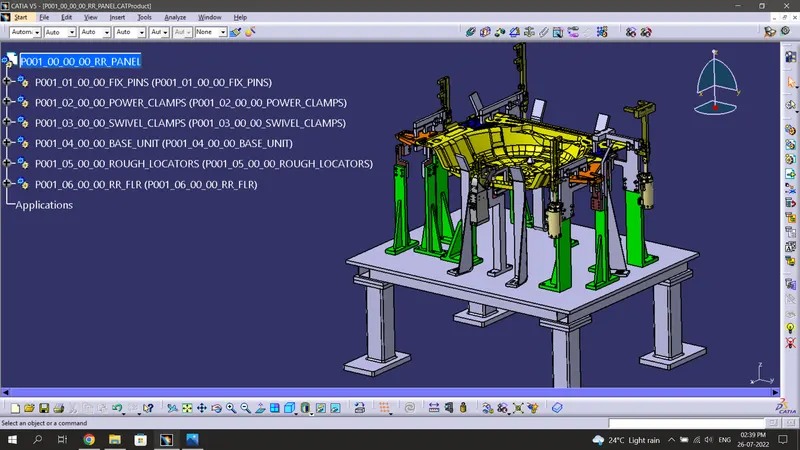

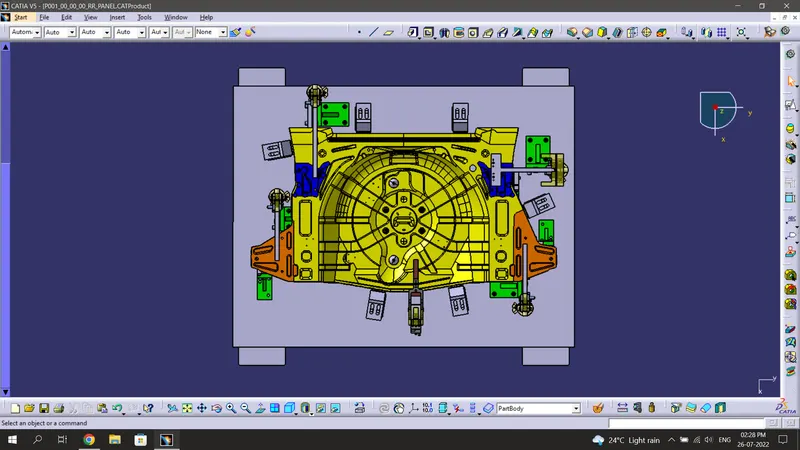

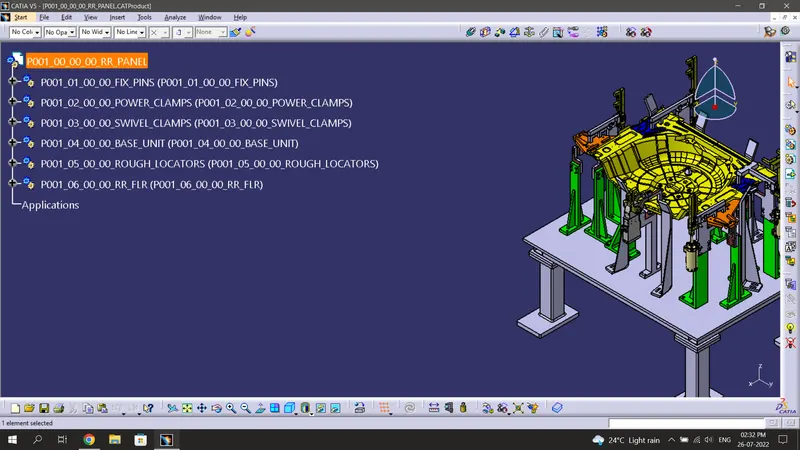

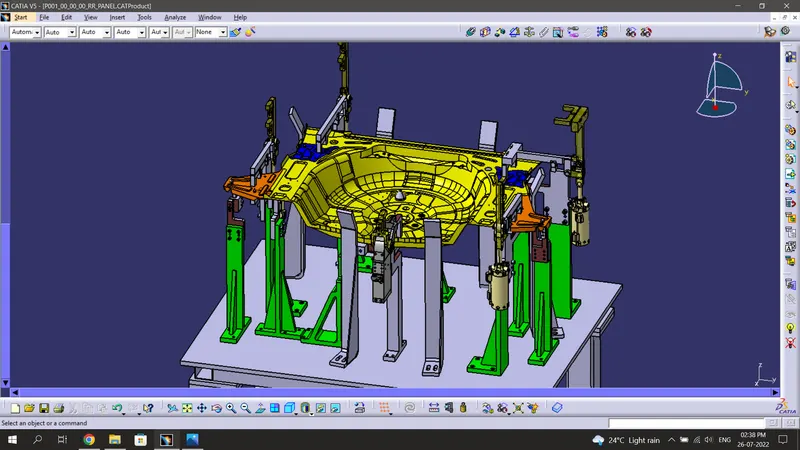

Complete Fixture:
*Hence by applying 3-2-1 priniciple, the panels are restricted in its position and completed the entire fixture assembly.
