Week 8:- 3D Finishing Challenge 2
Aim :- To design the 3D finishing for the all units and create holes and give them the required colors for the base unit for all units of the fixtures.
3D finish is the process where design is being completely finish & to be ready for final simulation & 2D detailing
Following points are taken into consideration while finishing the design:-
Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange color.
Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
Holes colouring standard- Color Code standard used in the 3D finishing
Yellow - Threaded Hole
Blue - Dowel pin Hole
Fasteners implementation- Fasteners are implimented in all unit as per the requirement & load on the part.
Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
Mylar splitting as per panel profile- Mylar splitting are confirmed while finishing the design.Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design hence we can identify each & every part easily with unique identification.

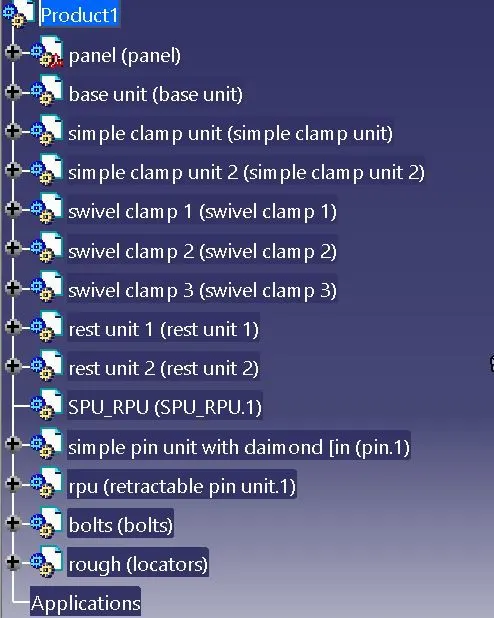

DESIGN TREE STRUCTURE
pin unit design

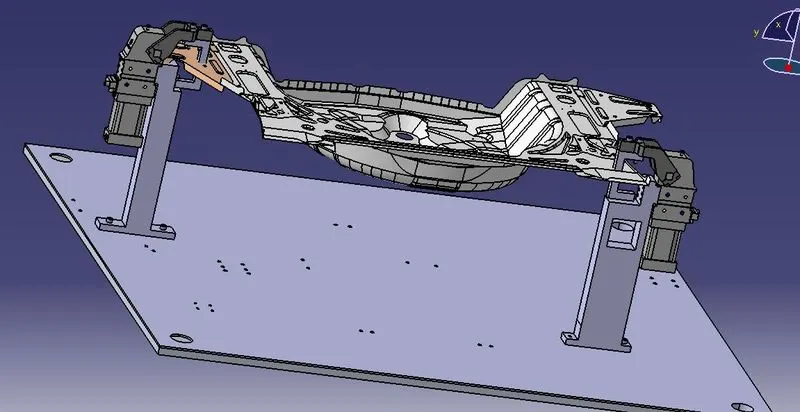

clamp unit

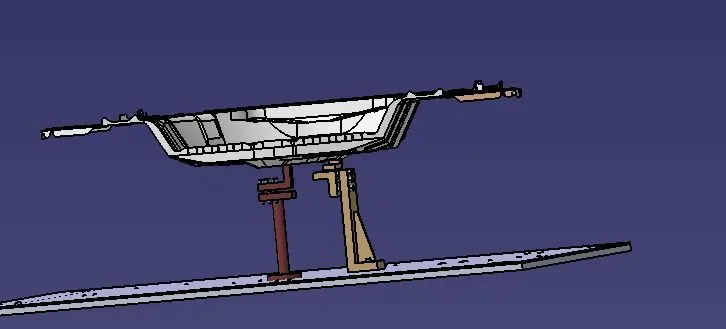

swivel unit
rest unit

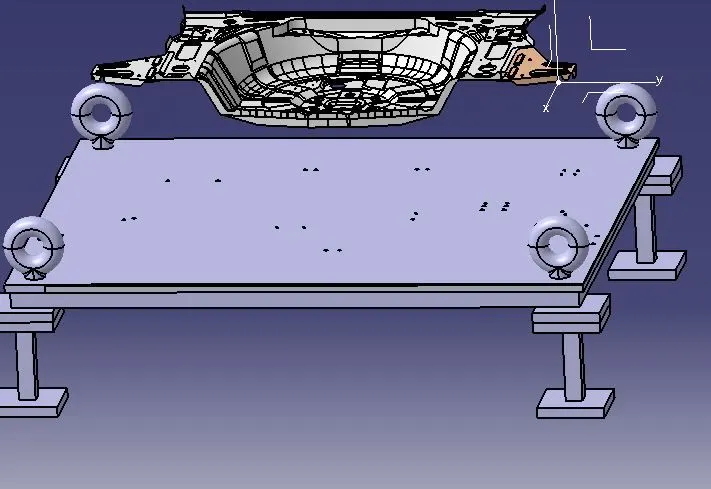

base unit with eye bolts

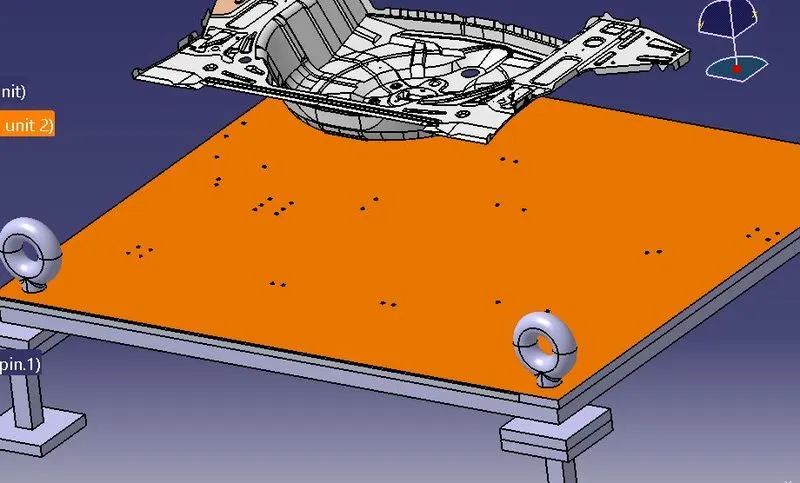

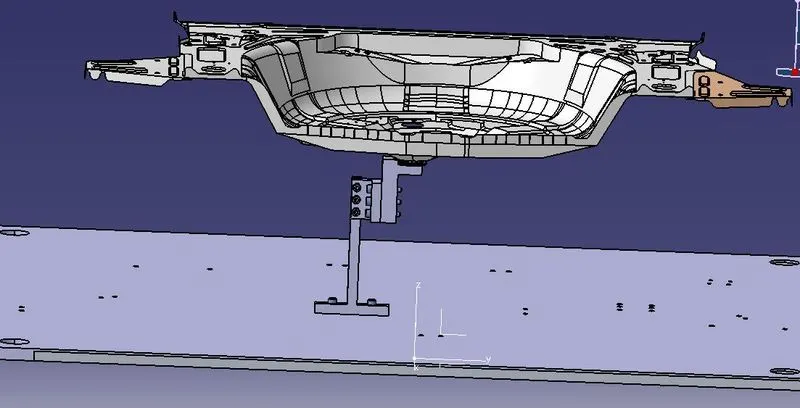

holes creation for base unit

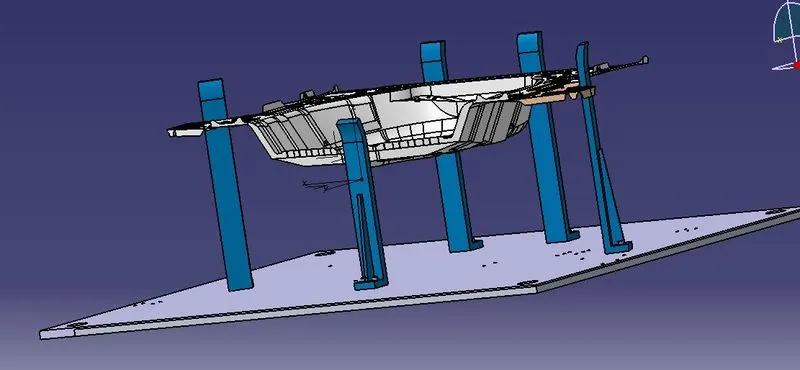

rough locators

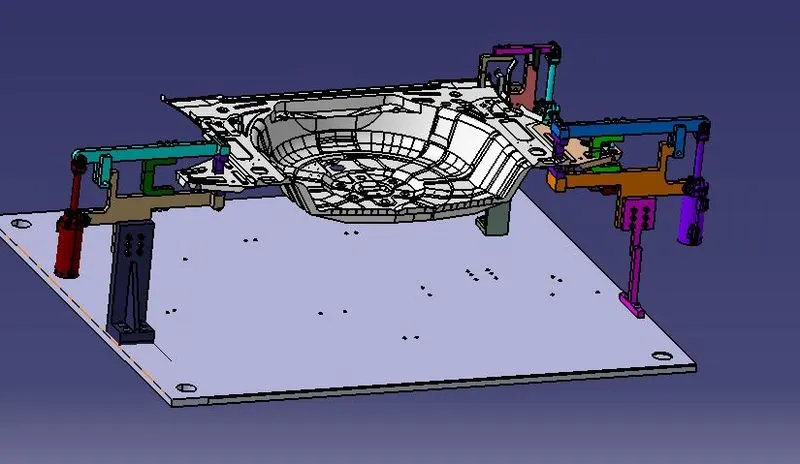

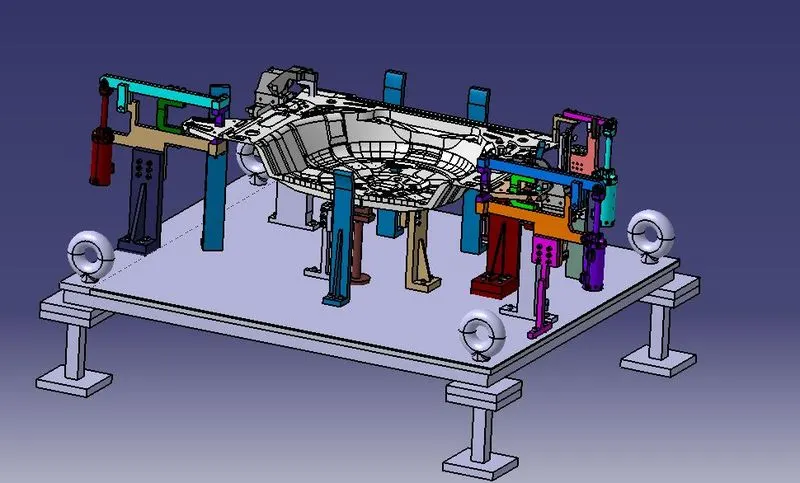

whole unit

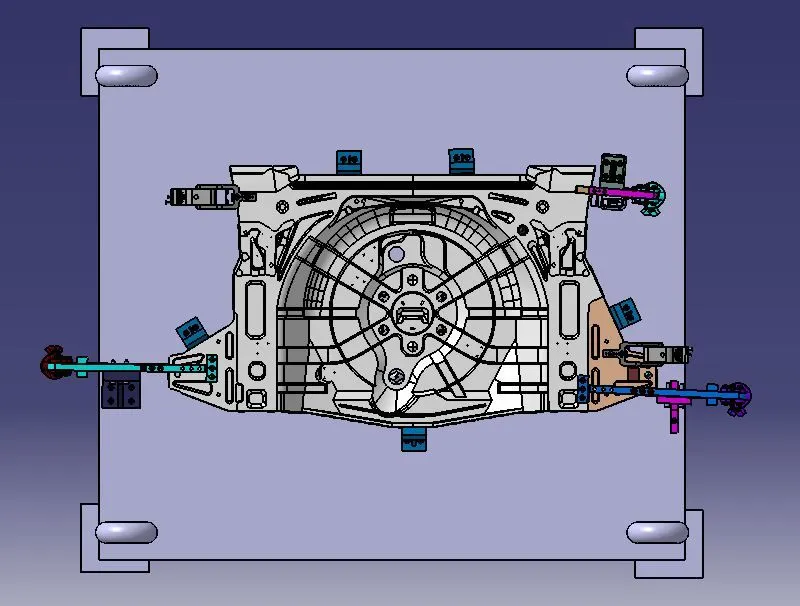

top view
Conclusion
Hense the required 3D finishing is designed for the panel as per instructions
