Week 7 State of charge estimation

Objective :-

1.Simulate the 3 test cases from harness dashboard and write a detailed report on the results

2.What is coulomb counting? Refer to the above model and explain how BMS implements coulomb counting for SOC estimation ?

Report

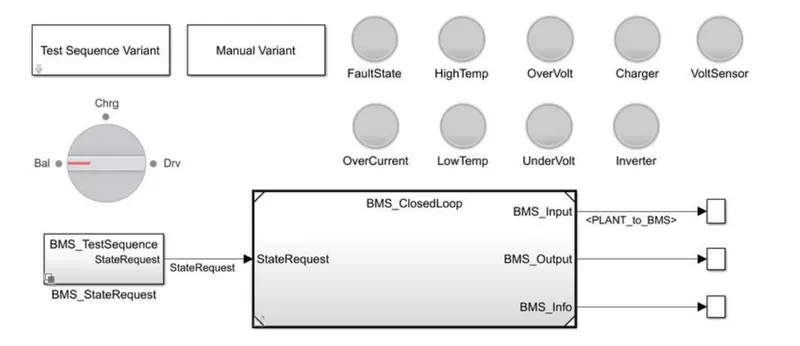

The harness dqashboard

By selecting the test sequence variant we can vary between different test cases

By choosing the 1st test case

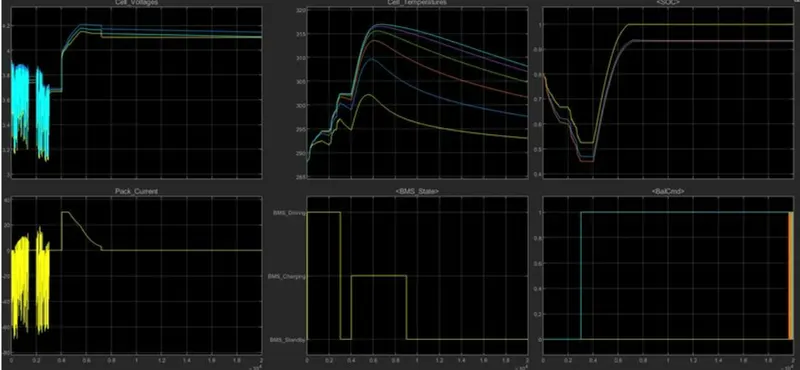

The resultant plot

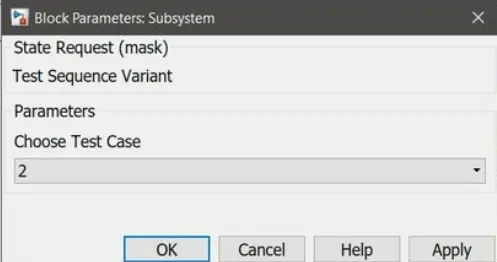

Test case 2

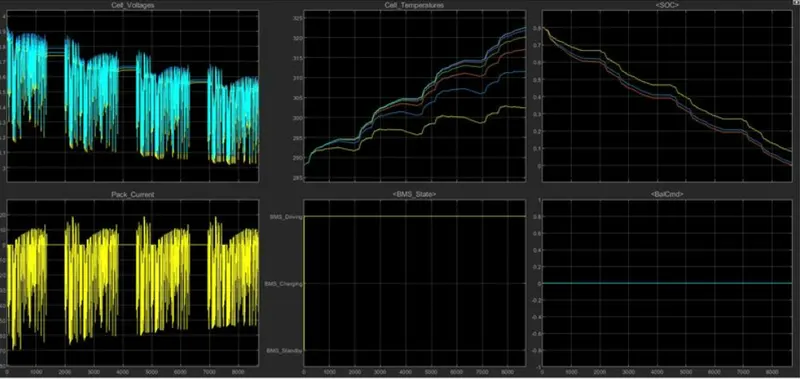

Resultant plot

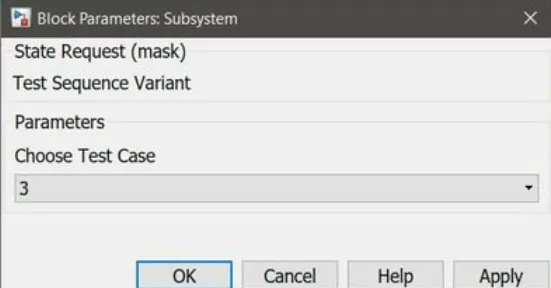

Test case 3

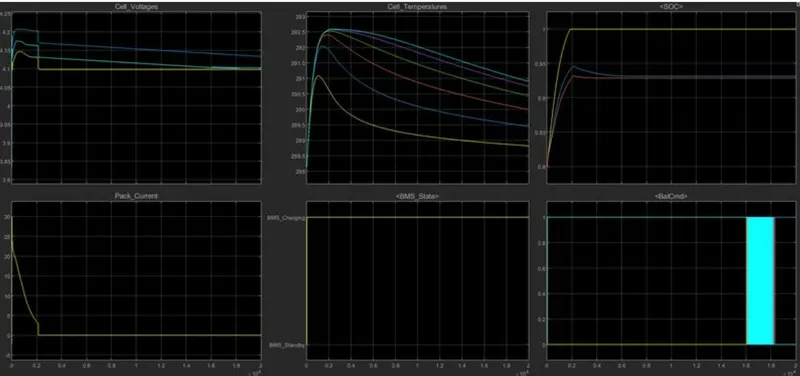

Resultant graph

• In the first simulation all three conditions were simulated such as driving charging and the stable state hence the charging and discharging were observed and in the end the constant 100% SOC was observed because of the standby state of the vehicle.
• In the second simulation it was just the discharging as the SOC dropped to 0% in the driving state within 8600 seconds and the charging state was not achieved at 10000 seconds.
• In the third simulation, only charging was observed for the first 2000 seconds and the SOC remained at 100% constant for the next 18000 seconds.

2) What is coulomb counting? Refer to the above model and explain how BMS implements coulomb counting for SOC estimation?

The Coulomb counting method measures the discharging current of a battery and integrates the discharging current over time in order to estimate SOC. Coulomb counting method is done to estimate the SOC(t), which is estimated from the discharging current, I(t), and previously estimated SOC values, SOC(t-1). SOC is calculated by the following equation:

To improve the Coulomb counting method, a new technique called modified Coulomb counting method is proposed. The modified Coulomb counting method uses the corrected current to improve the accuracy of estimation.

The corrected current is the function of discharging current. There is a quadratic relationship between the corrected current and discharging current of battery. By practice of experimental data, corrected current is calculated by the following form:

where k₂, k₁ and k₀ are constant values obtained from the practice experimental data.

In modified Coulomb counting method, SOC is calculated by the following equation:
