Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method
The cornerstone of computational fluid dynamics is the fundamental governing
equations of fluid dynamics—the continuity, momentum, and energy equations.
These equations speak physics. They are the mathematical statements of three fundamental physical principles upon which all of fluid dynamics is based:
- mass is conserved;
- F = ma (Newton’s second law);
- energy is conserved.
In obtaining the basic equations of fluid motion, the following philosophy is always followed:
- Choose the appropriate fundamental physical principles from the laws of physics, such as
- Mass is conserved.
- F = ma (Newton’s 2nd Law).
- Energy is conserved.
- Apply these physical principles to a suitable model of the flow.
- From this application, extract the mathematical equations which embody such
physical principles.
This section deals with the item above, namely the definition of a suitable model of the flow. This is not a trivial consideration. A solid body is rather easy to see and define; on the other hand, a fluid is a ‘squishy’ substance that is hard to grab hold of. If a solid body is in translational motion, the velocity of each part of the body is the same; on the other hand, if a fluid is in motion the velocity may be different at each location in the fluid. How then do we visualize a moving fluid so as to apply to it the fundamental physical principles? For a continuum fluid, the answer is to construct one of the two following models.
Continuity Equation:
We will carry out the application of this principle to both the finite control volume and infinitesimal fluid element models of the flow. This is done here specifically to illustrate the physical nature of both models. Moreover, we will choose the finite control volume to be fixed in space (left side of Fig. 2.1a), whereas the infinitesimal fluid element will be moving with the flow (right side of Fig. 2.1b). In this way, we will be able to contrast the differences between the conservation and nonconservation forms of the equations, as described in Sect. 2.2. First, consider the model of a moving fluid element. The mass of this element is fixed, and is given by δm. Denote the volume of this element by δV, as in
Sect. 2.4. Then
δm = ρδV

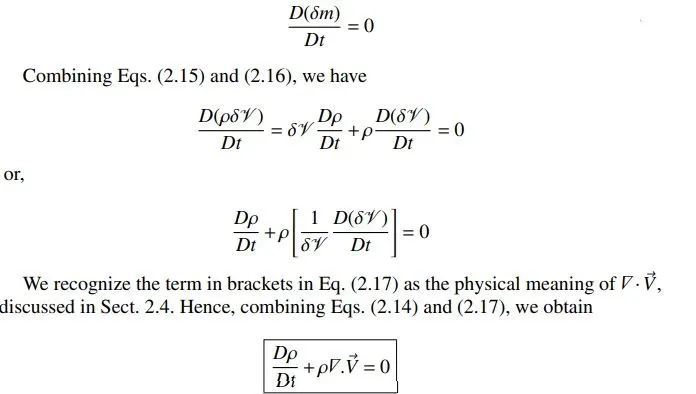

Since mass is conserved, we can state that the time rate-of-change of the mass of the fluid element is zero as the element moves along with the flow. Invoking the physical meaning of the substantial derivative discussed in the book, we have D(δm).
Finite control volume fixed in space
Momentum Equation
In this section, we apply another fundamental physical principle to a model of the flow, namely:
Physical Principle: F = ma (Newton’s 2nd law)

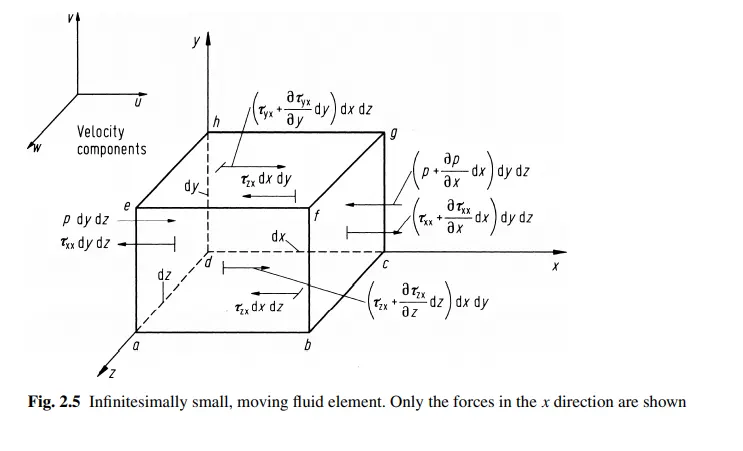

We choose for our flow model the moving fluid element as shown at the right of Fig. 2.1(b). This model is sketched in more detail in Fig. 2.5. Newton’s 2nd law, expressed above, when applied to the moving fluid element in Fig. 2.5, says that the net force on the fluid element equals its mass times the acceleration of the element. This is a vector relation, and hence can be split into three scalar relations along the x, y, and z-axes.
Let us consider only the x-component of Newton’s 2nd law,
Fx = max
The Energy Equation
We now invoke the following fundamental physical principle:

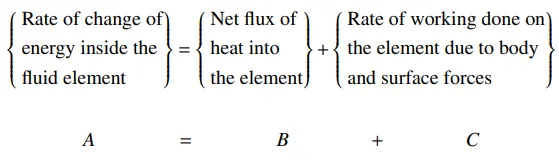

where A, B, and C denote the respective terms above. Let us first evaluate C, i.e. obtain an expression for the rate of work done on the
moving fluid element due to body and surface forces. It can be shown that the rate of doing work by a force exerted on a moving body is equal to the product of the force and the component of velocity in the direction of the force (see References 3 and 14 for such a derivation). Hence the rate of work done by the body force acting on the fluid element moving at a velocity V is

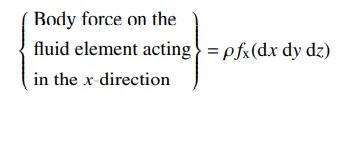

ρ f·V (dx dy dz)
Real problem:

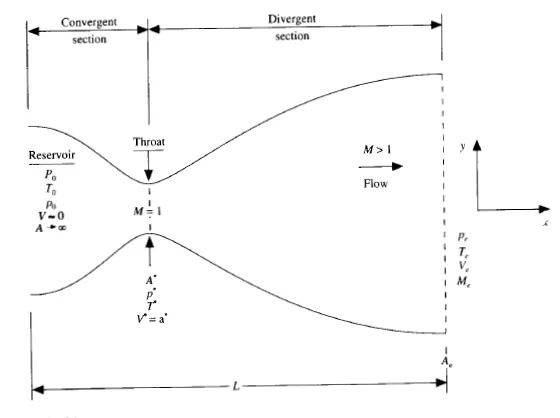

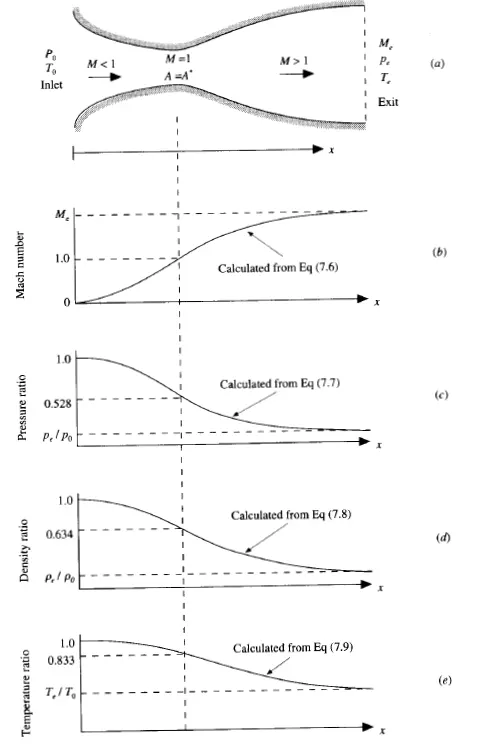

We consider the steady, isentropic flow through a convergent-divergent nozzl_e as sketched in Fig. 7 .1. The flow at the inlet to the nozzle comes from a_ reservoir where the pressure and temperature are denoted by p0 , and To, respectively. The cross-sectional area of the reservoir is large ( theoretically, A --+ oo ), and hence the velocity is very small ( V --+ O). Thus, Po and T0 are the stagnatio~ values,_ or total pressure and total temperature, r~spectively. Th~ flow expands 1sentrop1cally. to supersonic speeds at the nozzle exit, where the exit pressure, temperature, veloc11?", and Mach number are denoted by Pe, Te, V.,, and Me, respectlv~ly. The flow IS locally subsonic in the convergent section ?f the nozzl~, some at th~ throat (minimum area), and supersonic at the d1ver~ent sec~1on. T?e ~omc flow (M = 1) at the throat means that the local velocity at this location 1s equal to the local speed of sound.
Using an asterisk to denote sonic flow values, we have at the throat V = V* = a*. Similarly, the sonic flow values of pressure and temperature are denoted by p* and T*, respectively. The area of the sonic throat is denoted by A*. We assume that at a given section, where the cross-sectional area is A, the flow properties are uniform across that section. Hence, although the area of the nozzle changes as a function of distance along the nozzle, x, and therefore in reality the flow field is two-dimensional (the flow varies in.the two-dimensional .ry space), we make the assumption that the flow properties-vary only with x; this is tantamount to assuming uniform flow properties across any given cross section. Such flow is defined as quasi-one-dimensional flow.

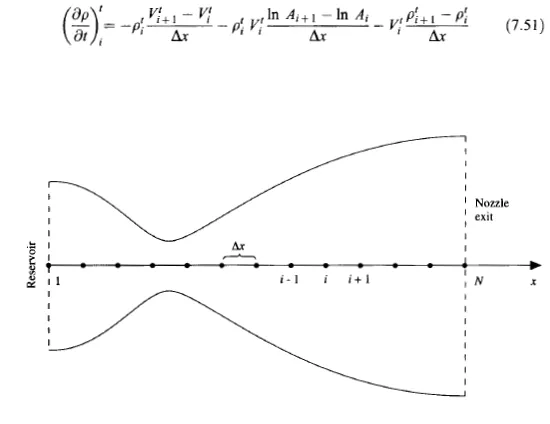

SUBSONICSUPERSONIC ISENTROPIC NOZZLE FLOW· MACCORMACK'S TECHNIQUE

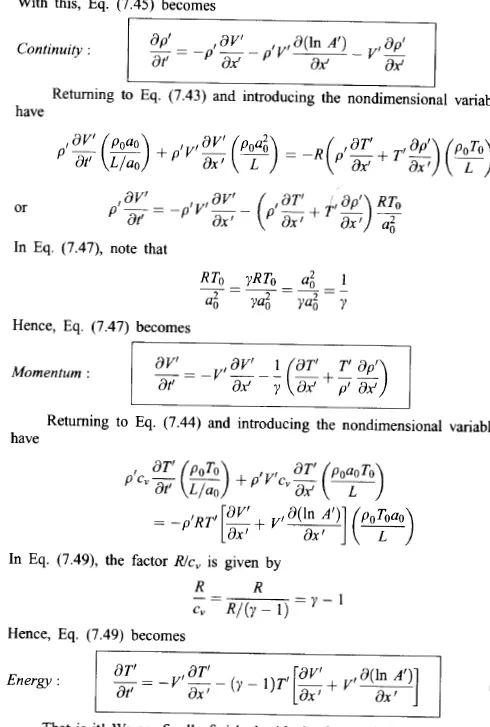

We are finally finished with the first echelon as itemized at the beg~nning of this subsection. After what may seem like an interminable manipulation of the governing equations, we have finally set up that particular form of the equations that will be most appropriate as well as convenient for the time-marching solution of quasi-one-dimensional nozzle flow. which is exactly represented in John Andersons book of CFD.
The same approach is taken for the MATLAB coding where we run programming of conservation and nonconservation equations with Mccormack's method. We made a function of both and the calling it in main program.
MATLAB CODE:
FUNCTION:
NON_CONSERVATIVE:
function [mfr,v,t,p,rho,m_throat,p_throat,t_throat,rho_throat,x]= non_conservative(n,nt)
x=linspace(0,3,n); %meshing the domain
dx=x(2)-x(1); %element size
gama=1.4; %gamma value
throat=(n+1)/2; %node number of the throat
%intial conditions
rho=1-0.3146.*x;
t=1-0.2314.*x;
v=(0.1+1.09*x).*t.^0.5;
%area
a=1+2.2*(x-1.5).^2;
%time steps & time step size calulation based on courant number
w=nt;
c=0.5;
dt=min(c.*dx./(sqrt(t)+v));
for k=1:w %time loop
rho_old=rho;
v_old=v;
t_old=t; %saving the intial values
%predictor step
for j =2:n-1
%drho_dt_p=-rho(j)*(v(j+1)-v(j))/dx-rho(j)*v(j)*((log(a(j+1))-log (a(j)))/dx)-v(j)*((rho(j+1)-rho(j))/dx);
dvdx=(v(j+1)-v(j))/dx;
drhodx=((rho(j+1)-rho(j))/dx);
dtdx=(t(j+1)-t(j))/dx;
dlogadx=(log(a(j+1))-log(a(j)))/dx;
%continuity equations in non conservative form
drhodt_p(j)=-rho(j)*dvdx-rho(j)*v(j)*dlogadx-v(j)*drhodx;
% momentum equations in non conservative form
dvdt_p(j)=-v(j)*dvdx-(1/gama)*(dtdx+(t(j)/rho(j))*drhodx);
%energy equations in non conservative form
dtdt_p(j)=-v(j)*dtdx-(gama-1)*t(j)*(dvdx+v(j)*dlogadx);
rho(j)=rho(j)+drhodt_p(j)*dt; %solution update after prdictor step
v(j)=v(j)+dvdt_p(j)*dt;
t(j)=t(j)+dtdt_p(j)*dt;
end
%corrector step
for j =2:n-1
%drho_dt_p=-rho(j)*(v(j+1)-v(j))/dx-rho(j)*v(j)*((log(a(j+1))-log (a(j)))/dx)-v(j)*((rho(j+1)-rho(j))/dx);
dvdx=(v(j)-v(j-1))/dx;
drhodx=((rho(j)-rho(j-1))/dx);
dtdx=(t(j)-t(j-1))/dx;
dlogadx=(log(a(j))-log(a(j-1)))/dx;
drhodt_c(j)=-rho(j)*dvdx-rho(j)*v(j)*dlogadx-v(j)*drhodx;
dvdt_c(j)=-v(j)*dvdx-(1/gama)*(dtdx+(t(j)/rho(j))*drhodx);
dtdt_c(j)=-v(j)*dtdx-(gama-1)*t(j)*(dvdx+v(j)*dlogadx);
end
%average time derivative
drhodt=0.5*(drhodt_p+drhodt_c);
dvdt=0.5*(dvdt_p+dvdt_c);
dtdt=0.5*(dtdt_p+dtdt_c);
%final solution update
for i=2:n-1
rho(i)=rho_old(i)+drhodt(i)*dt;
v(i)=v_old(i)+dvdt(i)*dt;
t(i)=t_old(i)+dtdt(i)*dt;
end
%bc inlet
v(1)=2*v(2)-v(3);
%outlet
v(n)=2*v(n-1)-v(n-2);
rho(n)=2*rho(n-1)-rho(n-2);
t(n)=2*t(n-1)-t(n-2);
%pressure
p=rho.*t;
%mach number
m=v./(t.^0.5);
%mass flow rate
mfr=rho.*v.*a;
if k==10
figure(1) %mass flow rate @ different time steps vs (analytical) mass flow rate
plot(x,mfr,'r')
hold on
elseif k==300
figure(1)
plot(x,mfr,'g')
hold on
elseif k==500
figure(1)
plot(x,mfr,'b')
hold on
elseif k==700
figure(1)
plot(x,mfr,'k')
xlabel('x/L')
ylabel('Mass Flow Rate')
title('Mass flow rate at various time steps -Non-Conservative form')
hold on
line([0 3],[0.579 0.579],'Color','m','Marker','d','Markersize',10) %analytical mass flow rate = 0.579
legend('10dt','300dt','500dt','700dt','Analytical','Location','Northeast')
hold on
end
figure(2)%steady state distribution
subplot(5,1,1)
plot(x,t,'b')
ylabel('T/T_{0}')
subplot(5,1,2)
plot(x,p,'k')
ylabel('P/P_{0}')
subplot(5,1,3)
plot(x,v,'k')
ylabel('V/a_{0}')
subplot(5,1,4)
plot(x,rho,'g')
ylabel('rho/rho_{0}')
subplot(5,1,5)
plot(x,m,'y')
ylabel('Mach no')
xlabel('x/L')
title('Steady state distribution-Non-Conservative form')
%saving the throat values of primitive variables for different time
%steps
t_throat(k)=t(throat);
p_throat(k)=p(throat);
rho_throat(k)=rho(throat);
m_throat(k)=m(throat);
figure(3)%time variation @ throat
subplot(4,1,1)
plot(t_throat,'k')
ylabel('T/T_{0}')
subplot(4,1,2)
plot(p_throat,'k')
ylabel('P/P_{0}')
subplot(4,1,3)
plot(rho_throat,'k')
ylabel('rho/rho_{0}')
subplot(4,1,4)
plot(m_throat,'k')
ylabel('Mach no')
xlabel('No of time steps')
title('Time variation-Non-Conservative form')
end
endFUNCTION 2:
CONSERVATIVE FORM:
function [mfr,v,t,p,rho,m_throat,p_throat,t_throat,rho_throat]= conservative(n,nt)
x=linspace(0,3,n); %meshing the domain
dx=x(2)-x(1); %element size
gama=1.4; %gamma value
throat=(n+1)/2; %node number of the throat
a=1+2.2*(x-1.5).^2;
for i=1:length(x) %intial conditions
if x(i)>= 0 && x(i)<= 0.5
rho(i)=1;
t(i)=1;
elseif x(i)>=0.5 && x(i)<=1.5
rho(i)=1-0.366*(x(i)-0.5);
t(i)=1-0.167*(x(i)-0.5);
elseif x(i)>=1.5 && x(i)<= 3.0
rho(i)=0.634-0.3879*(x(i)-1.5);
t(i)=0.833-0.3507*(x(i)-1.5);
end
end
v=0.59./(rho.*a); %calcualting v & rho from the fixed intial conditions
p=rho.*t;
%initial solution vectors
u1=rho.*a;
u2=rho.*a.*v;
u3=rho.*a.*(t./(gama-1)+(gama/2).*v.^2);
%time steps & time step size calulation based on courant number
w=nt;
c=0.5;
dt=min(c.*dx./(sqrt(t)+v));
for k=1:w %time loop
u1_old=u1;
u2_old=u2;
u3_old=u3; %saving the intial values
f1=u2; %flux vectors calculated from the initial solution vector
f2=(u2.^2./u1)+((gama-1)/(gama)*(u3-(gama*u2.^2)./(2*u1)));
f3=((gama*u2.*u3)./u1)-((gama*(gama-1))/2)*((u2.^3)./(u1.^2));
%predictor step
for j=2:n-1
%source term
j2(j)=(1/gama)*rho(j)*t(j)*((a(j+1)-a(j))/dx);
df1dx=(f1(j+1)-f1(j))/dx;
df2dx=(f2(j+1)-f2(j))/dx;
df3dx=(f3(j+1)-f3(j))/dx;
du1dt_p(j)=-df1dx; %continuity equations in conservative form
du2dt_p(j)=-df2dx+j2(j); % momentum equations in conservative form
du3dt_p(j)=-df3dx; %energy equations in conservative form
u1(j)=u1(j)+du1dt_p(j)*dt; %solution vectors are updated after prdictor step
u2(j)=u2(j)+du2dt_p(j)*dt;
u3(j)=u3(j)+du3dt_p(j)*dt;
end
rho=u1./a; %calculting primitive variables from the predictor solution vectors
v=u2./u1;
t=(gama-1)*(u3./u1-(gama/2)*v.^2);
p=rho.*t;
f1=u2; %updating flux vectors from the predictor solution vectors
f2=((u2.^2)./u1)+((gama-1)/gama)*(u3-((gama*u2.^2)./(2*u1)));
f3=(gama*u2.*u3./u1)-(gama*(gama-1)/2)*(u2.^3./u1.^2);
%corrector step
for j=2:n-1
%source term
j2(j)=(1/gama)*rho(j)*t(j)*((a(j)-a(j-1))/dx);
df1dx=(f1(j)-f1(j-1))/dx;
df2dx=(f2(j)-f2(j-1))/dx;
df3dx=(f3(j)-f3(j-1))/dx;
du1dt_c(j)=-df1dx;
du2dt_c(j)=-df2dx+j2(j);
du3dt_c(j)=-df3dx;
end
%average time derivative
du1dt=0.5*(du1dt_p+du1dt_c);
du2dt=0.5*(du2dt_p+du2dt_c);
du3dt=0.5*(du3dt_p+du3dt_c);
for m=2:n-1 %final solution update
u1(m)=u1_old(m)+du1dt(m)*dt;
u2(m)=u2_old(m)+du2dt(m)*dt;
u3(m)=u3_old(m)+du3dt(m)*dt;
end
%bc @ inlet
u1(1)=rho(1).*a(1);
u2(1)=(2*u2(2))-u2(3);
u3(1)=u1(1)*(t(1)/(gama-1)+(gama/2)*v(1).^2);
%bc @ outlet
u1(n)=2*u1(n-1)-u1(n-2);
u2(n)=2*u2(n-1)-u2(n-2);
u3(n)=2*u3(n-1)-u3(n-2);
rho=u1./a; %extracting primitive variables from the solution vectors
v=u2./u1;
t=(gama-1)*((u3./u1)-(gama/2)*v.^2);
p=rho.*t;
%mach no calculation
m=(v)./(t.^0.5);
mfr=rho.*v.*a; %mass flow rate calculation
if k==100 %mass flow rate @ different time steps vs mass flow rate (analytical)
figure(4)
plot(x,mfr,'r')
hold on
elseif k==300
figure(4)
plot(x,mfr,'g')
hold on
elseif k==500
figure(4)
plot(x,mfr,'b')
hold on
elseif k==700
figure(4)
plot(x,mfr,'k')
xlabel('x')
ylabel('mass flow rate')
title('Mass flow rate at various time steps Conservative form')
hold on
line([0 3],[0.579 0.579],'Color','m','Marker','d','Markersize',10) %analytical mass flow rate = 0.579
legend('100dt','300dt','500dt','700dt','Analytical','Location','Northeast')
hold on
end
figure(5) %steady state distribution
subplot(5,1,1)
plot(x,t,'b')
ylabel('T/T_{0}')
subplot(5,1,2)
plot(x,p,'k')
ylabel('P/P_{0}')
subplot(5,1,3)
plot(x,v,'k')
ylabel('V/a_{0}')
subplot(5,1,4)
plot(x,rho,'g')
ylabel('rho/rho_{0}')
subplot(5,1,5)
plot(x,m,'y')
ylabel('Mach no')
xlabel('x/L')
title('Steady state distribution-Conservative form')
%saving the throat values of primitive variables for different time
%steps
t_throat(k)=t(throat);
p_throat(k)=p(throat);
rho_throat(k)=rho(throat);
m_throat(k)=m(throat);
figure(6) %time variation @ throat
subplot(4,1,1)
plot(t_throat,'k')
ylabel('T/T_{0}')
subplot(4,1,2)
plot(p_throat,'k')
ylabel('P/P_{0}')
subplot(4,1,3)
plot(rho_throat,'k')
ylabel('rho/rho_{0}')
subplot(4,1,4)
plot(m_throat,'k')
ylabel('Mach no')
xlabel('No of time steps')
title('Time variation-Conservative form')
end
end
MAIN CODE:
clear all
close all
clc
n=61; %no of grid points
nt=1400; %number of time steps
%calling Conservative function
[mfr_NON_consv,v,t,p,rho,m_throat,p_throat,t_throat,rho_throat,x]=non_conservative(n,nt);
%calling Non-Conservative function
[mfr_consv,v_consv,t_consv,p_consv,rho_consv,m_throat_c,p_throat_C,t_throat_C,rho_throat_C]=conservative(n,nt);
%comparing mass flow rate of conservative, non conservative & analytical
%forms
figure(7)
plot(x,mfr_NON_consv,'r')
hold on
plot(x,mfr_consv,'b')
hold on
line([0 3],[0.579 0.579],'Color','k','Marker','d','Markersize',10) %analytical mass flow rate = 0.579
hold on
xlabel('x/L')
ylabel('Mass flow rate')
legend('Non Conservative','Conservative','Analytical')OUTPUT:
The plots for temperature,pressure,mach no and density for both non conservative and conservative forms.
NON CONSERVATIVE FORM:

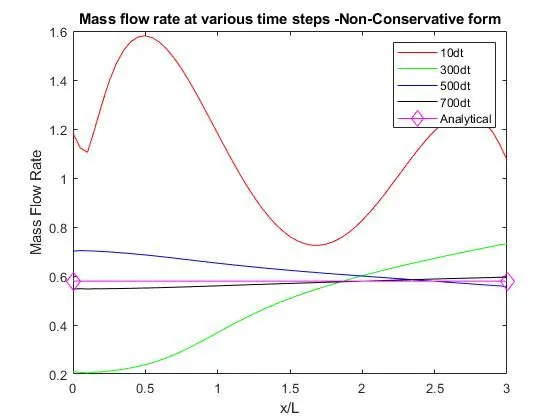

Mass flow rate:

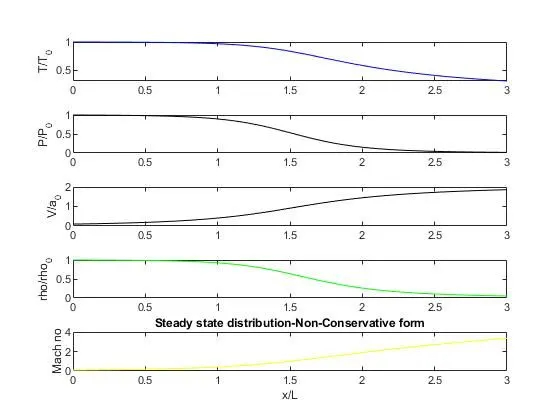

steady state distrubution - Non conservative form.

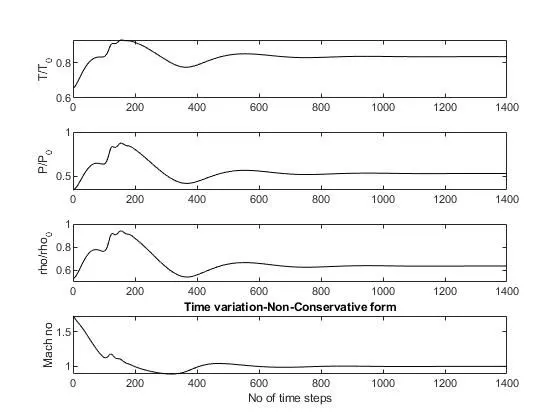

Time variation:
CONSERVATIVE FORm:

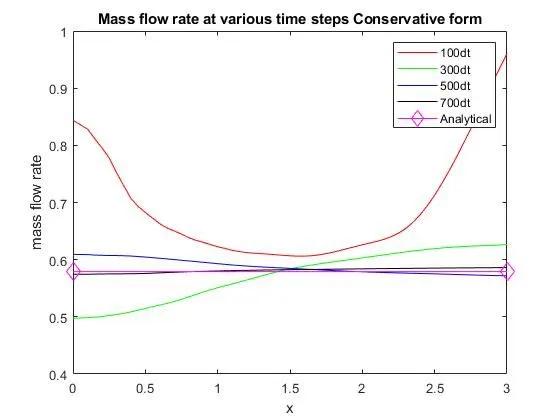

Mass flow rate:
steady state distrubution:

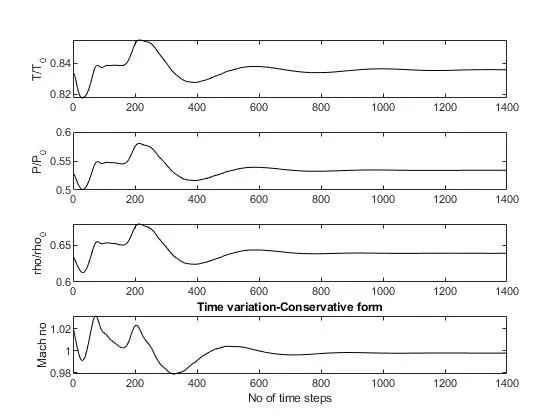

Time variation:
