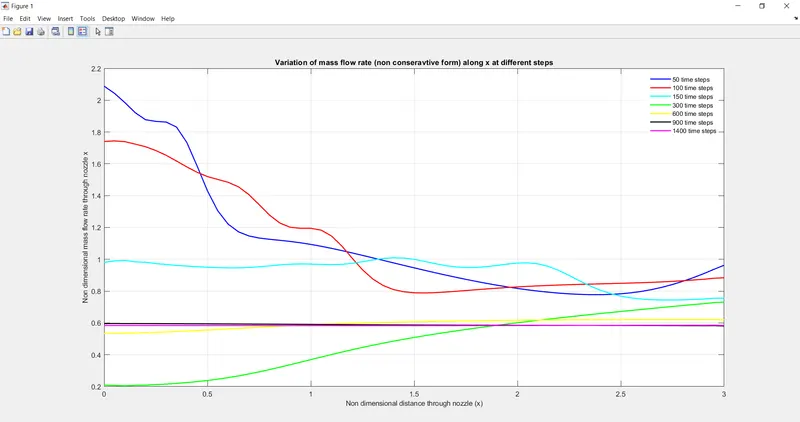

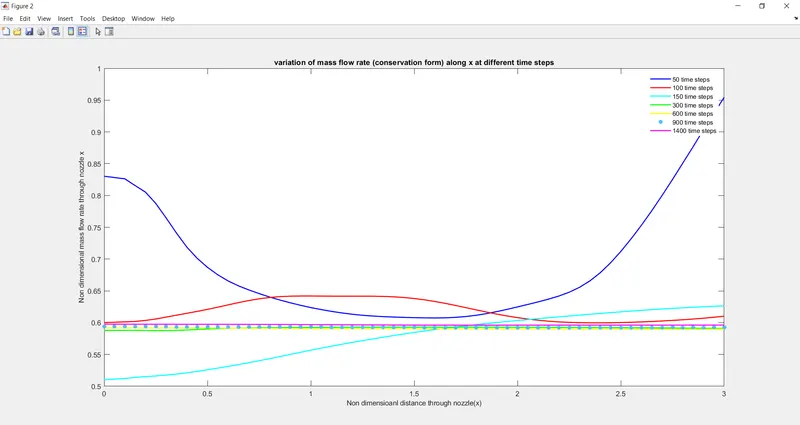

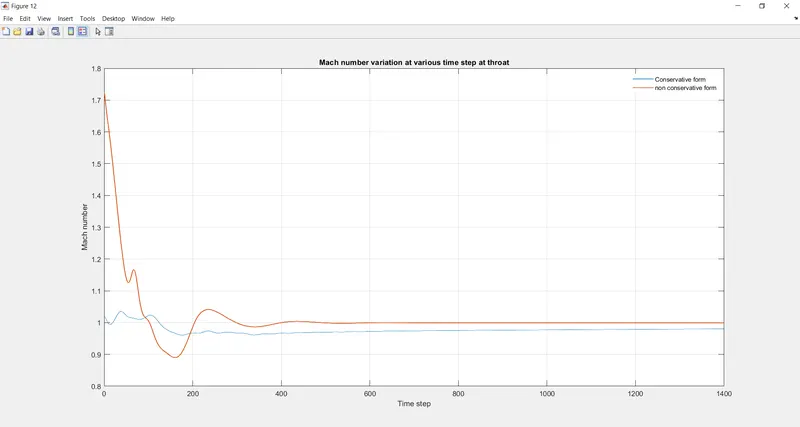

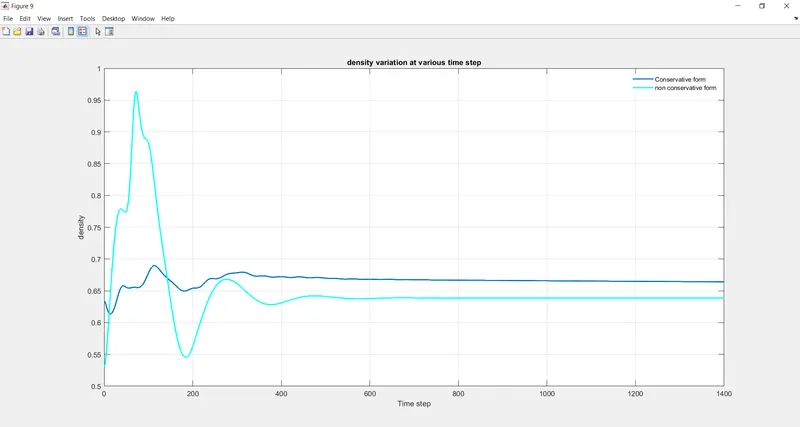

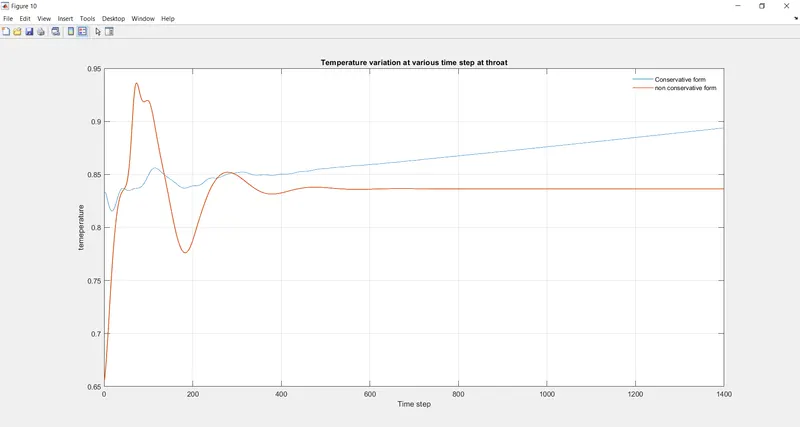

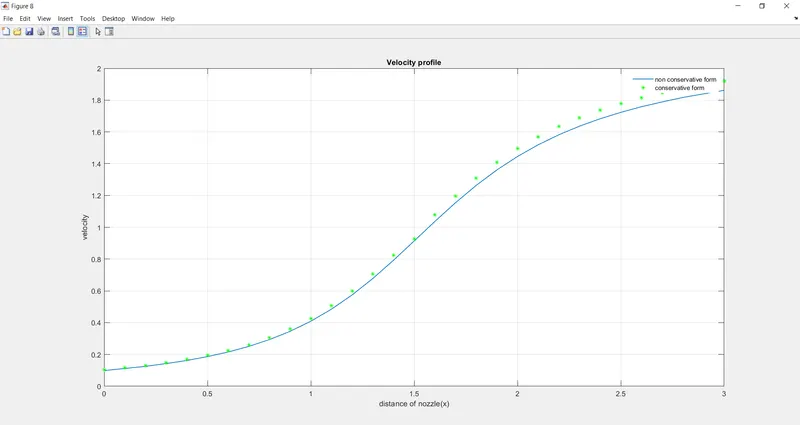

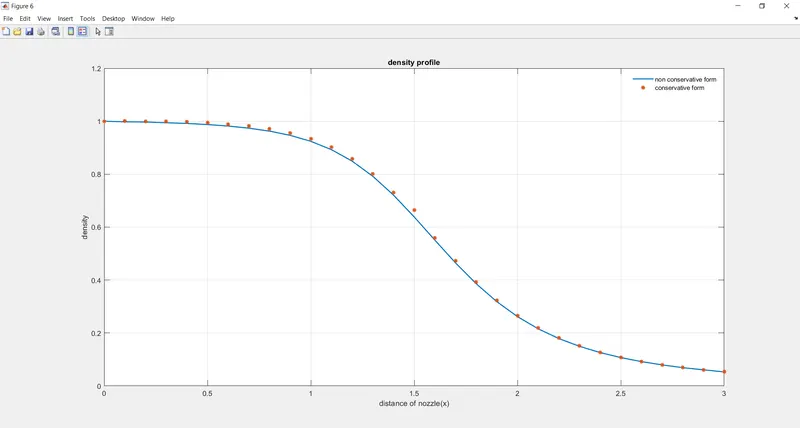

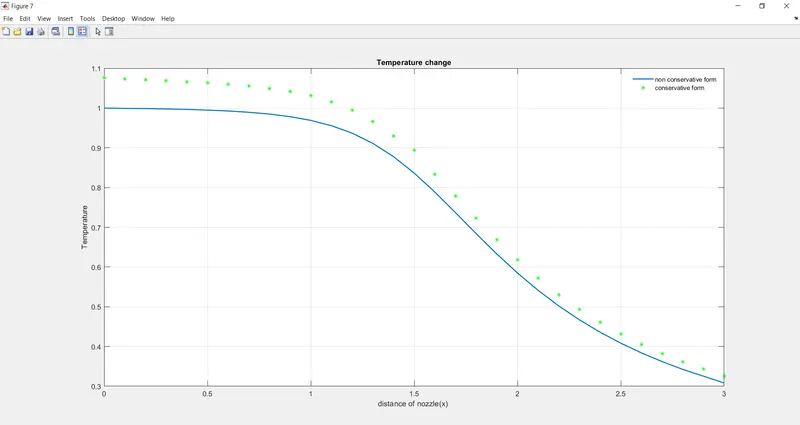

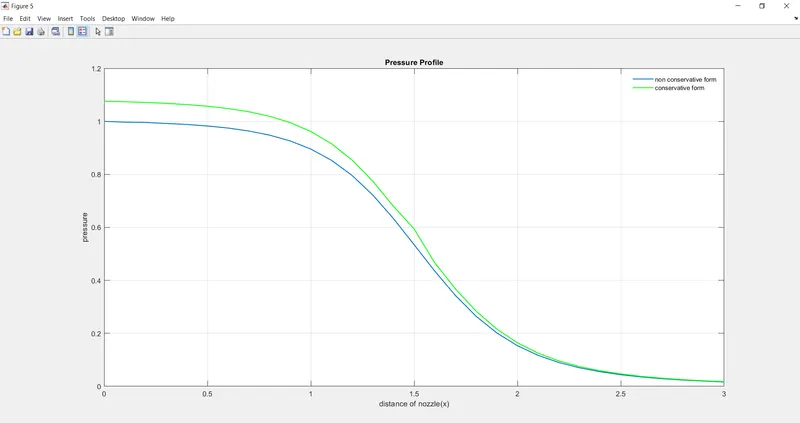

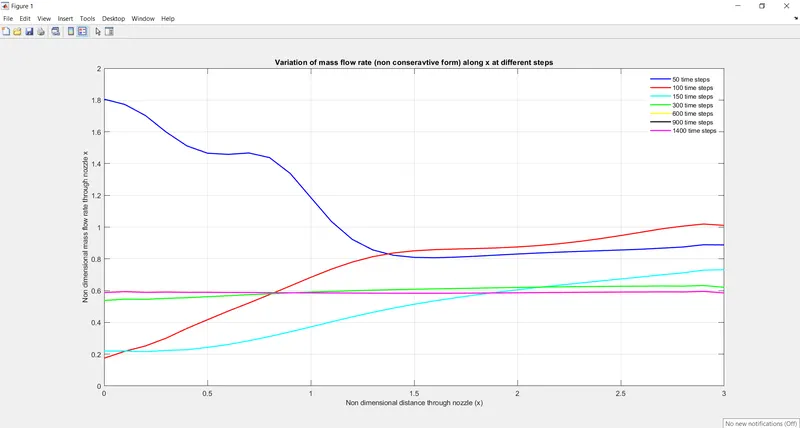

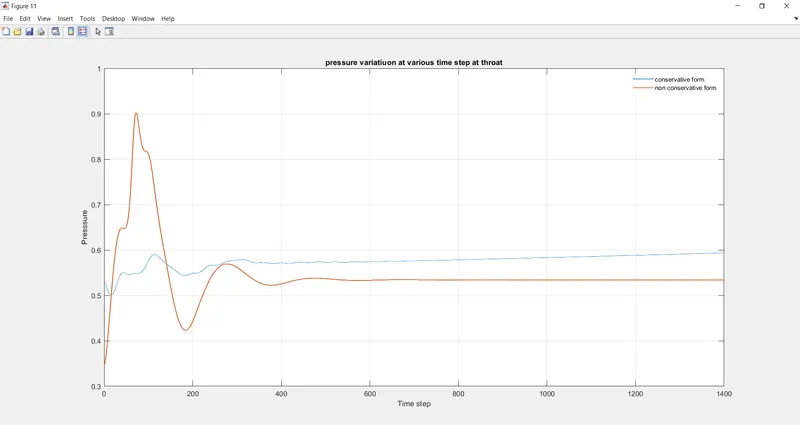

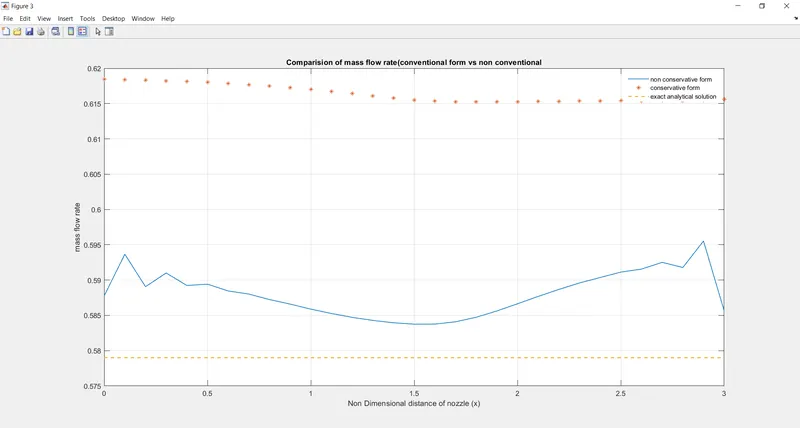

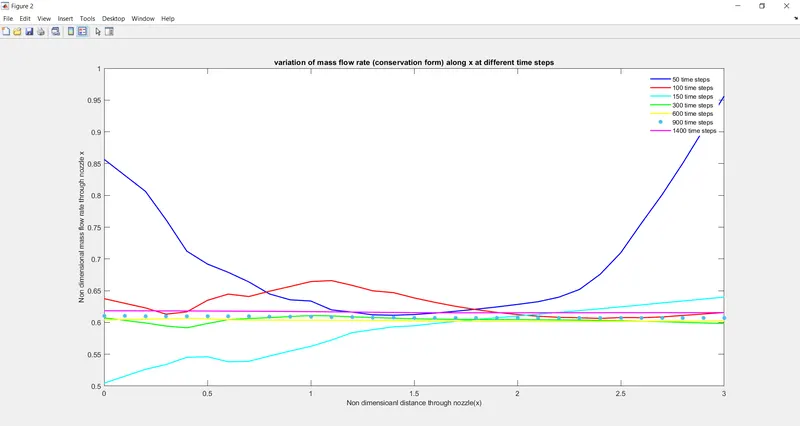

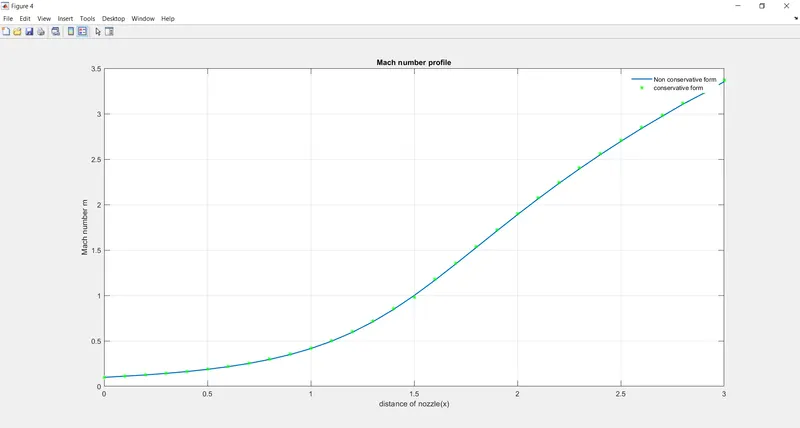

Week 7 - Simulation of a 1D Super-sonic nozzle flow simulation using Macormack Method

 Simulation of flow through a pipe in openfoam  We consider a cylindrical pipe with the fluid water entering the pipe with the laminar flow .The aim is to simulate the flow through a section of pipe and compare the flow with the Hagen Poisuilles equation.   Hagen Poiseuuiles Equation   In nonideal fluid…

                       Simulation of flow through a pipe in openfoam  We consider a cylindrical pipe with the fluid water entering the pipe with the laminar flow .The aim is to simulate the flow through a section of pipe and compare the flow with the Hagen Poisuilles equation.   Hagen Poiseuuiles Equation   In nonideal…

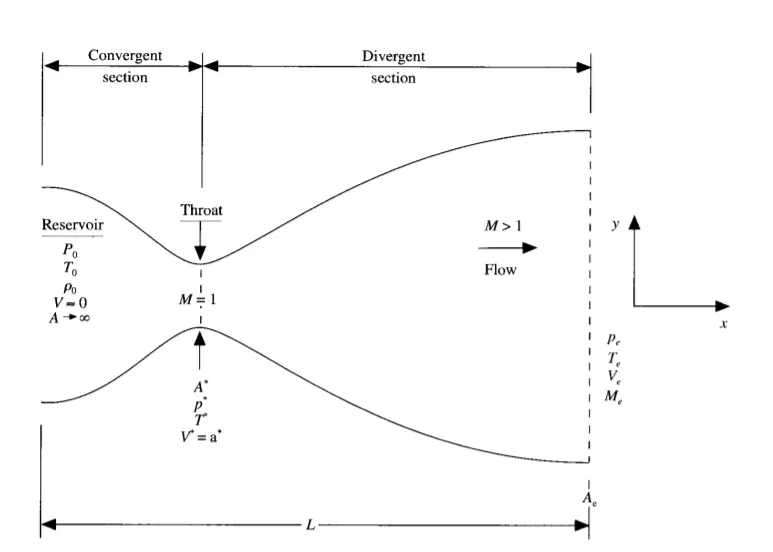

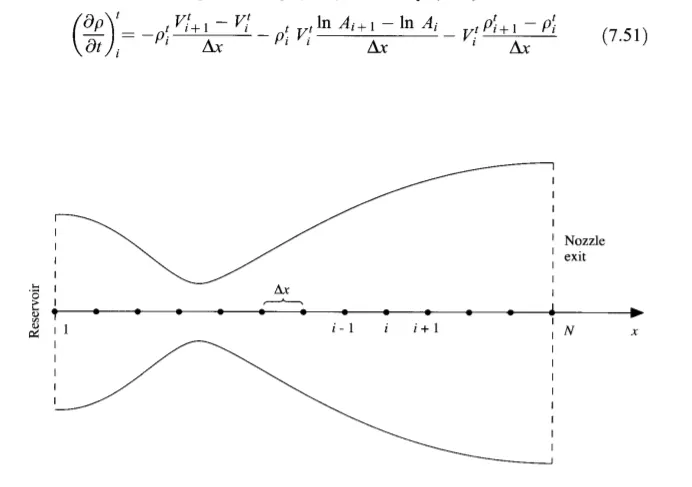

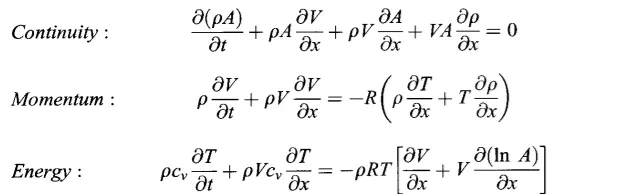

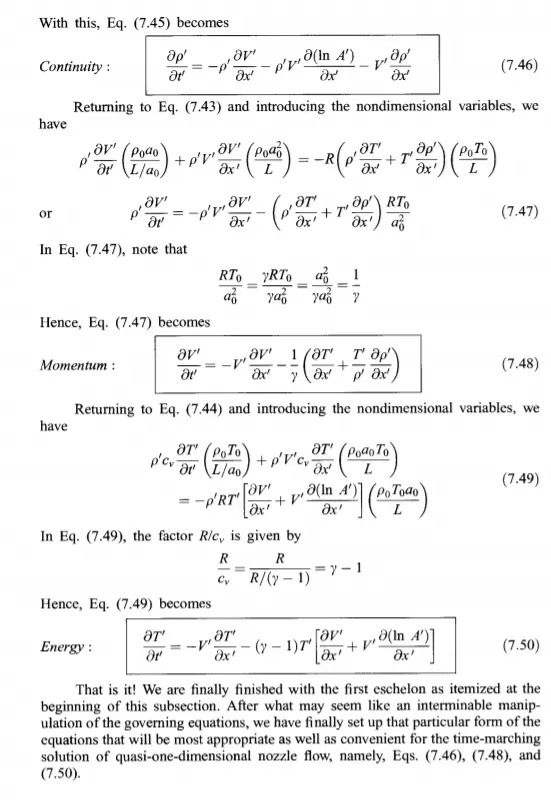

            INTRODUCTION TO THE GIVEN PROBLEM We consider the steady isoentropic flow through the convergent -divergent nozzle as given in diagram below.     The flow at the inlet to the nozzle comes from the reservoir is large (therotically `A ->oo`0 and hence the velocity is very small `(V->0)` .Thus ,`p_o` and `T_o`…

                                                                 To describe Finite volume method   Introduction: Finite volume Method: The finite volume method (FVM) is a method for representing and evaluating partial differential equations in the form of algebraic equations. In the finite volume method, volume integrals…

                                                                 THE  BLOCKMESH DRILL  Steps  : Creating a copy of tutorial of blockMesh. Then editing the BlockMeshdict file and controldict file along velocity and pressure file. Then we use paraFoam to plot the graphs. conclusion Explanation: After opening the terminaml…

    THE MID TERM PROJECT  SOLVING STEADY AND UNSTEADY 2D HEAT CONDUCTION THEORY:The transfer of heat is usually called heat condurction.This is a quite intresting phenomenon to research with. Heat equation:he heat equation is a certain partial differential equation. Solutions of the heat equation…

                               EXPLANATION OF THE CODE We start the code with the refreshing statements like clear all, close all, clc. The schemes used inorder to solve the problem. 1.Skewed Left Difference scheme. 2.Skewed Right Difference…
