In this project, the student will have to setup the domain for analysis of flow over an airfoil at subsonic and supersonic regime. The airfoil will be analysed at 3 different angles of attack and the lift and drag coefficient will be compared in all cases
- Create domain for flow analysis
- Setup simulation for subsonic and supersonic regimes at
○5, 10, 15 angle of attack
In this Challenge, we are going to simulate the flow around a NACA0012 Airfoil in 3 different angles and airspeeds.
The angles are 5, 10 and 15 degree AOA.
NACA 0012 Airfoil Cordinates
Polyline = true
1 1 0.00126
1 0.992704 0.002274
1 0.979641 0.004079
1 0.964244 0.006169
1 0.947231 0.008434
1 0.929323 0.010765
1 0.910956 0.013101
1 0.892372 0.01542
1 0.873723 0.0177
1 0.855041 0.019931
1 0.836311 0.022119
1 0.817558 0.024266
1 0.798819 0.026366
1 0.780088 0.028414
1 0.761336 0.030413
1 0.74256 0.03237
1 0.72378 0.034284
1 0.705012 0.036149
1 0.686255 0.037964
1 0.667502 0.039728
1 0.648751 0.04144
1 0.630004 0.043098
1 0.611266 0.044701
1 0.592538 0.046245
1 0.573821 0.047728
1 0.555117 0.049149
1 0.53643 0.050503
1 0.517763 0.051786
1 0.499117 0.052996
1 0.480488 0.054127
1 0.461875 0.055178
1 0.443287 0.056144
1 0.42474 0.057019
1 0.406241 0.057796
1 0.387789 0.058466
1 0.369372 0.059023
1 0.350989 0.059462
1 0.332648 0.059779
1 0.314366 0.059965
1 0.296159 0.060009
1 0.278033 0.059903
1 0.259997 0.059634
1 0.24206 0.059191
1 0.224236 0.058562
1 0.206544 0.057733
1 0.189011 0.056692
1 0.171676 0.055421
1 0.154596 0.053909
1 0.137852 0.052138
1 0.121548 0.050098
1 0.105827 0.047785
1 0.090903 0.04522
1 0.077039 0.042449
1 0.064541 0.039548
1 0.053594 0.036612
1 0.044211 0.033717
1 0.036254 0.030913
1 0.029567 0.028218
1 0.023982 0.025653
1 0.01931 0.023217
1 0.015371 0.020871
1 0.012012 0.018579
1 0.009117 0.016316
1 0.006653 0.014058
1 0.004621 0.011797
1 0.003007 0.009544
1 0.001777 0.007318
1 0.000894 0.005155
1 0.000322 0.003059
1 0.000036 0.001014
1 0.000036 -0.001014
1 0.000322 -0.003059
1 0.000894 -0.005155
1 0.001777 -0.007318
1 0.003007 -0.009544
1 0.004621 -0.011797
1 0.006653 -0.014058
1 0.009117 -0.016316
1 0.012012 -0.018579
1 0.015371 -0.020871
1 0.01931 -0.023217
1 0.023982 -0.025653
1 0.029567 -0.028218
1 0.036254 -0.030913
1 0.044211 -0.033717
1 0.053594 -0.036612
1 0.064541 -0.039548
1 0.077039 -0.042449
1 0.090903 -0.04522
1 0.105827 -0.047784
1 0.121548 -0.050098
1 0.137852 -0.052138
1 0.154596 -0.053909
1 0.171676 -0.055421
1 0.189011 -0.056692
1 0.206544 -0.057733
1 0.224236 -0.058562
1 0.24206 -0.059191
1 0.259997 -0.059634
1 0.278033 -0.059903
1 0.296159 -0.060009
1 0.314366 -0.059965
1 0.332648 -0.059779
1 0.350989 -0.059462
1 0.369372 -0.059023
1 0.387789 -0.058466
1 0.406241 -0.057796
1 0.42474 -0.057019
1 0.443287 -0.056144
1 0.461875 -0.055178
1 0.480488 -0.054127
1 0.499117 -0.052996
1 0.517763 -0.051786
1 0.53643 -0.050503
1 0.555117 -0.049149
1 0.573821 -0.047728
1 0.592538 -0.046245
1 0.611266 -0.044701
1 0.630004 -0.043098
1 0.648751 -0.04144
1 0.667502 -0.039728
1 0.686255 -0.037964
1 0.705012 -0.036149
1 0.72378 -0.034284
1 0.74256 -0.03237
1 0.761336 -0.030413
1 0.780088 -0.028414
1 0.798819 -0.026366
1 0.817558 -0.024266
1 0.836311 -0.022119
1 0.855041 -0.019931
1 0.873723 -0.0177
1 0.892372 -0.01542
1 0.910956 -0.013101
1 0.929323 -0.010765
1 0.947231 -0.008434
1 0.964244 -0.006169
1 0.979641 -0.004079
1 0.992704 -0.002274
1 1 -0.00126
1 1 0.00126Import this coordinates in SpaceClaim and the geometry can easily be drawn.

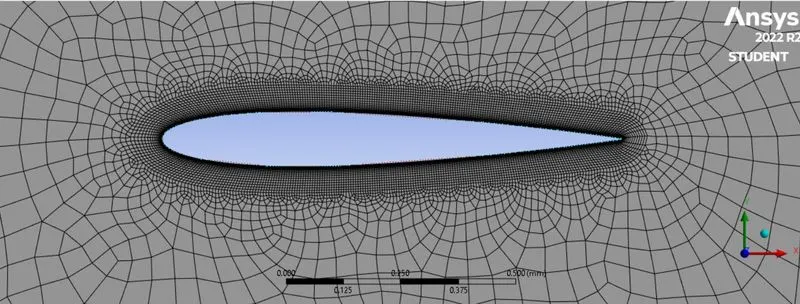

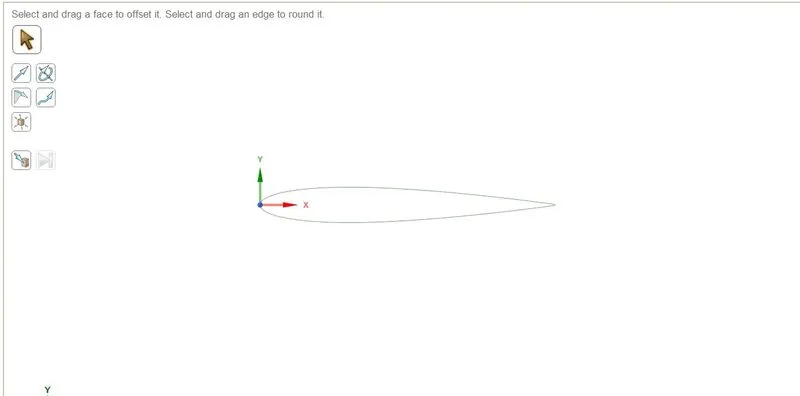

The geometry

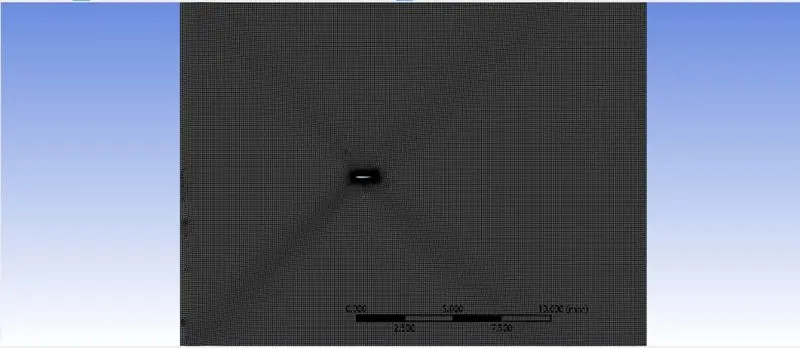

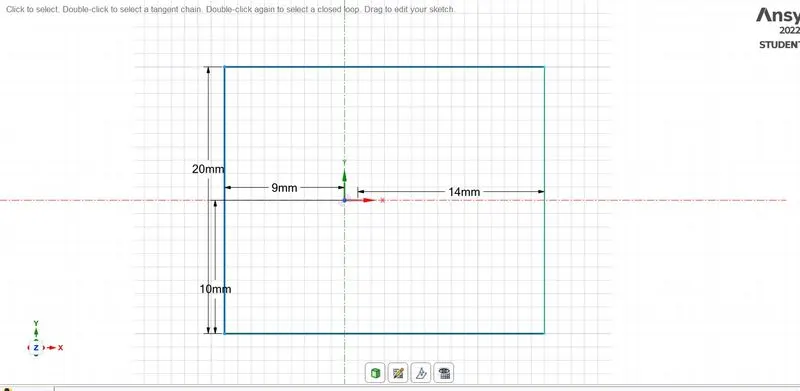

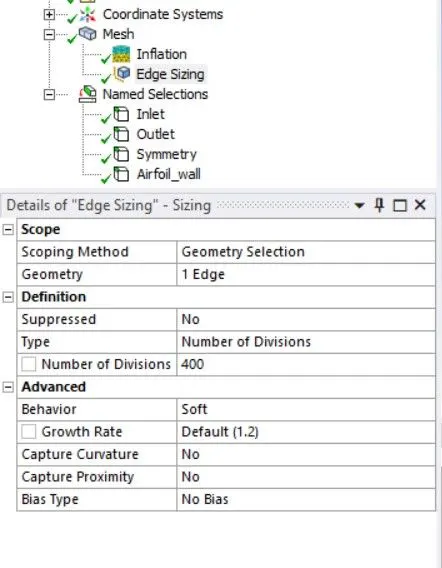

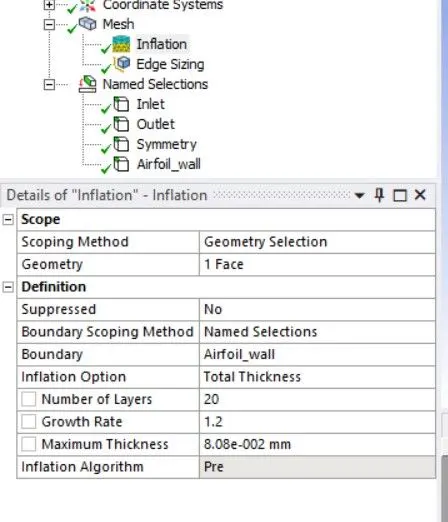

The domain or the enclosure for the simulation.

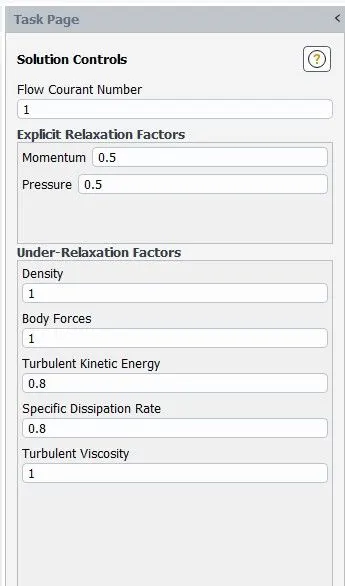

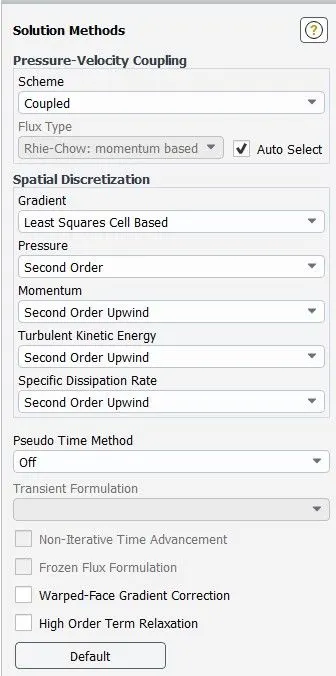

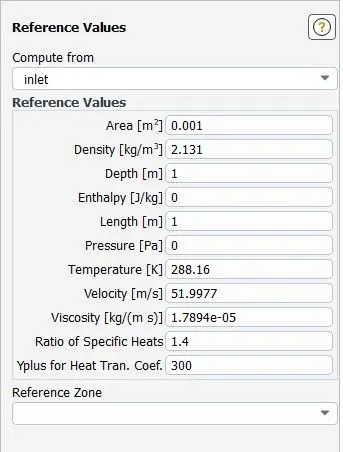

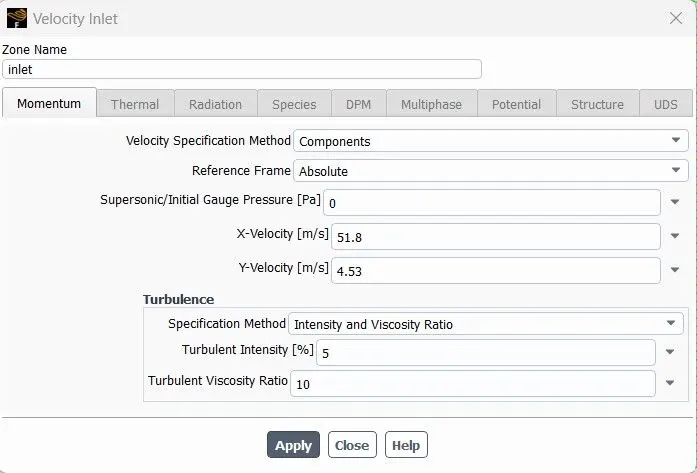

Velocity component at inlet (X): 51.21m/s
Velocity component at inlet (Y): 9.029m/s
Results

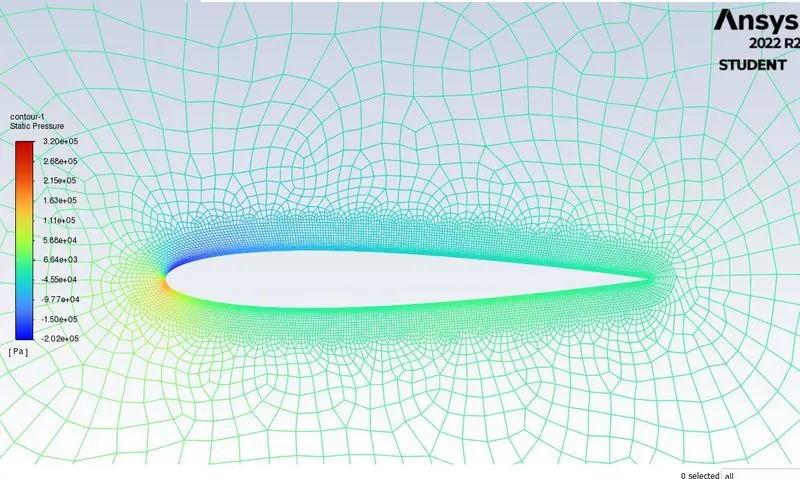

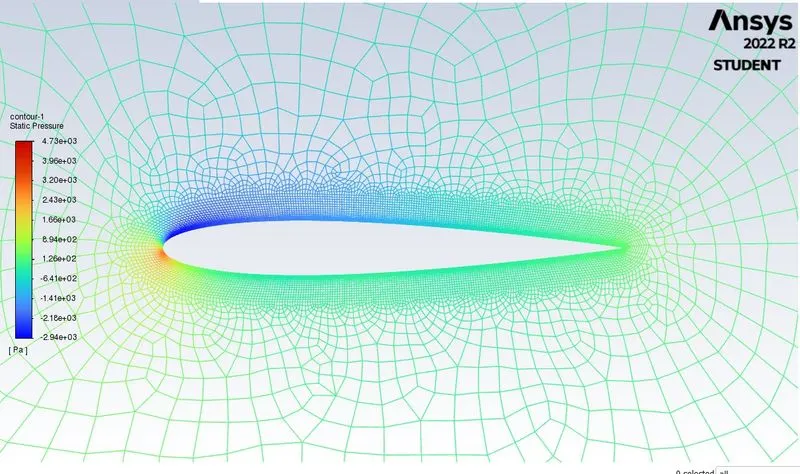

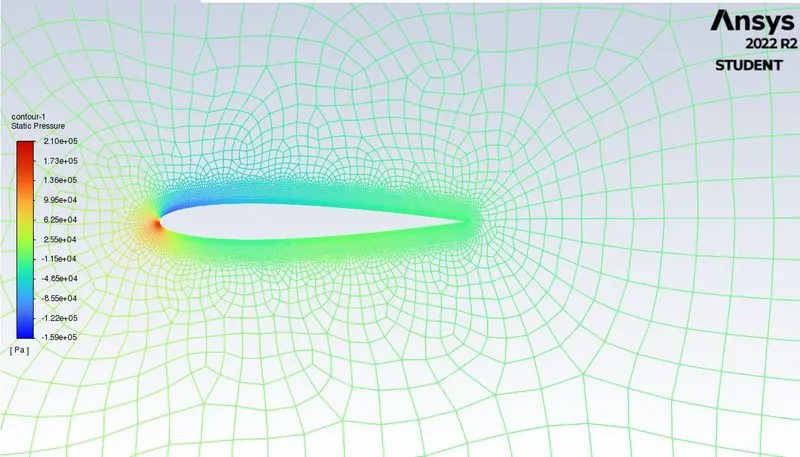

Pressure Contour

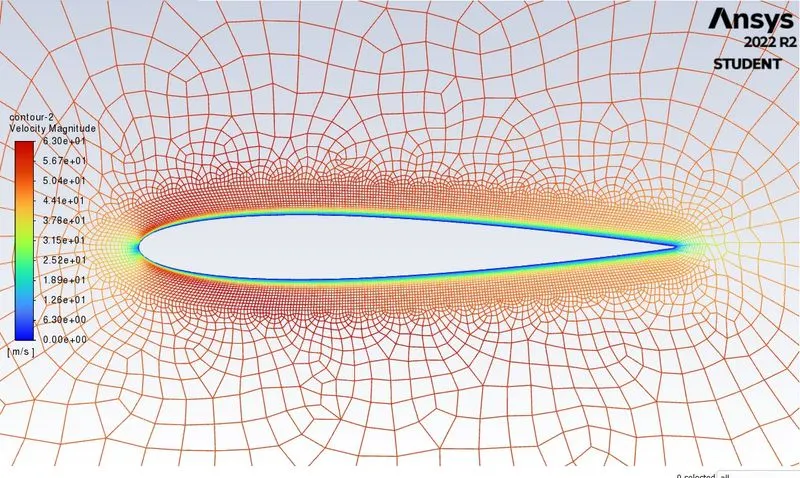

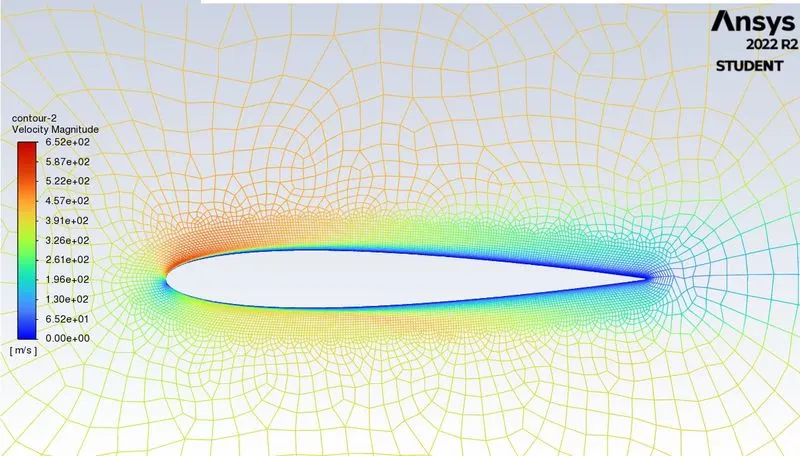

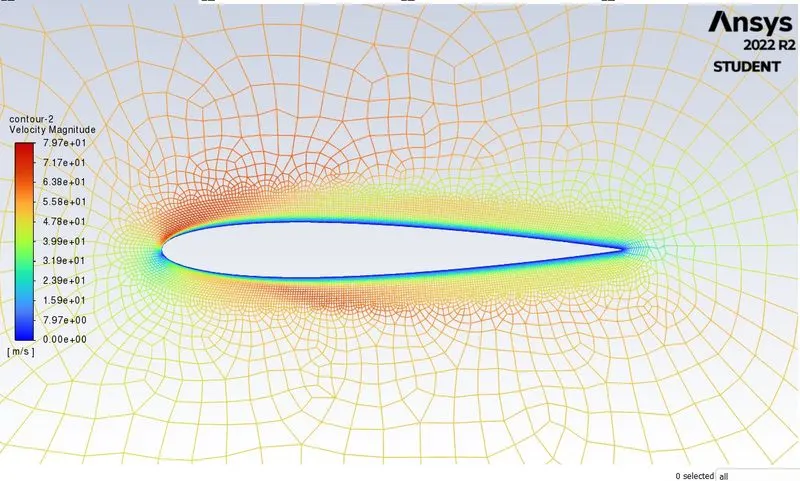

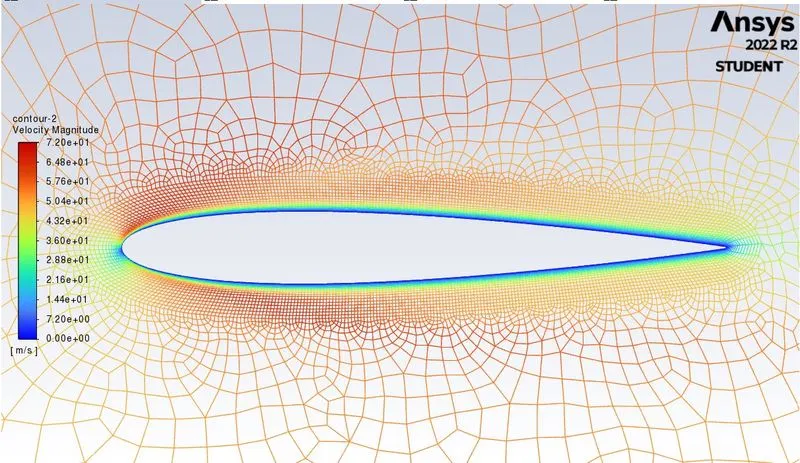

Velocity Contour

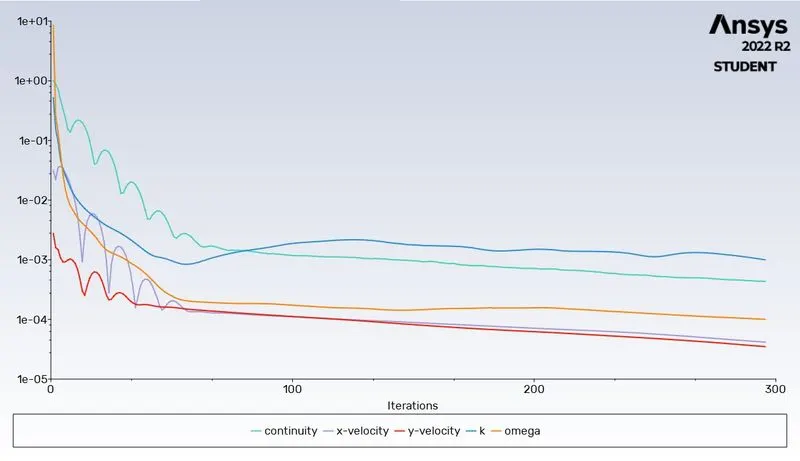

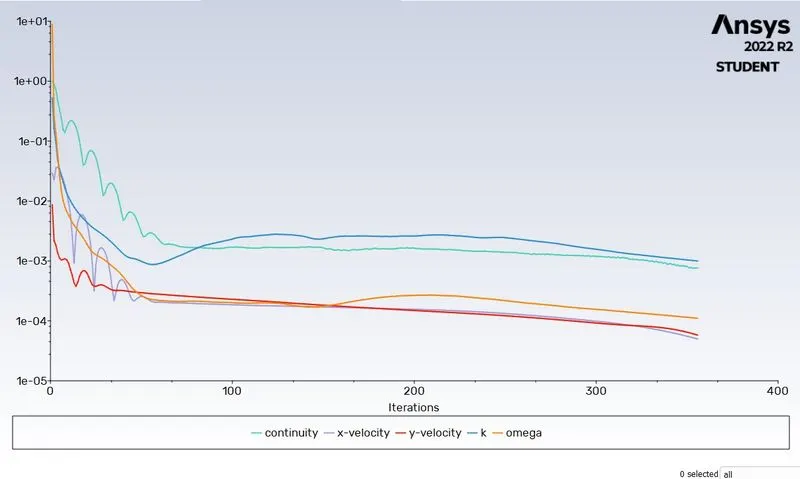

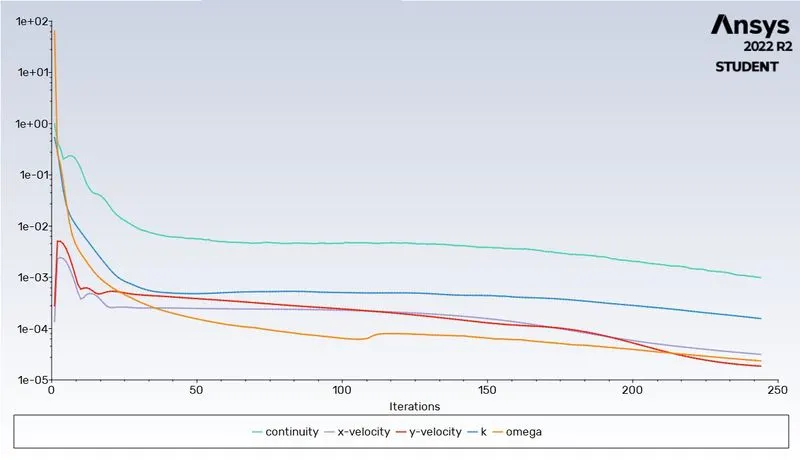

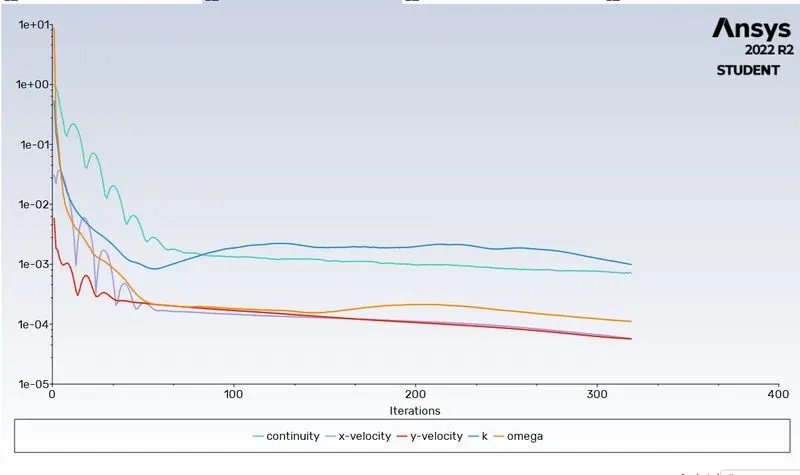

Scaled Residuals

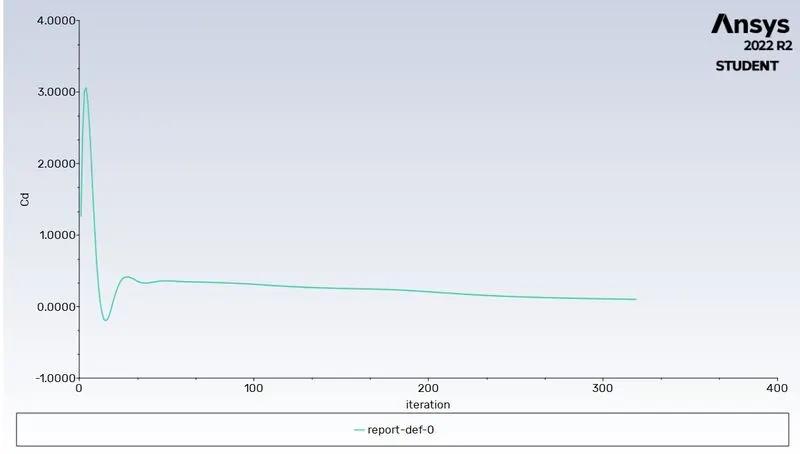

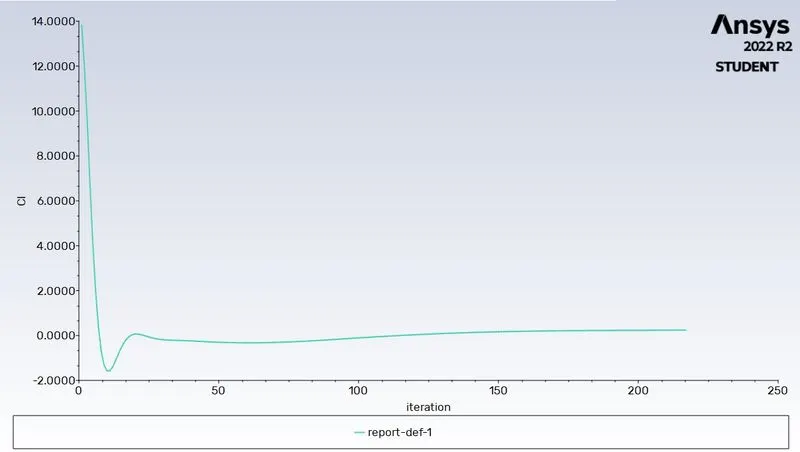

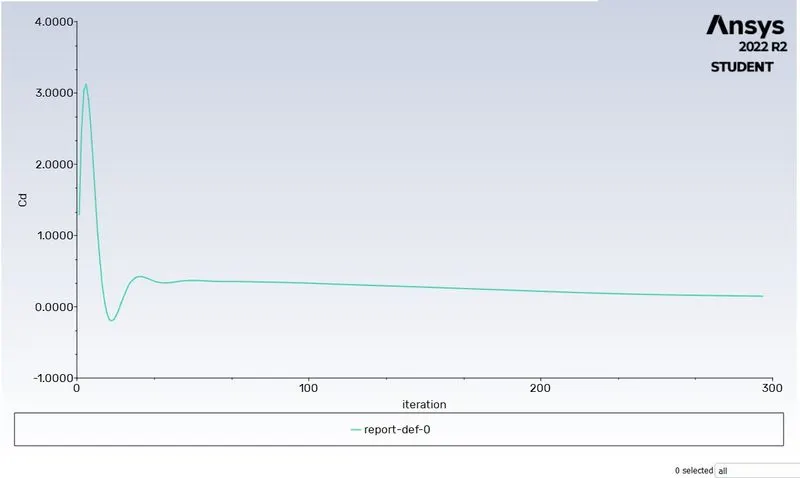

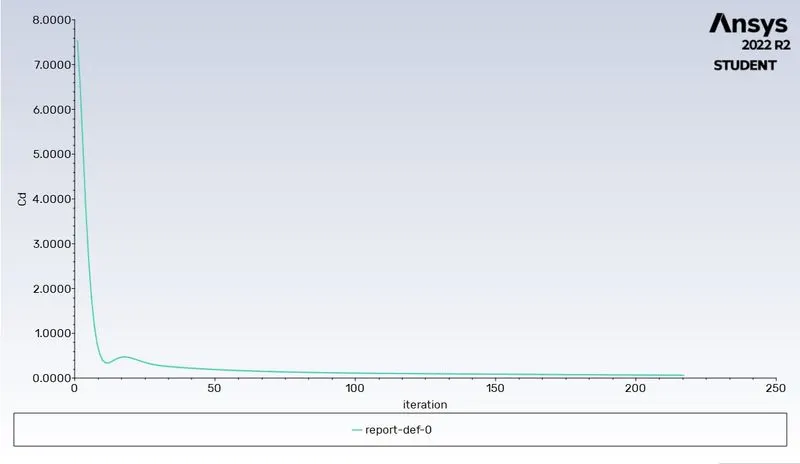

Coefficient of Drag Plot

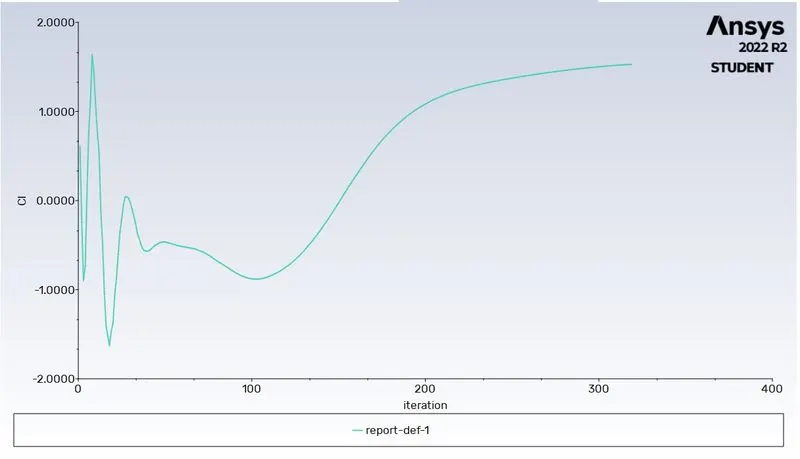

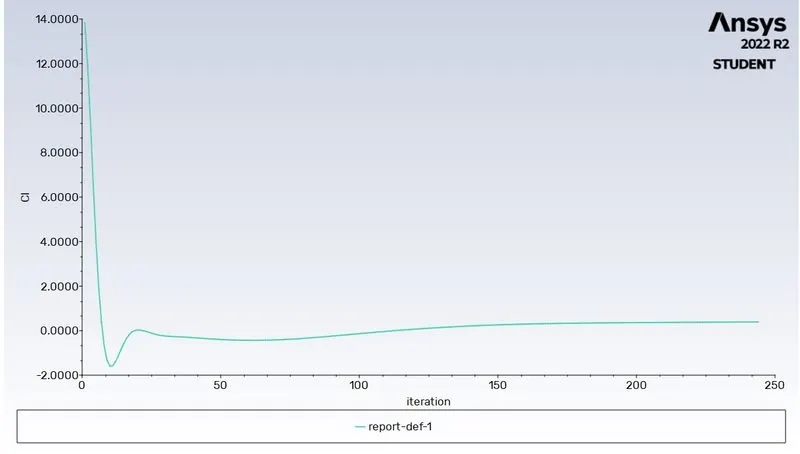

Coefficient of Lift Plot
CASE 3
The angle of Attack: 15 degrees
Velocity component at inlet (X): 50.22m/s
Velocity component at inlet (Y): 13.45m/s
Results

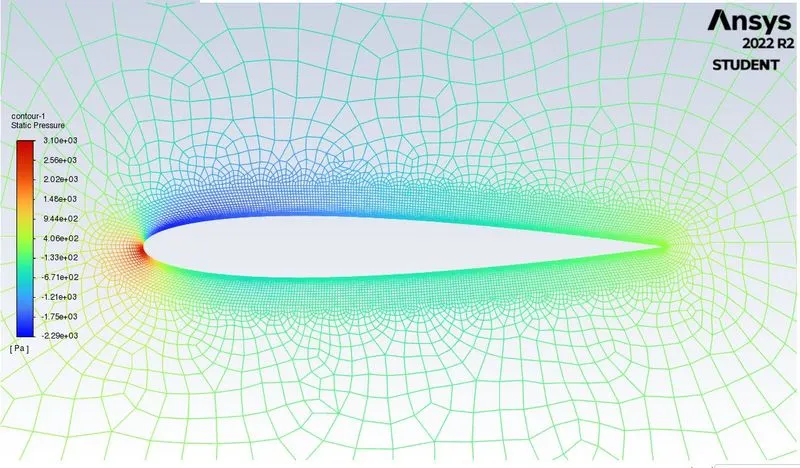

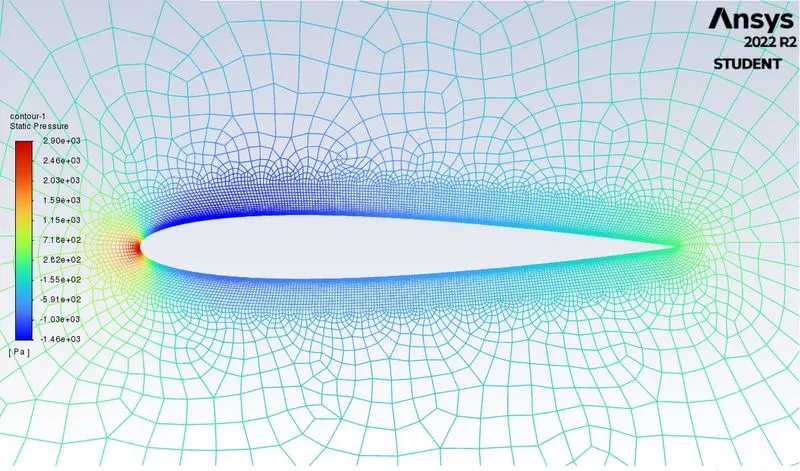

Static Pressure Contour
Velocity Contour

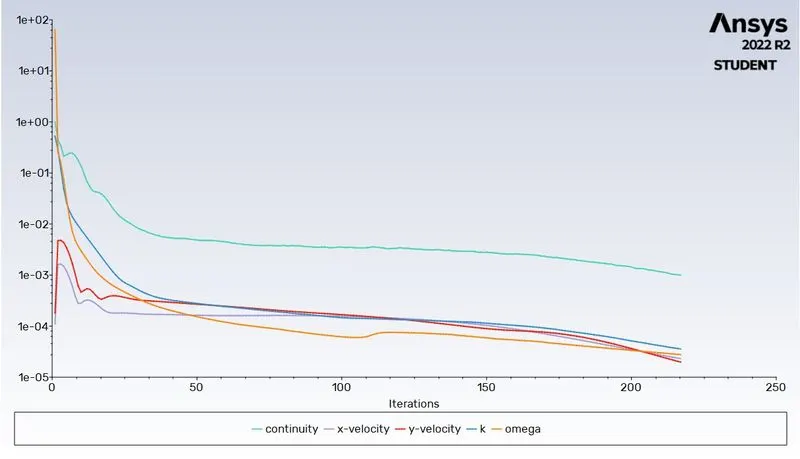

Residual Plot

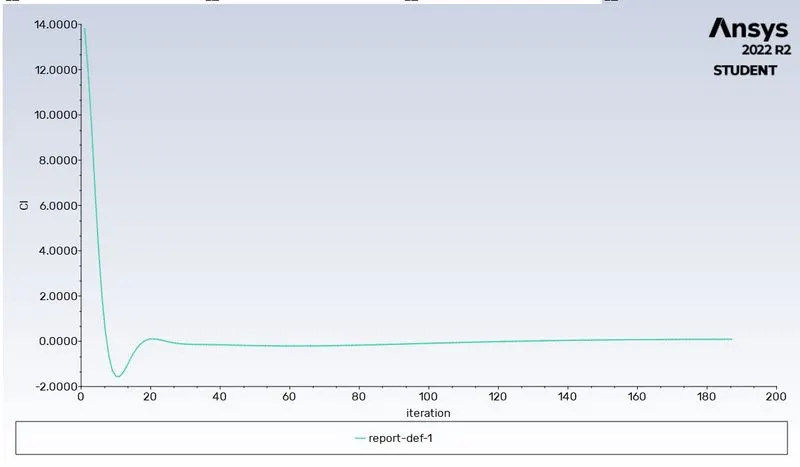

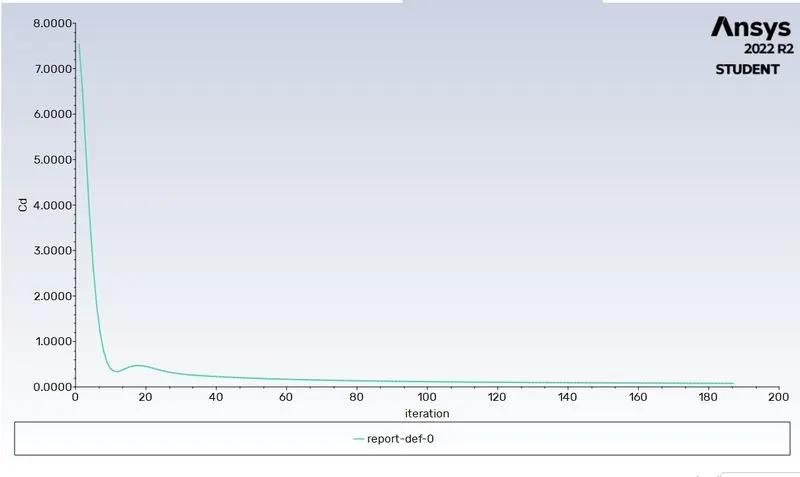

Coefficient of Drag Plot
Coefficient of Lift Plot
SUPERSONIC FLOW
CASE 1
Angle of Attack: 5 degrees

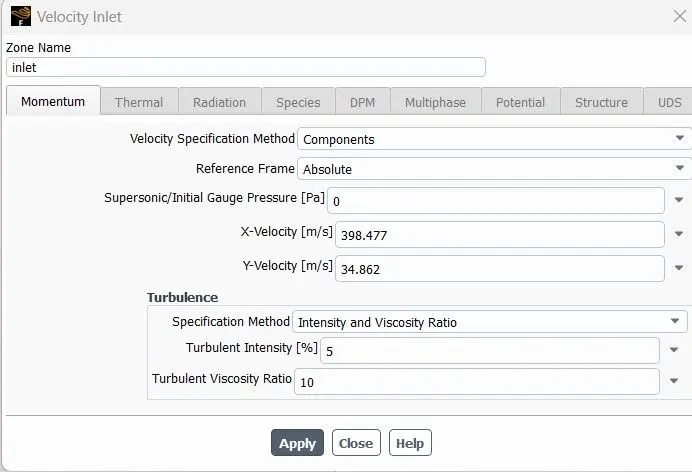

Velocity component at inlet (X): 398.477 m/s
Velocity component at inlet (Y): 34.862 m/s
Results

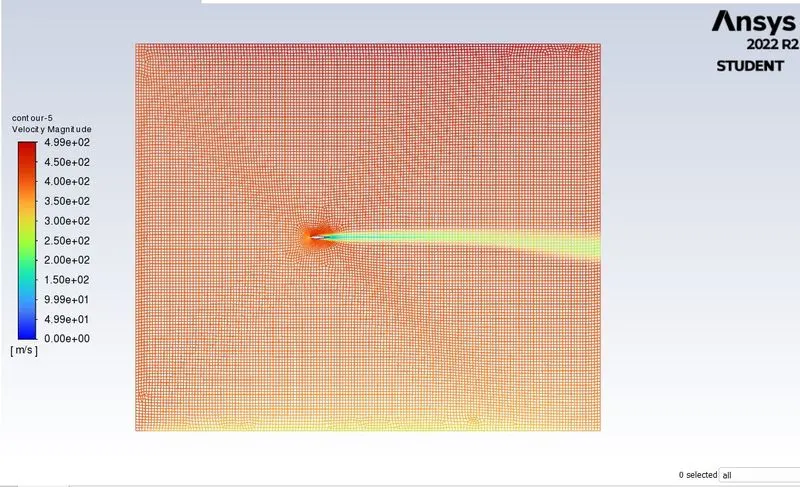

Velocity Contour
Pressure Contour

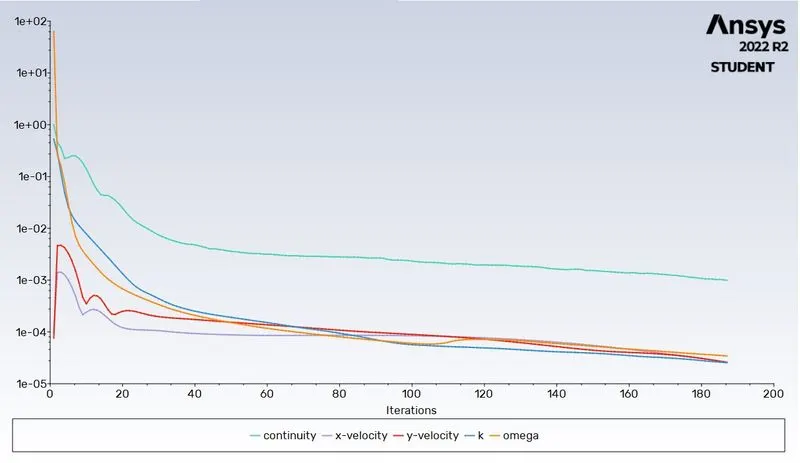

Scaled Residuals

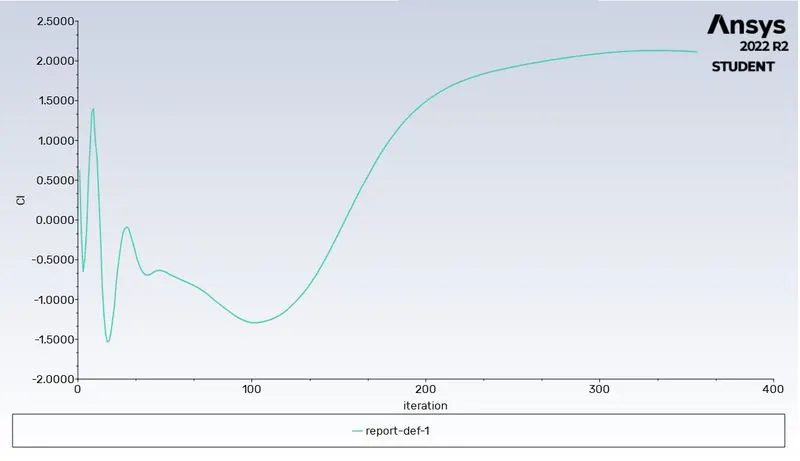

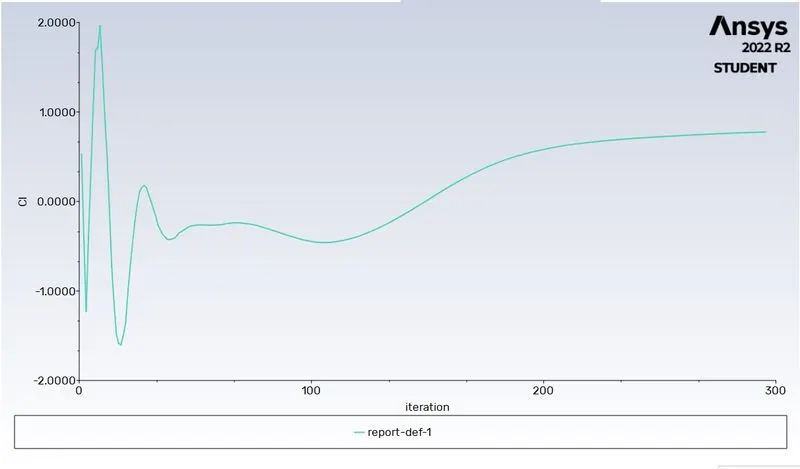

Coefficient Of Lift Plot

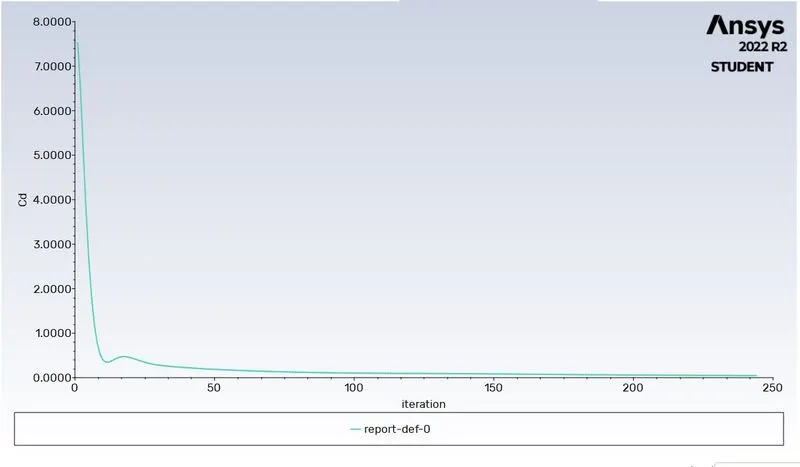

Coefficient of Drag Plot
CASE 2
Angle of Attack: 10 degrees

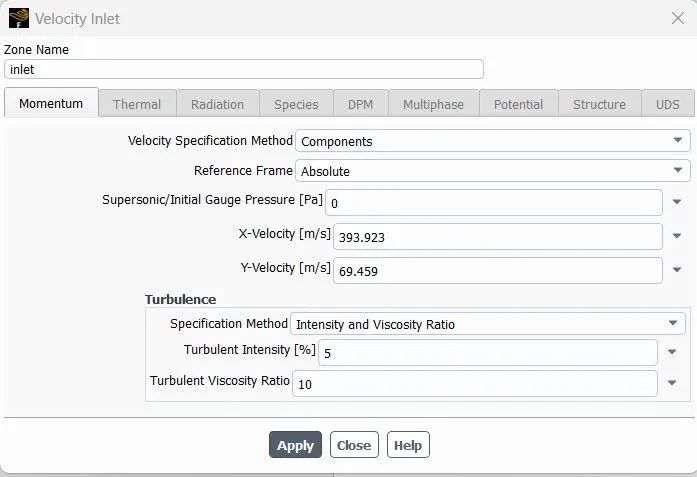

Velocity component at inlet (X): 393.923 m/s
Velocity component at inlet (Y): 69.459 m/s
RESULTS

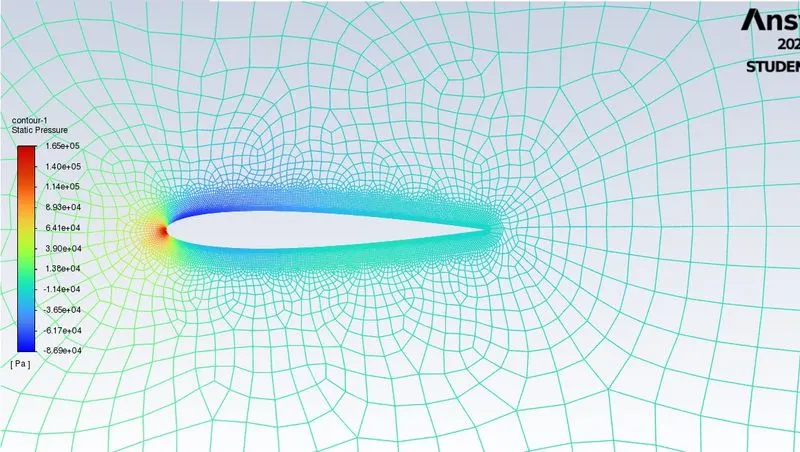

Pressure Contour

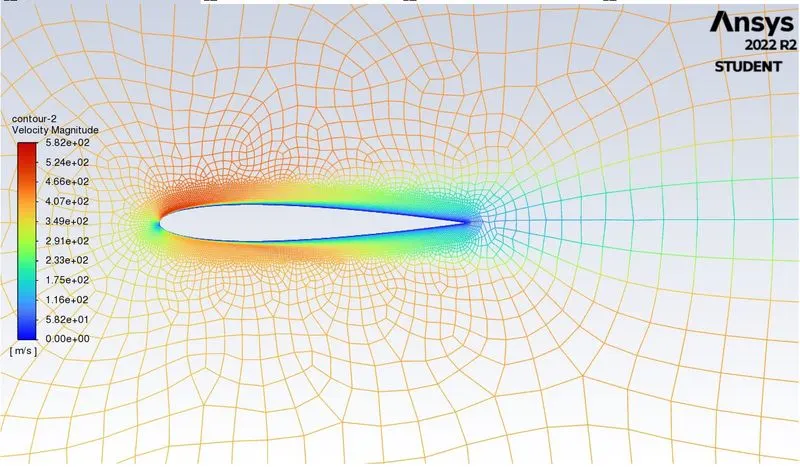

Velocity Contour
Scaled Residuals
Coefficient of Lift Plot
Coefficient of Drag Plot
CASE 3
Angle of Attack: 15 degrees

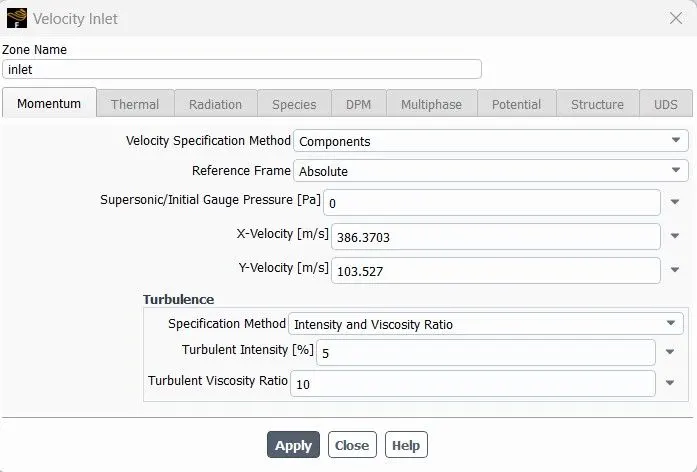

Velocity component at inlet (X): 386.3703 m/s
Velocity component at inlet (Y): 103.527 m/s
RESULTS
Pressure Plot
Velocity Contour
Scaled Residuals
Coefficient of Lift Plot
Final Results
| Angle of Attack | Subsonic | Flow | Supersonic | Flow |
| (degrees) | Drag Coefficient | Lift Coefficient | Drag Coefficient | Lift Coefficient |
| 5 | 0.01523 | 0.2194 | 0.0301 | 0.1820 |
| 10 | 0.04462 | 0.4392 | 0.0430 | 0.4272 |
| 15 | 0.00091 | 0.0618 | 0.0887 | 0.6035 |
