Week 7- Meshing of Backdoor Challenge

Aim:The backdoor meshing has to be done, following the quality criteria.

Procedure:

1)Backdoor contains three components, so the given geometry seperated and assigned three components seperatly.

2)Geometrical checks are performed. Only the green lines has to exist, because it represents closed component.

For a midsurface extration closed component should exist.

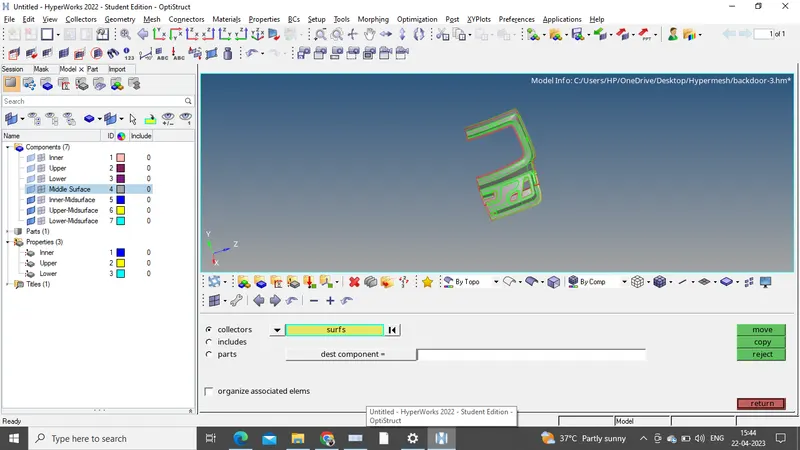

3)Now the midsurfaces are generated. With help of collectors command in the organize tool assigned the components seperatly.

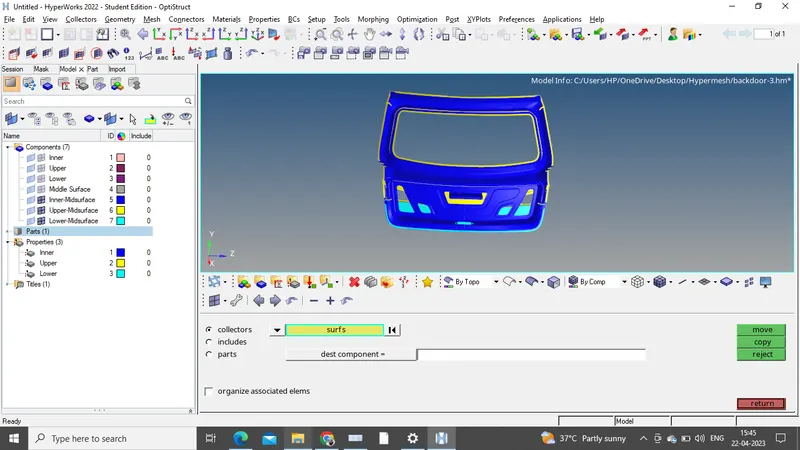

4)On the midsurface a 2D meshing is performed and quality criteria parameter are also given, with the help of reflect command in the tools the complete component has extracted.

Conclusion:

2D meshing is given to the midsurface by following the quality criteria.
