Long Piston With Cam
Aim:
To perform a transient analysis on a piston and cam mechanism model.
Objective:
to run the analysis with Frictionless contact, Frictional with 0.1 and 0.2 as the frictional contact for a total of 3 cases. Find out the Equivalent Stress, Directional Deformation and Equivalent Elastic Strain and compare them for all the three cases.
Procedure:

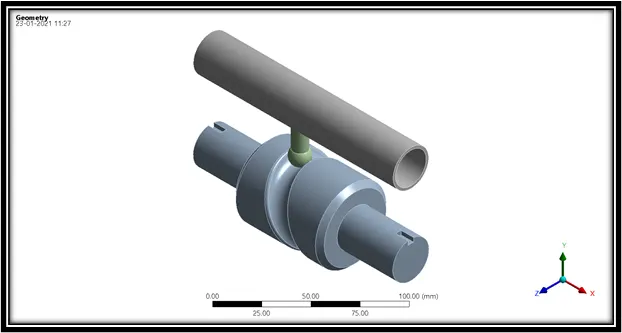

At first, we will import the geometry setup model into the ANSYS-WORKBENCH.

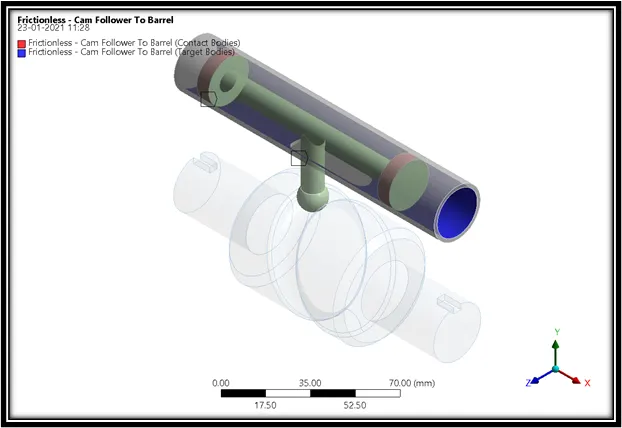

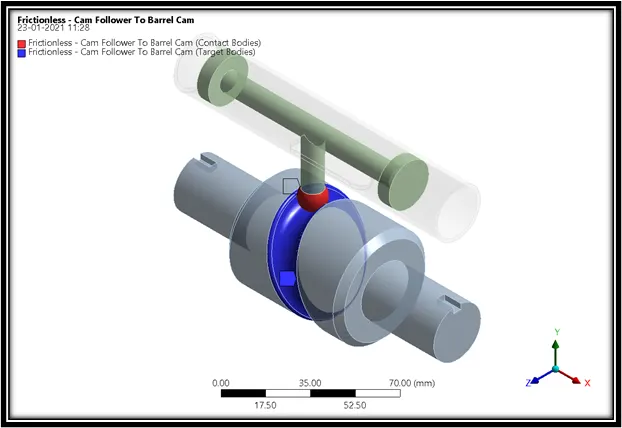

After importing the model into the workbench, we will provide connection contacts for the setup model. The first connection contact will be frictionless between the Cam Follower and Barrel and the second connection contact will also be frictionless between the Cam Follower and Barrel Cam as shown in the below two images.

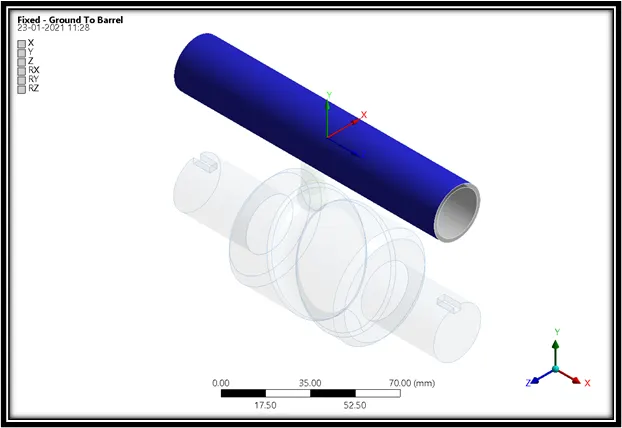

Now, we will be providing joint connections for the setup model by first fixing the Barrel and this will is given by giving Fixed joint as Ground to Body as shown in the image below.

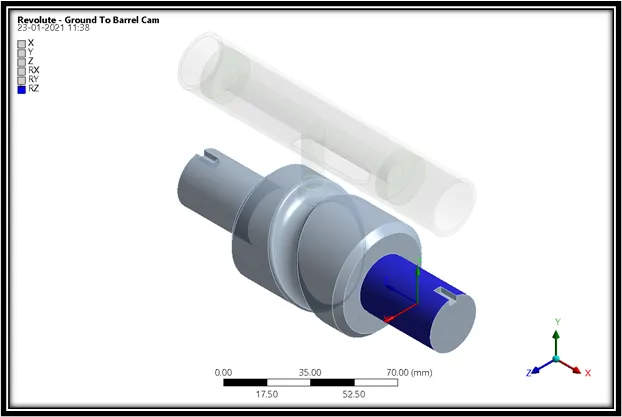

Next, we will be providing Revolute joint as Ground to Barrel Cam which provides the rotation as shown in the image below.

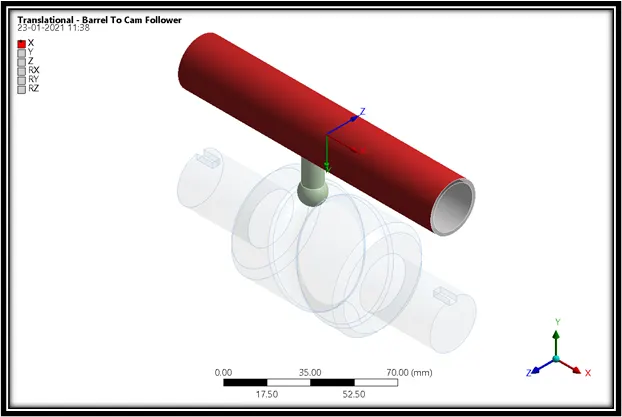

Finally, we will be providing the Translational joint for the Barrel to Cam Follower as shown in the image below.

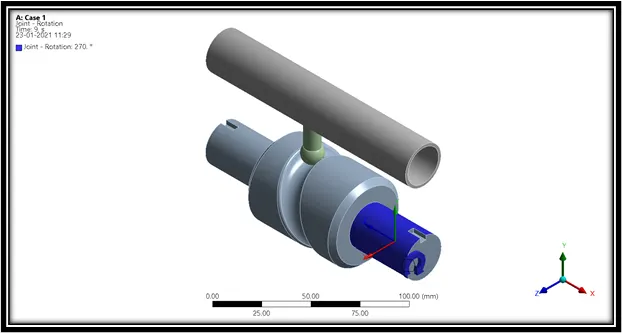

After setting up the model, we will be providing boundary conditions for the model as Joint rotation in tabular values for a time step of 9 seconds and it will have rotation as shown in the image below.

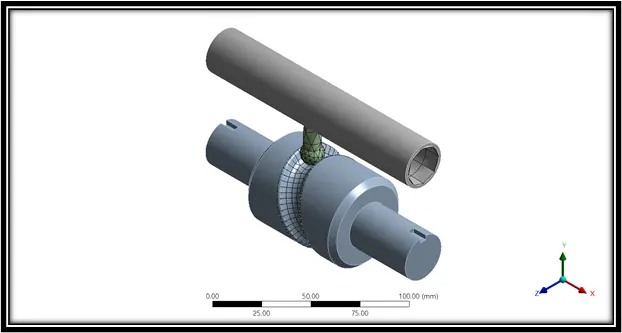

Finally, we will be meshing the setup model for the surfaces and faces having contacts with a refined mesh to get proper and accurate results.
For the next two cases, we will be changing the Frictionless contact to Frictional contact and providing Frictional Co-efficient values as given in the objective.
Simulation:
Case 1:

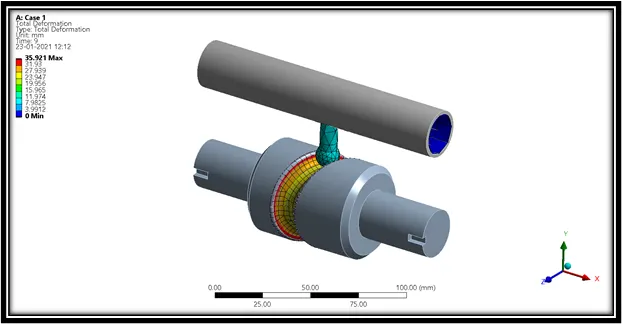

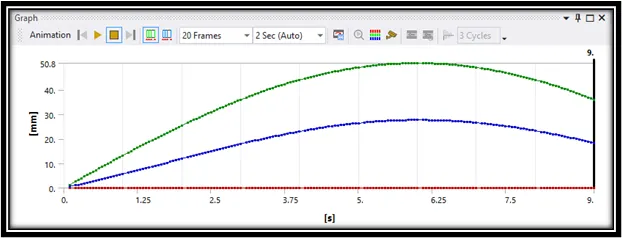

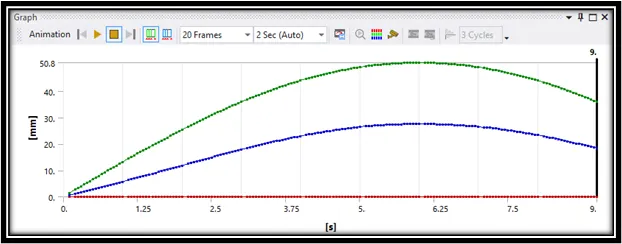

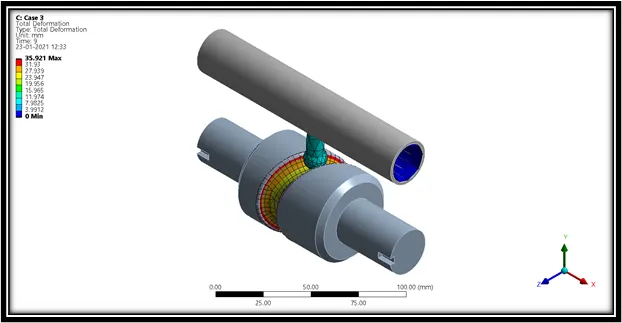

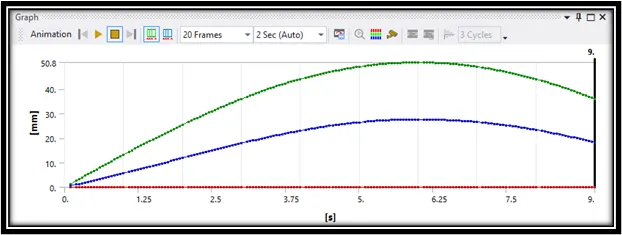

Total Deformation:
|
Time [s] |
Minimum [mm] |
Maximum [mm] |
Average [mm] |
|
|
1 |
0.1 |
0 |
1.3298 |
0.53151 |
|
2 |
0.2 |
0 |
2.6587 |
1.0682 |
|
3 |
0.25 |
0 |
3.3225 |
1.3412 |
|
4 |
0.3 |
0 |
3.9857 |
1.6163 |
|
5 |
0.35 |
0 |
4.6483 |
1.8936 |
|
6 |
0.4 |
0 |
5.3101 |
2.1732 |
|
7 |
0.45 |
0 |
5.9709 |
2.4552 |
|
8 |
0.5 |
0 |
6.6308 |
2.7388 |
|
9 |
0.55 |
0 |
7.2895 |
3.0251 |
|
10 |
0.6 |
0 |
7.9469 |
3.3137 |
|
11 |
0.65 |
0 |
8.603 |
3.6042 |
|
12 |
0.7 |
0 |
9.2576 |
3.8962 |
|
13 |
0.75 |
0 |
9.9106 |
4.1898 |
|
14 |
0.8 |
0 |
10.562 |
4.485 |
|
15 |
0.85 |
0 |
11.211 |
4.7818 |
|
16 |
0.9 |
0 |
11.859 |
5.08 |
|
17 |
0.95 |
0 |
12.505 |
5.3794 |
|
18 |
1 |
0 |
13.148 |
5.6803 |
|
19 |
1.1 |
0 |
14.428 |
6.2864 |
|
20 |
1.15 |
0 |
15.064 |
6.5911 |
|
21 |
1.2 |
0 |
15.698 |
6.8966 |
|
22 |
1.25 |
0 |
16.329 |
7.2031 |
|
23 |
1.3 |
0 |
16.957 |
7.5108 |
|
24 |
1.35 |
0 |
17.583 |
7.8194 |
|
25 |
1.4 |
0 |
18.205 |
8.1287 |
|
26 |
1.45 |
0 |
18.824 |
8.4389 |
|
27 |
1.5 |
0 |
19.44 |
8.7499 |
|
28 |
1.55 |
0 |
20.053 |
9.0613 |
|
29 |
1.6 |
0 |
20.662 |
9.3729 |
|
30 |
1.65 |
0 |
21.268 |
9.6848 |
|
31 |
1.7 |
0 |
21.87 |
9.9969 |
|
32 |
1.75 |
0 |
22.468 |
10.309 |
|
33 |
1.8 |
0 |
23.063 |
10.622 |
|
34 |
1.85 |
0 |
23.653 |
10.934 |
|
35 |
1.9 |
0 |
24.24 |
11.245 |
|
36 |
1.95 |
0 |
24.822 |
11.557 |
|
37 |
2 |
0 |
25.4 |
11.869 |
|
38 |
2.1 |
0 |
26.543 |
12.49 |
|
39 |
2.15 |
0 |
27.108 |
12.8 |
|
40 |
2.2 |
0 |
27.668 |
13.109 |
|
41 |
2.25 |
0 |
28.223 |
13.417 |
|
42 |
2.3 |
0 |
28.774 |
13.725 |
|
43 |
2.35 |
0 |
29.319 |
14.031 |
|
44 |
2.4 |
0 |
29.86 |
14.337 |
|
45 |
2.45 |
0 |
30.395 |
14.641 |
|
46 |
2.5 |
0 |
30.925 |
14.944 |
|
47 |
2.55 |
0 |
31.45 |
15.246 |
|
48 |
2.6 |
0 |
31.97 |
15.546 |
|
49 |
2.65 |
0 |
32.484 |
15.845 |
|
50 |
2.7 |
0 |
32.992 |
16.143 |
|
51 |
2.75 |
0 |
33.495 |
16.438 |
|
52 |
2.8 |
0 |
33.992 |
16.732 |
|
53 |
2.85 |
0 |
34.483 |
17.024 |
|
54 |
2.9 |
0 |
34.969 |
17.314 |
|
55 |
2.95 |
0 |
35.448 |
17.601 |
|
56 |
3 |
0 |
35.921 |
17.887 |
|
57 |
3.1 |
0 |
36.849 |
18.451 |
|
58 |
3.15 |
0 |
37.304 |
18.73 |
|
59 |
3.2 |
0 |
37.752 |
19.005 |
|
60 |
3.25 |
0 |
38.194 |
19.279 |
|
61 |
3.3 |
0 |
38.629 |
19.549 |
|
62 |
3.35 |
0 |
39.057 |
19.817 |
|
63 |
3.4 |
0 |
39.479 |
20.082 |
|
64 |
3.45 |
0 |
39.894 |
20.343 |
|
65 |
3.5 |
0 |
40.303 |
20.602 |
|
66 |
3.55 |
0 |
40.704 |
20.857 |
|
67 |
3.6 |
0 |
41.098 |
21.109 |
|
68 |
3.65 |
0 |
41.486 |
21.357 |
|
69 |
3.7 |
0 |
41.866 |
21.602 |
|
70 |
3.75 |
0 |
42.239 |
21.844 |
|
71 |
3.8 |
0 |
42.605 |
22.081 |
|
72 |
3.85 |
0 |
42.963 |
22.315 |
|
73 |
3.9 |
0 |
43.314 |
22.545 |
|
74 |
3.95 |
0 |
43.658 |
22.771 |
|
75 |
4 |
0 |
43.994 |
22.993 |
|
76 |
4.1 |
0 |
44.644 |
23.423 |
|
77 |
4.15 |
0 |
44.958 |
23.632 |
|
78 |
4.2 |
0 |
45.263 |
23.837 |
|
79 |
4.25 |
0 |
45.561 |
24.037 |
|
80 |
4.3 |
0 |
45.852 |
24.232 |
|
81 |
4.35 |
0 |
46.134 |
24.423 |
|
82 |
4.4 |
0 |
46.408 |
24.608 |
|
83 |
4.45 |
0 |
46.675 |
24.79 |
|
84 |
4.5 |
0 |
46.933 |
24.966 |
|
85 |
4.55 |
0 |
47.184 |
25.136 |
|
86 |
4.6 |
0 |
47.426 |
25.302 |
|
87 |
4.65 |
0 |
47.66 |
25.463 |
|
88 |
4.7 |
0 |
47.886 |
25.619 |
|
89 |
4.75 |
0 |
48.104 |
25.769 |
|
90 |
4.8 |
0 |
48.314 |
25.914 |
|
91 |
4.85 |
0 |
48.515 |
26.054 |
|
92 |
4.9 |
0 |
48.708 |
26.19 |
|
93 |
4.95 |
0 |
48.893 |
26.319 |
|
94 |
5 |
0 |
49.069 |
26.443 |
|
95 |
5.1 |
0 |
49.397 |
26.674 |
|
96 |
5.15 |
0 |
49.548 |
26.781 |
|
97 |
5.2 |
0 |
49.69 |
26.882 |
|
98 |
5.25 |
0 |
49.824 |
26.978 |
|
99 |
5.3 |
0 |
49.95 |
27.068 |
|
100 |
5.35 |
0 |
50.067 |
27.151 |
|
101 |
5.4 |
0 |
50.175 |
27.227 |
|
102 |
5.45 |
0 |
50.275 |
27.298 |
|
103 |
5.5 |
0 |
50.366 |
27.363 |
|
104 |
5.55 |
0 |
50.448 |
27.422 |
|
105 |
5.6 |
0 |
50.522 |
27.474 |
|
106 |
5.65 |
0 |
50.587 |
27.521 |
|
107 |
5.7 |
0 |
50.644 |
27.561 |
|
108 |
5.75 |
0 |
50.692 |
27.595 |
|
109 |
5.8 |
0 |
50.731 |
27.623 |
|
110 |
5.85 |
0 |
50.761 |
27.645 |
|
111 |
5.9 |
0 |
50.783 |
27.661 |
|
112 |
5.95 |
0 |
50.796 |
27.672 |
|
113 |
6 |
0 |
50.8 |
27.677 |
|
114 |
6.1 |
0 |
50.783 |
27.668 |
|
115 |
6.15 |
0 |
50.761 |
27.656 |
|
116 |
6.2 |
0 |
50.731 |
27.638 |
|
117 |
6.25 |
0 |
50.692 |
27.614 |
|
118 |
6.3 |
0 |
50.644 |
27.585 |
|
119 |
6.35 |
0 |
50.587 |
27.55 |
|
120 |
6.4 |
0 |
50.522 |
27.509 |
|
121 |
6.45 |
0 |
50.448 |
27.461 |
|
122 |
6.5 |
0 |
50.366 |
27.408 |
|
123 |
6.55 |
0 |
50.275 |
27.355 |
|
124 |
6.6 |
0 |
50.175 |
27.303 |
|
125 |
6.65 |
0 |
50.067 |
27.24 |
|
126 |
6.7 |
0 |
49.95 |
27.167 |
|
127 |
6.75 |
0 |
49.824 |
27.088 |
|
128 |
6.8 |
0 |
49.69 |
27.003 |
|
129 |
6.85 |
0 |
49.548 |
26.911 |
|
130 |
6.9 |
0 |
49.397 |
26.814 |
|
131 |
6.95 |
0 |
49.237 |
26.711 |
|
132 |
7 |
0 |
49.069 |
26.602 |
|
133 |
7.1 |
0 |
48.708 |
26.365 |
|
134 |
7.15 |
0 |
48.515 |
26.238 |
|
135 |
7.2 |
0 |
48.314 |
26.106 |
|
136 |
7.25 |
0 |
48.104 |
25.968 |
|
137 |
7.3 |
0 |
47.886 |
25.825 |
|
138 |
7.35 |
0 |
47.66 |
25.676 |
|
139 |
7.4 |
0 |
47.426 |
25.523 |
|
140 |
7.45 |
0 |
47.184 |
25.364 |
|
141 |
7.5 |
0 |
46.933 |
25.2 |
|
142 |
7.55 |
0 |
46.675 |
25.03 |
|
143 |
7.6 |
0 |
46.408 |
24.856 |
|
144 |
7.65 |
0 |
46.134 |
24.677 |
|
145 |
7.7 |
0 |
45.852 |
24.493 |
|
146 |
7.75 |
0 |
45.561 |
24.304 |
|
147 |
7.8 |
0 |
45.263 |
24.111 |
|
148 |
7.85 |
0 |
44.958 |
23.913 |
|
149 |
7.9 |
0 |
44.644 |
23.711 |
|
150 |
7.95 |
0 |
44.323 |
23.504 |
|
151 |
8 |
0 |
43.994 |
23.292 |
|
152 |
8.1 |
0 |
43.314 |
22.856 |
|
153 |
8.15 |
0 |
42.963 |
22.633 |
|
154 |
8.2 |
0 |
42.605 |
22.405 |
|
155 |
8.25 |
0 |
42.239 |
22.173 |
|
156 |
8.3 |
0 |
41.866 |
21.937 |
|
157 |
8.35 |
0 |
41.486 |
21.698 |
|
158 |
8.4 |
0 |
41.098 |
21.454 |
|
159 |
8.45 |
0 |
40.704 |
21.207 |
|
160 |
8.5 |
0 |
40.303 |
20.956 |
|
161 |
8.55 |
0 |
39.894 |
20.701 |
|
162 |
8.6 |
0 |
39.479 |
20.443 |
|
163 |
8.65 |
0 |
39.057 |
20.181 |
|
164 |
8.7 |
0 |
38.629 |
19.916 |
|
165 |
8.75 |
0 |
38.194 |
19.648 |
|
166 |
8.8 |
0 |
37.752 |
19.376 |
|
167 |
8.85 |
0 |
37.304 |
19.101 |
|
168 |
8.9 |
0 |
36.849 |
18.824 |
|
169 |
8.95 |
0 |
36.388 |
18.544 |
|
170 |
9 |
0 |
35.921 |
18.261 |
Simulation Video - https://drive.google.com/file/d/11V7wTLOssVnJ9NXKZD9BIK5-qpcz89an/view?usp=sharing

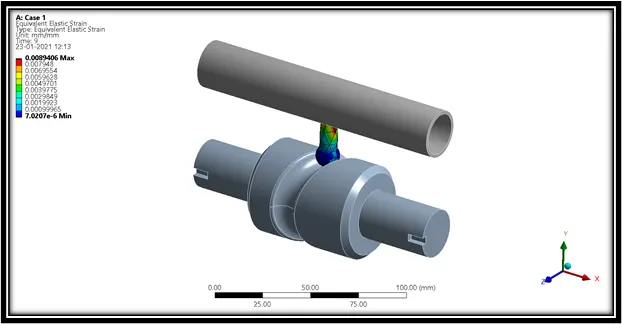

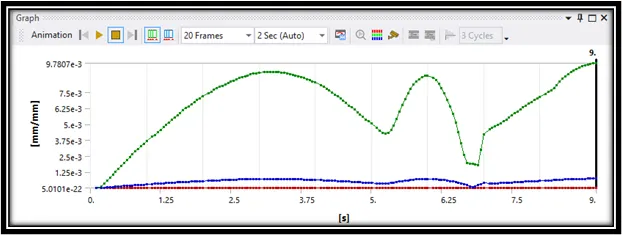

Equivalent Elastic Strain:
|
Time [s] |
Minimum [mm/mm] |
Maximum [mm/mm] |
Average [mm/mm] |
|
|
1 |
0.1 |
5.01E-22 |
2.41E-15 |
1.20E-16 |
|
2 |
0.2 |
1.13E-07 |
1.46E-04 |
1.05E-05 |
|
3 |
0.25 |
2.88E-07 |
3.73E-04 |
2.65E-05 |
|
4 |
0.3 |
4.62E-07 |
5.97E-04 |
4.22E-05 |
|
5 |
0.35 |
6.39E-07 |
8.26E-04 |
5.83E-05 |
|
6 |
0.4 |
8.22E-07 |
1.06E-03 |
7.36E-05 |
|
7 |
0.45 |
1.01E-06 |
1.30E-03 |
8.90E-05 |
|
8 |
0.5 |
1.19E-06 |
1.51E-03 |
1.06E-04 |
|
9 |
0.55 |
1.38E-06 |
1.75E-03 |
1.24E-04 |
|
10 |
0.6 |
1.58E-06 |
2.01E-03 |
1.42E-04 |
|
11 |
0.65 |
1.78E-06 |
2.25E-03 |
1.59E-04 |
|
12 |
0.7 |
1.95E-06 |
2.48E-03 |
1.75E-04 |
|
13 |
0.75 |
2.12E-06 |
2.70E-03 |
1.90E-04 |
|
14 |
0.8 |
2.29E-06 |
2.92E-03 |
2.05E-04 |
|
15 |
0.85 |
2.47E-06 |
3.14E-03 |
2.21E-04 |
|
16 |
0.9 |
2.63E-06 |
3.35E-03 |
2.36E-04 |
|
17 |
0.95 |
2.79E-06 |
3.56E-03 |
2.50E-04 |
|
18 |
1 |
2.95E-06 |
3.76E-03 |
2.63E-04 |
|
19 |
1.1 |
3.24E-06 |
4.11E-03 |
2.91E-04 |
|
20 |
1.15 |
3.48E-06 |
4.27E-03 |
3.05E-04 |
|
21 |
1.2 |
3.62E-06 |
4.42E-03 |
3.22E-04 |
|
22 |
1.25 |
3.76E-06 |
4.59E-03 |
3.40E-04 |
|
23 |
1.3 |
3.92E-06 |
4.77E-03 |
3.57E-04 |
|
24 |
1.35 |
4.07E-06 |
4.96E-03 |
3.71E-04 |
|
25 |
1.4 |
4.22E-06 |
5.15E-03 |
3.85E-04 |
|
26 |
1.45 |
4.37E-06 |
5.33E-03 |
3.97E-04 |
|
27 |
1.5 |
4.53E-06 |
5.50E-03 |
4.07E-04 |
|
28 |
1.55 |
4.67E-06 |
5.67E-03 |
4.18E-04 |
|
29 |
1.6 |
4.80E-06 |
5.82E-03 |
4.28E-04 |
|
30 |
1.65 |
4.93E-06 |
5.96E-03 |
4.38E-04 |
|
31 |
1.7 |
5.06E-06 |
6.11E-03 |
4.48E-04 |
|
32 |
1.75 |
5.19E-06 |
6.26E-03 |
4.59E-04 |
|
33 |
1.8 |
5.30E-06 |
6.40E-03 |
4.69E-04 |
|
34 |
1.85 |
5.42E-06 |
6.53E-03 |
4.79E-04 |
|
35 |
1.9 |
5.53E-06 |
6.66E-03 |
4.89E-04 |
|
36 |
1.95 |
5.64E-06 |
6.79E-03 |
5.00E-04 |
|
37 |
2 |
5.75E-06 |
6.92E-03 |
5.10E-04 |
|
38 |
2.1 |
5.92E-06 |
7.13E-03 |
5.29E-04 |
|
39 |
2.15 |
6.03E-06 |
7.24E-03 |
5.39E-04 |
|
40 |
2.2 |
6.12E-06 |
7.37E-03 |
5.49E-04 |
|
41 |
2.25 |
6.21E-06 |
7.48E-03 |
5.58E-04 |
|
42 |
2.3 |
6.29E-06 |
7.59E-03 |
5.68E-04 |
|
43 |
2.35 |
6.37E-06 |
7.69E-03 |
5.77E-04 |
|
44 |
2.4 |
6.45E-06 |
7.80E-03 |
5.86E-04 |
|
45 |
2.45 |
6.53E-06 |
7.90E-03 |
5.93E-04 |
|
46 |
2.5 |
6.60E-06 |
7.98E-03 |
6.01E-04 |
|
47 |
2.55 |
6.66E-06 |
8.06E-03 |
6.08E-04 |
|
48 |
2.6 |
6.72E-06 |
8.14E-03 |
6.15E-04 |
|
49 |
2.65 |
6.79E-06 |
8.22E-03 |
6.21E-04 |
|
50 |
2.7 |
6.84E-06 |
8.29E-03 |
6.26E-04 |
|
51 |
2.75 |
6.87E-06 |
8.36E-03 |
6.32E-04 |
|
52 |
2.8 |
6.92E-06 |
8.42E-03 |
6.37E-04 |
|
53 |
2.85 |
6.96E-06 |
8.47E-03 |
6.42E-04 |
|
54 |
2.9 |
7.00E-06 |
8.52E-03 |
6.45E-04 |
|
55 |
2.95 |
7.02E-06 |
8.56E-03 |
6.48E-04 |
|
56 |
3 |
7.05E-06 |
8.59E-03 |
6.51E-04 |
|
57 |
3.1 |
7.09E-06 |
8.64E-03 |
6.54E-04 |
|
58 |
3.15 |
7.10E-06 |
8.65E-03 |
6.54E-04 |
|
59 |
3.2 |
7.10E-06 |
8.65E-03 |
6.54E-04 |
|
60 |
3.25 |
7.10E-06 |
8.65E-03 |
6.54E-04 |
|
61 |
3.3 |
7.11E-06 |
8.64E-03 |
6.53E-04 |
|
62 |
3.35 |
7.11E-06 |
8.62E-03 |
6.50E-04 |
|
63 |
3.4 |
7.09E-06 |
8.59E-03 |
6.48E-04 |
|
64 |
3.45 |
7.07E-06 |
8.55E-03 |
6.45E-04 |
|
65 |
3.5 |
7.04E-06 |
8.52E-03 |
6.43E-04 |
|
66 |
3.55 |
7.02E-06 |
8.49E-03 |
6.38E-04 |
|
67 |
3.6 |
6.98E-06 |
8.44E-03 |
6.34E-04 |
|
68 |
3.65 |
6.94E-06 |
8.38E-03 |
6.29E-04 |
|
69 |
3.7 |
6.90E-06 |
8.33E-03 |
6.24E-04 |
|
70 |
3.75 |
6.85E-06 |
8.27E-03 |
6.18E-04 |
|
71 |
3.8 |
6.81E-06 |
8.20E-03 |
6.11E-04 |
|
72 |
3.85 |
6.74E-06 |
8.12E-03 |
6.04E-04 |
|
73 |
3.9 |
6.68E-06 |
8.03E-03 |
5.97E-04 |
|
74 |
3.95 |
6.61E-06 |
7.96E-03 |
5.90E-04 |
|
75 |
4 |
6.54E-06 |
7.88E-03 |
5.82E-04 |
|
76 |
4.1 |
6.39E-06 |
7.69E-03 |
5.66E-04 |
|
77 |
4.15 |
6.30E-06 |
7.59E-03 |
5.57E-04 |
|
78 |
4.2 |
6.20E-06 |
7.48E-03 |
5.48E-04 |
|
79 |
4.25 |
6.10E-06 |
7.36E-03 |
5.39E-04 |
|
80 |
4.3 |
5.99E-06 |
7.22E-03 |
5.30E-04 |
|
81 |
4.35 |
5.88E-06 |
7.09E-03 |
5.21E-04 |
|
82 |
4.4 |
5.76E-06 |
6.97E-03 |
5.12E-04 |
|
83 |
4.45 |
5.66E-06 |
6.85E-03 |
5.00E-04 |
|
84 |
4.5 |
5.53E-06 |
6.71E-03 |
4.89E-04 |
|
85 |
4.55 |
5.39E-06 |
6.54E-03 |
4.80E-04 |
|
86 |
4.6 |
5.26E-06 |
6.39E-03 |
4.71E-04 |
|
87 |
4.65 |
5.14E-06 |
6.24E-03 |
4.59E-04 |
|
88 |
4.7 |
5.01E-06 |
6.09E-03 |
4.44E-04 |
|
89 |
4.75 |
4.85E-06 |
5.92E-03 |
4.34E-04 |
|
90 |
4.8 |
4.72E-06 |
5.77E-03 |
4.21E-04 |
|
91 |
4.85 |
4.59E-06 |
5.62E-03 |
4.04E-04 |
|
92 |
4.9 |
4.46E-06 |
5.46E-03 |
3.88E-04 |
|
93 |
4.95 |
4.32E-06 |
5.30E-03 |
3.73E-04 |
|
94 |
5 |
4.17E-06 |
5.13E-03 |
3.59E-04 |
|
95 |
5.1 |
3.87E-06 |
4.78E-03 |
3.36E-04 |
|
96 |
5.15 |
3.70E-06 |
4.56E-03 |
3.21E-04 |
|
97 |
5.2 |
3.53E-06 |
4.35E-03 |
3.10E-04 |
|
98 |
5.25 |
3.37E-06 |
4.14E-03 |
3.13E-04 |
|
99 |
5.3 |
3.17E-06 |
3.93E-03 |
3.19E-04 |
|
100 |
5.35 |
2.93E-06 |
3.73E-03 |
3.28E-04 |
|
101 |
5.4 |
2.68E-06 |
3.54E-03 |
3.41E-04 |
|
102 |
5.45 |
2.43E-06 |
3.38E-03 |
3.55E-04 |
|
103 |
5.5 |
2.22E-06 |
3.31E-03 |
3.69E-04 |
|
104 |
5.55 |
2.00E-06 |
3.50E-03 |
3.87E-04 |
|
105 |
5.6 |
1.78E-06 |
3.92E-03 |
4.04E-04 |
|
106 |
5.65 |
1.57E-06 |
4.29E-03 |
4.22E-04 |
|
107 |
5.7 |
1.38E-06 |
4.61E-03 |
4.34E-04 |
|
108 |
5.75 |
1.19E-06 |
4.88E-03 |
4.45E-04 |
|
109 |
5.8 |
1.00E-06 |
5.12E-03 |
4.53E-04 |
|
110 |
5.85 |
8.30E-07 |
5.31E-03 |
4.57E-04 |
|
111 |
5.9 |
6.63E-07 |
5.46E-03 |
4.58E-04 |
|
112 |
5.95 |
5.17E-07 |
5.59E-03 |
4.54E-04 |
|
113 |
6 |
3.72E-07 |
5.67E-03 |
4.47E-04 |
|
114 |
6.1 |
1.10E-07 |
5.72E-03 |
4.31E-04 |
|
115 |
6.15 |
3.19E-08 |
5.71E-03 |
4.19E-04 |
|
116 |
6.2 |
1.75E-07 |
5.67E-03 |
4.03E-04 |
|
117 |
6.25 |
4.68E-08 |
5.60E-03 |
3.82E-04 |
|
118 |
6.3 |
8.91E-08 |
5.49E-03 |
3.61E-04 |
|
119 |
6.35 |
1.66E-07 |
5.35E-03 |
3.36E-04 |
|
120 |
6.4 |
2.65E-07 |
5.18E-03 |
3.07E-04 |
|
121 |
6.45 |
2.93E-07 |
4.97E-03 |
2.72E-04 |
|
122 |
6.5 |
4.37E-07 |
4.73E-03 |
2.37E-04 |
|
123 |
6.55 |
8.14E-10 |
4.49E-03 |
2.14E-04 |
|
124 |
6.6 |
9.00E-10 |
4.27E-03 |
2.03E-04 |
|
125 |
6.65 |
4.28E-07 |
4.02E-03 |
2.14E-04 |
|
126 |
6.7 |
4.62E-07 |
3.71E-03 |
2.34E-04 |
|
127 |
6.75 |
7.03E-07 |
3.34E-03 |
2.50E-04 |
|
128 |
6.8 |
9.62E-07 |
2.93E-03 |
2.62E-04 |
|
129 |
6.85 |
1.22E-06 |
2.48E-03 |
2.72E-04 |
|
130 |
6.9 |
1.18E-06 |
2.44E-03 |
2.74E-04 |
|
131 |
6.95 |
1.58E-06 |
2.82E-03 |
2.73E-04 |
|
132 |
7 |
2.24E-06 |
3.18E-03 |
2.75E-04 |
|
133 |
7.1 |
3.03E-06 |
3.76E-03 |
2.80E-04 |
|
134 |
7.15 |
3.27E-06 |
4.05E-03 |
2.93E-04 |
|
135 |
7.2 |
3.48E-06 |
4.30E-03 |
3.12E-04 |
|
136 |
7.25 |
3.67E-06 |
4.54E-03 |
3.31E-04 |
|
137 |
7.3 |
3.85E-06 |
4.77E-03 |
3.48E-04 |
|
138 |
7.35 |
4.01E-06 |
4.98E-03 |
3.65E-04 |
|
139 |
7.4 |
4.16E-06 |
5.17E-03 |
3.80E-04 |
|
140 |
7.45 |
4.31E-06 |
5.36E-03 |
3.94E-04 |
|
141 |
7.5 |
4.47E-06 |
5.55E-03 |
4.07E-04 |
|
142 |
7.55 |
4.61E-06 |
5.74E-03 |
4.20E-04 |
|
143 |
7.6 |
4.75E-06 |
5.91E-03 |
4.33E-04 |
|
144 |
7.65 |
4.88E-06 |
6.07E-03 |
4.45E-04 |
|
145 |
7.7 |
5.01E-06 |
6.23E-03 |
4.57E-04 |
|
146 |
7.75 |
5.13E-06 |
6.39E-03 |
4.69E-04 |
|
147 |
7.8 |
5.26E-06 |
6.54E-03 |
4.81E-04 |
|
148 |
7.85 |
5.37E-06 |
6.68E-03 |
4.92E-04 |
|
149 |
7.9 |
5.48E-06 |
6.82E-03 |
5.03E-04 |
|
150 |
7.95 |
5.59E-06 |
6.95E-03 |
5.15E-04 |
|
151 |
8 |
5.69E-06 |
7.09E-03 |
5.27E-04 |
|
152 |
8.1 |
5.87E-06 |
7.31E-03 |
5.48E-04 |
|
153 |
8.15 |
5.96E-06 |
7.45E-03 |
5.57E-04 |
|
154 |
8.2 |
6.05E-06 |
7.57E-03 |
5.69E-04 |
|
155 |
8.25 |
6.14E-06 |
7.70E-03 |
5.79E-04 |
|
156 |
8.3 |
6.22E-06 |
7.82E-03 |
5.88E-04 |
|
157 |
8.35 |
6.30E-06 |
7.93E-03 |
5.99E-04 |
|
158 |
8.4 |
6.37E-06 |
8.04E-03 |
6.12E-04 |
|
159 |
8.45 |
6.45E-06 |
8.15E-03 |
6.23E-04 |
|
160 |
8.5 |
6.52E-06 |
8.25E-03 |
6.31E-04 |
|
161 |
8.55 |
6.59E-06 |
8.36E-03 |
6.40E-04 |
|
162 |
8.6 |
6.66E-06 |
8.46E-03 |
6.50E-04 |
|
163 |
8.65 |
6.72E-06 |
8.54E-03 |
6.58E-04 |
|
164 |
8.7 |
6.78E-06 |
8.62E-03 |
6.63E-04 |
|
165 |
8.75 |
6.83E-06 |
8.69E-03 |
6.69E-04 |
|
166 |
8.8 |
6.89E-06 |
8.76E-03 |
6.74E-04 |
|
167 |
8.85 |
6.93E-06 |
8.83E-03 |
6.78E-04 |
|
168 |
8.9 |
6.96E-06 |
8.87E-03 |
6.82E-04 |
|
169 |
8.95 |
6.99E-06 |
8.90E-03 |
6.85E-04 |
|
170 |
9 |
7.02E-06 |
8.94E-03 |
6.87E-04 |
Simulation Video - https://drive.google.com/file/d/16dcqjGv5FQZ-JtIwOHdzGkMM96q3s2uC/view?usp=sharing

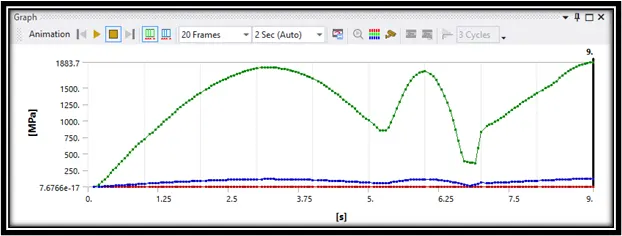

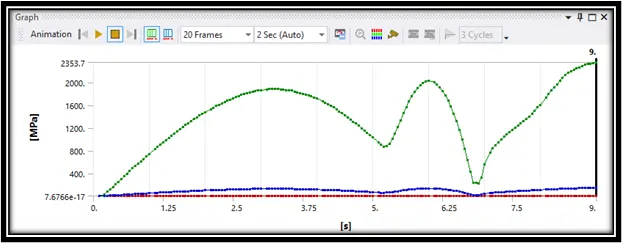

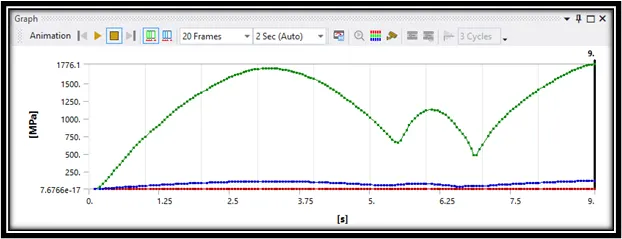

Equivalent Stress:
|
Time [s] |
Minimum [MPa] |
Maximum [MPa] |
Average [MPa] |
|
|
1 |
0.1 |
7.68E-17 |
2.49E-10 |
9.58E-12 |
|
2 |
0.2 |
1.47E-03 |
29.06 |
1.7179 |
|
3 |
0.25 |
3.73E-03 |
74.12 |
4.365 |
|
4 |
0.3 |
5.98E-03 |
118.69 |
6.9881 |
|
5 |
0.35 |
8.26E-03 |
164.09 |
9.663 |
|
6 |
0.4 |
1.06E-02 |
211.55 |
12.301 |
|
7 |
0.45 |
1.31E-02 |
257.44 |
14.831 |
|
8 |
0.5 |
1.53E-02 |
299.12 |
17.531 |
|
9 |
0.55 |
1.78E-02 |
347.18 |
20.403 |
|
10 |
0.6 |
2.04E-02 |
398.48 |
23.322 |
|
11 |
0.65 |
2.30E-02 |
447.62 |
26.152 |
|
12 |
0.7 |
2.52E-02 |
492.67 |
28.729 |
|
13 |
0.75 |
2.74E-02 |
536.51 |
31.266 |
|
14 |
0.8 |
2.97E-02 |
580.11 |
33.801 |
|
15 |
0.85 |
3.19E-02 |
623.96 |
36.363 |
|
16 |
0.9 |
3.40E-02 |
666.21 |
38.837 |
|
17 |
0.95 |
3.61E-02 |
706.43 |
41.215 |
|
18 |
1 |
3.82E-02 |
746.42 |
43.695 |
|
19 |
1.1 |
4.19E-02 |
816.87 |
48.487 |
|
20 |
1.15 |
4.50E-02 |
847.12 |
50.868 |
|
21 |
1.2 |
4.67E-02 |
878.44 |
53.536 |
|
22 |
1.25 |
4.86E-02 |
911.75 |
56.311 |
|
23 |
1.3 |
5.06E-02 |
948 |
58.968 |
|
24 |
1.35 |
5.26E-02 |
985.54 |
61.375 |
|
25 |
1.4 |
5.45E-02 |
1021.9 |
63.662 |
|
26 |
1.45 |
5.64E-02 |
1057.5 |
65.751 |
|
27 |
1.5 |
5.85E-02 |
1092.1 |
67.569 |
|
28 |
1.55 |
6.03E-02 |
1124.7 |
69.476 |
|
29 |
1.6 |
6.20E-02 |
1154.6 |
71.232 |
|
30 |
1.65 |
6.37E-02 |
1183.8 |
73.005 |
|
31 |
1.7 |
6.53E-02 |
1212.7 |
74.811 |
|
32 |
1.75 |
6.70E-02 |
1242.4 |
76.659 |
|
33 |
1.8 |
6.85E-02 |
1269.7 |
78.381 |
|
34 |
1.85 |
6.99E-02 |
1296 |
80.066 |
|
35 |
1.9 |
7.14E-02 |
1322.3 |
81.788 |
|
36 |
1.95 |
7.28E-02 |
1348.4 |
83.554 |
|
37 |
2 |
7.42E-02 |
1373.7 |
85.253 |
|
38 |
2.1 |
7.64E-02 |
1414.6 |
88.181 |
|
39 |
2.15 |
7.78E-02 |
1437.7 |
89.813 |
|
40 |
2.2 |
7.91E-02 |
1462.6 |
91.403 |
|
41 |
2.25 |
8.02E-02 |
1485.2 |
92.858 |
|
42 |
2.3 |
8.12E-02 |
1506.1 |
94.263 |
|
43 |
2.35 |
8.23E-02 |
1526.5 |
95.68 |
|
44 |
2.4 |
8.33E-02 |
1547.4 |
97.073 |
|
45 |
2.45 |
8.43E-02 |
1567 |
98.278 |
|
46 |
2.5 |
8.52E-02 |
1583.9 |
99.384 |
|
47 |
2.55 |
8.60E-02 |
1599.7 |
100.47 |
|
48 |
2.6 |
8.68E-02 |
1615.5 |
101.6 |
|
49 |
2.65 |
8.76E-02 |
1631.1 |
102.55 |
|
50 |
2.7 |
8.83E-02 |
1645 |
103.41 |
|
51 |
2.75 |
8.88E-02 |
1657.9 |
104.3 |
|
52 |
2.8 |
8.93E-02 |
1670.5 |
105.2 |
|
53 |
2.85 |
8.99E-02 |
1681.6 |
105.94 |
|
54 |
2.9 |
9.04E-02 |
1691 |
106.44 |
|
55 |
2.95 |
9.07E-02 |
1698.3 |
106.92 |
|
56 |
3 |
9.10E-02 |
1705.2 |
107.44 |
|
57 |
3.1 |
9.15E-02 |
1713.9 |
107.93 |
|
58 |
3.15 |
9.17E-02 |
1715.4 |
107.97 |
|
59 |
3.2 |
9.17E-02 |
1715.8 |
108 |
|
60 |
3.25 |
9.17E-02 |
1715.8 |
108.07 |
|
61 |
3.3 |
9.18E-02 |
1714 |
107.88 |
|
62 |
3.35 |
9.17E-02 |
1709.9 |
107.48 |
|
63 |
3.4 |
9.15E-02 |
1703.8 |
107.07 |
|
64 |
3.45 |
9.12E-02 |
1697.5 |
106.68 |
|
65 |
3.5 |
9.09E-02 |
1691.4 |
106.31 |
|
66 |
3.55 |
9.06E-02 |
1684.8 |
105.7 |
|
67 |
3.6 |
9.01E-02 |
1674.8 |
105.02 |
|
68 |
3.65 |
8.96E-02 |
1663.8 |
104.28 |
|
69 |
3.7 |
8.90E-02 |
1652.3 |
103.55 |
|
70 |
3.75 |
8.85E-02 |
1640.9 |
102.74 |
|
71 |
3.8 |
8.79E-02 |
1627.4 |
101.72 |
|
72 |
3.85 |
8.71E-02 |
1610.7 |
100.6 |
|
73 |
3.9 |
8.62E-02 |
1593.2 |
99.476 |
|
74 |
3.95 |
8.53E-02 |
1578.6 |
98.368 |
|
75 |
4 |
8.45E-02 |
1562.9 |
97.114 |
|
76 |
4.1 |
8.25E-02 |
1526.7 |
94.537 |
|
77 |
4.15 |
8.13E-02 |
1505.5 |
93.054 |
|
78 |
4.2 |
8.01E-02 |
1484.1 |
91.603 |
|
79 |
4.25 |
7.88E-02 |
1460.5 |
90.096 |
|
80 |
4.3 |
7.74E-02 |
1434 |
88.457 |
|
81 |
4.35 |
7.59E-02 |
1407.6 |
86.828 |
|
82 |
4.4 |
7.44E-02 |
1382.6 |
85.247 |
|
83 |
4.45 |
7.31E-02 |
1360.7 |
83.366 |
|
84 |
4.5 |
7.14E-02 |
1331.2 |
81.513 |
|
85 |
4.55 |
6.96E-02 |
1299.3 |
79.861 |
|
86 |
4.6 |
6.79E-02 |
1269.4 |
78.147 |
|
87 |
4.65 |
6.63E-02 |
1239.4 |
76.148 |
|
88 |
4.7 |
6.47E-02 |
1208.3 |
73.809 |
|
89 |
4.75 |
6.27E-02 |
1174.7 |
72.054 |
|
90 |
4.8 |
6.09E-02 |
1145.4 |
69.93 |
|
91 |
4.85 |
5.93E-02 |
1116.4 |
67.326 |
|
92 |
4.9 |
5.76E-02 |
1084.9 |
64.82 |
|
93 |
4.95 |
5.58E-02 |
1053.2 |
62.19 |
|
94 |
5 |
5.38E-02 |
1018.4 |
59.705 |
|
95 |
5.1 |
5.00E-02 |
949.03 |
55.342 |
|
96 |
5.15 |
4.78E-02 |
906.6 |
52.857 |
|
97 |
5.2 |
4.56E-02 |
863.9 |
50.926 |
|
98 |
5.25 |
4.33E-02 |
822.75 |
50.849 |
|
99 |
5.3 |
4.09E-02 |
780.71 |
51.104 |
|
100 |
5.35 |
3.81E-02 |
740.26 |
52.484 |
|
101 |
5.4 |
3.51E-02 |
703.23 |
54.542 |
|
102 |
5.45 |
3.21E-02 |
671.95 |
56.706 |
|
103 |
5.5 |
2.96E-02 |
657.51 |
59.434 |
|
104 |
5.55 |
2.70E-02 |
686.63 |
62.399 |
|
105 |
5.6 |
2.44E-02 |
768.66 |
65.281 |
|
106 |
5.65 |
2.19E-02 |
840.8 |
68.068 |
|
107 |
5.7 |
1.96E-02 |
904.07 |
70.129 |
|
108 |
5.75 |
1.73E-02 |
958.61 |
71.74 |
|
109 |
5.8 |
1.51E-02 |
1004.7 |
72.922 |
|
110 |
5.85 |
1.30E-02 |
1042.8 |
73.588 |
|
111 |
5.9 |
1.10E-02 |
1073.3 |
73.771 |
|
112 |
5.95 |
9.21E-03 |
1097.1 |
73.112 |
|
113 |
6 |
7.40E-03 |
1114.1 |
71.946 |
|
114 |
6.1 |
3.65E-03 |
1124.1 |
68.911 |
|
115 |
6.15 |
1.27E-03 |
1122.3 |
66.865 |
|
116 |
6.2 |
6.44E-04 |
1114 |
64.162 |
|
117 |
6.25 |
9.54E-04 |
1099.2 |
60.789 |
|
118 |
6.3 |
2.84E-03 |
1078.4 |
57.318 |
|
119 |
6.35 |
4.89E-03 |
1051.6 |
53.323 |
|
120 |
6.4 |
2.48E-03 |
1017.8 |
48.47 |
|
121 |
6.45 |
2.05E-03 |
976.51 |
42.81 |
|
122 |
6.5 |
4.54E-03 |
928.16 |
37.151 |
|
123 |
6.55 |
1.55E-04 |
880.17 |
33.356 |
|
124 |
6.6 |
1.23E-04 |
836.93 |
31.545 |
|
125 |
6.65 |
6.66E-03 |
787.56 |
33.325 |
|
126 |
6.7 |
1.13E-02 |
726.59 |
36.699 |
|
127 |
6.75 |
1.59E-02 |
654.83 |
39.4 |
|
128 |
6.8 |
2.04E-02 |
573.63 |
41.593 |
|
129 |
6.85 |
2.48E-02 |
483.53 |
43.208 |
|
130 |
6.9 |
2.80E-02 |
484.12 |
43.772 |
|
131 |
6.95 |
3.09E-02 |
560.42 |
43.861 |
|
132 |
7 |
3.39E-02 |
631.25 |
44.269 |
|
133 |
7.1 |
3.94E-02 |
747.56 |
46.239 |
|
134 |
7.15 |
4.23E-02 |
804.07 |
48.619 |
|
135 |
7.2 |
4.49E-02 |
855.4 |
51.806 |
|
136 |
7.25 |
4.73E-02 |
902.89 |
54.789 |
|
137 |
7.3 |
4.97E-02 |
948.12 |
57.658 |
|
138 |
7.35 |
5.18E-02 |
989.56 |
60.266 |
|
139 |
7.4 |
5.38E-02 |
1028 |
62.731 |
|
140 |
7.45 |
5.57E-02 |
1065.2 |
65.1 |
|
141 |
7.5 |
5.77E-02 |
1103.1 |
67.395 |
|
142 |
7.55 |
5.96E-02 |
1139.8 |
69.652 |
|
143 |
7.6 |
6.13E-02 |
1173.5 |
71.755 |
|
144 |
7.65 |
6.30E-02 |
1205.8 |
73.825 |
|
145 |
7.7 |
6.46E-02 |
1237.4 |
75.915 |
|
146 |
7.75 |
6.63E-02 |
1269.1 |
78.017 |
|
147 |
7.8 |
6.79E-02 |
1299.3 |
79.988 |
|
148 |
7.85 |
6.93E-02 |
1327.9 |
81.878 |
|
149 |
7.9 |
7.07E-02 |
1354.7 |
83.796 |
|
150 |
7.95 |
7.22E-02 |
1381.7 |
85.812 |
|
151 |
8 |
7.35E-02 |
1408.5 |
87.784 |
|
152 |
8.1 |
7.57E-02 |
1453.4 |
91.489 |
|
153 |
8.15 |
7.69E-02 |
1479.7 |
93.318 |
|
154 |
8.2 |
7.81E-02 |
1504.9 |
95.299 |
|
155 |
8.25 |
7.93E-02 |
1530 |
97.015 |
|
156 |
8.3 |
8.04E-02 |
1553.2 |
98.637 |
|
157 |
8.35 |
8.13E-02 |
1575.6 |
100.35 |
|
158 |
8.4 |
8.23E-02 |
1597.7 |
102.21 |
|
159 |
8.45 |
8.33E-02 |
1618.8 |
103.92 |
|
160 |
8.5 |
8.42E-02 |
1639.9 |
105.3 |
|
161 |
8.55 |
8.51E-02 |
1660 |
106.6 |
|
162 |
8.6 |
8.60E-02 |
1680.1 |
107.89 |
|
163 |
8.65 |
8.68E-02 |
1696.7 |
109.11 |
|
164 |
8.7 |
8.76E-02 |
1711.7 |
110.1 |
|
165 |
8.75 |
8.82E-02 |
1725.8 |
110.98 |
|
166 |
8.8 |
8.89E-02 |
1741.1 |
111.74 |
|
167 |
8.85 |
8.95E-02 |
1753.5 |
112.46 |
|
168 |
8.9 |
8.99E-02 |
1761.2 |
113.06 |
|
169 |
8.95 |
9.03E-02 |
1768.5 |
113.53 |
|
170 |
9 |
9.07E-02 |
1776.1 |
113.91 |
Simulation Video - https://drive.google.com/file/d/1SewE47Eel3XMVSM6RKa4xwgSCaIF30aR/view?usp=sharing
Case 2:

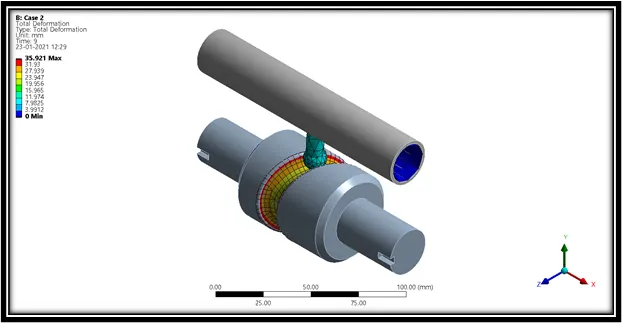

Total Deformation:
|
Time [s] |
Minimum [mm] |
Maximum [mm] |
Average [mm] |
|
|
1 |
0.1 |
0 |
1.3298 |
0.53151 |
|
2 |
0.2 |
0 |
2.6587 |
1.0682 |
|
3 |
0.25 |
0 |
3.3225 |
1.3412 |
|
4 |
0.3 |
0 |
3.9857 |
1.6163 |
|
5 |
0.35 |
0 |
4.6483 |
1.8935 |
|
6 |
0.4 |
0 |
5.3101 |
2.1731 |
|
7 |
0.45 |
0 |
5.9709 |
2.455 |
|
8 |
0.5 |
0 |
6.6308 |
2.7386 |
|
9 |
0.55 |
0 |
7.2895 |
3.0248 |
|
10 |
0.6 |
0 |
7.9469 |
3.3133 |
|
11 |
0.65 |
0 |
8.603 |
3.6037 |
|
12 |
0.7 |
0 |
9.2576 |
3.8955 |
|
13 |
0.75 |
0 |
9.9106 |
4.1889 |
|
14 |
0.8 |
0 |
10.562 |
4.4838 |
|
15 |
0.85 |
0 |
11.211 |
4.7804 |
|
16 |
0.9 |
0 |
11.859 |
5.0783 |
|
17 |
0.95 |
0 |
12.505 |
5.3775 |
|
18 |
1 |
0 |
13.148 |
5.6781 |
|
19 |
1.1 |
0 |
14.428 |
6.2837 |
|
20 |
1.15 |
0 |
15.064 |
6.5881 |
|
21 |
1.2 |
0 |
15.698 |
6.8932 |
|
22 |
1.25 |
0 |
16.329 |
7.1995 |
|
23 |
1.3 |
0 |
16.957 |
7.5069 |
|
24 |
1.35 |
0 |
17.583 |
7.8153 |
|
25 |
1.4 |
0 |
18.205 |
8.1243 |
|
26 |
1.45 |
0 |
18.824 |
8.4342 |
|
27 |
1.5 |
0 |
19.44 |
8.7449 |
|
28 |
1.55 |
0 |
20.053 |
9.0559 |
|
29 |
1.6 |
0 |
20.662 |
9.3671 |
|
30 |
1.65 |
0 |
21.268 |
9.6787 |
|
31 |
1.7 |
0 |
21.87 |
9.9905 |
|
32 |
1.75 |
0 |
22.468 |
10.302 |
|
33 |
1.8 |
0 |
23.063 |
10.614 |
|
34 |
1.85 |
0 |
23.653 |
10.926 |
|
35 |
1.9 |
0 |
24.24 |
11.237 |
|
36 |
1.95 |
0 |
24.822 |
11.549 |
|
37 |
2 |
0 |
25.4 |
11.86 |
|
38 |
2.1 |
0 |
26.543 |
12.48 |
|
39 |
2.15 |
0 |
27.108 |
12.79 |
|
40 |
2.2 |
0 |
27.668 |
13.098 |
|
41 |
2.25 |
0 |
28.223 |
13.406 |
|
42 |
2.3 |
0 |
28.774 |
13.713 |
|
43 |
2.35 |
0 |
29.319 |
14.019 |
|
44 |
2.4 |
0 |
29.86 |
14.325 |
|
45 |
2.45 |
0 |
30.395 |
14.629 |
|
46 |
2.5 |
0 |
30.925 |
14.932 |
|
47 |
2.55 |
0 |
31.45 |
15.233 |
|
48 |
2.6 |
0 |
31.97 |
15.533 |
|
49 |
2.65 |
0 |
32.484 |
15.832 |
|
50 |
2.7 |
0 |
32.992 |
16.128 |
|
51 |
2.75 |
0 |
33.495 |
16.424 |
|
52 |
2.8 |
0 |
33.992 |
16.717 |
|
53 |
2.85 |
0 |
34.483 |
17.008 |
|
54 |
2.9 |
0 |
34.969 |
17.298 |
|
55 |
2.95 |
0 |
35.448 |
17.586 |
|
56 |
3 |
0 |
35.921 |
17.871 |
|
57 |
3.1 |
0 |
36.849 |
18.435 |
|
58 |
3.15 |
0 |
37.304 |
18.714 |
|
59 |
3.2 |
0 |
37.752 |
18.989 |
|
60 |
3.25 |
0 |
38.194 |
19.262 |
|
61 |
3.3 |
0 |
38.629 |
19.533 |
|
62 |
3.35 |
0 |
39.057 |
19.801 |
|
63 |
3.4 |
0 |
39.479 |
20.066 |
|
64 |
3.45 |
0 |
39.894 |
20.328 |
|
65 |
3.5 |
0 |
40.303 |
20.586 |
|
66 |
3.55 |
0 |
40.704 |
20.842 |
|
67 |
3.6 |
0 |
41.098 |
21.094 |
|
68 |
3.65 |
0 |
41.486 |
21.343 |
|
69 |
3.7 |
0 |
41.866 |
21.587 |
|
70 |
3.75 |
0 |
42.239 |
21.829 |
|
71 |
3.8 |
0 |
42.605 |
22.067 |
|
72 |
3.85 |
0 |
42.963 |
22.301 |
|
73 |
3.9 |
0 |
43.314 |
22.531 |
|
74 |
3.95 |
0 |
43.658 |
22.758 |
|
75 |
4 |
0 |
43.994 |
22.98 |
|
76 |
4.1 |
0 |
44.644 |
23.411 |
|
77 |
4.15 |
0 |
44.958 |
23.621 |
|
78 |
4.2 |
0 |
45.263 |
23.826 |
|
79 |
4.25 |
0 |
45.561 |
24.027 |
|
80 |
4.3 |
0 |
45.852 |
24.222 |
|
81 |
4.35 |
0 |
46.134 |
24.413 |
|
82 |
4.4 |
0 |
46.408 |
24.599 |
|
83 |
4.45 |
0 |
46.675 |
24.781 |
|
84 |
4.5 |
0 |
46.933 |
24.958 |
|
85 |
4.55 |
0 |
47.184 |
25.129 |
|
86 |
4.6 |
0 |
47.426 |
25.295 |
|
87 |
4.65 |
0 |
47.66 |
25.456 |
|
88 |
4.7 |
0 |
47.886 |
25.613 |
|
89 |
4.75 |
0 |
48.104 |
25.763 |
|
90 |
4.8 |
0 |
48.314 |
25.908 |
|
91 |
4.85 |
0 |
48.515 |
26.048 |
|
92 |
4.9 |
0 |
48.708 |
26.184 |
|
93 |
4.95 |
0 |
48.893 |
26.314 |
|
94 |
5 |
0 |
49.069 |
26.439 |
|
95 |
5.1 |
0 |
49.397 |
26.67 |
|
96 |
5.15 |
0 |
49.548 |
26.777 |
|
97 |
5.2 |
0 |
49.69 |
26.879 |
|
98 |
5.25 |
0 |
49.824 |
26.972 |
|
99 |
5.3 |
0 |
49.95 |
27.058 |
|
100 |
5.35 |
0 |
50.067 |
27.135 |
|
101 |
5.4 |
0 |
50.175 |
27.203 |
|
102 |
5.45 |
0 |
50.275 |
27.265 |
|
103 |
5.5 |
0 |
50.366 |
27.321 |
|
104 |
5.55 |
0 |
50.448 |
27.371 |
|
105 |
5.6 |
0 |
50.522 |
27.416 |
|
106 |
5.65 |
0 |
50.587 |
27.456 |
|
107 |
5.7 |
0 |
50.644 |
27.491 |
|
108 |
5.75 |
0 |
50.692 |
27.521 |
|
109 |
5.8 |
0 |
50.731 |
27.545 |
|
110 |
5.85 |
0 |
50.761 |
27.564 |
|
111 |
5.9 |
0 |
50.783 |
27.578 |
|
112 |
5.95 |
0 |
50.796 |
27.587 |
|
113 |
6 |
0 |
50.8 |
27.59 |
|
114 |
6.1 |
0 |
50.783 |
27.579 |
|
115 |
6.15 |
0 |
50.761 |
27.567 |
|
116 |
6.2 |
0 |
50.731 |
27.549 |
|
117 |
6.25 |
0 |
50.692 |
27.526 |
|
118 |
6.3 |
0 |
50.644 |
27.499 |
|
119 |
6.35 |
0 |
50.587 |
27.467 |
|
120 |
6.4 |
0 |
50.522 |
27.43 |
|
121 |
6.45 |
0 |
50.448 |
27.387 |
|
122 |
6.5 |
0 |
50.366 |
27.34 |
|
123 |
6.55 |
0 |
50.275 |
27.288 |
|
124 |
6.6 |
0 |
50.175 |
27.231 |
|
125 |
6.65 |
0 |
50.067 |
27.168 |
|
126 |
6.7 |
0 |
49.95 |
27.102 |
|
127 |
6.75 |
0 |
49.824 |
27.031 |
|
128 |
6.8 |
0 |
49.69 |
26.963 |
|
129 |
6.85 |
0 |
49.548 |
26.89 |
|
130 |
6.9 |
0 |
49.397 |
26.805 |
|
131 |
6.95 |
0 |
49.237 |
26.715 |
|
132 |
7 |
0 |
49.069 |
26.62 |
|
133 |
7.1 |
0 |
48.708 |
26.381 |
|
134 |
7.15 |
0 |
48.515 |
26.252 |
|
135 |
7.2 |
0 |
48.314 |
26.117 |
|
136 |
7.25 |
0 |
48.104 |
25.978 |
|
137 |
7.3 |
0 |
47.886 |
25.834 |
|
138 |
7.35 |
0 |
47.66 |
25.684 |
|
139 |
7.4 |
0 |
47.426 |
25.53 |
|
140 |
7.45 |
0 |
47.184 |
25.371 |
|
141 |
7.5 |
0 |
46.933 |
25.207 |
|
142 |
7.55 |
0 |
46.675 |
25.037 |
|
143 |
7.6 |
0 |
46.408 |
24.863 |
|
144 |
7.65 |
0 |
46.134 |
24.684 |
|
145 |
7.7 |
0 |
45.852 |
24.501 |
|
146 |
7.75 |
0 |
45.561 |
24.312 |
|
147 |
7.8 |
0 |
45.263 |
24.119 |
|
148 |
7.85 |
0 |
44.958 |
23.922 |
|
149 |
7.9 |
0 |
44.644 |
23.72 |
|
150 |
7.95 |
0 |
44.323 |
23.513 |
|
151 |
8 |
0 |
43.994 |
23.302 |
|
152 |
8.1 |
0 |
43.314 |
22.868 |
|
153 |
8.15 |
0 |
42.963 |
22.645 |
|
154 |
8.2 |
0 |
42.605 |
22.417 |
|
155 |
8.25 |
0 |
42.239 |
22.186 |
|
156 |
8.3 |
0 |
41.866 |
21.95 |
|
157 |
8.35 |
0 |
41.486 |
21.711 |
|
158 |
8.4 |
0 |
41.098 |
21.469 |
|
159 |
8.45 |
0 |
40.704 |
21.222 |
|
160 |
8.5 |
0 |
40.303 |
20.971 |
|
161 |
8.55 |
0 |
39.894 |
20.717 |
|
162 |
8.6 |
0 |
39.479 |
20.458 |
|
163 |
8.65 |
0 |
39.057 |
20.197 |
|
164 |
8.7 |
0 |
38.629 |
19.932 |
|
165 |
8.75 |
0 |
38.194 |
19.664 |
|
166 |
8.8 |
0 |
37.752 |
19.392 |
|
167 |
8.85 |
0 |
37.304 |
19.117 |
|
168 |
8.9 |
0 |
36.849 |
18.84 |
|
169 |
8.95 |
0 |
36.388 |
18.56 |
|
170 |
9 |
0 |
35.921 |
18.277 |
Simulation Video - https://drive.google.com/file/d/1_6HHyAg0wKicKOPpleLdoLcBgof-J0DR/view?usp=sharing

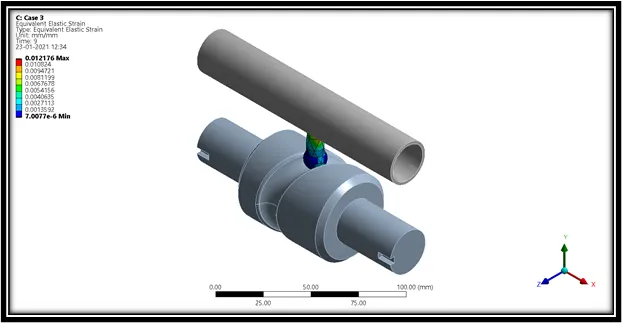

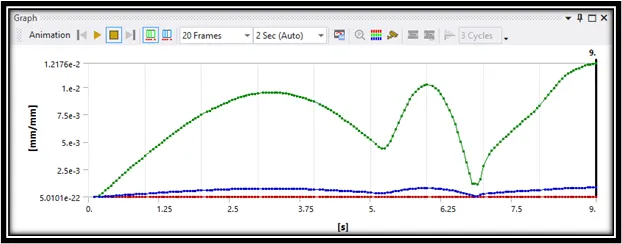

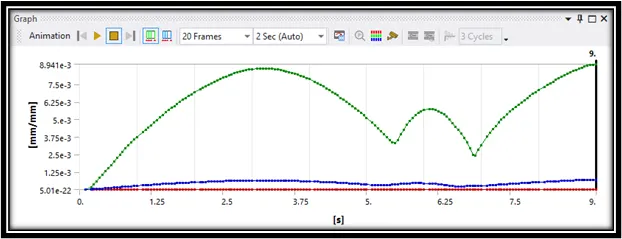

Equivalent Elastic Strain:
|
Time [s] |
Minimum [mm/mm] |
Maximum [mm/mm] |
Average [mm/mm] |
|
|
1 |
0.1 |
5.01E-22 |
2.41E-15 |
1.20E-16 |
|
2 |
0.2 |
1.13E-07 |
1.44E-04 |
1.05E-05 |
|
3 |
0.25 |
2.88E-07 |
3.66E-04 |
2.66E-05 |
|
4 |
0.3 |
4.61E-07 |
5.85E-04 |
4.24E-05 |
|
5 |
0.35 |
6.38E-07 |
8.09E-04 |
5.85E-05 |
|
6 |
0.4 |
8.20E-07 |
1.04E-03 |
7.39E-05 |
|
7 |
0.45 |
1.01E-06 |
1.27E-03 |
9.03E-05 |
|
8 |
0.5 |
1.18E-06 |
1.47E-03 |
1.09E-04 |
|
9 |
0.55 |
1.38E-06 |
1.71E-03 |
1.27E-04 |
|
10 |
0.6 |
1.58E-06 |
1.96E-03 |
1.45E-04 |
|
11 |
0.65 |
1.77E-06 |
2.20E-03 |
1.62E-04 |
|
12 |
0.7 |
1.95E-06 |
2.42E-03 |
1.78E-04 |
|
13 |
0.75 |
2.12E-06 |
2.64E-03 |
1.94E-04 |
|
14 |
0.8 |
2.29E-06 |
2.85E-03 |
2.10E-04 |
|
15 |
0.85 |
2.46E-06 |
3.06E-03 |
2.26E-04 |
|
16 |
0.9 |
2.62E-06 |
3.27E-03 |
2.41E-04 |
|
17 |
0.95 |
2.78E-06 |
3.47E-03 |
2.55E-04 |
|
18 |
1 |
2.94E-06 |
3.66E-03 |
2.70E-04 |
|
19 |
1.1 |
3.23E-06 |
4.00E-03 |
3.01E-04 |
|
20 |
1.15 |
3.47E-06 |
4.16E-03 |
3.18E-04 |
|
21 |
1.2 |
3.60E-06 |
4.35E-03 |
3.37E-04 |
|
22 |
1.25 |
3.75E-06 |
4.55E-03 |
3.56E-04 |
|
23 |
1.3 |
3.91E-06 |
4.76E-03 |
3.74E-04 |
|
24 |
1.35 |
4.06E-06 |
4.95E-03 |
3.89E-04 |
|
25 |
1.4 |
4.21E-06 |
5.12E-03 |
4.03E-04 |
|
26 |
1.45 |
4.36E-06 |
5.33E-03 |
4.14E-04 |
|
27 |
1.5 |
4.51E-06 |
5.54E-03 |
4.25E-04 |
|
28 |
1.55 |
4.66E-06 |
5.72E-03 |
4.37E-04 |
|
29 |
1.6 |
4.79E-06 |
5.90E-03 |
4.48E-04 |
|
30 |
1.65 |
4.92E-06 |
6.07E-03 |
4.59E-04 |
|
31 |
1.7 |
5.04E-06 |
6.24E-03 |
4.70E-04 |
|
32 |
1.75 |
5.17E-06 |
6.41E-03 |
4.82E-04 |
|
33 |
1.8 |
5.29E-06 |
6.58E-03 |
4.93E-04 |
|
34 |
1.85 |
5.40E-06 |
6.73E-03 |
5.05E-04 |
|
35 |
1.9 |
5.51E-06 |
6.88E-03 |
5.16E-04 |
|
36 |
1.95 |
5.62E-06 |
7.03E-03 |
5.28E-04 |
|
37 |
2 |
5.73E-06 |
7.18E-03 |
5.40E-04 |
|
38 |
2.1 |
5.90E-06 |
7.43E-03 |
5.61E-04 |
|
39 |
2.15 |
6.02E-06 |
7.55E-03 |
5.72E-04 |
|
40 |
2.2 |
6.11E-06 |
7.68E-03 |
5.83E-04 |
|
41 |
2.25 |
6.20E-06 |
7.81E-03 |
5.93E-04 |
|
42 |
2.3 |
6.28E-06 |
7.92E-03 |
6.03E-04 |
|
43 |
2.35 |
6.36E-06 |
8.02E-03 |
6.13E-04 |
|
44 |
2.4 |
6.45E-06 |
8.13E-03 |
6.23E-04 |
|
45 |
2.45 |
6.53E-06 |
8.24E-03 |
6.31E-04 |
|
46 |
2.5 |
6.59E-06 |
8.33E-03 |
6.38E-04 |
|
47 |
2.55 |
6.65E-06 |
8.42E-03 |
6.47E-04 |
|
48 |
2.6 |
6.71E-06 |
8.52E-03 |
6.56E-04 |
|
49 |
2.65 |
6.78E-06 |
8.61E-03 |
6.63E-04 |
|
50 |
2.7 |
6.83E-06 |
8.69E-03 |
6.69E-04 |
|
51 |
2.75 |
6.88E-06 |
8.76E-03 |
6.75E-04 |
|
52 |
2.8 |
6.90E-06 |
8.83E-03 |
6.84E-04 |
|
53 |
2.85 |
6.96E-06 |
8.90E-03 |
6.89E-04 |
|
54 |
2.9 |
7.00E-06 |
8.95E-03 |
6.92E-04 |
|
55 |
2.95 |
7.03E-06 |
9.00E-03 |
6.96E-04 |
|
56 |
3 |
7.06E-06 |
9.03E-03 |
6.98E-04 |
|
57 |
3.1 |
7.09E-06 |
9.08E-03 |
7.03E-04 |
|
58 |
3.15 |
7.11E-06 |
9.10E-03 |
7.04E-04 |
|
59 |
3.2 |
7.11E-06 |
9.10E-03 |
7.04E-04 |
|
60 |
3.25 |
7.11E-06 |
9.11E-03 |
7.05E-04 |
|
61 |
3.3 |
7.12E-06 |
9.10E-03 |
7.04E-04 |
|
62 |
3.35 |
7.12E-06 |
9.08E-03 |
7.00E-04 |
|
63 |
3.4 |
7.11E-06 |
9.05E-03 |
6.97E-04 |
|
64 |
3.45 |
7.09E-06 |
9.01E-03 |
6.93E-04 |
|
65 |
3.5 |
7.07E-06 |
8.97E-03 |
6.90E-04 |
|
66 |
3.55 |
7.05E-06 |
8.93E-03 |
6.84E-04 |
|
67 |
3.6 |
7.02E-06 |
8.87E-03 |
6.79E-04 |
|
68 |
3.65 |
6.97E-06 |
8.81E-03 |
6.73E-04 |
|
69 |
3.7 |
6.93E-06 |
8.75E-03 |
6.69E-04 |
|
70 |
3.75 |
6.88E-06 |
8.69E-03 |
6.63E-04 |
|
71 |
3.8 |
6.84E-06 |
8.62E-03 |
6.55E-04 |
|
72 |
3.85 |
6.78E-06 |
8.54E-03 |
6.47E-04 |
|
73 |
3.9 |
6.71E-06 |
8.45E-03 |
6.39E-04 |
|
74 |
3.95 |
6.65E-06 |
8.35E-03 |
6.31E-04 |
|
75 |
4 |
6.58E-06 |
8.26E-03 |
6.22E-04 |
|
76 |
4.1 |
6.43E-06 |
8.05E-03 |
6.04E-04 |
|
77 |
4.15 |
6.34E-06 |
7.91E-03 |
5.94E-04 |
|
78 |
4.2 |
6.25E-06 |
7.78E-03 |
5.84E-04 |
|
79 |
4.25 |
6.16E-06 |
7.65E-03 |
5.72E-04 |
|
80 |
4.3 |
6.04E-06 |
7.49E-03 |
5.63E-04 |
|
81 |
4.35 |
5.92E-06 |
7.33E-03 |
5.52E-04 |
|
82 |
4.4 |
5.81E-06 |
7.18E-03 |
5.40E-04 |
|
83 |
4.45 |
5.71E-06 |
7.02E-03 |
5.28E-04 |
|
84 |
4.5 |
5.59E-06 |
6.85E-03 |
5.14E-04 |
|
85 |
4.55 |
5.44E-06 |
6.66E-03 |
5.05E-04 |
|
86 |
4.6 |
5.31E-06 |
6.47E-03 |
4.93E-04 |
|
87 |
4.65 |
5.18E-06 |
6.30E-03 |
4.82E-04 |
|
88 |
4.7 |
5.06E-06 |
6.15E-03 |
4.66E-04 |
|
89 |
4.75 |
4.89E-06 |
5.95E-03 |
4.56E-04 |
|
90 |
4.8 |
4.74E-06 |
5.74E-03 |
4.44E-04 |
|
91 |
4.85 |
4.61E-06 |
5.56E-03 |
4.28E-04 |
|
92 |
4.9 |
4.49E-06 |
5.37E-03 |
4.10E-04 |
|
93 |
4.95 |
4.35E-06 |
5.22E-03 |
3.91E-04 |
|
94 |
5 |
4.20E-06 |
5.05E-03 |
3.74E-04 |
|
95 |
5.1 |
3.91E-06 |
4.72E-03 |
3.48E-04 |
|
96 |
5.15 |
3.73E-06 |
4.51E-03 |
3.33E-04 |
|
97 |
5.2 |
3.51E-06 |
4.33E-03 |
3.21E-04 |
|
98 |
5.25 |
3.02E-06 |
4.27E-03 |
3.31E-04 |
|
99 |
5.3 |
2.58E-06 |
4.32E-03 |
3.49E-04 |
|
100 |
5.35 |
1.96E-06 |
4.54E-03 |
3.78E-04 |
|
101 |
5.4 |
1.34E-06 |
4.92E-03 |
4.15E-04 |
|
102 |
5.45 |
9.76E-07 |
5.42E-03 |
4.54E-04 |
|
103 |
5.5 |
7.97E-07 |
5.96E-03 |
4.94E-04 |
|
104 |
5.55 |
6.74E-07 |
6.49E-03 |
5.34E-04 |
|
105 |
5.6 |
5.82E-07 |
6.97E-03 |
5.71E-04 |
|
106 |
5.65 |
5.16E-07 |
7.40E-03 |
6.01E-04 |
|
107 |
5.7 |
4.40E-07 |
7.78E-03 |
6.26E-04 |
|
108 |
5.75 |
3.78E-07 |
8.10E-03 |
6.51E-04 |
|
109 |
5.8 |
3.16E-07 |
8.35E-03 |
6.71E-04 |
|
110 |
5.85 |
2.63E-07 |
8.54E-03 |
6.85E-04 |
|
111 |
5.9 |
2.15E-07 |
8.69E-03 |
6.93E-04 |
|
112 |
5.95 |
1.60E-07 |
8.78E-03 |
6.98E-04 |
|
113 |
6 |
1.02E-07 |
8.79E-03 |
6.99E-04 |
|
114 |
6.1 |
4.10E-09 |
8.61E-03 |
6.91E-04 |
|
115 |
6.15 |
2.41E-08 |
8.43E-03 |
6.75E-04 |
|
116 |
6.2 |
4.32E-08 |
8.17E-03 |
6.56E-04 |
|
117 |
6.25 |
6.84E-08 |
7.83E-03 |
6.33E-04 |
|
118 |
6.3 |
8.77E-08 |
7.40E-03 |
6.09E-04 |
|
119 |
6.35 |
1.04E-07 |
6.93E-03 |
5.77E-04 |
|
120 |
6.4 |
1.22E-07 |
6.40E-03 |
5.36E-04 |
|
121 |
6.45 |
1.59E-07 |
5.79E-03 |
4.90E-04 |
|
122 |
6.5 |
1.68E-07 |
5.10E-03 |
4.39E-04 |
|
123 |
6.55 |
1.17E-07 |
4.34E-03 |
3.86E-04 |
|
124 |
6.6 |
5.91E-08 |
3.51E-03 |
3.29E-04 |
|
125 |
6.65 |
6.07E-08 |
2.61E-03 |
2.71E-04 |
|
126 |
6.7 |
1.04E-07 |
1.96E-03 |
2.05E-04 |
|
127 |
6.75 |
1.43E-07 |
1.92E-03 |
1.34E-04 |
|
128 |
6.8 |
5.95E-08 |
1.88E-03 |
8.49E-05 |
|
129 |
6.85 |
1.65E-07 |
1.85E-03 |
1.38E-04 |
|
130 |
6.9 |
1.73E-07 |
1.81E-03 |
2.19E-04 |
|
131 |
6.95 |
2.03E-07 |
2.98E-03 |
2.96E-04 |
|
132 |
7 |
2.88E-07 |
4.18E-03 |
3.78E-04 |
|
133 |
7.1 |
3.11E-06 |
4.62E-03 |
3.65E-04 |
|
134 |
7.15 |
3.72E-06 |
4.72E-03 |
3.53E-04 |
|
135 |
7.2 |
3.84E-06 |
4.82E-03 |
3.60E-04 |
|
136 |
7.25 |
3.93E-06 |
4.94E-03 |
3.70E-04 |
|
137 |
7.3 |
4.04E-06 |
5.08E-03 |
3.82E-04 |
|
138 |
7.35 |
4.15E-06 |
5.23E-03 |
3.94E-04 |
|
139 |
7.4 |
4.27E-06 |
5.37E-03 |
4.06E-04 |
|
140 |
7.45 |
4.39E-06 |
5.53E-03 |
4.18E-04 |
|
141 |
7.5 |
4.51E-06 |
5.69E-03 |
4.29E-04 |
|
142 |
7.55 |
4.64E-06 |
5.85E-03 |
4.42E-04 |
|
143 |
7.6 |
4.77E-06 |
6.01E-03 |
4.54E-04 |
|
144 |
7.65 |
4.88E-06 |
6.16E-03 |
4.66E-04 |
|
145 |
7.7 |
5.01E-06 |
6.31E-03 |
4.79E-04 |
|
146 |
7.75 |
5.13E-06 |
6.46E-03 |
4.91E-04 |
|
147 |
7.8 |
5.24E-06 |
6.61E-03 |
5.04E-04 |
|
148 |
7.85 |
5.36E-06 |
6.75E-03 |
5.15E-04 |
|
149 |
7.9 |
5.46E-06 |
6.88E-03 |
5.27E-04 |
|
150 |
7.95 |
5.57E-06 |
7.02E-03 |
5.40E-04 |
|
151 |
8 |
5.67E-06 |
7.15E-03 |
5.53E-04 |
|
152 |
8.1 |
5.84E-06 |
7.38E-03 |
5.75E-04 |
|
153 |
8.15 |
5.92E-06 |
7.52E-03 |
5.87E-04 |
|
154 |
8.2 |
6.02E-06 |
7.65E-03 |
6.00E-04 |
|
155 |
8.25 |
6.11E-06 |
7.82E-03 |
6.11E-04 |
|
156 |
8.3 |
6.19E-06 |
8.05E-03 |
6.23E-04 |
|
157 |
8.35 |
6.27E-06 |
8.32E-03 |
6.37E-04 |
|
158 |
8.4 |
6.34E-06 |
8.58E-03 |
6.52E-04 |
|
159 |
8.45 |
6.42E-06 |
8.77E-03 |
6.64E-04 |
|
160 |
8.5 |
6.50E-06 |
8.92E-03 |
6.74E-04 |
|
161 |
8.55 |
6.57E-06 |
9.09E-03 |
6.84E-04 |
|
162 |
8.6 |
6.65E-06 |
9.23E-03 |
6.93E-04 |
|
163 |
8.65 |
6.72E-06 |
9.33E-03 |
7.01E-04 |
|
164 |
8.7 |
6.77E-06 |
9.42E-03 |
7.07E-04 |
|
165 |
8.75 |
6.82E-06 |
9.52E-03 |
7.13E-04 |
|
166 |
8.8 |
6.87E-06 |
9.61E-03 |
7.18E-04 |
|
167 |
8.85 |
6.93E-06 |
9.68E-03 |
7.23E-04 |
|
168 |
8.9 |
6.96E-06 |
9.72E-03 |
7.26E-04 |
|
169 |
8.95 |
6.98E-06 |
9.77E-03 |
7.30E-04 |
|
170 |
9 |
7.02E-06 |
9.78E-03 |
7.32E-04 |
Simulation Video - https://drive.google.com/file/d/1UVba7ANzEvAFROA4zfKC0ayktDe1mD-m/view?usp=sharing
Equivalent Stress:
|
Time [s] |
Minimum [MPa] |
Maximum [MPa] |
Average [MPa] |
|
|
1 |
0.1 |
7.68E-17 |
2.49E-10 |
9.58E-12 |
|
2 |
0.2 |
1.47E-03 |
28.556 |
1.7337 |
|
3 |
0.25 |
3.73E-03 |
72.665 |
4.4036 |
|
4 |
0.3 |
5.97E-03 |
116.22 |
7.0405 |
|
5 |
0.35 |
8.25E-03 |
160.59 |
9.73 |
|
6 |
0.4 |
1.06E-02 |
206.66 |
12.378 |
|
7 |
0.45 |
1.30E-02 |
251.38 |
15.035 |
|
8 |
0.5 |
1.53E-02 |
292.42 |
17.866 |
|
9 |
0.55 |
1.78E-02 |
339.8 |
20.839 |
|
10 |
0.6 |
2.04E-02 |
389.84 |
23.807 |
|
11 |
0.65 |
2.29E-02 |
437.3 |
26.708 |
|
12 |
0.7 |
2.52E-02 |
481.15 |
29.337 |
|
13 |
0.75 |
2.74E-02 |
523.72 |
31.919 |
|
14 |
0.8 |
2.96E-02 |
565.4 |
34.549 |
|
15 |
0.85 |
3.18E-02 |
607.24 |
37.197 |
|
16 |
0.9 |
3.39E-02 |
648.94 |
39.702 |
|
17 |
0.95 |
3.60E-02 |
687.99 |
42.212 |
|
18 |
1 |
3.81E-02 |
725.61 |
44.938 |
|
19 |
1.1 |
4.18E-02 |
794.07 |
50.325 |
|
20 |
1.15 |
4.48E-02 |
825.45 |
53.035 |
|
21 |
1.2 |
4.66E-02 |
863.87 |
56.061 |
|
22 |
1.25 |
4.85E-02 |
903.18 |
59 |
|
23 |
1.3 |
5.05E-02 |
943.93 |
61.837 |
|
24 |
1.35 |
5.25E-02 |
981.41 |
64.314 |
|
25 |
1.4 |
5.44E-02 |
1016.4 |
66.598 |
|
26 |
1.45 |
5.64E-02 |
1057.5 |
68.728 |
|
27 |
1.5 |
5.83E-02 |
1098 |
70.748 |
|
28 |
1.55 |
6.02E-02 |
1134.9 |
72.767 |
|
29 |
1.6 |
6.19E-02 |
1169.6 |
74.737 |
|
30 |
1.65 |
6.36E-02 |
1204.1 |
76.6 |
|
31 |
1.7 |
6.52E-02 |
1238.4 |
78.627 |
|
32 |
1.75 |
6.68E-02 |
1272.3 |
80.65 |
|
33 |
1.8 |
6.83E-02 |
1304.3 |
82.611 |
|
34 |
1.85 |
6.98E-02 |
1334.5 |
84.498 |
|
35 |
1.9 |
7.12E-02 |
1364.4 |
86.427 |
|
36 |
1.95 |
7.26E-02 |
1394.4 |
88.426 |
|
37 |
2 |
7.40E-02 |
1423.8 |
90.322 |
|
38 |
2.1 |
7.63E-02 |
1472.8 |
93.676 |
|
39 |
2.15 |
7.77E-02 |
1498 |
95.346 |
|
40 |
2.2 |
7.90E-02 |
1523.9 |
97.124 |
|
41 |
2.25 |
8.01E-02 |
1548 |
98.728 |
|
42 |
2.3 |
8.11E-02 |
1570.3 |
100.3 |
|
43 |
2.35 |
8.22E-02 |
1591.2 |
101.71 |
|
44 |
2.4 |
8.33E-02 |
1613 |
103.24 |
|
45 |
2.45 |
8.43E-02 |
1633.3 |
104.51 |
|
46 |
2.5 |
8.52E-02 |
1651.4 |
105.73 |
|
47 |
2.55 |
8.60E-02 |
1670.2 |
107.11 |
|
48 |
2.6 |
8.67E-02 |
1689.3 |
108.65 |
|
49 |
2.65 |
8.76E-02 |
1706.8 |
109.71 |
|
50 |
2.7 |
8.82E-02 |
1722.5 |
110.77 |
|
51 |
2.75 |
8.89E-02 |
1736.1 |
111.67 |
|
52 |
2.8 |
8.92E-02 |
1750.6 |
113.02 |
|
53 |
2.85 |
8.99E-02 |
1763.7 |
113.88 |
|
54 |
2.9 |
9.04E-02 |
1774.5 |
114.49 |
|
55 |
2.95 |
9.08E-02 |
1783.3 |
115.06 |
|
56 |
3 |
9.12E-02 |
1790.3 |
115.44 |
|
57 |
3.1 |
9.17E-02 |
1800.9 |
116.24 |
|
58 |
3.15 |
9.18E-02 |
1803.6 |
116.38 |
|
59 |
3.2 |
9.19E-02 |
1804.9 |
116.47 |
|
60 |
3.25 |
9.19E-02 |
1805.7 |
116.58 |
|
61 |
3.3 |
9.20E-02 |
1804.1 |
116.39 |
|
62 |
3.35 |
9.21E-02 |
1800.7 |
115.88 |
|
63 |
3.4 |
9.19E-02 |
1794.5 |
115.31 |
|
64 |
3.45 |
9.17E-02 |
1787.4 |
114.79 |
|
65 |
3.5 |
9.14E-02 |
1779.4 |
114.29 |
|
66 |
3.55 |
9.11E-02 |
1769.8 |
113.39 |
|
67 |
3.6 |
9.07E-02 |
1758.9 |
112.52 |
|
68 |
3.65 |
9.01E-02 |
1747 |
111.7 |
|
69 |
3.7 |
8.95E-02 |
1735.1 |
110.97 |
|
70 |
3.75 |
8.89E-02 |
1723.5 |
110.19 |
|
71 |
3.8 |
8.84E-02 |
1709.8 |
108.99 |
|
72 |
3.85 |
8.76E-02 |
1693.3 |
107.85 |
|
73 |
3.9 |
8.68E-02 |
1675.3 |
106.6 |
|
74 |
3.95 |
8.59E-02 |
1656.6 |
105.36 |
|
75 |
4 |
8.51E-02 |
1637.9 |
103.98 |
|
76 |
4.1 |
8.31E-02 |
1595.8 |
101.12 |
|
77 |
4.15 |
8.19E-02 |
1569.5 |
99.417 |
|
78 |
4.2 |
8.07E-02 |
1543.7 |
97.812 |
|
79 |
4.25 |
7.96E-02 |
1517.4 |
95.821 |
|
80 |
4.3 |
7.80E-02 |
1485.8 |
94.156 |
|
81 |
4.35 |
7.65E-02 |
1454.5 |
92.302 |
|
82 |
4.4 |
7.51E-02 |
1423.4 |
90.328 |
|
83 |
4.45 |
7.38E-02 |
1393.4 |
88.191 |
|
84 |
4.5 |
7.22E-02 |
1358 |
85.939 |
|
85 |
4.55 |
7.03E-02 |
1321 |
84.189 |
|
86 |
4.6 |
6.86E-02 |
1283.2 |
82.156 |
|
87 |
4.65 |
6.69E-02 |
1250.1 |
80.134 |
|
88 |
4.7 |
6.54E-02 |
1220.6 |
77.687 |
|
89 |
4.75 |
6.32E-02 |
1180.1 |
75.8 |
|
90 |
4.8 |
6.13E-02 |
1138.8 |
73.783 |
|
91 |
4.85 |
5.96E-02 |
1103.1 |
71.284 |
|
92 |
4.9 |
5.80E-02 |
1066.1 |
68.396 |
|
93 |
4.95 |
5.62E-02 |
1035.8 |
65.368 |
|
94 |
5 |
5.43E-02 |
1002.9 |
62.312 |
|
95 |
5.1 |
5.05E-02 |
937.02 |
57.368 |
|
96 |
5.15 |
4.82E-02 |
895.08 |
54.793 |
|
97 |
5.2 |
4.53E-02 |
858.48 |
52.866 |
|
98 |
5.25 |
3.94E-02 |
848.33 |
54.066 |
|
99 |
5.3 |
3.42E-02 |
857.65 |
56.5 |
|
100 |
5.35 |
2.69E-02 |
900.19 |
60.92 |
|
101 |
5.4 |
1.97E-02 |
975.86 |
67.1 |
|
102 |
5.45 |
1.57E-02 |
1075.6 |
73.722 |
|
103 |
5.5 |
1.39E-02 |
1184 |
80.883 |
|
104 |
5.55 |
1.28E-02 |
1288.2 |
87.673 |
|
105 |
5.6 |
1.20E-02 |
1383.6 |
93.985 |
|
106 |
5.65 |
1.16E-02 |
1468.9 |
99.24 |
|
107 |
5.7 |
1.09E-02 |
1545.2 |
103.62 |
|
108 |
5.75 |
1.04E-02 |
1608.4 |
107.53 |
|
109 |
5.8 |
9.90E-03 |
1657.2 |
110.81 |
|
110 |
5.85 |
8.53E-03 |
1695.6 |
113.19 |
|
111 |
5.9 |
6.90E-03 |
1725.6 |
114.59 |
|
112 |
5.95 |
5.02E-03 |
1744 |
115.24 |
|
113 |
6 |
3.05E-03 |
1745.5 |
115.36 |
|
114 |
6.1 |
3.63E-04 |
1710.7 |
113.35 |
|
115 |
6.15 |
1.41E-03 |
1674.9 |
110.66 |
|
116 |
6.2 |
2.18E-03 |
1622.4 |
107.24 |
|
117 |
6.25 |
3.01E-03 |
1554.8 |
102.94 |
|
118 |
6.3 |
3.70E-03 |
1470.6 |
98.084 |
|
119 |
6.35 |
4.08E-03 |
1376.8 |
92.706 |
|
120 |
6.4 |
3.46E-03 |
1270.9 |
86.401 |
|
121 |
6.45 |
2.78E-03 |
1150 |
79.21 |
|
122 |
6.5 |
2.06E-03 |
1012.2 |
71.257 |
|
123 |
6.55 |
1.47E-03 |
862.98 |
62.653 |
|
124 |
6.6 |
1.20E-03 |
697.24 |
53.193 |
|
125 |
6.65 |
9.49E-04 |
517.71 |
43.344 |
|
126 |
6.7 |
4.56E-04 |
382.95 |
32.311 |
|
127 |
6.75 |
7.63E-04 |
374.72 |
20.368 |
|
128 |
6.8 |
5.34E-04 |
368 |
12.327 |
|
129 |
6.85 |
7.32E-04 |
360.82 |
21.124 |
|
130 |
6.9 |
3.06E-03 |
358.9 |
34.662 |
|
131 |
6.95 |
4.96E-03 |
591.72 |
47.609 |
|
132 |
7 |
6.65E-03 |
829.41 |
61.177 |
|
133 |
7.1 |
4.19E-02 |
918.44 |
59.731 |
|
134 |
7.15 |
4.82E-02 |
936.44 |
58.446 |
|
135 |
7.2 |
4.96E-02 |
956.74 |
59.559 |
|
136 |
7.25 |
5.08E-02 |
981.33 |
61.223 |
|
137 |
7.3 |
5.22E-02 |
1009.1 |
63.139 |
|
138 |
7.35 |
5.36E-02 |
1037.9 |
65.084 |
|
139 |
7.4 |
5.51E-02 |
1067.1 |
66.996 |
|
140 |
7.45 |
5.67E-02 |
1097.4 |
68.961 |
|
141 |
7.5 |
5.83E-02 |
1129.5 |
71.065 |
|
142 |
7.55 |
6.00E-02 |
1162.1 |
73.205 |
|
143 |
7.6 |
6.16E-02 |
1192.7 |
75.272 |
|
144 |
7.65 |
6.31E-02 |
1222.4 |
77.375 |
|
145 |
7.7 |
6.47E-02 |
1252.7 |
79.45 |
|
146 |
7.75 |
6.63E-02 |
1282.9 |
81.611 |
|
147 |
7.8 |
6.78E-02 |
1312.2 |
83.69 |
|
148 |
7.85 |
6.92E-02 |
1340.5 |
85.628 |
|
149 |
7.9 |
7.05E-02 |
1366 |
87.775 |
|
150 |
7.95 |
7.19E-02 |
1393.2 |
89.959 |
|
151 |
8 |
7.33E-02 |
1419.7 |
92.257 |
|
152 |
8.1 |
7.55E-02 |
1466 |
96.221 |
|
153 |
8.15 |
7.66E-02 |
1492.6 |
98.359 |
|
154 |
8.2 |
7.78E-02 |
1519 |
100.58 |
|
155 |
8.25 |
7.90E-02 |
1544.5 |
102.6 |
|
156 |
8.3 |
8.01E-02 |
1568.2 |
104.55 |
|
157 |
8.35 |
8.10E-02 |
1600.6 |
106.69 |
|
158 |
8.4 |
8.20E-02 |
1651.5 |
108.91 |
|
159 |
8.45 |
8.30E-02 |
1687.9 |
110.76 |
|
160 |
8.5 |
8.41E-02 |
1716.9 |
112.3 |
|
161 |
8.55 |
8.50E-02 |
1749.9 |
113.83 |
|
162 |
8.6 |
8.59E-02 |
1777.9 |
115.19 |
|
163 |
8.65 |
8.68E-02 |
1797.8 |
116.43 |
|
164 |
8.7 |
8.76E-02 |
1814.7 |
117.46 |
|
165 |
8.75 |
8.82E-02 |
1834.3 |
118.44 |
|
166 |
8.8 |
8.89E-02 |
1852 |
119.34 |
|
167 |
8.85 |
8.96E-02 |
1863.8 |
120.07 |
|
168 |
8.9 |
9.00E-02 |
1871.9 |
120.7 |
|
169 |
8.95 |
9.03E-02 |
1882.4 |
121.28 |
|
170 |
9 |
9.07E-02 |
1883.7 |
121.59 |
Simulation Video - https://drive.google.com/file/d/1AM0uOoBVLfOQQ2tOFSse00-29rVktfdm/view?usp=sharing
Case 3:
Total Deformation:
|
Time [s] |
Minimum [mm] |
Maximum [mm] |
Average [mm] |
|
|
1 |
0.1 |
0 |
1.3298 |
0.53151 |
|
2 |
0.2 |
0 |
2.6587 |
1.0682 |
|
3 |
0.25 |
0 |
3.3225 |
1.3412 |
|
4 |
0.3 |
0 |
3.9857 |
1.6163 |
|
5 |
0.35 |
0 |
4.6483 |
1.8935 |
|
6 |
0.4 |
0 |
5.3101 |
2.1731 |
|
7 |
0.45 |
0 |
5.9709 |
2.4549 |
|
8 |
0.5 |
0 |
6.6308 |
2.7385 |
|
9 |
0.55 |
0 |
7.2895 |
3.0247 |
|
10 |
0.6 |
0 |
7.9469 |
3.3131 |
|
11 |
0.65 |
0 |
8.603 |
3.6033 |
|
12 |
0.7 |
0 |
9.2576 |
3.8949 |
|
13 |
0.75 |
0 |
9.9106 |
4.1881 |
|
14 |
0.8 |
0 |
10.562 |
4.4828 |
|
15 |
0.85 |
0 |
11.211 |
4.7791 |
|
16 |
0.9 |
0 |
11.859 |
5.0768 |
|
17 |
0.95 |
0 |
12.505 |
5.3759 |
|
18 |
1 |
0 |
13.148 |
5.6762 |
|
19 |
1.1 |
0 |
14.428 |
6.2812 |
|
20 |
1.15 |
0 |
15.064 |
6.5853 |
|
21 |
1.2 |
0 |
15.698 |
6.8902 |
|
22 |
1.25 |
0 |
16.329 |
7.1962 |
|
23 |
1.3 |
0 |
16.957 |
7.5035 |
|
24 |
1.35 |
0 |
17.583 |
7.8116 |
|
25 |
1.4 |
0 |
18.205 |
8.1204 |
|
26 |
1.45 |
0 |
18.824 |
8.43 |
|
27 |
1.5 |
0 |
19.44 |
8.7404 |
|
28 |
1.55 |
0 |
20.053 |
9.0511 |
|
29 |
1.6 |
0 |
20.662 |
9.3622 |
|
30 |
1.65 |
0 |
21.268 |
9.6732 |
|
31 |
1.7 |
0 |
21.87 |
9.9846 |
|
32 |
1.75 |
0 |
22.468 |
10.296 |
|
33 |
1.8 |
0 |
23.063 |
10.607 |
|
34 |
1.85 |
0 |
23.653 |
10.919 |
|
35 |
1.9 |
0 |
24.24 |
11.23 |
|
36 |
1.95 |
0 |
24.822 |
11.54 |
|
37 |
2 |
0 |
25.4 |
11.851 |
|
38 |
2.1 |
0 |
26.543 |
12.471 |
|
39 |
2.15 |
0 |
27.108 |
12.78 |
|
40 |
2.2 |
0 |
27.668 |
13.088 |
|
41 |
2.25 |
0 |
28.223 |
13.395 |
|
42 |
2.3 |
0 |
28.774 |
13.702 |
|
43 |
2.35 |
0 |
29.319 |
14.008 |
|
44 |
2.4 |
0 |
29.86 |
14.313 |
|
45 |
2.45 |
0 |
30.395 |
14.617 |
|
46 |
2.5 |
0 |
30.925 |
14.919 |
|
47 |
2.55 |
0 |
31.45 |
15.22 |
|
48 |
2.6 |
0 |
31.97 |
15.52 |
|
49 |
2.65 |
0 |
32.484 |
15.818 |
|
50 |
2.7 |
0 |
32.992 |
16.115 |
|
51 |
2.75 |
0 |
33.495 |
16.41 |
|
52 |
2.8 |
0 |
33.992 |
16.703 |
|
53 |
2.85 |
0 |
34.483 |
16.995 |
|
54 |
2.9 |
0 |
34.969 |
17.285 |
|
55 |
2.95 |
0 |
35.448 |
17.572 |
|
56 |
3 |
0 |
35.921 |
17.857 |
|
57 |
3.1 |
0 |
36.849 |
18.421 |
|
58 |
3.15 |
0 |
37.304 |
18.7 |
|
59 |
3.2 |
0 |
37.752 |
18.975 |
|
60 |
3.25 |
0 |
38.194 |
19.248 |
|
61 |
3.3 |
0 |
38.629 |
19.519 |
|
62 |
3.35 |
0 |
39.057 |
19.787 |
|
63 |
3.4 |
0 |
39.479 |
20.051 |
|
64 |
3.45 |
0 |
39.894 |
20.313 |
|
65 |
3.5 |
0 |
40.303 |
20.571 |
|
66 |
3.55 |
0 |
40.704 |
20.826 |
|
67 |
3.6 |
0 |
41.098 |
21.079 |
|
68 |
3.65 |
0 |
41.486 |
21.328 |
|
69 |
3.7 |
0 |
41.866 |
21.573 |
|
70 |
3.75 |
0 |
42.239 |
21.815 |
|
71 |
3.8 |
0 |
42.605 |
22.053 |
|
72 |
3.85 |
0 |
42.963 |
22.287 |
|
73 |
3.9 |
0 |
43.314 |
22.518 |
|
74 |
3.95 |
0 |
43.658 |
22.744 |
|
75 |
4 |
0 |
43.994 |
22.967 |
|
76 |
4.1 |
0 |
44.644 |
23.399 |
|
77 |
4.15 |
0 |
44.958 |
23.609 |
|
78 |
4.2 |
0 |
45.263 |
23.814 |
|
79 |
4.25 |
0 |
45.561 |
24.016 |
|
80 |
4.3 |
0 |
45.852 |
24.212 |
|
81 |
4.35 |
0 |
46.134 |
24.404 |
|
82 |
4.4 |
0 |
46.408 |
24.59 |
|
83 |
4.45 |
0 |
46.675 |
24.773 |
|
84 |
4.5 |
0 |
46.933 |
24.95 |
|
85 |
4.55 |
0 |
47.184 |
25.122 |
|
86 |
4.6 |
0 |
47.426 |
25.288 |
|
87 |
4.65 |
0 |
47.66 |
25.45 |
|
88 |
4.7 |
0 |
47.886 |
25.607 |
|
89 |
4.75 |
0 |
48.104 |
25.757 |
|
90 |
4.8 |
0 |
48.314 |
25.903 |
|
91 |
4.85 |
0 |
48.515 |
26.043 |
|
92 |
4.9 |
0 |
48.708 |
26.179 |
|
93 |
4.95 |
0 |
48.893 |
26.309 |
|
94 |
5 |
0 |
49.069 |
26.435 |
|
95 |
5.1 |
0 |
49.397 |
26.666 |
|
96 |
5.15 |
0 |
49.548 |
26.774 |
|
97 |
5.2 |
0 |
49.69 |
26.875 |
|
98 |
5.25 |
0 |
49.824 |
26.968 |
|
99 |
5.3 |
0 |
49.95 |
27.051 |
|
100 |
5.35 |
0 |
50.067 |
27.125 |
|
101 |
5.4 |
0 |
50.175 |
27.191 |
|
102 |
5.45 |
0 |
50.275 |
27.251 |
|
103 |
5.5 |
0 |
50.366 |
27.305 |
|
104 |
5.55 |
0 |
50.448 |
27.354 |
|
105 |
5.6 |
0 |
50.522 |
27.398 |
|
106 |
5.65 |
0 |
50.587 |
27.437 |
|
107 |
5.7 |
0 |
50.644 |
27.471 |
|
108 |
5.75 |
0 |
50.692 |
27.5 |
|
109 |
5.8 |
0 |
50.731 |
27.523 |
|
110 |
5.85 |
0 |
50.761 |
27.542 |
|
111 |
5.9 |
0 |
50.783 |
27.556 |
|
112 |
5.95 |
0 |
50.796 |
27.565 |
|
113 |
6 |
0 |
50.8 |
27.568 |
|
114 |
6.1 |
0 |
50.783 |
27.558 |
|
115 |
6.15 |
0 |
50.761 |
27.545 |
|
116 |
6.2 |
0 |
50.731 |
27.528 |
|
117 |
6.25 |
0 |
50.692 |
27.505 |
|
118 |
6.3 |
0 |
50.644 |
27.478 |
|
119 |
6.35 |
0 |
50.587 |
27.446 |
|
120 |
6.4 |
0 |
50.522 |
27.409 |
|
121 |
6.45 |
0 |
50.448 |
27.367 |
|
122 |
6.5 |
0 |
50.366 |
27.32 |
|
123 |
6.55 |
0 |
50.275 |
27.268 |
|
124 |
6.6 |
0 |
50.175 |
27.211 |
|
125 |
6.65 |
0 |
50.067 |
27.148 |
|
126 |
6.7 |
0 |
49.95 |
27.082 |
|
127 |
6.75 |
0 |
49.824 |
27.01 |
|
128 |
6.8 |
0 |
49.69 |
26.934 |
|
129 |
6.85 |
0 |
49.548 |
26.856 |
|
130 |
6.9 |
0 |
49.397 |
26.783 |
|
131 |
6.95 |
0 |
49.237 |
26.694 |
|
132 |
7 |
0 |
49.069 |
26.599 |
|
133 |
7.1 |
0 |
48.708 |
26.371 |
|
134 |
7.15 |
0 |
48.515 |
26.246 |
|
135 |
7.2 |
0 |
48.314 |
26.115 |
|
136 |
7.25 |
0 |
48.104 |
25.978 |
|
137 |
7.3 |
0 |
47.886 |
25.836 |
|
138 |
7.35 |
0 |
47.66 |
25.689 |
|
139 |
7.4 |
0 |
47.426 |
25.536 |
|
140 |
7.45 |
0 |
47.184 |
25.378 |
|
141 |
7.5 |
0 |
46.933 |
25.215 |
|
142 |
7.55 |
0 |
46.675 |
25.047 |
|
143 |
7.6 |
0 |
46.408 |
24.874 |
|
144 |
7.65 |
0 |
46.134 |
24.696 |
|
145 |
7.7 |
0 |
45.852 |
24.514 |
|
146 |
7.75 |
0 |
45.561 |
24.326 |
|
147 |
7.8 |
0 |
45.263 |
24.134 |
|
148 |
7.85 |
0 |
44.958 |
23.937 |
|
149 |
7.9 |
0 |
44.644 |
23.736 |
|
150 |
7.95 |
0 |
44.323 |
23.53 |
|
151 |
8 |
0 |
43.994 |
23.32 |
|
152 |
8.1 |
0 |
43.314 |
22.888 |
|
153 |
8.15 |
0 |
42.963 |
22.665 |
|
154 |
8.2 |
0 |
42.605 |
22.439 |
|
155 |
8.25 |
0 |
42.239 |
22.208 |
|
156 |
8.3 |
0 |
41.866 |
21.974 |
|
157 |
8.35 |
0 |
41.486 |
21.736 |
|
158 |
8.4 |
0 |
41.098 |
21.493 |
|
159 |
8.45 |
0 |
40.704 |
21.247 |
|
160 |
8.5 |
0 |
40.303 |
20.997 |
|
161 |
8.55 |
0 |
39.894 |
20.743 |
|
162 |
8.6 |
0 |
39.479 |
20.485 |
|
163 |
8.65 |
0 |
39.057 |
20.224 |
|
164 |
8.7 |
0 |
38.629 |
19.959 |
|
165 |
8.75 |
0 |
38.194 |
19.691 |
|
166 |
8.8 |
0 |
37.752 |
19.421 |
|
167 |
8.85 |
0 |
37.304 |
19.146 |
|
168 |
8.9 |
0 |
36.849 |
18.869 |
|
169 |
8.95 |
0 |
36.388 |
18.589 |
|
170 |
9 |
0 |
35.921 |
18.306 |
Simulation Video - https://drive.google.com/file/d/1Z_XKEwL2VNAfMpoge8hBUWEiaVkNnSMd/view?usp=sharing
Equivalent Elastic Strain:
|
Time [s] |
Minimum [mm/mm] |
Maximum [mm/mm] |
Average [mm/mm] |
|
|
1 |
0.1 |
5.01E-22 |
2.41E-15 |
1.20E-16 |
|
2 |
0.2 |
1.13E-07 |
1.41E-04 |
1.09E-05 |
|
3 |
0.25 |
2.88E-07 |
3.59E-04 |
2.75E-05 |
|
4 |
0.3 |
4.60E-07 |
5.74E-04 |
4.38E-05 |
|
5 |
0.35 |
6.35E-07 |
7.90E-04 |
6.07E-05 |
|
6 |
0.4 |
8.18E-07 |
1.02E-03 |
7.68E-05 |
|
7 |
0.45 |
1.01E-06 |
1.24E-03 |
9.45E-05 |
|
8 |
0.5 |
1.18E-06 |
1.48E-03 |
1.14E-04 |
|
9 |
0.55 |
1.38E-06 |
1.73E-03 |
1.33E-04 |
|
10 |
0.6 |
1.57E-06 |
1.98E-03 |
1.52E-04 |
|
11 |
0.65 |
1.77E-06 |
2.22E-03 |
1.71E-04 |
|
12 |
0.7 |
1.94E-06 |
2.45E-03 |
1.88E-04 |
|
13 |
0.75 |
2.11E-06 |
2.66E-03 |
2.04E-04 |
|
14 |
0.8 |
2.27E-06 |
2.87E-03 |
2.21E-04 |
|
15 |
0.85 |
2.44E-06 |
3.08E-03 |
2.37E-04 |
|
16 |
0.9 |
2.61E-06 |
3.29E-03 |
2.54E-04 |
|
17 |
0.95 |
2.77E-06 |
3.51E-03 |
2.69E-04 |
|
18 |
1 |
2.93E-06 |
3.74E-03 |
2.86E-04 |
|
19 |
1.1 |
3.22E-06 |
4.16E-03 |
3.22E-04 |
|
20 |
1.15 |
3.47E-06 |
4.35E-03 |
3.42E-04 |
|
21 |
1.2 |
3.60E-06 |
4.54E-03 |
3.62E-04 |
|
22 |
1.25 |
3.75E-06 |
4.74E-03 |
3.82E-04 |
|
23 |
1.3 |
3.91E-06 |
4.96E-03 |
4.00E-04 |
|
24 |
1.35 |
4.06E-06 |
5.15E-03 |
4.15E-04 |
|
25 |
1.4 |
4.21E-06 |
5.33E-03 |
4.29E-04 |
|
26 |
1.45 |
4.35E-06 |
5.55E-03 |
4.41E-04 |
|
27 |
1.5 |
4.51E-06 |
5.75E-03 |
4.52E-04 |
|
28 |
1.55 |
4.64E-06 |
5.95E-03 |
4.66E-04 |
|
29 |
1.6 |
4.78E-06 |
6.12E-03 |
4.77E-04 |
|
30 |
1.65 |
4.90E-06 |
6.30E-03 |
4.90E-04 |
|
31 |
1.7 |
5.03E-06 |
6.48E-03 |
5.02E-04 |
|
32 |
1.75 |
5.15E-06 |
6.66E-03 |
5.16E-04 |
|
33 |
1.8 |
5.27E-06 |
6.83E-03 |
5.29E-04 |
|
34 |
1.85 |
5.37E-06 |
6.99E-03 |
5.42E-04 |
|
35 |
1.9 |
5.49E-06 |
7.15E-03 |
5.55E-04 |
|
36 |
1.95 |
5.59E-06 |
7.31E-03 |
5.69E-04 |
|
37 |
2 |
5.70E-06 |
7.47E-03 |
5.83E-04 |
|
38 |
2.1 |
5.88E-06 |
7.73E-03 |
6.07E-04 |
|
39 |
2.15 |
6.00E-06 |
7.86E-03 |
6.17E-04 |
|
40 |
2.2 |
6.08E-06 |
8.00E-03 |
6.32E-04 |
|
41 |
2.25 |
6.18E-06 |
8.13E-03 |
6.42E-04 |
|
42 |
2.3 |
6.26E-06 |
8.24E-03 |
6.53E-04 |
|
43 |
2.35 |
6.36E-06 |
8.35E-03 |
6.62E-04 |
|
44 |
2.4 |
6.43E-06 |
8.47E-03 |
6.73E-04 |
|
45 |
2.45 |
6.52E-06 |
8.58E-03 |
6.81E-04 |
|
46 |
2.5 |
6.57E-06 |
8.69E-03 |
6.92E-04 |
|
47 |
2.55 |
6.63E-06 |
8.80E-03 |
7.04E-04 |
|
48 |
2.6 |
6.69E-06 |
8.90E-03 |
7.13E-04 |
|
49 |
2.65 |
6.75E-06 |
9.00E-03 |
7.22E-04 |
|
50 |
2.7 |
6.83E-06 |
9.08E-03 |
7.26E-04 |
|
51 |
2.75 |
6.86E-06 |
9.16E-03 |
7.35E-04 |
|
52 |
2.8 |
6.92E-06 |
9.23E-03 |
7.38E-04 |
|
53 |
2.85 |
6.96E-06 |
9.30E-03 |
7.44E-04 |
|
54 |
2.9 |
7.00E-06 |
9.35E-03 |
7.48E-04 |
|
55 |
2.95 |
7.03E-06 |
9.40E-03 |
7.51E-04 |
|
56 |
3 |
7.06E-06 |
9.44E-03 |
7.55E-04 |
|
57 |
3.1 |
7.09E-06 |
9.50E-03 |
7.62E-04 |
|
58 |
3.15 |
7.12E-06 |
9.51E-03 |
7.60E-04 |
|
59 |
3.2 |
7.12E-06 |
9.51E-03 |
7.60E-04 |
|
60 |
3.25 |
7.12E-06 |
9.52E-03 |
7.61E-04 |
|
61 |
3.3 |
7.13E-06 |
9.51E-03 |
7.61E-04 |
|
62 |
3.35 |
7.12E-06 |
9.49E-03 |
7.59E-04 |
|
63 |
3.4 |
7.09E-06 |
9.47E-03 |
7.59E-04 |
|
64 |
3.45 |
7.09E-06 |
9.43E-03 |
7.54E-04 |
|
65 |
3.5 |
7.05E-06 |
9.41E-03 |
7.55E-04 |
|
66 |
3.55 |
7.03E-06 |
9.37E-03 |
7.51E-04 |
|
67 |
3.6 |
7.04E-06 |
9.30E-03 |
7.39E-04 |
|
68 |
3.65 |
7.00E-06 |
9.23E-03 |
7.32E-04 |
|
69 |
3.7 |
6.96E-06 |
9.16E-03 |
7.26E-04 |
|
70 |
3.75 |
6.91E-06 |
9.09E-03 |
7.20E-04 |
|
71 |
3.8 |
6.85E-06 |
9.03E-03 |
7.14E-04 |
|
72 |
3.85 |
6.80E-06 |
8.95E-03 |
7.06E-04 |
|
73 |
3.9 |
6.74E-06 |
8.85E-03 |
6.96E-04 |
|
74 |
3.95 |
6.68E-06 |
8.75E-03 |
6.87E-04 |
|
75 |
4 |
6.60E-06 |
8.67E-03 |
6.80E-04 |
|
76 |
4.1 |
6.47E-06 |
8.45E-03 |
6.57E-04 |
|
77 |
4.15 |
6.37E-06 |
8.31E-03 |
6.47E-04 |
|
78 |
4.2 |
6.29E-06 |
8.17E-03 |
6.34E-04 |
|
79 |
4.25 |
6.19E-06 |
8.05E-03 |
6.23E-04 |
|
80 |
4.3 |
6.10E-06 |
7.87E-03 |
6.07E-04 |
|
81 |
4.35 |
5.97E-06 |
7.70E-03 |
5.95E-04 |
|
82 |
4.4 |
5.86E-06 |
7.54E-03 |
5.82E-04 |
|
83 |
4.45 |
5.76E-06 |
7.37E-03 |
5.67E-04 |
|
84 |
4.5 |
5.64E-06 |
7.19E-03 |
5.51E-04 |
|
85 |
4.55 |
5.49E-06 |
6.98E-03 |
5.38E-04 |
|
86 |
4.6 |
5.34E-06 |
6.79E-03 |
5.28E-04 |
|
87 |
4.65 |
5.22E-06 |
6.60E-03 |
5.15E-04 |
|
88 |
4.7 |
5.10E-06 |
6.44E-03 |
4.99E-04 |
|
89 |
4.75 |
4.93E-06 |
6.24E-03 |
4.87E-04 |
|
90 |
4.8 |
4.77E-06 |
6.03E-03 |
4.74E-04 |
|
91 |
4.85 |
4.64E-06 |
5.82E-03 |
4.59E-04 |
|
92 |
4.9 |
4.51E-06 |
5.63E-03 |
4.40E-04 |
|
93 |
4.95 |
4.37E-06 |
5.43E-03 |
4.21E-04 |
|
94 |
5 |
4.23E-06 |
5.20E-03 |
3.98E-04 |
|
95 |
5.1 |
3.94E-06 |
4.79E-03 |
3.67E-04 |
|
96 |
5.15 |
3.76E-06 |
4.56E-03 |
3.51E-04 |
|
97 |
5.2 |
3.50E-06 |
4.39E-03 |
3.40E-04 |
|
98 |
5.25 |
2.75E-06 |
4.45E-03 |
3.56E-04 |
|
99 |
5.3 |
2.20E-06 |
4.66E-03 |
3.82E-04 |
|
100 |
5.35 |
1.54E-06 |
5.05E-03 |
4.21E-04 |
|
101 |
5.4 |
1.06E-06 |
5.57E-03 |
4.68E-04 |
|
102 |
5.45 |
7.29E-07 |
6.14E-03 |
5.14E-04 |
|
103 |
5.5 |
4.92E-07 |
6.75E-03 |
5.59E-04 |
|
104 |
5.55 |
4.01E-07 |
7.36E-03 |
6.07E-04 |
|
105 |
5.6 |
3.48E-07 |
7.89E-03 |
6.43E-04 |
|
106 |
5.65 |
3.01E-07 |
8.40E-03 |
6.74E-04 |
|
107 |
5.7 |
2.66E-07 |
8.87E-03 |
7.04E-04 |
|
108 |
5.75 |
2.29E-07 |
9.27E-03 |
7.30E-04 |
|
109 |
5.8 |
1.86E-07 |
9.59E-03 |
7.54E-04 |
|
110 |
5.85 |
1.50E-07 |
9.84E-03 |
7.73E-04 |
|
111 |
5.9 |
1.43E-07 |
1.00E-02 |
7.83E-04 |
|
112 |
5.95 |
9.89E-08 |
1.02E-02 |
7.89E-04 |
|
113 |
6 |
5.95E-08 |
1.03E-02 |
7.90E-04 |
|
114 |
6.1 |
4.85E-09 |
1.01E-02 |
7.80E-04 |
|
115 |
6.15 |
2.14E-08 |
9.92E-03 |
7.65E-04 |
|
116 |
6.2 |
3.67E-08 |
9.67E-03 |
7.46E-04 |
|
117 |
6.25 |
5.02E-08 |
9.35E-03 |
7.20E-04 |
|
118 |
6.3 |
7.28E-08 |
8.94E-03 |
6.90E-04 |
|
119 |
6.35 |
8.62E-08 |
8.45E-03 |
6.59E-04 |
|
120 |
6.4 |
1.03E-07 |
7.92E-03 |
6.19E-04 |
|
121 |
6.45 |
1.24E-07 |
7.32E-03 |
5.72E-04 |
|
122 |
6.5 |
1.48E-07 |
6.63E-03 |
5.19E-04 |
|
123 |
6.55 |
1.34E-07 |
5.88E-03 |
4.63E-04 |
|
124 |
6.6 |
7.06E-08 |
5.05E-03 |
4.03E-04 |
|
125 |
6.65 |
4.47E-08 |
4.14E-03 |
3.40E-04 |
|
126 |
6.7 |
7.49E-08 |
3.16E-03 |
2.76E-04 |
|
127 |
6.75 |
1.13E-07 |
2.15E-03 |
2.02E-04 |
|
128 |
6.8 |
8.97E-08 |
1.23E-03 |
1.23E-04 |
|
129 |
6.85 |
5.02E-08 |
1.19E-03 |
5.29E-05 |
|
130 |
6.9 |
1.18E-07 |
1.16E-03 |
8.95E-05 |
|
131 |
6.95 |
2.61E-07 |
1.61E-03 |
1.77E-04 |
|
132 |
7 |
3.56E-07 |
2.79E-03 |
2.63E-04 |
|
133 |
7.1 |
2.42E-06 |
3.87E-03 |
3.18E-04 |
|
134 |
7.15 |
3.14E-06 |
4.21E-03 |
3.34E-04 |
|
135 |
7.2 |
3.36E-06 |
4.50E-03 |
3.58E-04 |
|
136 |
7.25 |
3.56E-06 |
4.77E-03 |
3.81E-04 |
|
137 |
7.3 |
3.75E-06 |
5.03E-03 |
4.03E-04 |
|
138 |
7.35 |
3.92E-06 |
5.26E-03 |
4.23E-04 |
|
139 |
7.4 |
4.08E-06 |
5.48E-03 |
4.41E-04 |
|
140 |
7.45 |
4.24E-06 |
5.69E-03 |
4.57E-04 |
|
141 |
7.5 |
4.39E-06 |
5.93E-03 |
4.75E-04 |
|
142 |
7.55 |
4.53E-06 |
6.20E-03 |
4.92E-04 |
|
143 |
7.6 |
4.68E-06 |
6.41E-03 |
5.07E-04 |
|
144 |
7.65 |
4.81E-06 |
6.63E-03 |
5.23E-04 |
|
145 |
7.7 |
4.93E-06 |
6.88E-03 |
5.39E-04 |
|
146 |
7.75 |
5.06E-06 |
7.07E-03 |
5.53E-04 |
|
147 |
7.8 |
5.18E-06 |
7.29E-03 |
5.68E-04 |
|
148 |
7.85 |
5.29E-06 |
7.55E-03 |
5.83E-04 |
|
149 |
7.9 |
5.40E-06 |
7.78E-03 |
5.98E-04 |
|
150 |
7.95 |
5.50E-06 |
8.09E-03 |
6.15E-04 |
|
151 |
8 |
5.62E-06 |
8.33E-03 |
6.28E-04 |
|
152 |
8.1 |
5.78E-06 |
8.97E-03 |
6.55E-04 |
|
153 |
8.15 |
5.88E-06 |
9.32E-03 |
6.71E-04 |
|
154 |
8.2 |
5.96E-06 |
9.64E-03 |
6.88E-04 |
|
155 |
8.25 |
6.06E-06 |
9.88E-03 |
7.03E-04 |
|
156 |
8.3 |
6.14E-06 |
1.02E-02 |
7.20E-04 |
|
157 |
8.35 |
6.21E-06 |
1.05E-02 |
7.38E-04 |
|
158 |
8.4 |
6.30E-06 |
1.08E-02 |
7.54E-04 |
|
159 |
8.45 |
6.37E-06 |
1.11E-02 |
7.70E-04 |
|
160 |
8.5 |
6.46E-06 |
1.12E-02 |
7.82E-04 |
|
161 |
8.55 |
6.55E-06 |
1.13E-02 |
7.91E-04 |
|
162 |
8.6 |
6.63E-06 |
1.15E-02 |
8.00E-04 |
|
163 |
8.65 |
6.70E-06 |
1.16E-02 |
8.09E-04 |
|
164 |
8.7 |
6.76E-06 |
1.17E-02 |
8.16E-04 |
|
165 |
8.75 |
6.81E-06 |
1.18E-02 |
8.23E-04 |
|
166 |
8.8 |
6.85E-06 |
1.20E-02 |
8.32E-04 |
|
167 |
8.85 |
6.90E-06 |
1.21E-02 |
8.38E-04 |
|
168 |
8.9 |
6.95E-06 |
1.21E-02 |
8.40E-04 |
|
169 |
8.95 |
6.98E-06 |
1.21E-02 |
8.44E-04 |
|
170 |
9 |
7.01E-06 |
1.22E-02 |
8.48E-04 |
Simulation Video - https://drive.google.com/file/d/1SSxbqPfLZ7xcTGAO-oM0iZu148SCjxYN/view?usp=sharing
Equivalent Stress:
|
Time [s] |
Minimum [MPa] |
Maximum [MPa] |
Average [MPa] |
|
|
1 |
0.1 |
7.68E-17 |
2.49E-10 |
9.58E-12 |
|
2 |
0.2 |
1.47E-03 |
28.057 |
1.7961 |
|
3 |
0.25 |
3.73E-03 |
71.312 |
4.5626 |
|
4 |
0.3 |
5.96E-03 |
113.9 |
7.2937 |
|
5 |
0.35 |
8.23E-03 |
156.77 |
10.13 |
|
6 |
0.4 |
1.06E-02 |
201.69 |
12.892 |
|
7 |
0.45 |
1.30E-02 |
246.83 |
15.761 |
|
8 |
0.5 |
1.53E-02 |
292.99 |
18.777 |
|
9 |
0.55 |
1.78E-02 |
343.35 |
21.912 |
|
10 |
0.6 |
2.04E-02 |
393.02 |
25.069 |
|
11 |
0.65 |
2.29E-02 |
441.3 |
28.172 |
|
12 |
0.7 |
2.51E-02 |
485.32 |
31.035 |
|
13 |
0.75 |
2.73E-02 |
527.02 |
33.729 |
|
14 |
0.8 |
2.95E-02 |
569.94 |
36.574 |
|
15 |
0.85 |
3.17E-02 |
611.6 |
39.281 |
|
16 |
0.9 |
3.38E-02 |
652.78 |
41.964 |
|
17 |
0.95 |
3.59E-02 |
695.97 |
44.734 |
|
18 |
1 |
3.80E-02 |
740.75 |
47.711 |
|
19 |
1.1 |
4.17E-02 |
824.68 |
53.876 |
|
20 |
1.15 |
4.49E-02 |
862.65 |
56.998 |
|
21 |
1.2 |
4.66E-02 |
900.74 |
60.144 |
|
22 |
1.25 |
4.85E-02 |
940.26 |
63.17 |
|
23 |
1.3 |
5.05E-02 |
982.06 |
66.113 |
|
24 |
1.35 |
5.25E-02 |
1020.1 |
68.683 |
|
25 |
1.4 |
5.44E-02 |
1056.1 |
70.905 |
|
26 |
1.45 |
5.63E-02 |
1100.1 |
73.263 |
|
27 |
1.5 |
5.83E-02 |
1139.7 |
75.319 |
|
28 |
1.55 |
6.01E-02 |
1178.7 |
77.652 |
|
29 |
1.6 |
6.19E-02 |
1212.9 |
79.501 |
|
30 |
1.65 |
6.34E-02 |
1249 |
81.77 |
|
31 |
1.7 |
6.50E-02 |
1284.3 |
83.993 |
|
32 |
1.75 |
6.66E-02 |
1319.7 |
86.301 |
|
33 |
1.8 |
6.82E-02 |
1353.4 |
88.526 |
|
34 |
1.85 |
6.96E-02 |
1385.7 |
90.78 |
|
35 |
1.9 |
7.10E-02 |
1416.3 |
92.804 |
|
36 |
1.95 |
7.24E-02 |
1448.1 |
95.16 |
|
37 |
2 |
7.38E-02 |
1479.3 |
97.326 |
|
38 |
2.1 |
7.61E-02 |
1531.5 |
101.12 |
|
39 |
2.15 |
7.77E-02 |
1556.6 |
102.79 |
|
40 |
2.2 |
7.87E-02 |
1584.6 |
105.11 |
|
41 |
2.25 |
8.00E-02 |
1609.7 |
106.64 |
|
42 |
2.3 |
8.11E-02 |
1632.9 |
108.37 |
|
43 |
2.35 |
8.23E-02 |
1654.3 |
109.67 |
|
44 |
2.4 |
8.33E-02 |
1676.7 |
111.43 |
|
45 |
2.45 |
8.44E-02 |
1699.3 |
112.81 |
|
46 |
2.5 |
8.51E-02 |
1721 |
114.55 |
|
47 |
2.55 |
8.58E-02 |
1742.6 |
116.45 |
|
48 |
2.6 |
8.67E-02 |
1762.8 |
117.94 |
|
49 |
2.65 |
8.74E-02 |
1782.9 |
119.51 |
|
50 |
2.7 |
8.84E-02 |
1798.5 |
120.17 |
|
51 |
2.75 |
8.89E-02 |
1814.7 |
121.61 |
|
52 |
2.8 |
8.96E-02 |
1828.6 |
122.33 |
|
53 |
2.85 |
9.01E-02 |
1841.3 |
123.34 |
|
54 |
2.9 |
9.07E-02 |
1852.1 |
123.97 |
|
55 |
2.95 |
9.11E-02 |
1860.7 |
124.53 |
|
56 |
3 |
9.14E-02 |
1868.4 |
125.11 |
|
57 |
3.1 |
9.18E-02 |
1880.7 |
126.27 |
|
58 |
3.15 |
9.22E-02 |
1883.1 |
125.99 |
|
59 |
3.2 |
9.22E-02 |
1884 |
126.07 |
|
60 |
3.25 |
9.22E-02 |
1884.5 |
126.16 |
|
61 |
3.3 |
9.23E-02 |
1883.4 |
126.08 |
|
62 |
3.35 |
9.22E-02 |
1880.1 |
125.7 |
|
63 |
3.4 |
9.19E-02 |
1875.7 |
125.64 |
|
64 |
3.45 |
9.18E-02 |
1868.3 |
124.76 |
|
65 |
3.5 |
9.13E-02 |
1863.2 |
124.92 |
|
66 |
3.55 |
9.11E-02 |
1856 |
124.28 |
|
67 |
3.6 |
9.11E-02 |
1842.8 |
122.46 |
|
68 |
3.65 |
9.06E-02 |
1828.5 |
121.33 |
|
69 |
3.7 |
9.00E-02 |
1813.8 |
120.31 |
|
70 |
3.75 |
8.94E-02 |
1800.1 |
119.36 |
|
71 |
3.8 |
8.87E-02 |
1788.4 |
118.61 |
|
72 |
3.85 |
8.80E-02 |
1771.9 |
117.29 |
|
73 |
3.9 |
8.72E-02 |
1753.7 |
115.9 |
|
74 |
3.95 |
8.65E-02 |
1734.2 |
114.39 |
|
75 |
4 |
8.54E-02 |
1716.9 |
113.43 |
|
76 |
4.1 |
8.37E-02 |
1673.2 |
109.89 |
|
77 |
4.15 |
8.25E-02 |
1647.1 |
108.2 |
|
78 |
4.2 |
8.13E-02 |
1619.3 |
106.2 |
|
79 |
4.25 |
8.02E-02 |
1594.9 |
104.25 |
|
80 |
4.3 |
7.89E-02 |
1560.1 |
101.63 |
|
81 |
4.35 |
7.73E-02 |
1526.2 |
99.566 |
|
82 |
4.4 |
7.58E-02 |
1493.2 |
97.315 |
|
83 |
4.45 |
7.45E-02 |
1460.5 |
94.771 |
|
84 |
4.5 |
7.30E-02 |
1424.4 |
92.163 |
|
85 |
4.55 |
7.11E-02 |
1383.1 |
89.924 |
|
86 |
4.6 |
6.91E-02 |
1346.4 |
88.047 |
|
87 |
4.65 |
6.75E-02 |
1308.2 |
85.69 |
|
88 |
4.7 |
6.59E-02 |
1276.7 |
83.135 |
|
89 |
4.75 |
6.38E-02 |
1236.8 |
81.097 |
|
90 |
4.8 |
6.17E-02 |
1194.6 |
78.914 |
|
91 |
4.85 |
6.00E-02 |
1153.9 |
76.41 |
|
92 |
4.9 |
5.83E-02 |
1115.7 |
73.493 |
|
93 |
4.95 |
5.66E-02 |
1076.9 |
70.364 |
|
94 |
5 |
5.47E-02 |
1030.8 |
66.534 |
|
95 |
5.1 |
5.09E-02 |
949.41 |
61.005 |
|
96 |
5.15 |
4.86E-02 |
903.47 |
58.136 |
|
97 |
5.2 |
4.53E-02 |
870.19 |
56.262 |
|
98 |
5.25 |
3.64E-02 |
882.12 |
58.413 |
|
99 |
5.3 |
2.98E-02 |
924.06 |
62.497 |
|
100 |
5.35 |
2.22E-02 |
1002.4 |
68.69 |
|
101 |
5.4 |
1.68E-02 |
1105 |
76.242 |
|
102 |
5.45 |
1.33E-02 |
1217.6 |
84.004 |
|
103 |
5.5 |
1.09E-02 |
1338.3 |
91.918 |
|
104 |
5.55 |
1.03E-02 |
1459.7 |
100.25 |
|
105 |
5.6 |
9.92E-03 |
1564.5 |
106.54 |
|
106 |
5.65 |
9.50E-03 |
1666.1 |
111.89 |
|
107 |
5.7 |
8.59E-03 |
1759.7 |
116.9 |
|
108 |
5.75 |
7.33E-03 |
1839.2 |
121.33 |
|
109 |
5.8 |
5.83E-03 |
1902.4 |
125.06 |
|
110 |
5.85 |
4.60E-03 |
1952.1 |
128.24 |
|
111 |
5.9 |
4.35E-03 |
1993.2 |
129.93 |
|
112 |
5.95 |
2.86E-03 |
2021 |
130.88 |
|
113 |
6 |
1.60E-03 |
2034.6 |
130.94 |
|
114 |
6.1 |
4.41E-04 |
2006.2 |
129.25 |
|
115 |
6.15 |
1.30E-03 |
1968.6 |
126.38 |
|
116 |
6.2 |
1.96E-03 |
1919.7 |
123.06 |
|
117 |
6.25 |
2.57E-03 |
1855.4 |
118.45 |
|
118 |
6.3 |
3.21E-03 |
1775.3 |
112.87 |
|
119 |
6.35 |
3.80E-03 |
1676.8 |
107.07 |
|
120 |
6.4 |
3.48E-03 |
1571.5 |
100.38 |
|
121 |
6.45 |
2.98E-03 |
1452.6 |
93.124 |
|
122 |
6.5 |
2.35E-03 |
1316.3 |
84.84 |
|
123 |
6.55 |
1.79E-03 |
1167.7 |
75.852 |
|
124 |
6.6 |
1.03E-03 |
1002 |
65.913 |
|
125 |
6.65 |
4.97E-04 |
821.24 |
55.354 |
|
126 |
6.7 |
9.19E-04 |
627.65 |
44.309 |
|
127 |
6.75 |
4.53E-04 |
426.61 |
32.055 |
|
128 |
6.8 |
2.54E-03 |
234.85 |
18.849 |
|
129 |
6.85 |
2.81E-03 |
227.12 |
7.1529 |
|
130 |
6.9 |
2.70E-03 |
222.07 |
13.138 |
|
131 |
6.95 |
5.46E-03 |
319.47 |
27.841 |
|
132 |
7 |
8.32E-03 |
554.02 |
42.177 |
|
133 |
7.1 |
3.22E-02 |
768.43 |
52.414 |
|
134 |
7.15 |
4.07E-02 |
834.43 |
55.425 |
|
135 |
7.2 |
4.36E-02 |
892.86 |
59.342 |
|
136 |
7.25 |
4.61E-02 |
946.62 |
63.111 |
|
137 |
7.3 |
4.86E-02 |
997.08 |
66.669 |
|
138 |
7.35 |
5.08E-02 |
1043.8 |
69.92 |
|
139 |
7.4 |
5.29E-02 |
1086.5 |
72.872 |
|
140 |
7.45 |
5.49E-02 |
1128 |
75.679 |
|
141 |
7.5 |
5.69E-02 |
1168 |
78.704 |
|
142 |
7.55 |
5.87E-02 |
1207.1 |
81.681 |
|
143 |
7.6 |
6.06E-02 |
1244.3 |
84.279 |
|
144 |
7.65 |
6.23E-02 |
1279.1 |
86.905 |
|
145 |
7.7 |
6.39E-02 |
1324.2 |
89.638 |
|
146 |
7.75 |
6.55E-02 |
1361 |
92.128 |
|
147 |
7.8 |
6.71E-02 |
1402.6 |
94.624 |
|
148 |
7.85 |
6.86E-02 |
1453.3 |
97.237 |
|
149 |
7.9 |
7.00E-02 |
1499.2 |
99.79 |
|
150 |
7.95 |
7.13E-02 |
1559.6 |
102.8 |
|
151 |
8 |
7.27E-02 |
1605.2 |
105.25 |
|
152 |
8.1 |
7.49E-02 |
1731.9 |
110.2 |
|
153 |
8.15 |
7.61E-02 |
1798.7 |
112.93 |
|
154 |
8.2 |
7.73E-02 |
1862.4 |
115.8 |
|
155 |
8.25 |
7.85E-02 |
1909 |
118.23 |
|
156 |
8.3 |
7.95E-02 |
1970.2 |
120.94 |
|
157 |
8.35 |
8.05E-02 |
2032.2 |
123.72 |
|
158 |
8.4 |
8.17E-02 |
2079.2 |
126.06 |
|
159 |
8.45 |
8.26E-02 |
2136.7 |
128.71 |
|
160 |
8.5 |
8.37E-02 |
2168.8 |
130.52 |
|
161 |
8.55 |
8.48E-02 |
2193 |
132.01 |
|
162 |
8.6 |
8.59E-02 |
2218.4 |
133.47 |
|
163 |
8.65 |
8.68E-02 |
2244.2 |
134.9 |
|
164 |
8.7 |
8.75E-02 |
2265.5 |
136.16 |
|
165 |
8.75 |
8.82E-02 |
2286.1 |
137.3 |
|
166 |
8.8 |
8.87E-02 |
2318.5 |
138.75 |
|
167 |
8.85 |
8.95E-02 |
2331.1 |
139.6 |
|
168 |
8.9 |
9.01E-02 |
2332.3 |
140.06 |
|
169 |
8.95 |
9.05E-02 |
2343.4 |
140.72 |
|
170 |
9 |
9.08E-02 |
2353.7 |
141.29 |
Simulation Video - https://drive.google.com/file/d/1CZzvnKLs5k4-9Cvyk6Xi5-_I8kgo7XRM/view?usp=sharing
Tabulation:
|
Cases |
Max. Total Deformation (mm) |
Max. Equivalent Elastic Strain (mm/mm) |
Max. Equivalent Stress (MPa) |
|
Case 1 |
50.8 |
8.94E-03 |
1776.1 |
|
Case 2 |
50.8 |
9.78E-03 |
1883.7 |
|
Case 3 |
50.8 |
1.22E-02 |
2353.7 |
Comparison:
From the obtained results, we can compute that the Max. Total Deformation remains the same for all the cases i.e., even with frictionless contact or with friction co-efficient having values 0.1 and 0.2.
For Max. Equivalent Elastic Strain as we change the contact from Frictionless contact to Frictional contact and also by increasing the values of Frictional Co-efficient, we can that there is an increase in the values. The difference between Case 1 and Case 2 is high i.e., when the contact is changed from Frictionless to Frictional contact. After which the values of Frictional Co-efficient has slightly increased i.e., the difference between Case 2 and Case 3 there is low in the values of Max. Equivalent Elastic Strain.
For Max. Equivalent Stress we can see that the stress induced on the setup model increases when there is Frictional contact on it. The difference between Case 1 and Case 2 is low i.e., when the contact is changed from Frictionless to Frictional contact. After which the values of Frictional Co-efficient is very high i.e., the difference between Case 2 and Case 3 there is very high in the values of Max. Equivalent Stress.
