Week 7 Challenge - Assembly Workbench

Model Drawing 1:

Procedure:

1. From the given file , individual components are drawn in different part files.
2. Then a product file is opened and individual part files are copied into the product file.
3. A new part file is created as a reference.
4. Reference Axis is created for all individual parts and published.
5. Using constraint toolbar, the product is assembled.

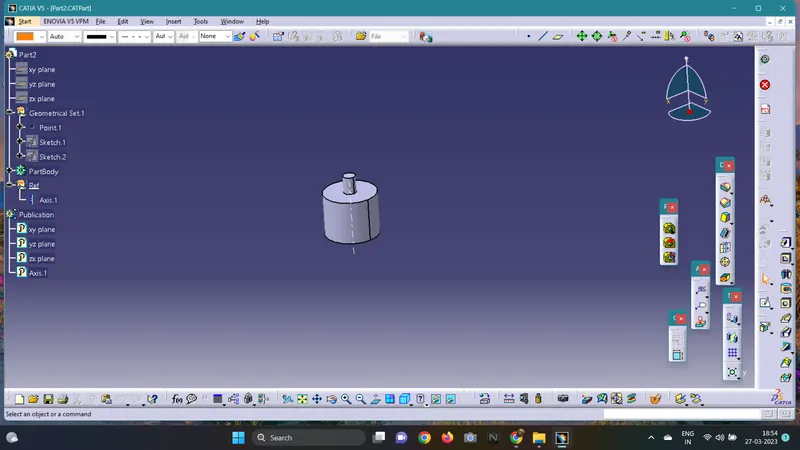

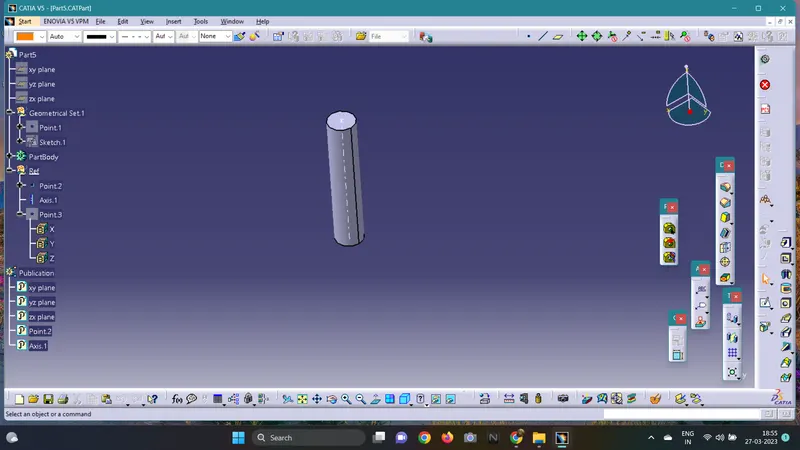

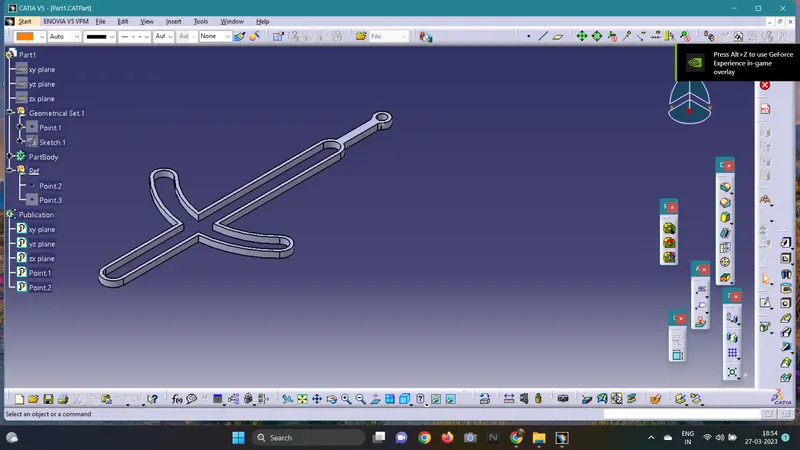

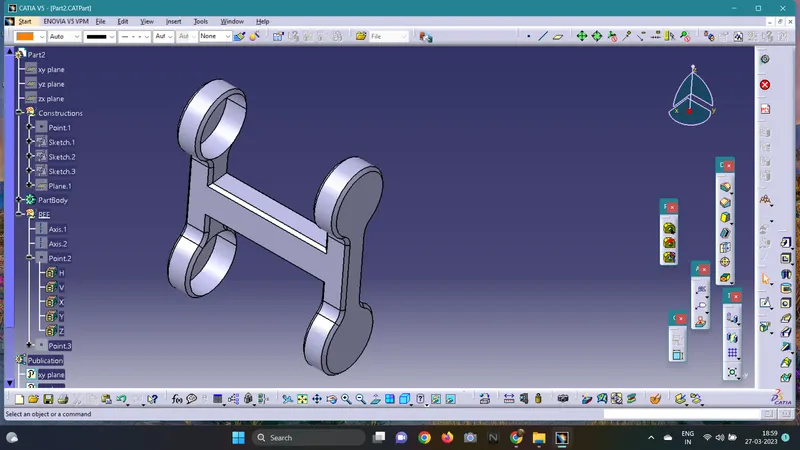

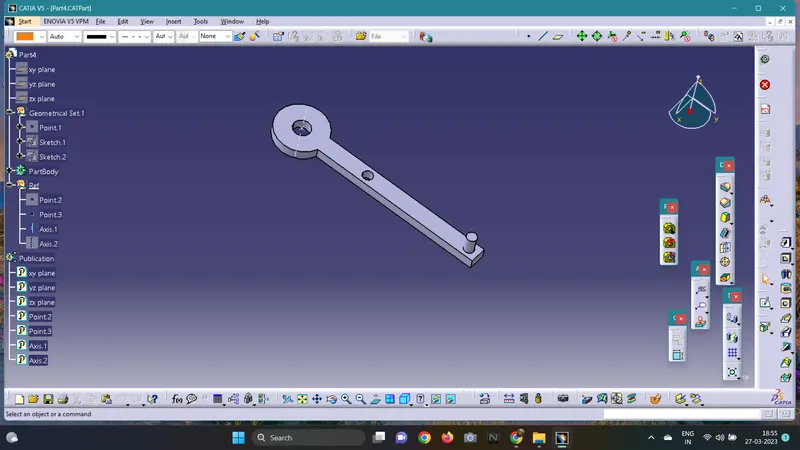

Part Files:

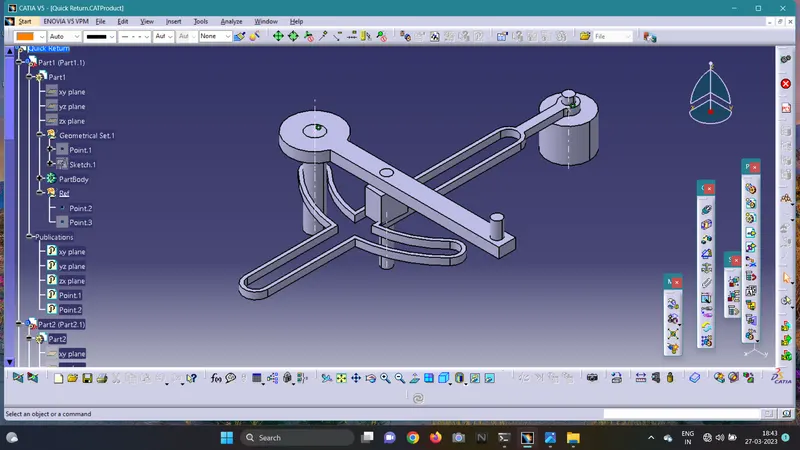

Product:

Model Drawing 2:

Procedure:

1. From the given file , individual components are drawn in different part files.
2. Then a product file is opened and individual part files are copied into the product file.
3. A new part file is created as a reference.
4. Reference Axis is created for all individual parts and published.
5. Using constraint toolbar, the product is assembled.

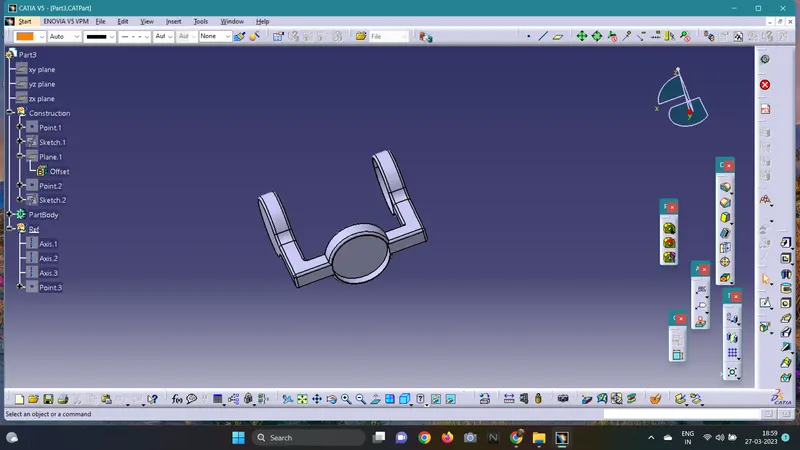

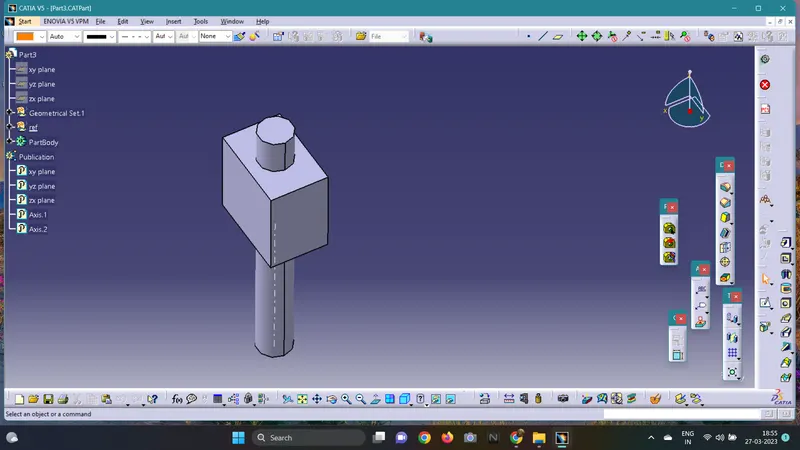

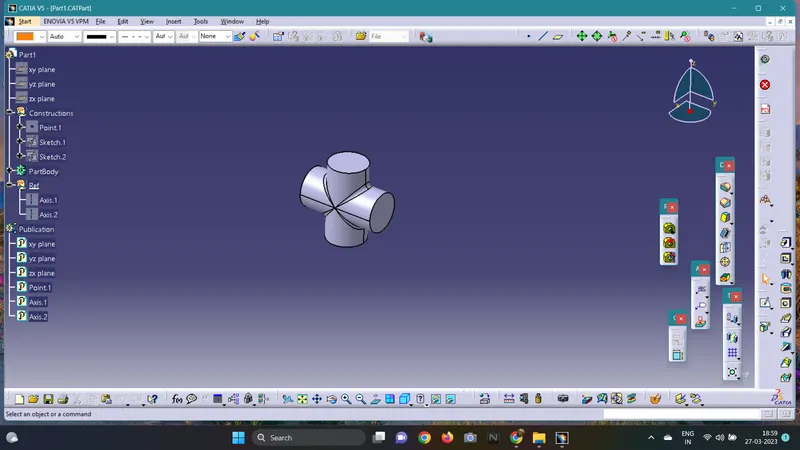

Part Files:

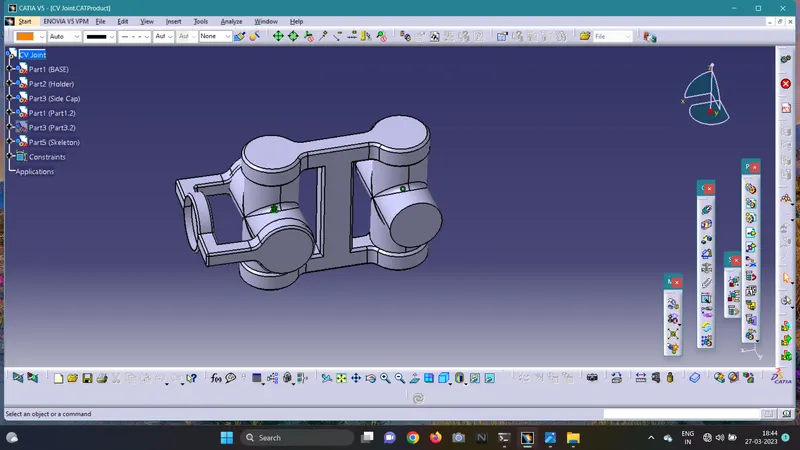

Product:
