Week 7 Challenge

The following sliders were created for the given part model:

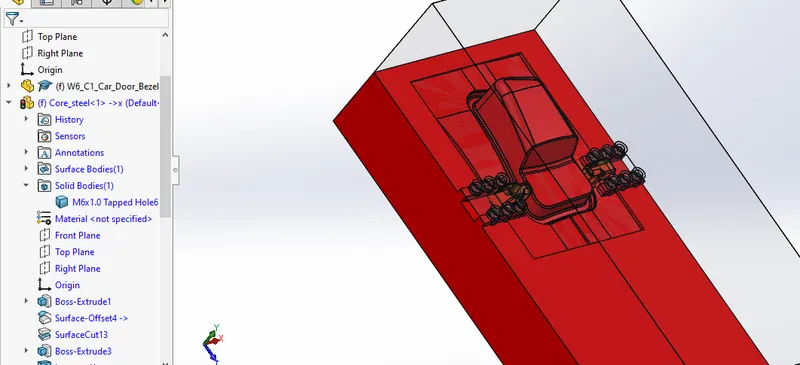

First, a plane and sketch were created alongside the undercuts present in the part model, and then a split operation was performed to get the split solid body as shown in yellow. A similar operation was performed on the other side as well::

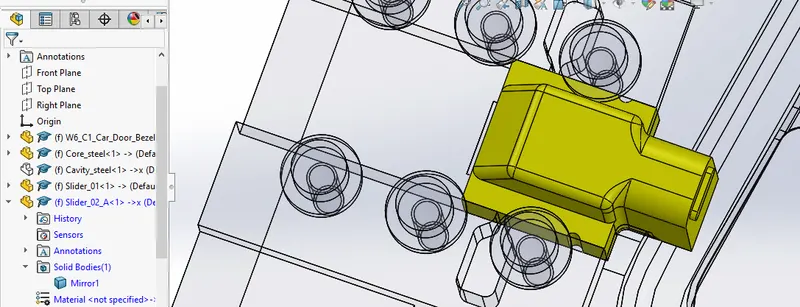

Later the split body was modified to create a slider body in such a way that it can accommodate finger cam. The two sliders are created as below:

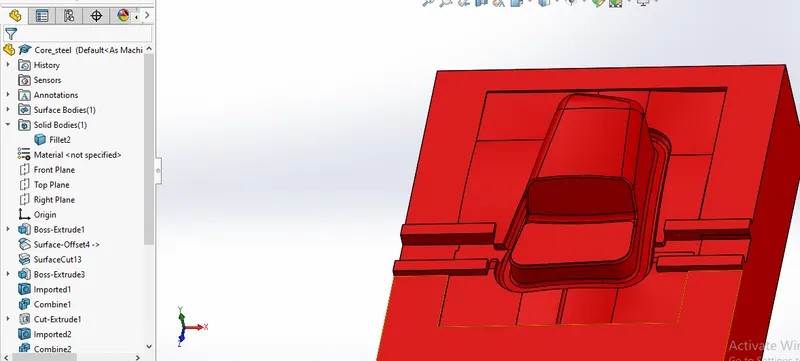

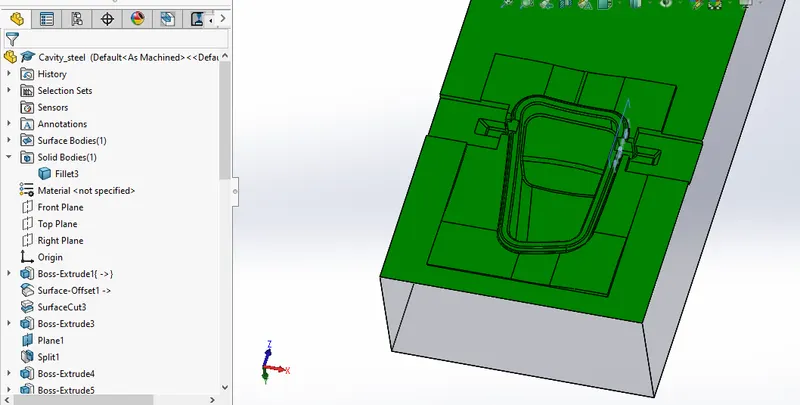

The cavity was modified to accommodate sliders as below:

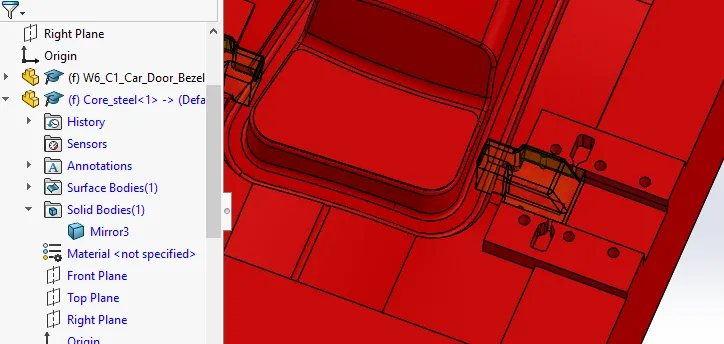

The guide rails were created on the core block and modified as given below:

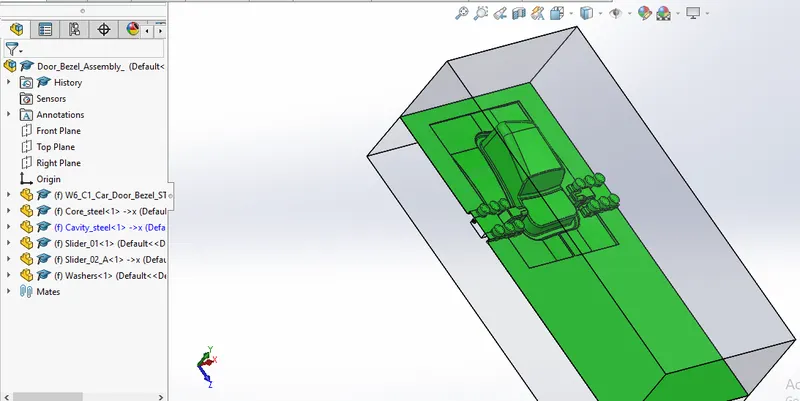

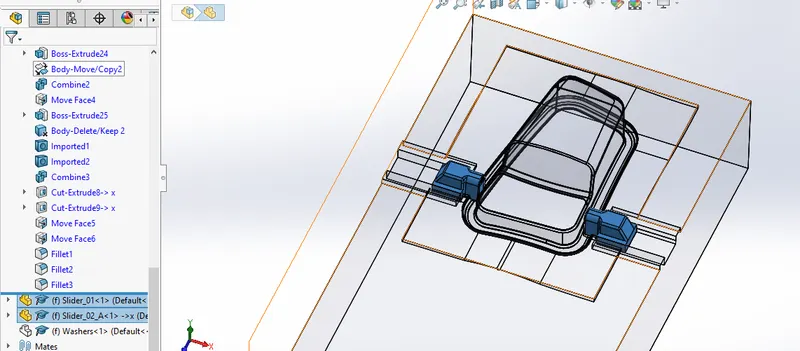

Washers and bolts spaces in core and cavity:

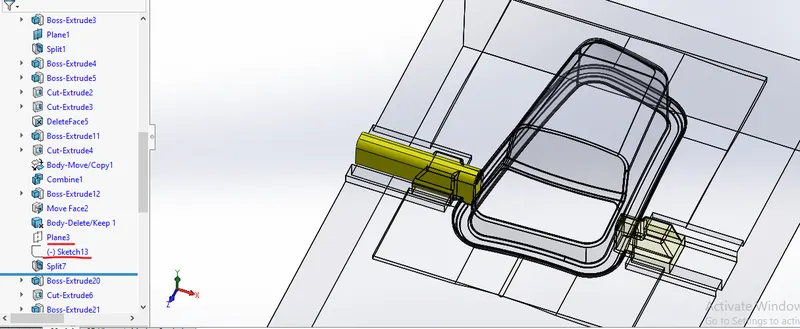

Locking mechanism cut was created to stop the motion of slider:
