Week 6-Meshing of Hood Challenge
Aim- To mesh the given component
Objctive-
The element size should be of 5 units
Mesh should be of the following quality criteria
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 8 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
Procedure

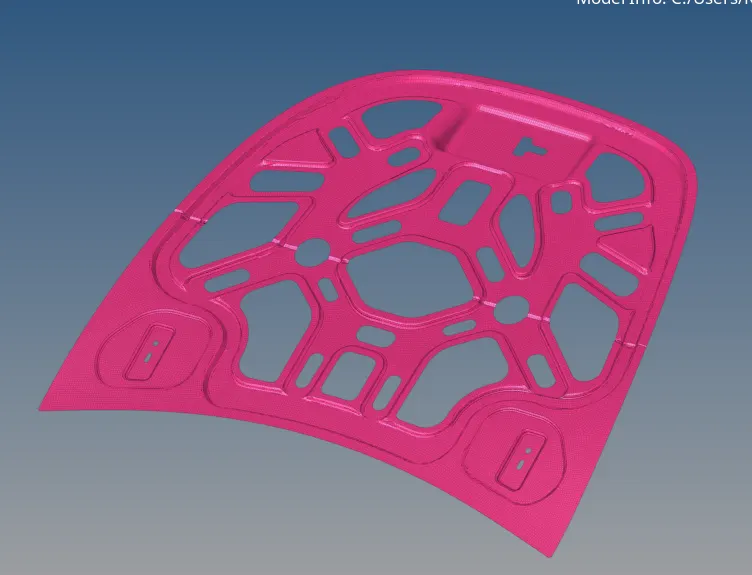

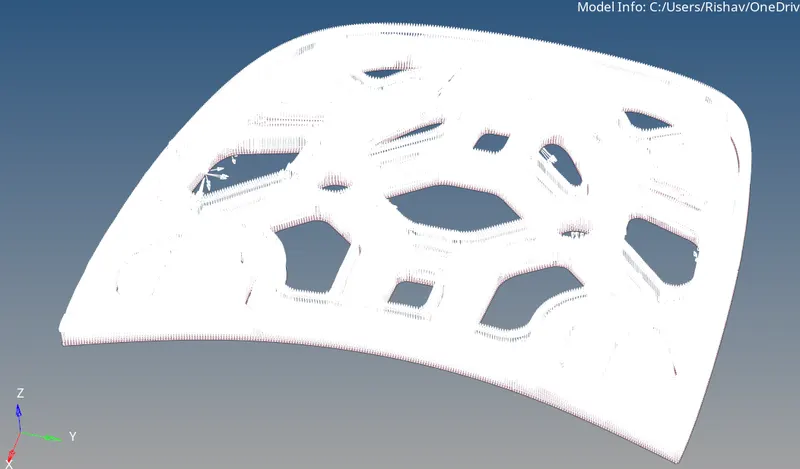

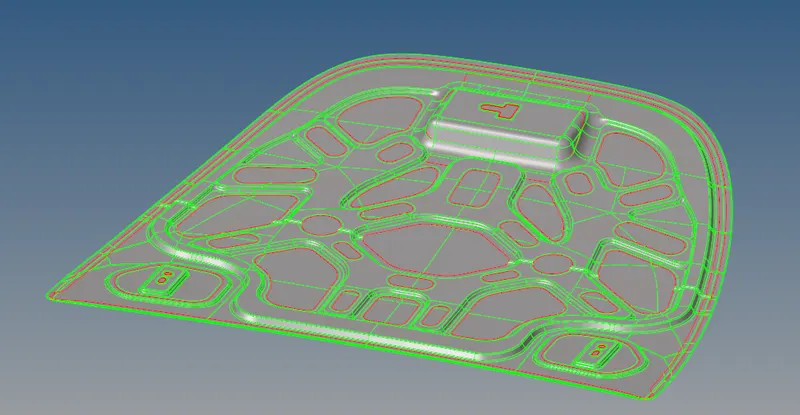

1.Import the model

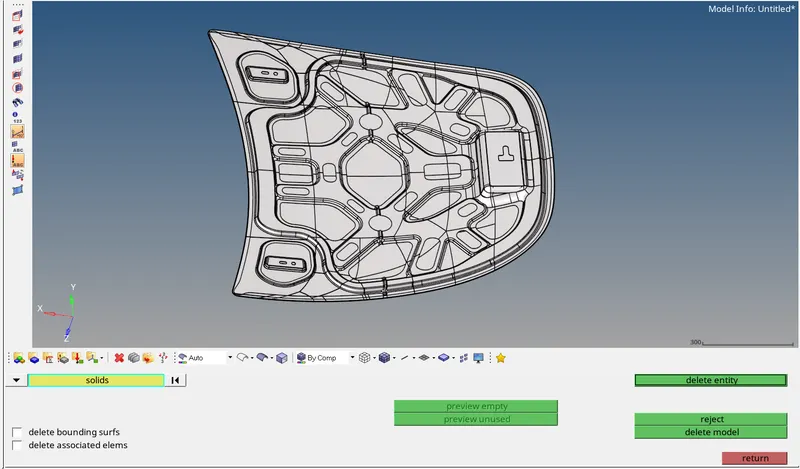

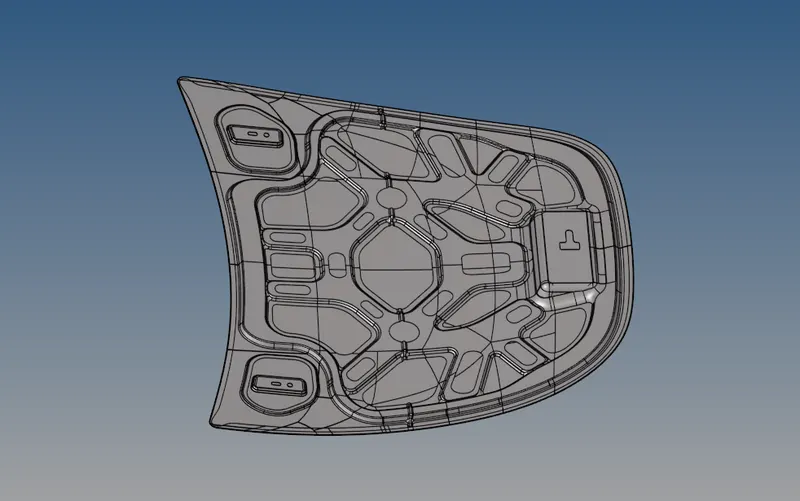

2. Delete the solid model and keep only the surface model

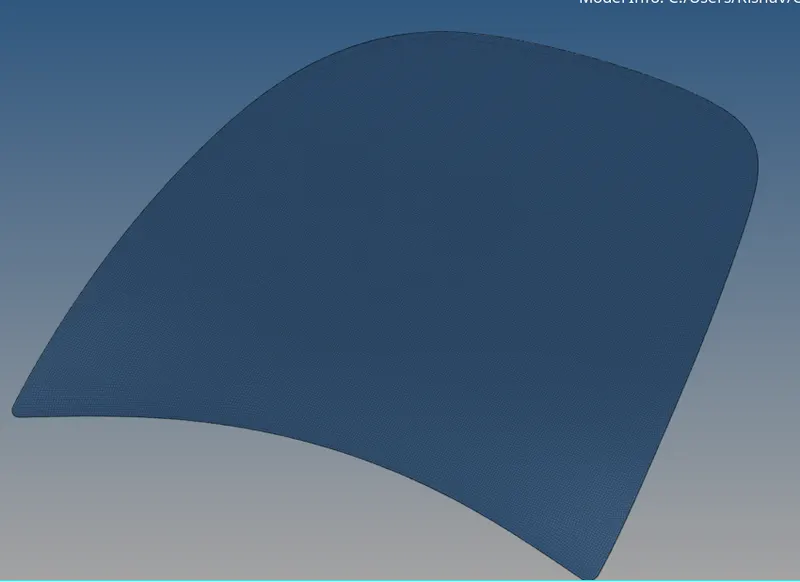

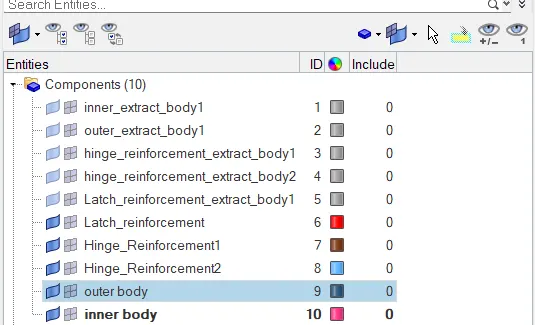

3. Create the mid surface for all the component with different component property and clean the mid surfaces

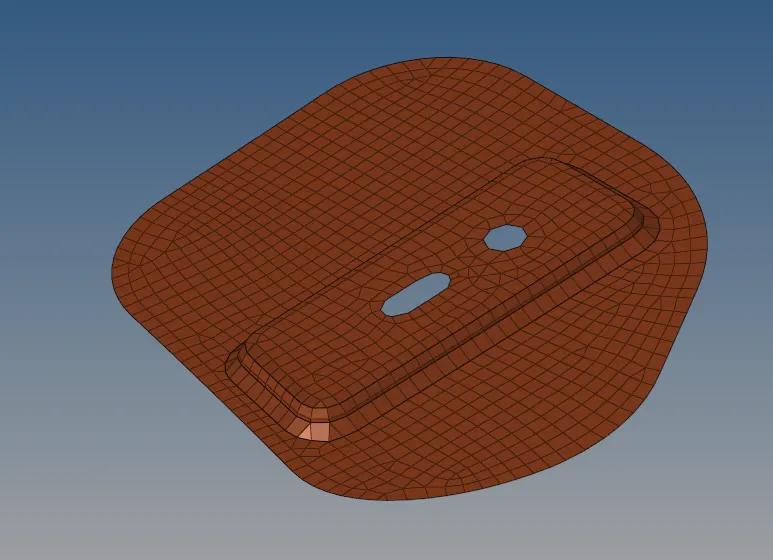

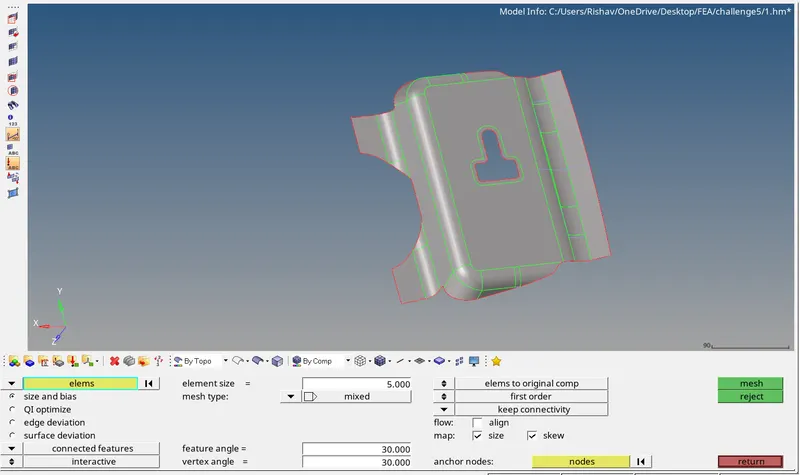

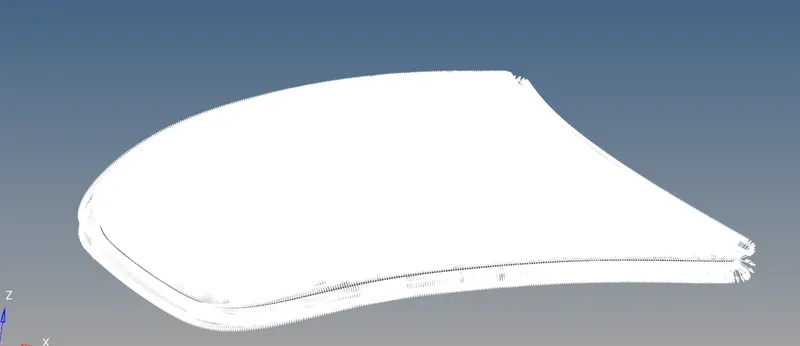

3. Mesh the components with the element size of 5 units
do this for all the components.

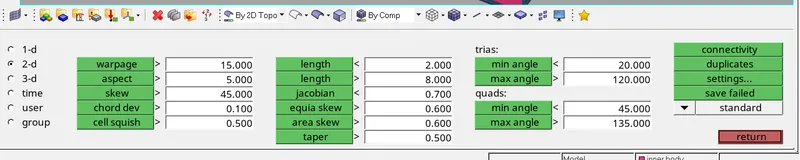

4.Define the quality for the component

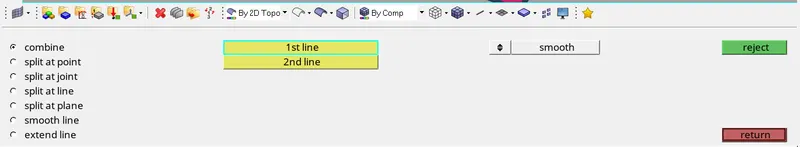

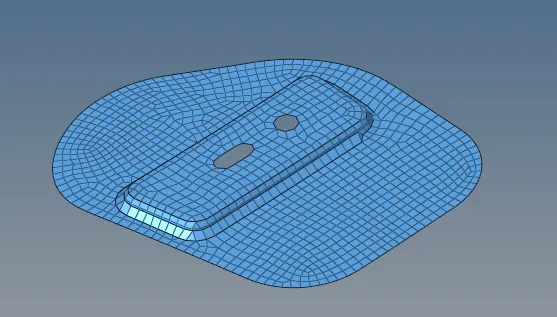

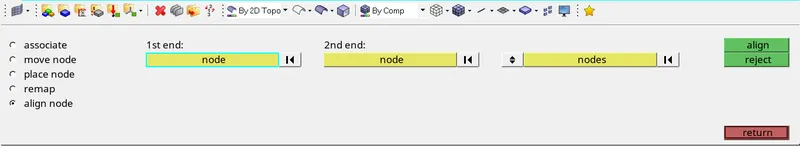

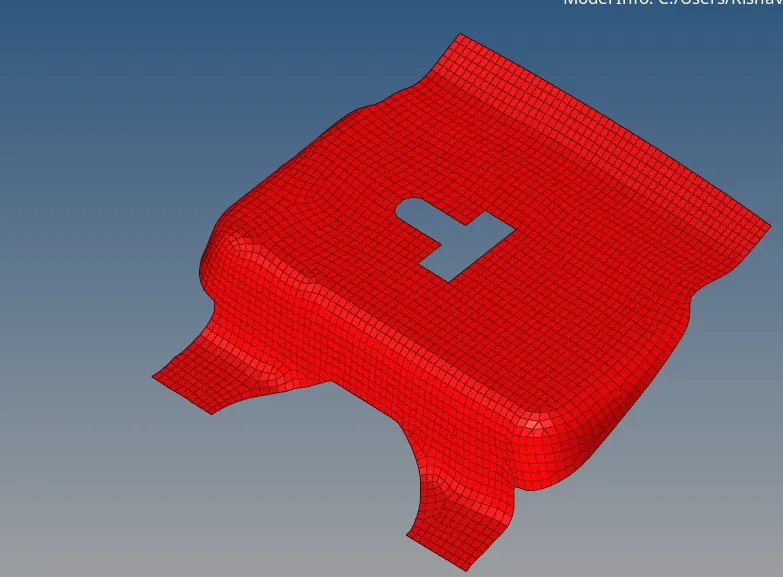

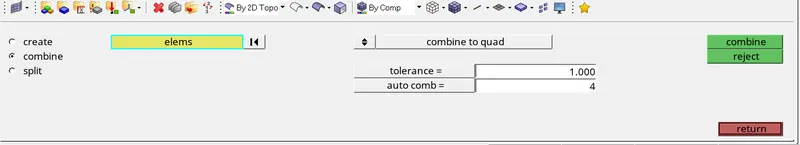

5. Remove the tria elements and clean the mesh using the different 2d mesh tools

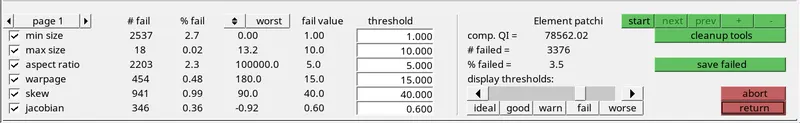

6.Check for the qualityindex and repair the mesh using the cleanup tool.

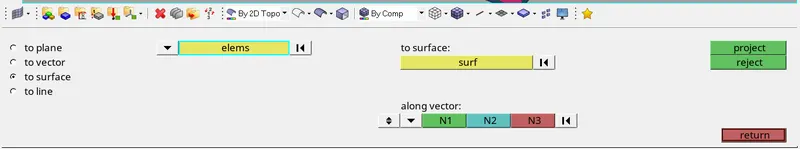

7.For the mesh to be aligned with the midsurface use the project tool for the mesh alignment with the surface.

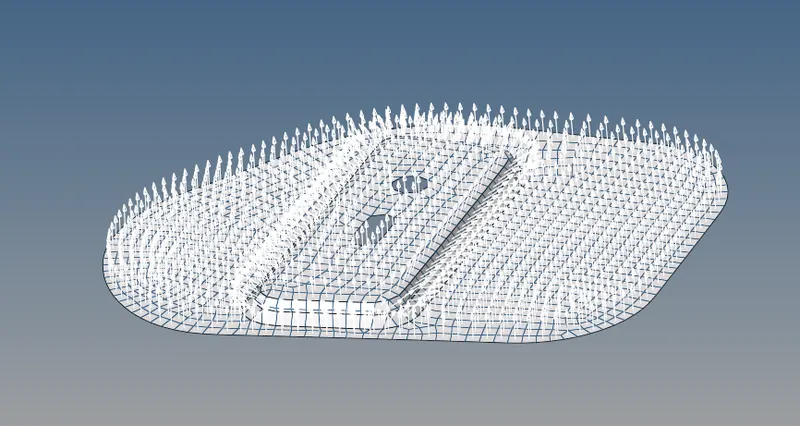

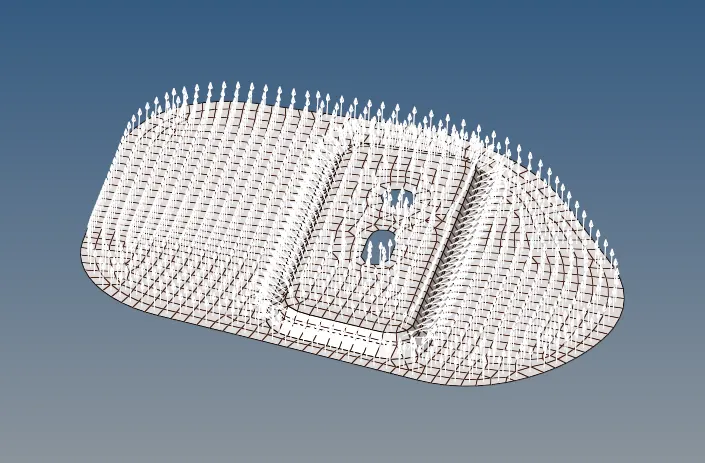

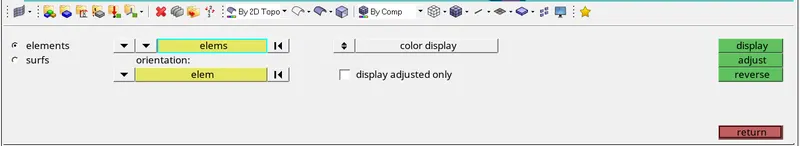

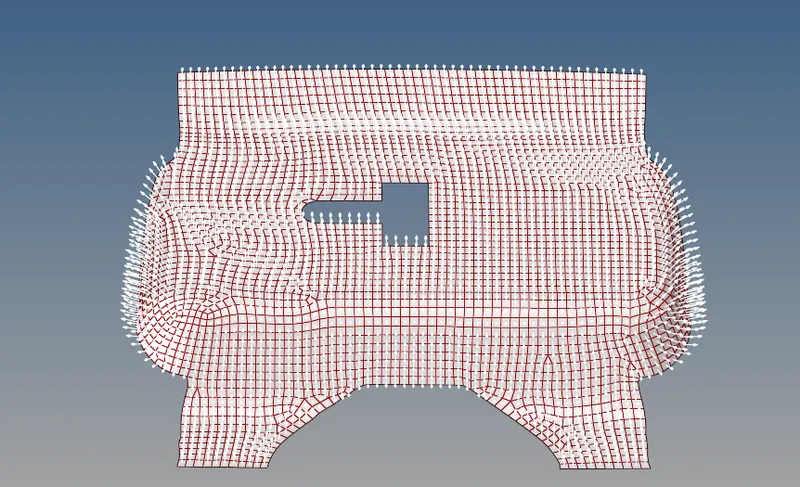

8. Check for the normal using the normal tool.
9.Check again for the quality index for each property and mask the elements for the repair and remesh the elments.

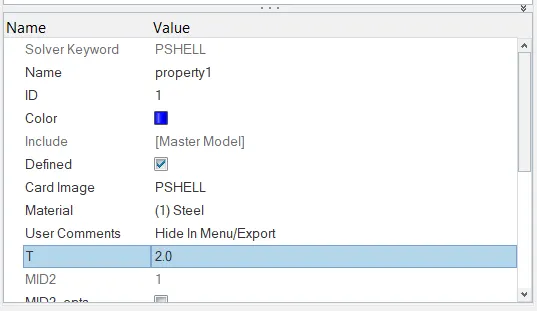

10. Assign the material and property to each commponent with the thickness of 2 units
