Week 6-Meshing of Hood Challenge

Objective: to mesh and clear quality criteria.

Procedure :

1. First we see cad of the hood that consists of a latch, hinge, inner extract, and outer extract.

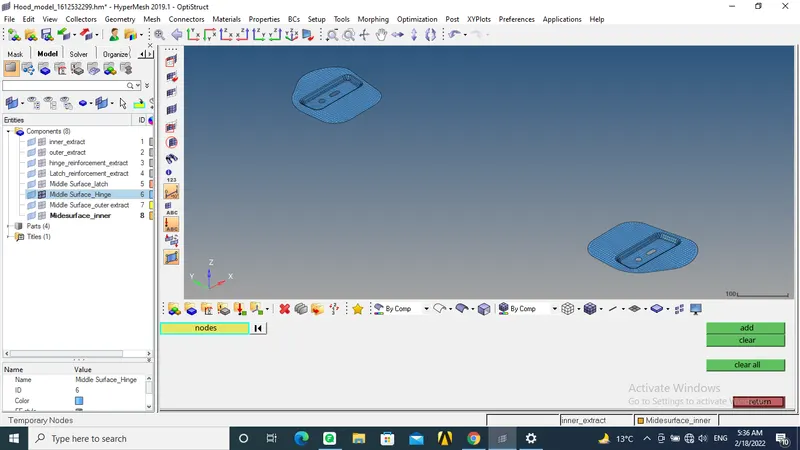

2. we start mesh latch and hinge first. but before that, we input desired quality criteria, so that we mesh and clear quality simultaneously.

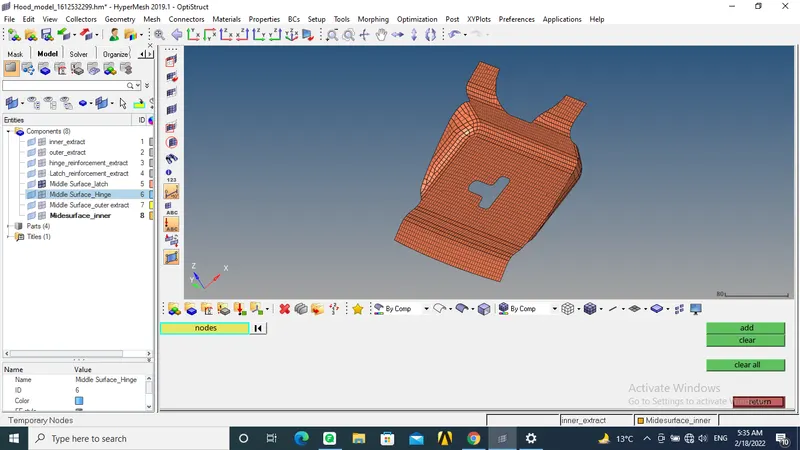

3. After meshing, we reflect the mesh for another side of the hinge.

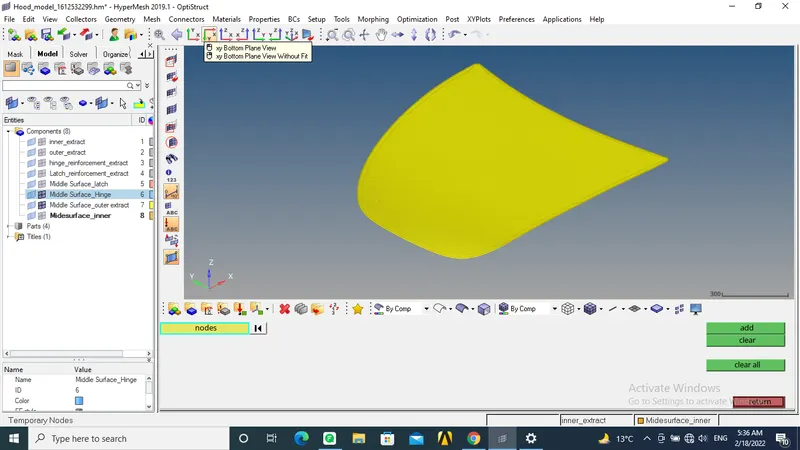

4. Now we start meshing the outer extract. Since the feature line is small at the edge we clean geometry accordingly to make sure elements don't fail for min length. then geometry cleanup is done for the whole outer extract and then meshed property and reflected after it.

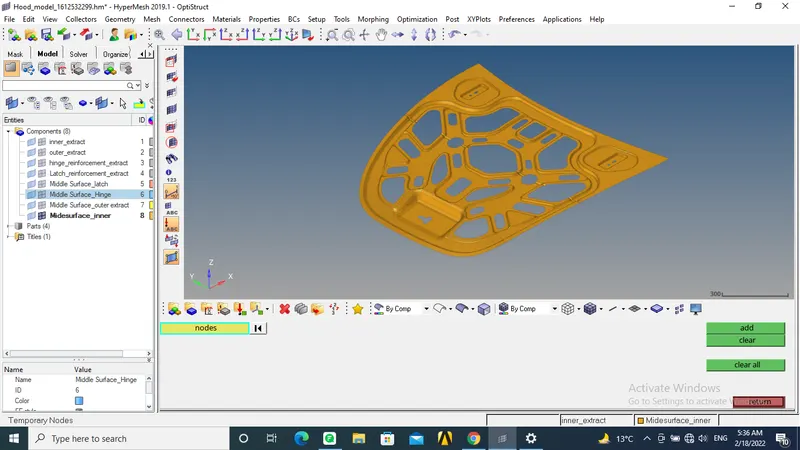

5. Now we start working on the inner extract. Here we start working on all the geometry cleanup first and mesh accordingly. It is also reflected for another half.

6. Finally whole mesh is checked for quality wherever possible to clear and also checked for line elements unjoined elements and duplicates
