Week 6-Meshing of Hood Challenge
Aim:
The aim is to generate a mid surface and to generate the mesh on the hood model.
The model is the hood of the car
which have four component
1-Inner Panel
2-Outer Panel
3-Hinge reinforcement
4-Latch reinforcement

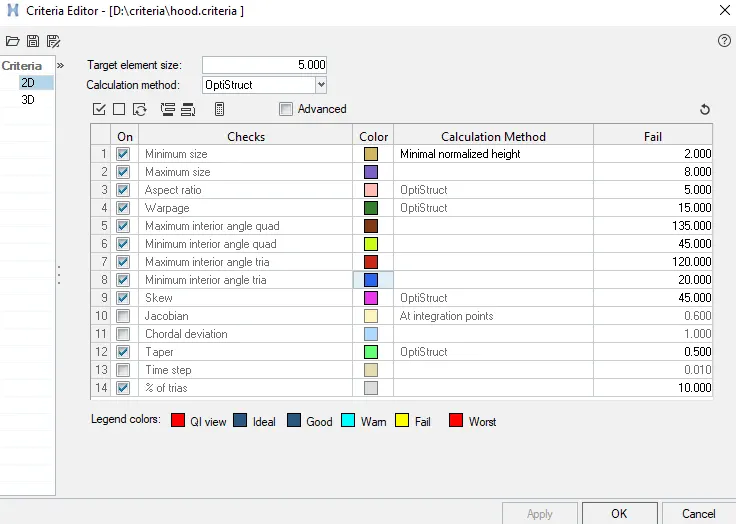

Quality criteria:
|
S. No |
Quality criteria |
Value |
|
1. |
Aspect ratio |
5 |
|
2. |
Skewness |
45 |
|
3. |
Warping |
15 |
|
4. |
Taper |
0.5 |
|
5. |
Min. Length |
2 |
|
6. |
Max. Length |
8 |
|
7. |
Min Quad Angle |
45 |
|
8. |
Max Quad Angle |
135 |
|
9. |
Min angle Tria |
20 |
|
10. |
Max angle Tria |
120 |
|
11. |
Tria % |
10 |

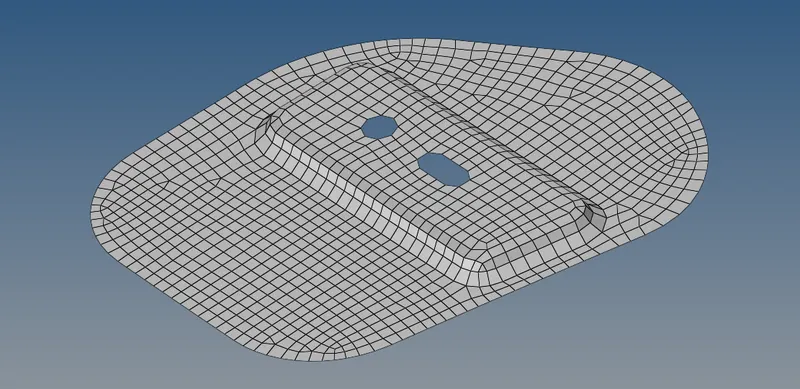

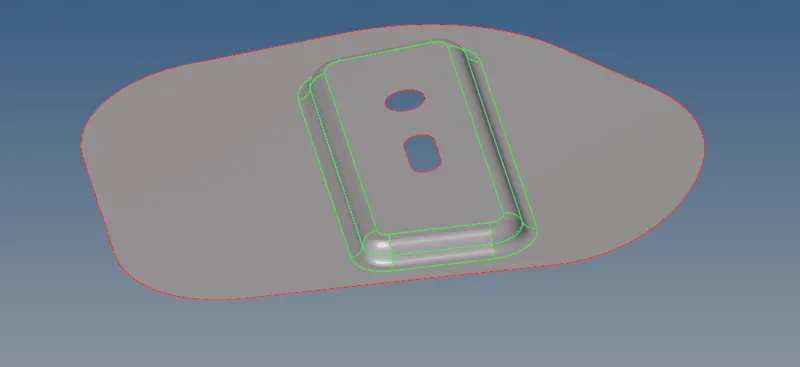

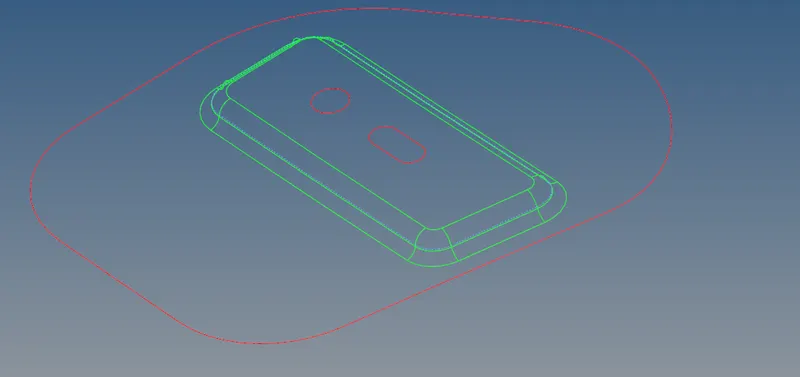

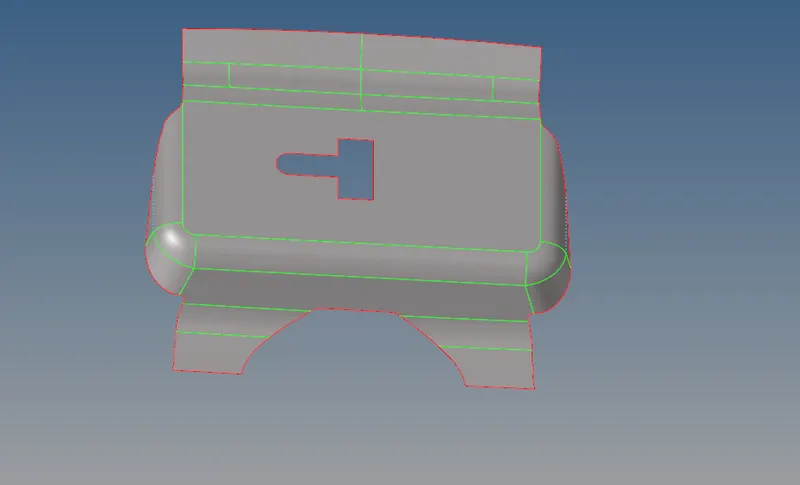

LATCH REINFORCEMENT:-

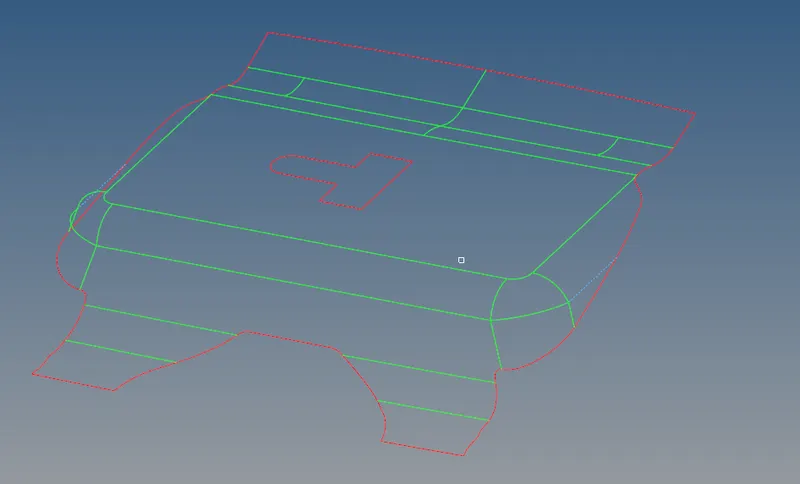

1. Extracted the mid surface of the latch reinforcement
2. Do manual geometry cleanup

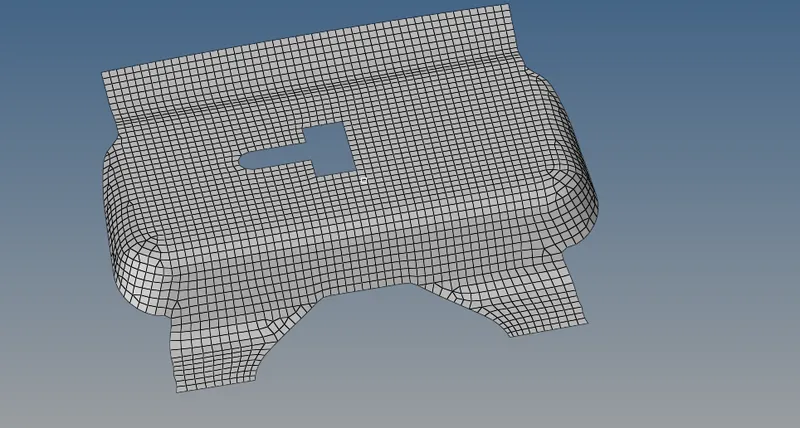

3. Meshed as per given criteria
HINGE REINFORCEMENT
1. Extracted the mid surface of the Hinge reinforcement
2. Manual geometry cleanup
3. Meshed as per given criteria

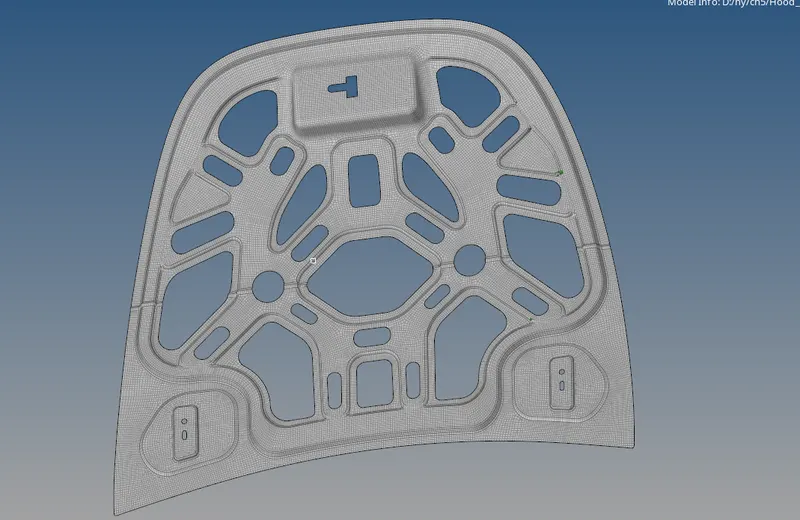

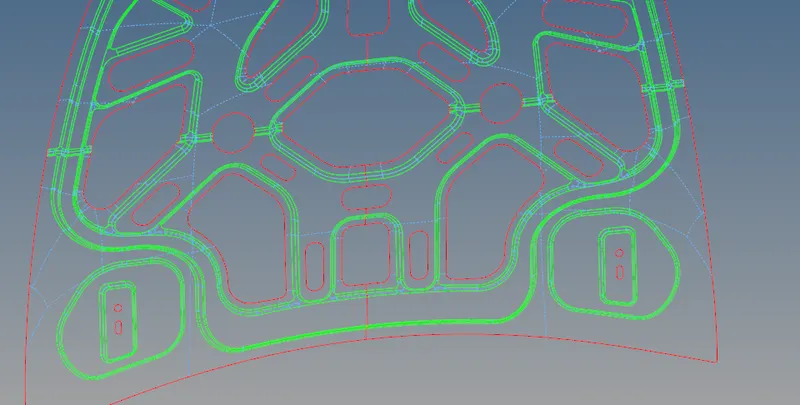

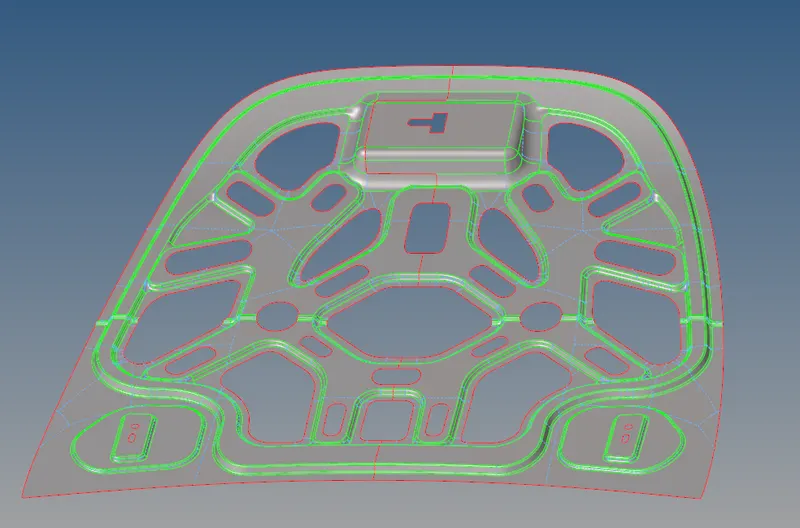

INNER PANEL
1. Extracted the mid surface of the Inner panel
2. Do manual geometry cleanup (panel is symmetrical so split it)
3. Meshed as per given criteria
USE rebuild mesh for better mesh
(Reflect the mesh)

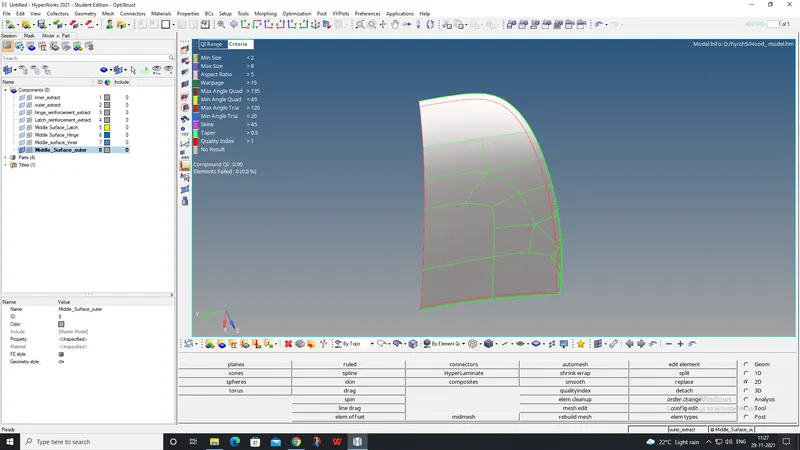

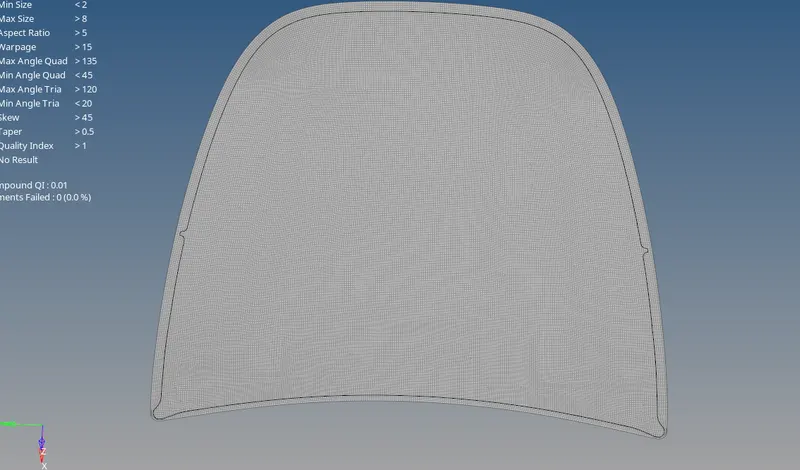

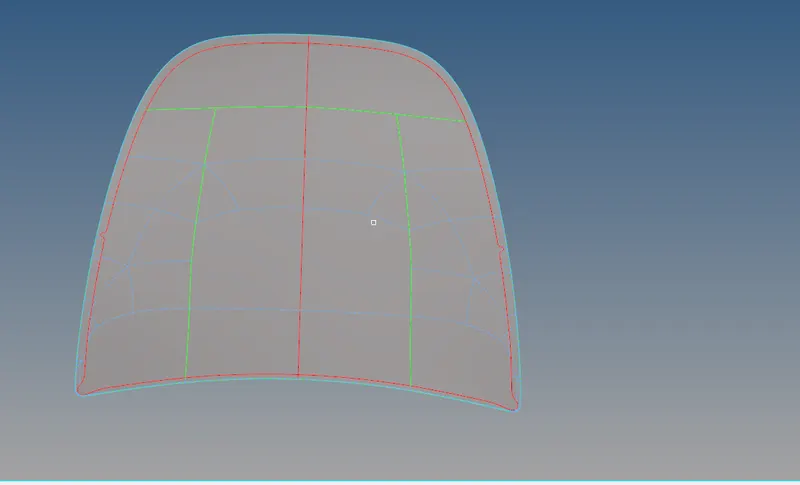

OUTER PANEL:-
1. Extracted the mid surface of the Outer panel
2. Do manual geometry cleanup
(part is symmetrical so it can be split)
3. Meshed as per given criteria
