Week 6 - Creating connection for Rear door

AIM: For the given Rear door FE model, Create and Apply different PIDs for different components. Connections for the front door by using ANSA.

PROCEDURE:

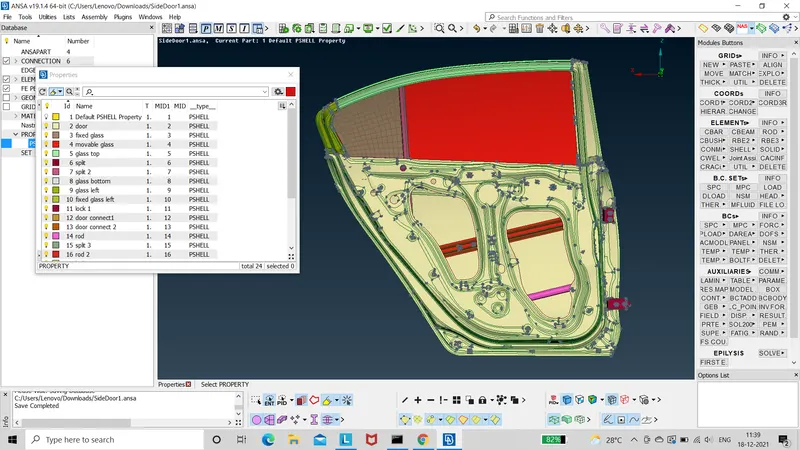

1. Importing the model and Setting up different PID for the components.

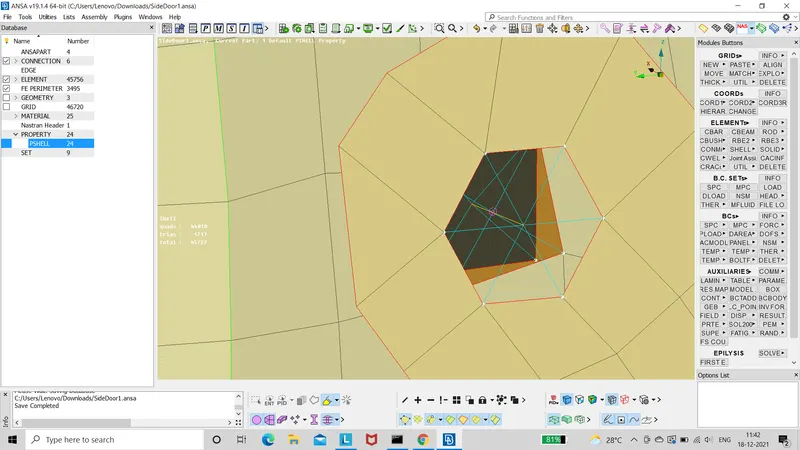

2. Creating CoG using [ Points>On CoG] and then converting into bolt conntection. Using connection manager to create a proper connection

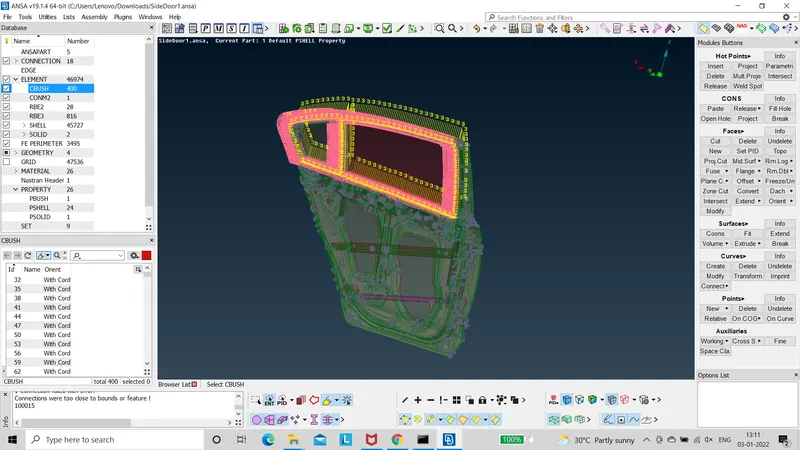

3.Creating Bushing inbetween glass and door to reduce thermal transfer and also orienting the bushing to the cord.

4. creating a spotweld

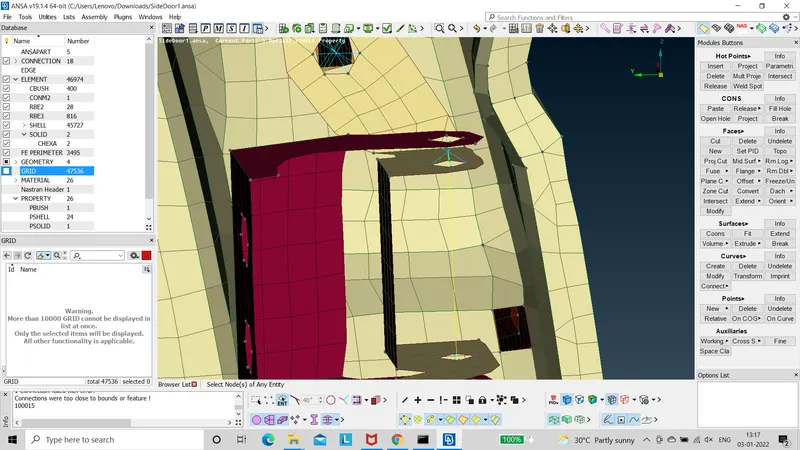

5. Giving the door connection for opening and closing with single dof (ie) only y axis is free to move and all others are arrested.

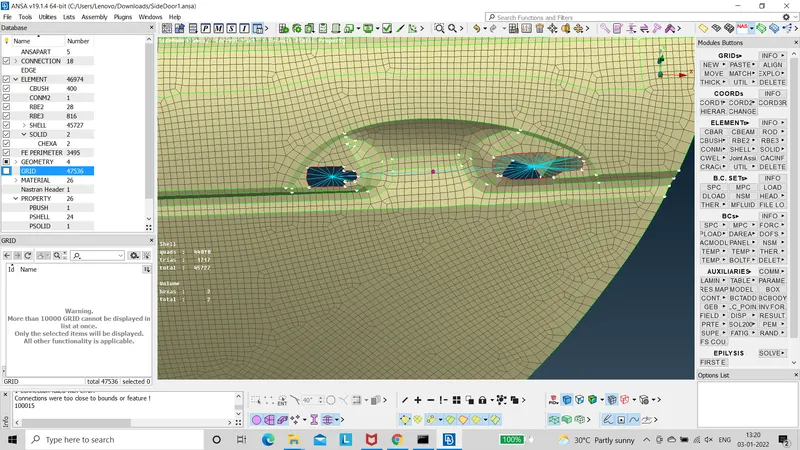

6. Creating connection for door handle and giving a concentrated mass

Conclusion:

From this exercise learnt how to do connections for a door using ANSA.

Thanks,

Vishal
