Week 6: Conjugate Heat Transfer Simulation
Week 6: Conjugate Heat Transfer Simulation
ANSWERS
As the Reynolds Number is 7000, on further calculation, we got the velocity is 2.58 m/s. So we use velocity = 2.6m/s for the future calculation.
CASE 1
As for the first case, we use Grid size = 0.004mm and Super cycle stage interval size = 0.01.
Here
Today we are going to solve a basic problem of a Conjugate heat transfer problem by using a basic created geometry.
This is the geometry which we are dealing with. This is a basic 3D geometry of a pipe with thickness, and the hot fluid (air) is flowing through it.

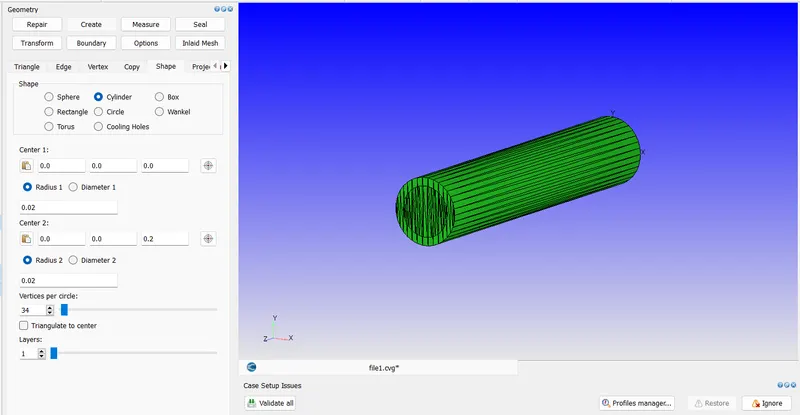

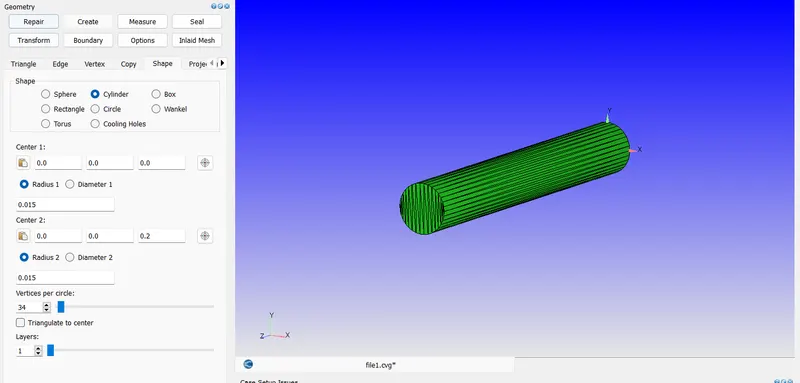

First, we need to create a geometry as per the dimensions.
Then, we need to create another cylinder over the previously created one.

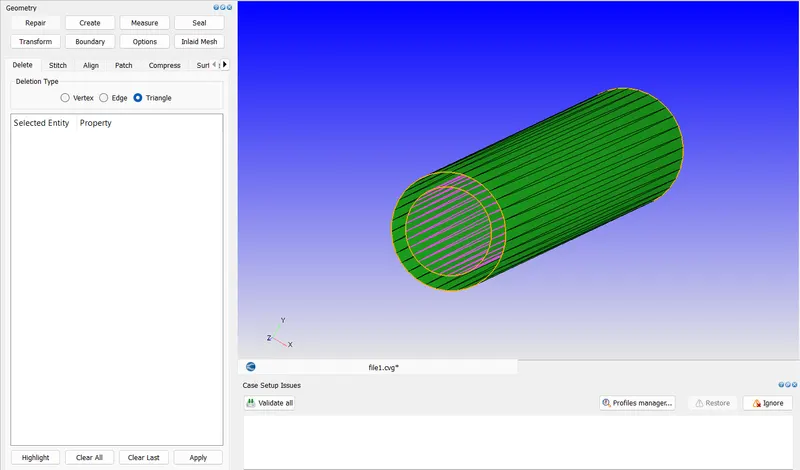

Now, we delete the side profiles to look as a hollow cylinder.

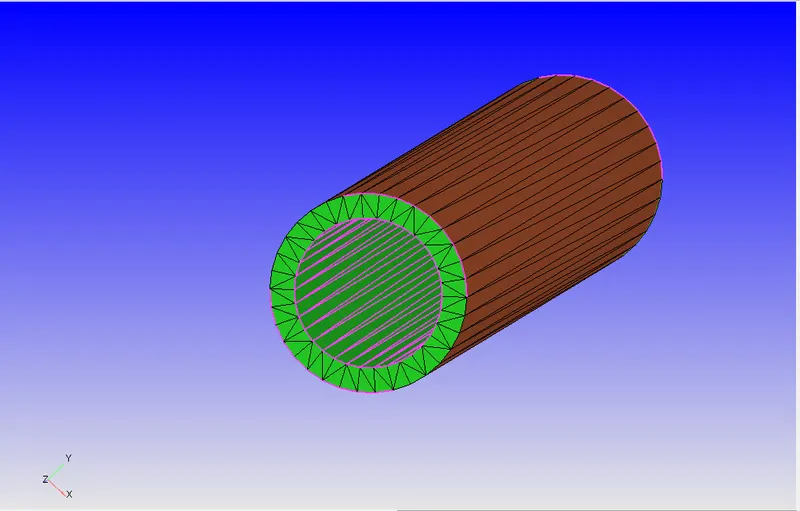

The final geometry
CASE SETUP

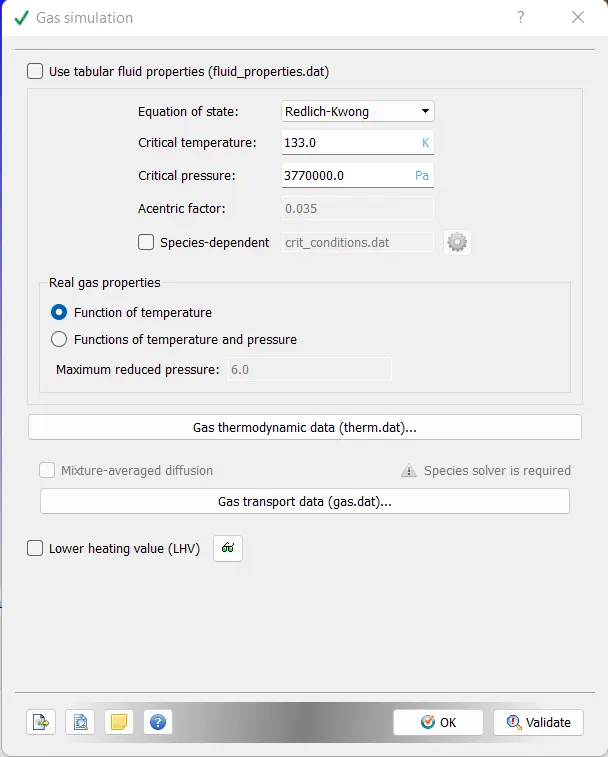

Gas Simulation is set to default

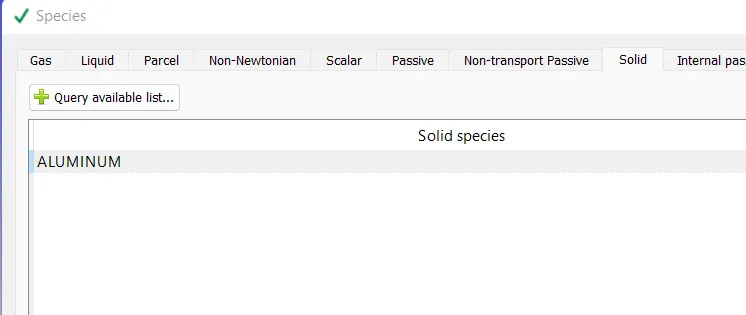

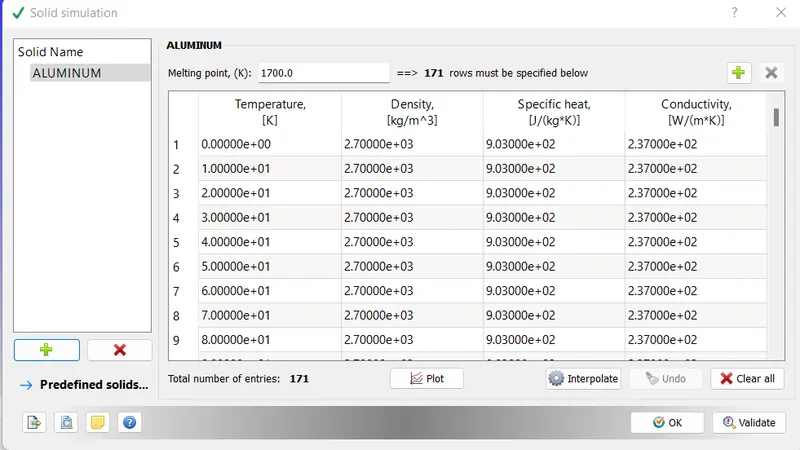

Selecting material for the solid and fluid component

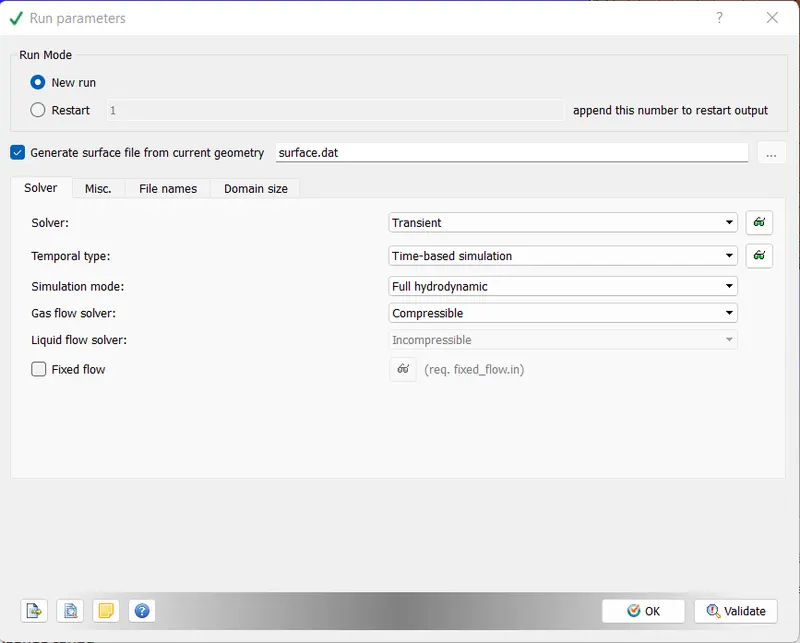

Run Parameters - Default

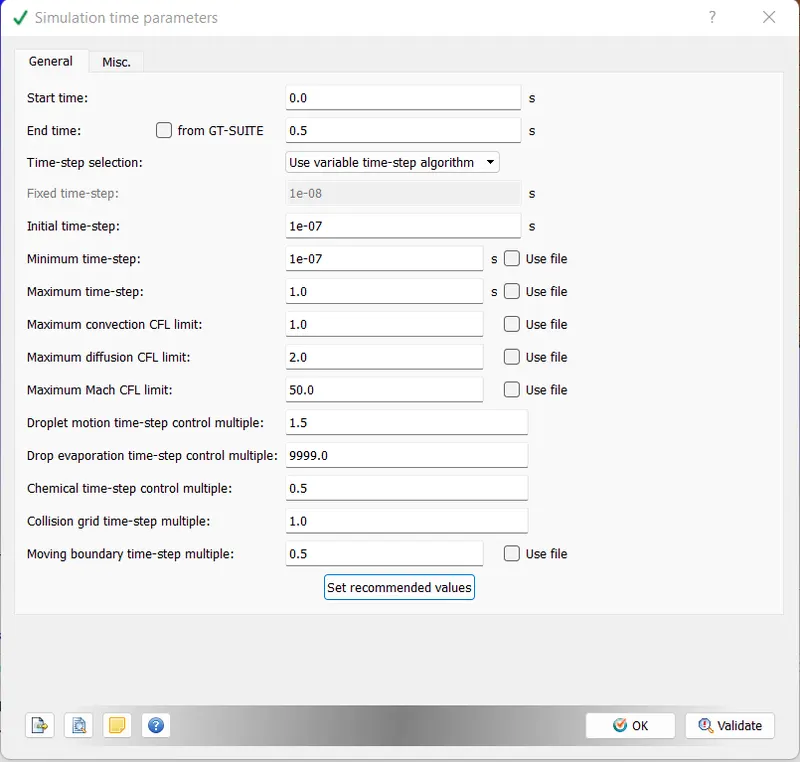

Simulation time parameter is set according to

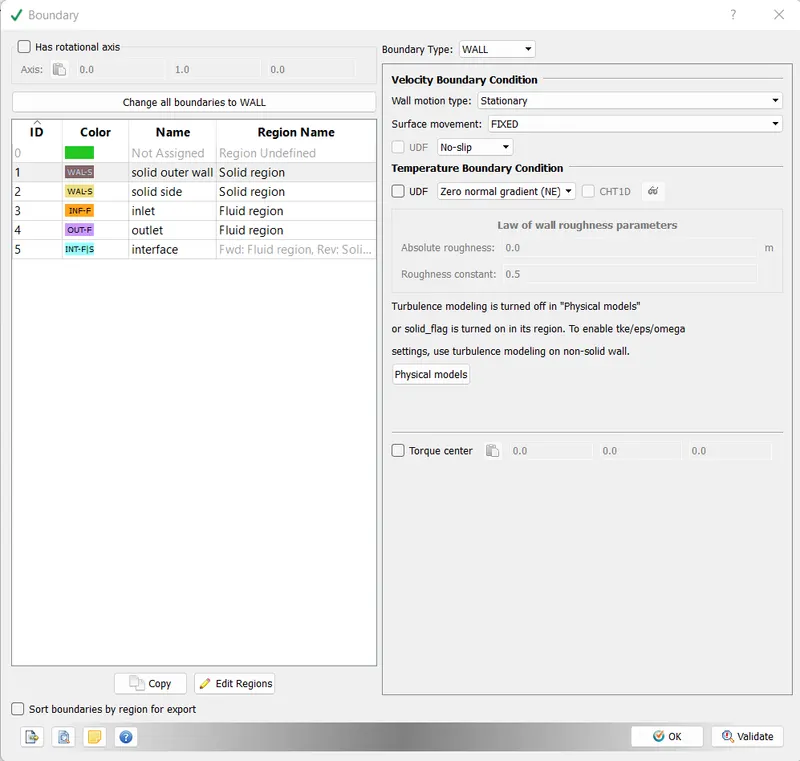

Boundary Condition, Solid Outer Wall

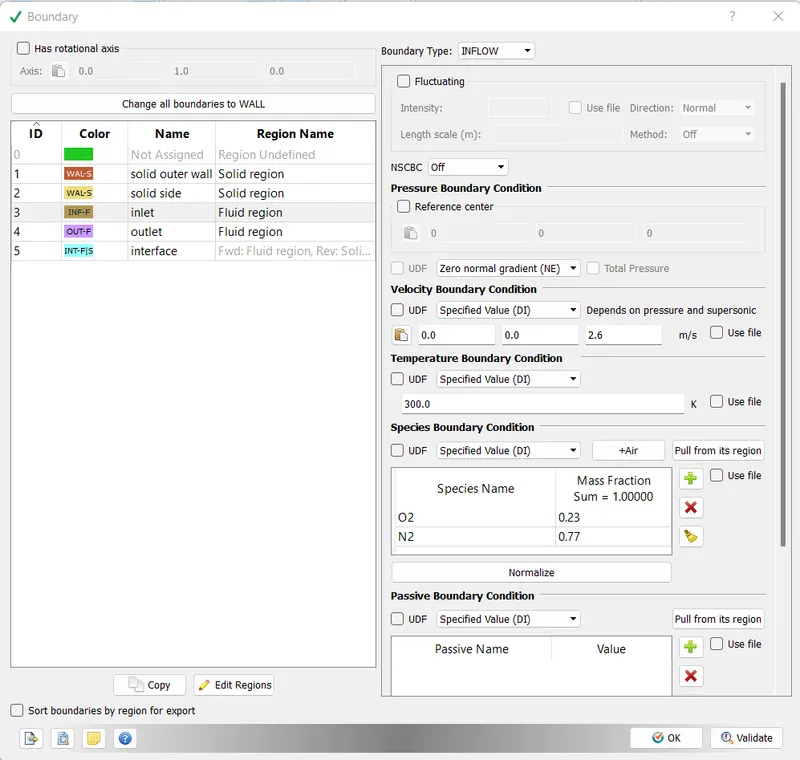

Inlet

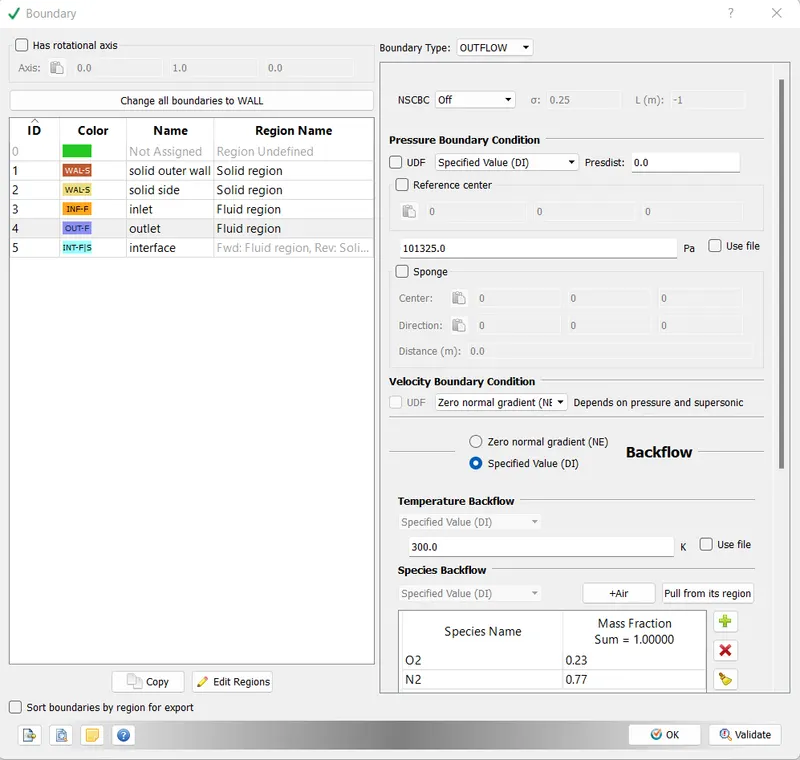

Outlet

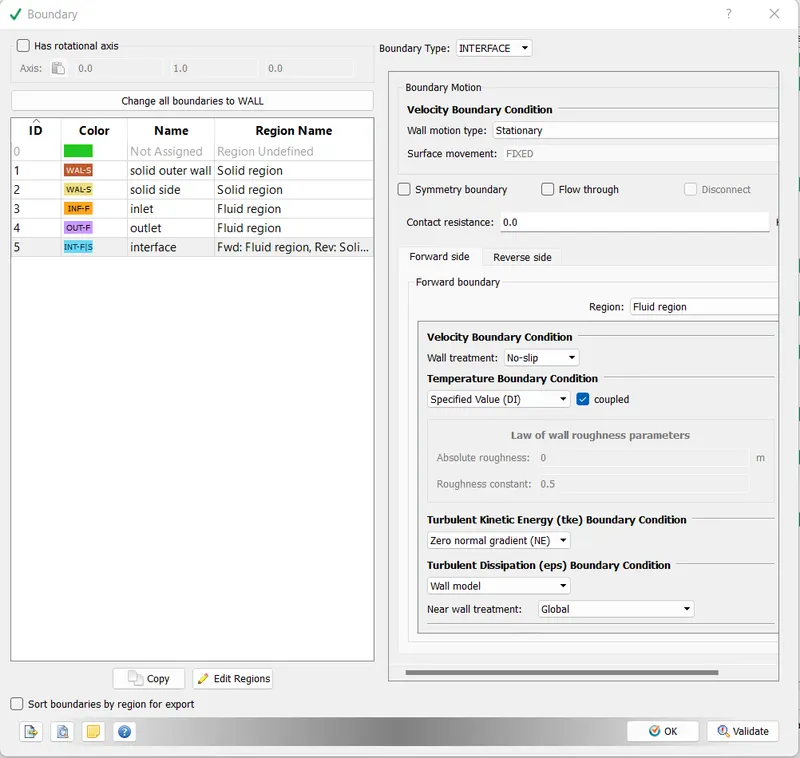

Interference

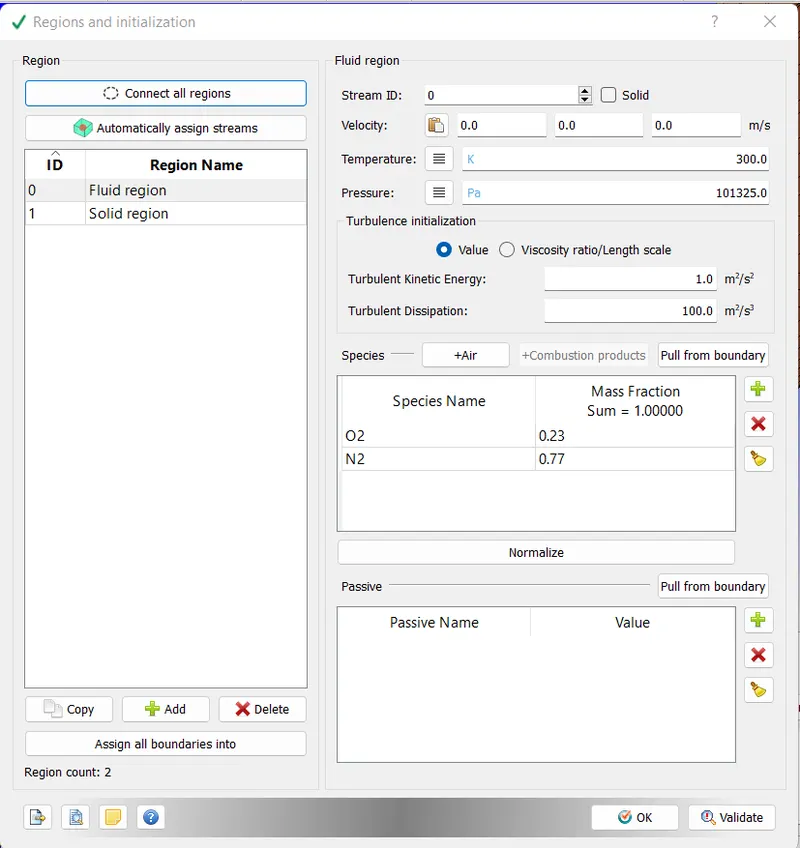

Regions and Initialization, create two regions, Fluid Region and Solid Region.

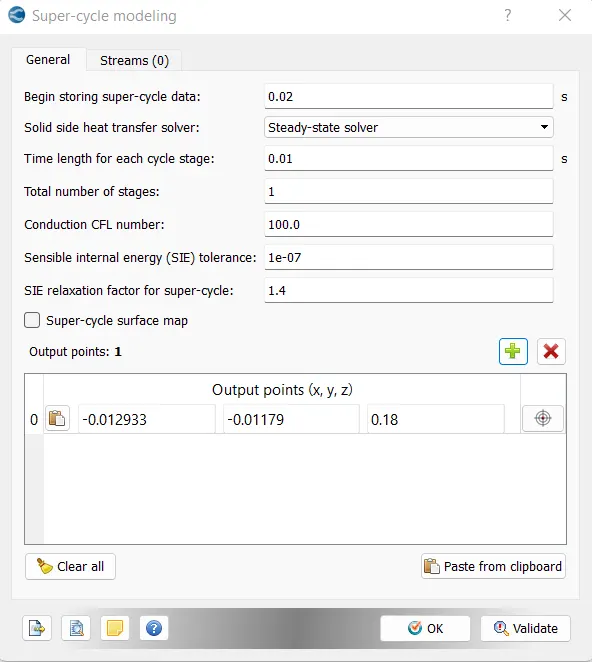

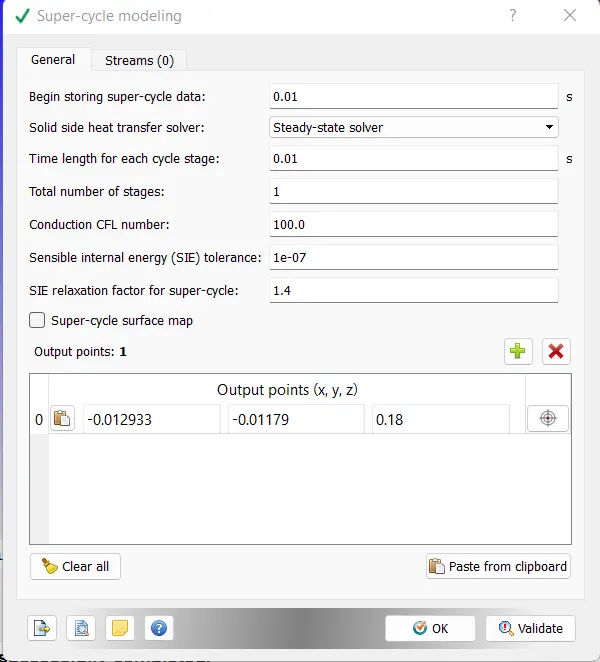

Super Cycle modeling is set according to this

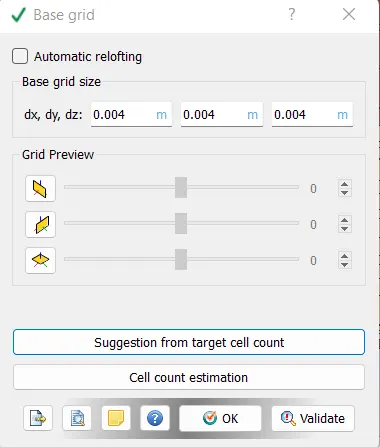

Grid Scaling, mesh size is set to 0.004mm

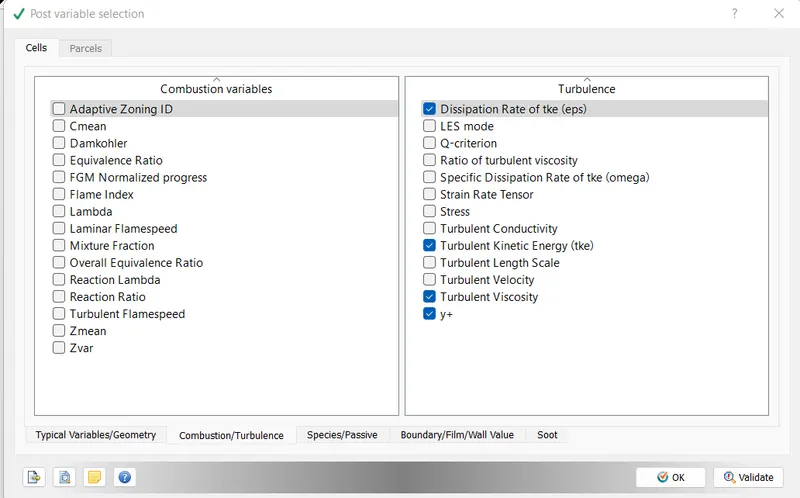

Enable y+ for the output files

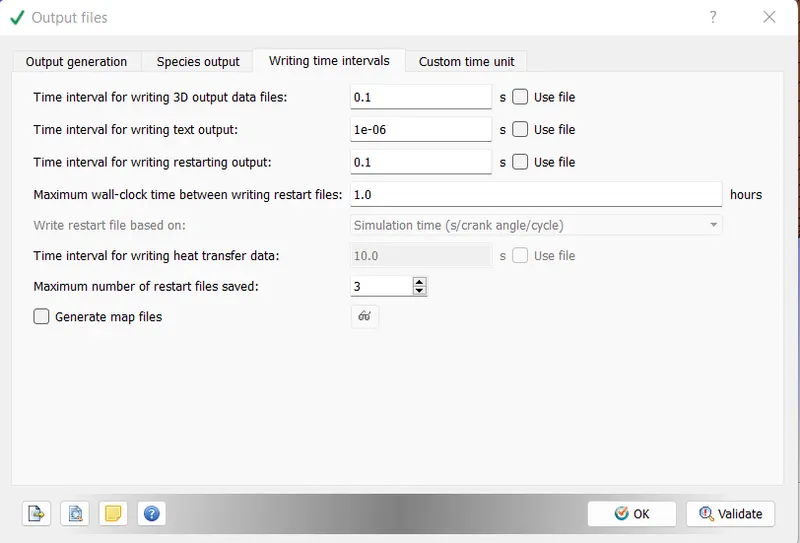

Out put files is set to as follows

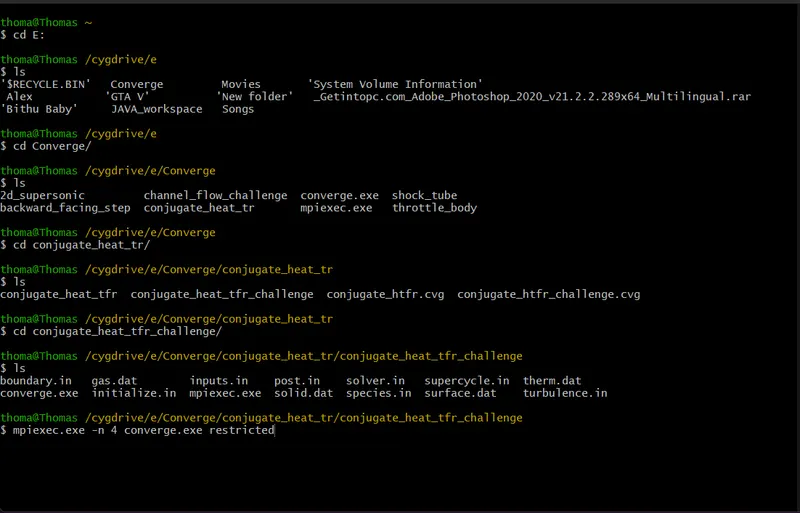

Now, we start to run the simulation using Cygwin.

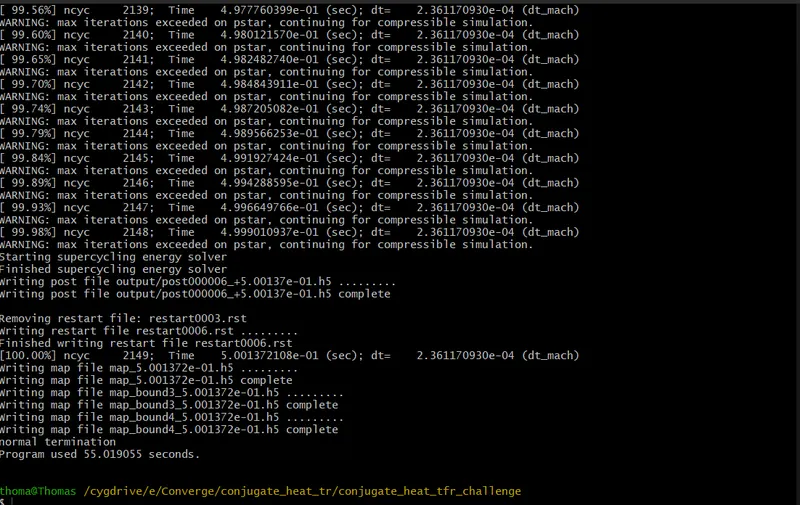

The simulation ran successfully
RESULTS

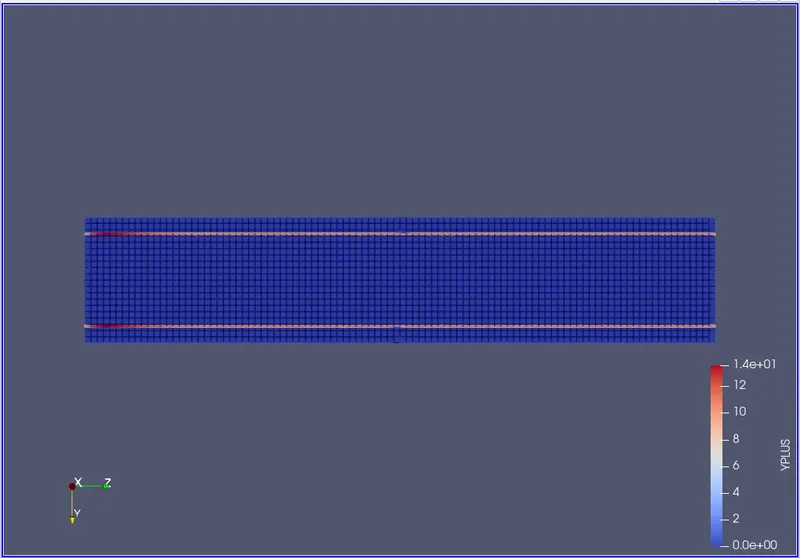

The Y plus Contour

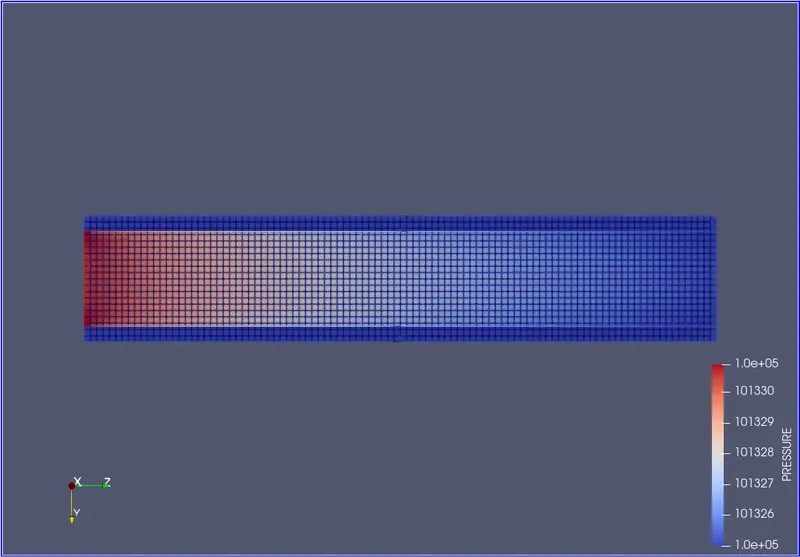

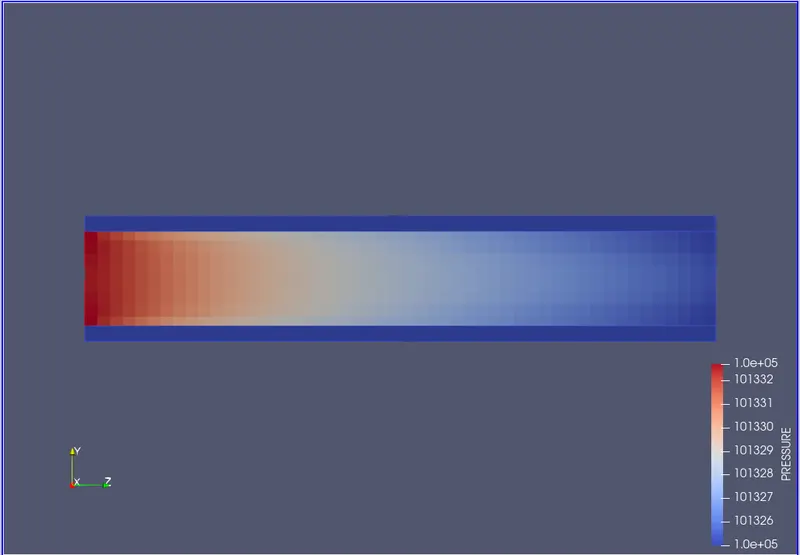

Pressure Contour

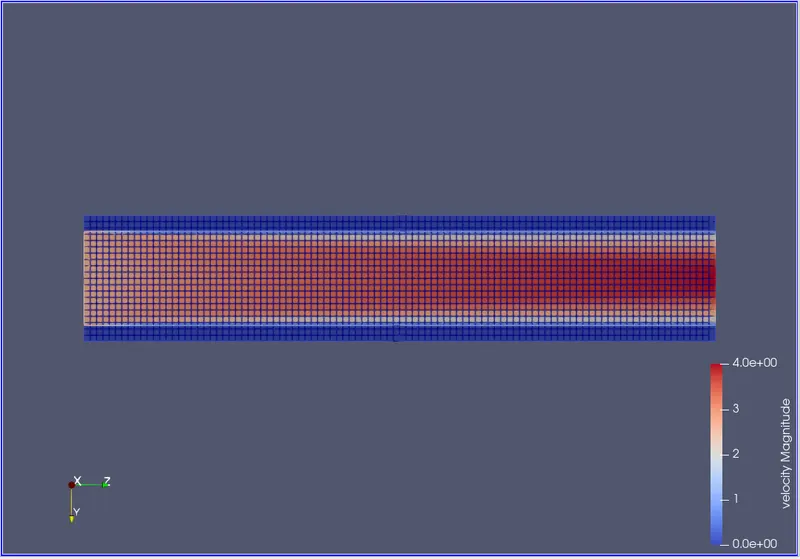

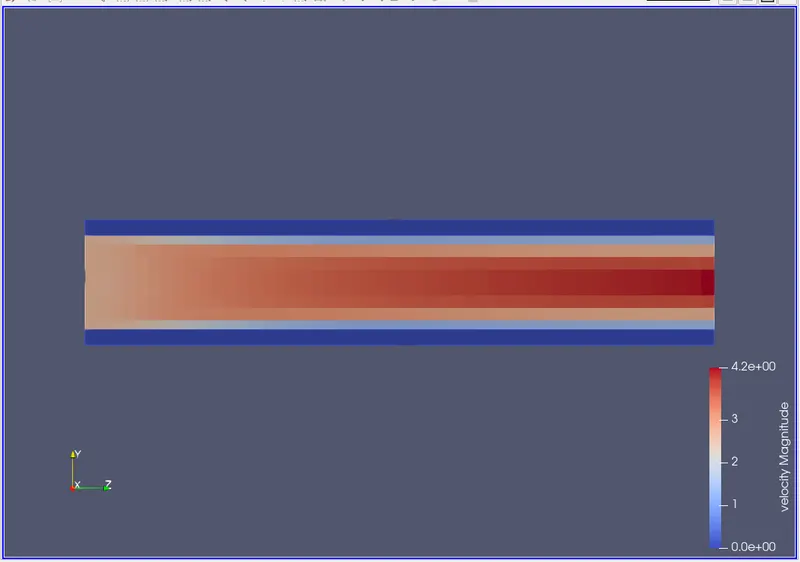

Velocity Contour
CASE 2
Grid size = 0.003m
and Super cycle stage Interval = 0.02

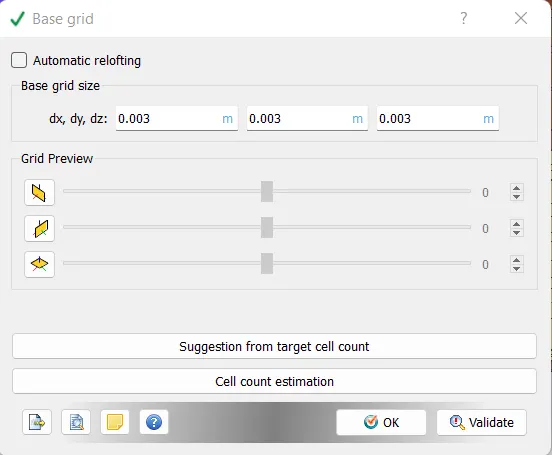

The grid Size is set to 0.003m
Super Cycle Stage Interval is set to 0.02
RESULTS

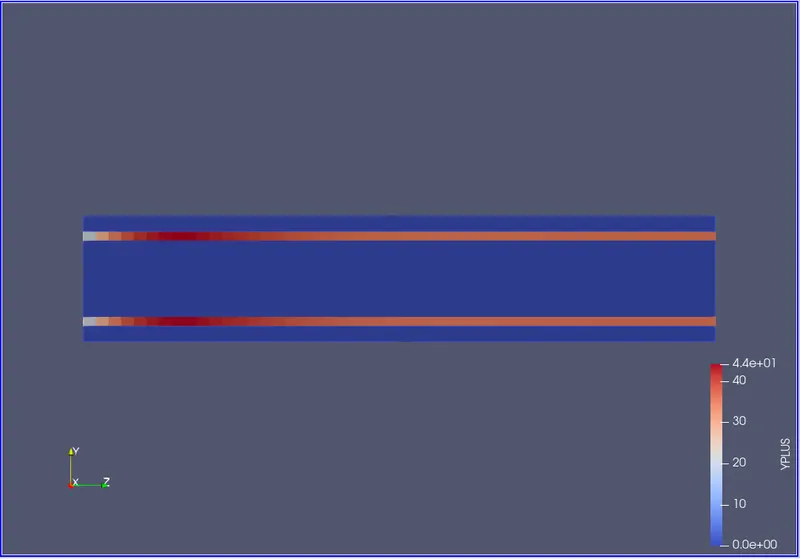

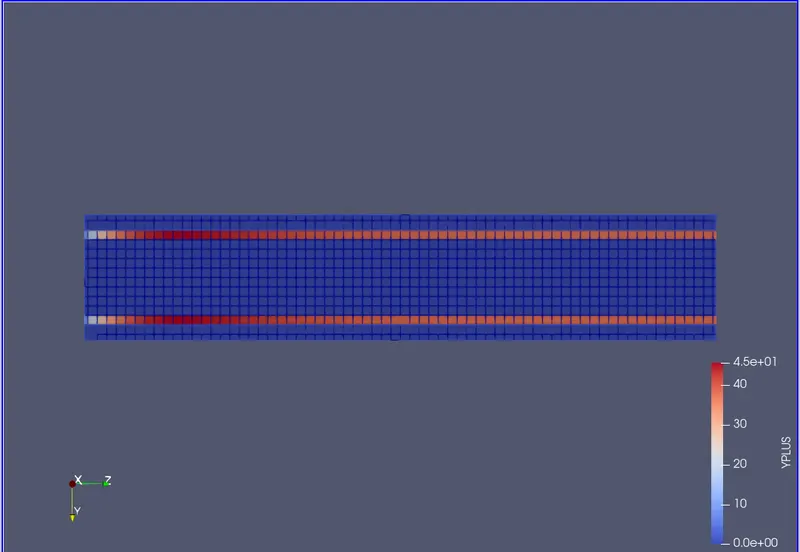

Y Plus Contour

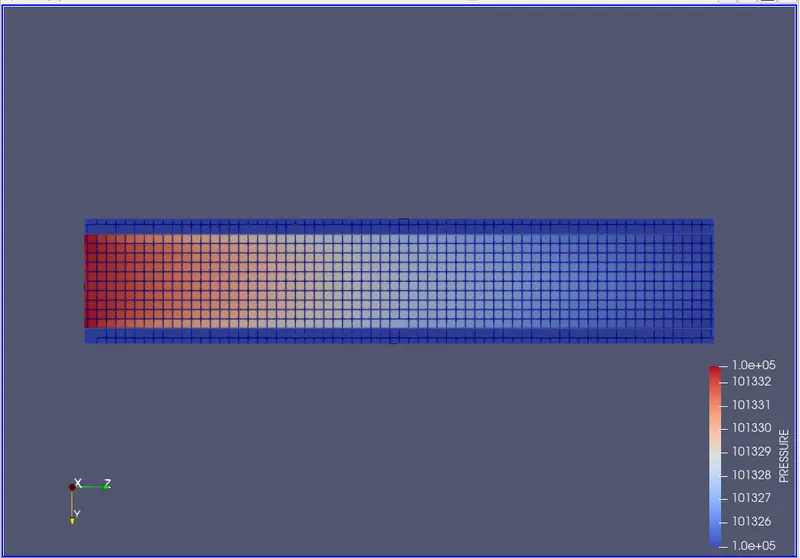

Pressure Contour

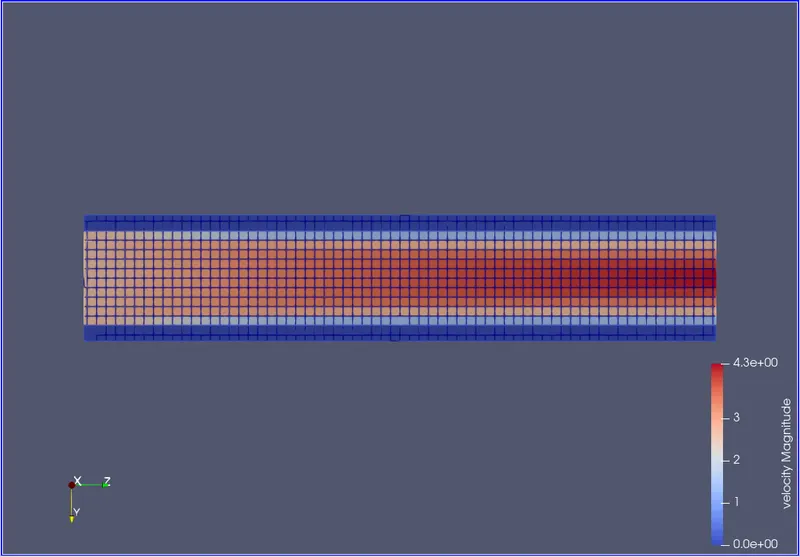

Velocity Contour
CASE 3
Grid size = 0.002m
and Super cycle stage Interval = 0.03
RESULTS
Wall Y+ Contour
Pressure Contour
Velocity Contour
Thank You
