Week 6:- Clamp Unit & Pin-Clamp Unit Design Challenge

Clamp Unit & Pin-Clamp Unit Design Challenge

OBJECTIVE:

To design 3 types of Swivel Clamp unit and 1 Pin-Clamp unit with different Riser, Blade and Clamp arm while maintaining the stroke of cylinder as 100mm.

FUNDAMENTALS:

3-2-1 principle: Our ultimate intention for using pin unit is to fix the work piece so that it does not deviate from the position while the operation is being performed on it. For this reason we use 3-2-1 principle.

Every component we know has 6 degrees of freedom. They are listed below:

1. Translational motion along x-axis.
2. Translational motion along y-axis.
3. Translational motion along z-axis.
4. Rotational motion along x-axis.
5. Rotational motion along y-axis.
6. Rotational motion along y-axis.

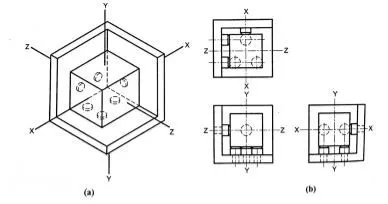

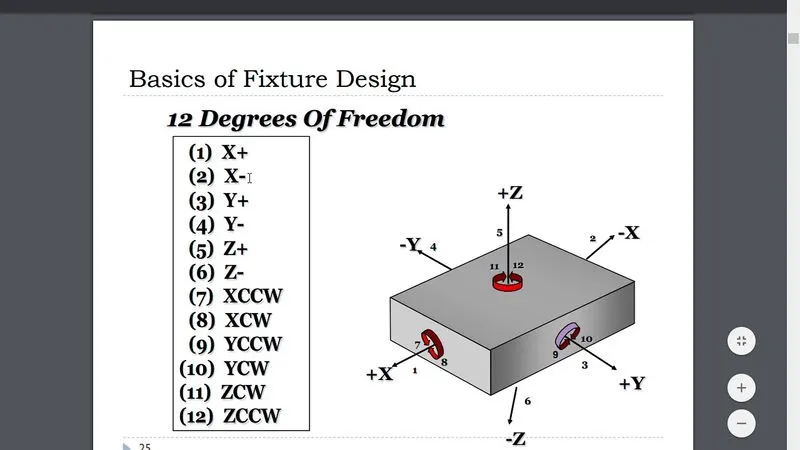

FIG. DEGREE OF FREEDOM

Degrees of freedom can be simply understood as the direction in which any component can move. These 6 degrees becomes 12 if we consider translation along negative and rotation in anti-clockwise direction too. That means, every component can move in all the direction when it is free. But processes like welding, stamping or others and in fact every other cannot be carried out on such free to move body for obvious reasons. Thus the body must be constrained in all the major direction in order for the workman to work upon it. This constrain on motion is achieved by 3-2-1 principle.

In 3-2-1 principle we make use of locating pins in the given order to fix it on a fixture:

1. 3 pins are located on the bottom side of the component. These pins constrain the translational motion of the body in z direction and rotational motion along x-axis and y-axis. Thus 3 degrees are restricted. But the body still can rotate along z-axis and translate in x-axis and y-axis.
2. 2 pins are located on the back side of the component. These pins constrain the translational motion along x-axis and rotational motion along z-axis. Thus we have constrained 5 degrees in total. But translation along y-axis is still possible.
3. 1 pin located on the adjacent side of the 2 pins we can constrain the last degree that is translation along y-axis.

FIG. LOCATING PINS

Thus we can constrain all the degrees of freedom of a body using 3-2-1 principle which used 6 pins for the same.

When we use clamps we restrict following motions:

1. Translational motion along z-axis.
2. Rotational motion along x-axis.
3. Rotational motion along y-axis.

sign two Rest units and three Power Clamp units with different Riser, Blade and Clamp arm.

Clamp unit: Clamp unit is unit designed to clamp / hold the car panel with NC blocks/ mylar/ rest by using a pneumatic clamp cylinder & below are different parts of a clamp unit in general. Usually clamp open position is 90°. Fingers are attached to clamp mylar. In clamp unit shim to one side is more enough because it will restrict translation motion in upward & downward direction only. There is another type of clamp unit knows as swivel type. There is pivot pin around which clamp arm rotate.

Factors should be considered while designing a clamp unit:

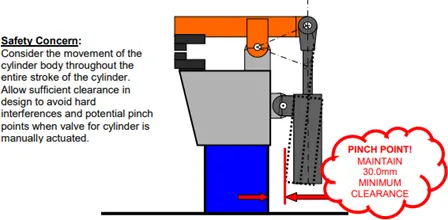

• There should be adequate space between the cylinder & another part like riser, car panel because cylinder moves or swing while opening & closing
• Pin clamp unit used where two panel or component are located for welding.
• Clamping make in such way that it clamps two car panels at once
• All parts should snap & butt properly to each other.
• Make sure that parts of the clamping unit are 10 to 12 mm away from car panel so they do not damage car panel
• Avoid any clash. It will not arises issue at assembly.

CLAMP PLAN:

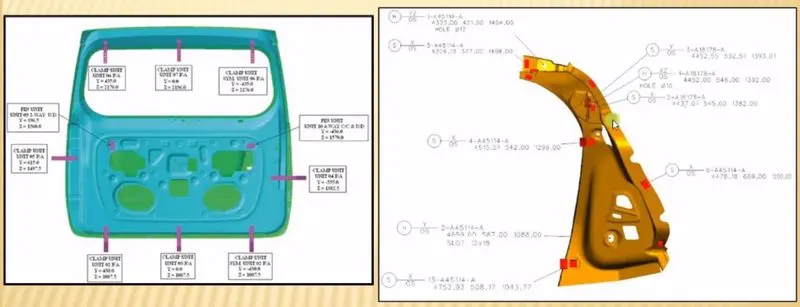

• The customer provides the clamp plan which consists of the position of the clamp, pins, rests and dump etc.
• It has the exact coordinated of these components and in addition it also has the hole’s dimensions and tolerances.
• As this is a critical input data, it must not be modified.
• In case the spot for weld and the clamp position is nearby and it may create problem later and there is need to change the position of the clamp, the same must be done so with the permission of the customer as it will be easy for the customer to make changes from his side also.

Swivel Clamps :

The primary components of the clevis clamp include clamp arm, blade, cylinder, angle riser, locator block, and finger. Swivel clamps shall typically be designed with the center of the clamp cylinder, the center of the locator, and the center of the clamp arm on a common line. However, it is acceptable to offset the clamp point from the clamp cylinder to allow for improved access for welding and part load and unload.

The clamp arm shall be welded construction including a 20.0mm thick arm with an integral pivot to accommodate a 19.50mm wide Swivel. The female portion of the clevis shall always be part of the arm. The male portion of the Swivel shall always be part of the blade.

Below are general parts of swivel clamp unit.

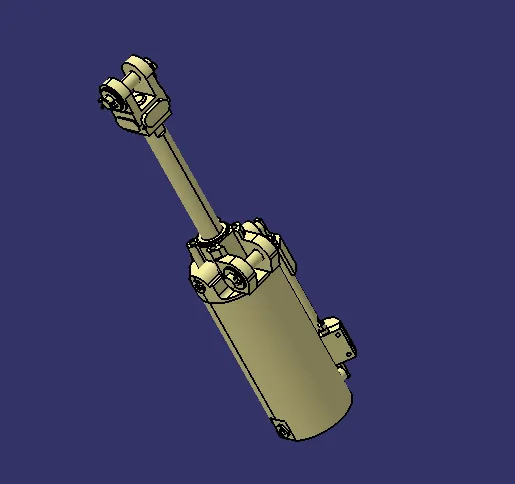

Clamp Cylinder:

Cylinder designation: In this unit we used Clevis cylinder for clamping designated as CKG_1B_63_100Y

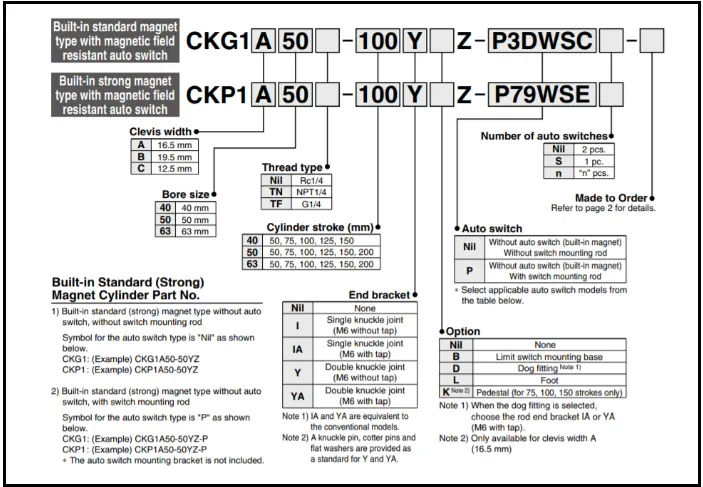

Nomenclature of cylinder as belows:

CKG1: Series of cylinder

B: Clevis width as 19.5 mm.

63: Bore size

100: Stroke of cylinder

Y: End bracket i.e. double knuckle joint (M6 without tap)

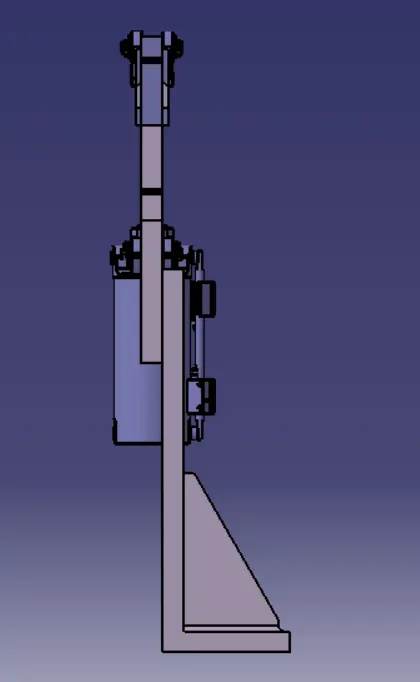

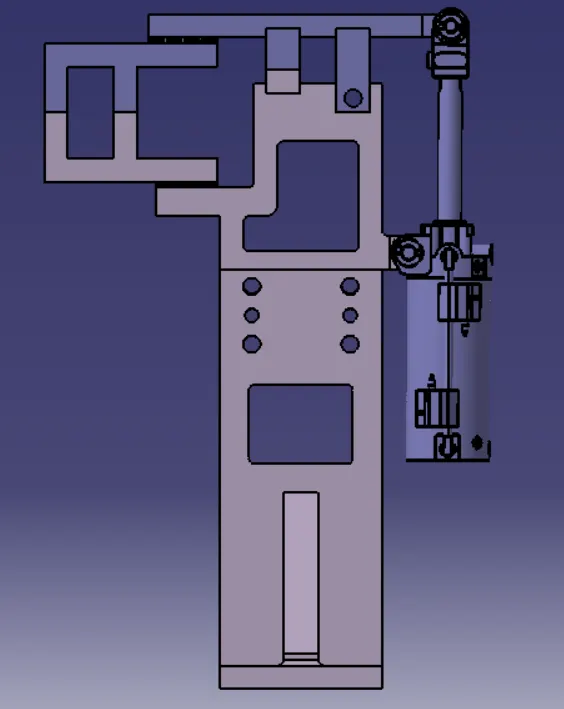

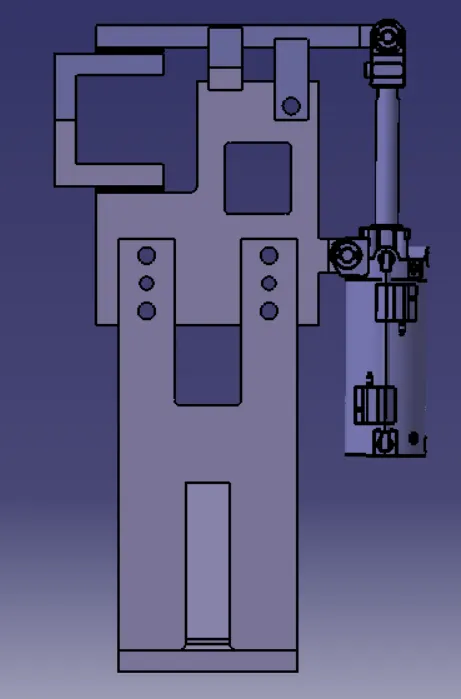

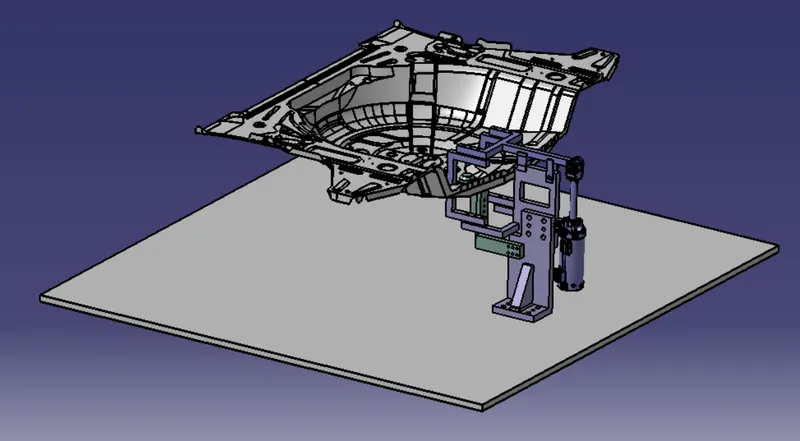

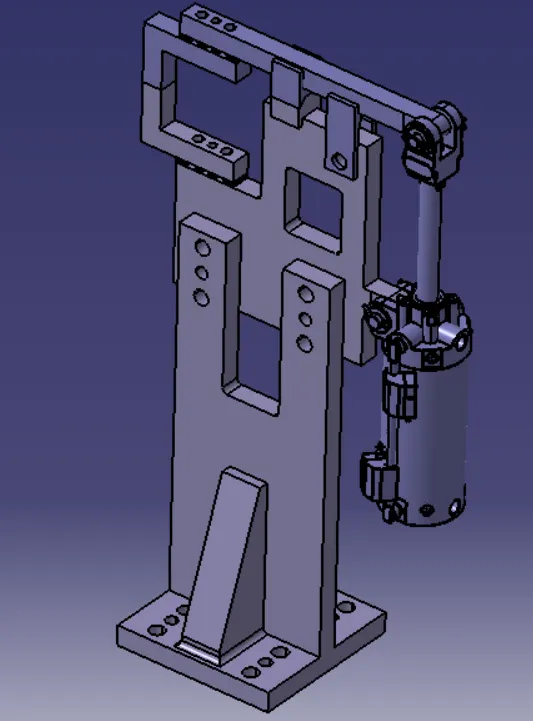

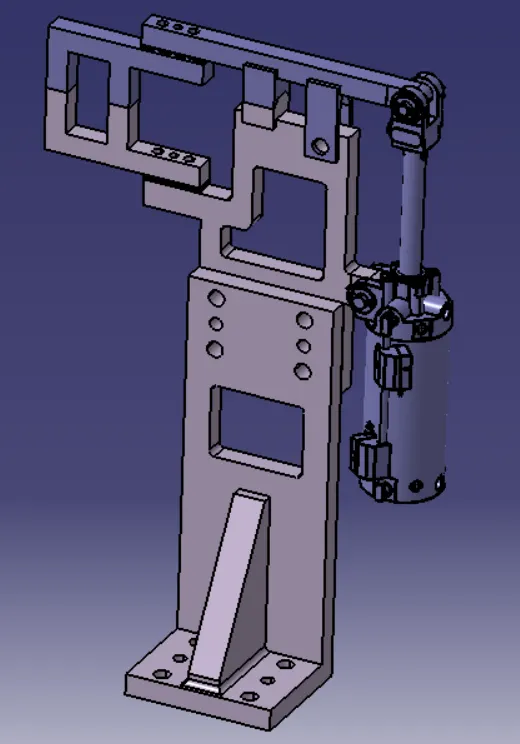

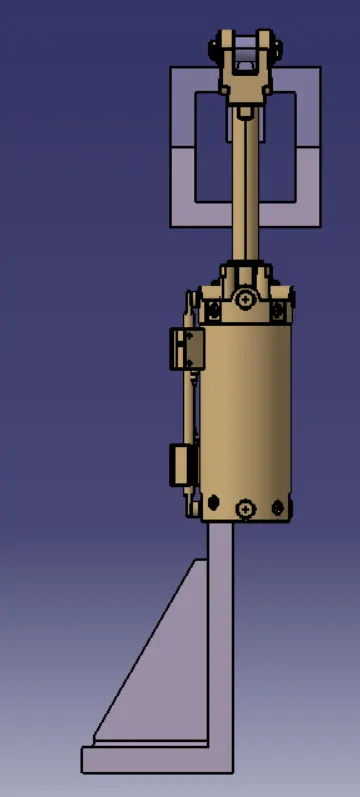

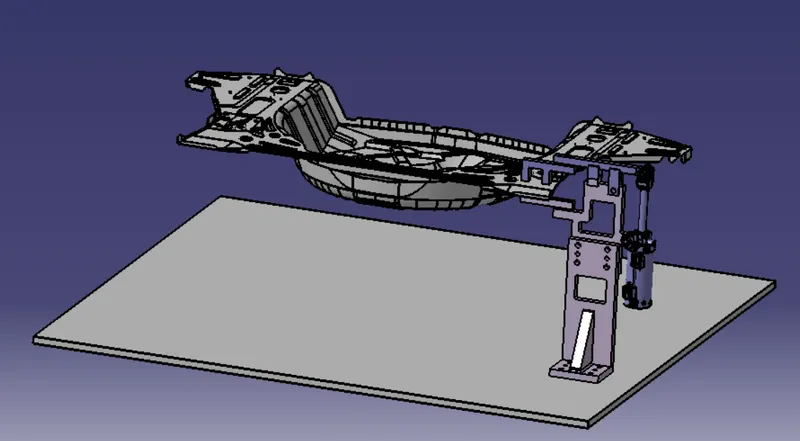

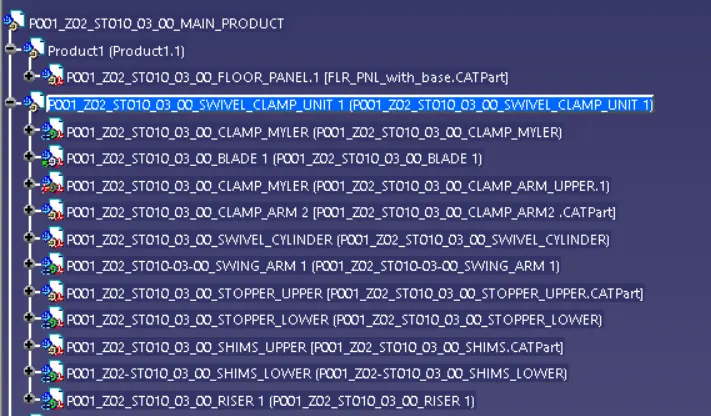

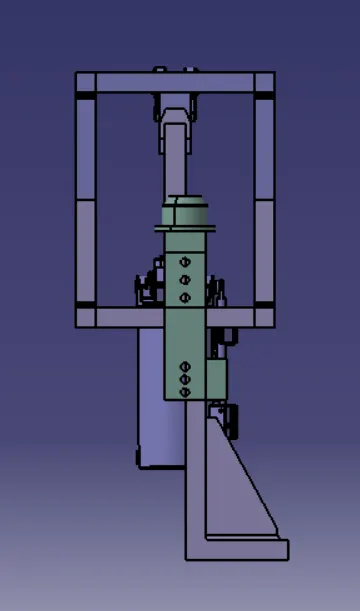

SWIVEL CLAMP UNIT 1 :

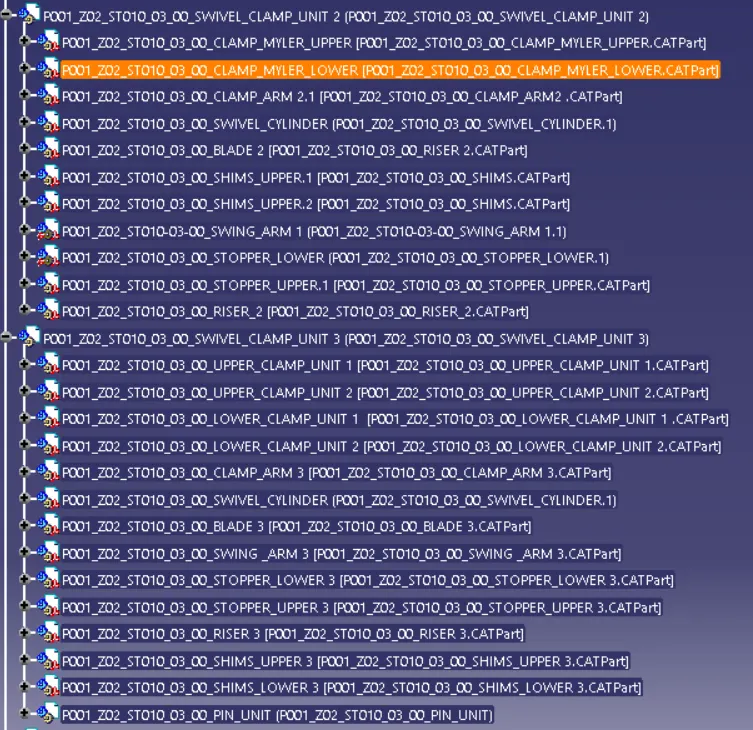

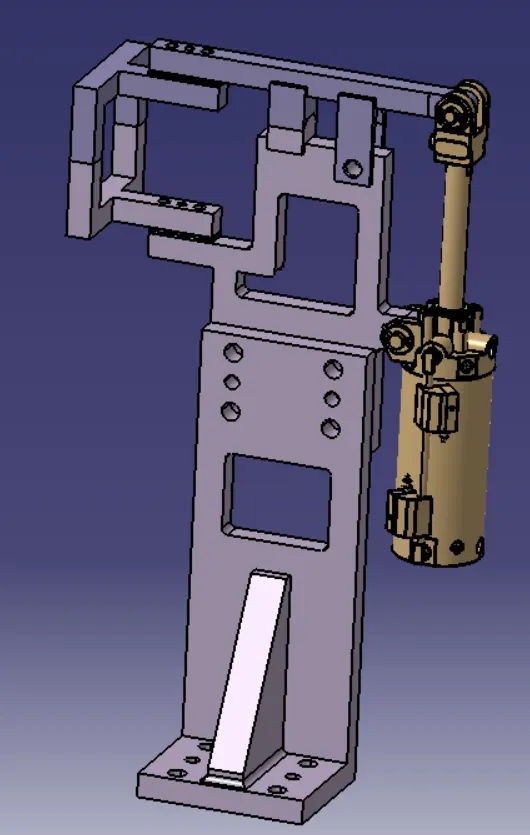

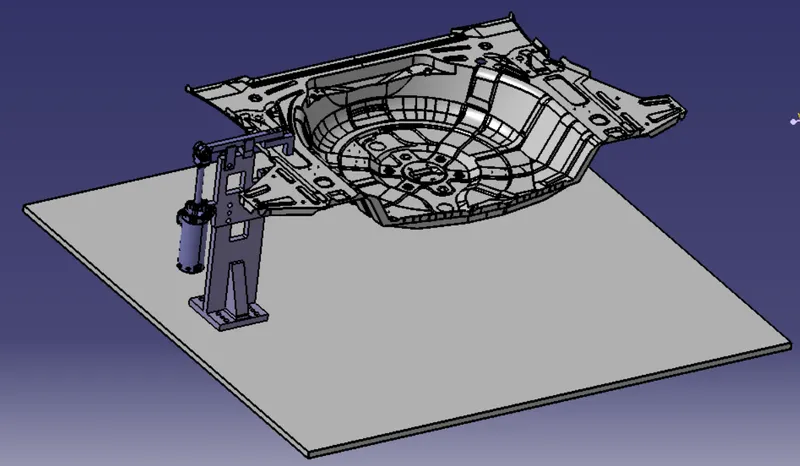

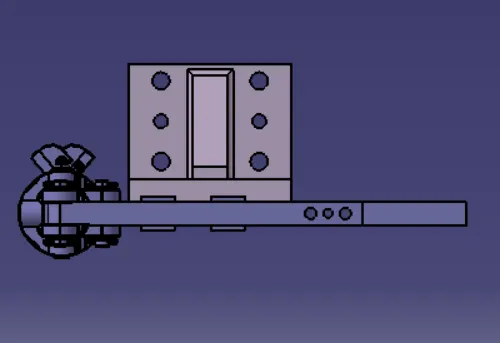

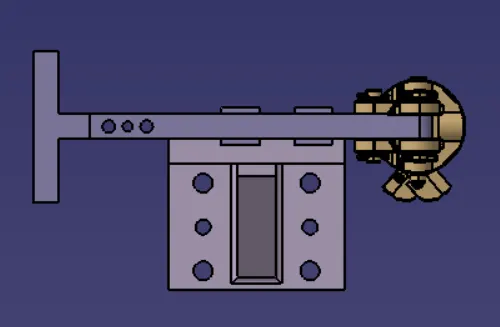

SWIVEL CLAMP UNIT 2:

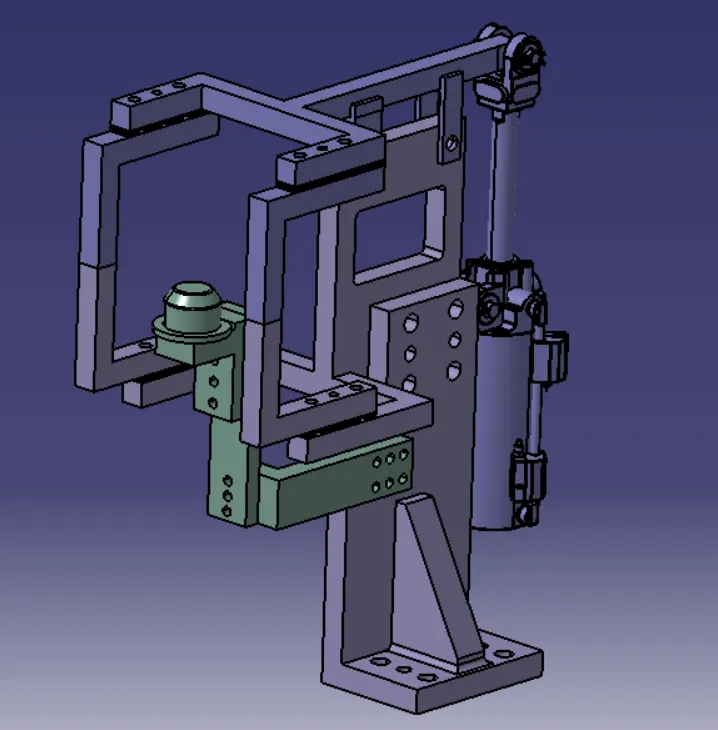

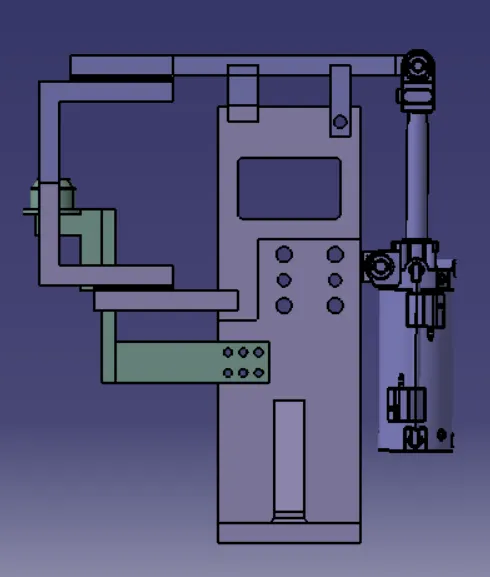

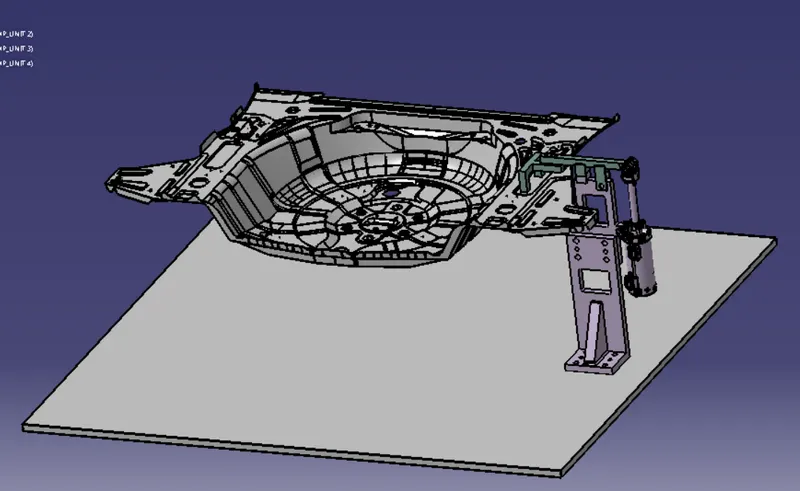

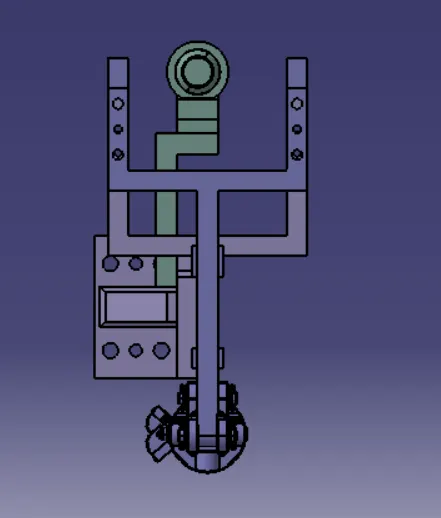

SWIVEL CLAMP & PIN UNIT 3:

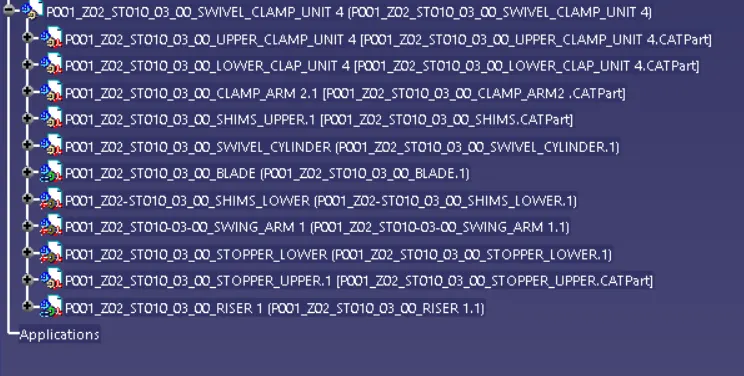

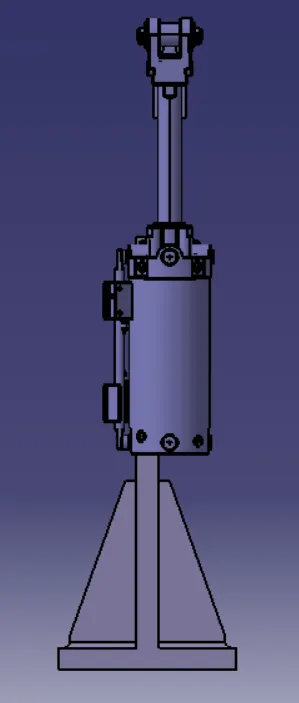

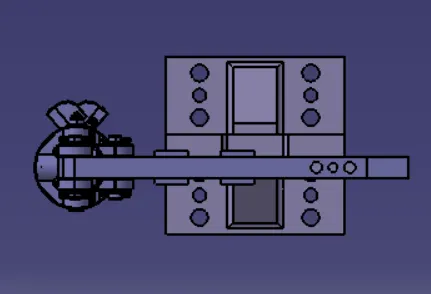

SWIVEL CLAMP UNIT 4:

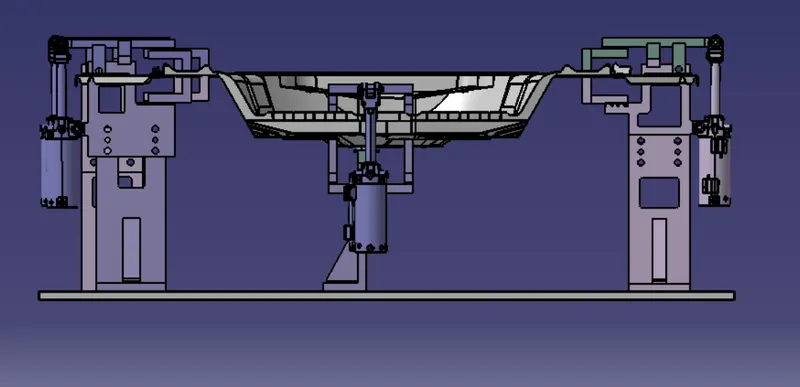

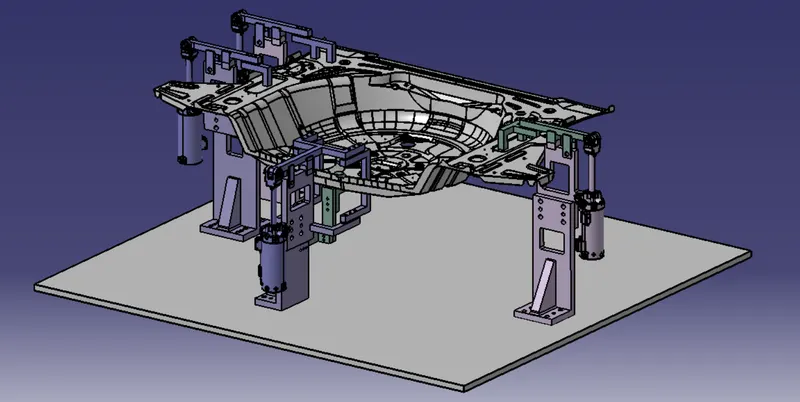

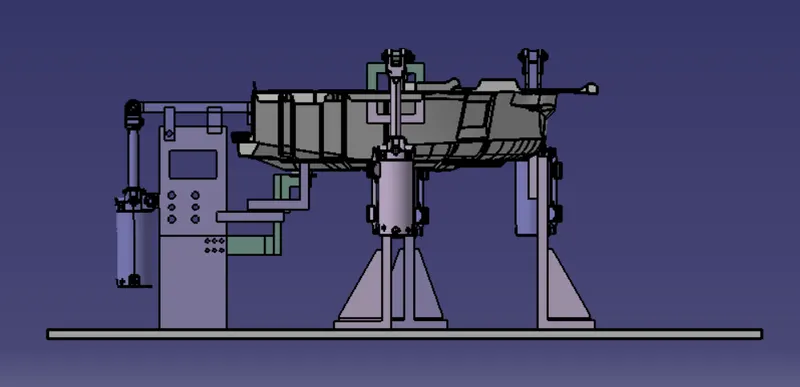

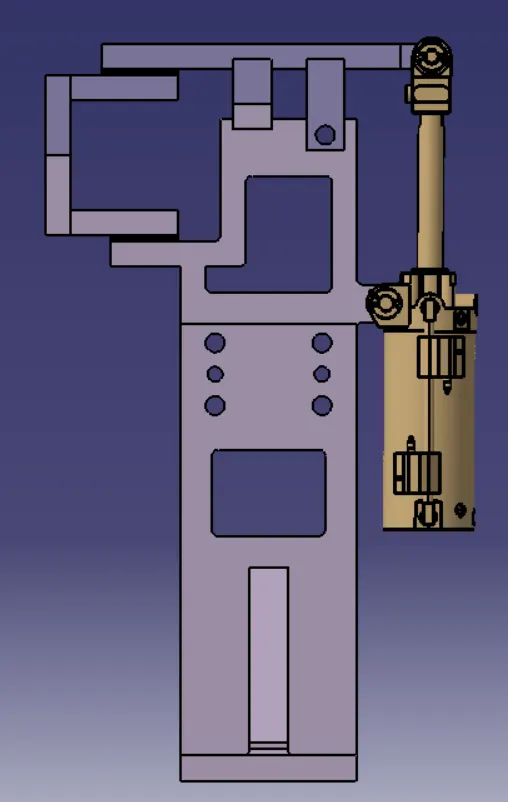

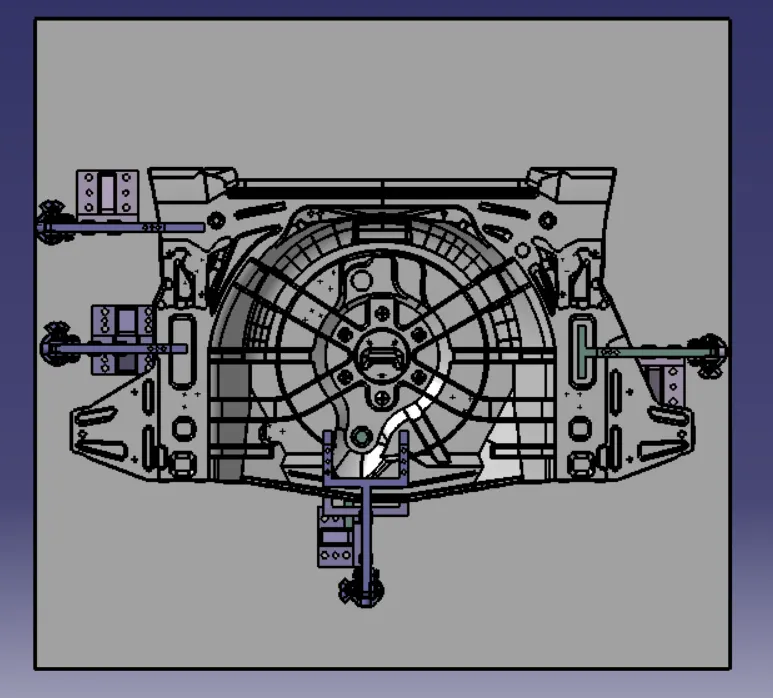

FINAL IMAGES:
