Week 6.2 - Setting up a model (Hanging Node)

Introduction: Hanging node challenge from week 5.2 is used in this challenge for solving the forced convection problem. The geometry used is same and no changees are made, the meshing is multi-level.

Meshing:

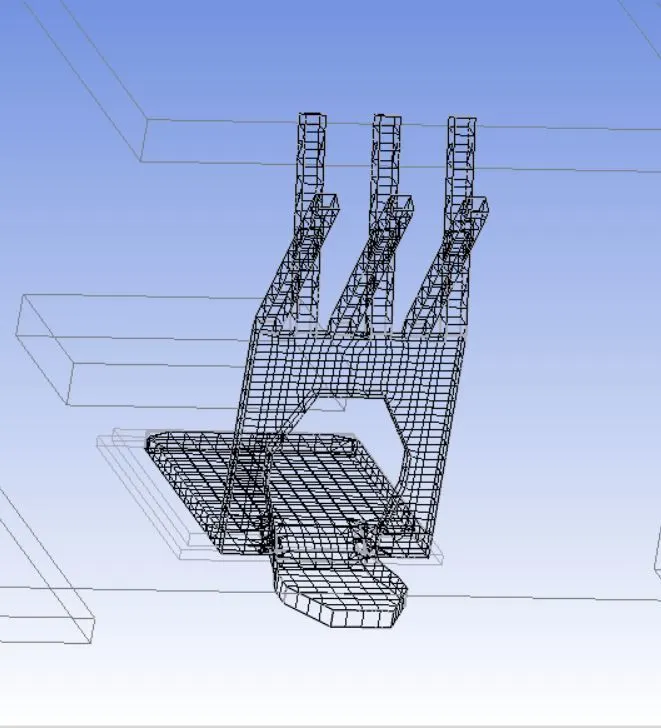

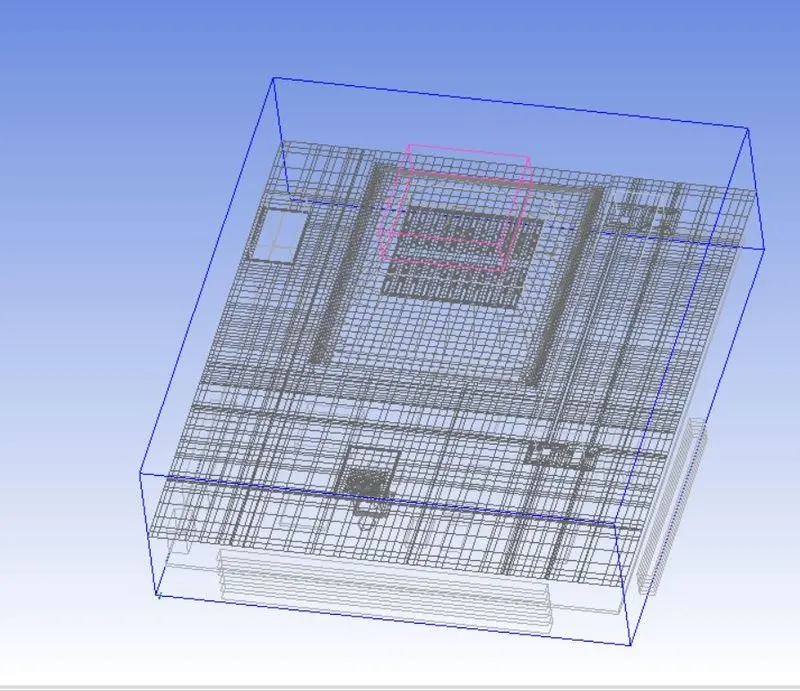

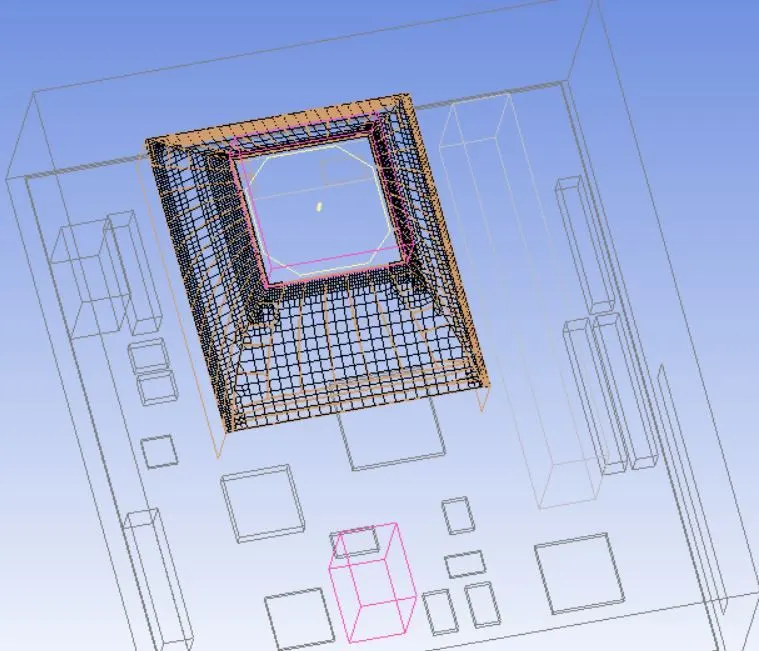

Multi-level meshing

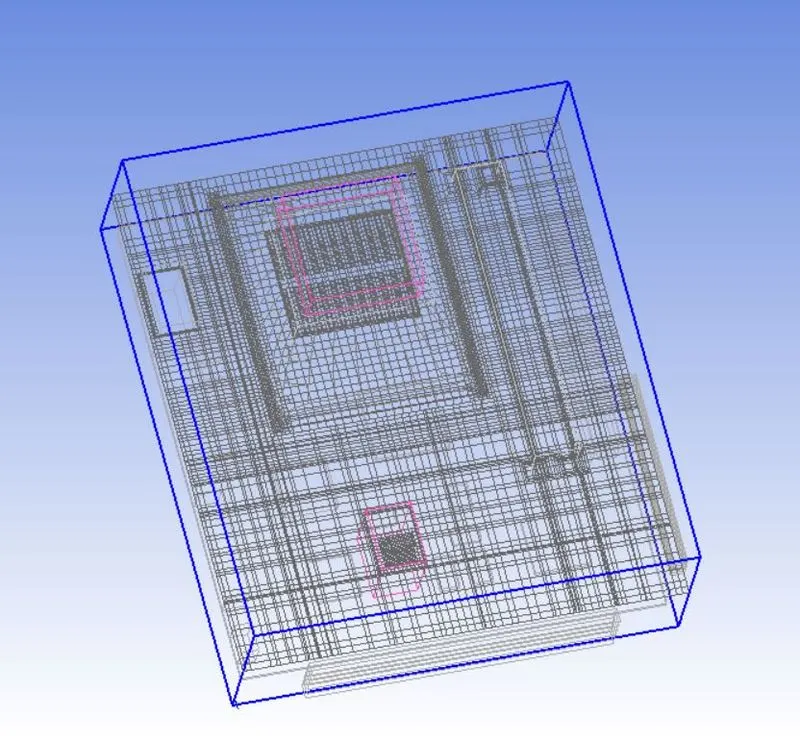

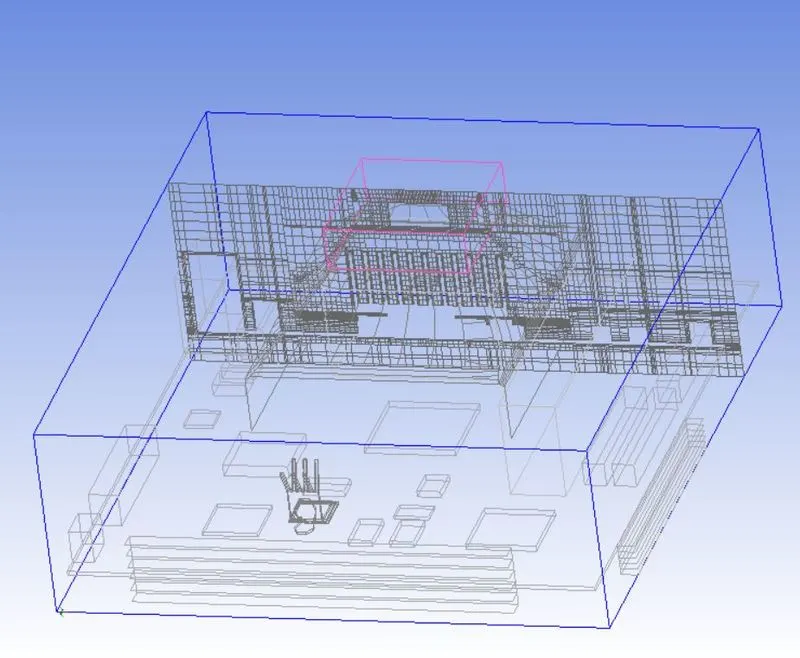

Fluid only meshing

Result:

The simulation is conducted for 500 iteration with a zero equation turbulance model.

The residual plots and the monitor points plot is shown as below with contours

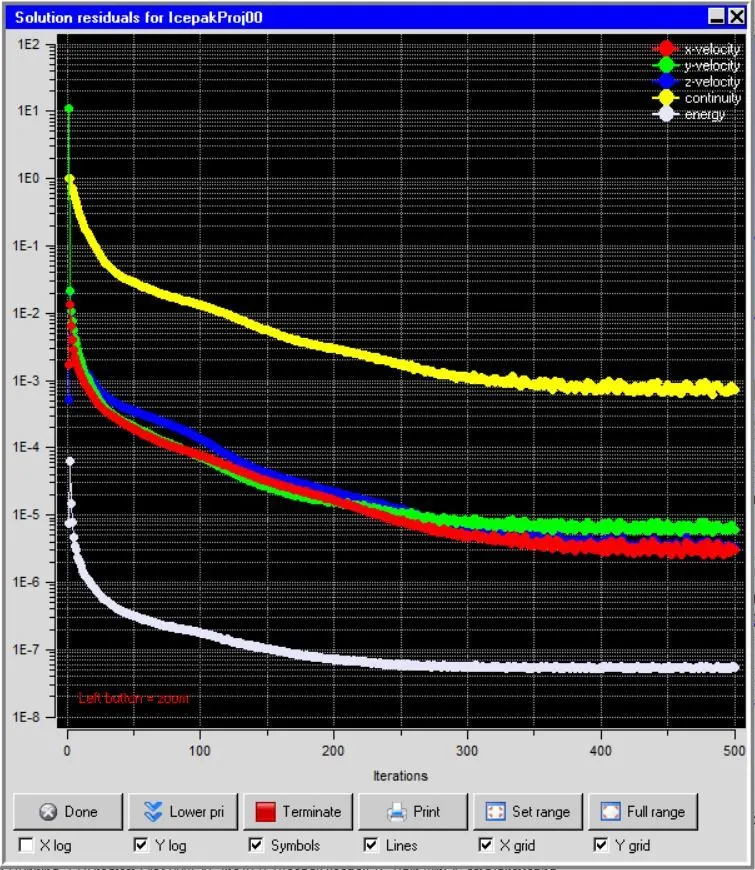

Residual

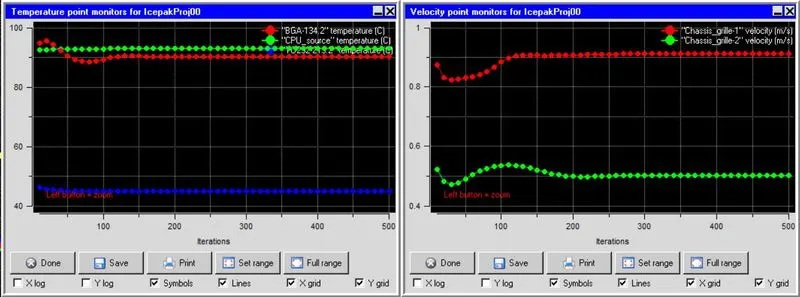

Monitor points:

Contours:

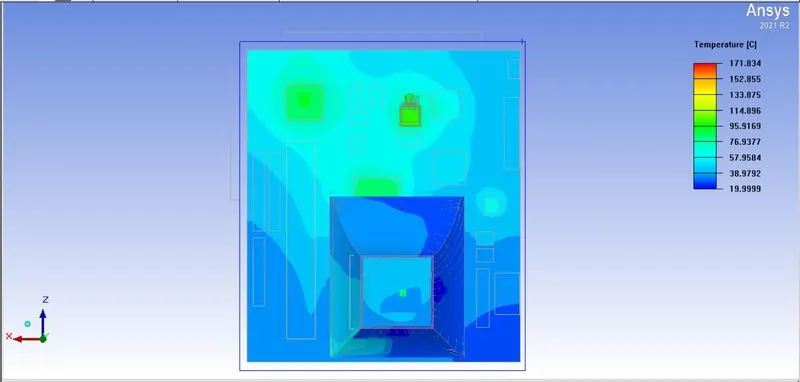

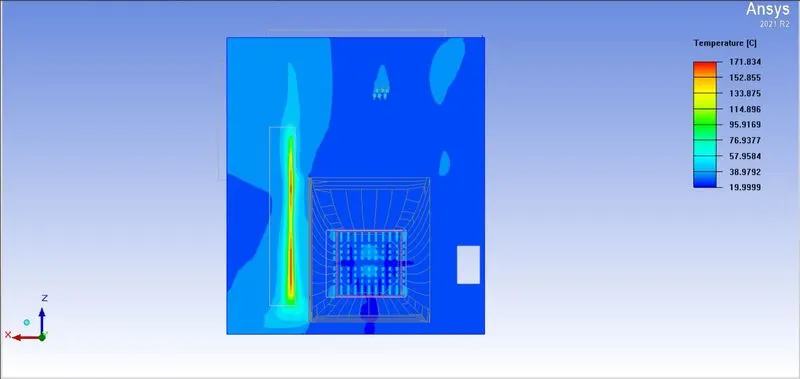

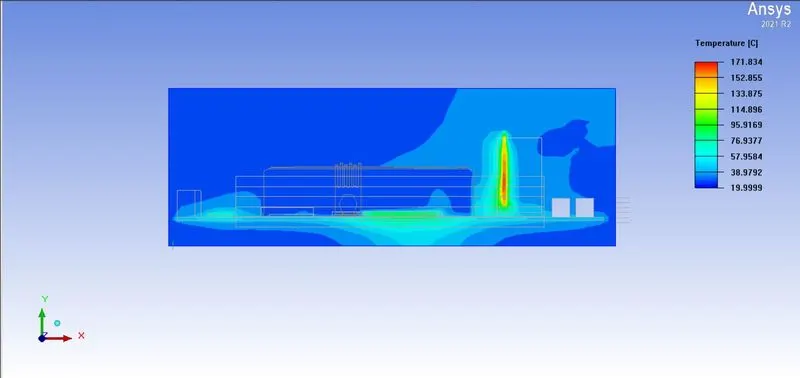

Temperature contours:

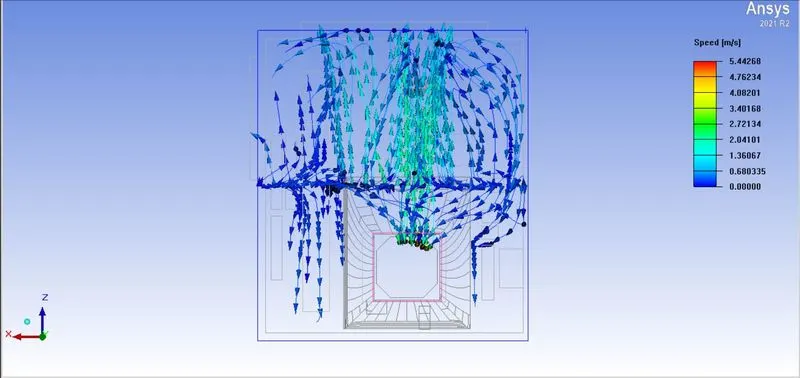

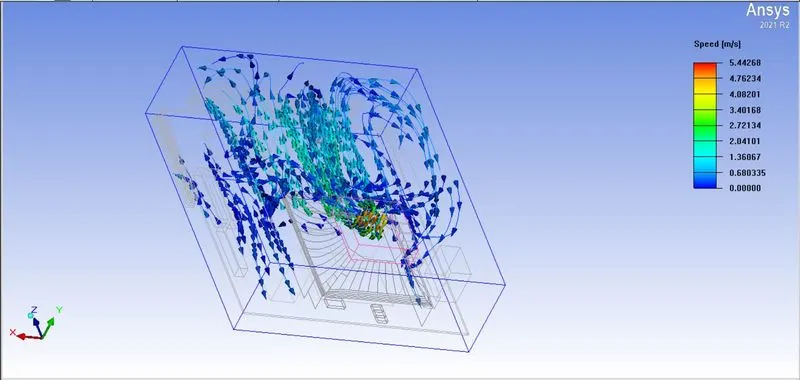

Speed:

Conclusion:

In this challenge we are able to simulate tha forced convection in the component and extract necessary information in regards to the temperature management.
