Week 5 Sphere pressing on a plate

OBJECTIVES

In this challenge, we have to perform the analysis to simulate a sphere pressing on a plate by using Structural steel for both sphere and plate but the material of the plate must be Non-Linear. Press the sphere onto plate 4mm downwards and retract it.

PROCEDURE

1. First, we have to input the engineering materials with required properties or else by creating with required properties.
2. Then we have to import our model into ansys, import the model and open it in space claim so that ansys will read it.
3. Then create symmetry on both side of the sphere and plate to ensure the result to be complete sphere.
4. Then assign required connections in this assignment we will use frictional contact between the sphere and plate.

5. Analysis setting with fixed support and displacement. Then give the required solution parameters then solve.

RESULT

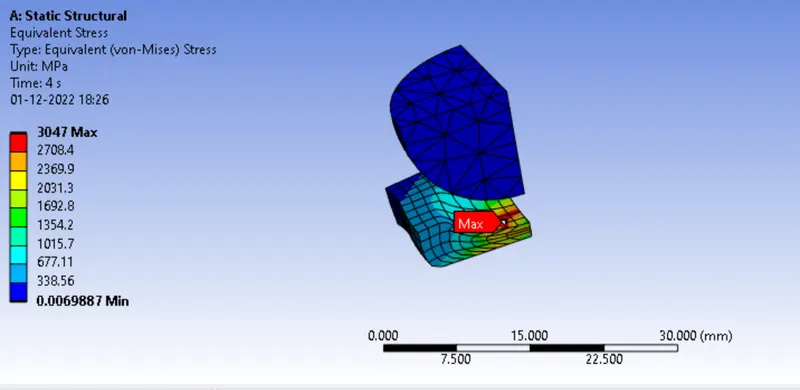

Max EQ Stress : 3047 MPa

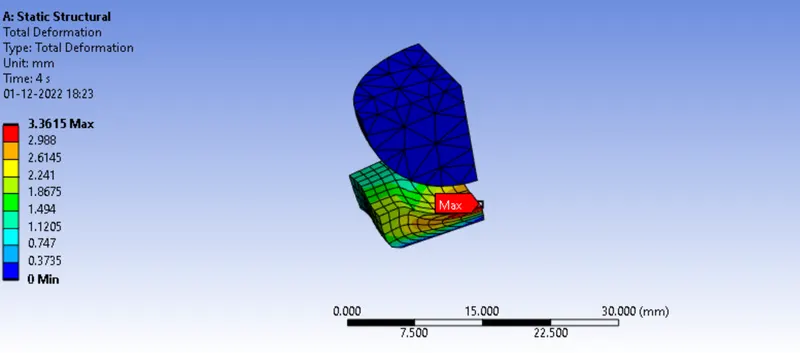

Total Deformation: 3.3615 mm

CONSLUSION

The simulation of sphere pressing on a plate is successfully done with required parameters and we can also see the non linear behaviour of the plate
