Week 5 Sphere pressing on a plate

Sphere pressing on a plate

Objective:

To perform analysis add stimulate sphere pressing on a plate Using structural Steel for both sphere and plate With the material of nonlinear. and should I have a displacement of 4MM downwards.

Procedure:

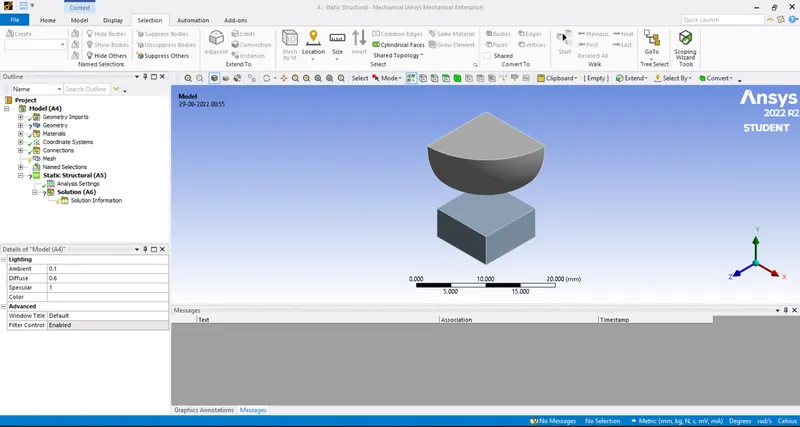

first we need to input engineering materials with specified property.,then we need to input the model in mechanical stimulation.

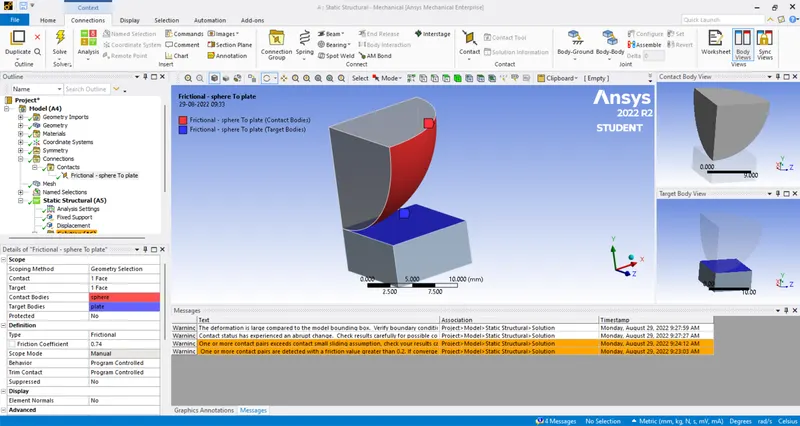

then we need to assign frictional contact between the sphere and the plate.

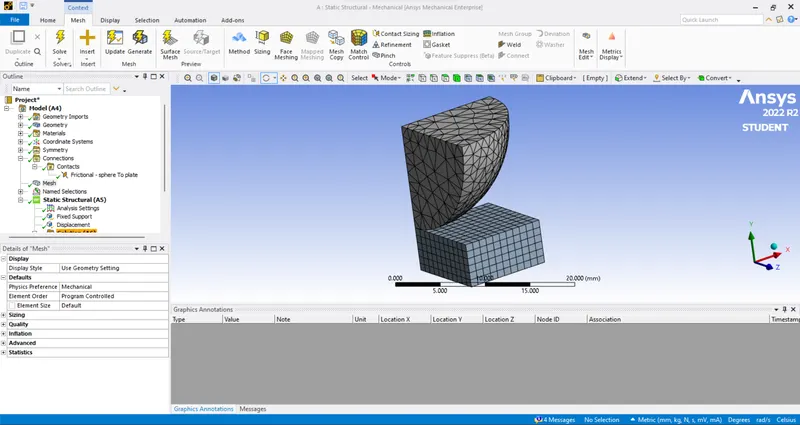

Then we need to mesh the component with required size.

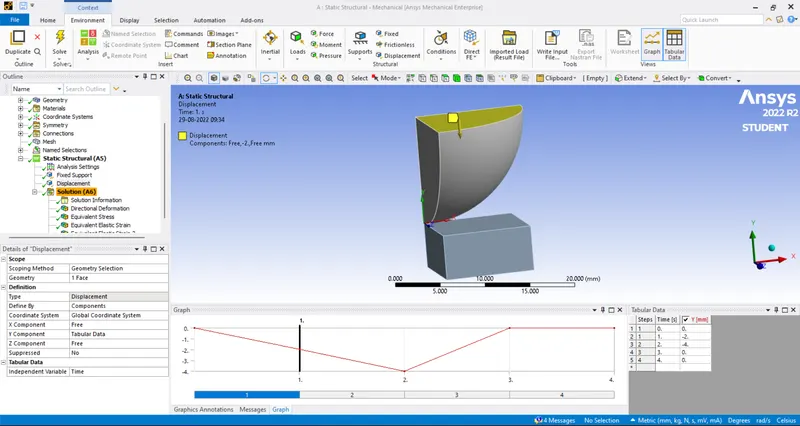

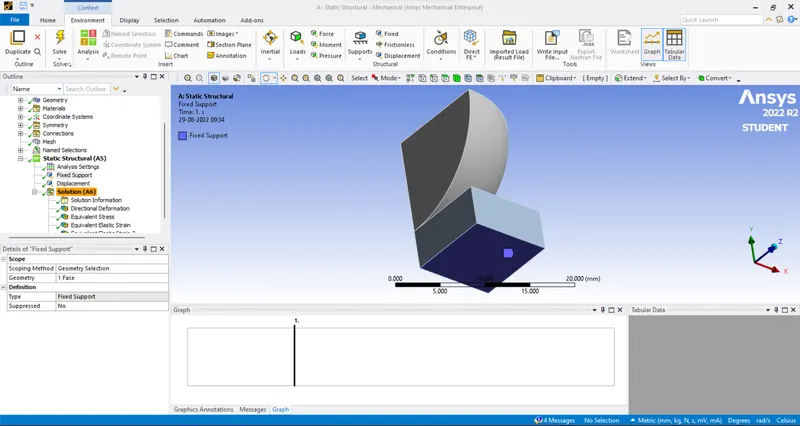

Then we need to give a fixed support for the plate as well as the displacement for the sphere with 4mm downwards.

Results:

total deformation:

equivalent plastic strain of plate:

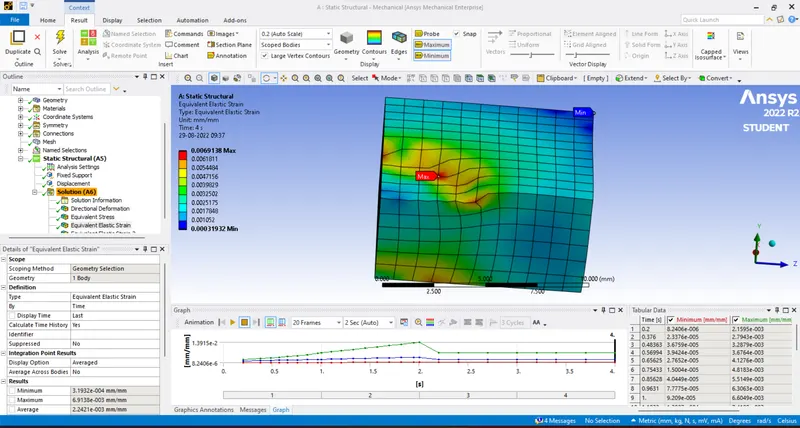

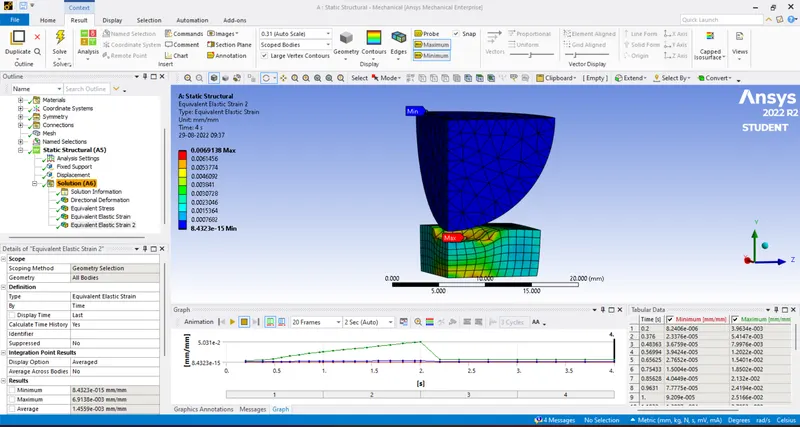

equivalent elastic Strain

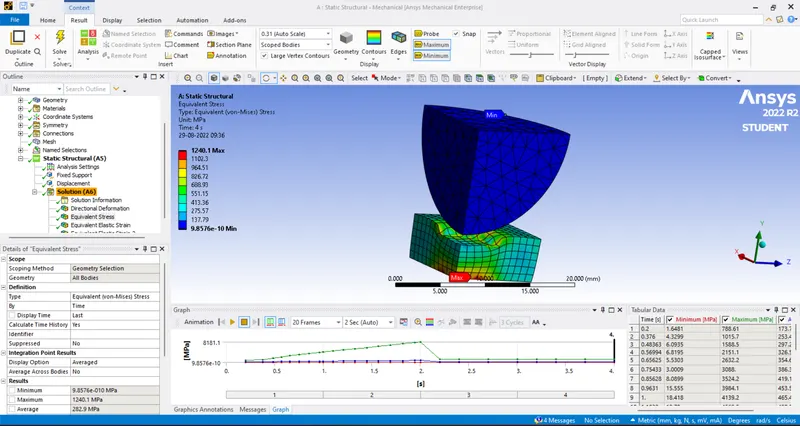

equivalent stress
