Week- 5 - Solid meshing

AIM:

To perform tetra meshing fot the given component and follow the quality critera accourdingly.

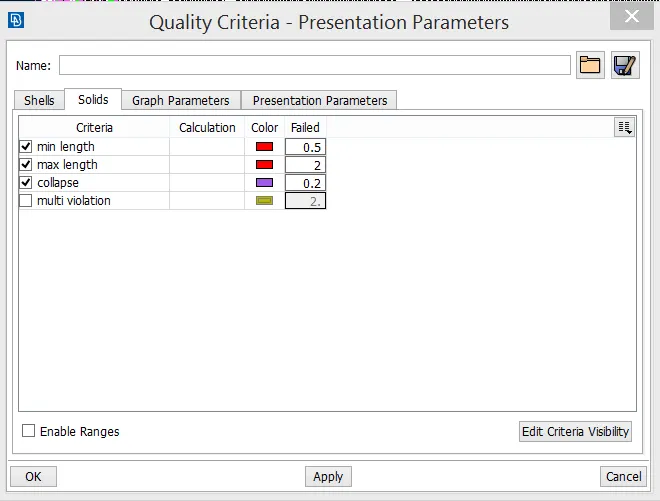

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

4

Tet collapse

0.2

PROCEDURE:

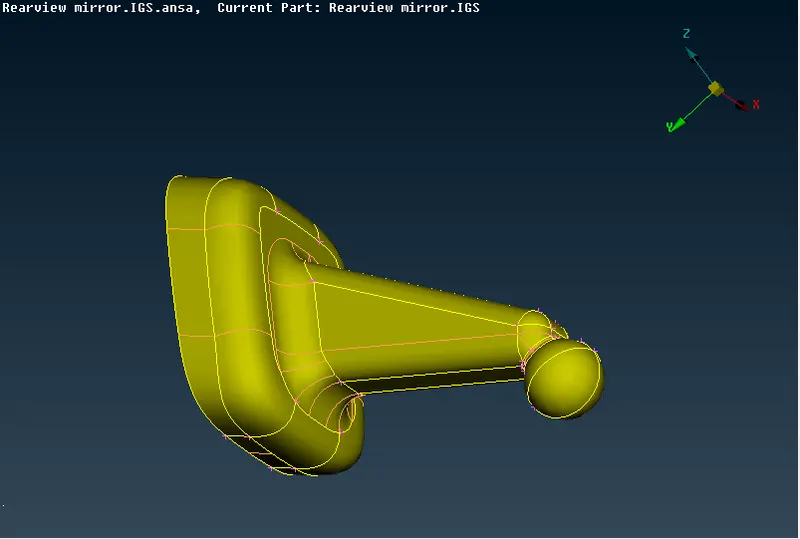

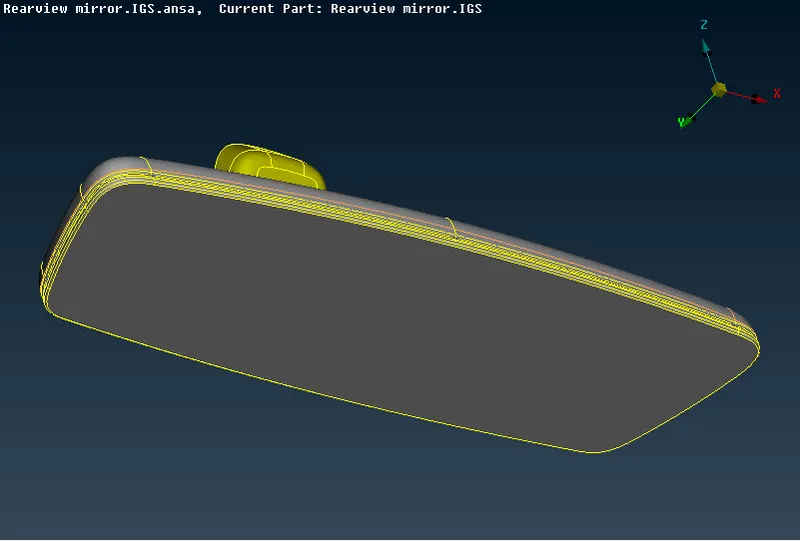

1. The model which has to be meshed in imported in ansa application and the model is checked with the help of geometry checkup to detect any topology defect.

2. After doing the geometry cleanup we must measure the side of the component with the help of the measure tool in the tool bar.

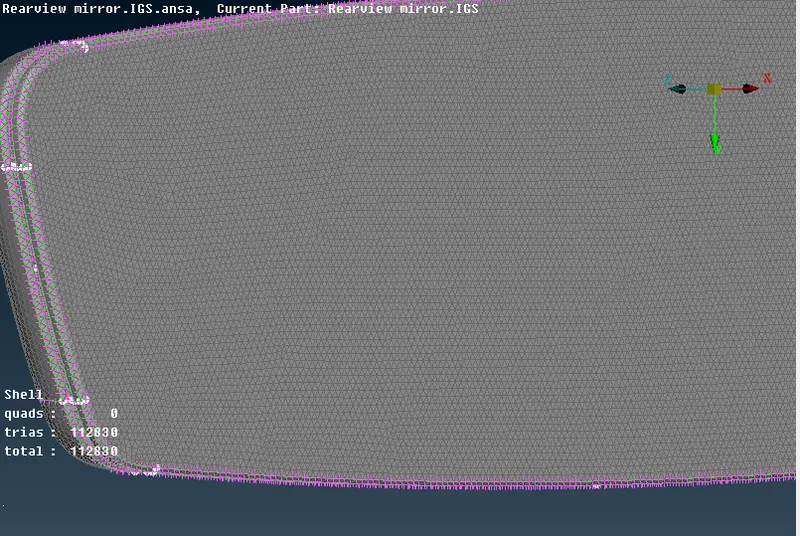

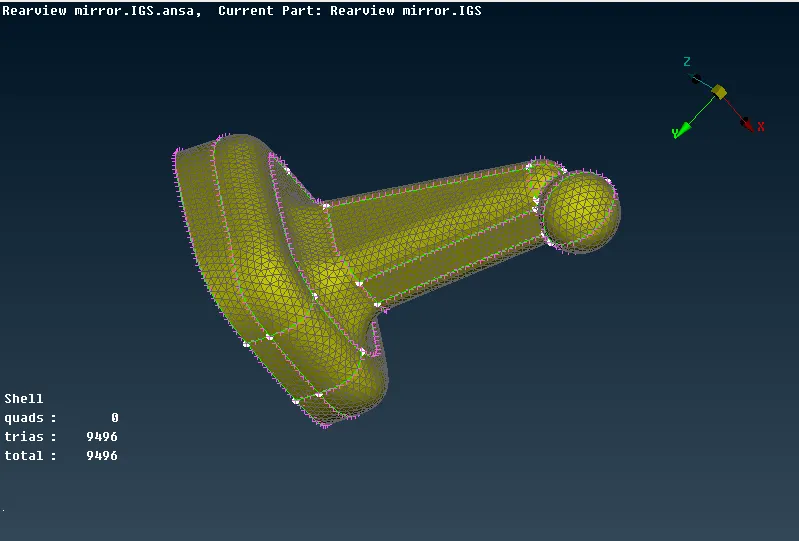

3. we can start doing 2d meshing to the component by following the quality criteria as per the given condition by using the option MESH.

4. As the given condition is tetra meshing,we must use only tria elements for meshing the components.

5. After finishing the 2d meshing to the component, we can perform the volume meshing to the component by using the option VOLUME meshing in the option.

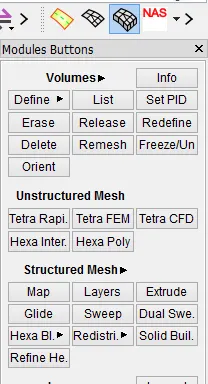

6. To perform the Volume meshing we must use the option called define, which we must define the component to perform the tetra meshing.

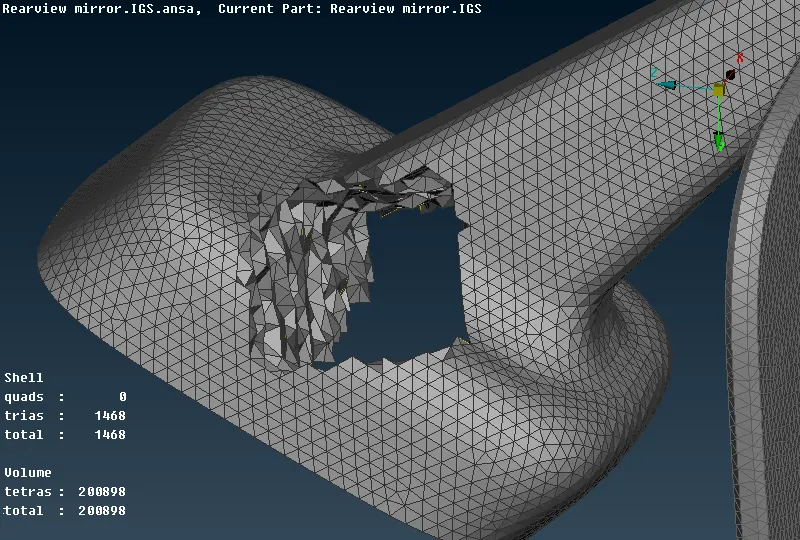

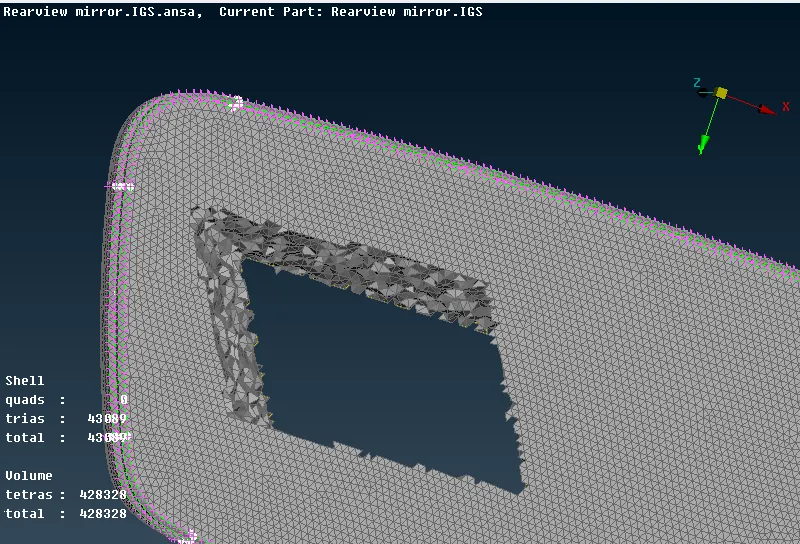

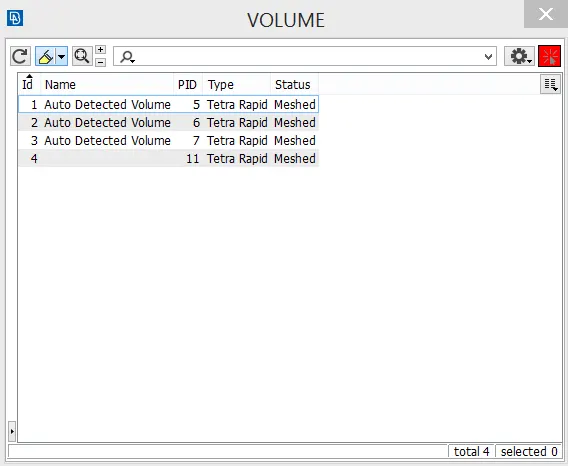

7. With the help of the list option we can mesh the component by using the tetra option and follow the quality criteria.

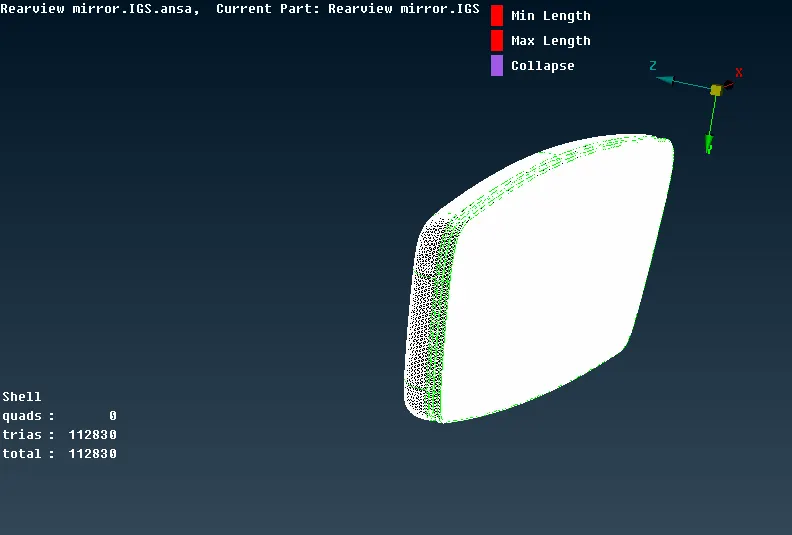

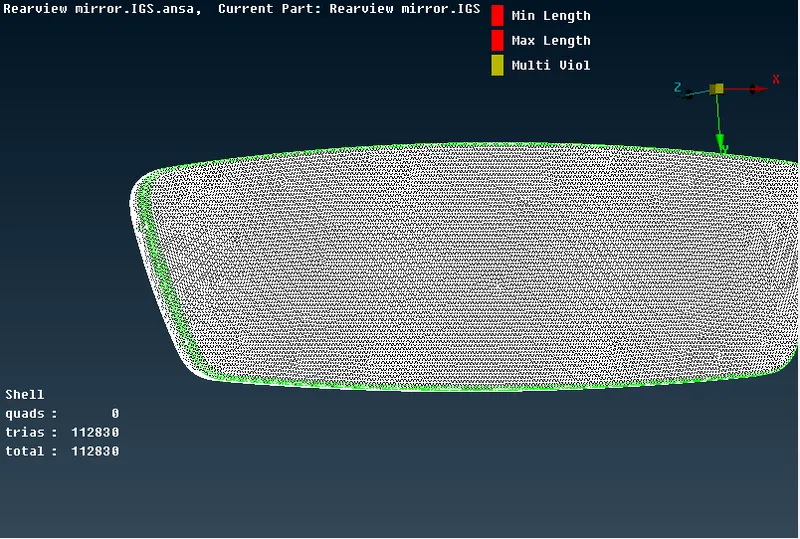

8. From the above picture, we can see that the components are under the boundary conditions and with a proper flow of the mesh.

CONCLUSION:

For the given model, midsurface is taken and 2D meshing is generated in ANSA under the given quality critira with proper flow of the mesh
