Week- 5 - Solid meshing

Aim- For the given component rear view mirror mesh the component.

Objective- To check the geopmetrical errors and fix them and mesh the surface with the given quality crietria

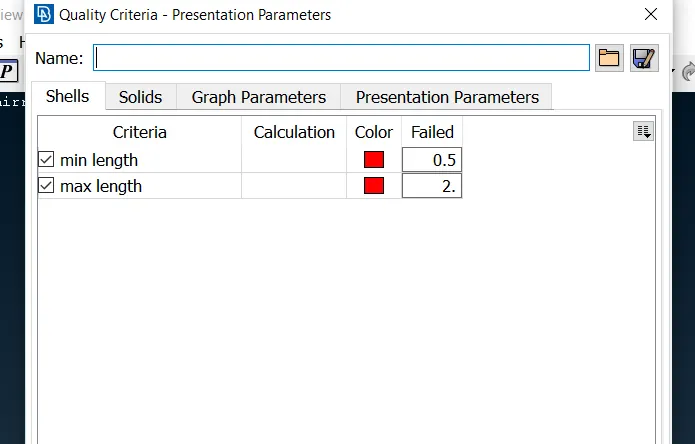

S.No Quality Criteria Value

1 Target/Average length 1

2 Minimum Length 0.5

3 Maximum Length 2

After the 2d mesh use the tetra mesh to mesh the volume with the following crietria

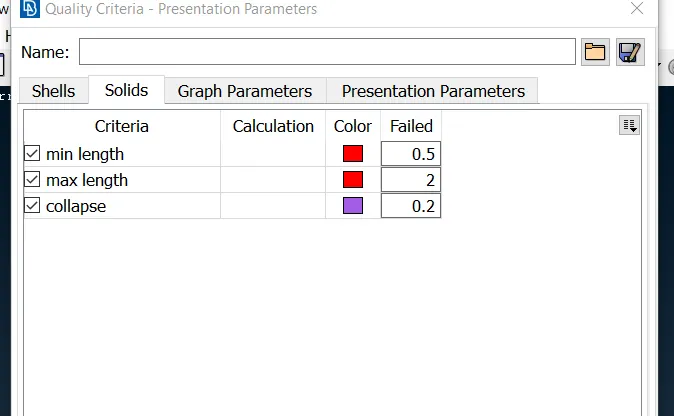

S.No Quality Criteria Value

1 Tet collapse 0.2

Procedure-

1. Import the model

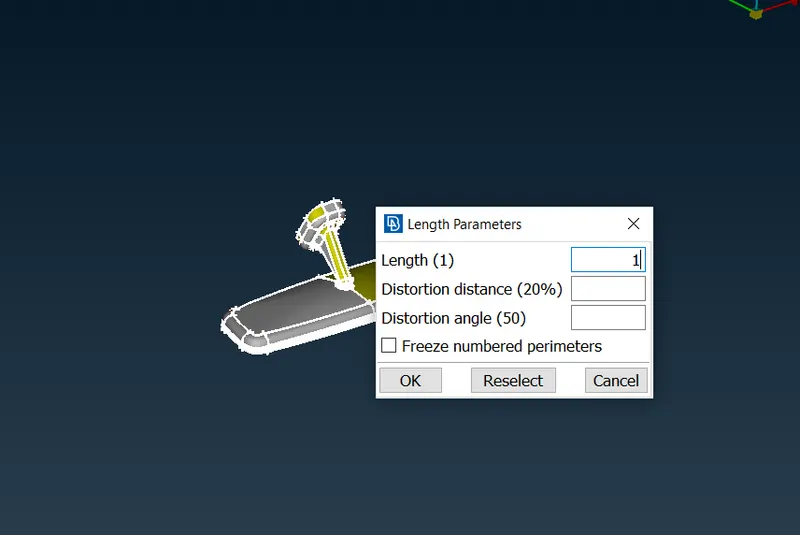

2. Adjust the length to 1 in the mesh section.

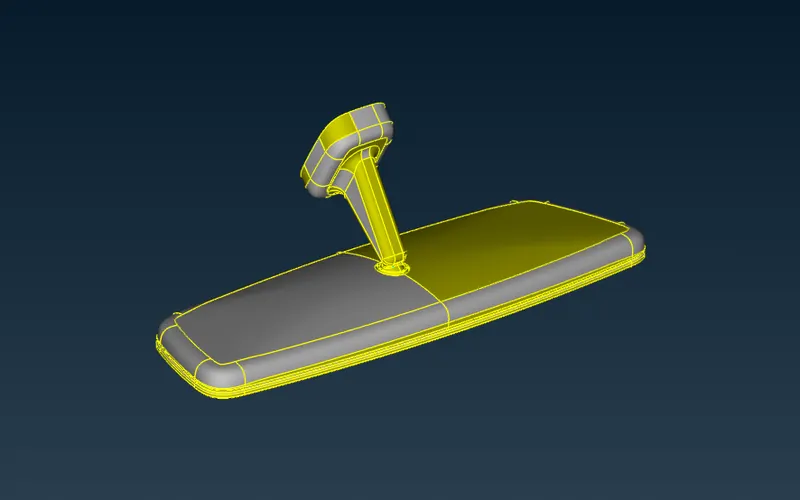

3. Apply the topo to the whole component.

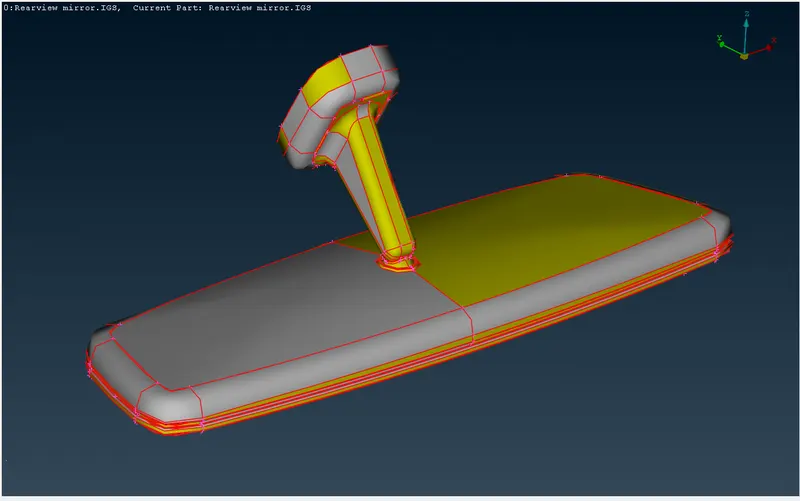

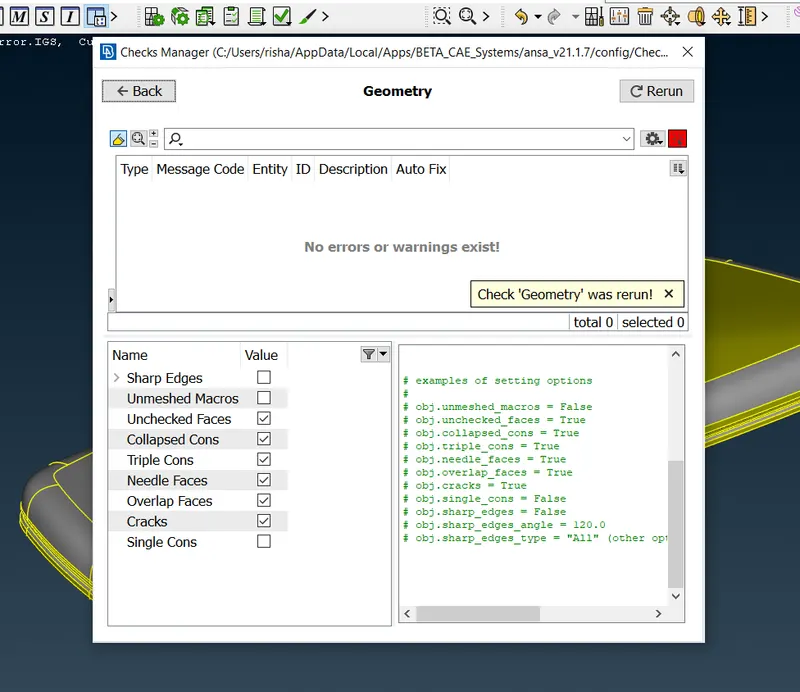

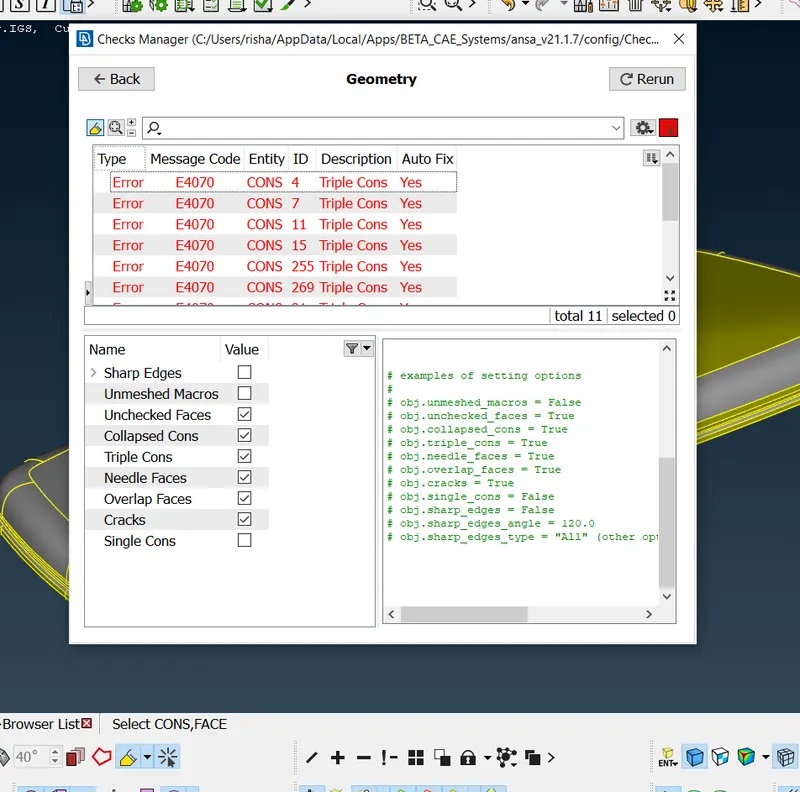

4. Check for the geometrical errors and fix for the errors.

5. Set the mesh parameter and quality crietria.

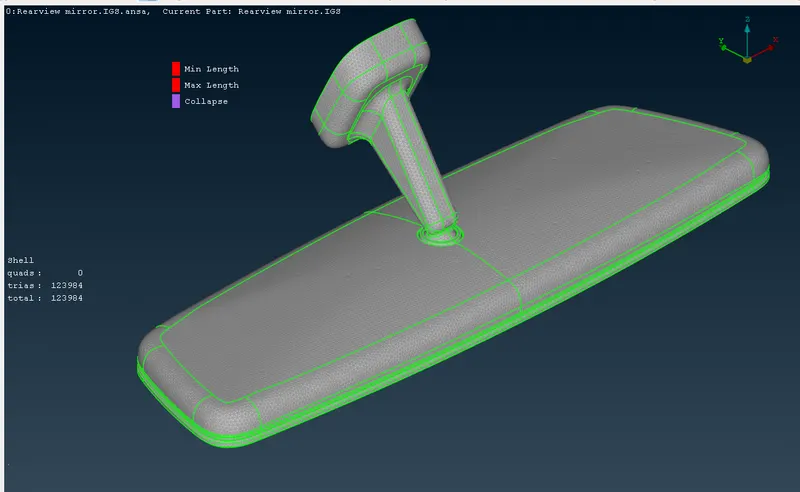

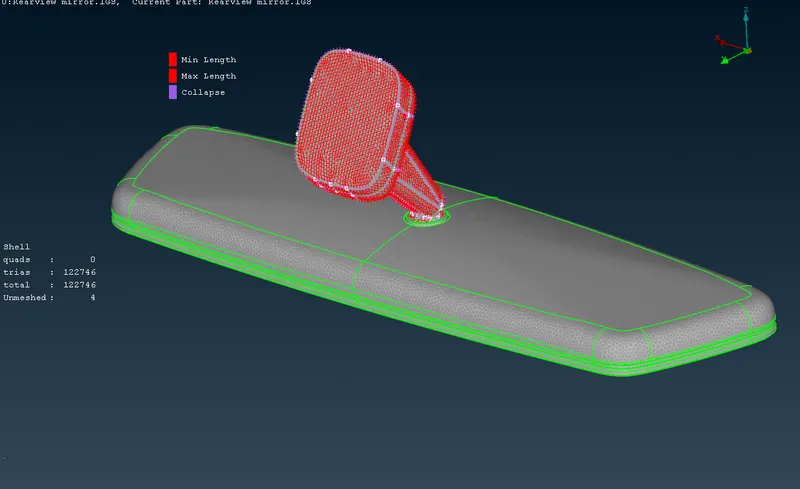

6. Do the spot mesh for the curverd area apply ortho tria mesh and for the rest of the flat area apply the tria mesh.

Fix for the quality by reconstructing the mesh.

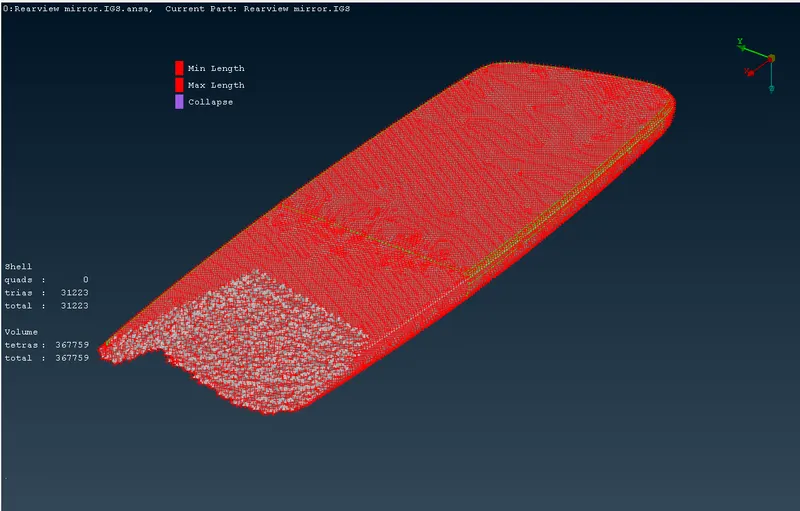

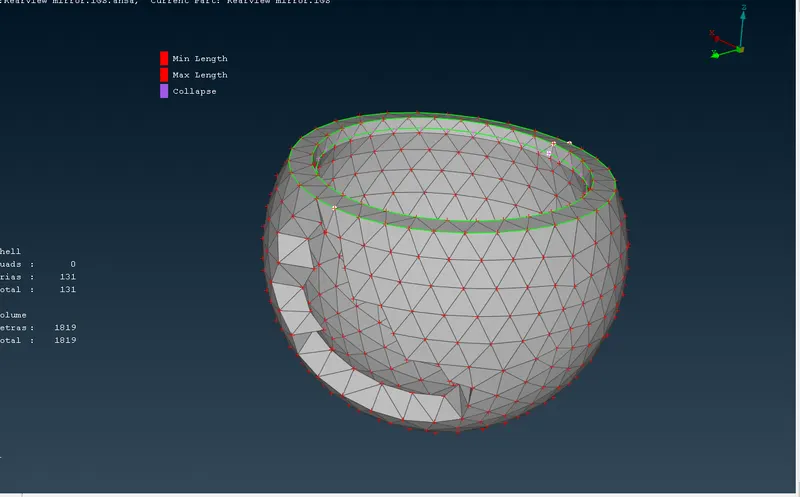

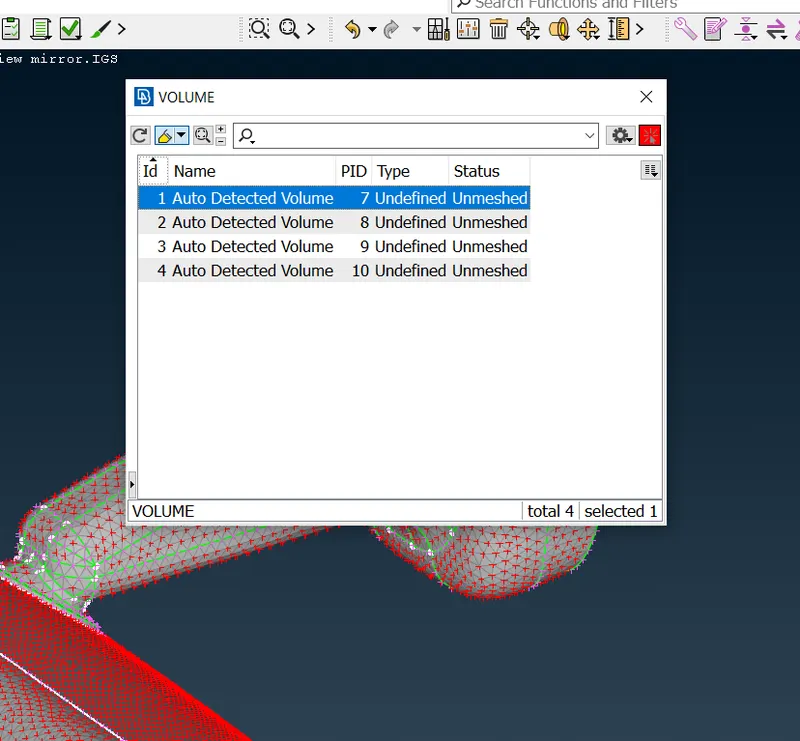

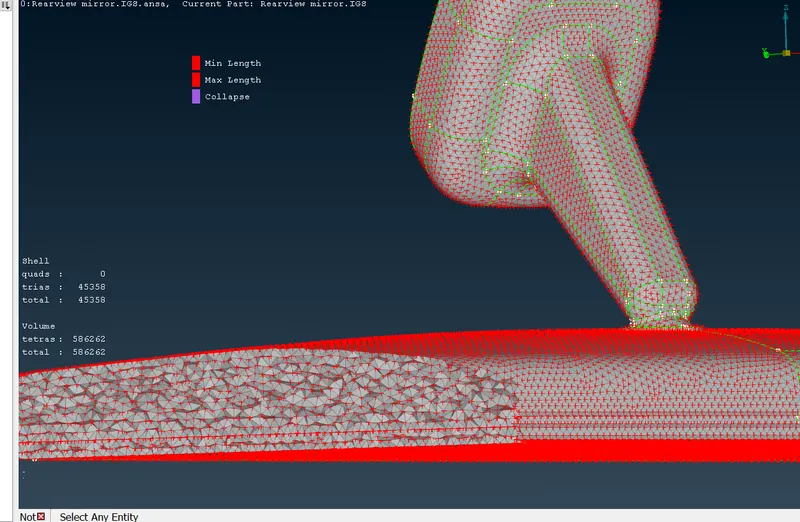

7. In the volume mesh define the volume and mesh the all volumes with the terta rapid.

8. Fix for the quality errors.

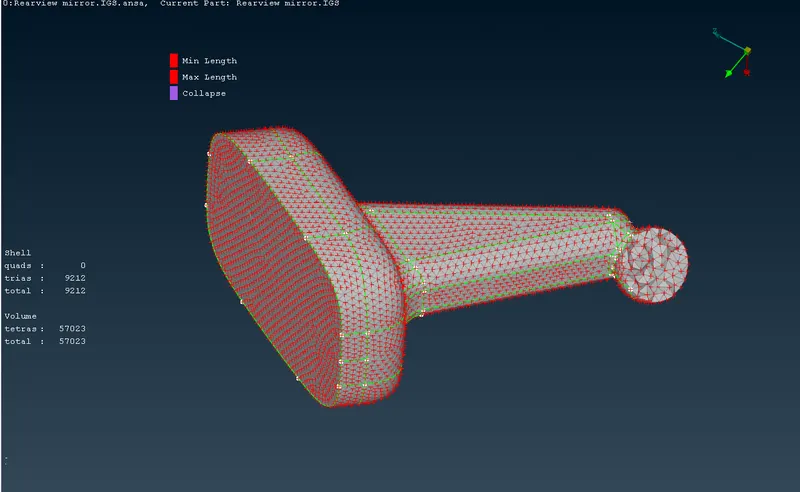

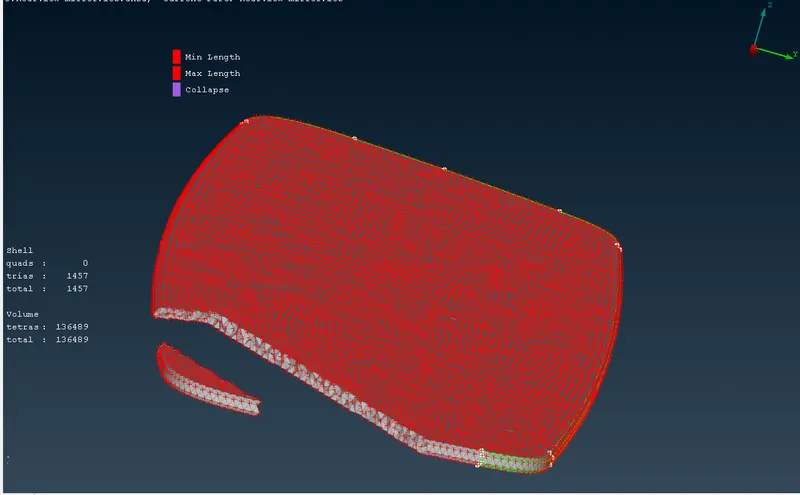

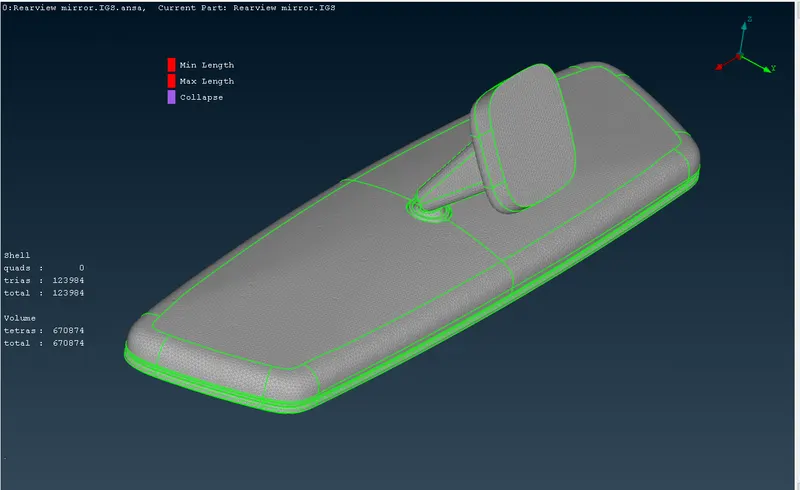

Result- In this challenge the component is succesfully meshed with the given quality crietria for 2d and 3d.

Conclusion- The given component rear view mirror is succesfully meshed with the given 2d and 3d quality crietria.
