Tool Test 1

Aim
To perform geometry as per the logic of the student.

Procedure

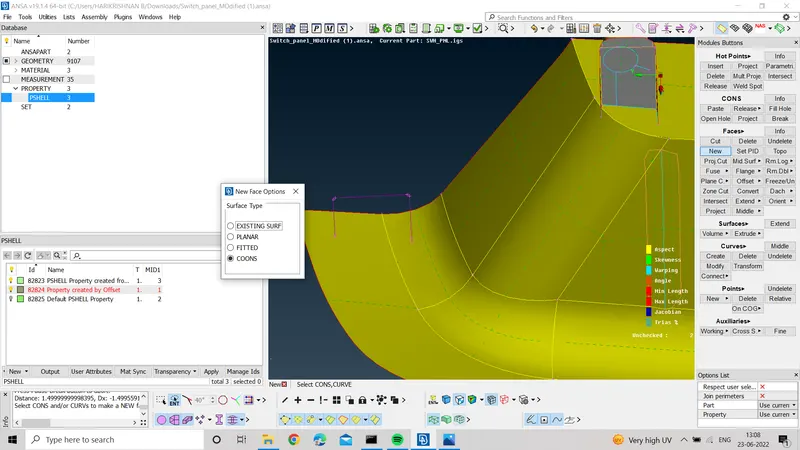

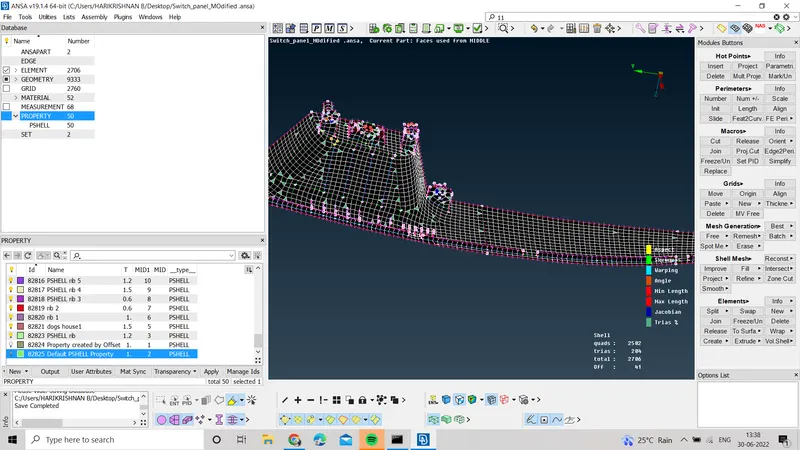

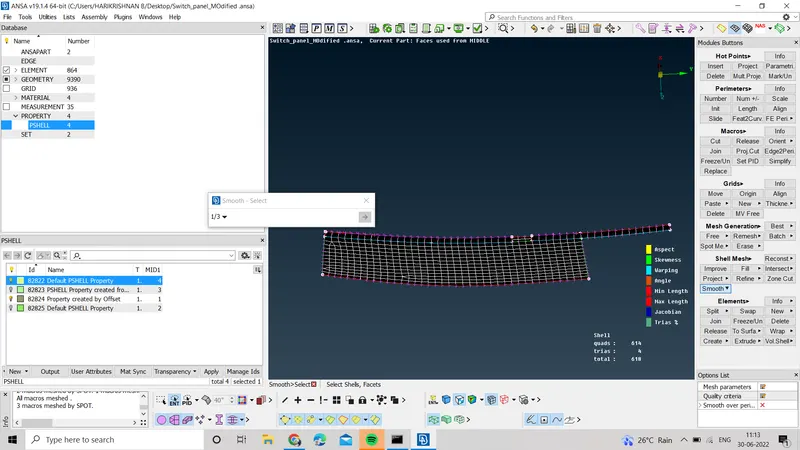

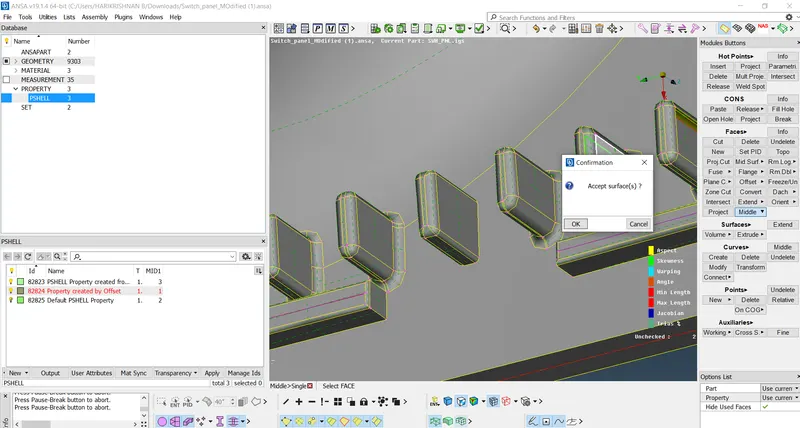

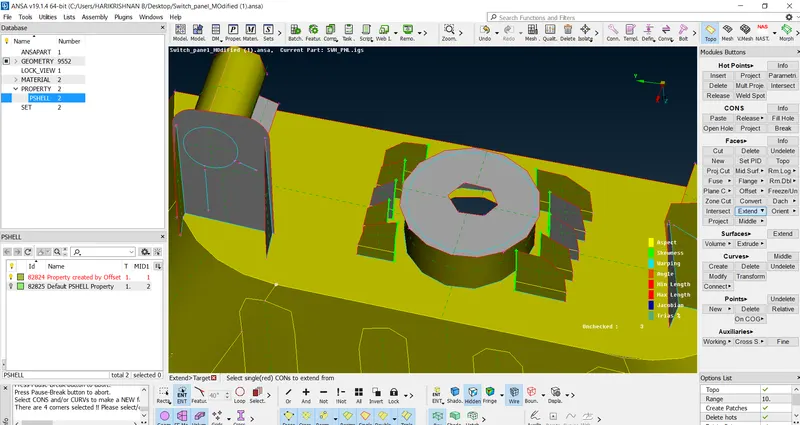

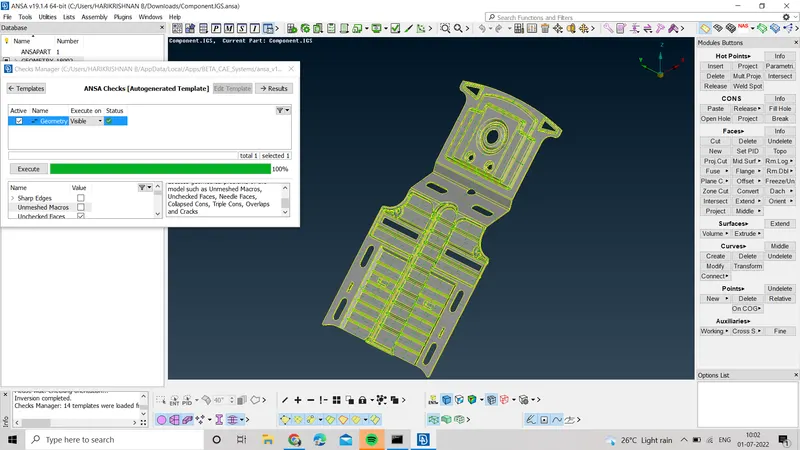

For the first geometry topology cleanup done. further created the mid surface using offset and middle option and some of the ribs mid generated using mid curve and new option. further performed bast mesh and some of the quality criteria was not supposed to be clear.

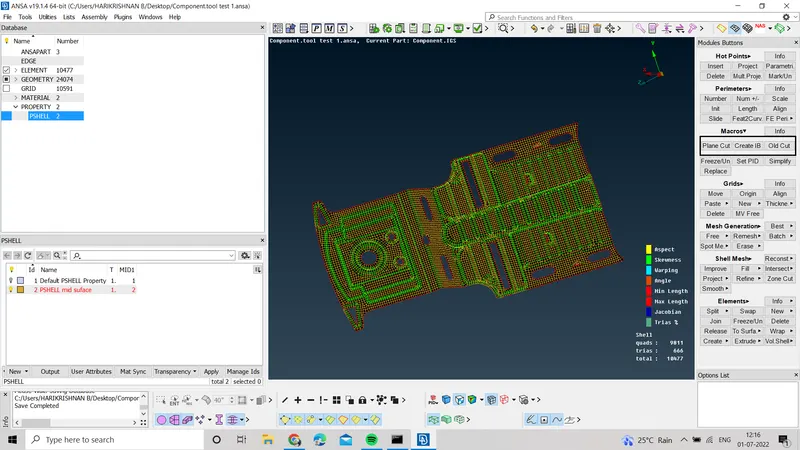

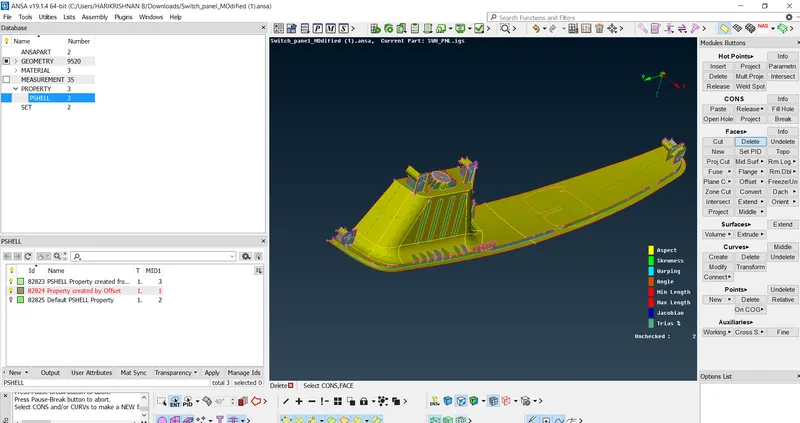

For the second geometry was a sheet metal component. using offset created the mid surface and performed bach mesh and some of the quality criteria resolved using improve, split, join and etcs.

Conclusion

Within the given time the model mesh has been performed.
