Week- 5 - Solid meshing
AIM
Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.
|
S.No |
Quality Criteria |
Value |
|
1 |
Target/Average length |
1 |
|
2 |
Minimum Length |
0.5 |
|
3 |
Maximum Length |
2 |
Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.
|
S.No |
Quality Criteria |
Value |
|
1 |
Tet collapse |
0.2 |
PROCEDURE:

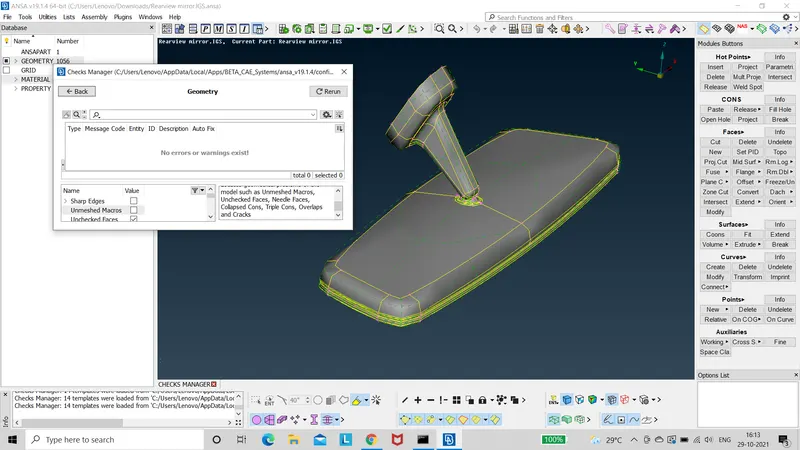

Geometry Check
Geometry Clean up of the model and orient it properly.

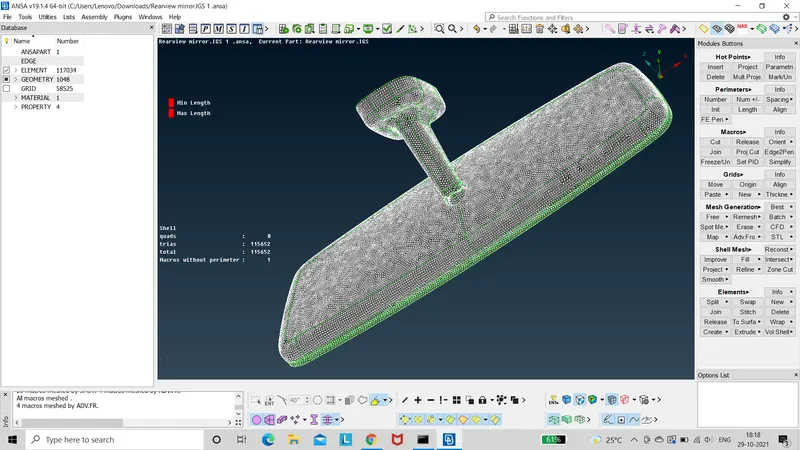

Meshing
Meshing using ortho tria and tria as per required
checking for minimum and maximum length errors of the mesh

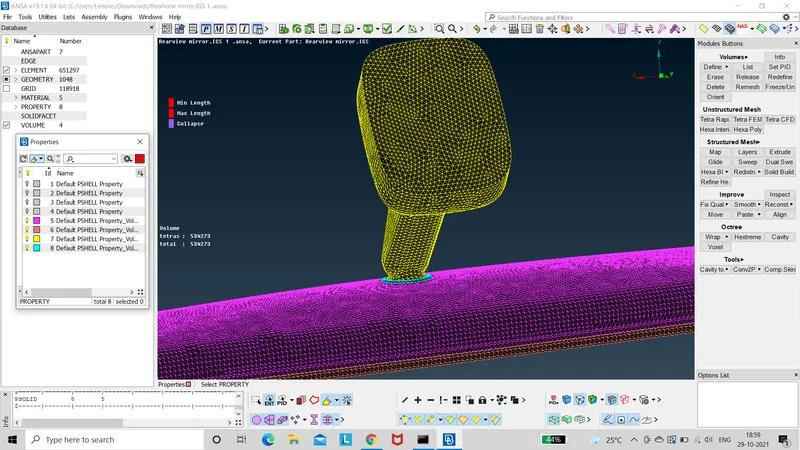

Volume Meshing
The 2D mesh is then defined with Volume Define option , then meshed for volume
Using collapse quality criteria option to check for collapsing of solid mesh.
Learning Outcomes
- Geometry clean up, 2D mesh
- learned to solid mesh the component without any collapse, dips and kinks on the model.
Conclusion
The model has been successfully solid meshed without any errors.
