Week 5 Challenge : Surface wrap on Automotive Assembly
Aim: For the given models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap as shown in the videos. After clearing geometry, Merge all 3 models and perform surface wrap.
Target length for Wrap = 3 mm
Procedure:
- first of all download and import the one by one geometry in ANSA
- then we need to clean up the whole geometry and Delete the unnecessary surfaces by delete option.
- Check for unchecked surfaces and delete that then Remove the duplicated surfaces.
- after that Remove the surrounded features from model and external rings should be deleted
- Fill the necessary gaps to close the surface

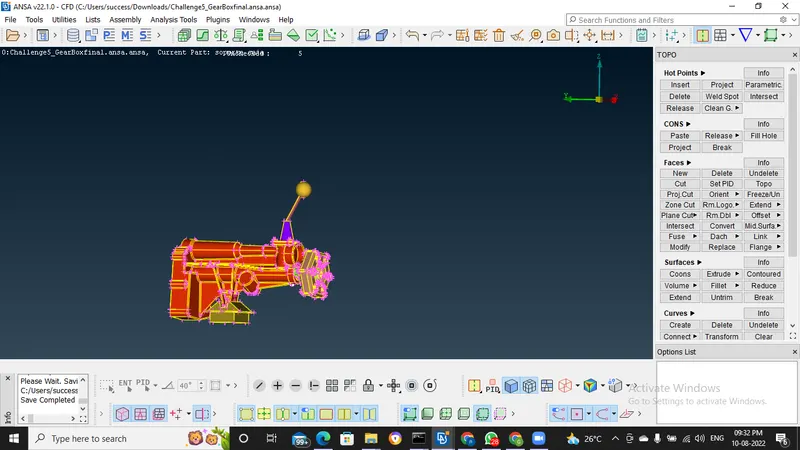

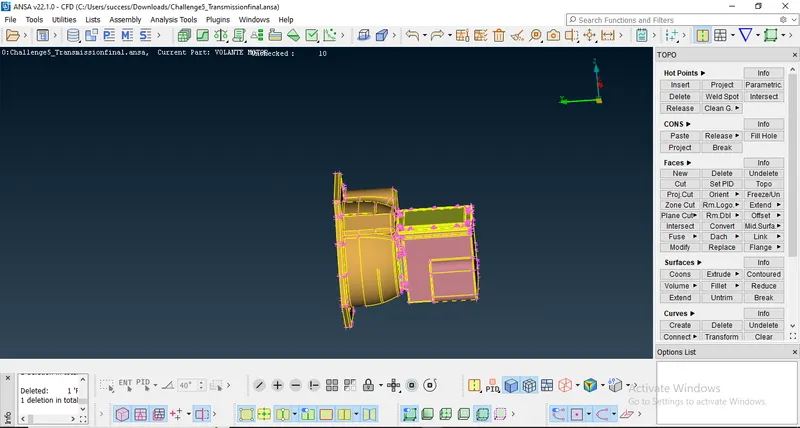

- after that similarly do topo clean up for gear box and trasmission assembly.
- Remove the unwanted triple cons and single cons.
- Now after that merge that 3 model in single assembly. by using merging option.

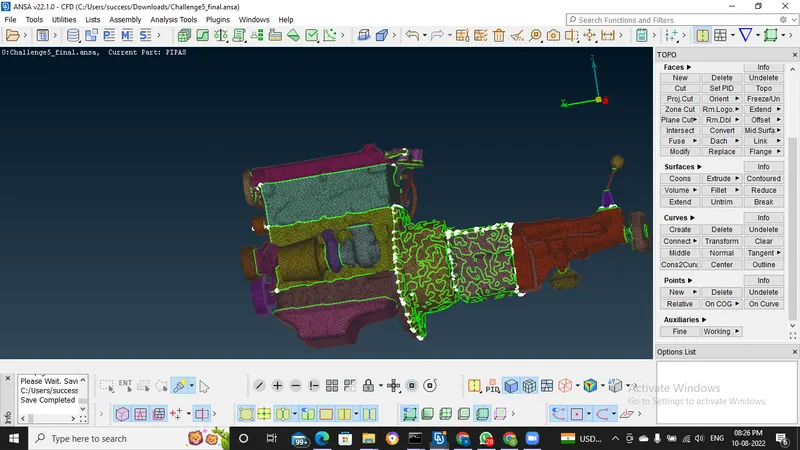

- Go to classic Mesh. select wrap under mesh generation ,Then wrap that model. by assigning mesh parameters
- Select all the PIDs to be meshed and surface wrap
- Click RUN to perform wrap on selected PIDs
- Wrapping is done.
Drive link : https://drive.google.com/file/d/1zofrdtj5jxHN-xUUgrvNLFqItTvAFWnW/view?usp=sharing
