Week 5 Challenge : Surface wrap on Automotive Assembly
Surface wrap on Automotive Assembly
Aim: To perform surface wrap on Automotive Assembly
Objectives:
- For the given models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap as shown in the videos.
- After clearing geometry, Merge all 3 models and perform surface wrap.
Procedure:
1.Clear the unwanted parts and do topo clean up for all the 3 models i.e. engine,gear box and transmission.

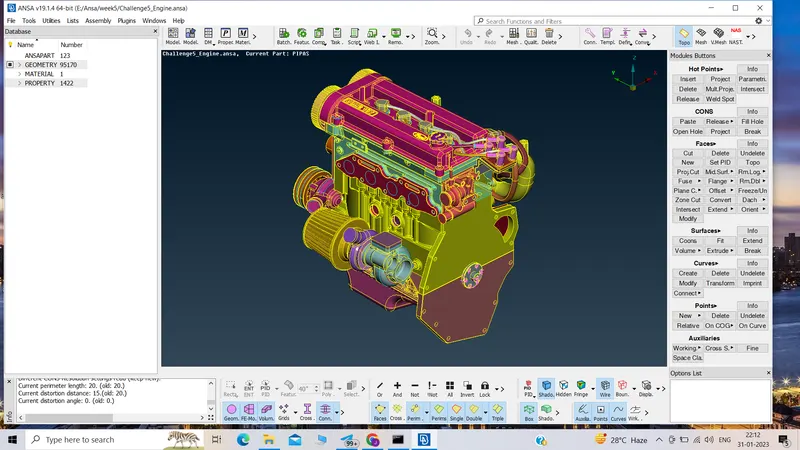

Engine:

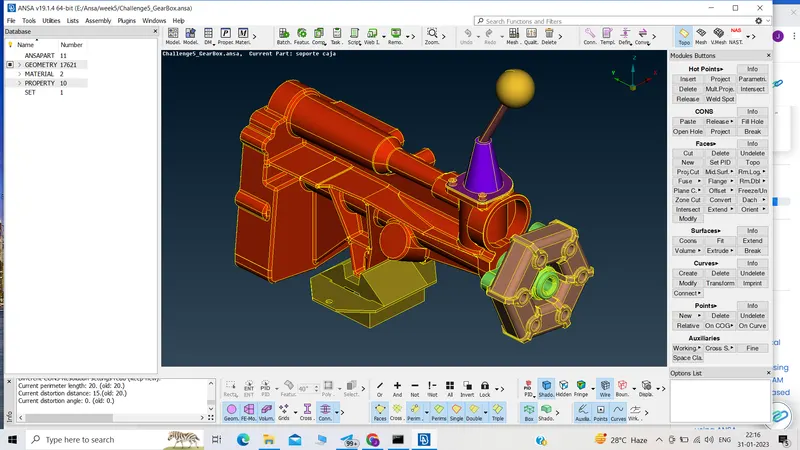

gearbox:

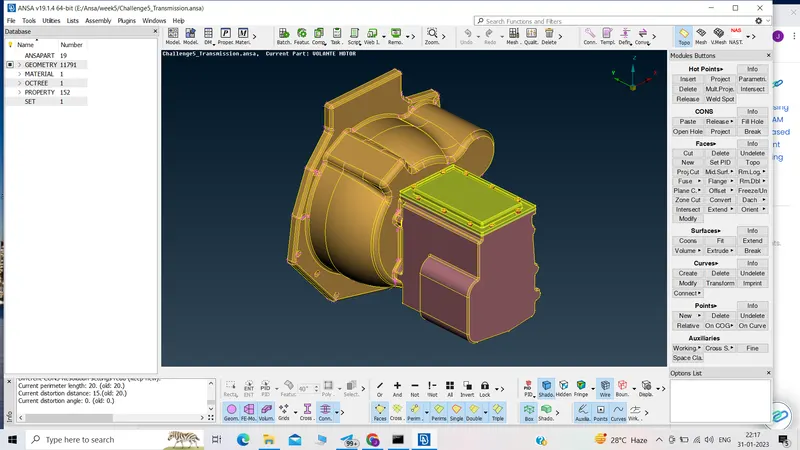

transmission:

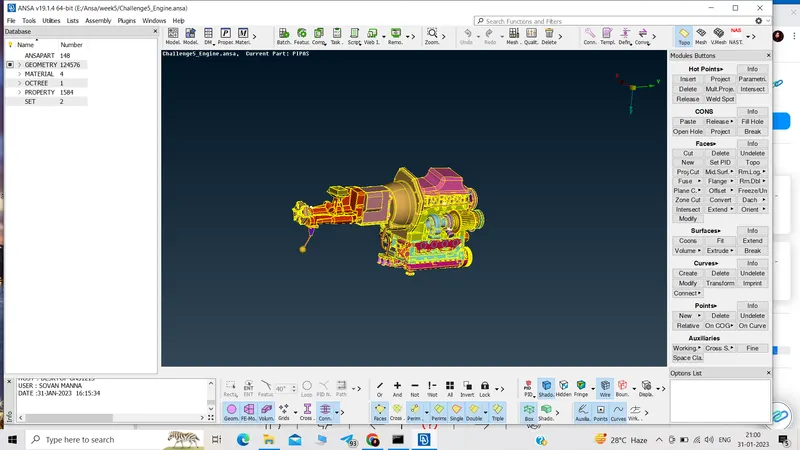

2.Merge all 3 models using file and merge option.
3.Close the holes using creating new surfaces.

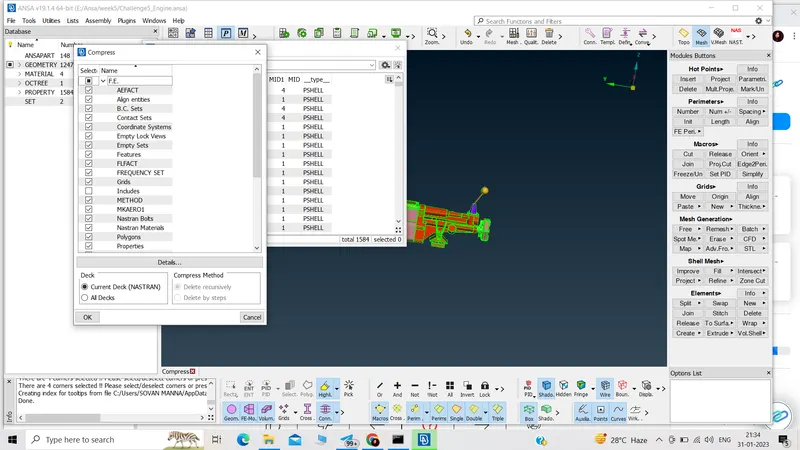

4.Compress unused PIDs.

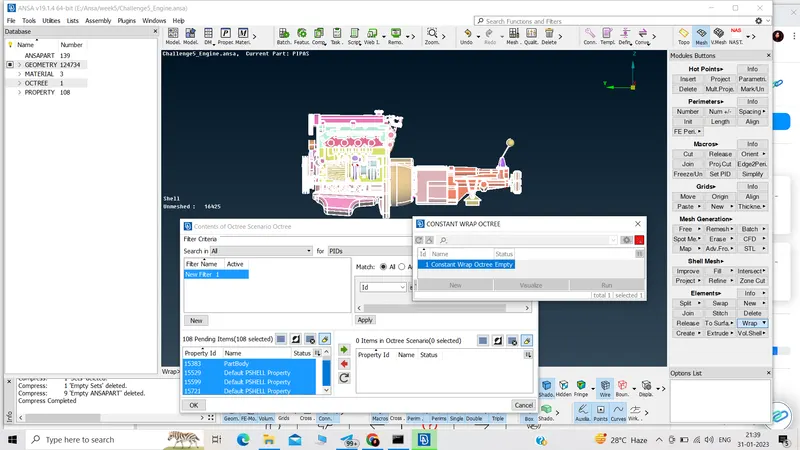

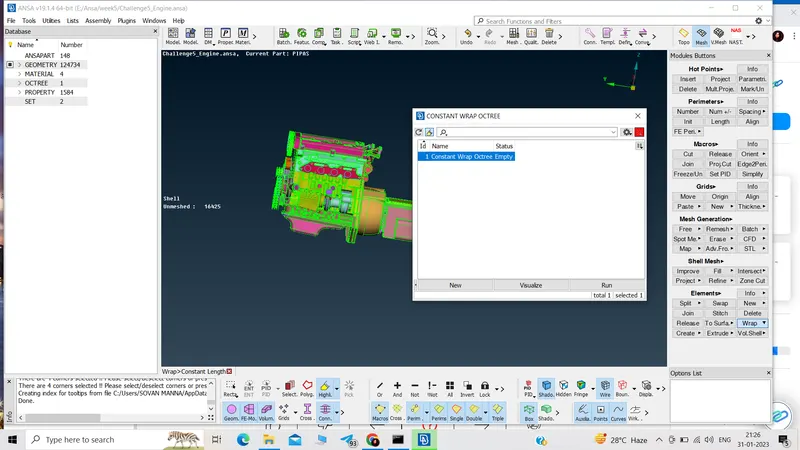

5.Go to mesh and do wrap using constant wrap.
6.Visulalze the surface wrap.
7.Set the traget length to 3mm(constant for all)

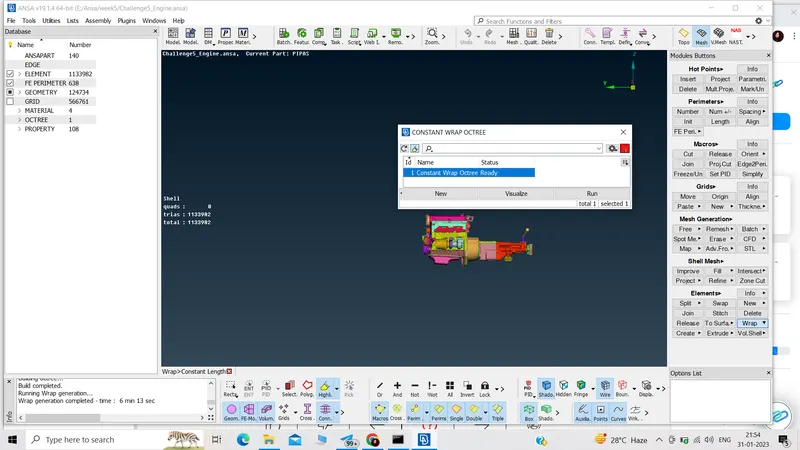

Result:
Learning outcome:
- top cleanup
- merge models
- surface wrap
Conclusion:
To get more accurate result we have to patch the holes accurately.
Assembly file:
https://drive.google.com/file/d/1n2R24uljiZZZ5H2rovD6PSFQx6WIWfp5/view?usp=sharing
