Week 5 Challenge : Surface wrap on Automotive Assembly

Aim:

To perform a Surface wrap on Automotive Assembly

Objectives:
To delete all the unwanted surfaces in the given models.

To merge all 3 models into one.

To create a surface wrap.

Procedure:

Download and open the given files.

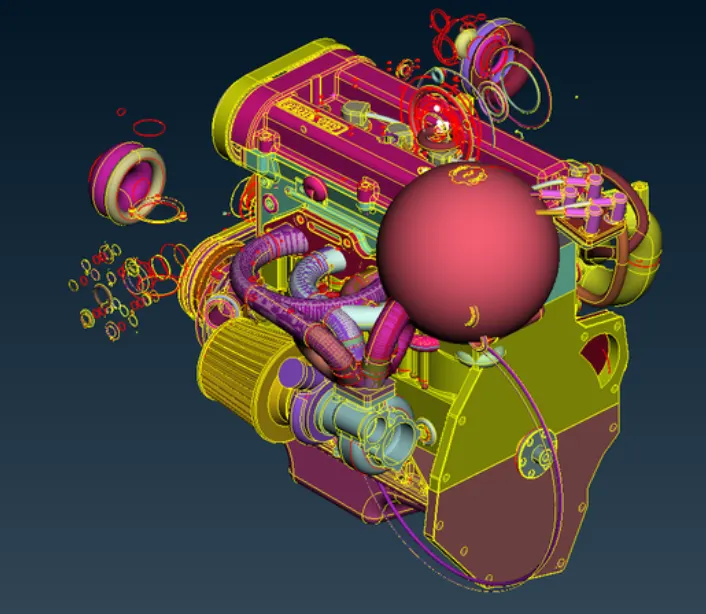

Engine model:

There are lots of unwanted faces are here, So we shall deleted all the unwanted faces.

In this Challlenge, we are going to create surface wrap after merging the models given.

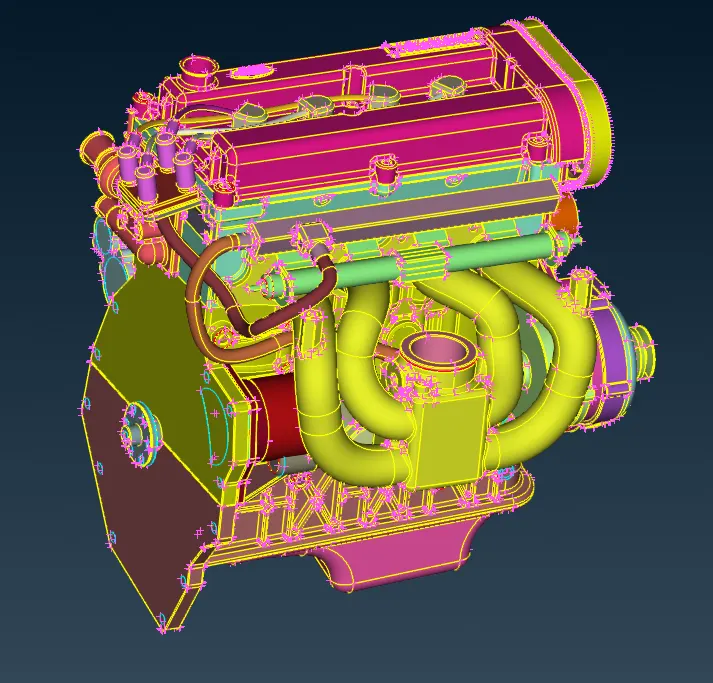

For surface wrap we don't need internal parts, there are lots of tubes in this model, by deleting all those models will be enough for proceeding further. After deleting the unwanted parts.

* After this we have 2 more models to work on, but in those models there isn't much faces that are not wanted.

Transmission:

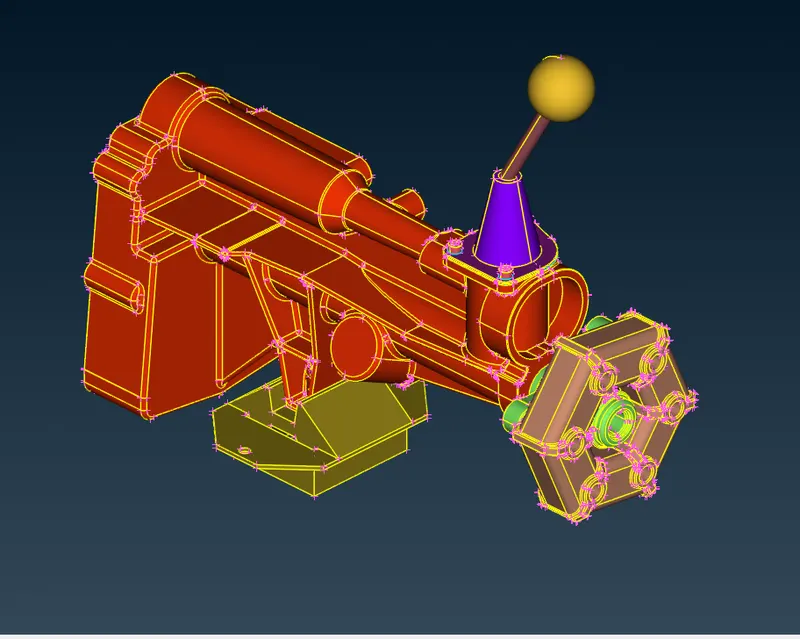

Gearbox:

After clearing unwanted parts from all the models, Now we can merge all the models into one.

For this Challenge, spacing for the models are done for merging, so with that we don't have anything to do now.

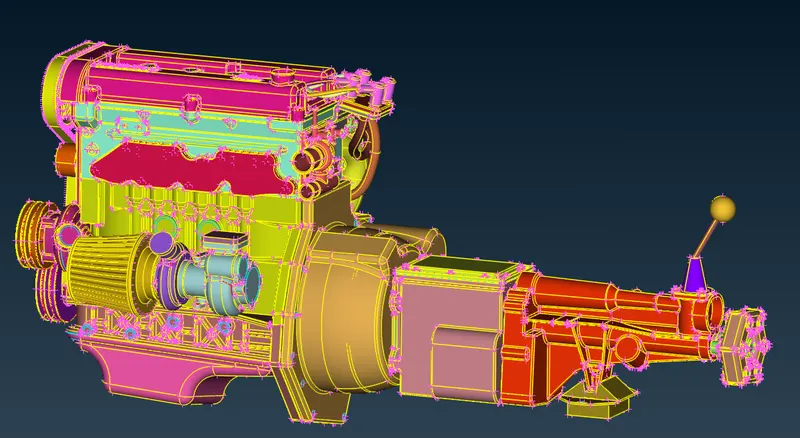

After Merging the models,

Before performing surface wrap, we need to close the lids so that we can avoid some distortion near the Hole areas.

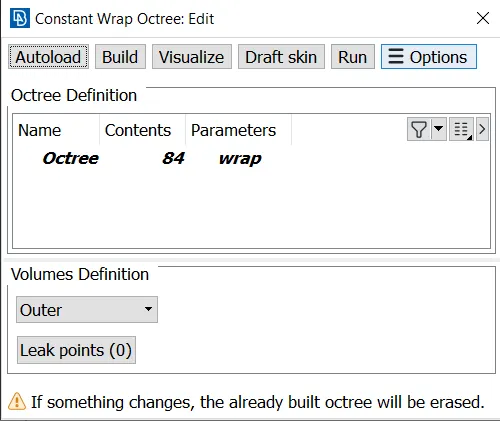

Click on Wrap.

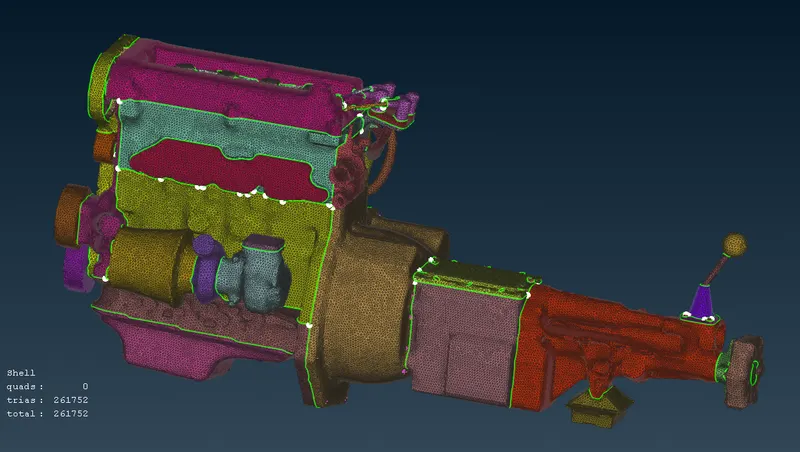

After selecting the contents to surface wrap and naming it as wrap. Then Click on run , after a while we got our surface wrap on our Automotive Assembly.

Conclusion:

The surface wrap is achieved on the given merged components.

The surface is easier to perform since it does not depend on the quality of the wrap on each material as we are not interested in physics in the body.

The effective surface wrap is achieved on the given body for a mesh length of 5mm.

Attached Ansa File link - https://drive.google.com/file/d/1ZklrZr7Dq2XQtMzJxfhfUAi8PsPW0x3N/view?usp=share_link
